arxiv: 2512.07292 · v2 · submitted 2025-12-08 · 💻 cs.CR

Breaking ECDSA with Electromagnetic Side-Channel Attacks: Challenges and Practicality on Modern Smartphones

Felix Oberhansl , Marc Schink , Nisha Jacob Kabakci , Michael Gruber , Dominik Klein , Sven Freud , Tobias Damm , Michael Hartmeier
show 4 more authors
Ivan Gavrilan Silvan Streit Jonas Stappenbeck Andreas Zankl
This is my paper

Pith reviewed 2026-05-17 01:11 UTC · model grok-4.3

classification 💻 cs.CR
keywords ECDSAelectromagnetic side-channelnonce leakagesmartphone SoCOpenSSLlibgcryptsecure elementphysical attacks
0
0 comments X p. Extension

The pith

Electromagnetic leakage lets attackers recover ECDSA secrets from OpenSSL on modern smartphone chips despite added complexity.

A machine-rendered reading of the paper's core claim, the machinery that carries it, and where it could break.

The paper establishes that electromagnetic side-channel analysis remains practical on current smartphone system-on-chips even after years of hardware evolution toward heterogeneous clusters, sub-10 nm processes, and clock speeds above 2 GHz. The authors adapt attack techniques to these platforms and apply the Nonce@Once method to extract ECDSA signing secrets from OpenSSL on both a Raspberry Pi 4 and a Fairphone 4. They further show that a known countermeasure in libgcrypt does not stop the leakage. Readers care because smartphones now handle payments, messaging, and upcoming digital-identity wallets, so any persistent physical attack surface directly affects real-world security assumptions.

Core claim

Using attack methodologies tailored to modern SoCs, the work recovers ECDSA secrets from OpenSSL by mounting the Nonce@Once attack and demonstrates that the libgcrypt countermeasure does not fully mitigate the leakage on tested devices.

What carries the argument

Nonce@Once attack, which extracts the private key by combining partial nonce leakage observed through electromagnetic emanations during ECDSA signing.

If this is right

  • Software libraries such as OpenSSL on Android require additional side-channel protections for ECDSA.
  • The libgcrypt countermeasure must be strengthened or replaced to address the demonstrated leakage.
  • Smartphone threat models for digital-identity and payment applications must account for physical EM access.
  • Hardware vendors should evaluate whether current SoC designs sufficiently suppress exploitable emanations.

Where Pith is reading between the lines

These are editorial extensions of the paper, not claims the author makes directly.

  • If the attack scales, regulatory requirements for the European Digital Identity wallet would need to mandate certified secure elements rather than relying on main SoC software crypto.
  • Similar leakage might affect other elliptic-curve implementations or even post-quantum algorithms on the same platforms.
  • Device-specific case studies suggest that attack success varies with exact OS version and power-management settings, pointing to a need for per-model testing.

Load-bearing premise

Electromagnetic leakage from the processor remains detectable and usable for key recovery on heterogeneous high-frequency sub-10 nm chips.

What would settle it

Observing no usable electromagnetic leakage patterns during repeated ECDSA signing operations on a Snapdragon 750G or similar SoC would falsify the feasibility result.

Figures

Figures reproduced from arXiv: 2512.07292 by Andreas Zankl, Dominik Klein, Felix Oberhansl, Ivan Gavrilan, Jonas Stappenbeck, Marc Schink, Michael Gruber, Michael Hartmeier, Nisha Jacob Kabakci, Silvan Streit, Sven Freud, Tobias Damm.

Figure 1
Figure 1. Figure 1: EM traces for a single Montgomery ladder [PITH_FULL_IMAGE:figures/full_fig_p006_1.png] view at source ↗
Figure 2
Figure 2. Figure 2: Leakage assessment results depicting t-values [PITH_FULL_IMAGE:figures/full_fig_p007_2.png] view at source ↗

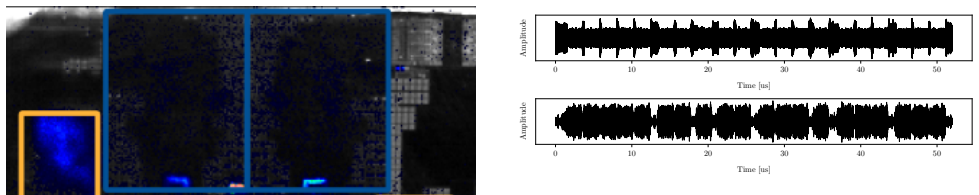

Figure 4
Figure 4. Figure 4: Single step on the Montgomery ladder on one of [PITH_FULL_IMAGE:figures/full_fig_p009_4.png] view at source ↗

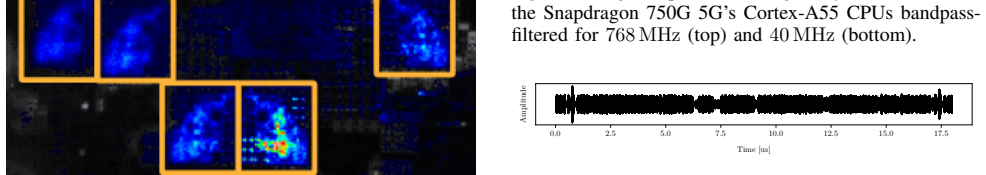

Figure 5
Figure 5. Figure 5: Single step on the Montgomery ladder on one of [PITH_FULL_IMAGE:figures/full_fig_p009_5.png] view at source ↗
Figure 6
Figure 6. Figure 6: STFT for a single step on the Montgomery [PITH_FULL_IMAGE:figures/full_fig_p010_6.png] view at source ↗
Figure 7
Figure 7. Figure 7: Measurement setup for EM SCA of the Fair [PITH_FULL_IMAGE:figures/full_fig_p010_7.png] view at source ↗
Figure 8
Figure 8. Figure 8: Trace of the scalar-by-point multiplication [PITH_FULL_IMAGE:figures/full_fig_p012_8.png] view at source ↗
Figure 9
Figure 9. Figure 9: Success rates for key recovery by lattice re [PITH_FULL_IMAGE:figures/full_fig_p012_9.png] view at source ↗
Figure 10
Figure 10. Figure 10: Raspberry Pi 4 Model B Target of two), which are comparatively short. The operations can be clearly mapped to the 5-2-1-2-3-1-3-3 pattern of blocks in the bandpass-filtered signal and adjacent peaks in the bandpass + absolute + sliding-median filtered signal of [PITH_FULL_IMAGE:figures/full_fig_p018_10.png] view at source ↗

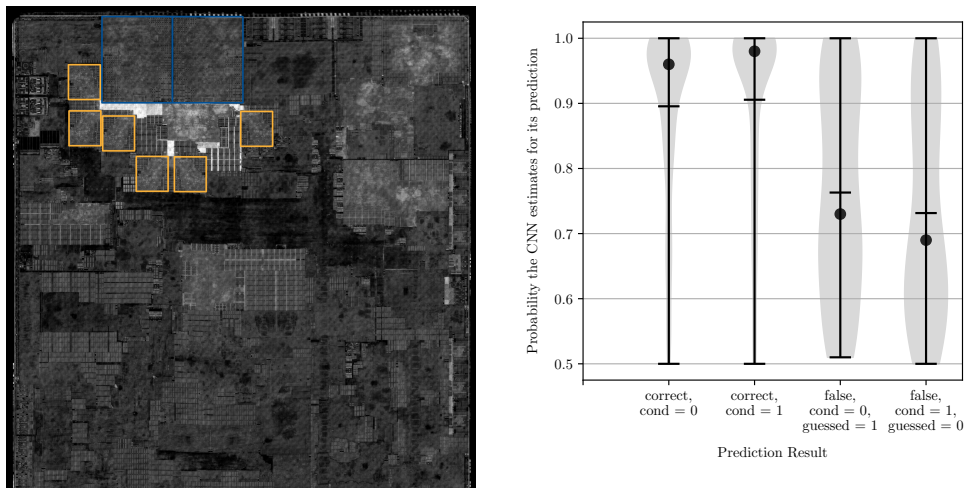

Figure 13
Figure 13. Figure 13: shows that the CNN’s average probability value is around 90 % for correct and 75 % for incorrect guesses. The probability’s standard deviation of incorrect correct, cond = 0 correct, cond = 1 false, cond = 0, guessed = 1 false, cond = 1, guessed = 0 Prediction Result 0.5 0.6 0.7 0.8 0.9 1.0 Probability the CNN estimates for its prediction [PITH_FULL_IMAGE:figures/full_fig_p019_13.png] view at source ↗
read the original abstract

Smartphones handle sensitive tasks such as messaging and payment and may soon support critical electronic identification through initiatives such as the European Digital Identity (EUDI) wallet, currently under development. Yet the susceptibility of modern smartphones to physical side-channel analysis (SCA) is underexplored, with recent work limited to pre-2019 hardware. Since then, smartphone system on chip (SoC) platforms have grown more complex, with heterogeneous processor clusters, sub 10 nm nodes, and frequencies over 2 GHz, potentially complicating SCA. In this paper, we assess the feasibility of electromagnetic (EM) SCA on a Raspberry Pi 4, featuring a Broadcom BCM2711 SoC and a Fairphone 4 featuring a Snapdragon 750G 5G SoC. Using new attack methodologies tailored to modern SoCs, we recover ECDSA secrets from OpenSSL by mounting the Nonce@Once attack of Alam et al. (Euro S&P 2021) and show that the libgcrypt countermeasure does not fully mitigate it. We present case studies illustrating how hardware and software stacks impact EM SCA feasibility. Motivated by use cases such as the EUDI wallet, we survey Android cryptographic implementations and define representative threat models to assess the attack. Our findings show weaknesses in ECDSA software implementations and underscore the need for independently certified secure elements (SEs) in all smartphones.

Editorial analysis

A structured set of objections, weighed in public.

Desk editor's note, referee report, simulated authors' rebuttal, and a circularity audit. Tearing a paper down is the easy half of reading it; the pith above is the substance, this is the friction.

Referee Report

2 major / 2 minor

Summary. The manuscript assesses the feasibility of electromagnetic side-channel attacks on ECDSA implementations within OpenSSL on modern smartphone SoCs, using a Raspberry Pi 4 (Broadcom BCM2711) and Fairphone 4 (Snapdragon 750G). It adapts the Nonce@Once attack from Alam et al. (Euro S&P 2021) with tailored methodologies for heterogeneous, high-frequency (>2 GHz) processors, reports secret recovery, demonstrates that the libgcrypt countermeasure is not fully effective, includes hardware/software case studies, surveys Android cryptographic libraries, and defines threat models motivated by applications such as the EUDI wallet.

Significance. If the experimental claims are substantiated with quantitative metrics, the work would meaningfully extend side-channel analysis to post-2019 smartphone hardware, showing that EM leakage remains exploitable despite sub-10 nm nodes and complex SoC architectures. The practical validation of Nonce@Once on these platforms and the countermeasure analysis provide concrete evidence relevant to mobile security standards and the push for certified secure elements.

major comments (2)
  1. [§5.3] §5.3 (Fairphone 4 / Snapdragon 750G experiments): The manuscript reports successful nonce recovery via the adapted Nonce@Once attack but supplies no quantitative metrics such as leakage amplitude, SNR values, trace quality comparisons to the Raspberry Pi 4, or per-bit error rates. This information is load-bearing for the central claim that tailored EM methods suffice on heterogeneous >2 GHz sub-10 nm SoCs; without it, the feasibility conclusion rests on qualitative success statements alone.
  2. [§6] §6 (libgcrypt countermeasure evaluation): The assertion that the countermeasure does not fully mitigate the attack requires explicit success-rate figures or residual leakage observations after its application. The current presentation leaves unclear whether the attack still recovers sufficient nonce bits for key extraction or merely shows partial leakage, which directly affects the strength of the mitigation-failure conclusion.
minor comments (2)
  1. [Abstract] The abstract states that 'new attack methodologies' are used but does not provide even a one-sentence characterization of the adaptations (e.g., probe positioning, filtering, or synchronization changes), which would improve immediate readability.
  2. [Figures] Figure captions in the experimental sections would benefit from explicit mention of the frequency bands or probe models employed, to allow readers to assess reproducibility of the EM capture setup.

Simulated Author's Rebuttal

2 responses · 0 unresolved

We thank the referee for the constructive and detailed feedback on our manuscript. We address each major comment below and have revised the manuscript to incorporate additional quantitative data where this strengthens the presentation of our results.

read point-by-point responses

  1. Referee: [§5.3] §5.3 (Fairphone 4 / Snapdragon 750G experiments): The manuscript reports successful nonce recovery via the adapted Nonce@Once attack but supplies no quantitative metrics such as leakage amplitude, SNR values, trace quality comparisons to the Raspberry Pi 4, or per-bit error rates. This information is load-bearing for the central claim that tailored EM methods suffice on heterogeneous >2 GHz sub-10 nm SoCs; without it, the feasibility conclusion rests on qualitative success statements alone.

    Authors: We agree that quantitative metrics are necessary to fully substantiate the feasibility claims on modern heterogeneous SoCs. In the revised manuscript we have added SNR measurements, leakage amplitude values, trace quality comparisons between the Broadcom BCM2711 and Snapdragon 750G platforms, and per-bit error rates for nonce recovery in Section 5.3. These additions confirm that the adapted attack extracts usable leakage despite the higher clock frequencies and complex SoC architecture. revision: yes

  2. Referee: [§6] §6 (libgcrypt countermeasure evaluation): The assertion that the countermeasure does not fully mitigate the attack requires explicit success-rate figures or residual leakage observations after its application. The current presentation leaves unclear whether the attack still recovers sufficient nonce bits for key extraction or merely shows partial leakage, which directly affects the strength of the mitigation-failure conclusion.

    Authors: We acknowledge that explicit success-rate figures are required to clarify the strength of the mitigation-failure claim. The revised Section 6 now reports success rates for recovering a sufficient number of nonce bits both with and without the libgcrypt countermeasure, together with observations of residual leakage after countermeasure activation. The updated results show that enough bits remain recoverable for key extraction under the evaluated threat model. revision: yes

Circularity Check

0 steps flagged

No circularity: empirical validation of external attack on new hardware

full rationale

The paper mounts the Nonce@Once attack from the external citation Alam et al. (Euro S&P 2021) and reports new experimental results on modern SoCs (Raspberry Pi 4 and Snapdragon 750G in Fairphone 4). No equations, fitted parameters, or self-referential definitions appear in the provided text; the central claim is an empirical demonstration of feasibility with tailored methodologies rather than a derivation that reduces to its own inputs by construction. Self-citations are absent from the load-bearing steps, and the work remains self-contained against external benchmarks.

Axiom & Free-Parameter Ledger

0 free parameters · 1 axioms · 0 invented entities

This is an experimental security paper with no mathematical derivations or new theoretical constructs; it applies existing side-channel techniques to new hardware targets.

axioms (1)
  • domain assumption ECDSA implementations in OpenSSL and libgcrypt leak sufficient electromagnetic information for nonce recovery under physical access.
    Invoked when claiming successful key recovery on the tested SoCs.

pith-pipeline@v0.9.0 · 5595 in / 1221 out tokens · 30752 ms · 2026-05-17T01:11:14.391159+00:00 · methodology
