abstract

We present an advanced model for describing the readout power dependence of the resonance characteristics of a microwave SQUID multiplexer. Our model proves valid for SQUID screening parameters up to $\beta_\mathrm{L}<1$, hence covering the full range of practically relevant design parameters. We demonstrate that our model significantly improves agreement with experimental data compared to the existing models, thereby enabling optimization beyond the previously accessible parameter space. Moreover, our model supports non-sinusoidal current-phase relations of the rf-SQUID's Josephson junction, allowing, for the first time, for the modeling of devices based on Josephson tunnel junctions with inhomogeneous tunnel barriers. We show that the effects of such inhomogeneities are qualitatively similar to, yet distinct from, those of the screening parameter, making their inclusion essential for accurate characterization. Incorporating these effects yields great improved agreement with measurements, even at readout power conditions well beyond typical operating parameters.

Figures

Figures reproduced from arXiv: 2512.09600 by the authors.

Figure 1

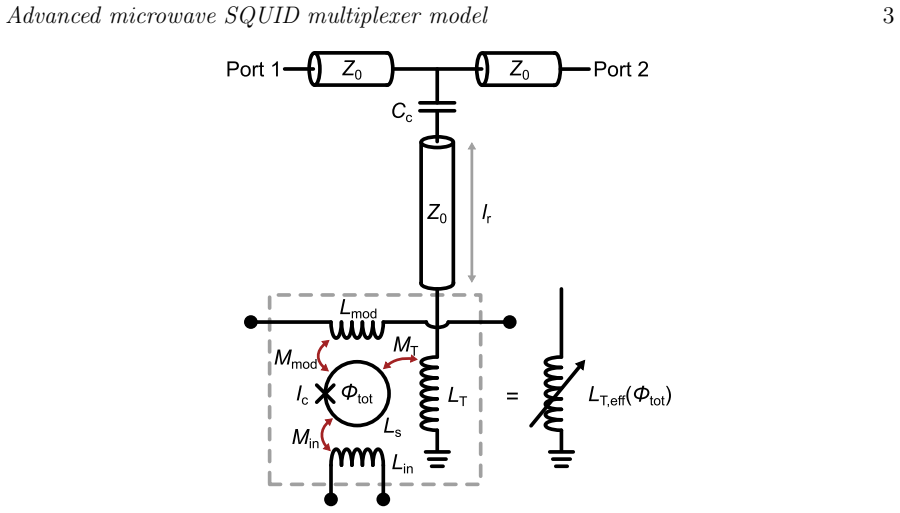

Figure 1. Equivalent circuit diagram of a single µMUX channel. The channel comprises an rf-SQUID containing a Josephson junction with critical current Ic and a closed superconducting loop with inductance LS. The SQUID is inductively coupled to the input coil Lin and the inductor LT, which loads a superconducting quarter-wave microwave resonator. The resonator is coupled to a transmission line via a coupling capacitor Cc. A mo… view at source ↗
Figure 2

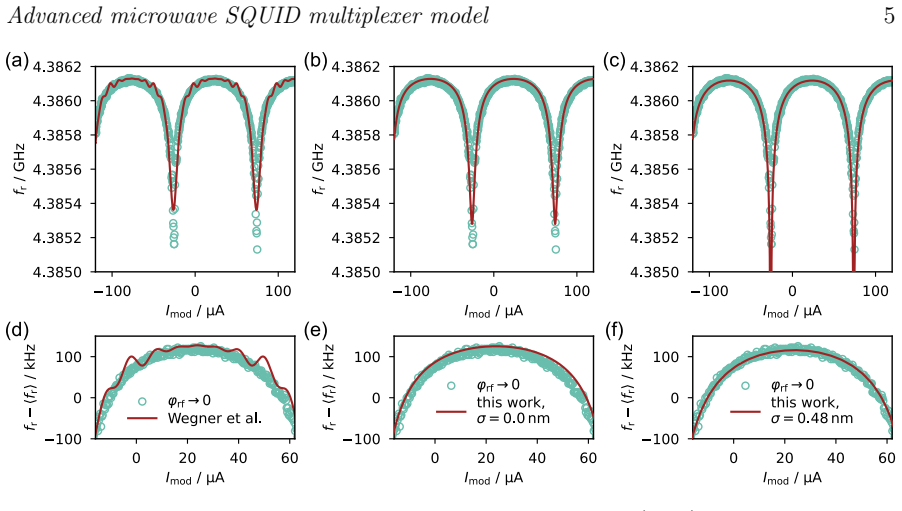

Figure 2. Measured dependence of the resonance frequency [PITH_FULL_IMAGE:figures/full_fig_p005_2.png] view at source ↗
Figure 3

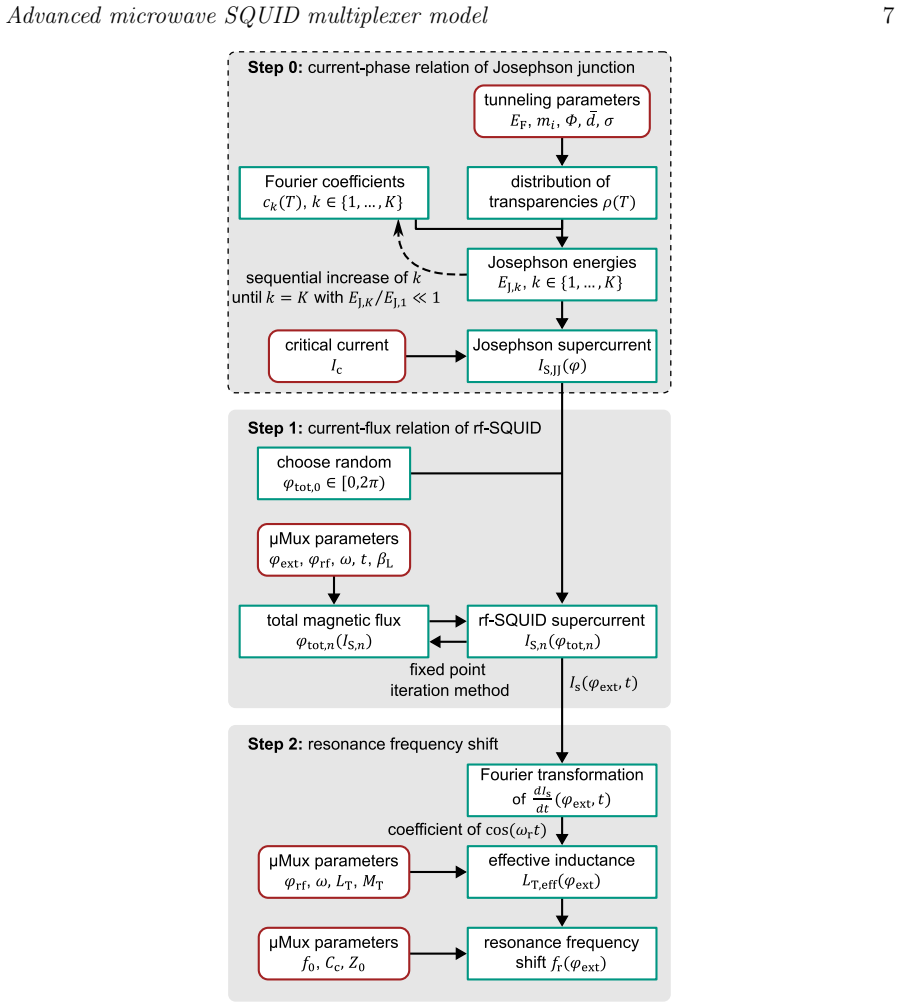

Figure 3. Flowchart outlining our numerical simulation framework. Re [PITH_FULL_IMAGE:figures/full_fig_p007_3.png] view at source ↗
Figures from the paper (4 more)
Figure 4

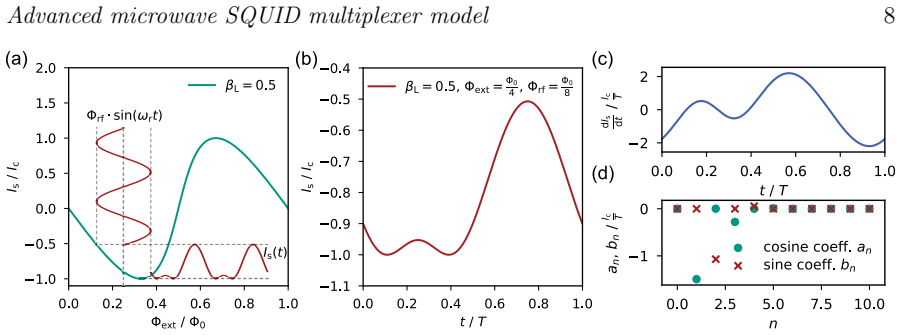

Figure 4. Figure 4: rf-SQUID supercurrent and its time derivative, calculate [PITH_FULL_IMAGE:figures/full_fig_p008_4.png]
Figure 5

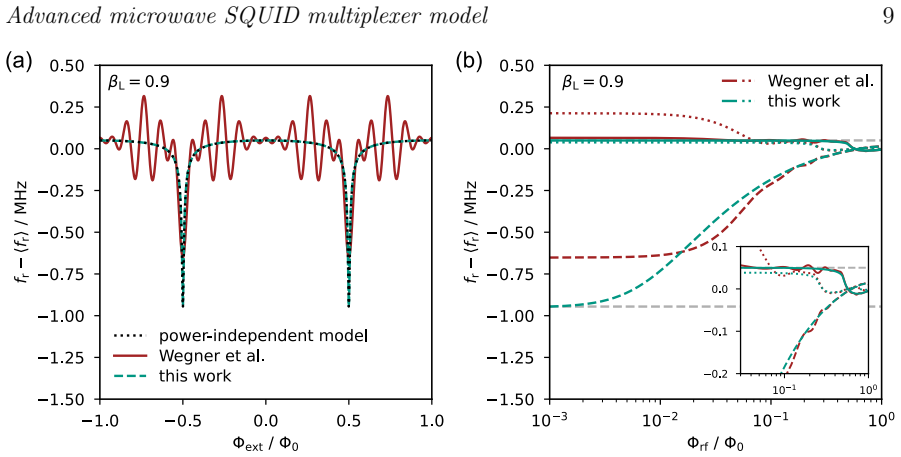

Figure 5. Figure 5: Comparison between the analytical µMUX model presented by Wegner et al. [8] and the present numerical model, assuming an rf-SQUID with hysteresis parameter βL = 0.9. Panel (a) displays the dependence of the resonance frequency fr on the applied magnetic flux in the lim…
Figure 6

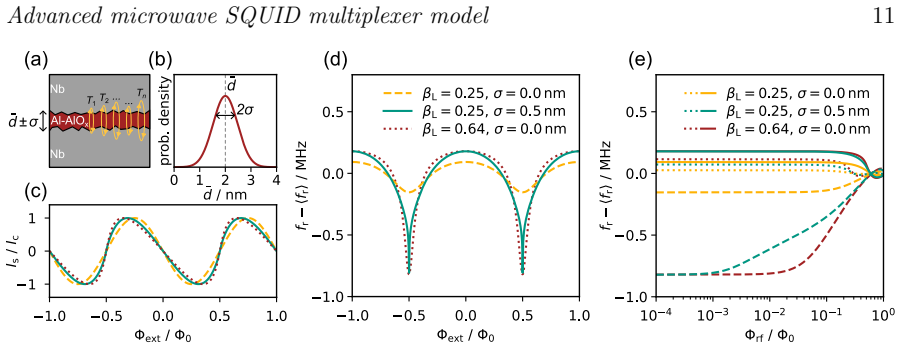

Figure 6. Figure 6: The figures show the effect of an inhomogeneous tunnel b [PITH_FULL_IMAGE:figures/full_fig_p011_6.png]
Figure 7

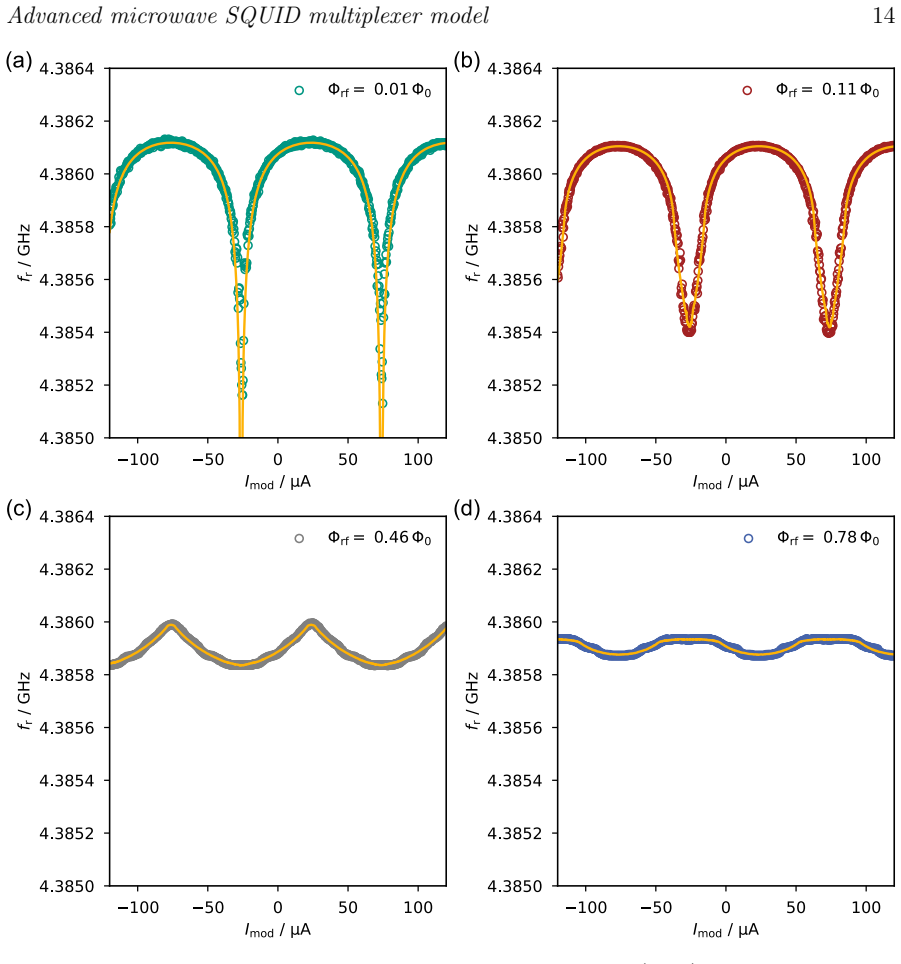

Figure 7. Figure 7: Dependence of the measured resonance frequency [PITH_FULL_IMAGE:figures/full_fig_p014_7.png]
