High-Performance Near-Infrared Quantum Emission from Color Centers in hBN

Sean Doan , Sahil D. Patel , Yilin Chen , Jordan A. Gusdorff. Mark E. Turiansky , Luis Villagomez , Luka Jevremovic , Nicholas Lewis , Kenji Watanabe
show 4 more authors
Takashi Taniguchi Lee C. Bassett Chris Van de Walle Galan Moody
This is my paper

Pith reviewed 2026-05-16 21:54 UTC · model grok-4.3

classification 🪐 quant-ph physics.optics
keywords hexagonal boron nitridecolor centerssingle-photon emittersnear-infraredoxygen plasmaquantum emittersdefect engineering
0
0 comments X

The pith

A simple oxygen-plasma process creates high-performance near-infrared single-photon emitters in hBN.

A machine-rendered reading of the paper's core claim, the machinery that carries it, and where it could break.

The paper establishes that exposing hexagonal boron nitride to oxygen plasma reliably produces single quantum emitters whose zero-phonon lines cover the near-infrared window from 700 to 971 nm. These emitters reach megahertz brightness, show single-photon purity as high as 99.9 percent, and display linewidths down to 2.7 GHz at cryogenic temperatures under quasi-resonant drive, all without blinking. The emitters also resist photobleaching and maintain spectral stability over long times, with roughly half their light concentrated in the zero-phonon line. Control measurements and elemental mapping tie the emission directly to oxygen atoms added by the plasma, while calculations point to O_N V_N and O_N V_N H defect structures as the active centers. This supplies a practical, scalable route to near-infrared quantum light sources in a van der Waals host suitable for quantum communication and networking.

Core claim

We demonstrate a simple and scalable oxygen-plasma process that reproducibly creates single quantum emitters in hBN with blinking-free zero-phonon lines spanning the near-infrared from 700 up to 971 nm. These emitters combine MHz-level brightness, single-photon purity up to 99.9%, and ultranarrow cryogenic linewidths down to 2.7 GHz under quasi-resonant excitation, placing them in a particularly attractive regime for quantum photonics.

What carries the argument

The oxygen-plasma treatment that incorporates oxygen into hBN to form candidate defects O_N V_N and O_N V_N H, which activate the observed near-infrared single-photon emission.

If this is right

  • The emitters provide a scalable source of near-infrared single photons for free-space quantum networking.
  • High photostability and sub-nanometer spectral stability enable extended operation in quantum-photonic devices.
  • Quasi-resonant excitation yields linewidths narrow enough for quantum interference and networking protocols.
  • Weak electron-phonon coupling concentrates up to 50% of the emission in the zero-phonon line, improving collection efficiency.

Where Pith is reading between the lines

These are editorial extensions of the paper, not claims the author makes directly.

  • If oxygen incorporation is the key activator, analogous plasma steps could activate similar emitters in other two-dimensional materials.
  • The 700-971 nm range sits near fiber-compatible bands, suggesting possible use in hybrid quantum networks that combine free-space and fiber links.
  • Pinpointing the defect candidates opens a path to deliberate defect engineering that could add spin control or further narrow the lines.

Load-bearing premise

Oxygen atoms introduced by the plasma are the necessary and sufficient ingredient that creates the population of these specific near-infrared emitting defects.

What would settle it

Detection of identical high-performance NIR emitters in hBN samples that received no oxygen plasma or show no oxygen incorporation by elemental mapping.

Figures

Figures reproduced from arXiv: 2512.16197 by Chris Van de Walle, Galan Moody, Jordan A. Gusdorff. Mark E. Turiansky, Kenji Watanabe, Lee C. Bassett, Luis Villagomez, Luka Jevremovic, Nicholas Lewis, Sahil D. Patel, Sean Doan, Takashi Taniguchi, Yilin Chen.

Figure 1
Figure 1. Figure 1: b displays an optical micrograph of a represen￾tative processed hBN flake of ∼50 nm thickness undergo￾ing the outlined fabrication procedure. The dashed box represents the hyperspectral confocal photoluminescence (PL) mapping scan area performed at 4 K which is shown in Fig. 1c. We observe high density generation of local￾ized hotspots corresponding to single defect SQEs that emit in the NIR spectrum acros… view at source ↗
Figure 2

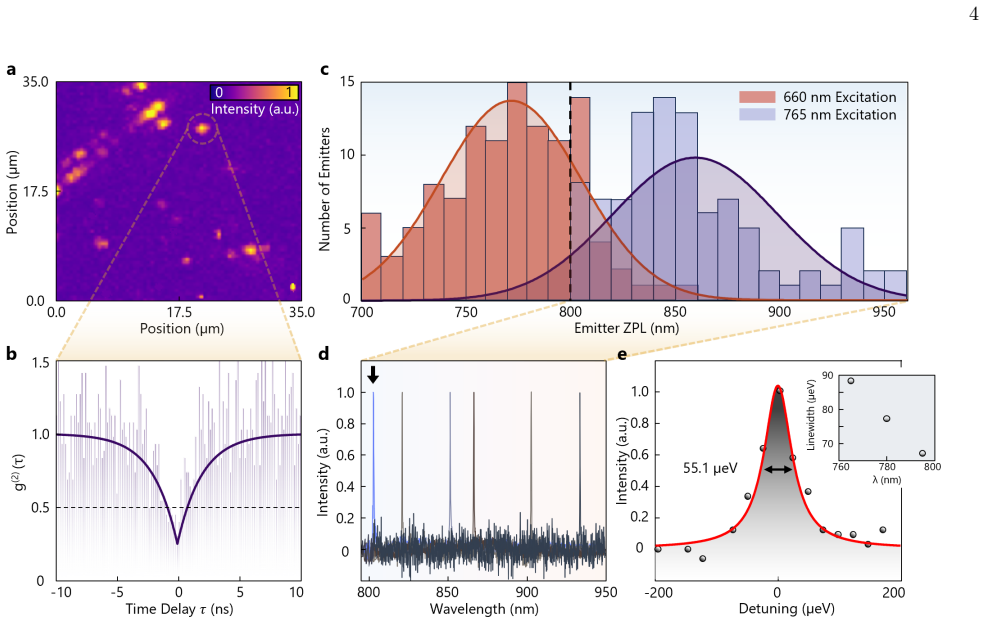

Figure 2. Figure 2: FIG. 2 [PITH_FULL_IMAGE:figures/full_fig_p004_2.png] view at source ↗
Figure 3
Figure 3. Figure 3: a shows the resulting fit for a SQE excited with 660 nm pump with a fitted ZPL of 791.3 nm (1.567 eV). The main panel displays the normalized lineshape [PITH_FULL_IMAGE:figures/full_fig_p005_3.png] view at source ↗
Figure 4

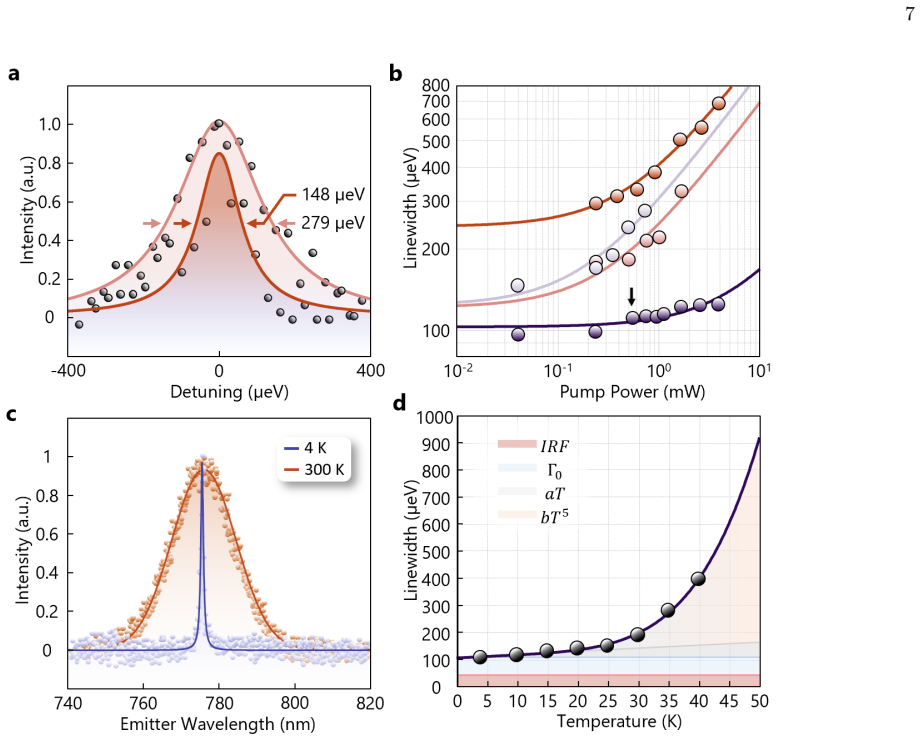

Figure 4. Figure 4: FIG. 4 [PITH_FULL_IMAGE:figures/full_fig_p007_4.png] view at source ↗
Figure 5
Figure 5. Figure 5: FIG. 5 [PITH_FULL_IMAGE:figures/full_fig_p008_5.png] view at source ↗
read the original abstract

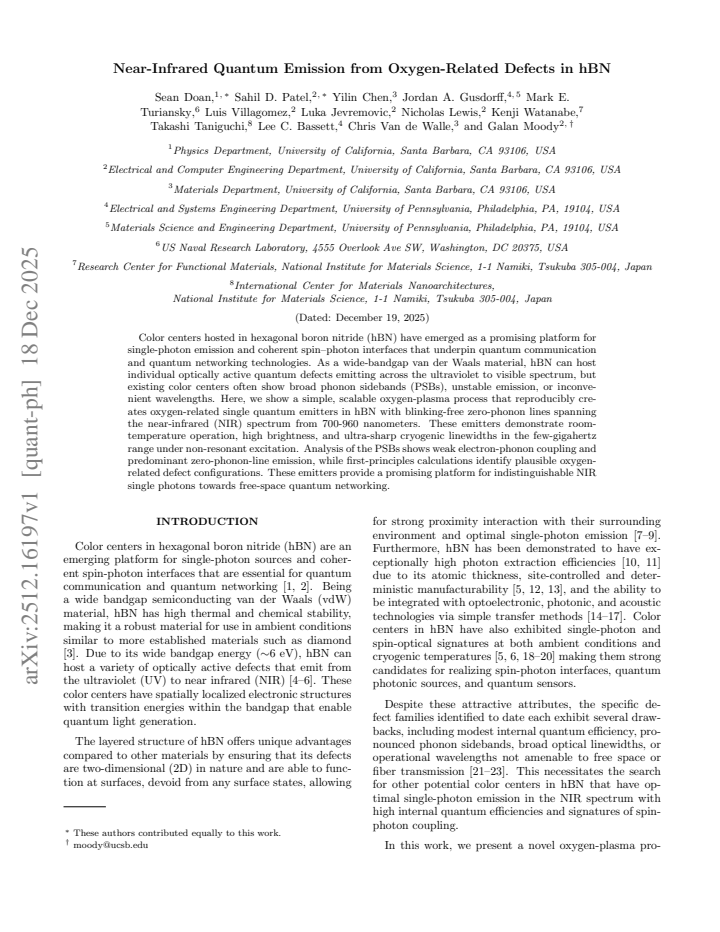

Color centers hosted in hexagonal boron nitride have emerged as a highly promising platform for single-photon emission and spin-photon technologies relevant to quantum communication and quantum networking. As a wide-bandgap van der Waals material, hBN can host optically active quantum defects across a broad spectral range. Here, we demonstrate a simple and scalable oxygen-plasma process that reproducibly creates single quantum emitters in hBN with blinking-free zero-phonon lines spanning the near-infrared from 700 up to 971 nm. These emitters combine MHz-level brightness, single-photon purity up to 99.9\%, and ultranarrow cryogenic linewidths down to 2.7~GHz under quasi-resonant excitation, placing them in a particularly attractive regime for quantum photonics. Photostability measurements further reveal resistance to photobleaching, sub-nm spectral stability over long timescales, and near-shot-noise-limited intensity fluctuations. Analysis of the phonon sidebands shows weak vibronic coupling and ZPL-dominated emission, with Debye--Waller factors approaching 50\%. Control experiments together with EDS elemental mapping support oxygen incorporation as a necessary ingredient in activating the NIR emitter population, while first-principles calculations identify O$_N$V$_N$ and O$_N$V$_N$H as the leading defect candidates. These results establish a high-performance NIR quantum-emitter platform in hBN for free-space quantum networking and future integrated quantum-photonic architectures.

Editorial analysis

A structured set of objections, weighed in public.

Desk editor's note, referee report, simulated authors' rebuttal, and a circularity audit. Tearing a paper down is the easy half of reading it; the pith above is the substance, this is the friction.

Referee Report

2 major / 2 minor

Summary. The manuscript reports a scalable oxygen-plasma treatment that creates single quantum emitters in hBN with blinking-free zero-phonon lines spanning 700–971 nm. These emitters exhibit MHz-level brightness, single-photon purity up to 99.9%, cryogenic linewidths down to 2.7 GHz under quasi-resonant excitation, photostability, sub-nm spectral stability, and Debye–Waller factors approaching 50%. Control experiments and EDS mapping are presented to support oxygen incorporation as a necessary ingredient, while first-principles calculations identify O_N V_N and O_N V_N H as leading defect candidates.

Significance. If the central experimental claims hold, the work provides a simple, reproducible route to high-performance NIR single-photon sources in hBN. The combination of spectral range, brightness, purity, and narrow linewidths would be attractive for free-space quantum networking and integrated photonics. Credit is due for the reported metrics, the inclusion of independent control samples and elemental mapping, and the separate first-principles defect survey.

major comments (2)
  1. [Control experiments and EDS mapping] Control experiments and EDS mapping (referenced in the abstract and results section): the manuscript states that these support oxygen as a necessary ingredient, yet provides no quantitative emitter-density statistics, yield histograms, or direct side-by-side comparisons (e.g., O2 plasma versus Ar or N2 plasma, or annealed controls). Without such data it remains unclear whether the observed NIR emitter population is specifically activated by oxygen incorporation rather than generic plasma damage or adventitious impurities.
  2. [First-principles calculations] Defect assignment (first-principles section): O_N V_N and O_N V_N H are identified as leading candidates, but the manuscript does not report a direct, quantitative comparison between the calculated zero-phonon-line energies and the measured experimental ZPL distribution (700–971 nm). This weakens the link between the observed optical properties and the proposed microscopic structures.
minor comments (2)
  1. [Abstract and Methods] The abstract and methods would benefit from explicit statements of the number of devices measured, the total number of emitters characterized, and the criteria used to select the reported linewidth and purity values.
  2. [Figures on photostability] Figure captions for the photostability and spectral-stability data should include the total observation time and the number of independent traces shown.

Simulated Author's Rebuttal

2 responses · 0 unresolved

We thank the referee for their constructive feedback and positive assessment of the significance of our work. We address each major comment below and will incorporate revisions to strengthen the manuscript.

read point-by-point responses

  1. Referee: [Control experiments and EDS mapping] Control experiments and EDS mapping (referenced in the abstract and results section): the manuscript states that these support oxygen as a necessary ingredient, yet provides no quantitative emitter-density statistics, yield histograms, or direct side-by-side comparisons (e.g., O2 plasma versus Ar or N2 plasma, or annealed controls). Without such data it remains unclear whether the observed NIR emitter population is specifically activated by oxygen incorporation rather than generic plasma damage or adventitious impurities.

    Authors: We agree that quantitative statistics would further strengthen the evidence for oxygen-specific activation. Our existing control experiments (Ar plasma, N2 plasma, and annealed samples) showed no NIR emitters, and EDS mapping indicated oxygen incorporation correlated with emitter presence. In the revised manuscript we will add emitter-density histograms across multiple samples for O2-plasma versus control treatments, together with explicit side-by-side yield comparisons, to provide the requested quantitative support. revision: yes

  2. Referee: [First-principles calculations] Defect assignment (first-principles section): O_N V_N and O_N V_N H are identified as leading candidates, but the manuscript does not report a direct, quantitative comparison between the calculated zero-phonon-line energies and the measured experimental ZPL distribution (700–971 nm). This weakens the link between the observed optical properties and the proposed microscopic structures.

    Authors: We thank the referee for this observation. The original calculations focused on formation energies, charge states, and electronic structure to identify candidates, but a direct overlay with the experimental ZPL histogram was not included. In the revised version we will add a comparison figure (or table) that plots the calculated ZPL energies for O_N V_N and O_N V_N H (with estimated uncertainties from the DFT methodology) against the measured experimental distribution spanning 700–971 nm, thereby strengthening the connection between theory and experiment. revision: yes

Circularity Check

0 steps flagged

No significant circularity; claims rest on independent experimental controls and separate calculations

full rationale

The paper presents an experimental demonstration of emitter creation via oxygen-plasma treatment on hBN, supported by control experiments, EDS elemental mapping, and photostability measurements. Defect candidates (O_N V_N and O_N V_N H) are identified via first-principles calculations that are independent of the optical data fitting. No load-bearing steps reduce to self-definition, fitted inputs renamed as predictions, or self-citation chains; the central claims are empirically grounded with external theoretical support rather than internally circular.

Axiom & Free-Parameter Ledger

0 free parameters · 2 axioms · 2 invented entities

The central claim rests on standard solid-state physics assumptions plus the interpretation that plasma-induced oxygen creates the observed defects; no free parameters are fitted to the optical spectra themselves.

axioms (2)
  • standard math Standard quantum mechanics and optical selection rules govern single-photon emission from point defects
    Invoked implicitly when interpreting zero-phonon lines and single-photon purity measurements
  • domain assumption First-principles DFT calculations accurately predict defect formation energies and optical transitions in hBN
    Used to identify O_N V_N and O_N V_N H as leading candidates
invented entities (2)
  • O_N V_N defect no independent evidence
    purpose: Proposed atomic structure responsible for the NIR emission
    Identified by first-principles calculations as a candidate; no independent experimental signature beyond the optical data is provided in the abstract
  • O_N V_N H defect no independent evidence
    purpose: Alternative candidate structure for the NIR emitter
    Also identified by calculations; same limitation on independent evidence
