DiffeoMorph: Learning to Morph 3D Shapes Using Differentiable Agent-Based Simulations

Seong Ho Pahng , Guoye Guan , Benjamin Fefferman , Sahand Hormoz This is my paper

Pith reviewed 2026-05-16 21:01 UTC · model grok-4.3

classification 💻 cs.LG cs.MAcs.ROq-bio.QM
keywords DiffeoMorphagent-based morphogenesisdifferentiable simulationZernike polynomialsSE(3)-equivariant GNNdistributed control3D shape formationswarm robotics
0
0 comments X

The pith

DiffeoMorph trains shared agent rules so populations self-organize into complex 3D target shapes from minimal initial patterns.

A machine-rendered reading of the paper's core claim, the machinery that carries it, and where it could break.

The paper introduces an end-to-end differentiable framework in which each agent follows the same update rule based on an SE(3)-equivariant graph neural network that processes its internal state and signals from neighbors. Training relies on a shape-matching loss that represents both predicted and target forms as continuous distributions via 3D Zernike polynomials, making the loss invariant to agent ordering, count, and global orientation after an optimal alignment rotation. This setup lets the system learn distributed control protocols that achieve precise global morphologies without central coordination. A sympathetic reader would care because the same mechanism could illuminate how biological collectives produce reliable structures and could supply design rules for robotic swarms or programmable materials.

Core claim

DiffeoMorph is an end-to-end differentiable framework for learning a morphogenesis protocol in which agents update position and internal state through an SE(3)-equivariant graph neural network; the system is trained by a new loss that compares predicted and target shapes as continuous spatial distributions expressed with 3D Zernike polynomials, after an alignment step that rotates the predicted spectrum to best match the target while preserving reflection sensitivity, thereby enabling formation of a range of complex 3D shapes from minimally patterned initial conditions.

What carries the argument

SE(3)-equivariant graph neural network for local agent updates together with the 3D Zernike polynomial loss plus optimal rotation alignment that compares shapes as continuous distributions.

If this is right

  • Distributed control strategies can be learned that achieve precise global 3D patterns from local interactions alone.
  • Shape comparison becomes independent of agent ordering, number, and orientation, allowing flexible population sizes.
  • The same framework supplies a general method for training swarm behaviors in robotics and self-assembly systems.
  • Benchmarking shows the Zernike loss outperforms standard point-cloud distance metrics on shape-matching tasks.

Where Pith is reading between the lines

These are editorial extensions of the paper, not claims the author makes directly.

  • If the simulation faithfully captures physical interactions, the learned protocols could be transferred to real-world robotic or biological experiments.
  • The approach could be extended to growing or dividing agent populations by making the graph neural network handle variable node counts during training.
  • Connections emerge between multi-agent learning and classical models of pattern formation that rely on continuous reaction-diffusion fields.

Load-bearing premise

The learned protocols produced by the differentiable Zernike-loss simulation will continue to work when applied to shapes or agent counts outside the specific training demonstrations.

What would settle it

Train a protocol on one collection of target shapes and a fixed agent count, then test whether the identical protocol produces the correct morphology for an untrained target shape or with a substantially different number of agents.

Figures

Figures reproduced from arXiv: 2512.17129 by Benjamin Fefferman, Guoye Guan, Sahand Hormoz, Seong Ho Pahng.

Figure 1
Figure 1. Figure 1: FIG. 1. Overview of the morphogenesis model and shape optimization of DiffeoMorph. ( [PITH_FULL_IMAGE:figures/full_fig_p003_1.png] view at source ↗
Figure 2

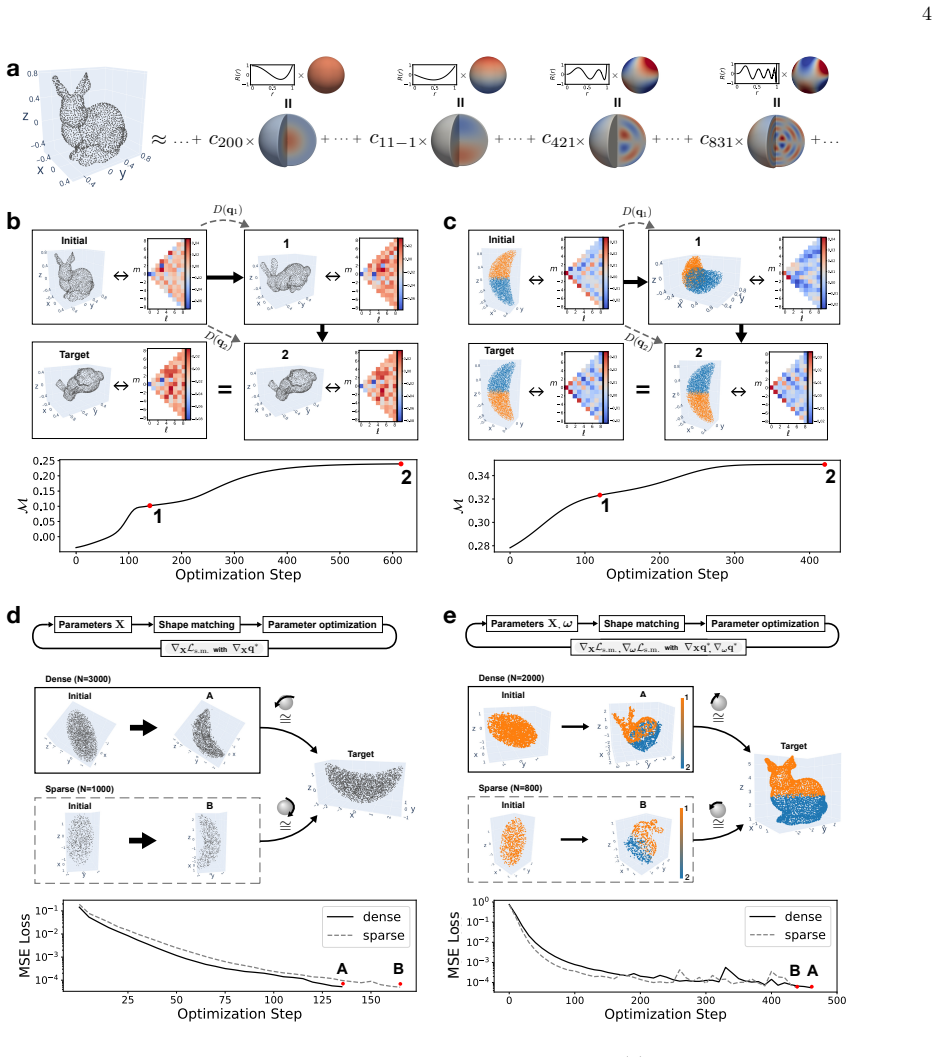

Figure 2. Figure 2: FIG. 2. Spectral alignment and shape optimization by matching 3D Zernike moments. ( [PITH_FULL_IMAGE:figures/full_fig_p004_2.png] view at source ↗
Figure 3

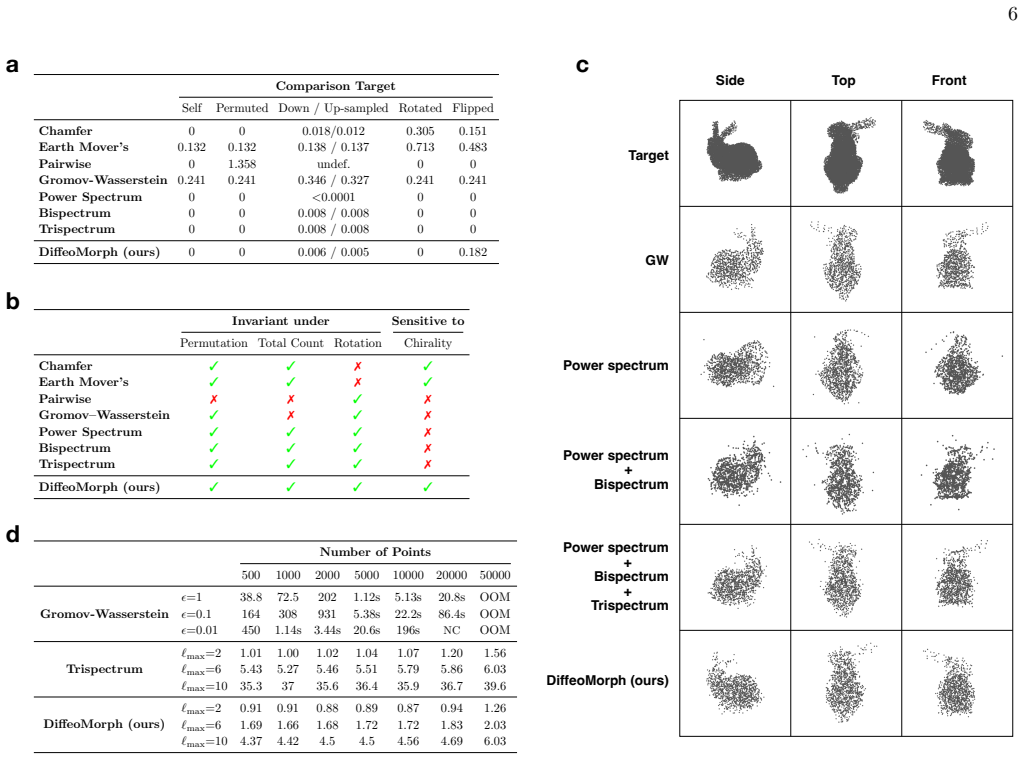

Figure 3. Figure 3: FIG. 3. Benchmarking the proposed loss. ( [PITH_FULL_IMAGE:figures/full_fig_p006_3.png] view at source ↗
Figure 4

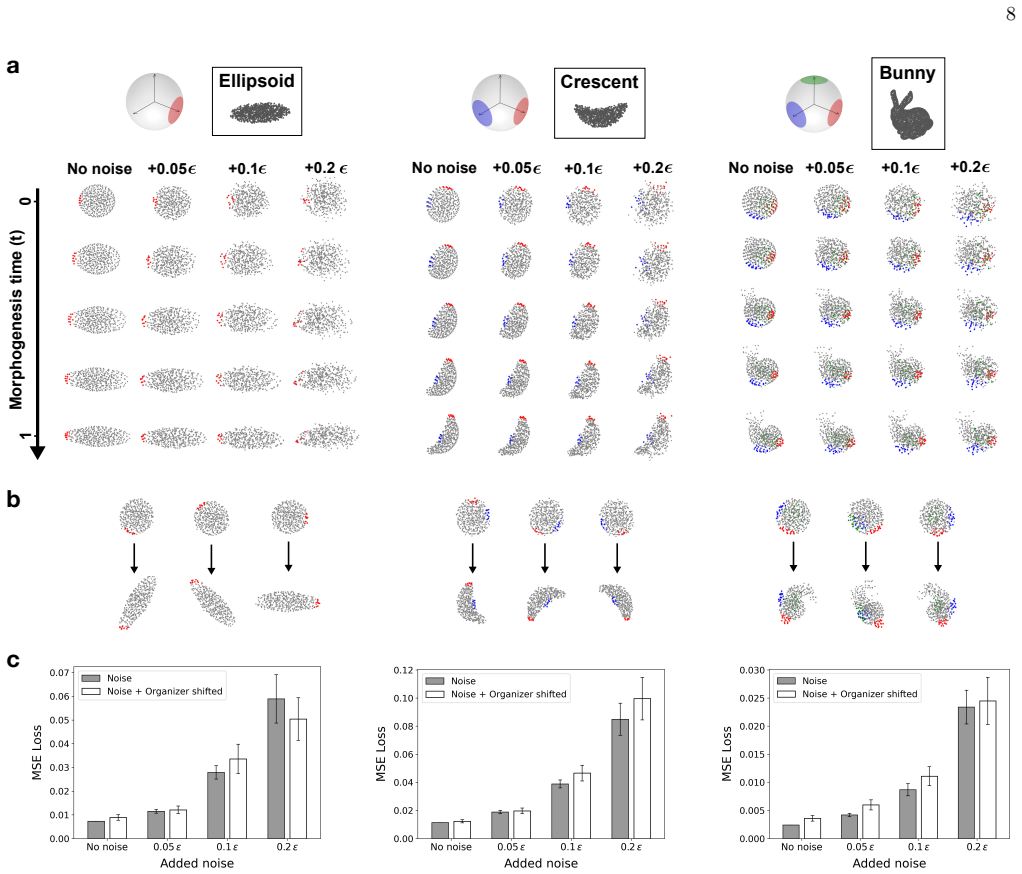

Figure 4. Figure 4: FIG. 4. Visualization of morphogenesis trajectories from trained models. ( [PITH_FULL_IMAGE:figures/full_fig_p008_4.png] view at source ↗
Figure 5

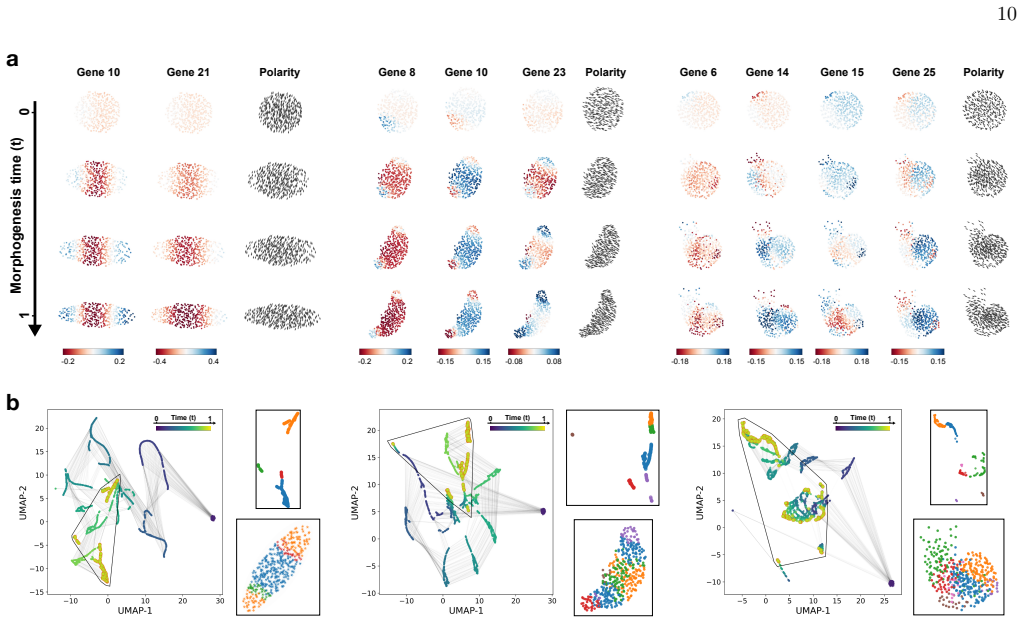

Figure 5. Figure 5: FIG. 5. Visualization of the evolution of internal states during morphogenesis. ( [PITH_FULL_IMAGE:figures/full_fig_p010_5.png] view at source ↗
read the original abstract

Biological systems can form complex three-dimensional structures through the collective behavior of agents that share a common update rule and operate without central control. How such distributed control gives rise to precise global patterns remains a central question not only in developmental biology but also in distributed robotics, programmable matter, and multi-agent learning. Here, we introduce DiffeoMorph, an end-to-end differentiable framework for learning a morphogenesis protocol that guides a population of agents to morph into a target 3D shape. Each agent updates its position and internal state using an SE(3)-equivariant graph neural network, based on its own internal state and signals received from other agents. To train this system, we introduce a new shape-matching loss based on 3D Zernike polynomials, which compares the predicted and target shapes as continuous spatial distributions, not as discrete point clouds, and is invariant to agent ordering, number of agents, and global orientation. To achieve rotation invariance while preserving reflection sensitivity, we include an alignment step that optimally rotates the predicted Zernike spectrum to match the target before computing the loss. We perform benchmarking to establish the advantages of our shape-matching loss over other standard distance metrics for shape comparison tasks. We then demonstrate that DiffeoMorph can form a range of complex shapes from minimally patterned initial conditions. DiffeoMorph provides a general framework for learning distributed control strategies for morphogenesis, swarm robotics, and programmable self-assembly.

Editorial analysis

A structured set of objections, weighed in public.

Desk editor's note, referee report, simulated authors' rebuttal, and a circularity audit. Tearing a paper down is the easy half of reading it; the pith above is the substance, this is the friction.

Referee Report

2 major / 2 minor

Summary. The paper introduces DiffeoMorph, an end-to-end differentiable framework in which agents update positions and states via an SE(3)-equivariant GNN to form target 3D shapes from minimal initial conditions. Training uses a novel Zernike-polynomial shape-matching loss that treats shapes as continuous distributions and is invariant to agent count, ordering, and global orientation (with an explicit alignment step for rotation invariance). The manuscript reports benchmarking of this loss against standard metrics and demonstrations that the system can produce a range of complex morphologies.

Significance. If the central claims hold, the work provides a general, differentiable approach to learning distributed control protocols for morphogenesis and self-assembly. The Zernike loss and SE(3)-equivariant architecture are concrete technical contributions that address invariance issues in multi-agent shape formation; successful transfer of learned protocols would have clear implications for swarm robotics and programmable matter.

major comments (2)
  1. [Experiments] Experiments section: the reported demonstrations are confined to the same shapes used during training; no held-out shape tests, cross-shape protocol transfer metrics, or agent-count sweeps are described. This leaves the central claim—that the GNN discovers transferable update rules rather than per-shape policies—unsupported by the presented evidence.
  2. [§4] §4 (demonstrations): without quantitative metrics on generalization (e.g., success rate on unseen target shapes or different N), it remains possible that the learned policies overfit the training morphologies, undermining the assertion of a general framework for distributed morphogenesis.
minor comments (2)
  1. [Abstract] The abstract states that benchmarking establishes advantages of the Zernike loss but does not name the competing metrics or report quantitative differences; this detail should be added for clarity.
  2. [Method] Notation for the Zernike spectrum alignment step is introduced without an explicit equation reference; adding a numbered equation would improve reproducibility.

Simulated Author's Rebuttal

2 responses · 0 unresolved

We thank the referee for the constructive and detailed feedback. The comments correctly identify that the current experimental section would benefit from explicit generalization tests. We address each major comment below and will revise the manuscript to incorporate the suggested experiments.

read point-by-point responses

  1. Referee: [Experiments] Experiments section: the reported demonstrations are confined to the same shapes used during training; no held-out shape tests, cross-shape protocol transfer metrics, or agent-count sweeps are described. This leaves the central claim—that the GNN discovers transferable update rules rather than per-shape policies—unsupported by the presented evidence.

    Authors: We agree that the presented demonstrations use shapes from the training distribution and that held-out evaluations are needed to substantiate transferability. In the revised manuscript we will add a dedicated generalization section that includes: (i) training on a subset of target morphologies and reporting success rates on held-out shapes, (ii) cross-shape protocol transfer metrics, and (iii) agent-count sweeps across different values of N. These additions will directly support the claim that the SE(3)-equivariant GNN learns distributed update rules that generalize rather than memorizing per-shape policies. revision: yes

  2. Referee: [§4] §4 (demonstrations): without quantitative metrics on generalization (e.g., success rate on unseen target shapes or different N), it remains possible that the learned policies overfit the training morphologies, undermining the assertion of a general framework for distributed morphogenesis.

    Authors: We acknowledge that the current version lacks quantitative generalization metrics, which leaves open the possibility of overfitting. The revision will include success-rate tables for unseen target shapes and for varying agent counts N, together with the corresponding protocol-transfer experiments. These quantitative results will strengthen the evidence that DiffeoMorph provides a general framework rather than shape-specific solutions. revision: yes

Circularity Check

0 steps flagged

No significant circularity in derivation chain

full rationale

The paper defines an independent SE(3)-equivariant GNN update rule and a new Zernike-polynomial shape-matching loss that operates on continuous distributions, invariant to agent count and ordering. Training is end-to-end differentiable against target shapes, with explicit benchmarking of the loss against standard metrics. No equations reduce the target morphology or learned protocols to quantities fitted from the same data; no self-citations are load-bearing for the central claims; the architecture and loss are introduced as novel components rather than derived from prior author work by construction. The framework remains self-contained against external shape-comparison benchmarks.

Axiom & Free-Parameter Ledger

1 free parameters · 1 axioms · 1 invented entities

The central claim rests on the learned GNN parameters and the effectiveness of the Zernike loss; the framework assumes SE(3) equivariance holds for physical agent interactions and that the loss provides a sufficient training signal.

free parameters (1)
  • GNN weights and biases
    Learned via gradient descent on the shape-matching loss; these define the update rule for each agent.
axioms (1)
  • domain assumption SE(3)-equivariance of the graph neural network update rule
    Invoked to ensure agent updates respect 3D rotations and translations without additional training data.
invented entities (1)
  • Zernike-polynomial shape representation for loss no independent evidence
    purpose: To compare predicted and target shapes as continuous distributions invariant to ordering and orientation
    New application of Zernike polynomials as a differentiable loss in this agent-based setting; no independent evidence provided beyond the described benchmarking.
