arxiv: 2512.20016 · v2 · submitted 2025-12-23 · ⚛️ physics.soc-ph · physics.ins-det· physics.space-ph

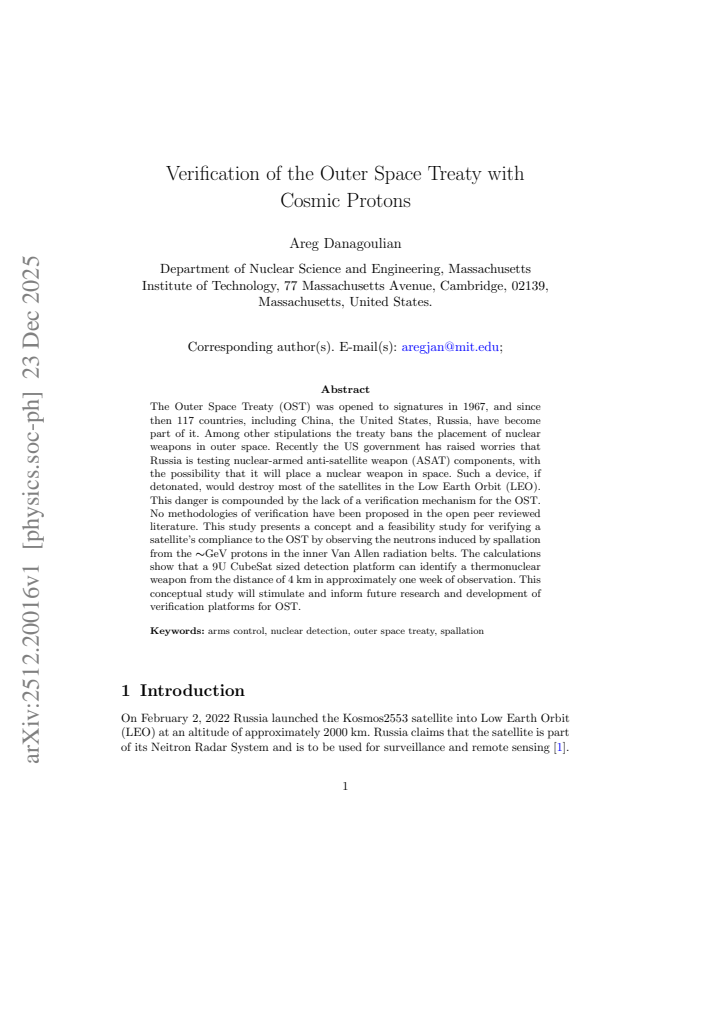

Verification of the Outer Space Treaty with Cosmic Protons

Areg Danagoulian This is my paper

Pith reviewed 2026-05-16 20:42 UTC · model grok-4.3

classification ⚛️ physics.soc-ph physics.ins-detphysics.space-ph
keywords Outer Space Treatynuclear weapon verificationVan Allen beltsneutron detectionCubeSatspallationcosmic protonsASAT
0
0 comments X

The pith

A 9U CubeSat can detect a thermonuclear weapon from 4 km away in one week by observing neutrons induced by cosmic protons.

A machine-rendered reading of the paper's core claim, the machinery that carries it, and where it could break.

The paper proposes and calculates the feasibility of verifying the Outer Space Treaty ban on nuclear weapons in orbit. It shows that high-energy protons in the inner Van Allen belts induce detectable neutrons when they strike fissile material inside a weapon. A compact 9U CubeSat detector platform can collect enough of these neutrons to identify such a device at a distance of 4 km after roughly one week of observation. A sympathetic reader would care because the treaty has lacked any independent verification method since 1967, leaving potential violations unmonitored in low Earth orbit.

Core claim

Calculations demonstrate that a 9U CubeSat sized detection platform can identify a thermonuclear weapon from the distance of 4 km in approximately one week of observation by measuring neutrons produced through spallation from ~GeV protons in the inner Van Allen radiation belts.

What carries the argument

Neutron detection from proton-induced spallation on nuclear materials, using the natural high flux of GeV protons in the inner Van Allen belts as the source that interrogates a potential weapon.

If this is right

  • Treaty compliance for the ban on nuclear weapons in space can be checked remotely with small satellite platforms.
  • Detection relies on passive observation of natural proton-induced neutrons rather than active irradiation.
  • A measurable neutron excess from a thermonuclear weapon would appear over days to weeks of data taking.
  • The method could extend to other treaty-limited objects if they produce similar neutron signatures.
  • Verification becomes possible without requiring large ground-based or crewed observatories.

Where Pith is reading between the lines

These are editorial extensions of the paper, not claims the author makes directly.

  • A constellation of such CubeSats could provide continuous monitoring across low Earth orbit for treaty compliance.
  • Combining neutron data with optical or radar tracking of the same satellite would help confirm the origin of any signal.
  • Sensitivity limits for lower-yield weapons or heavily shielded devices would require separate modeling.
  • Background from cosmic-ray secondaries or other spacecraft materials sets the practical distance and time scales.

Load-bearing premise

The neutron signature produced by a nuclear weapon is sufficiently distinct from background radiation and ordinary satellite materials to permit reliable identification at 4 km after one week of observation.

What would settle it

An in-orbit background measurement or Monte Carlo simulation that shows the neutron flux or spectrum from a weapon at 4 km cannot be distinguished from natural radiation or non-weapon satellites within the calculated one-week observation window.

read the original abstract

The Outer Space Treaty (OST) was opened to signatures in 1967, and since then 117 countries, including China, the United States, Russia, have become part of it. Among other stipulations the treaty bans the placement of nuclear weapons in outer space. Recently the US government has raised worries that Russia is testing nuclear-armed anti-satellite weapon (ASAT) components, with the possibility that it will place a nuclear weapon in space. Such a device, if detonated, would destroy most of the satellites in the Low Earth Orbit (LEO). This danger is compounded by the lack of a verification mechanism for the OST. No methodologies of verification have been proposed in the open peer reviewed literature. This study presents a concept and a feasibility study for verifying a satellite's compliance to the OST by observing the neutrons induced by spallation from the $\sim$GeV protons in the inner Van Allen radiation belts. The calculations show that a 9U CubeSat sized detection platform can identify a thermonuclear weapon from the distance of 4 km in approximately one week of observation. This conceptual study will stimulate and inform future research and development of verification platforms for OST.

Editorial analysis

A structured set of objections, weighed in public.

Desk editor's note, referee report, simulated authors' rebuttal, and a circularity audit. Tearing a paper down is the easy half of reading it; the pith above is the substance, this is the friction.

Referee Report

3 major / 1 minor

Summary. The manuscript proposes using spallation neutrons induced by ~GeV cosmic protons in the inner Van Allen belts to verify compliance with the Outer Space Treaty ban on nuclear weapons in space. It presents a conceptual feasibility study claiming that a 9U CubeSat-sized neutron detection platform can identify a thermonuclear weapon at 4 km distance after approximately one week of observation.

Significance. If the detection calculations prove robust, the work would address a documented gap in OST verification methods, which have not been proposed in the open literature. The passive use of natural proton-induced spallation is a novel probe that could inform future satellite-based monitoring concepts, though its practical impact depends on quantitative validation of signal distinguishability.

major comments (3)
  1. [Abstract] Abstract: the 4 km / one-week detection claim rests on unspecified calculations; no proton flux spectrum, spallation cross-section per gram of U/Pu, detector efficiency, energy window, or background rejection factor is supplied, so the expected count rate and integration time cannot be reproduced or falsified.
  2. [Feasibility study] Feasibility study: the assertion that weapon-induced neutrons are distinguishable from ambient Van Allen belt neutrons and satellite self-induced background lacks any quantified signal-to-background ratio, error bars, or material assumptions, which are load-bearing for the claimed sensitivity at 4 km.
  3. [Abstract] Abstract and calculations: the neutron detection efficiency and background rejection threshold appear as free parameters with no sensitivity analysis or baseline values, undermining the robustness of the one-week observation period.
minor comments (1)
  1. [Abstract] The abstract states 'the calculations show' without referencing any equation, table, or appendix; adding a short parameter table or key formula would aid readability.

Simulated Author's Rebuttal

3 responses · 0 unresolved

We thank the referee for their thoughtful review and positive assessment of the potential significance of our work. We agree that the manuscript would benefit from greater transparency in the calculations and will revise it to address the concerns raised.

read point-by-point responses

  1. Referee: [Abstract] Abstract: the 4 km / one-week detection claim rests on unspecified calculations; no proton flux spectrum, spallation cross-section per gram of U/Pu, detector efficiency, energy window, or background rejection factor is supplied, so the expected count rate and integration time cannot be reproduced or falsified.

    Authors: We acknowledge this point. While the full manuscript includes order-of-magnitude estimates drawing on standard values from the literature (e.g., proton fluxes from Van Allen belt models, spallation yields from nuclear physics data), these were not presented with sufficient explicitness in the abstract or main text. In the revised version, we will add a new subsection detailing the calculation methodology, including the adopted proton flux spectrum, spallation cross-sections (with references), assumed fissile material mass, detector efficiency (baseline 5-20%), energy window (e.g., 1-10 MeV), and background rejection factors. This will allow full reproduction of the count rate and integration time estimates. revision: yes

  2. Referee: [Feasibility study] Feasibility study: the assertion that weapon-induced neutrons are distinguishable from ambient Van Allen belt neutrons and satellite self-induced background lacks any quantified signal-to-background ratio, error bars, or material assumptions, which are load-bearing for the claimed sensitivity at 4 km.

    Authors: We agree that a quantitative signal-to-background analysis is necessary for a robust feasibility claim. The original manuscript qualitatively discusses spectral differences (weapon neutrons from spallation in high-Z material vs. ambient), but lacks explicit ratios. We will revise by adding calculations of expected signal rates from a representative thermonuclear weapon (assuming e.g. 5-10 kg of U-235 or Pu-239) at 4 km, compared to background rates from cosmic protons on the satellite structure and ambient belt neutrons. This will include Poisson error estimates and sensitivity to material composition assumptions. If the referee has specific material assumptions in mind, we welcome further guidance. revision: yes

  3. Referee: [Abstract] Abstract and calculations: the neutron detection efficiency and background rejection threshold appear as free parameters with no sensitivity analysis or baseline values, undermining the robustness of the one-week observation period.

    Authors: We will incorporate baseline values and a sensitivity analysis in the revised manuscript. For example, we will specify a baseline neutron detection efficiency of approximately 10% for a moderated He-3 or similar detector in the relevant energy range, and a background rejection factor based on energy thresholding and coincidence requirements. A sensitivity study will vary efficiency from 5% to 30% and rejection factors to demonstrate that the one-week integration remains feasible within reasonable parameter ranges. This analysis will be presented in a new figure or table. revision: yes

Circularity Check

0 steps flagged

No circularity: claim derived from independent physical modeling

full rationale

The paper presents a feasibility study whose central numerical claim (9U CubeSat detection at 4 km in one week) is stated to result from calculations of spallation neutron production by ~GeV Van Allen protons. No equations, parameter fits, or self-citations are supplied in the abstract or described text that would reduce this result to a definition of itself, a renamed input, or a load-bearing prior result by the same author. The derivation chain therefore remains self-contained against external benchmarks and does not exhibit any of the enumerated circularity patterns.

Axiom & Free-Parameter Ledger

1 free parameters · 1 axioms · 0 invented entities

The feasibility claim rests on standard particle-physics assumptions about spallation and on modeling parameters whose values are not reported in the abstract.

free parameters (1)
  • neutron detection efficiency and background rejection threshold
    Required to convert raw spallation rates into the stated 4 km / one-week detection time; values not given.
axioms (1)
  • domain assumption GeV protons in the inner Van Allen belts produce a measurable neutron flux difference between a thermonuclear weapon and ordinary satellite materials
    Invoked to justify the detection concept; treated as known physics without further derivation in the abstract.

pith-pipeline@v0.9.0 · 5505 in / 1147 out tokens · 33490 ms · 2026-05-16T20:42:24.380171+00:00 · methodology

discussion (0)

Sign in with ORCID, Apple, or X to comment. Anyone can read and Pith papers without signing in.

Reference graph

Works this paper leans on

21 extracted references · 21 canonical work pages

  1. [1]

    https://www.rferl.org/a/russia-satellites-ukraine-war-gps/ 31797618.html (2022)

    Krutov: In Russia’s War On Ukraine, Effective Satellites Are Few And Far Between. https://www.rferl.org/a/russia-satellites-ukraine-war-gps/ 31797618.html (2022)

    work page 2022

  2. [2]

    Vipin Narang at CSIS

    Vipin Narang: Nuclear Threats and the Role of Allies”: Remarks by Act- ing Assistant Secretary of Defense for Space Policy Dr. Vipin Narang at CSIS. https://www.war.gov/News/Speeches/Speech/Article/3858311/ nuclear-threats-and-the-role-of-allies-remarks-by-acting-assistant-secretary-of/ (2024)

    work page arXiv 2024

  3. [3]

    In: Hardened Electronics and Radiation Technology (HEART) 2015 Confer- ence (2015)

    Stassinopoulos, E.G.: The starfish exo-atmospheric, high altitude nuclear weapons test. In: Hardened Electronics and Radiation Technology (HEART) 2015 Confer- ence (2015)

    work page 2015

  4. [4]

    https://doi.org/ 10.25740/jm671yx6641

    Porteous, I.: Verifying the Outer Space Treaty’s Nuclear Ban. https://doi.org/ 10.25740/jm671yx6641 . https://purl.stanford.edu/jm671yx6641 14

    work page doi:10.25740/jm671yx6641

  5. [5]

    Space Science Reviews219(3), 26 (2023)

    Mazur, J., O’Brien, T., Looper, M.: The relativistic proton spectrometer: a review of sensor performance, applications, and science. Space Science Reviews219(3), 26 (2023)

    work page 2023

  6. [6]

    IEEE Transactions on Nuclear Science62(6), 2760–2766 (2015)

    Johnston, W.R., O’Brien, T.P., Huston, S.L., Guild, T.B., Ginet, G.P.: Recent updates to the AE9/AP9/SPM radiation belt and space plasma specification model. IEEE Transactions on Nuclear Science62(6), 2760–2766 (2015)

    work page 2015

  7. [7]

    Space science reviews179(1), 579–615 (2013)

    Ginet, G., O’Brien, T., Huston, S., Johnston, W., Guild, T., Friedel, R., Lind- strom, C., Roth, C., Whelan, P., Quinn, R.,et al.: AE9, AP9 and SPM: New models for specifying the trapped energetic particle and space plasma environment. Space science reviews179(1), 579–615 (2013)

    work page 2013

  8. [8]

    Nuclear Instruments and Methods145(1), 91–113 (1977)

    Carpenter, J.M.: Pulsed spallation neutron sources for slow neutron scattering. Nuclear Instruments and Methods145(1), 91–113 (1977)

    work page 1977

  9. [9]

    Review of Scientific Instruments96(1) (2025)

    Reichelt, B., Kishimori, R., Lawrence, Y., Wink, C., Johnson, M.G., Johnson, T., Adrian, P., Baker, K., Casey, D., Clark, D., et al.: Ultra-fast single-crystal cvd diamonds in the particle time-of-flight (ptof) detector for low yield burn-history measurements on the nif. Review of Scientific Instruments96(1) (2025)

    work page 2025

  10. [10]

    Nuclear Instruments and Meth- ods in Physics Research Section A: Accelerators, Spectrometers, Detectors and Associated Equipment777, 131–137 (2015)

    Ogasawara, K., Broiles, T., Coulter, K., Dayeh, M., Desai, M., Livi, S., McCo- mas, D., Walther, B.: Single crystal chemical vapor deposit diamond detector for energetic plasma measurement in space. Nuclear Instruments and Meth- ods in Physics Research Section A: Accelerators, Spectrometers, Detectors and Associated Equipment777, 131–137 (2015)

    work page 2015

  11. [11]

    et al.: GEANT4—a simulation toolkit

    Agostinelli, S. et al.: GEANT4—a simulation toolkit. Nuclear Instruments and Methods in Physics Research Section A: Accelerators, Spectrometers, Detec- tors and Associated Equipment506(3), 250–303 (2003) https://doi.org/10.1016/ S0168-9002(03)01368-8

    work page 2003

  12. [12]

    et al.: Recent developments in geant4

    Allison, J. et al.: Recent developments in geant4. Nuclear Instruments and Meth- ods in Physics Research Section A: Accelerators, Spectrometers, Detectors and Associated Equipment835, 186–225 (2016) https://doi.org/10.1016/j.nima.2016. 06.125

    work page doi:10.1016/j.nima.2016 2016

  13. [13]

    In: 2021 IEEE Nuclear Science Symposium and Medical Imaging Conference (NSS/MIC), Piscataway, NJ, USA, pp

    Danagoulian, A., Miske, J.N., Klein, E.A.: Grasshopper, a Geant4 Front End: Validation and Benchmarking. In: 2021 IEEE Nuclear Science Symposium and Medical Imaging Conference (NSS/MIC), Piscataway, NJ, USA, pp. 1–7 (2021). https://doi.org/10.1109/NSS/MIC44867.2021.9875720

    work page doi:10.1109/nss/mic44867.2021.9875720 2021

  14. [14]

    Masset, R

    Weinfurther, K., Mattingly, J., Brubaker, E., Steele, J.: Model-based design eval- uation of a compact, high-efficiency neutron scatter camera. Nuclear Instruments and Methods in Physics Research Section A: Accelerators, Spectrometers, Detec- tors and Associated Equipment883, 115–135 (2018) https://doi.org/10.1016/j. nima.2017.11.025 15

    work page doi:10.1016/j 2018

  15. [15]

    Nuclear Instruments and Methods in Physics Research Section A: Accelerators, Spectrometers, Detectors and Associated Equipment 760, 40–45 (2014)

    Poitrasson-Rivi` ere, A., Hamel, M.C., Polack, J.K., Flaska, M., Clarke, S.D., Pozzi, S.A.: Dual-particle imaging system based on simultaneous detection of photon and neutron collision events. Nuclear Instruments and Methods in Physics Research Section A: Accelerators, Spectrometers, Detectors and Associated Equipment 760, 40–45 (2014)

    work page 2014

  16. [16]

    Journal of Instrumentation19, 10036 (2024) https://doi.org/10.1088/1748-0221/19/10/ P10036

    Pant, P., Banerjee, K., Roy, P., Shil, R., Saha, A.K.: Characterization of ej- 276d plastic scintillator and its comparison with ej-299-33a and bc-501a. Journal of Instrumentation19, 10036 (2024) https://doi.org/10.1088/1748-0221/19/10/ P10036

    work page doi:10.1088/1748-0221/19/10/ 2024

  17. [17]

    https://www.newsweek.com/ us-china-news-military-satellites-close-encounter-orbit-2067071 (2025)

    Newsweek: US Buzzes China’s Military Satellites in Unfolding Space Rivalry. https://www.newsweek.com/ us-china-news-military-satellites-close-encounter-orbit-2067071 (2025)

    work page 2025

  18. [18]

    com/constellations/articles/espionage-in-orbit-satellite-or-spy (2023)

    KratosSpace: Espionage in Orbit: Satellite or Spy? https://www.kratosspace. com/constellations/articles/espionage-in-orbit-satellite-or-spy (2023)

    work page 2023

  19. [19]

    https://satnews.com/story.php?number= 324434767 (2015)

    SatNews: Intelsat’s Satellites Sit Between A Rock + A Hard Place As Russian Military Satellites Are A Bit Too Cozy. https://satnews.com/story.php?number= 324434767 (2015)

    work page 2015

  20. [20]

    https://www

    KratosSpace: Update on Luch Olymp 2 (NORAD ID: 55841). https://www. kratosspace.com/sdatracker (2025)

    work page 2025

  21. [21]

    https://breakingdefense.com/2019/04/ the-stellar-dance-us-russia-satellites-make-potentially-risky-close-approaches/ (2019) 16

    Breaking Defense: The Stellar Dance: US, Russia Satellites Make Poten- tially Risky Close Approaches. https://breakingdefense.com/2019/04/ the-stellar-dance-us-russia-satellites-make-potentially-risky-close-approaches/ (2019) 16

    work page 2019
