Storage and retrieval of optical skyrmions with topological characteristics
Pith reviewed 2026-05-16 20:36 UTC · model grok-4.3
The pith
Optical skyrmions retain their topological skyrmion number after storage and retrieval in a cold rubidium vapor memory.
A machine-rendered reading of the paper's core claim, the machinery that carries it, and where it could break.
Core claim
We report the first experimental demonstration of storing and retrieving optical skyrmions in a cold 87Rb vapor using a dual-path electromagnetically induced transparency memory. The skyrmion number remains invariant for storage times up to several microseconds, even when subjected to imbalanced loss between the two paths and substantial perturbations in control beam power.
What carries the argument
Dual-path electromagnetically induced transparency memory that maps the optical skyrmion onto atomic spin waves in cold 87Rb vapor and retrieves it while preserving the topological skyrmion number.
If this is right
- The skyrmion number is preserved during mapping to and from atomic coherences.
- Topological invariance survives imbalanced losses between the two paths.

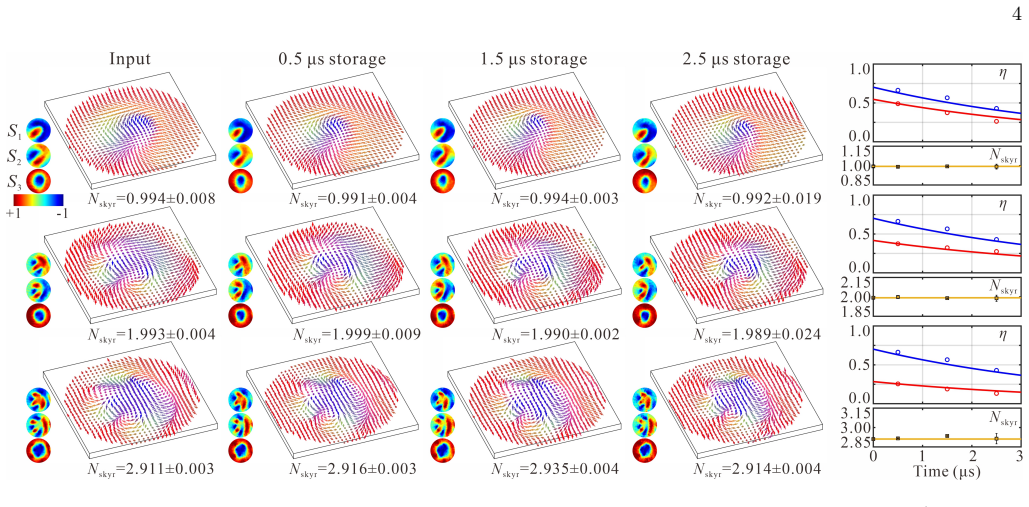

- The invariant remains stable under large variations in control beam power.
- Storage durations of several microseconds are compatible with the topological protection.
Where Pith is reading between the lines
- The same dual-path approach could be tested with other topological light structures such as optical vortices or polarization singularities.
- Combining this memory with active error correction might extend the protected storage time beyond microseconds.
- The demonstrated robustness under path imbalance suggests the method could tolerate imperfect beam splitters or fiber links in scaled photonic networks.
Load-bearing premise
The dual-path EIT memory and the subsequent measurement of the retrieved light accurately determine the skyrmion number without introducing systematic artifacts that could falsely indicate invariance.
What would settle it
A repeated experiment in which the calculated skyrmion number of the retrieved beam differs from the input under the same storage conditions and perturbations would falsify the invariance claim.
Figures

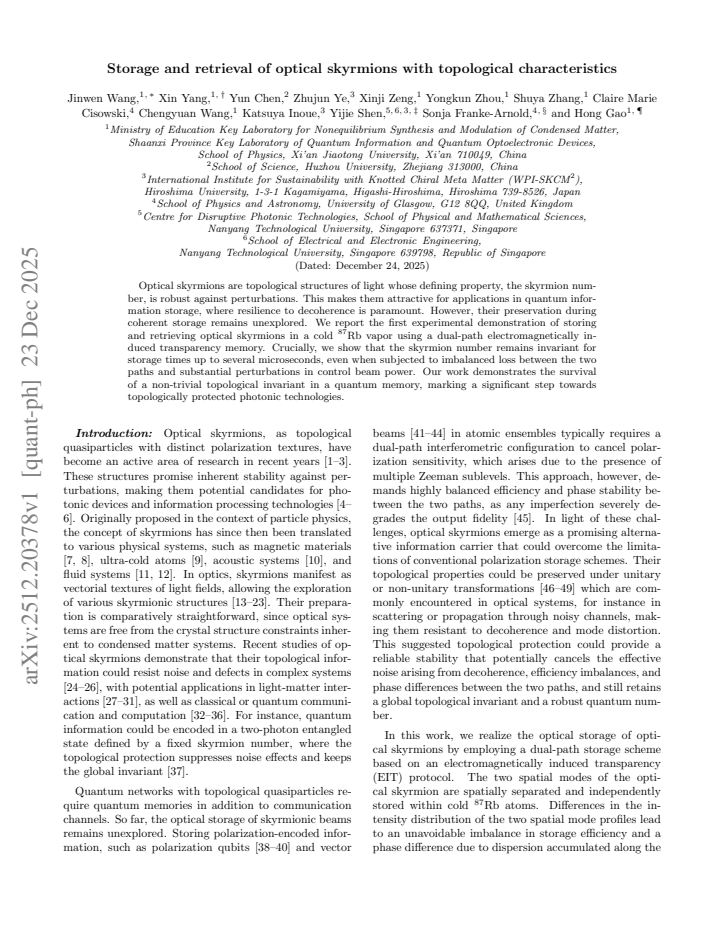

read the original abstract
Optical skyrmions are topological structures of light whose defining property, the skyrmion number, is robust against perturbations. This makes them attractive for applications in quantum information storage, where resilience to decoherence is paramount. However, their preservation during coherent storage remains unexplored. We report the first experimental demonstration of storing and retrieving optical skyrmions in a cold $^{87}$Rb vapor using a dual-path electromagnetically induced transparency memory. Crucially, we show that the skyrmion number remains invariant for storage times up to several microseconds, even when subjected to imbalanced loss between the two paths and substantial perturbations in control beam power. Our work demonstrates the survival of a non-trivial topological invariant in a quantum memory, marking a significant step towards topologically protected photonic technologies.
Editorial analysis
A structured set of objections, weighed in public.
Referee Report
Summary. The manuscript reports the first experimental demonstration of storing and retrieving optical skyrmions in a cold 87Rb vapor using a dual-path electromagnetically induced transparency (EIT) memory. It claims that the skyrmion number remains invariant for storage times up to several microseconds, even under imbalanced loss between the two paths and substantial perturbations in control beam power.
Significance. If the central experimental result holds, the work provides the first direct evidence that a non-trivial topological invariant of light can survive coherent storage and retrieval in an atomic quantum memory. This would strengthen the case for using skyrmionic degrees of freedom in topologically protected photonic quantum information protocols.
major comments (3)
- [Abstract and Results] The abstract and results section state that the skyrmion number is invariant under imbalanced loss and control-power perturbations, yet provide no explicit description of how the skyrmion number is computed from the retrieved field data (e.g., the precise integral over the Poincaré sphere or Stokes-parameter reconstruction), nor any reported error bars or statistical analysis. Without these, it is impossible to assess whether the reported constancy is robust or an artifact of normalization.
- [Methods / Experimental Setup] The dual-path EIT memory is central to the invariance claim, but the manuscript does not describe independent calibration of retrieval efficiency per path to the sub-percent level or any measurement and subtraction of differential phase shifts introduced by the atomic medium. These quantities directly affect the relative amplitude and phase between the two orthogonal components that enter the skyrmion-number integral.
- [Results / Data Analysis] No propagation of measurement uncertainties (retrieval efficiency, phase drift, beam overlap) into the skyrmion-number error bars is presented, nor is there a Monte-Carlo simulation or control experiment showing that the observed invariance survives realistic noise levels. This is load-bearing for the claim that the topological invariant is preserved rather than artificially maintained by post-processing.
minor comments (2)
- [Figures] Figure captions should explicitly state the storage time, loss imbalance, and control-power variation for each panel so that the invariance claim can be visually verified without cross-referencing the text.
- [Supplementary Material] The manuscript would benefit from a short supplementary note or appendix giving the exact expression used for the skyrmion number (including any normalization conventions) so that the result can be reproduced from the raw data.
Simulated Author's Rebuttal
We thank the referee for their careful reading and constructive comments, which have helped us improve the clarity and rigor of the manuscript. We address each major comment below and have revised the paper accordingly to provide the requested details on skyrmion-number computation, experimental calibrations, and uncertainty analysis.
read point-by-point responses
-
Referee: [Abstract and Results] The abstract and results section state that the skyrmion number is invariant under imbalanced loss and control-power perturbations, yet provide no explicit description of how the skyrmion number is computed from the retrieved field data (e.g., the precise integral over the Poincaré sphere or Stokes-parameter reconstruction), nor any reported error bars or statistical analysis. Without these, it is impossible to assess whether the reported constancy is robust or an artifact of normalization.
Authors: We agree that the original manuscript did not include a sufficiently explicit description of the skyrmion-number calculation. In the revised version we have added a dedicated subsection in Methods that specifies the Stokes-parameter reconstruction from the measured intensity and phase profiles, the precise surface integral over the Poincaré sphere used to obtain the skyrmion number, and the statistical procedure (averaging over 50 independent experimental runs) that yields the reported error bars. These additions make the invariance claim directly verifiable from the data. revision: yes
-
Referee: [Methods / Experimental Setup] The dual-path EIT memory is central to the invariance claim, but the manuscript does not describe independent calibration of retrieval efficiency per path to the sub-percent level or any measurement and subtraction of differential phase shifts introduced by the atomic medium. These quantities directly affect the relative amplitude and phase between the two orthogonal components that enter the skyrmion-number integral.
Authors: We have expanded the Experimental Setup section to include the independent calibration protocol for each path. Retrieval efficiencies were measured separately using auxiliary probe pulses and balanced detection, achieving sub-percent accuracy; the values and their uncertainties are now tabulated. Differential phase shifts were quantified via a separate Mach-Zehnder interferometer inserted after the cell and subtracted from the reconstructed fields before computing the skyrmion number. These procedures are described with sufficient detail for replication. revision: yes
-
Referee: [Results / Data Analysis] No propagation of measurement uncertainties (retrieval efficiency, phase drift, beam overlap) into the skyrmion-number error bars is presented, nor is there a Monte-Carlo simulation or control experiment showing that the observed invariance survives realistic noise levels. This is load-bearing for the claim that the topological invariant is preserved rather than artificially maintained by post-processing.
Authors: We have added a new paragraph in Results that details the propagation of all relevant uncertainties (retrieval efficiency, residual phase drift, and beam-overlap fluctuations) into the skyrmion-number error bars using standard error-propagation formulas. In addition, we performed Monte-Carlo simulations that inject realistic noise levels drawn from the measured distributions; the simulations confirm that the skyrmion number remains invariant within the reported uncertainties. A brief description of these simulations and the associated control data is now included, with full details placed in the supplementary material. revision: yes
Circularity Check
No circularity: purely experimental demonstration with no derivation chain
full rationale
The paper reports an experimental demonstration of storing and retrieving optical skyrmions in a cold 87Rb vapor using dual-path EIT memory, with the central claim being direct observation that the skyrmion number remains invariant under perturbations. No theoretical derivation, first-principles prediction, or fitted parameter is presented that reduces to its own inputs by construction. There are no self-definitional steps, fitted inputs relabeled as predictions, or load-bearing self-citations that force the result. The invariance is measured empirically on retrieved fields, making the result self-contained against external benchmarks rather than internally constructed.
Axiom & Free-Parameter Ledger
Lean theorems connected to this paper
-
IndisputableMonolith/Foundation/AlexanderDuality.leanalexander_duality_circle_linking unclear?
unclearRelation between the paper passage and the cited Recognition theorem.
We report the first experimental demonstration of storing and retrieving optical skyrmions in a cold 87Rb vapor using a dual-path electromagnetically induced transparency memory. Crucially, we show that the skyrmion number remains invariant for storage times up to several microseconds, even when subjected to imbalanced loss between the two paths and substantial perturbations in control beam power.
What do these tags mean?
- matches
- The paper's claim is directly supported by a theorem in the formal canon.
- supports
- The theorem supports part of the paper's argument, but the paper may add assumptions or extra steps.
- extends
- The paper goes beyond the formal theorem; the theorem is a base layer rather than the whole result.
- uses
- The paper appears to rely on the theorem as machinery.
- contradicts
- The paper's claim conflicts with a theorem or certificate in the canon.
- unclear
- Pith found a possible connection, but the passage is too broad, indirect, or ambiguous to say the theorem truly supports the claim.
Forward citations
Cited by 2 Pith papers
-
Spatio-spectral vector light created by optical activity in rubidium vapor
Optical pumping in rubidium vapor rotates the polarization pattern of a vector vortex probe by 98 mrad per MHz on resonance, mapping frequency-dependent circular dichroism and birefringence into spatial structure.
-
Incoherent light delivers skyrmionic topological resilience and transitions
Partially coherent light sustains skyrmionic topological structures with self-healing resilience under turbulence and allows active control of phase transitions.
Reference graph
Works this paper leans on
-
[1]
Y. Shen, Q. Zhang, P. Shi, L. Du, X. Yuan, and A. V. Zayats, Nature Photonics18, 15 (2024)
work page 2024
-
[2]
A. Yang, A. Kong, F. Meng, X. Chen, M. Lin, P. Shi, L. Du, X. Yuan, and B. Wang, Journal of Optics27, 043002 (2025)
work page 2025
-
[3]
S. R. Allam, Y. Yoneda, and T. Omatsu (Elsevier, 2025)
work page 2025
-
[4]
N. Romming, C. Hanneken, M. Menzel, J. E. Bickel, B. Wolter, K. von Bergmann, A. Kubetzka, and R. Wiesendanger, Science341, 636 (2013)
work page 2013
-
[5]
Wiesendanger, Nature Reviews Materials1, 1 (2016)
R. Wiesendanger, Nature Reviews Materials1, 1 (2016)
work page 2016
-
[6]
A. Porfirev, S. Khonina, and A. Kuchmizhak, Progress in Quantum Electronics88, 100459 (2023)
work page 2023
-
[7]
S. M¨ uhlbauer, B. Binz, F. Jonietz, C. Pfleiderer, A. Rosch, A. Neubauer, R. Georgii, and P. B¨ onini, Sci- ence323, 915 (2009)
work page 2009
-
[8]
A. N. Bogdanov and C. Panagopoulos, Nature Reviews Physics2, 492 (2020)
work page 2020
- [9]
- [10]
-
[11]
D. A. Smirnova, F. Nori, and K. Y. Bliokh, Physical Re- view Letters132, 054003 (2024)
work page 2024
-
[12]
B. Wang, Z. Che, C. Cheng, C. Tong, L. Shi, Y. Shen, K. Y. Bliokh, and J. Zi, Nature , 1 (2025)
work page 2025
-
[13]
S. Tsesses, E. Ostrovsky, K. Cohen, B. Gjonaj, N. Lind- ner, and G. Bartal, Science361, 993 (2018)
work page 2018
-
[14]
L. Du, A. Yang, A. V. Zayats, and X. Yuan, Nature Physics15, 650 (2019)
work page 2019
-
[15]
S. Gao, F. C. Speirits, F. Castellucci, S. Franke-Arnold, S. M. Barnett, and J. B. G¨ otte, Physical Review A102, 053513 (2020)
work page 2020
-
[16]
A. Karnieli, S. Tsesses, G. Bartal, and A. Arie, Nature Communications12, 1092 (2021)
work page 2021
- [17]
- [18]
-
[19]
C. Cisowski, C. Ross, and S. Franke-Arnold, Advanced Photonics Research4, 2200350 (2023)
work page 2023
-
[20]
A. McWilliam, C. M. Cisowski, Z. Ye, F. C. Speirits, J. B. G¨ otte, S. M. Barnett, and S. Franke-Arnold, Laser & Photonics Reviews17, 2300155 (2023)
work page 2023
- [21]
-
[22]
D. Ehrmanntraut, R. Droop, D. Sugic, E. Otte, M. R. Dennis, and C. Denz, Optica10, 725 (2023)
work page 2023
-
[23]
Y. Shen, B. Yu, H. Wu, C. Li, Z. Zhu, and A. V. Zayats, Advanced Photonics5, 015001 (2023)
work page 2023
-
[24]
C. Liu, S. Zhang, S. A. Maier, and H. Ren, Physical Review Letters129, 267401 (2022)
work page 2022
-
[25]
A. A. Wang, Z. Zhao, Y. Ma, Y. Cai, R. Zhang, X. Shang, Y. Zhang, J. Qin, Z.-K. Pong, T. Marozs´ ak,et al., Light: Science & Applications13, 314 (2024)
work page 2024
- [26]
-
[27]
J. Wang, F. Castellucci, and S. Franke-Arnold, AVS Quantum Science2(2020)
work page 2020
- [28]
- [29]
-
[30]
F. Castellucci, T. W. Clark, A. Selyem, J. Wang, and S. Franke-Arnold, Physical Review Letters127, 233202 (2021)
work page 2021
-
[31]
J. Jia, J. Ren, S. Zhou, Z. Zeng, H. Lin, Y. Hu, Z. Li, Y. Shen, Z. Chen, X. Chen,et al., Nature Physics , 1 (2025)
work page 2025
-
[32]
T. He, Y. Meng, L. Wang, H. Zhong, N. Mata-Cervera, D. Li, P. Yan, Q. Liu, Y. Shen, and Q. Xiao, Nature Communications15, 10141 (2024)
work page 2024
-
[33]
P. Ornelas, I. Nape, R. de Mello Koch, and A. Forbes, Nature Photonics18, 258 (2024)
work page 2024
-
[34]
R. de Mello Koch, B.-Q. Lu, P. Ornelas, I. Nape, and A. Forbes, APL Quantum2(2025)
work page 2025
-
[35]
J. Ma, J. Yang, S. Liu, B. Chen, X. Li, C. Song, G. Qiu, K. Zou, X. Hu, F. Li,et al., Nature Physics21, 1462 (2025)
work page 2025
-
[36]
A. A. Wang, Y. Ma, Y. Zhang, Z. Zhao, Y. Cai, X. Qiu, B. Dong, and C. He, Nature Photonics , 1 (2025)
work page 2025
-
[37]
P. Ornelas, I. Nape, R. de Mello Koch, and A. Forbes, Nature Communications16, 2934 (2025)
work page 2025
- [38]
-
[39]
P. Vernaz-Gris, K. Huang, M. Cao, A. S. Sheremet, and J. Laurat, Nature Communications9, 363 (2018)
work page 2018
-
[40]
Y. Wang, J. Li, S. Zhang, K. Su, Y. Zhou, K. Liao, S. Du, H. Yan, and S.-L. Zhu, Nature Photonics13, 346 (2019)
work page 2019
- [41]
- [42]
-
[43]
L. Zeng, Y.-H. Ye, M.-X. Dong, W.-H. Zhang, E.-Z. Li, D.-C. Li, D.-S. Ding, and B.-S. Shi, Optics Letters48, 477 (2023)
work page 2023
-
[44]
X. Yang, J. Wang, S. Qiu, Y. Gu, J. Xu, X. Zeng, M. Cao, Y. Chen, C. Wang, D. Wei,et al., Photonics Research13, 1747 (2025)
work page 2025
-
[45]
N. Sangouard, C. Simon, H. De Riedmatten, and N. Gisin, Reviews of Modern Physics83, 33 (2011)
work page 2011
- [46]
- [47]
-
[48]
C. He, B. Chen, Z. Song, Z. Zhao, Y. Ma, H. He, L. Luo, T. Marozsak, A. A. Wang, R. Xu,et al., Nature Com- munications16, 4902 (2025)
work page 2025
- [49]
-
[50]
G. Yu, P. Upadhyaya, Q. Shao, H. Wu, G. Yin, X. Li, C. He, W. Jiang, X. Han, P. K. Amiri,et al., Nano Letters 17, 261 (2017)
work page 2017
-
[51]
A. Fert, N. Reyren, and V. Cros, Nature Reviews Mate- rials2, 1 (2017)
work page 2017
- [52]
-
[53]
S. Franke-Arnold, Philosophical Transactions of the Royal Society A: Mathematical, Physical and Engineer- ing Sciences375, 20150435 (2017)
work page 2017
-
[54]
Z. Ye, S. Barnett, S. Franke-Arnold, J. G¨ otte, A. McWilliam, F. Speirits, and C. Cisowski, Proceedings of the Royal Society A480, 20240109 (2024)
work page 2024
-
[55]
Y.-F. Hsiao, P.-J. Tsai, H.-S. Chen, S.-X. Lin, C.-C. Hung, C.-H. Lee, Y.-H. Chen, Y.-F. Chen, I. A. Yu, and Y.-C. Chen, Physical Review Letters120, 183602 (2018)
work page 2018
-
[56]
M. Fleischhauer, A. Imamoglu, and J. P. Marangos, Re- views of Modern Physics77, 633 (2005)
work page 2005
-
[57]
M.-X. Dong, W.-H. Zhang, L. Zeng, Y.-H. Ye, D.-C. Li, G.-C. Guo, D.-S. Ding, and B.-S. Shi, Physical Review Letters131, 240801 (2023)
work page 2023
-
[58]
J. Wang, S. J. Svensson, T. W. Clark, Y. Chen, M. A. Al Khafaji, H. Gao, N. Westerberg, and S. Franke- Arnold, Physical Review Letters132, 193803 (2024)
work page 2024
-
[59]
I. Nape, K. Singh, A. Klug, W. Buono, C. Rosales- Guzman, A. McWilliam, S. Franke-Arnold, A. Kritzinger, P. Forbes, A. Dudley,et al., Nature Photonics16, 538 (2022)
work page 2022
-
[60]
Y. Shen, E. C. Mart´ ınez, and C. Rosales-Guzm´ an, ACS Photonics9, 296 (2022)
work page 2022
-
[61]
W. R. Kerridge-Johns, A. S. Rao, and T. Omatsu, Optica 11, 769 (2024)
work page 2024
-
[62]
W. Lin, Y. Ota, Y. Arakawa, and S. Iwamoto, Optica11, 1588 (2024)
work page 2024
-
[63]
V. Hakobyan and E. Brasselet, Physical Review Letters 134, 083802 (2025)
work page 2025
-
[64]
X. Yang, C. Wang, J. Wang, M. Cao, Y. Chen, H. Chang, R. Dong, S. Zhang, D. Wei, P. Zhang, F. Li, and H. Gao, Advanced Photonics7, 056010 (2025)
work page 2025
-
[65]
L. Veissier, A. Nicolas, L. Giner, D. Maxein, A. Sheremet, E. Giacobino, and J. Laurat, Optics Letters38, 712 (2013)
work page 2013
-
[66]
D.-S. Ding, Z.-Y. Zhou, B.-S. Shi, and G.-C. Guo, Nature Communications4, 2527 (2013)
work page 2013
-
[67]
A. Nicolas, L. Veissier, L. Giner, E. Giacobino, D. Max- ein, and J. Laurat, Nature Photonics8, 234 (2014)
work page 2014
-
[68]
Y. Chen, J. Wang, C. Wang, S. Zhang, M. Cao, S. Franke-Arnold, H. Gao, and F. Li, Optics Express29, 31582 (2021)
work page 2021
-
[69]
C. Wang, Y. Yu, Y. Chen, M. Cao, J. Wang, X. Yang, S. Qiu, D. Wei, H. Gao, and F. Li, Quantum Science and Technology6, 045008 (2021)
work page 2021
-
[70]
Y.-H. Ye, L. Zeng, M.-X. Dong, W.-H. Zhang, E.-Z. Li, D.-C. Li, G.-C. Guo, D.-S. Ding, and B.-S. Shi, Physical Review Letters129, 193601 (2022)
work page 2022
-
[71]
A. M. Yao and M. J. Padgett, Advances in Optics and Photonics3, 161 (2011)
work page 2011
- [72]
-
[73]
Z. Ye, J. G¨ otte, and C. Cisowski, Journal of Optics27, 042502 (2025)
work page 2025
-
[74]
K. Zeissler, S. Finizio, C. Barton, A. J. Huxtable, J. Massey, J. Raabe, A. V. Sadovnikov, S. A. Nikitov, R. Brearton, T. Hesjedal,et al., Nature Communications 11, 428 (2020)
work page 2020
-
[75]
J. Wang, X. Zeng, K. Ren, Z. Ye, C. M. Cisowski, Y. Chen, X. Yang, C. Wang, H. Gao, and S. Franke- Arnold, Applied Physics Letters126(2025)
work page 2025
-
[76]
X. Zeng, J. Fang, H. Wu, J. Wang, Y. Chen, Y. Zhou, X. Yang, C. Wang, D. Wei, H. Chen,et al., Laser & Photonics Reviews , e00732 (2025)
work page 2025
-
[77]
C. Psaroudaki and C. Panagopoulos, Physical Review Letters127, 067201 (2021)
work page 2021
-
[78]
C. Psaroudaki, E. Peraticos, and C. Panagopoulos, Ap- plied Physics Letters123(2023)
work page 2023
-
[79]
A. P. Petrovi´ c, C. Psaroudaki, P. Fischer, M. Garst, and C. Panagopoulos, Reviews of Modern Physics97, 031001 (2025)
work page 2025
