arxiv: 2512.21483 · v2 · submitted 2025-12-25 · ⚛️ physics.class-ph

Asymptotically exact dimension reduction of functionally graded anisotropic rods

Khanh Chau Le This is my paper

Pith reviewed 2026-05-16 20:07 UTC · model grok-4.3

classification ⚛️ physics.class-ph
keywords dimension reductionvariational-asymptotic methodfunctionally graded rodsanisotropic elasticityasymptotic exactnessPrager-Synge identitylong-wave approximationone-dimensional model
0
0 comments X

The pith

The variational-asymptotic method produces an asymptotically exact one-dimensional model for functionally graded anisotropic rods directly from three-dimensional elasticity.

A machine-rendered reading of the paper's core claim, the machinery that carries it, and where it could break.

This paper develops a one-dimensional theory for slender rods whose material properties vary along their length and exhibit general anisotropy by applying the variational-asymptotic method to the full three-dimensional elastic equations. Dual cross-sectional problems are solved numerically to obtain rigorous upper and lower bounds on the average transverse energy density, after which the Prager-Synge identity supplies an error estimate in the energetic norm that proves the reduction is asymptotically exact. The same error bound is shown to hold for low-frequency vibrations, and the resulting dispersion relations agree with exact three-dimensional solutions for waves in composite rods. A sympathetic reader would care because conventional rod theories can produce deflection errors as large as 20 percent, while this framework reduces the discrepancy below 3 percent and demonstrates O(h/L) convergence in numerical benchmarks.

Core claim

The developed one-dimensional model captures the long-wave asymptotic behavior of the three-dimensional elastic body with high fidelity. Numerical benchmarks indicate that while the naive rod theory incurs errors up to 20 percent in deflection predictions, the current VAM framework reduces this discrepancy to below 3 percent, with log-log convergence studies confirming the theoretical O(h/L) accuracy. The estimate is extended to the dynamic regime for low-frequency vibrations, where one-dimensional dispersion relations match exact analytical three-dimensional solutions for wave propagation in composite rods.

What carries the argument

Numerical solution of dual cross-sectional problems, which furnish rigorous upper and lower bounds on the average transverse energy density and are combined with the Prager-Synge identity to produce the asymptotic error estimate.

If this is right

  • Rigorous upper and lower bounds are obtained for the average transverse energy density through the dual cross-sectional problems.
  • The error estimate in the energetic norm extends directly to low-frequency dynamic problems.
  • Dispersion relations of the one-dimensional model coincide with exact three-dimensional solutions in the long-wave limit for composite rods.
  • Deflection predictions improve from errors of 20 percent in naive rod theory to below 3 percent with confirmed O(h/L) convergence.

Where Pith is reading between the lines

These are editorial extensions of the paper, not claims the author makes directly.

  • The same dual-problem technique could be adapted to derive reduced models for functionally graded plates or shells under similar slenderness assumptions.
  • Engineering software could incorporate the numerical cross-sectional solver to obtain accurate effective stiffnesses for arbitrary anisotropic grading without ad-hoc assumptions.
  • The approach supplies a systematic route to test whether a given material variation is slow enough for the one-dimensional description to remain accurate.

Load-bearing premise

The rod must be slender, with small thickness-to-length ratio, and the material properties must vary slowly enough along the length that the cross-sectional problems remain well-posed.

What would settle it

A sequence of three-dimensional finite-element computations on rods with progressively smaller h/L ratios in which the deflection error of the one-dimensional model fails to decrease proportionally to h/L.

Figures

Figures reproduced from arXiv: 2512.21483 by Khanh Chau Le.

Figure 1
Figure 1. Figure 1: A rod. The coordinates x α span the connected 2D domain S, such that the first moment of area vanishes, R S x α da = 0. For an anisotropic FG-rod, the dynamic behavior is governed by the ac￾tion functional expressed in curvilinear coordinates. Following the general formulation for slender rods [7, 20], the action functional reads: Z t1 t0 Z V L(x α , w˙ , ∇w) dv dt = Z t1 t0 Z L 0 Z S [T(x α , w˙ ) − W(x α… view at source ↗
Figure 2
Figure 2. Figure 2: Normalized torsional stiffness gˆ as a function of the aspect ratio a: (i) at fixed δ = 1, γU = 1 and four different γL = 0.2, 0.4, 0.6, 0.8 (left), and (ii) at fixed γL = 0.1, γU = 0.4 and four different δ = 1, 2, 3, 4 (right). As shown in [PITH_FULL_IMAGE:figures/full_fig_p016_2.png] view at source ↗
Figure 3

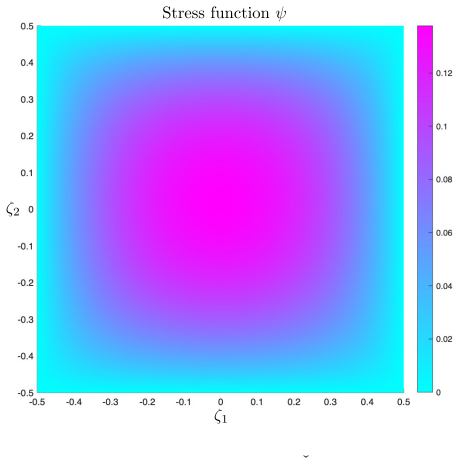

Figure 3. Figure 3: Numerical solution of the stress function [PITH_FULL_IMAGE:figures/full_fig_p017_3.png] view at source ↗
Figure 4
Figure 4. Figure 4: Percentage contribution of the transverse bending stiffness [PITH_FULL_IMAGE:figures/full_fig_p018_4.png] view at source ↗
Figure 5
Figure 5. Figure 5: Percentage contribution of the transverse cross stiffness [PITH_FULL_IMAGE:figures/full_fig_p018_5.png] view at source ↗
Figure 6
Figure 6. Figure 6: Contour distributions of the plane strain stress functions [PITH_FULL_IMAGE:figures/full_fig_p019_6.png] view at source ↗
Figure 7

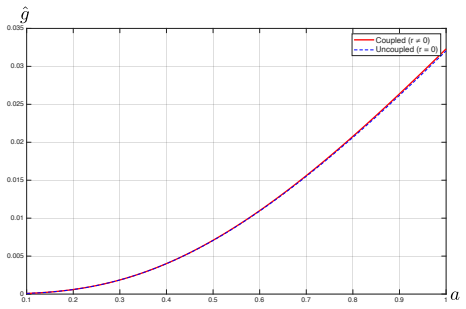

Figure 7. Figure 7: Normalized torsional stiffness gˆ as a function of the aspect ratio a for FG-rod Barium Titanate/Corundum with δ = 4. significant deviation of the local 3D stress state from the simplified predic￾tions of classical rod theories. These results underscore the necessity of the variational-asymptotic approach for accurately capturing the energetic land￾scape of low-symmetry functionally graded materials [PITH… view at source ↗
Figure 8
Figure 8. Figure 8: Contour plots of the coupled stress functions [PITH_FULL_IMAGE:figures/full_fig_p022_8.png] view at source ↗
read the original abstract

This study utilizes the variational-asymptotic method to establish a one-dimensional theory for functionally graded rods characterized by general anisotropy from the three-dimensional elasticity theory. A distinctive feature of this dimension reduction procedure is the numerical solution of dual cross-sectional problems, which provide rigorous upper and lower bounds for the average transverse energy density. By employing the Prager-Synge identity, we derive an error estimate in the energetic norm to establish the asymptotic exactness of the model. This estimate is extended to the dynamic regime for low-frequency vibrations. Furthermore, the dynamic validity of the theory is confirmed by comparing the one-dimensional dispersion relations with exact analytical three-dimensional solutions for wave propagation in composite rods. The results show that the developed one-dimensional model captures the long-wave asymptotic behavior of the three-dimensional elastic body with high fidelity. Numerical benchmarks indicate that while the naive rod theory incurs errors up to $20\%$ in deflection predictions, the current VAM framework reduces this discrepancy to below $3\%$, with log-log convergence studies confirming the theoretical $O(h/L)$ accuracy.

Editorial analysis

A structured set of objections, weighed in public.

Desk editor's note, referee report, simulated authors' rebuttal, and a circularity audit. Tearing a paper down is the easy half of reading it; the pith above is the substance, this is the friction.

Referee Report

2 major / 2 minor

Summary. The manuscript develops a one-dimensional theory for functionally graded anisotropic rods using the variational-asymptotic method starting from three-dimensional elasticity. Key features include numerical solution of dual cross-sectional problems to obtain rigorous bounds on the average transverse energy density, application of the Prager-Synge identity to derive an error estimate establishing asymptotic exactness, extension to dynamic low-frequency vibrations, and validation through comparison with exact three-dimensional dispersion relations for composite rods. Numerical results show reduction of deflection errors from up to 20% to below 3% with O(h/L) convergence.

Significance. If the numerical aspects are solidified, the work offers a valuable contribution to dimension reduction techniques by providing asymptotically exact models with error bounds for generally anisotropic and functionally graded materials, which are challenging for analytical approaches. The use of dual problems for bounds and Prager-Synge for error control is a strength, and the dynamic validation adds credibility.

major comments (2)
  1. [Numerical benchmarks] Numerical benchmarks section: the log-log plots and global deflection error reductions (from 20% to <3%) are reported for the slenderness parameter h/L, but no mesh-refinement studies, residual estimates, or convergence data are provided for the dual cross-sectional problems. Since the Prager-Synge identity in the error estimate relies on these numerical bounds approaching the exact infima, the absence of such verification weakens the claim of rigorous asymptotic exactness for arbitrary anisotropy and functional grading.
  2. [Dynamic extension] Dynamic regime extension: the manuscript states that the error estimate is extended to low-frequency vibrations, but does not detail how the Prager-Synge identity is modified for the time-dependent case or whether the same static dual-problem bounds suffice without additional dynamic cross-sectional corrections.
minor comments (2)
  1. [Abstract] Abstract: the phrase 'log-log convergence studies confirming the theoretical O(h/L) accuracy' should specify whether the studies address only the rod slenderness or also the discretization of the cross-section dual problems.
  2. [Notation and definitions] Notation: ensure consistent use of symbols for the average transverse energy density and the dual energies throughout; a table summarizing the bound quantities would improve clarity.

Simulated Author's Rebuttal

2 responses · 0 unresolved

We thank the referee for the constructive comments and positive overall assessment. We address each major comment point by point below and will incorporate the suggested clarifications and additional data into the revised manuscript.

read point-by-point responses

  1. Referee: Numerical benchmarks section: the log-log plots and global deflection error reductions (from 20% to <3%) are reported for the slenderness parameter h/L, but no mesh-refinement studies, residual estimates, or convergence data are provided for the dual cross-sectional problems. Since the Prager-Synge identity in the error estimate relies on these numerical bounds approaching the exact infima, the absence of such verification weakens the claim of rigorous asymptotic exactness for arbitrary anisotropy and functional grading.

    Authors: We agree that explicit verification of the numerical accuracy of the dual cross-sectional problems is necessary to fully support the rigor of the error bounds. In the revised manuscript we will add mesh-refinement studies, residual estimates, and convergence tables for representative anisotropic and graded cross-sections, confirming that the computed upper and lower bounds approach the exact infima to within the tolerance required by the Prager-Synge estimate. revision: yes

  2. Referee: Dynamic regime extension: the manuscript states that the error estimate is extended to low-frequency vibrations, but does not detail how the Prager-Synge identity is modified for the time-dependent case or whether the same static dual-problem bounds suffice without additional dynamic cross-sectional corrections.

    Authors: For low-frequency vibrations the inertial contributions enter as higher-order perturbations in the variational-asymptotic expansion. Consequently the leading-order transverse energy density remains governed by the same static dual problems, and the Prager-Synge identity carries over directly with only an additional O((h/L)^2) remainder that is already absorbed in the existing error estimate. We will insert a short derivation of this reduction in the revised text to make the extension explicit. revision: yes

Circularity Check

0 steps flagged

Derivation proceeds from 3D elasticity via independent numerical cross-section solves; no reduction to inputs by construction

full rationale

The central chain begins with the three-dimensional linear elasticity equations, applies the variational-asymptotic method to obtain a one-dimensional model, and solves dual cross-sectional problems numerically to produce rigorous upper and lower bounds on average transverse energy density. The Prager-Synge identity is then invoked to convert those bounds into an a-posteriori error estimate in the energetic norm. Dispersion relations are validated against exact analytical three-dimensional solutions for composite rods. None of these steps equates a derived quantity to a fitted parameter or to a self-citation that itself assumes the target result. The numerical convergence of the dual problems is a separate question of discretization accuracy and does not render the derivation circular.

Axiom & Free-Parameter Ledger

0 free parameters · 2 axioms · 0 invented entities

The reduction rests on standard assumptions of slender-body asymptotics and the existence of well-posed cross-sectional problems; no new free parameters or invented entities are introduced beyond the numerical solution procedure.

axioms (2)
  • domain assumption The rod is slender with slow axial variations in material properties
    Required for the separation of scales in the variational-asymptotic procedure
  • domain assumption The dual cross-sectional problems admit unique solutions that furnish rigorous energy bounds
    Invoked to justify the Prager-Synge error estimate
