arxiv: 2512.23619 · v2 · submitted 2025-12-29 · 💻 cs.RO · math.GT· math.OC

The N-5 Scaling Law: Topological Dimensionality Reduction in the Optimal Design of Fully-actuated Multirotors

Antonio Franchi This is my paper

Pith reviewed 2026-05-16 19:09 UTC · model grok-4.3

classification 💻 cs.RO math.GTmath.OC
keywords N-5 scaling lawmultirotor designtopological optimizationphase transitionstar polygonsfully-actuated vehiclesisotropy metricconfiguration manifold
0
0 comments X

The pith

Optimal rotor orientations on regular multirotor chassis reduce to exactly N-5 disconnected one-dimensional curves.

A machine-rendered reading of the paper's core claim, the machinery that carries it, and where it could break.

The paper reframes multirotor geometric design as a search over the topology of the configuration space rather than a search for isolated points. By placing rotor lines of action on the product manifold of projective lines and minimizing a coordinate-free log-volume isotropy cost, the authors show that chassis symmetry triggers a phase transition: the discrete set of optima collapses first onto an N-torus of tangent lines and then onto a union of continuous curves. These curves are indexed by admissible star polygons, yielding the N-5 Scaling Law that holds for all examined regular polygons and Platonic solids with N at most 10. A reader should care because the law reveals an intrinsic design redundancy that lets the vehicle slide continuously between equivalent optima while preserving full actuation and isotropic authority.

Core claim

For generic irregular chassis the optimal solutions appear as isolated points on the product manifold. As vertex symmetry approaches that of regular planar polygons or Platonic solids, the landscape undergoes a critical transition in which the solution set collapses onto an N-dimensional torus of lines tangent to the circumscribing sphere and subsequently reduces, via affine phase locking, to precisely N-5 disconnected one-dimensional branches. These branches are in one-to-one correspondence with the admissible star polygons {N/q}, which furnish an exact algebraic prediction of the optimal rotor phases for any N.

What carries the argument

Affine phase locking on the N-dimensional torus of tangent lines, which enforces the collapse of the optimal set to K = N-5 disconnected 1D branches indexed by star-polygon sequences.

If this is right

  • A vehicle can continuously reconfigure its rotor angles along any of the N-5 branches without loss of isotropic control authority.
  • Optimal phases for arbitrary N are exactly predictable from the admissible star-polygon sequence {N/q}.
  • The design space contains continuous families of equivalent optima rather than isolated points, once chassis regularity is reached.
  • For irregular chassis the optima remain discrete, so the continuous redundancy appears only after the symmetry threshold is crossed.

Where Pith is reading between the lines

These are editorial extensions of the paper, not claims the author makes directly.

  • If the N-5 law persists for larger N, designers could exploit the extra degrees of freedom to trade secondary objectives such as energy or fault tolerance while remaining at the isotropy optimum.
  • The same symmetry-induced reduction may appear in other actuator-placement problems on regular polyhedra, for example in sensor arrays or parallel mechanisms.
  • Real-time morphing along the branches could be implemented as a low-dimensional controller that responds to rotor failure or payload change without recomputing a full optimization.

Load-bearing premise

The log-volume isotropy metric on the product of projective lines fully encodes the relevant performance landscape and the N-5 count continues to hold for all regular geometries.

What would settle it

Observation of a regular Platonic solid or polygon with N greater than 10 whose optimal set contains a number of connected components other than N-5, or whose continuous branches fail to preserve the isotropy value while traversing the curve.

Figures

Figures reproduced from arXiv: 2512.23619 by Antonio Franchi.

Figure 2
Figure 2. Figure 2: Geometric construction of the RP 2 Disc Model. (Left) A 3D view of the upper hemisphere of S 2 and the equatorial disc. A rotor’s line of action (dashed line) passes through the origin, intersects the hemisphere at a red dot, and projects orthographically to a blue square on the disc. (Right) The resulting 2D disc representation. Topological Loops: We also visualize a full rotation of a line about a fixed … view at source ↗
Figure 1
Figure 1. Figure 1: Visual dictionary of representative chassis. [PITH_FULL_IMAGE:figures/full_fig_p006_1.png] view at source ↗

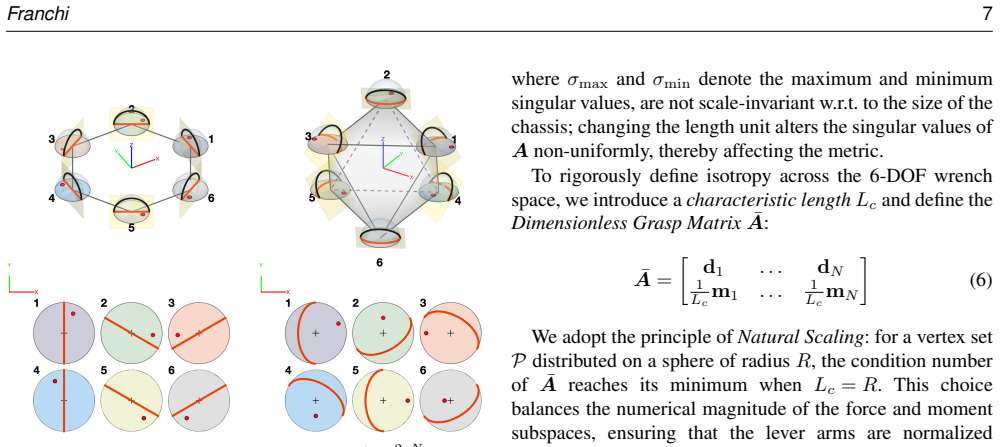

Figure 3
Figure 3. Figure 3: The disc dashboard view of M = (RP 2 ) N : a graphical model of the manifold of all force directions for two representative chassis. Configuration spaces for a regular hexagon (Top-Left) and an octahedron (Top-Right), where N = 6. Each chassis vertex is equipped with a local copy of the RP 2 disc model defined in [PITH_FULL_IMAGE:figures/full_fig_p007_3.png] view at source ↗
Figure 4
Figure 4. Figure 4: Stochastic initialization of the search space for [PITH_FULL_IMAGE:figures/full_fig_p009_4.png] view at source ↗

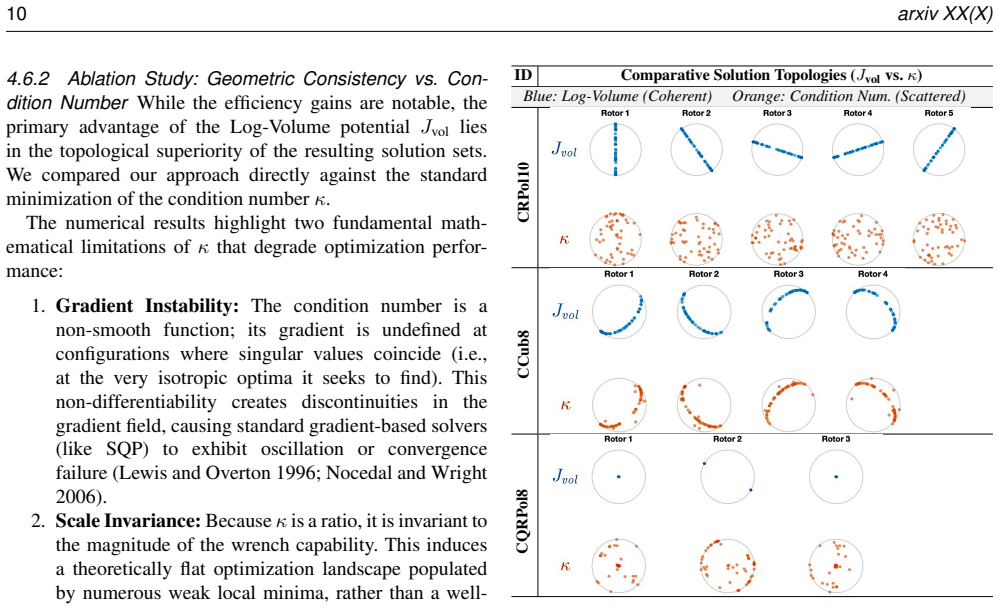

Figure 6
Figure 6. Figure 6: presents three representative cases selected from the broader dataset. Visual inspection reveals a stark contrast in solution topology driven by these mathematical properties. While κ-minimization (orange) results in unstructured, scattered point clouds due to gradient instability, the proposed Log-Volume method (blue) consistently converges to distinct, coherent sets of solutions. The topological structur… view at source ↗

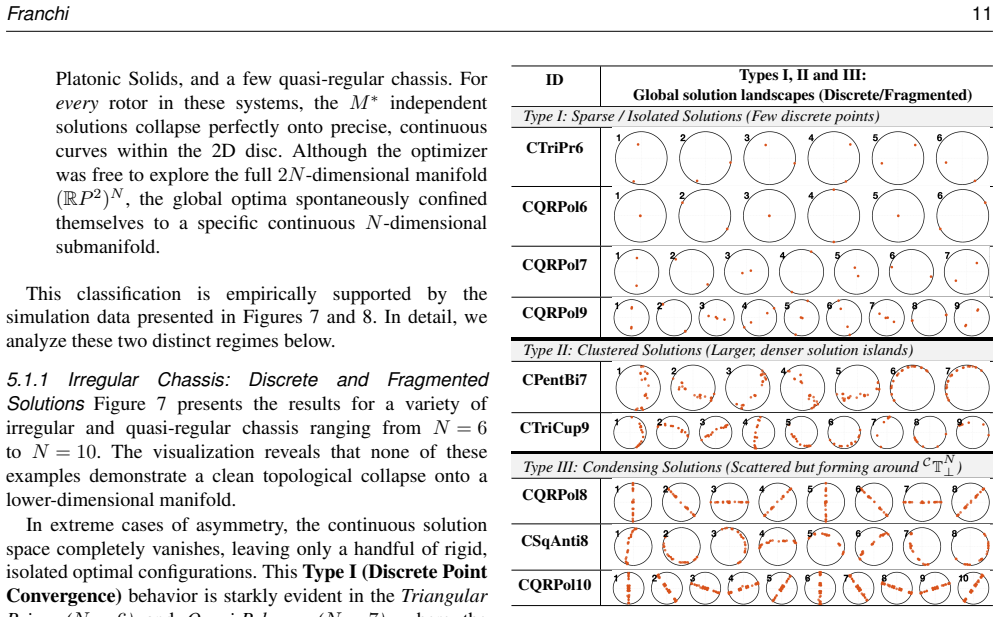

Figure 7
Figure 7. Figure 7: Global solution landscapes for irregular and [PITH_FULL_IMAGE:figures/full_fig_p011_7.png] view at source ↗
Figure 8
Figure 8. Figure 8: Type IV: Global solution landscapes for symmetric chassis categorized by the nature of their manifold collapse. The results demonstrate that for symmetric geometries, the optimizer converges toward the Tangent Torus CT N ⊥ , but the quality of this collapse varies. Near-regular geometries (CQCub8, CCubOct12, CHexPr12) exhibit an imperfect collapse: for the Quasi-Cube (CQCub8), the solutions form thin lines… view at source ↗

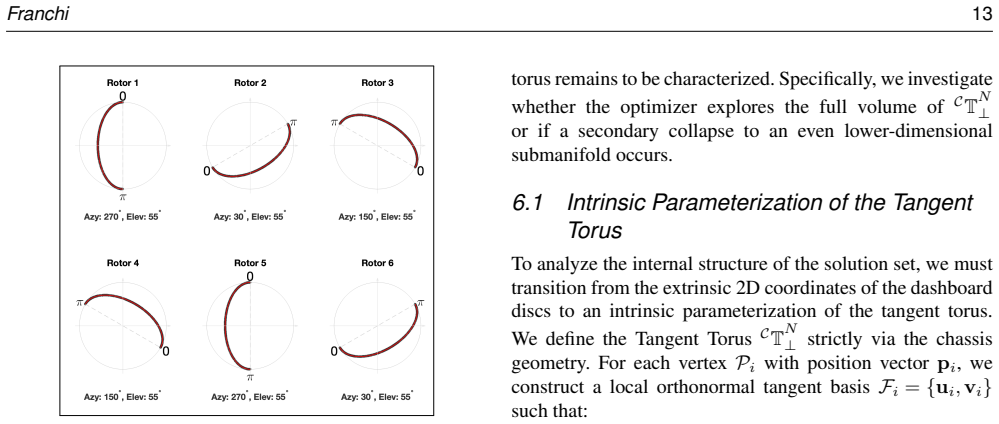

Figure 9
Figure 9. Figure 9: Representation of the solution landscape data points (M∗ points) in M for the chassis: Octahedron (N = 6). The gray dots represent the two coordinates of these points on each disc RP 2 i . The data is perfectly fitted by the red semi-ellipses, whose parameters (rotation and elevation) are shown in each subplot. The parameters recovered by the fit reveal that the combination of all semi-elliptical curves co… view at source ↗
Figure 10
Figure 10. Figure 10: Linear coordination patterns in the intrinsic angular space. [PITH_FULL_IMAGE:figures/full_fig_p015_10.png] view at source ↗
Figure 11
Figure 11. Figure 11: Visual results of the topological branch and phase extraction of the landscape of optimal solutions. [PITH_FULL_IMAGE:figures/full_fig_p018_11.png] view at source ↗
Figure 12
Figure 12. Figure 12: Star Polygons {N/q} which are admissible according to the N − 5 Law. A grid visualization of star polygons for N ∈ [6, 10] and q ∈ [3, N − 3]. Each subplot represents a specific geometry where the red arrow indicates the initial phase step (∆ϕ) corresponding to the “chord” length of the polygon. Each star polygon denoted by {N, q} in this figure maps to one of the branches of the N-vertex polygonal chassi… view at source ↗

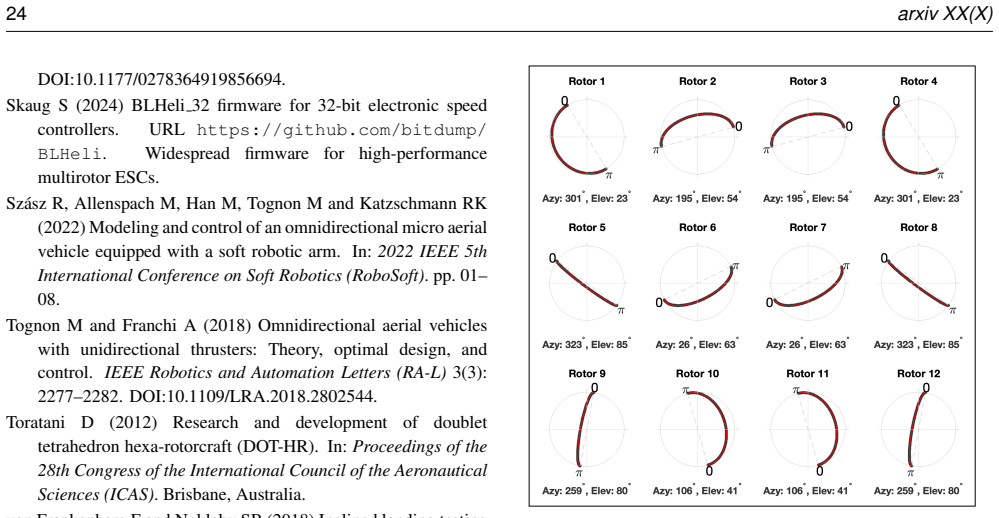

Figure 14
Figure 14. Figure 14: Representation of the solution landscape data points (M∗ points) in M for the chassis: Icosahedron (N = 12). The gray dots represent the two coordinates of these points on each disc RP 2 i . The data is perfectly fitted by the red semi-ellipses, whose parameters (rotation and elevation are shown in each subplot). The combination of all the semi-elliptical curves matches exactly the CT N ⊥ of the Icosahedr… view at source ↗

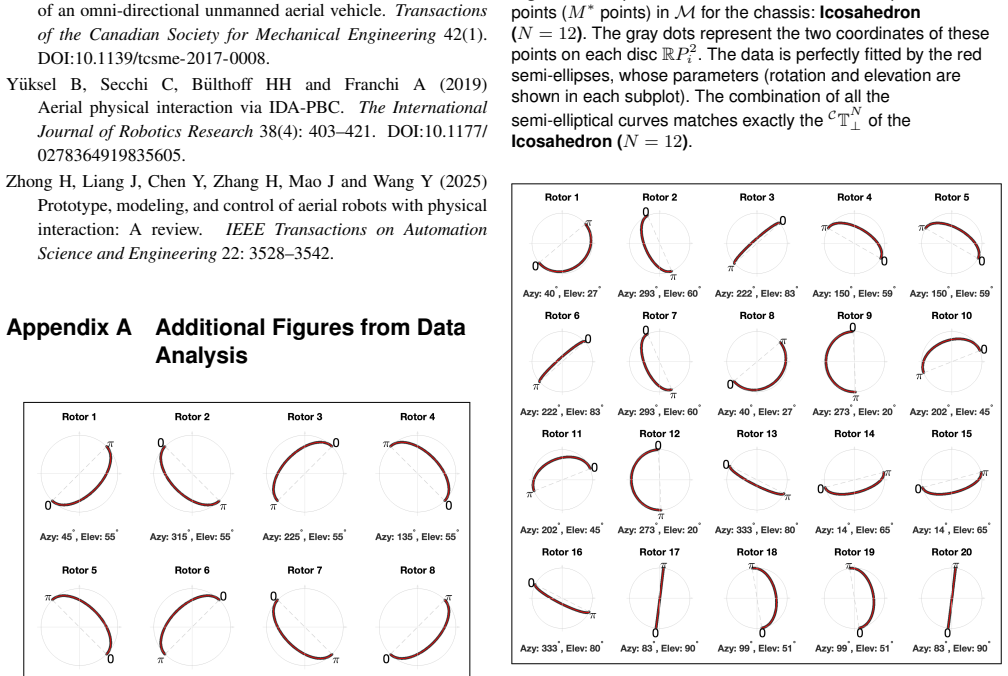

Figure 15
Figure 15. Figure 15: Representation of the solution landscape data points (M∗ points) in M for the chassis: Dodecahedron (N = 20). The gray dots represent the two coordinates of these points on each disc RP 2 i . The data is perfectly fitted by the red semi-ellipses, whose parameters (rotation and elevation are shown in each subplot). The combination of all the semi-elliptical curves matches exactly the CT N ⊥ of the Dodecahe… view at source ↗

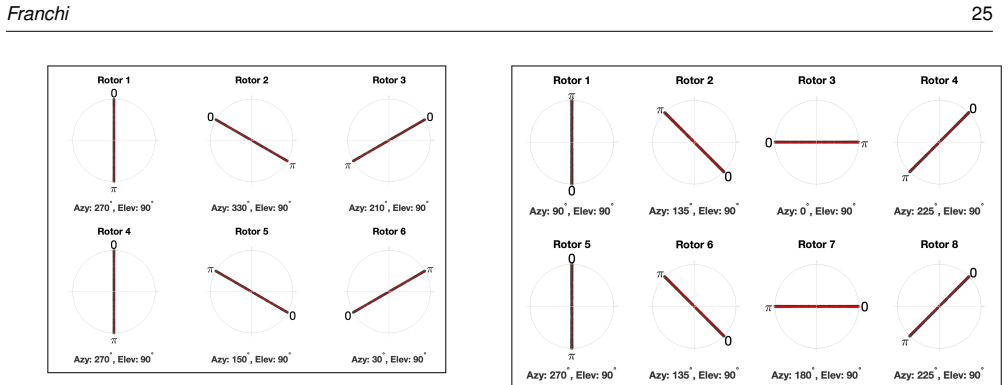

Figure 16
Figure 16. Figure 16: Representation of the solution landscape data points (M∗ points) in M for the chassis: Hexagon (N = 6). The gray dots represent the two coordinates of these points on each disc RP 2 i . The data is perfectly fitted by the red semi-ellipses, whose parameters (rotation and elevation) are shown in each subplot. The parameters recovered by the fit reveal that the combination of all semi-elliptical curves corr… view at source ↗

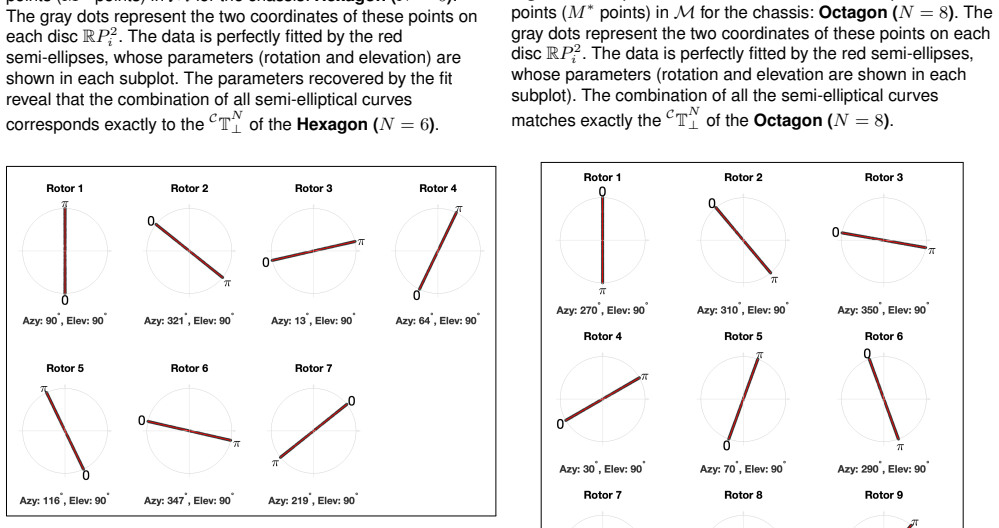

Figure 17
Figure 17. Figure 17: Representation of the solution landscape data points (M∗ points) in M for the chassis: Heptagon (N = 7). The gray dots represent the two coordinates of these points on each disc RP 2 i . The data is perfectly fitted by the red semi-ellipses, whose parameters (rotation and elevation are shown in each subplot). The combination of all the semi-elliptical curves matches exactly the CT N ⊥ of the Heptagon (N =… view at source ↗

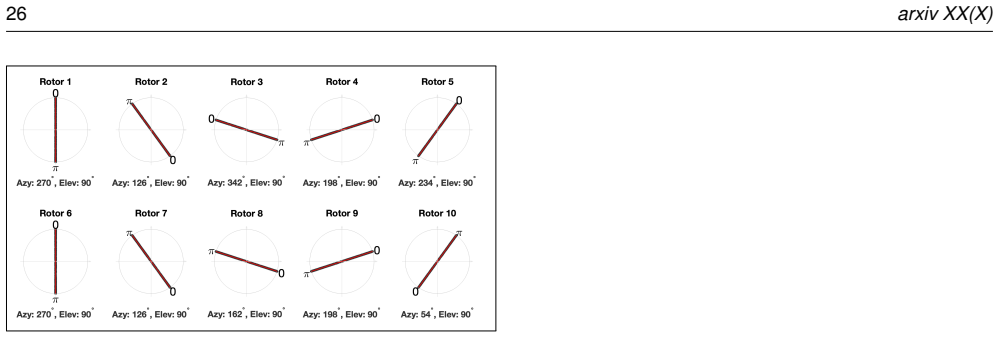

Figure 20
Figure 20. Figure 20: Representation of the solution landscape data points (M∗ points) in M for the chassis: Decagon (N = 10). The gray dots represent the two coordinates of these points on each disc RP 2 i . The data is perfectly fitted by the red semi-ellipses, whose parameters (rotation and elevation are shown in each subplot). The combination of all the semi-elliptical curves matches exactly the CT N ⊥ of the Decagon (N = … view at source ↗
Figure 21
Figure 21. Figure 21: A partial summary fo the 1D-Manifold extraction results): Top row: Selection of fitted pairwise angular correlations. Each subplot shows a representative projection of the solution manifold for a specific regular chassis. The data points are overlaid with the fitted affine phase-locking curves, colored to distinguish the distinct K topological branches (isomers) identified by the algorithm. Bottom row: To… view at source ↗
read the original abstract

The geometric design of fully-actuated and omnidirectional N-rotor aerial vehicles is conventionally formulated as a parametric optimization problem, seeking a single optimal set of N orientations within a fixed architectural family. This work departs from that paradigm to investigate the intrinsic topological structure of the optimization landscape itself. We formulate the design problem on the product manifold of Projective Lines \RP^2^N, fixing the rotor positions to the vertices of polyhedral chassis while varying their lines of action. By minimizing a coordinate-invariant Log-Volume isotropy metric, we reveal that the topology of the global optima is governed strictly by the symmetry of the chassis. For generic (irregular) vertex arrangements, the solutions appear as a discrete set of isolated points. However, as the chassis geometry approaches regularity, the solution space undergoes a critical phase transition, collapsing onto an N-dimensional Torus of the lines tangent at the vertexes to the circumscribing sphere of the chassis, and subsequently reducing to continuous 1-dimensional curves driven by Affine Phase Locking. We synthesize these observations into the N-5 Scaling Law: an empirical relationship holding for all examined regular planar polygons and Platonic solids (N <= 10), where the space of optimal configurations consists of K=N-5 disconnected 1D topological branches. We demonstrate that these locking patterns correspond to a sequence of admissible Star Polygons {N/q}, allowing for the exact prediction of optimal phases for arbitrary N. Crucially, this topology reveals a design redundancy that enables optimality-preserving morphing: the vehicle can continuously reconfigure along these branches while preserving optimal isotropic control authority.

Editorial analysis

A structured set of objections, weighed in public.

Desk editor's note, referee report, simulated authors' rebuttal, and a circularity audit. Tearing a paper down is the easy half of reading it; the pith above is the substance, this is the friction.

Referee Report

3 major / 1 minor

Summary. The paper claims that the optimization landscape for fully-actuated multirotor designs on regular polyhedral chassis, formulated on the product manifold (RP^2)^N and minimized via a coordinate-invariant Log-Volume isotropy metric, undergoes a symmetry-driven phase transition: from isolated points for irregular chassis, to an N-torus of tangent lines, and then to exactly K=N-5 disconnected 1D branches via Affine Phase Locking. This N-5 Scaling Law is reported as empirical for regular planar polygons and Platonic solids with N<=10, with branches corresponding to admissible star polygons {N/q} that enable prediction for arbitrary N and optimality-preserving continuous morphing.

Significance. If the observed topology and exact N-5 branch count generalize, the result would establish a fundamental redundancy in the design space of omnidirectional multirotors, directly enabling reconfigurable vehicles that maintain isotropic control authority along continuous paths. This could provide a topological foundation for symmetry exploitation in aerial robotics, moving beyond single-point optimization to families of equivalent optima.

major comments (3)
  1. [Abstract] Abstract and the section synthesizing the N-5 Scaling Law: the claim that the space consists of exactly K=N-5 disconnected 1D branches is presented as an empirical relationship for N<=10, but no derivation or first-principles argument is given showing why Affine Phase Locking must produce precisely this count (i.e., effective codimension 4) for arbitrary N or why it is independent of the Log-Volume metric.
  2. [The section on phase transition and Affine Phase Locking] The description of the phase transition from N-torus to 1D curves: the reduction is tied to the specific isotropy metric and symmetry assumptions on regular chassis, yet the manuscript provides no verification that the topology persists under alternative coordinate-invariant measures or for N>10, leaving the general validity of the scaling law unsupported.
  3. [The section on star polygons and phase prediction] The part linking branches to star polygons {N/q}: while this allows prediction of phases, the correspondence is observational without an analytical demonstration that the locking mechanism always yields N-5 components independent of the chosen metric or manifold formulation.
minor comments (1)
  1. [Abstract] The abstract states the law holds for 'all examined' cases with N<=10 but does not list the specific N values, number of trials, or quantitative measures (e.g., branch counts or fitting errors) used to identify the topologies.

Simulated Author's Rebuttal

3 responses · 1 unresolved

We thank the referee for the thorough and constructive review. We address each major comment below. The N-5 Scaling Law is presented as an empirical observation from numerical experiments on regular chassis for N≤10; we will revise the manuscript to emphasize this limitation more clearly and to add supporting experiments where feasible. We provide point-by-point responses and indicate revisions accordingly.

read point-by-point responses

  1. Referee: [Abstract] Abstract and the section synthesizing the N-5 Scaling Law: the claim that the space consists of exactly K=N-5 disconnected 1D branches is presented as an empirical relationship for N<=10, but no derivation or first-principles argument is given showing why Affine Phase Locking must produce precisely this count (i.e., effective codimension 4) for arbitrary N or why it is independent of the Log-Volume metric.

    Authors: We agree that no first-principles derivation is provided for the exact N-5 count. The manuscript explicitly frames the scaling law as an empirical relationship observed across regular planar polygons and Platonic solids with N≤10. The codimension reduction arises from the combination of rotational symmetry constraints on the regular chassis and the Affine Phase Locking mechanism identified in our optimizations. We will revise the abstract and the synthesizing section to state explicitly that the N-5 count is empirical, to clarify that independence from the specific Log-Volume metric has not been proven analytically, and to discuss the observed effective codimension in terms of symmetry-induced constraints rather than claiming metric independence. revision: partial

  2. Referee: [The section on phase transition and Affine Phase Locking] The description of the phase transition from N-torus to 1D curves: the reduction is tied to the specific isotropy metric and symmetry assumptions on regular chassis, yet the manuscript provides no verification that the topology persists under alternative coordinate-invariant measures or for N>10, leaving the general validity of the scaling law unsupported.

    Authors: We acknowledge this limitation. The phase transition and reduction to 1D curves are demonstrated numerically for the Log-Volume isotropy metric on regular chassis with N≤10. We will add a new paragraph in the phase transition section reporting additional numerical checks using an alternative coordinate-invariant measure (e.g., the condition number of the allocation matrix) for N=6 and N=8 to test persistence of the topology. We will also explicitly note that verification for N>10 and general metric independence remains an open question for future work, thereby qualifying the general validity of the scaling law. revision: yes

  3. Referee: [The section on star polygons and phase prediction] The part linking branches to star polygons {N/q}: while this allows prediction of phases, the correspondence is observational without an analytical demonstration that the locking mechanism always yields N-5 components independent of the chosen metric or manifold formulation.

    Authors: The correspondence between optimal branches and admissible star polygons {N/q} is observational, obtained by matching the computed phase patterns to the winding numbers of star polygons that satisfy the symmetry constraints of the regular chassis. We do not claim an analytical proof that the locking mechanism invariably produces exactly N-5 components for arbitrary metrics or manifold formulations. We will revise the star polygons section to describe the link as a predictive heuristic validated on the tested cases, to state that the exact branch count may depend on the metric and symmetry assumptions, and to limit the predictive claim to the scope of our formulation and numerical evidence. revision: partial

standing simulated objections not resolved
  • Absence of a first-principles derivation showing why Affine Phase Locking produces precisely N-5 branches for arbitrary N independent of the isotropy metric.

Circularity Check

0 steps flagged

N-5 Scaling Law presented strictly as empirical observation for N≤10; no derivation reduces to inputs by construction

full rationale

The paper explicitly labels the N-5 Scaling Law as an empirical relationship observed across examined regular polygons and Platonic solids with N≤10. The topology reduction from the product manifold RP^{2N} to K=N-5 disconnected 1D branches is described as a numerical observation under the chosen Log-Volume isotropy metric, with no first-principles derivation or uniqueness theorem invoked that would force the exact branch count independently of the metric or the examined cases. No self-citations appear in the provided text as load-bearing for the central claim, and the star-polygon prediction for arbitrary N is presented as an extension of the same empirical patterns rather than a closed-form reduction. The derivation chain therefore remains self-contained against external benchmarks and does not collapse any prediction to its inputs by definition or fitting.

Axiom & Free-Parameter Ledger

1 free parameters · 2 axioms · 0 invented entities

The central claim rests on the manifold model of rotor lines of action, the choice of Log-Volume isotropy metric, and the empirical observation of the scaling law for regular geometries up to N=10; no independent verification of the metric or generalization proof is provided.

free parameters (1)
  • Log-Volume isotropy metric
    The specific functional form of the coordinate-invariant isotropy measure used to define optimality is introduced without derivation from first principles and may contain implicit parameters that shape the observed topology.
axioms (2)
  • domain assumption The design space is faithfully represented by the product manifold of projective lines RP^2^N with fixed vertex positions
    Invoked when the optimization landscape topology is analyzed solely by varying lines of action on this manifold.
  • ad hoc to paper Regular chassis symmetry induces a phase transition from isolated points to N-dimensional tori and then to 1D curves
    Central to the reported collapse onto continuous branches and the N-5 count.
