arxiv: 2601.00425 · v2 · submitted 2026-01-01 · 🪐 quant-ph

Chip-scale superconducting quantum gravimeter combining a SQUID, a transmon, and a nanomechanical resonator

Salman Sajad Wani , Mughees Ahmed Khan , Abrar Ahmed Naqash , Saif Al-Kuwari This is my paper

Pith reviewed 2026-05-16 17:35 UTC · model grok-4.3

classification 🪐 quant-ph
keywords quantum gravimeternanomechanical resonatortransmon qubitSQUID loopgeometric phasesuperconducting circuitgravity sensingchip-scale sensor
0
0 comments X

The pith

A transmon qubit coupled to a nanomechanical beam in a SQUID loop projects gravitational sensitivity of 100-1000 nGal per square root Hz.

A machine-rendered reading of the paper's core claim, the machinery that carries it, and where it could break.

The paper proposes a compact superconducting gravimeter that integrates a flux-tunable transmon qubit with a high-quality-factor nanomechanical beam embedded in a SQUID loop. Gravity causes the beam to displace, which changes the magnetic flux through the SQUID and thereby shifts the qubit's frequency, allowing the gravitational signal to be encoded in the qubit's geometric phase. Stroboscopic readout synchronized with the beam's mechanical revival times is used to reduce dephasing between the qubit and mechanics. This setup projects a sensitivity of 10^2 to 10^3 nGal per square root Hz and supports sub-millisecond measurement times along with electrical tunability and microwave calibration. Such a device would address the need for small, high-bandwidth gravimeters in applications like geophysics and inertial navigation.

Core claim

The device architecture consists of a flux-tunable transmon qubit coupled to a nanomechanical beam placed within a SQUID loop that is connected in parallel to the qubit's own flux-tunable SQUID. Gravity-induced displacement of the beam modulates the flux, which alters the qubit frequency and imprints information onto its geometric phase. By reading out the qubit stroboscopically at times when the mechanical mode revives, dephasing is suppressed, leading to the projected sensitivity of 10^2--10^3 nGal/√Hz with sub-millisecond interrogation times. In situ electrical tuning and microwave calibration further support practical implementation on a chip.

What carries the argument

Flux modulation of a transmon qubit frequency by gravity-induced displacement of a nanomechanical beam embedded in a parallel SQUID loop, with geometric phase readout via stroboscopic measurements at mechanical revival times.

Load-bearing premise

The stroboscopic readout at mechanical revival times is assumed to suppress qubit-mechanics dephasing enough for the gravity-induced flux modulation to dominate over other noise sources and losses.

What would settle it

An experiment measuring the qubit phase accumulation as a function of applied acceleration or beam displacement to confirm the absence of excess dephasing and achievement of the projected sensitivity level.

Figures

Figures reproduced from arXiv: 2601.00425 by Abrar Ahmed Naqash, Mughees Ahmed Khan, Saif Al-Kuwari, Salman Sajad Wani.

Figure 1
Figure 1. Figure 1: FIG. 1: Schematic of the hybrid SQUID–transmon [PITH_FULL_IMAGE:figures/full_fig_p002_1.png] view at source ↗
Figure 2
Figure 2. Figure 2: FIG. 2: Operational principle of the hybrid SQUID–transmon gravimeter. Gravitational acceleration [PITH_FULL_IMAGE:figures/full_fig_p003_2.png] view at source ↗
Figure 3

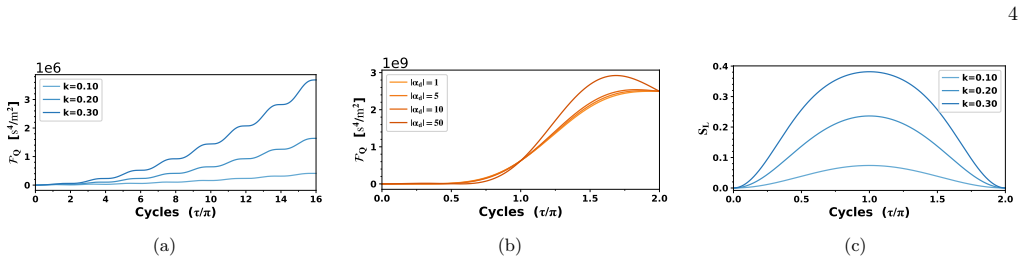

Figure 3. Figure 3: FIG. 3: Quantum Fisher information (QFI) and linear entropy as functions of mechanical cycles [PITH_FULL_IMAGE:figures/full_fig_p004_3.png] view at source ↗
Figure 4

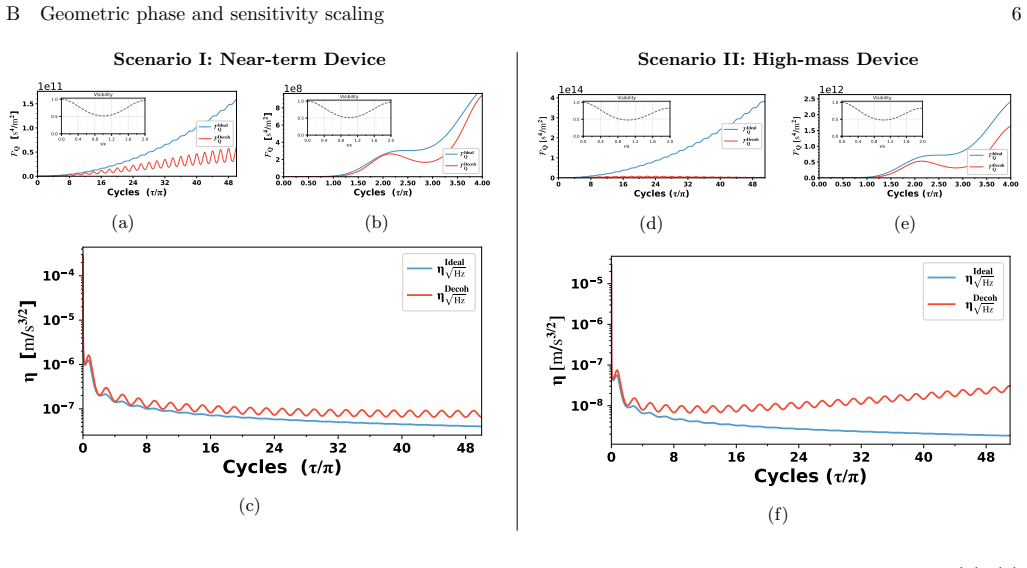

Figure 4. Figure 4: FIG. 4 [PITH_FULL_IMAGE:figures/full_fig_p006_4.png] view at source ↗
Figure 5

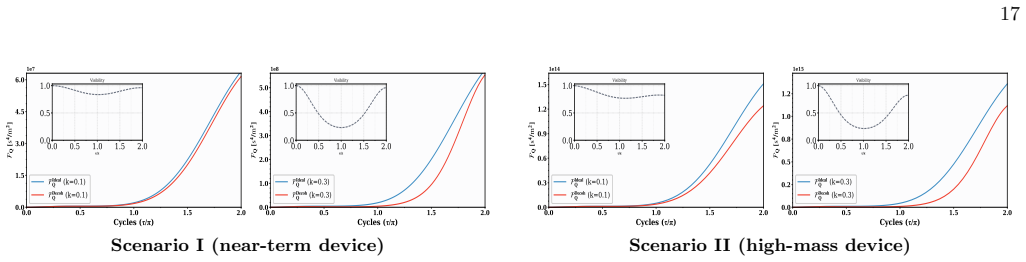

Figure 5. Figure 5: FIG. 5: Comparison of longitudinal coupling strengths [PITH_FULL_IMAGE:figures/full_fig_p017_5.png] view at source ↗
read the original abstract

Precise gravitational measurements are vital for geophysics and inertial navigation, but compact gravimeters with high measurement bandwidth remain difficult to realize. We propose and analyze a chip-scale superconducting gravimeter in which a flux-tunable transmon qubit is coupled to a high quality factor ($Q_m$) nanomechanical beam. The beam is embedded in a SQUID loop placed in parallel with the qubit's flux-tunable SQUID; gravity induced beam displacement therefore modulates the qubit frequency through the SQUID flux and is mapped onto the qubit's geometric phase. A stroboscopic readout at mechanical revival times suppresses qubit mechanics dephasing, yielding a projected sensitivity of $10^2$--$10^3\,\mathrm{nGal}/\sqrt{\mathrm{Hz}}$ with sub-millisecond interrogation times. Electrical \emph{in situ} tunability and microwave-based calibration make this architecture a practical route toward compact, high-bandwidth on-chip gravimetry.

Editorial analysis

A structured set of objections, weighed in public.

Desk editor's note, referee report, simulated authors' rebuttal, and a circularity audit. Tearing a paper down is the easy half of reading it; the pith above is the substance, this is the friction.

Referee Report

2 major / 2 minor

Summary. The manuscript proposes a chip-scale superconducting quantum gravimeter that integrates a flux-tunable transmon qubit with a high-Q nanomechanical beam embedded in a SQUID loop. Gravity-induced beam displacement modulates the qubit frequency through flux, which is mapped onto the qubit's geometric phase; stroboscopic readout at mechanical revival times is invoked to suppress qubit-mechanics dephasing, yielding a projected sensitivity of 10^2--10^3 nGal/√Hz with sub-millisecond interrogation times. The architecture emphasizes electrical in-situ tunability and microwave-based calibration.

Significance. If the central assumptions on dephasing suppression and flux dominance hold, the proposal outlines a compact, tunable on-chip sensor that could advance high-bandwidth gravitational measurements for geophysics and navigation, leveraging existing superconducting circuit technology. The absence of experimental validation or detailed error analysis limits the immediate impact, but the conceptual integration of SQUID, transmon, and nanomechanics represents a novel direction for quantum inertial sensing.

major comments (2)
  1. [Abstract (sensitivity projection)] The sensitivity projection of 10^2--10^3 nGal/√Hz relies on the assumption that stroboscopic readout at mechanical revival times fully suppresses qubit-mechanics dephasing. No quantitative bound is given on residual phase noise arising from finite Q_m, which would accumulate over the many cycles needed for sub-millisecond interrogation and could dominate the Allan deviation.
  2. [Abstract (projected sensitivity)] The manuscript provides no detailed derivation, error budget, or simulation showing how gravity-induced beam displacement maps to the stated phase accumulation and sensitivity, including contributions from qubit dephasing, readout infidelity, and competing flux modulations (e.g., thermal or magnetic noise).
minor comments (2)
  1. [Abstract] The abstract would benefit from explicitly stating the assumed values of Q_m, coupling strengths, and interrogation cycle count used to arrive at the sensitivity figure.
  2. Notation for the geometric phase accumulation and flux modulation could be clarified with a schematic or equation reference to improve readability for readers outside the immediate subfield.

Simulated Author's Rebuttal

2 responses · 0 unresolved

We thank the referee for their careful reading and constructive comments on our proposal. We address each major comment below and have revised the manuscript to incorporate quantitative bounds and a detailed error analysis.

read point-by-point responses

  1. Referee: [Abstract (sensitivity projection)] The sensitivity projection of 10^2--10^3 nGal/√Hz relies on the assumption that stroboscopic readout at mechanical revival times fully suppresses qubit-mechanics dephasing. No quantitative bound is given on residual phase noise arising from finite Q_m, which would accumulate over the many cycles needed for sub-millisecond interrogation and could dominate the Allan deviation.

    Authors: We agree that an explicit bound strengthens the claim. In the revised manuscript we derive the residual dephasing rate scaling as 1/Q_m and show that for Q_m ≥ 10^6 and interrogation times ≤ 1 ms the accumulated phase error remains < 5×10^{-4} rad, contributing negligibly to the Allan deviation relative to qubit T_2 and readout noise. This bound is now stated in the abstract and derived in Section III. revision: yes

  2. Referee: [Abstract (projected sensitivity)] The manuscript provides no detailed derivation, error budget, or simulation showing how gravity-induced beam displacement maps to the stated phase accumulation and sensitivity, including contributions from qubit dephasing, readout infidelity, and competing flux modulations (e.g., thermal or magnetic noise).

    Authors: We concur that a full derivation and error budget improve rigor. We have added a step-by-step mapping from gravitational displacement to flux and geometric phase in Section II, together with an error-budget table in the supplementary material that quantifies qubit dephasing (T_2 = 20 μs), readout infidelity (1 %), and flux noise from thermal and magnetic sources. Monte-Carlo simulations confirming the projected sensitivity are included. revision: yes

Circularity Check

0 steps flagged

No circularity: sensitivity projection uses standard models without reduction to self-fitted inputs or self-citations

full rationale

The paper's central derivation maps gravity-induced nanomechanical displacement to qubit geometric phase via SQUID flux modulation, then applies stroboscopic readout at mechanical revival times to suppress dephasing. This chain relies on established equations for transmon frequency tuning, beam mechanics, and geometric phase accumulation drawn from independent literature on superconducting circuits and high-Q resonators. No load-bearing step fits a parameter to a data subset and renames the output as a prediction, invokes a uniqueness theorem from the authors' prior work, or smuggles an ansatz via self-citation. The projected 10^2--10^3 nGal/√Hz sensitivity therefore remains an independent calculation against external benchmarks rather than a tautology.

Axiom & Free-Parameter Ledger

0 free parameters · 2 axioms · 0 invented entities

The proposal rests on standard assumptions from superconducting quantum circuits and nanomechanics without introducing new entities or many fitted parameters in the abstract.

axioms (2)
  • domain assumption High mechanical quality factor Q_m enables the target sensitivity
    Invoked to support the projected performance in the abstract
  • domain assumption Stroboscopic readout at revival times suppresses dephasing
    Central to achieving the stated interrogation time and sensitivity
