Topological sensing of superfluid rotation using non-Hermitian optical dimers
Pith reviewed 2026-05-16 16:43 UTC · model grok-4.3
The pith
A non-Hermitian optical dimer coupled to a ring-trapped superfluid encodes the superfluid winding number in its transmission via a tunable exceptional point.
A machine-rendered reading of the paper's core claim, the machinery that carries it, and where it could break.
Core claim
Using an exact Schur-complement reduction, the authors derive a frequency-dependent self-energy from the light-matter dynamics. In the static regime the atomic response supplies a complex shift that renormalizes the dimer parameters and supports a tunable exceptional point. Spectroscopic features in the transmission of a probe field then encode the winding number of the superfluid current. The half-integer topological charge of the exceptional point is exploited to implement a digital sensing protocol based on eigenmode permutation.
What carries the argument
The renormalized non-Hermitian optical dimer whose tunable exceptional point arises from the complex self-energy shift induced by condensate backaction.
If this is right
- Transmission spectra exhibit distinct features that directly indicate the superfluid winding number.
- Eigenmode permutation yields a digital, noise-resilient readout without relying on fragile eigenvalue splittings.
- The sensing protocol remains nondestructive and preserves superfluid coherence.
- The exceptional point can be tuned by adjusting the two-tone control laser parameters.
Where Pith is reading between the lines
- The same renormalized-dimer construction could be adapted to detect other topological defects such as vortices in two-dimensional superfluids.
- Coupling non-Hermitian optics to matter waves may offer a general route to topological sensing in systems where direct eigenvalue measurements are impractical.
- Integration with on-chip photonic circuits could turn the scheme into a compact, real-time monitor for persistent currents in quantum gases.
Load-bearing premise
The atomic response from the ring-trapped condensate produces a static complex frequency shift that allows the dimer to support a tunable exceptional point.
What would settle it
A measurement showing that the transmission spectrum changes predictably with the superfluid winding number even when eigenvalue splitting is absent or noise-dominated.
Figures

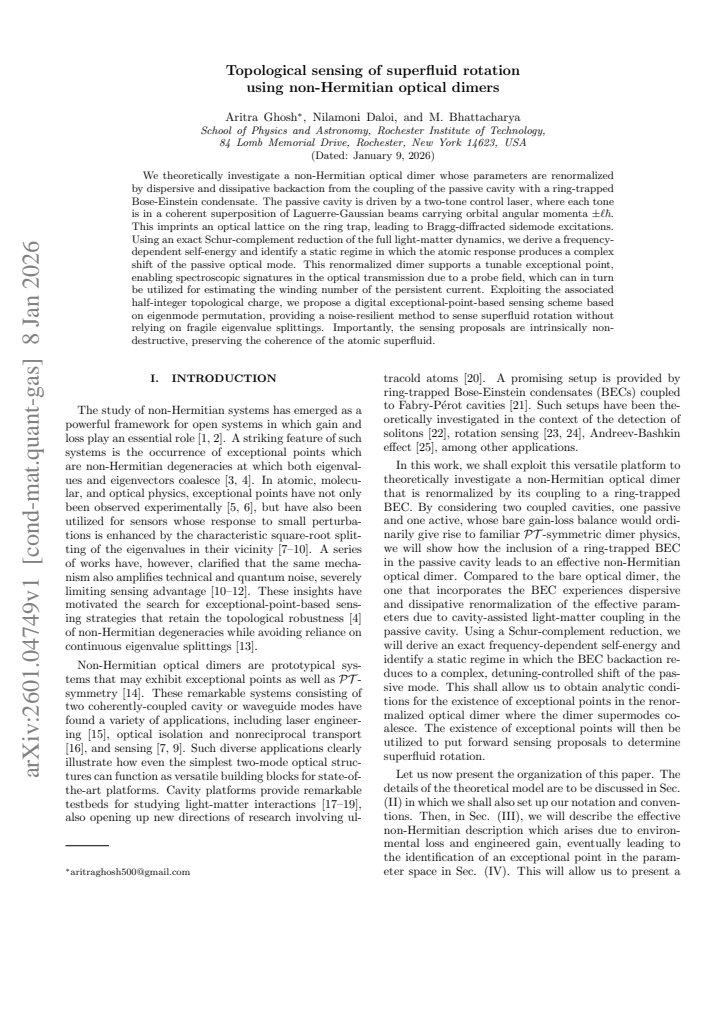

read the original abstract
We theoretically investigate a non-Hermitian optical dimer whose parameters are renormalized by dispersive and dissipative backaction from the coupling of the passive cavity with a ring-trapped Bose-Einstein condensate. The passive cavity is driven by a two-tone control laser, where each tone is in a coherent superposition of Laguerre-Gaussian beams carrying orbital angular momenta $\pm \ell \hbar$. This imprints an optical lattice on the ring trap, leading to Bragg-diffracted sidemode excitations. Using an exact Schur-complement reduction of the full light-matter dynamics, we derive a frequency-dependent self-energy and identify a static regime in which the atomic response produces a complex shift of the passive optical mode. This renormalized dimer supports a tunable exceptional point, enabling spectroscopic signatures in the optical transmission due to a probe field, which can in turn be utilized for estimating the winding number of the persistent current. Exploiting the associated half-integer topological charge, we propose a digital exceptional-point-based sensing scheme based on eigenmode permutation, providing a noise-resilient method to sense superfluid rotation without relying on fragile eigenvalue splittings. Importantly, the sensing proposals are intrinsically nondestructive, preserving the coherence of the atomic superfluid.
Editorial analysis
A structured set of objections, weighed in public.
Referee Report
Summary. The manuscript investigates a non-Hermitian optical dimer whose parameters are renormalized by backaction from a ring-trapped BEC driven by a two-tone Laguerre-Gaussian laser. An exact Schur-complement reduction of the light-matter dynamics yields a frequency-dependent self-energy; in a static regime this produces a complex shift on the passive mode, enabling a tunable exceptional point. Transmission signatures at this EP, combined with eigenmode permutation that exploits the half-integer topological charge, are proposed as a digital, noise-resilient scheme to sense the superfluid winding number without relying on eigenvalue splittings. The method is claimed to be nondestructive.
Significance. If the static regime and direct mapping from winding number to transmission hold, the work provides a conceptually novel route to topological sensing of persistent currents in quantum gases. The exact Schur reduction supplies a rigorous, parameter-free starting point, and the eigenmode-permutation protocol offers a potential advantage over conventional EP sensing by avoiding fragile splittings. This integration of non-Hermitian optics with atomic superfluids could stimulate experiments in cavity QED setups.
major comments (2)
- [static-regime identification after Schur reduction] Following the Schur-complement reduction, the static regime is asserted to produce a purely complex, winding-number-tunable shift without higher-order dynamical or dissipative corrections. No explicit parameter set (detuning, coupling strengths, or range of ℓ) is supplied to verify that this regime is accessible and that extraneous splittings or loss channels remain negligible; this verification is load-bearing for the sensing claim.
- [EP-based sensing proposal] The digital sensing scheme relies on eigenmode permutation at the tunable EP directly encoding the half-integer topological charge in observable transmission. Concrete mapping—e.g., calculated transmission spectra or permutation matrices for ℓ = 1 versus ℓ = 2—is not shown, leaving the noise-resilience advantage unquantified.
minor comments (2)
- Notation for the two-tone LG superposition and the resulting Bragg sidemode indices should be defined explicitly in the main text rather than deferred to appendices.
- A brief comparison to existing nondestructive rotation-sensing methods in ring BECs would help situate the proposed advantage.
Simulated Author's Rebuttal
We thank the referee for the positive assessment of our work and the constructive comments. We address each major comment below and will revise the manuscript to incorporate the requested clarifications and explicit demonstrations.
read point-by-point responses
-
Referee: [static-regime identification after Schur reduction] Following the Schur-complement reduction, the static regime is asserted to produce a purely complex, winding-number-tunable shift without higher-order dynamical or dissipative corrections. No explicit parameter set (detuning, coupling strengths, or range of ℓ) is supplied to verify that this regime is accessible and that extraneous splittings or loss channels remain negligible; this verification is load-bearing for the sensing claim.
Authors: We agree that explicit verification of the static regime is essential to support the sensing proposal. In the revised manuscript we will insert a dedicated subsection immediately following the Schur-complement derivation. This subsection will supply concrete parameter sets (e.g., detuning δ/γ = 0.05–0.2, atom–cavity coupling g/γ = 0.3–0.8, and ℓ = 1–4) together with numerical estimates showing that dynamical and dissipative corrections remain below 2 % and that extraneous loss channels are negligible within the identified regime. These additions will directly address the load-bearing requirement for the sensing claim. revision: yes
-
Referee: [EP-based sensing proposal] The digital sensing scheme relies on eigenmode permutation at the tunable EP directly encoding the half-integer topological charge in observable transmission. Concrete mapping—e.g., calculated transmission spectra or permutation matrices for ℓ = 1 versus ℓ = 2—is not shown, leaving the noise-resilience advantage unquantified.
Authors: We concur that concrete numerical mappings are needed to quantify the claimed noise resilience. The revised manuscript will include new figures and accompanying text that present (i) the full transmission spectra through the dimer for ℓ = 1 and ℓ = 2 at the tunable exceptional point, (ii) the explicit 2 × 2 permutation matrices that map the eigenmodes, and (iii) a quantitative comparison of transmission contrast under additive noise (white and 1/f) versus conventional eigenvalue-splitting readout. These calculations will demonstrate the digital encoding and provide explicit metrics for the noise-resilience advantage. revision: yes
Circularity Check
Derivation self-contained via exact Schur reduction; no circular steps
full rationale
The paper derives the frequency-dependent self-energy through an exact Schur-complement reduction of the full light-matter dynamics (two-tone LG-driven cavity coupled to ring-trapped BEC with Bragg sidemodes). It then analytically identifies a static regime in which the atomic response yields a purely complex, tunable shift on the passive mode, enabling the renormalized dimer to host a tunable exceptional point. The transmission signatures and eigenmode-permutation sensing scheme for the half-integer winding number follow directly from this reduced model. No load-bearing step reduces by construction to a fitted parameter, self-definition, or self-citation chain; the mapping from superfluid rotation to observable EP signatures is obtained from the renormalized equations without presupposing the target result. The proposal remains self-contained against the stated model assumptions.
Axiom & Free-Parameter Ledger
axioms (2)
- standard math Schur-complement reduction yields an exact effective description of the optical modes
- domain assumption A static regime exists in which the atomic response produces a purely complex frequency shift
Reference graph
Works this paper leans on
-
[1]
[21]. Focusing now on the passive cavity, it is driven by two coherent control tones at frequenciesω L1 andω L2 with complex drive strengthsε 1 andε 2. Both the tones pop- ulate the same intracavity optical mode described by the bosonic operators (a, a †), and each tone is prepared in a coherent superposition of Laguerre-Gaussian modes [28–30] carrying or...
-
[2]
Rotter,A non-Hermitian Hamilton operator and the physics of open quantum systems, J
I. Rotter,A non-Hermitian Hamilton operator and the physics of open quantum systems, J. Phys. A: Math. Theor.42, 153001 (2009)
work page 2009
-
[3]
R. El-Ganainy, K. G. Makris, M. Khajavikhan, Z. H. Musslimani, S. Rotter, and D. N. Christodoulides,Non- Hermitian physics and PT symmetry, Nat. Phys.14, 11 (2018)
work page 2018
-
[4]
M. V. Berry,Physics of nonhermitian degeneracies, Czech. J. Phys.54, 1039 (2004)
work page 2004
-
[5]
W. D. Heiss,The physics of exceptional points, J. Phys. A: Math. Theor.45, 444016 (2012)
work page 2012
- [6]
- [7]
-
[8]
J. Wiersig,Enhancing the sensitivity of frequency and en- ergy splitting detection by using exceptional points: Ap- plication to microcavity sensors for single-particle detec- tion, Phys. Rev. Lett.112, 203901 (2014)
work page 2014
-
[9]
Wiersig,Sensors operating at exceptional points: Gen- eral theory, Phys
J. Wiersig,Sensors operating at exceptional points: Gen- eral theory, Phys. Rev. A93, 033809 (2016)
work page 2016
- [10]
-
[11]
Wiersig,Review of exceptional point-based sensors, Photon
J. Wiersig,Review of exceptional point-based sensors, Photon. Res.8, 1457 (2020)
work page 2020
- [12]
-
[13]
Langbein,No exceptional precision of exceptional- point sensors, Phys
W. Langbein,No exceptional precision of exceptional- point sensors, Phys. Rev. A98, 023805 (2018)
work page 2018
-
[14]
J. Doppler, A. A. Mailybaev, J. B¨ ohm, U. Kuhl, A. Girschik, F. Libisch, T. J. Milburn, P. Rabl, N. Moi- seyev, and S. Rotter,Dynamically encircling an excep- tional point for asymmetric mode switching, Nature537, 76 (2016)
work page 2016
-
[15]
C. E. R¨ uter, K. G. Makris, R. El-Ganainy, D. N. Christodoulides, M. Segev, and D. Kip,Observation of parity-time symmetry in optics, Nat. Phys.6, 192 (2010)
work page 2010
- [16]
- [17]
-
[18]
T. J. Kippenberg and K. J. Vahala,Cavity opto- mechanics, Opt. Exp.15, 17172 (2007)
work page 2007
-
[19]
M. Aspelmeyer, T. J. Kippenberg, and F. Marquardt, Cavity optomechanics, Rev. Mod. Phys.86, 1391 (2014)
work page 2014
-
[20]
S. Weis, R. Rivi` ere, S. Del´ eglise, E. Gavartin, O. Arcizet, A. Schliesser, and T. J. Kippenberg,Optomechanically induced transparency, Science330, 1520 (2010)
work page 2010
-
[21]
F. Brennecke, S. Ritter, T. Donner, and T. Esslinger, Cavity optomechanics with a Bose-Einstein condensate Science322, 235 (2008)
work page 2008
- [22]
-
[23]
N. Pradhan, P. Kumar, R. Kanamoto, T. N. Dey, M. Bhattacharya, and P. K. Mishra,Cavity optomechanical detection of persistent currents and solitons in a bosonic ring condensate, Phys. Rev. Research6, 013104 (2024)
work page 2024
-
[24]
N. Pradhan, P. Kumar, R. Kanamoto, T. N. Dey, M. Bhattacharya, and P. K. Mishra,Ring Bose-Einstein condensate in a cavity: Chirality detection and rotation sensing, Phys. Rev. A109, 023524 (2024)
work page 2024
- [25]
-
[26]
N. Pradhan, R. Kanamoto. M. Bhattacharya, and P. K. Mishra,Signature of Andreev-Bashkin superfluid drag from cavity optomechanics, Phys. Rev. Research7, 023051 (2025)
work page 2025
-
[27]
O. Morizot, Y. Colombe, V. Lorent, H. Perrin, and B. M. Garraway,Ring trap for ultracold atoms, Phys. Rev. A74, 023617 (2006)
work page 2006
-
[28]
K. C. Wright, R. B. Blakestad, C. J. Lobb, W. D. Phillips, and G. K. Campbell,Driving phase slips in a superfluid atom circuit with a rotating weak link, Phys. Rev. Lett.110, 025302 (2013)
work page 2013
-
[29]
G. Molina-Terriza, J. P. Torres, and L. Torner,Manage- ment of the angular momentum of light: Preparation of photons in multidimensional vector states of angular mo- mentum, Phys. Rev. Lett.88, 013601 (2001)
work page 2001
-
[30]
A. M. Yao and M. J. Padgett,Orbital angular momen- tum: Origins, behavior and applications, Adv. Opt. Pho- ton.3, 161 (2011)
work page 2011
-
[31]
R. Fickler, R. Lapkiewicz, W. N. Plick, M. Krenn, C. Schaeff, S. Ramelow, and A. Zeilinger,Quantum en- tanglement of high angular momenta, Science338, 640 (2012)
work page 2012
- [32]
- [33]
