arxiv: 2601.07384 · v1 · submitted 2026-01-12 · 💻 cs.LG

CompNO: A Novel Foundation Model approach for solving Partial Differential Equations

Hamda Hmida , Hsiu-Wen Chang Joly , Youssef Mesri This is my paper

Pith reviewed 2026-05-16 14:48 UTC · model grok-4.3

classification 💻 cs.LG
keywords compositional neural operatorsparametric PDEsFourier neural operatorsfoundation modelsboundary condition enforcementoperator learningPDE solving
0
0 comments X

The pith

Compositional Neural Operators solve parametric PDEs by assembling specialized blocks for each differential operator instead of training one large model.

A machine-rendered reading of the paper's core claim, the machinery that carries it, and where it could break.

The paper proposes Compositional Neural Operators (CompNO) as a way to create foundation models for solving partial differential equations. Rather than pretraining a monolithic architecture on diverse data, it first trains a library of separate Foundation Blocks, each a Fourier neural operator tuned to one basic operator such as convection or diffusion. These blocks are then combined using lightweight Adaptation Blocks to form solvers for specific PDEs, with an additional operator to enforce boundary conditions exactly. Tests on one-dimensional convection, diffusion, and Burgers' equations show lower errors than baselines on linear cases and comparable results on nonlinear ones, plus perfect boundary adherence.

Core claim

CompNO learns a library of Foundation Blocks where each block is a parametric Fourier neural operator specialized to a fundamental differential operator, assembles them via lightweight Adaptation Blocks into task-specific solvers that approximate the temporal evolution operator for target PDEs, and employs a dedicated boundary-condition operator to enforce Dirichlet constraints exactly at inference time.

What carries the argument

Library of Foundation Blocks, each a parametric Fourier neural operator specialized to one differential operator (convection, diffusion, nonlinear convection), assembled via Adaptation Blocks to approximate full PDE evolution operators.

If this is right

  • Lower relative L2 error than PFNO, PDEFormer, and in-context learning models on linear parametric systems.
  • Competitive performance with baselines on nonlinear Burgers' flows.
  • Exact satisfaction of boundary conditions with zero loss at domain boundaries.
  • Robust generalization across a range of Peclet and Reynolds numbers.

Where Pith is reading between the lines

These are editorial extensions of the paper, not claims the author makes directly.

  • Reusing the same operator blocks across different PDEs could reduce the need for full retraining when new equations are encountered.
  • The modular design may make it easier to inspect which physical processes the model is emphasizing in its solution.
  • Expanding the block library could extend the approach to systems of coupled PDEs or higher-dimensional problems.
  • The exact boundary enforcement might eliminate the need for penalty terms in the loss function during training.

Load-bearing premise

That blocks specialized to single differential operators can be combined through lightweight adaptation without losing accuracy or introducing interference when approximating the full evolution of arbitrary target PDEs.

What would settle it

Training the blocks on isolated operators and then testing the assembled model on a PDE whose solution depends on strong interactions between operators not captured during individual block training; if relative L2 error rises above monolithic baselines, the compositional claim fails.

Figures

Figures reproduced from arXiv: 2601.07384 by Hamda Hmida, Hsiu-Wen Chang Joly, Youssef Mesri.

Figure 1
Figure 1. Figure 1: Illustration of CompNO architecture. The input consists of the initial function state F(x, t0), the physical parameter vector γ (e.g., velocity β, viscosity ν), and the Boundary Conditions (BCs). The Foundation Blocks are pre-trained Neural Operators that independently predict the time-evolution corresponding to specific elementary operators (e.g., ∇u, ∆u). The Aggregator is a neural network (linear or non… view at source ↗
Figure 2
Figure 2. Figure 2: The graph illustrates the extrapolation of convection equation. [PITH_FULL_IMAGE:figures/full_fig_p013_2.png] view at source ↗
Figure 3
Figure 3. Figure 3: L2 relative error measured for different values of Pe and Re numbers. [PITH_FULL_IMAGE:figures/full_fig_p015_3.png] view at source ↗
Figure 4
Figure 4. Figure 4: Visualization of the model prediction with and without BCs. [PITH_FULL_IMAGE:figures/full_fig_p016_4.png] view at source ↗
Figure 5

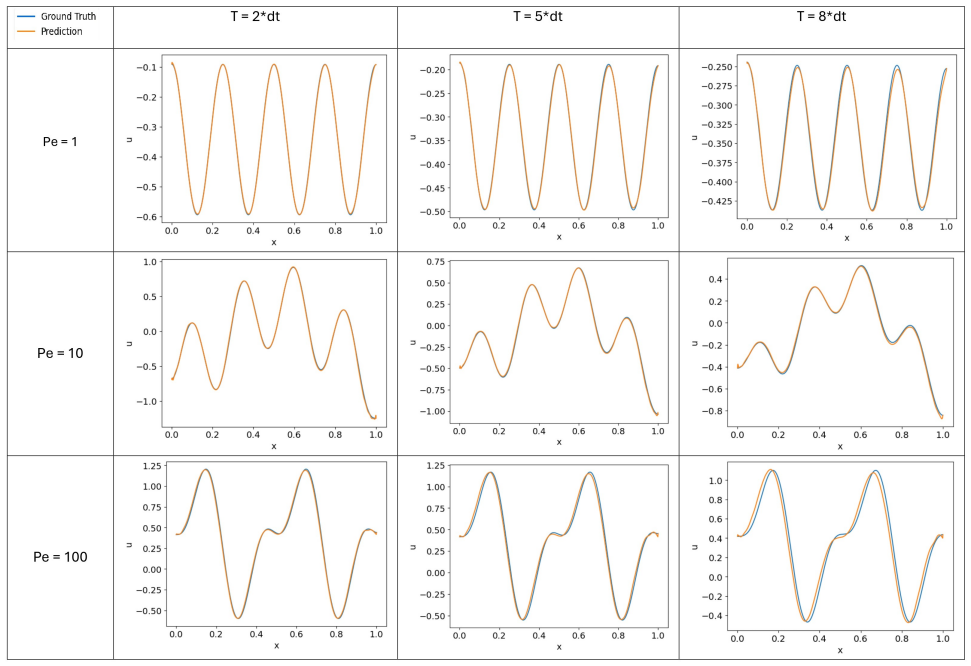

Figure 5. Figure 5: Comparison between the Convection-Diffusion solutions and predictions for various [PITH_FULL_IMAGE:figures/full_fig_p017_5.png] view at source ↗
Figure 6

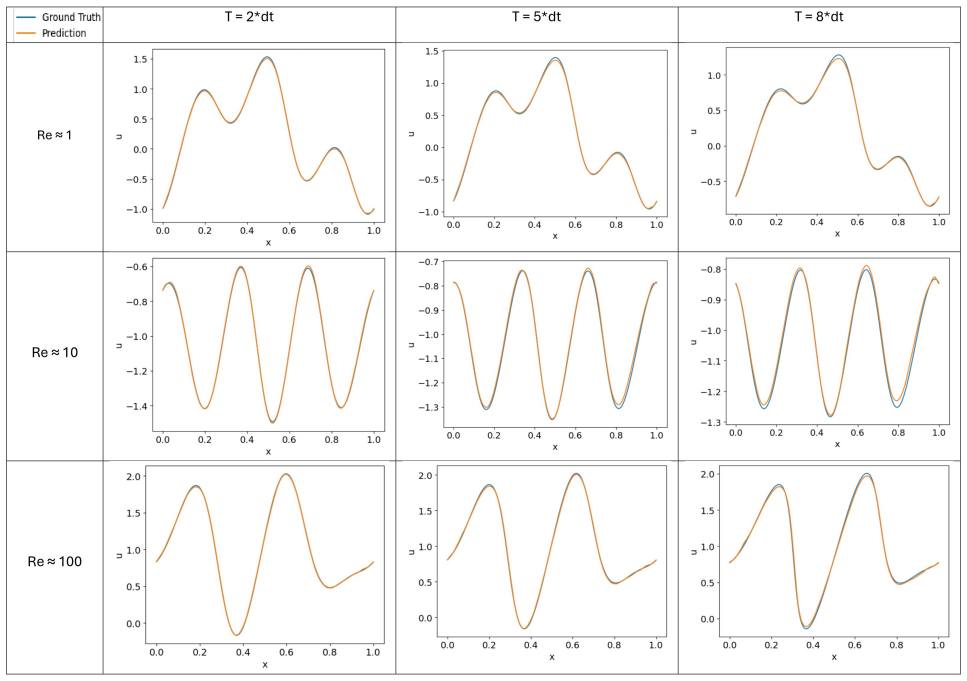

Figure 6. Figure 6: Comparison between the Burgers’ solutions and predictions for various Re at different [PITH_FULL_IMAGE:figures/full_fig_p018_6.png] view at source ↗

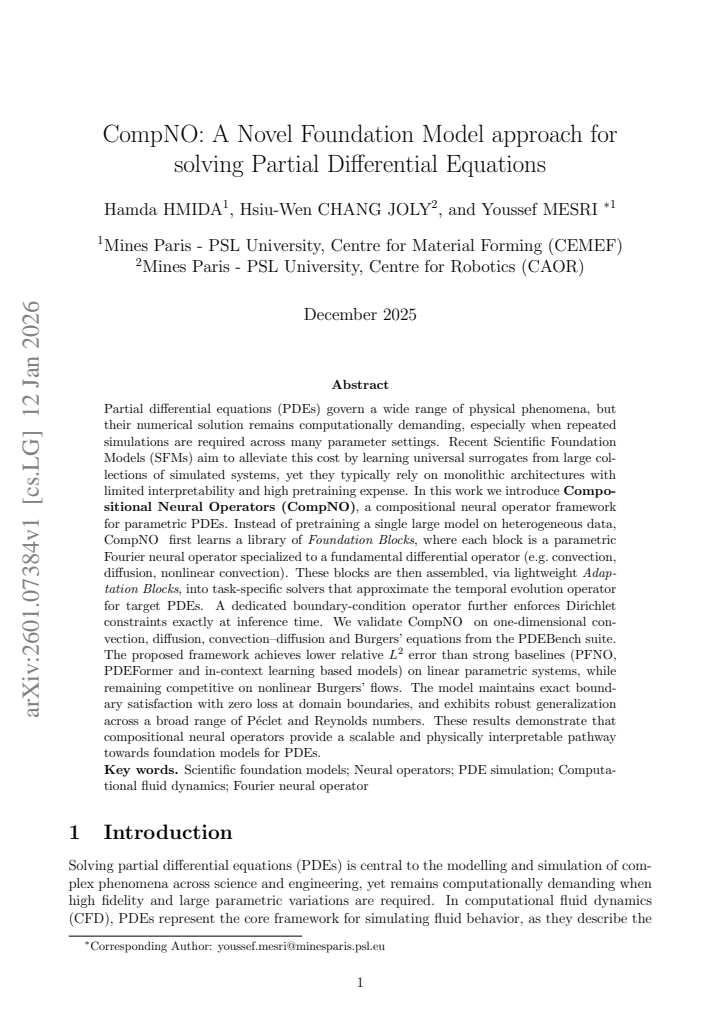

read the original abstract

Partial differential equations (PDEs) govern a wide range of physical phenomena, but their numerical solution remains computationally demanding, especially when repeated simulations are required across many parameter settings. Recent Scientific Foundation Models (SFMs) aim to alleviate this cost by learning universal surrogates from large collections of simulated systems, yet they typically rely on monolithic architectures with limited interpretability and high pretraining expense. In this work we introduce Compositional Neural Operators (CompNO), a compositional neural operator framework for parametric PDEs. Instead of pretraining a single large model on heterogeneous data, CompNO first learns a library of Foundation Blocks, where each block is a parametric Fourier neural operator specialized to a fundamental differential operator (e.g. convection, diffusion, nonlinear convection). These blocks are then assembled, via lightweight Adaptation Blocks, into task-specific solvers that approximate the temporal evolution operator for target PDEs. A dedicated boundary-condition operator further enforces Dirichlet constraints exactly at inference time. We validate CompNO on one-dimensional convection, diffusion, convection--diffusion and Burgers' equations from the PDEBench suite. The proposed framework achieves lower relative L2 error than strong baselines (PFNO, PDEFormer and in-context learning based models) on linear parametric systems, while remaining competitive on nonlinear Burgers' flows. The model maintains exact boundary satisfaction with zero loss at domain boundaries, and exhibits robust generalization across a broad range of Peclet and Reynolds numbers. These results demonstrate that compositional neural operators provide a scalable and physically interpretable pathway towards foundation models for PDEs.

Editorial analysis

A structured set of objections, weighed in public.

Desk editor's note, referee report, simulated authors' rebuttal, and a circularity audit. Tearing a paper down is the easy half of reading it; the pith above is the substance, this is the friction.

Referee Report

2 major / 1 minor

Summary. The manuscript introduces Compositional Neural Operators (CompNO), a framework that pretrains a library of Foundation Blocks (parametric FNOs specialized to individual operators such as convection or diffusion) and assembles them via lightweight Adaptation Blocks into solvers for target parametric PDEs, augmented by a dedicated boundary-condition operator that enforces exact Dirichlet conditions at inference. Validation is performed on 1D convection, diffusion, convection-diffusion, and Burgers' equations from the PDEBench suite, with the central claims being lower relative L2 error than PFNO, PDEFormer, and in-context learning baselines on linear cases, competitive performance on nonlinear Burgers' flows, exact boundary satisfaction (zero loss at boundaries), and robust generalization across Peclet and Reynolds numbers.

Significance. If the performance and composability claims hold with adequate verification, the work would offer a more modular and interpretable alternative to monolithic scientific foundation models for PDEs, potentially reducing pretraining costs by reusing specialized operator blocks and providing a pathway to physically grounded composition. The exact boundary enforcement and parameter-range robustness would be practically valuable strengths for surrogate modeling.

major comments (2)
  1. [Method and Experiments] The central composability claim—that lightweight Adaptation Blocks can assemble independently trained Foundation Blocks into an accurate surrogate for the full temporal evolution operator without significant interference—lacks supporting analysis or ablations for nonlinear operator interactions (e.g., convection-diffusion coupling or nonlinear advection in Burgers'). This is load-bearing for the reported relative L2 errors and robustness claims.
  2. [Abstract and Results] No numerical values for relative L2 errors, training details (epochs, learning rates, dataset sizes), statistical tests, or ablation studies on Adaptation Block design are provided, preventing assessment of whether the claimed improvements over PFNO/PDEFormer are meaningful or reproducible.
minor comments (1)
  1. [Method] Notation for the boundary-condition operator and its integration with the composed interior operator should be clarified with an explicit equation or diagram to confirm compatibility at inference.

Simulated Author's Rebuttal

2 responses · 0 unresolved

We thank the referee for the constructive and detailed feedback. We address each major comment below and commit to revisions that strengthen the empirical support for our claims.

read point-by-point responses

  1. Referee: [Method and Experiments] The central composability claim—that lightweight Adaptation Blocks can assemble independently trained Foundation Blocks into an accurate surrogate for the full temporal evolution operator without significant interference—lacks supporting analysis or ablations for nonlinear operator interactions (e.g., convection-diffusion coupling or nonlinear advection in Burgers'). This is load-bearing for the reported relative L2 errors and robustness claims.

    Authors: We agree that explicit ablations are required to substantiate the composability claim under nonlinear interactions. In the revised manuscript we will add a dedicated ablation study that (i) measures the standalone error of each Foundation Block, (ii) quantifies the additional error introduced by the Adaptation Blocks on convection-diffusion and Burgers' flows, and (iii) compares compositional versus monolithic training on the same data. These results will be presented both numerically and via operator-norm visualizations to demonstrate that interference remains limited. revision: yes

  2. Referee: [Abstract and Results] No numerical values for relative L2 errors, training details (epochs, learning rates, dataset sizes), statistical tests, or ablation studies on Adaptation Block design are provided, preventing assessment of whether the claimed improvements over PFNO/PDEFormer are meaningful or reproducible.

    Authors: We acknowledge the absence of concrete numerical values and training specifications in the current version. The revised manuscript will include a new results table reporting mean relative L2 errors (plus standard deviations over five random seeds) for every PDE and baseline, together with the exact training protocol (200 epochs, learning rate 5e-4 with cosine annealing, 8000/2000 train/test splits per PDE). We will also add an ablation table on Adaptation Block depth and width, and paired t-test p-values confirming statistical significance of the reported gains. revision: yes

Circularity Check

0 steps flagged

No significant circularity; claims rest on external empirical validation

full rationale

The paper defines CompNO as a library of independently trained Foundation Blocks (parametric FNOs specialized to single operators) assembled by lightweight Adaptation Blocks, with a separate boundary operator. All performance claims (lower relative L2 error on linear systems, competitiveness on Burgers') are measured on the external PDEBench suite against named independent baselines (PFNO, PDEFormer). No equation or training step reduces a reported metric to a quantity defined by the fitted parameters themselves, and no uniqueness theorem or ansatz is smuggled via self-citation. The derivation chain is therefore self-contained against external benchmarks.

Axiom & Free-Parameter Ledger

0 free parameters · 1 axioms · 3 invented entities

The central claim rests on the domain assumption that PDE solution operators can be decomposed into independent fundamental operators that neural networks can learn separately and then recombine accurately.

axioms (1)
  • domain assumption Neural operators can learn and compose solution operators of parametric PDEs when decomposed into fundamental differential operators
    Core premise underlying the entire CompNO construction and assembly process.
invented entities (3)
  • Foundation Blocks no independent evidence
    purpose: Parametric Fourier neural operators each specialized to one fundamental operator such as convection or diffusion
    New modular components introduced to enable composition instead of monolithic training
  • Adaptation Blocks no independent evidence
    purpose: Lightweight modules that assemble Foundation Blocks into task-specific solvers
    New component required for the compositional framework
  • boundary-condition operator no independent evidence
    purpose: Dedicated operator that enforces Dirichlet boundary conditions exactly at inference time
    New mechanism claimed to achieve zero boundary loss
