Standardized Images and Evaluation Metrics for Tomography

Anna Frixou , Theodoros Leontiou , Efstathios Stiliaris , Costas N. Papanicolas
Authors on Pith no claims yet

Pith reviewed 2026-05-16 15:15 UTC · model grok-4.3

classification ⚛️ physics.med-ph
keywords tomographyreconstruction evaluationreference imagesSPECTimage metricsMLEMdiagnostic toolsquantitative assessment
0
0 comments X

The pith

Four standardized reference images and sensitive metrics expose discrepancies in tomographic reconstructions that global scores like SSIM and PSNR miss.

A machine-rendered reading of the paper's core claim, the machinery that carries it, and where it could break.

The paper proposes a framework for evaluating tomographic reconstructions built around four reference images derived from physical modeling, each marking a distinct stage from source emission through detector response to ideal and realistic outputs. These are paired with diagnostic tools such as pixel-wise chi-squared maps, difference maps, spectral decomposition of intensities, and region-of-interest metrics that remain informative in high-fidelity regimes where conventional global measures saturate. A sympathetic reader would care because modern reconstruction algorithms produce outputs so close that broad similarity scores cannot separate meaningful physical differences from residual artifacts. Tests on MLEM and RISE-1 methods with software phantoms illustrate that the new tools detect discrepancies overlooked by standard metrics. The approach is framed as generalizable to other tomographic modalities for reproducible, stage-specific assessment.

Core claim

The authors establish a standardized quantitative framework consisting of four reference images—Source, Detector, Ideal, and Realistic—each obtained from physical modeling to represent successive stages in the imaging and reconstruction chain, together with a suite of diagnostic and quantitative tools including pixel-wise χ² and difference maps, spectral decomposition of intensity distributions, and RoI-based metrics. Application to MLEM and RISE-1 reconstructions on software phantoms shows these components expose discrepancies that conventional global metrics such as SSIM, PSNR, NMSE, and CC fail to detect, while the methodology is presented as applicable beyond SPECT.

What carries the argument

The four standardized reference images (Source, Detector, Ideal, Realistic) derived from physical modeling, together with the suite of sensitive tools (pixel-wise χ² maps, difference maps, spectral decomposition, RoI metrics) that operate where global metrics saturate.

If this is right

  • Reconstructions become comparable at specific physical stages rather than solely through overall image similarity scores.
  • Discrepancies between advanced methods such as MLEM and RISE-1 become quantifiable even when images appear nearly identical under global metrics.
  • Evaluation gains reproducibility and physical interpretability for high-performance regimes across tomographic modalities.
  • Algorithm development can target errors identified at particular stages in the source-to-output chain.
  • Conventional metrics that lose resolution in high-fidelity cases are supplemented by localized and spectral diagnostics.

Where Pith is reading between the lines

These are editorial extensions of the paper, not claims the author makes directly.

  • The same staged reference set could be applied to real detector data to test whether software-phantom results hold under experimental noise.
  • Spectral decomposition might be extended to isolate frequency bands associated with common reconstruction artifacts in specific algorithms.
  • Integration with parameter optimization loops could use stage-specific metric feedback to adjust reconstruction settings automatically.
  • Fields such as CT or PET could adopt parallel reference-image suites to create cross-modality benchmarks for high-fidelity performance.

Load-bearing premise

The four reference images accurately represent distinct stages in the imaging and reconstruction chain, and the new metrics remain sensitive without introducing their own biases or saturation effects.

What would settle it

If the pixel-wise χ² maps, spectral components, or RoI metrics return statistically indistinguishable values for MLEM and RISE-1 reconstructions on the same software phantoms while independent physical analysis confirms real differences in fidelity, the claim of superior sensitivity would be challenged.

Figures

Figures reproduced from arXiv: 2601.07531 by Anna Frixou, Costas N. Papanicolas, Efstathios Stiliaris, Theodoros Leontiou.

Figure 1
Figure 1. Figure 1: Graphical representation of the specific activity of the two-dimensional “Source Images” of the Shepp–Logan phantom. Selected Regions of Interest (RoIs) are shown and will be discussed at Section 2.4.3. In the modified Shepp–Logan phantom version used in this work, the cranial bone has been removed, while the major large ellipsoid representing the brain grey and white serves also as a background source. Ge… view at source ↗
Figure 2

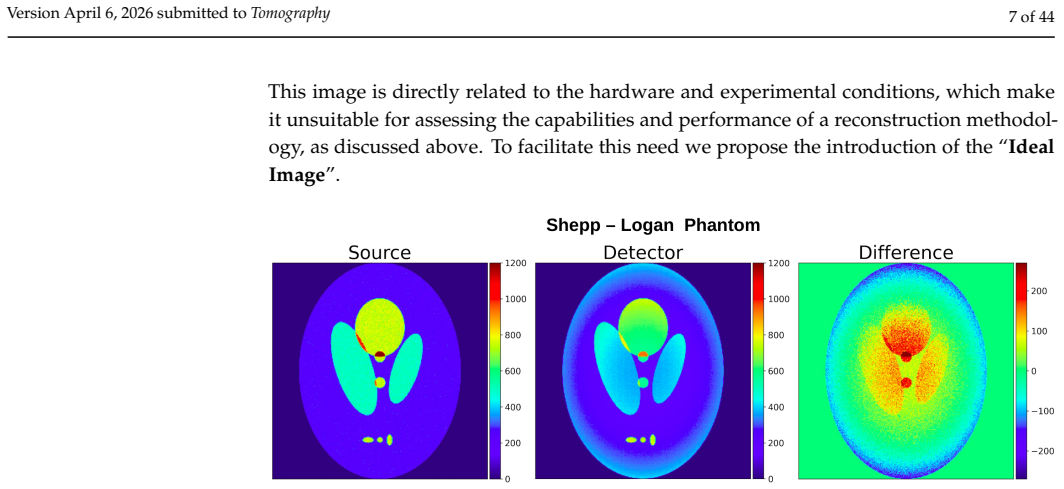

Figure 2. Figure 2: “Source” and “Detector” images from simulations of the modified SheppLogan phantom. The “Source Image” includes all emitted photons; the “Detector” image includes only detected ones. The rightmost panels show their difference; photon absorption and scattering within the phantom is the dominant effect. In practical imaging scenarios, no matter how advanced the reconstruction method￾ology is, the resulting i… view at source ↗
Figure 3
Figure 3. Figure 3: Simulated Shepp–Logan image of the Source Image and the Ideal Image, together with their difference. https://doi.org/10.3390/tomography12040049 [PITH_FULL_IMAGE:figures/full_fig_p008_3.png] view at source ↗
Figure 4
Figure 4. Figure 4: Difference and χ 2 map of images and sinograms. In the first row, the sinogram corre￾sponding to an Ideal Image of a Shepp–Logan phantom and the sinogram resulting from an MLEM reconstruction are shown along with the resulting sinogram difference and χ 2 map. In the second row, the Ideal Image from a Shepp–Logan phantom, the MLEM reconstructed image, their differ￾ence, and the corresponding χ 2 map are sho… view at source ↗
Figure 5
Figure 5. Figure 5: The intensity histograms (on logarithmic and linear scale) of “Ideal” and reconstructed images (on the left) and sinograms (on the right) of [PITH_FULL_IMAGE:figures/full_fig_p016_5.png] view at source ↗
Figure 6

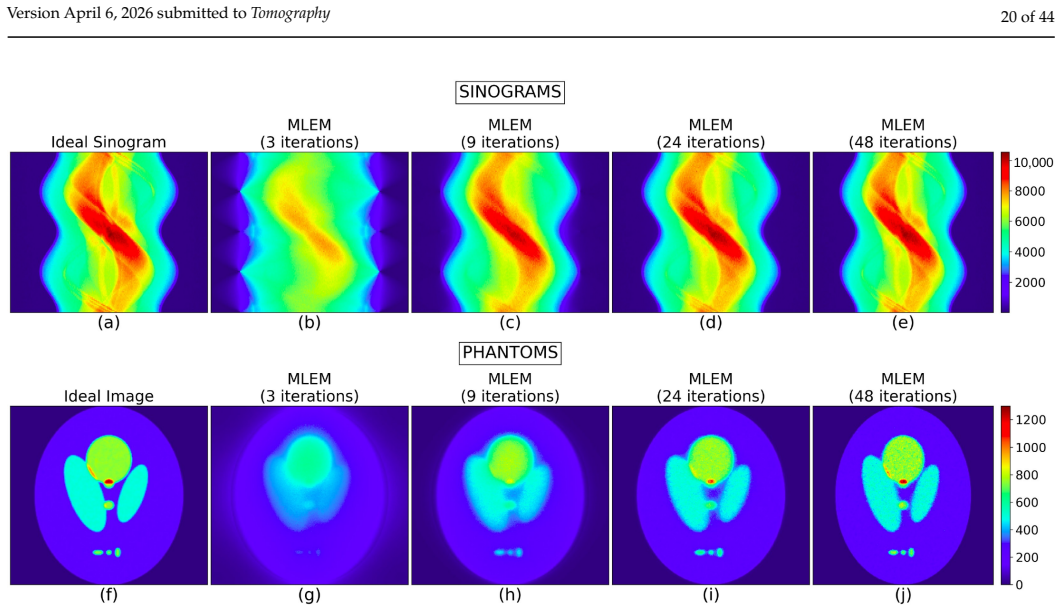

Figure 6. Figure 6: The top row depicts the “Ideal Sinogram” (a) and those resulting from different stages of MLEM (3, 9, 24, and 48 iterations) (be). The bottom row shows the “Ideal Image” (f) and the corresponding MLEM reconstructions (gj). https://doi.org/10.3390/tomography12040049 [PITH_FULL_IMAGE:figures/full_fig_p020_6.png] view at source ↗
Figure 7
Figure 7. Figure 7: A selection of metrics (NMSE, PSNR, CC, SSIM, CNR, and SCI) are presented for each one of the RoIs and the entire image, and for four stages of MLEM evolution. The SCI computed from the difference map between reconstructed and reference images. SSIM approaches unity at early reconstruction stages, whereas the SCI continues to evolve, indicating sensitivity to residual structure beyond global similarity. 3.… view at source ↗
Figure 8
Figure 8. Figure 8: The first row provides the difference and χ 2 maps for the sinogram and the second one the difference and χ 2 maps for the images. The difference and χ 2 maps reveal areas of the images that are not well-represented by the reconstruction. 3.1.2. Structure and Contrast Index (SCI) of Images and Sinograms The Structure and Contrast Index (SCI) is the metric we introduced to quantify the magnitude of the disc… view at source ↗
Figure 9
Figure 9. Figure 9: Convergence of the SCI. The structure, contrast, and SCI are computed from the difference map between reconstructed (four MLEM stages) and reference images in (a) and sinograms in (b). 3.1.3. Intensity (Gray-Value) Histogram Analysis of Images and Sinograms We have introduced the intensity (gray-value) histogram analysis of tomographic im￾ages and their corresponding sinograms as an additional diagnostic t… view at source ↗
Figure 10

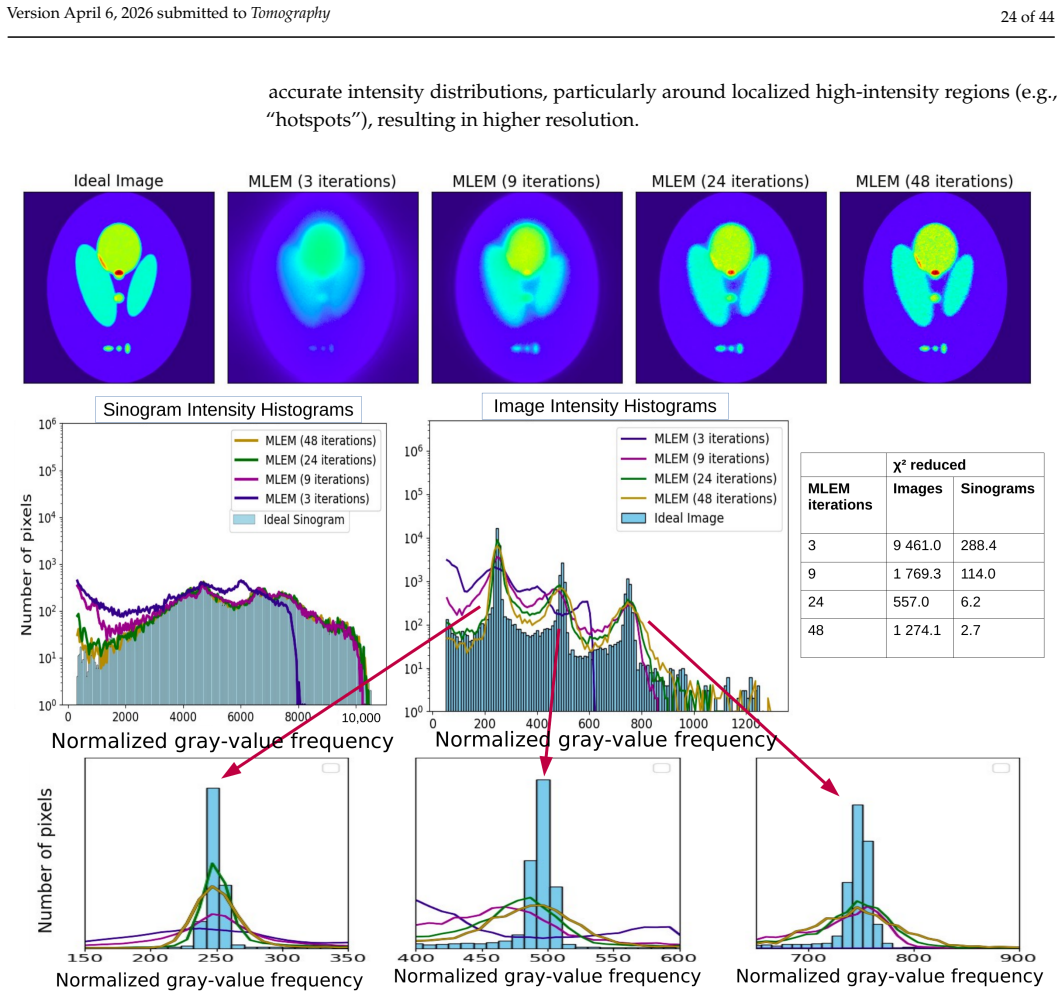

Figure 10. Figure 10: The top row of the figure displays the “Ideal Image” alongside the four MLEM reconstruc￾tions. In the second row, the intensity histograms of the “Ideal Image” and each of the four recon￾structions are illustrated on the left. On the right, the intensity histograms of the “Ideal Sinogram” and those resulting from MLEM are presented. Linear and logarithmic scales are shown to visual￾ize both dominant and l… view at source ↗
Figure 11

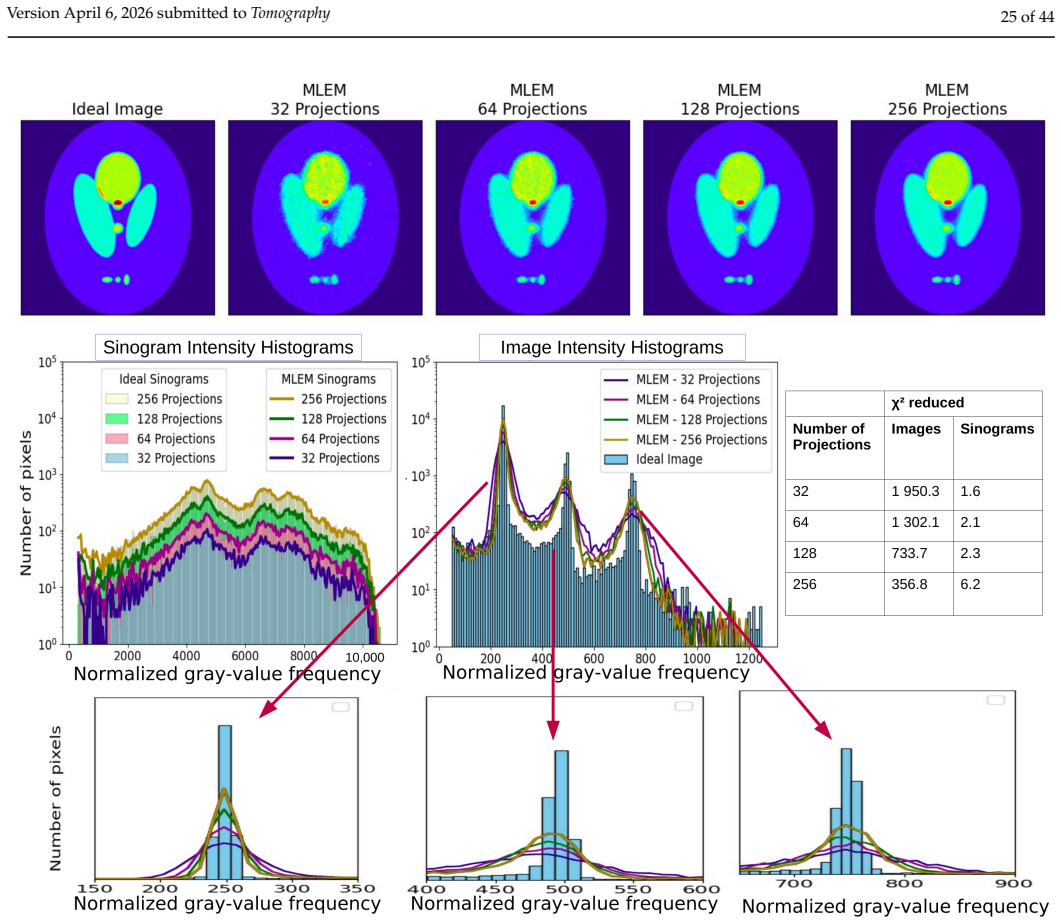

Figure 11. Figure 11: The top row of the figure displays the “Ideal Image” alongside the three reconstructions from MLEM at full convergence and with 32, 64, and 256 projections. In the second row, the in￾tensity histograms of the “Ideal Image” and each of the three reconstructions are illustrated on the left. On the right, the intensity histograms of the “Ideal Sinogram” and those resulting from 32, 64, and 256 projections ar… view at source ↗
Figure 12
Figure 12. Figure 12: The top row of the figure displays the “Ideal Image” alongside the four reconstructions from MLEM at full convergence, utilizing sinograms with different level of statistics (1/8, 1/4, 1/2, and full counts). In the second row, the intensity histograms of the “Ideal Image” and each of the four reconstructions are illustrated on the left. On the right, the intensity histograms of the “Ideal Sinograms” with … view at source ↗
Figure 13

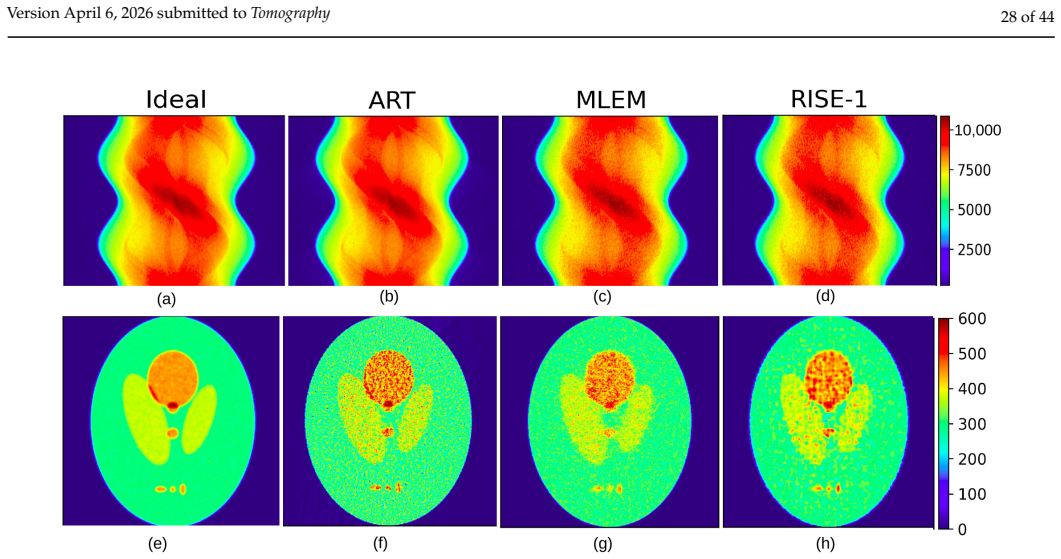

Figure 13. Figure 13: Top row: (a) “Ideal Sinogram” and sinograms obtained using three reconstruction meth￾ods: (b) ART, (c) MLEM, and (d) RISE-1. Bottom row: (e) Ideal Image and corresponding reconstruc￾tions: (f) ART, (g) MLEM, and (h) RISE-1. The examination of the metrics associated with the overall reconstruction ( [PITH_FULL_IMAGE:figures/full_fig_p028_13.png] view at source ↗
Figure 14
Figure 14. Figure 14: The top-left and bottom-left panels show the difference maps (reconstruction—“Ideal”) and χ 2 maps for images and sinograms, for the three reconstruction methods (ART, MLEM, and RISE-1). The right panels present the corresponding residual intensities and χ 2 histograms. The χ 2 reduced values for both images and sinograms are reported in the bottom χ 2 histograms for each reconstruction method. https://do… view at source ↗
Figure 15

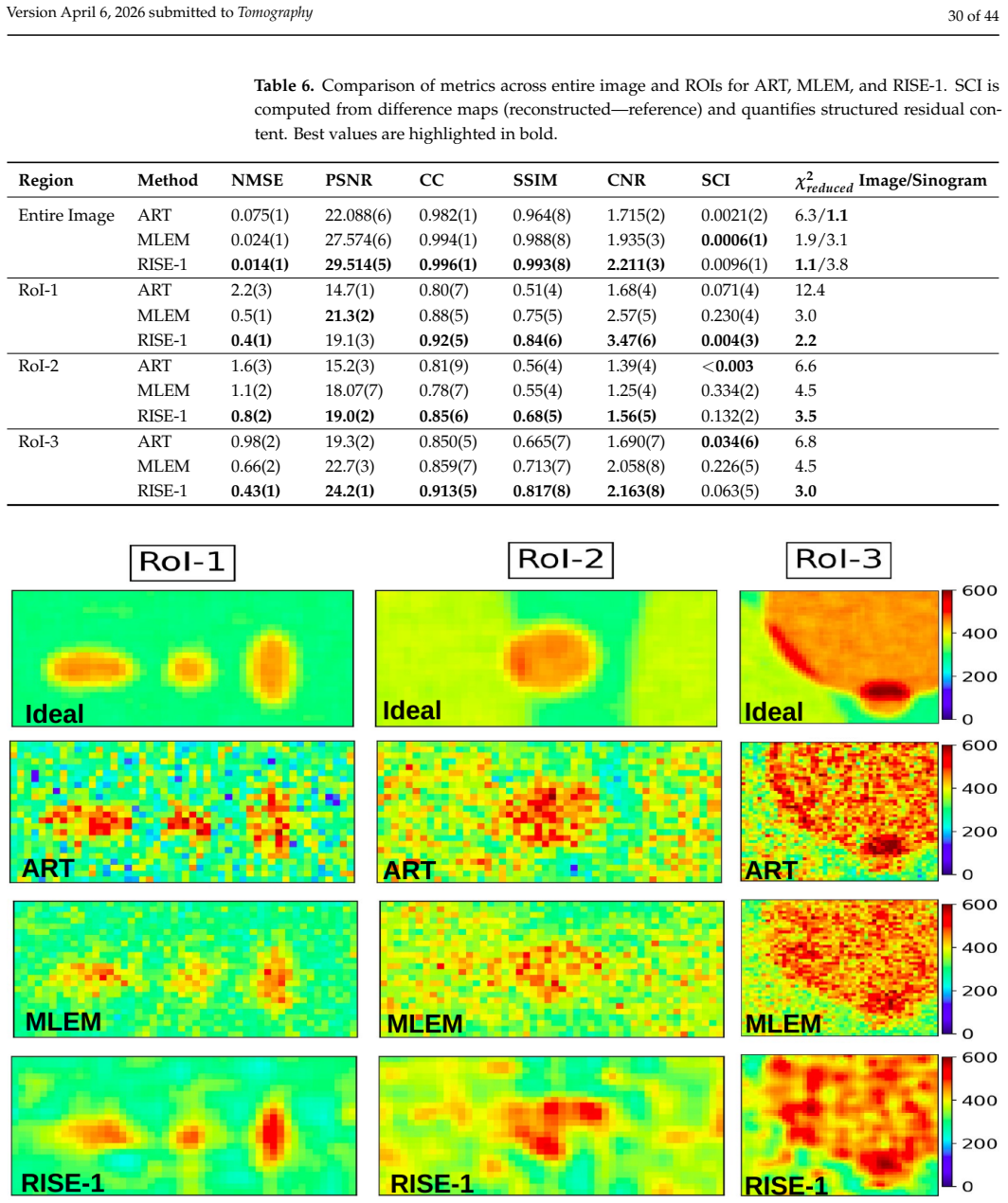

Figure 15. Figure 15: The panels show three RoIs from the phantom. The top row presents the “Ideal Image”, followed by reconstructions obtained with ART, MLEM, and RISE-1 in the subsequent rows. The images are normalized with reference to “Ideal Image”. The image intensity histograms and sinogram intensity histograms ( [PITH_FULL_IMAGE:figures/full_fig_p030_15.png] view at source ↗
Figure 16
Figure 16. Figure 16: The metrics NMSE, PSNR, CC, CNR, SSIM, and SCI are presented for each one of the RoIs and the entire image, across the three reconstruction techniques: ART, MLEM, and RISE-1. The SCI computed from the difference map between reconstructed and reference area. The reconstructions shown correspond to the high-background phantom configuration described in Section 3.2 and Ta￾ble 1, which is substantially more c… view at source ↗
Figure 17
Figure 17. Figure 17: Left: Intensity histograms of the “Ideal Image” (blue bars) and reconstructions obtained using ART (red line), MLEM (black line), and RISE-1 (blue line). Right: Intensity histograms of the “Ideal Sinogram” (blue bars) and corresponding ones from ART (red line), MLEM (black line), and RISE-1 (blue line). Both linear and logarithmic scales are shown to highlight dominant as well as low￾frequency components … view at source ↗
Figure 18
Figure 18. Figure 18: Left: “Detector” sinogram. Top row: Reconstructed image and sinogram without attenuation correction (NC). Bottom row: Reconstructed image and sinogram with attenuation correction (AC). Quantitative evaluation was performed by comparing the reconstructed sinograms to the “Detector” sinograms, and the results are summarized in [PITH_FULL_IMAGE:figures/full_fig_p033_18.png] view at source ↗
Figure 19
Figure 19. Figure 19: Top row: χ 2 maps comparing the reconstructed sinograms to the “Detector” sinograms for both cases NC and AC. Bottom row: Difference maps comparing the reconstructed sinograms to the “Detector” sinograms for both cases NC and AC. They clearly indicate that the AC sinogram represents the “Detector” sinogram more accurately, especially in the central region. The NC case exhibits a considerable discrep￾ancy … view at source ↗
Figure 20

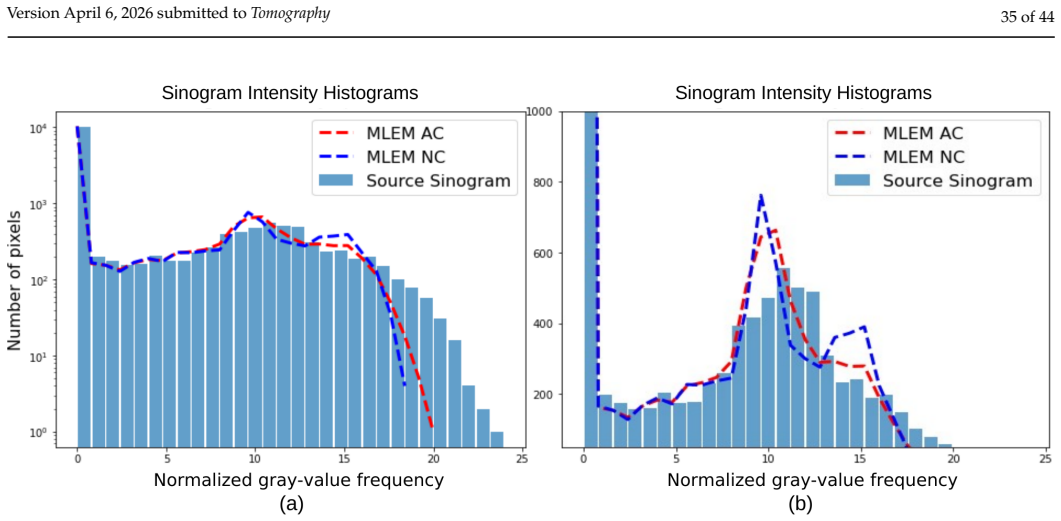

Figure 20. Figure 20: Sinogram intensity histogram of the detector data and the reconstructed sinograms with and without attenuation correction. Panel (a) shows the intensity histograms on a logarithmic scale and panel (b) on a linear scale. Linear and logarithmic scales are shown to visualize both dominant and low-frequency components of the gray-value distribution. Even in clinical settings, where ground truth is not directl… view at source ↗
Figure 21
Figure 21. Figure 21: Reconstructed DATSCAN SPECT images of a Parkinsonian patient without attenuation correction (NC) (left) and with attenuation correction (AC) (right). The red rectangle indicates the Region of Interest (RoI) used for calculating the Contrast-to-Noise Ratio (CNR) directly from the re￾constructed images. Since no ground-truth phantom exists for clinical data, the CNR was estimated using the mean activity ins… view at source ↗
read the original abstract

Advances in instrumentation and computation have enabled increasingly sophisticated tomographic reconstruction methods. However, existing evaluation practices -- often based on simple phantoms and global image metrics -- are limited in their ability to differentiate among modern high-fidelity reconstructions. A standardized, quantitative framework capable of revealing subtle yet meaningful differences is therefore required. We introduce such a framework, built upon two core components. The first is a set of four standardized reference images -- Source, Detector, Ideal, and Realistic -- each derived from physical modeling and representing a distinct stage in the imaging and reconstruction chain. The second is a suite of diagnostic and quantitative tools that remain sensitive in regimes where conventional metrics (e.g., SSIM, PSNR, NMSE, CC) tend to saturate. These include pixel-wise $\chi^2$ and difference maps, their quantitative characterization, spectral decomposition of intensity distributions, and Region-of-Interest (RoI)-based metrics. Application of this framework to MLEM and RISE-1 reconstructions using software phantoms demonstrates its ability to expose discrepancies that might elude detection by conventional global metrics. While developed in the context of SPECT, the methodology generalizes to other tomographic modalities, providing a reproducible, interpretable, and physically grounded basis for evaluating reconstruction fidelity in the high-performance regime.

Editorial analysis

A structured set of objections, weighed in public.

Desk editor's note, referee report, simulated authors' rebuttal, and a circularity audit. Tearing a paper down is the easy half of reading it; the pith above is the substance, this is the friction.

Referee Report

2 major / 3 minor

Summary. The paper proposes a standardized quantitative framework for evaluating tomographic reconstructions (focused on SPECT), consisting of four physically modeled reference images (Source, Detector, Ideal, Realistic) that represent distinct stages in the imaging chain, together with diagnostic tools including pixel-wise χ² and difference maps, spectral decomposition of intensity distributions, and Region-of-Interest metrics. These are claimed to remain sensitive in high-fidelity regimes where conventional global metrics (SSIM, PSNR, NMSE, CC) saturate. The framework is demonstrated on MLEM and RISE-1 reconstructions of software phantoms, where it is said to expose discrepancies not detected by standard metrics, and the approach is asserted to generalize to other modalities.

Significance. If the central claim holds, the framework would offer a reproducible, physically grounded alternative for distinguishing subtle differences among advanced reconstruction algorithms, addressing a recognized limitation of global metrics in the high-performance regime. The emphasis on standardized references derived from physical modeling and the provision of multiple diagnostic layers (maps plus spectral/RoI analysis) are constructive contributions that could improve interpretability and reproducibility in medical imaging evaluation.

major comments (2)
  1. [Abstract and application section] The validation is performed exclusively on software phantoms (Abstract and application section). Because these phantoms employ idealized forward models and noise statistics that match the reference-image generation assumptions exactly, the reported ability of the new metrics to expose discrepancies may be inflated; the manuscript must either add results on real SPECT acquisitions (with unmodeled scatter, attenuation errors, and detector non-uniformities) or provide a quantitative sensitivity analysis showing that the advantage persists under realistic perturbations.
  2. [Abstract and Results] No quantitative error analysis, statistical significance tests, or saturation thresholds for the conventional metrics are supplied to support the claim that the new suite 'exposes discrepancies that might elude detection' (Abstract). The manuscript should include tabulated comparisons (e.g., metric values and their dynamic ranges) and error bars across multiple realizations to make the superiority claim load-bearing rather than qualitative.
minor comments (3)
  1. [Methods] The precise definitions and generation procedures for the four reference images (Source, Detector, Ideal, Realistic) are not given as equations or pseudocode; reproducibility would be improved by explicit formulas in the Methods section.
  2. [Methods] The term 'spectral decomposition of intensity distributions' is introduced without specifying the transform (Fourier, wavelet, etc.) or the quantitative features extracted; clarify the implementation and any chosen frequency bands.
  3. [Abstract] The abstract states that the methodology 'generalizes to other tomographic modalities' but provides no concrete example or adaptation steps; a brief discussion or reference to a second modality would strengthen the claim.

Simulated Author's Rebuttal

2 responses · 1 unresolved

We thank the referee for the insightful comments, which have helped strengthen the manuscript. We address each major point below, incorporating revisions where feasible while maintaining the focus on the proposed framework.

read point-by-point responses

  1. Referee: Validation performed exclusively on software phantoms with idealized forward models matching reference assumptions exactly; must add real SPECT acquisitions or quantitative sensitivity analysis under realistic perturbations.

    Authors: We agree that matching assumptions in software phantoms can limit generalizability. In the revised manuscript we have added a dedicated sensitivity analysis section, applying controlled perturbations (e.g., 5–15% errors in attenuation maps and scatter estimates) to the forward model across 20 realizations and showing that the new metrics retain superior dynamic range and discrimination power compared with SSIM/PSNR/NMSE. Real clinical SPECT data would require separate experimental validation outside the current scope; we have noted this limitation and outlined plans for future work. revision: partial

  2. Referee: No quantitative error analysis, statistical significance tests, or saturation thresholds supplied; need tabulated comparisons, dynamic ranges, and error bars across realizations.

    Authors: We have expanded the Results section with new tables that report mean metric values and standard deviations over 10 independent noise realizations for both MLEM and RISE-1. Saturation thresholds are now defined quantitatively (e.g., SSIM > 0.98 where further differentiation fails) and supported by paired t-test p-values demonstrating statistically significant differences captured by the proposed χ² and spectral metrics but missed by global measures. revision: yes

standing simulated objections not resolved
  • Addition of results on real SPECT acquisitions with unmodeled physical effects, as this requires new experimental datasets not available in the present software-phantom study.

Circularity Check

0 steps flagged

No significant circularity; metrics and references defined from physical modeling and standard statistics

full rationale

The four reference images (Source, Detector, Ideal, Realistic) are constructed from explicit physical modeling stages rather than fitted to the target reconstructions. The diagnostic tools (pixel-wise χ² maps, difference maps, spectral decomposition of intensity distributions, RoI metrics) are standard statistical operations applied to those references. No equations reduce the claimed sensitivity advantage to a self-referential definition, fitted parameter, or self-citation chain. The demonstration on software phantoms is presented as an application, not as a derivation that forces the result by construction. The framework remains self-contained against external benchmarks.

Axiom & Free-Parameter Ledger

0 free parameters · 1 axioms · 0 invented entities

The framework rests on domain assumptions about physical modeling of the imaging chain; no free parameters or invented entities are introduced in the abstract.

axioms (1)
  • domain assumption Physical models used to generate the Source, Detector, Ideal, and Realistic reference images accurately capture the distinct stages of the tomography process.
    Invoked to justify the reference images as standardized benchmarks.

pith-pipeline@v0.9.0 · 5537 in / 1090 out tokens · 109565 ms · 2026-05-16T15:15:57.275796+00:00 · methodology
