REVNET: Rotation-Equivariant Point Cloud Completion via Vector Neuron Anchor Transformer

Eckehard Steinbach; Zhifan Ni

arxiv: 2601.08558 · v2 · submitted 2026-01-13 · 💻 cs.CV

REVNET: Rotation-Equivariant Point Cloud Completion via Vector Neuron Anchor Transformer

Zhifan Ni , Eckehard Steinbach This is my paper

Pith reviewed 2026-05-16 14:26 UTC · model grok-4.3

classification 💻 cs.CV

keywords point cloud completionrotation equivariancevector neuronstransformer3D visionarbitrary posesequivariant networks

0 comments

The pith

REVNET completes point clouds under arbitrary rotations by representing them as vector neuron anchors and predicting missing ones with an equivariant transformer.

A machine-rendered reading of the paper's core claim, the machinery that carries it, and where it could break.

Standard point cloud completion networks assume inputs arrive in a fixed canonical orientation and degrade when sensors deliver clouds at unknown angles. Random rotation augmentation during training raises the learning cost yet still leaves performance gaps for truly arbitrary poses. REVNET instead builds the entire pipeline on vector neuron layers so that rotating the input produces an exactly rotated completion. It encodes the partial cloud as a set of equivariant anchors and routes them through a missing-anchor transformer that fills in both positions and features while preserving the equivariance property at every step. The resulting model therefore needs no explicit alignment step and still matches or exceeds prior methods on both synthetic and real data.

Core claim

The paper claims that partial point clouds can be completed with full rotation equivariance by first expressing them as sets of vector-neuron anchors and then applying a dedicated missing-anchor transformer to predict the locations and features of the absent anchors. Additional vector-neuron bias terms and ZCA-based normalization increase feature capacity without breaking equivariance. Because the architecture supports direct conversion between equivariant and invariant representations, the final point coordinates are generated stably. Experiments confirm that this construction yields higher accuracy than existing approaches on the MVP benchmark when equivariance is enforced and remains at a

What carries the argument

Vector Neuron Missing Anchor Transformer: a module that takes equivariant anchor features from the partial input and directly outputs the positions and semantic features of the missing anchors while enforcing exact rotation equivariance.

If this is right

Inputs at any orientation can be processed without a separate alignment stage.
On the MVP dataset the method surpasses prior completion networks when rotation equivariance is required.
On the KITTI dataset it reaches accuracy comparable to non-equivariant networks.
Stable coordinate output follows from the built-in conversion between equivariant and invariant vector neuron features.

Where Pith is reading between the lines

These are editorial extensions of the paper, not claims the author makes directly.

The anchor representation may reduce the volume of rotation augmentation needed for other 3D tasks that currently rely on data augmentation.
The same missing-anchor prediction step could be adapted to rotation-equivariant versions of segmentation or registration.
Further tests on additional noisy real-world scans would show how far the strict equivariance survives sensor artifacts.

Load-bearing premise

The vector neuron encoding of anchors combined with the missing anchor transformer can recover both geometry and semantics while keeping strict rotation equivariance no matter how the input is oriented.

What would settle it

Rotate an input partial cloud by a known angle, run the model, and check whether the completed output is exactly the same completion rotated by that angle; any deviation falsifies the equivariance claim.

Figures

Figures reproduced from arXiv: 2601.08558 by Eckehard Steinbach, Zhifan Ni.

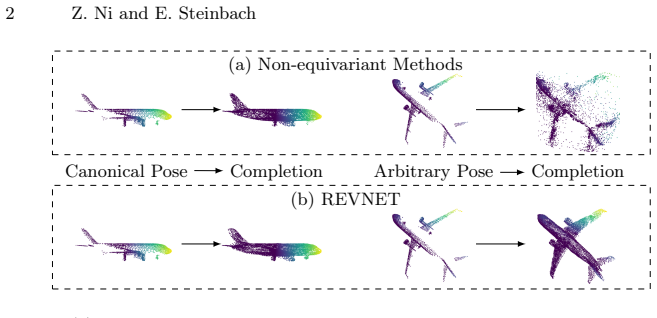

**Figure 1.** Figure 1: (a) Conventional point cloud completion methods are trained with data in canonical poses and cannot handle observation under pose changes. (b) Our proposed REVNET can consistently recover shapes under arbitrary poses. missing structures from local keypoint features, leading to improved geometric fidelity. Despite these advances, most existing methods still assume that inputs are pre-aligned to a canonical … view at source ↗

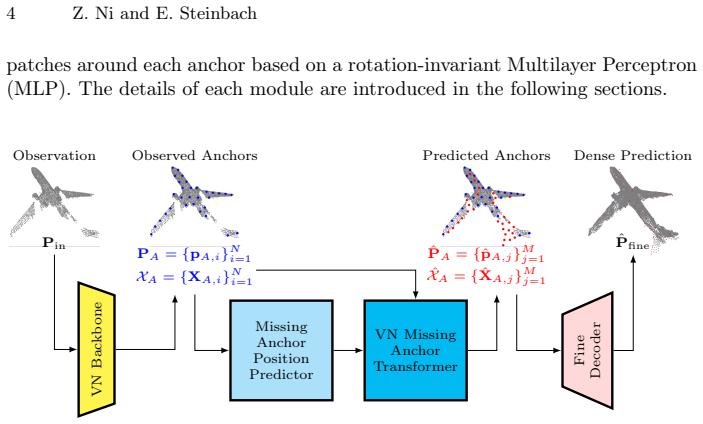

**Figure 2.** Figure 2: The overview of our REVNET framework. 3.1 Vector Neuron Network We begin by briefly reviewing the Vector Neuron Network [7], which represents a latent feature as an ordered list of 3D vectors X ∈ R C×3 , rather than conventional scalar features x ∈ R C , where C denotes the number of channels. This representation allows the rotation of an input point cloud to propagate naturally through network layers vi… view at source ↗

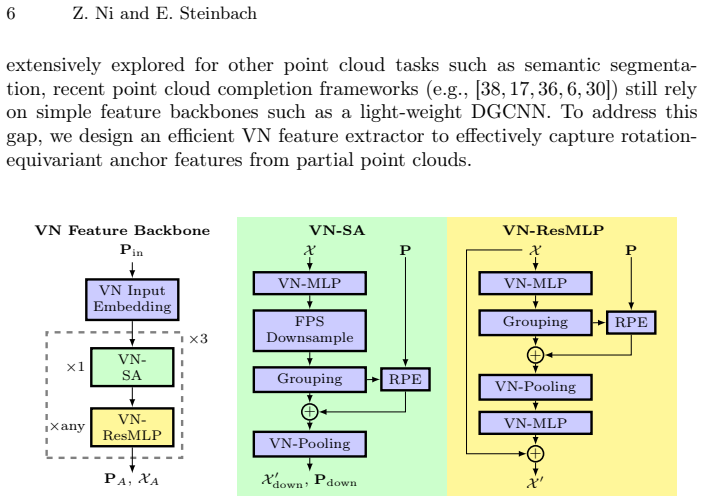

**Figure 3.** Figure 3: The architecture of our VN feature backbone. As illustrated in [PITH_FULL_IMAGE:figures/full_fig_p006_3.png] view at source ↗

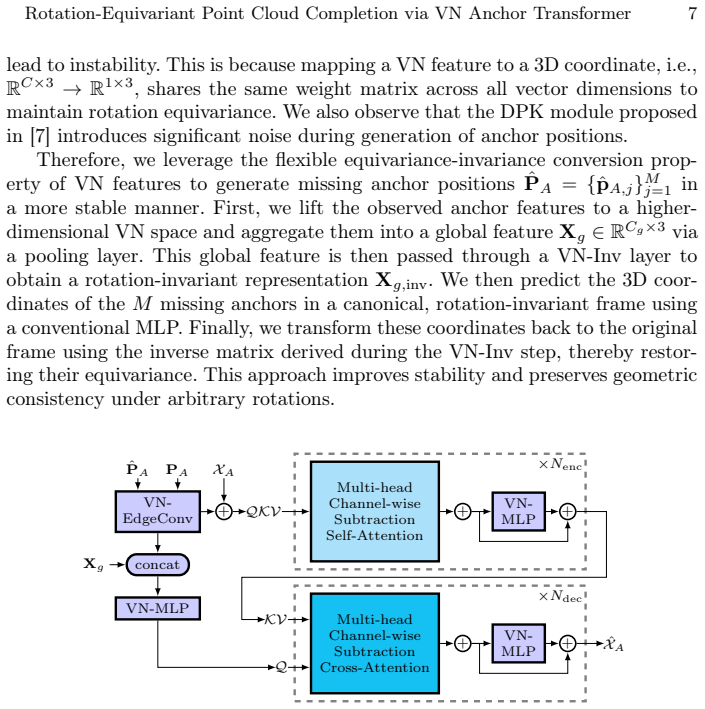

**Figure 4.** Figure 4: The architecture of VN Missing Anchor Transformer. 3.4 VN Missing Anchor Transformer We design a VN-based Missing Anchor Transformer (VN-MATr) to infer equivariant features for missing anchors by using contextual information from the observed anchors [PITH_FULL_IMAGE:figures/full_fig_p007_4.png] view at source ↗

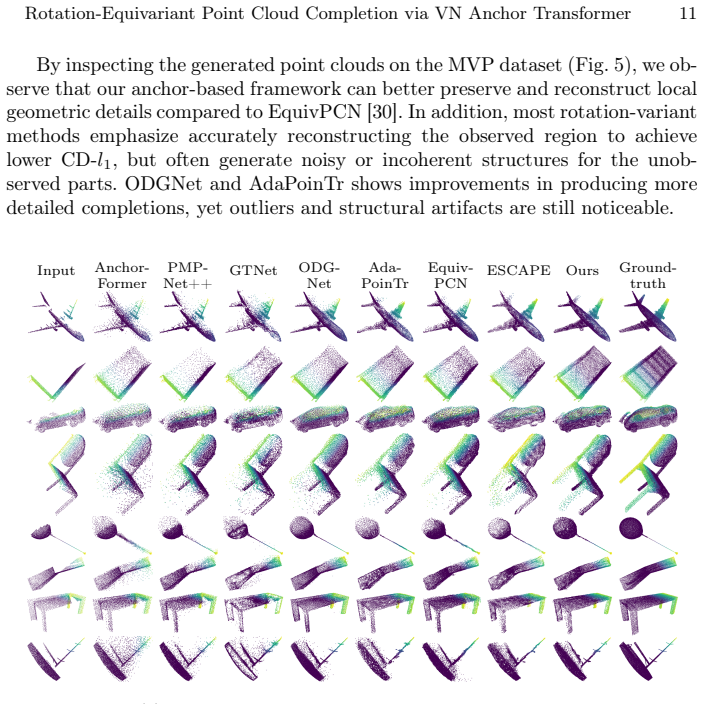

**Figure 5.** Figure 5: SO(3)-equivariant point cloud completion results on MVP dataset. We then evaluate our model’s generalizability to real-world point clouds using the KITTI dataset under None/None setup. As shown in [PITH_FULL_IMAGE:figures/full_fig_p011_5.png] view at source ↗

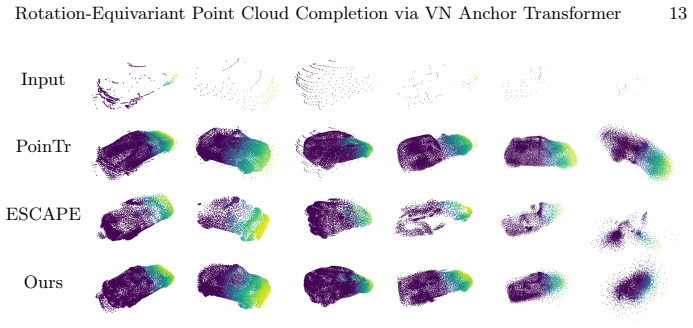

**Figure 6.** Figure 6: Car point cloud completion results on KITTI dataset. Ours (1) (2) (3) (4) (5) (6) CD-l1 × 100 ↓ 0.887 0.914 0.927 0.903 0.911 0.918 0.905 F-Score@1% ↑ 73.44 71.60 70.20 72.24 71.49 71.32 72.74 F-Score@2% ↑ 92.37 91.77 91.28 91.87 91.74 91.54 91.97 [PITH_FULL_IMAGE:figures/full_fig_p013_6.png] view at source ↗

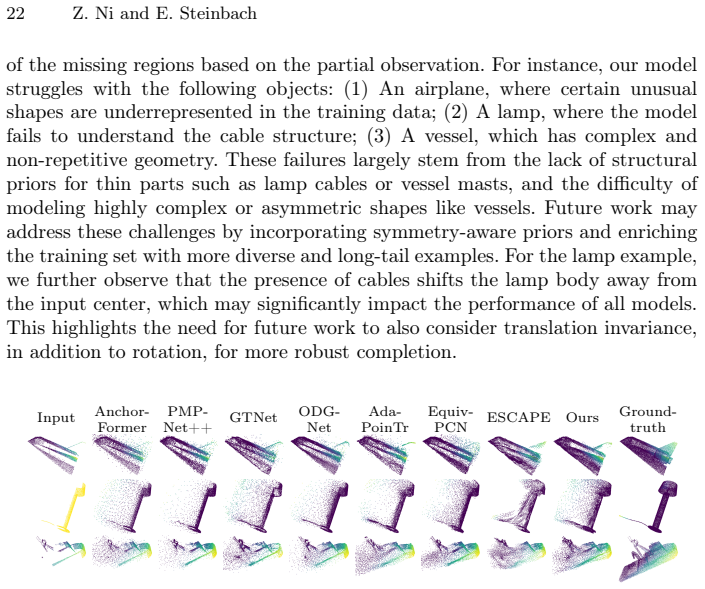

**Figure 1.** Figure 1: Failure cases on MVP dataset [PITH_FULL_IMAGE:figures/full_fig_p022_1.png] view at source ↗

read the original abstract

Incomplete point clouds captured by 3D sensors often result in the loss of both geometric and semantic information. Most existing point cloud completion methods are built on rotation-variant frameworks trained with data in canonical poses, limiting their applicability in real-world scenarios. While data augmentation with random rotations can partially mitigate this issue, it significantly increases the learning burden and still fails to guarantee robust performance under arbitrary poses. To address this challenge, we propose the Rotation-Equivariant Anchor Transformer (REVNET), a novel framework built upon the Vector Neuron (VN) network for robust point cloud completion under arbitrary rotations. To preserve local details, we represent partial point clouds as sets of equivariant anchors and design a VN Missing Anchor Transformer to predict the positions and features of missing anchors. Furthermore, we extend VN networks with a rotation-equivariant bias formulation and a ZCA-based layer normalization to improve feature expressiveness. Leveraging the flexible conversion between equivariant and invariant VN features, our model can generate point coordinates with greater stability. Experimental results show that our method outperforms state-of-the-art approaches on the synthetic MVP dataset in the equivariant setting. On the real-world KITTI dataset, REVNET delivers competitive results compared to non-equivariant networks, without requiring input pose alignment. The source code will be released on GitHub under URL: https://github.com/nizhf/REVNET.

Editorial analysis

A structured set of objections, weighed in public.

Desk editor's note, referee report, simulated authors' rebuttal, and a circularity audit. Tearing a paper down is the easy half of reading it; the pith above is the substance, this is the friction.

Desk Editor's Note private letter to a colleague

REVNET proposes a VN-anchor transformer for rotation-equivariant completion with some practical extensions, but the lack of a direct equivariance diagnostic leaves the central guarantee unverified.

read the letter

The paper's core contribution is a Vector Neuron representation of partial point clouds as equivariant anchors, fed into a Missing Anchor Transformer that predicts missing positions and features. They add an equivariant bias term and ZCA normalization to the VN layers, then convert between equivariant and invariant features to output coordinates. This setup is meant to deliver completion that respects f(Rx) = R f(x) without any pose alignment or heavy augmentation. The motivation is straightforward: real sensors give arbitrary orientations, and current methods either overfit to canonical poses or pay for it in training cost. The design choices look like a reasonable extension of existing VN work rather than a complete reinvention, and the claim of competitive KITTI results without alignment is the part that would matter most to practitioners. On the MVP synthetic set they report better numbers than prior equivariant baselines, which is the expected place to show the benefit. The main gap is the missing diagnostic. Nothing in the abstract or stress-test note shows a direct measure such as mean deviation from strict equivariance after a random rotation, or Chamfer distance on canonicalized outputs. If the transformer layers or normalization quietly break the property, the downstream metrics could still improve while the theoretical guarantee does not hold. Without those numbers or the full ablation tables it is hard to know how robust the gains really are. The paper is aimed at groups already using or building equivariant 3D networks and who need completion that works on unaligned data. A reader looking for a concrete architecture to adapt would find the anchor formulation and the two VN extensions useful to examine, especially once the code drops. I would send it to peer review. The idea is grounded enough and the practical angle is clear, so referees can check the experiments and the equivariance preservation directly.

Referee Report

2 major / 2 minor

Summary. The manuscript proposes REVNET, a rotation-equivariant point cloud completion framework built on Vector Neuron (VN) networks. Partial inputs are represented as sets of equivariant anchors; a VN Missing Anchor Transformer predicts missing anchor positions and features, augmented by an equivariant bias formulation and ZCA-based layer normalization. The model exploits conversion between equivariant and invariant VN features to output completed point clouds. Experiments claim that REVNET outperforms prior methods on the synthetic MVP dataset under the equivariant setting and produces competitive results on the real-world KITTI dataset without requiring explicit pose alignment.

Significance. If the claimed strict rotation equivariance holds and the reported gains are reproducible, the work would provide a practical architectural route for 3D completion pipelines that must operate on arbitrarily oriented sensor data, reducing dependence on data augmentation or canonicalization preprocessing.

major comments (2)

[Experimental results] Experimental section (results on MVP and KITTI): no quantitative equivariance diagnostic is reported (e.g., mean ||f(R·x) − R·f(x)|| or post-canonicalization Chamfer distance) to verify that the full pipeline—VN anchors, Missing Anchor Transformer, equivariant bias, and ZCA normalization—preserves f(R·x) = R·f(x) for arbitrary rotations. This verification is load-bearing for the central claim.
[§3.2] §3.2 (Missing Anchor Transformer): the description of the added equivariant bias and ZCA normalization does not include an explicit proof or empirical check that these extensions maintain the VN equivariance property through the transformer layers; any deviation would undermine the downstream completion guarantees.

minor comments (2)

[Figure 2] Figure 2 caption and §4.1: the distinction between “equivariant anchors” and “invariant features” is introduced without a concise notation table; readers must infer the conversion rules from surrounding text.
[Table 1] Table 1 (MVP results): baseline numbers are listed without error bars or the exact number of random rotation trials used for the equivariant setting; this makes it difficult to assess statistical significance of the reported margins.

Simulated Author's Rebuttal

2 responses · 0 unresolved

We thank the referee for the constructive and detailed comments. We agree that explicit verification of the rotation-equivariance property is important for substantiating the central claims of the work. Below we provide point-by-point responses and commit to incorporating the requested diagnostics and justifications in the revised manuscript.

read point-by-point responses

Referee: [Experimental results] Experimental section (results on MVP and KITTI): no quantitative equivariance diagnostic is reported (e.g., mean ||f(R·x) − R·f(x)|| or post-canonicalization Chamfer distance) to verify that the full pipeline—VN anchors, Missing Anchor Transformer, equivariant bias, and ZCA normalization—preserves f(R·x) = R·f(x) for arbitrary rotations. This verification is load-bearing for the central claim.

Authors: We acknowledge that the original submission lacked a direct quantitative diagnostic for the end-to-end equivariance of the full pipeline. In the revised manuscript we will add a new subsection in the experimental results that reports the mean deviation ||f(R·x) − R·f(x)|| (averaged over 100 random rotations per sample) on both the MVP and KITTI test sets. We will also include post-canonicalization Chamfer distance results to quantify any residual error after alignment. These additions will empirically confirm that the complete model (VN anchors, Missing Anchor Transformer, equivariant bias, and ZCA normalization) satisfies the claimed equivariance property. revision: yes
Referee: [§3.2] §3.2 (Missing Anchor Transformer): the description of the added equivariant bias and ZCA normalization does not include an explicit proof or empirical check that these extensions maintain the VN equivariance property through the transformer layers; any deviation would undermine the downstream completion guarantees.

Authors: We agree that the manuscript would be strengthened by an explicit justification. The equivariant bias is constructed by applying the same rotation to both the query and the bias vector, ensuring it commutes with the rotation operator; ZCA normalization is performed on the vector-neuron features in a rotation-equivariant manner because the whitening matrix is derived from the covariance of the equivariant features. In the revised version we will insert a short theoretical paragraph in §3.2 proving that both extensions preserve the VN equivariance property through the transformer layers. We will also add an empirical check that measures feature deviation before and after these layers under random input rotations. revision: yes

Circularity Check

0 steps flagged

No significant circularity; architecture and results are independent of inputs

full rationale

The paper proposes REVNET as an architectural extension of Vector Neuron (VN) networks, using equivariant anchors and a Missing Anchor Transformer with added bias and ZCA normalization. Equivariance is asserted by construction from the VN base (an external framework) rather than fitted parameters or self-referential equations. Performance claims rest on direct comparisons to external SOTA methods on the MVP and KITTI benchmarks, with no steps that rename fitted quantities as predictions or reduce the central result to a self-citation chain. The derivation chain is self-contained against the stated benchmarks.

Axiom & Free-Parameter Ledger

1 free parameters · 1 axioms · 0 invented entities

The central claim rests on the established rotation-equivariance property of Vector Neuron networks and on the empirical effectiveness of the new anchor-based transformer; no new physical entities or unstated mathematical axioms are introduced.

free parameters (1)

Network weights and hyperparameters
Standard learned parameters of any deep network; their values are determined by training on the MVP and KITTI datasets.

axioms (1)

domain assumption Vector Neuron networks are rotation-equivariant by construction
The paper builds directly on the VN framework introduced in prior work without re-deriving its equivariance property.

pith-pipeline@v0.9.0 · 5544 in / 1268 out tokens · 76472 ms · 2026-05-16T14:26:14.946761+00:00 · methodology

discussion (0)

Lean theorems connected to this paper

Citations machine-checked in the Pith Canon. Every link opens the source theorem in the public Lean library.

IndisputableMonolith/Foundation/AlexanderDuality.lean alexander_duality_circle_linking unclear

?

unclear
Relation between the paper passage and the cited Recognition theorem.

We propose the Rotation-Equivariant Anchor Transformer (REVNET), a novel framework built upon the Vector Neuron (VN) network for robust point cloud completion under arbitrary rotations... VN features as ordered lists of 3D vectors X ∈ R^{C×3}

What do these tags mean?

matches: The paper's claim is directly supported by a theorem in the formal canon.
supports: The theorem supports part of the paper's argument, but the paper may add assumptions or extra steps.
extends: The paper goes beyond the formal theorem; the theorem is a base layer rather than the whole result.
uses: The paper appears to rely on the theorem as machinery.
contradicts: The paper's claim conflicts with a theorem or certificate in the canon.
unclear: Pith found a possible connection, but the passage is too broad, indirect, or ambiguous to say the theorem truly supports the claim.
