arxiv: 2601.09687 · v2 · submitted 2026-01-14 · ❄️ cond-mat.mes-hall · cond-mat.str-el

Disorder-induced strong-field strong-localization in 2D systems

Pith reviewed 2026-05-16 14:25 UTC · model grok-4.3

classification ❄️ cond-mat.mes-hall cond-mat.str-el
keywords Anderson soliddisorder-induced localizationbilayer grapheneWigner crystallowest Landau levelstrong magnetic fieldrandom localized phaseSTM experiment
0
0 comments X

The pith

The random localized phase observed in bilayer graphene under strong magnetic fields is the disorder-induced Anderson solid.

A machine-rendered reading of the paper's core claim, the machinery that carries it, and where it could break.

Recent STM experiments in 2D bilayer graphene in a strong perpendicular magnetic field reveal three distinct phases in the lowest Landau level: an incompressible fractional quantum Hall liquid, a compressible hexagonal Wigner crystal with long-range order, and a random localized solid with no spatial order. The paper argues that the random localized phase at low filling factors matches the recently proposed disorder-dominated amorphous Anderson solid phase. This phase appears generically at a sample-dependent filling factor due to disorder effects. A sympathetic reader would care because it provides a theoretical identification for an experimentally seen phase that lacks crystalline order, linking it to strong localization mechanisms in 2D systems.

Core claim

In the lowest Landau level of 2D bilayer graphene under strong perpendicular magnetic fields, the spatially random localized phase at low filling factors is the disorder-dominated strongly localized amorphous Anderson solid phase, which appears generically at sample-dependent filling factors and features no spatial order.

What carries the argument

The Anderson solid, a disorder-dominated strongly localized amorphous phase, which identifies the observed random localized phase as distinct from the ordered Wigner crystal.

If this is right

  • The random localized phase is distinct from the Wigner crystal and appears due to disorder dominance at low fillings.
  • This Anderson solid phase occurs generically in such 2D systems at a filling factor that depends on the specific sample disorder.
  • The identification unifies the experimental observation with theoretical predictions for strong localization in the presence of disorder.
  • The phase remains compressible and shows no rotational symmetry breaking unlike the Wigner crystal.

Where Pith is reading between the lines

These are editorial extensions of the paper, not claims the author makes directly.

  • Disorder can stabilize amorphous localized states in quantum Hall systems that would otherwise form crystals.
  • Tuning the disorder strength in future experiments could map the boundary between the Anderson solid and the Wigner crystal phases.
  • This suggests that similar random localized phases may appear in other 2D materials under strong fields when disorder is present.

Load-bearing premise

The experimentally observed random localized phase without spatial order directly corresponds to the theoretically proposed Anderson solid, even without quantitative matching of filling factors or spatial correlations.

What would settle it

Measuring the exact spatial correlation functions or the precise filling factor range of the random phase in the bilayer graphene experiment and comparing them quantitatively to predictions for the Anderson solid would confirm or refute the identification.

Figures

Figures reproduced from arXiv: 2601.09687 by Sankar Das Sarma, Yi Huang.

Figure 1
Figure 1. Figure 1: FIG. 1. Schematic for the zero temperature phase diagram of [PITH_FULL_IMAGE:figures/full_fig_p002_1.png] view at source ↗
Figure 2

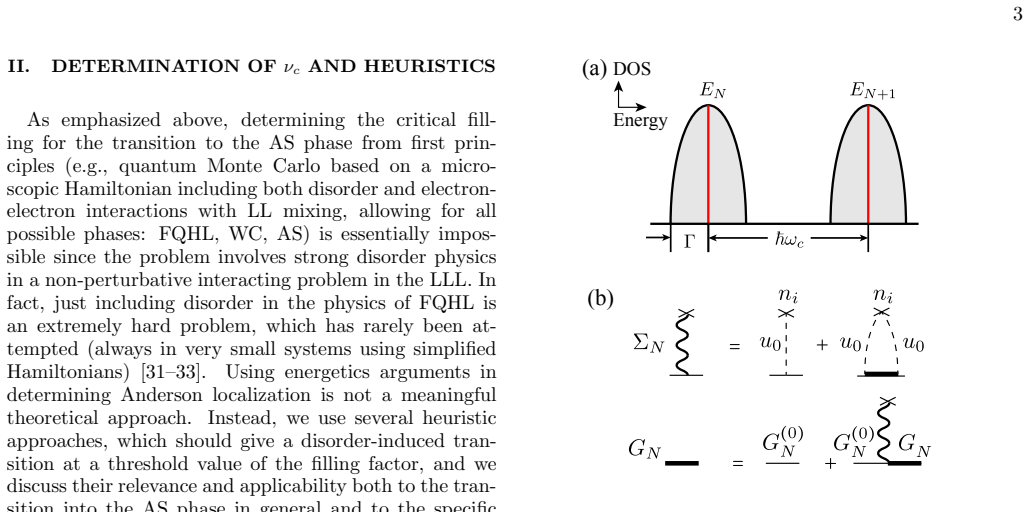

Figure 2. Figure 2: FIG. 2. (a) Density of states (DOS) for a 2D electron gas in a [PITH_FULL_IMAGE:figures/full_fig_p003_2.png] view at source ↗
Figure 3
Figure 3. Figure 3: FIG. 3. The schematic finite-temperature ( [PITH_FULL_IMAGE:figures/full_fig_p007_3.png] view at source ↗
Figure 4
Figure 4. Figure 4: conjectures that in the limit of zero disorder, the FQHE is restricted to a set of measure zero occurring pre￾cisely at odd-denominator filling factors. Both WC and FQHL are truncated by the disorder line, and if the dis￾order is strong, then neither would manifest itself (which is the situation in all samples prior to the 1982 discovery of FQHE). If the disorder is weak, however, many FQHE at many odd den… view at source ↗
read the original abstract

A recent STM experiment in 2D bilayer graphene [Y.-C. Tsui, et al., Nature 628, 287 (2024)], under a strong perpendicular magnetic field, has made a direct observation of the existence of three distinct filling-factor-dependent quantum phases in the lowest Landau level: the incompressible fractional quantum Hall liquid, a crystalline compressible hexagonal Wigner crystal with long-range order and rotational symmetry-breaking, and a random localized solid phase with no spatial order. We argue that the spatially random localized phase at low filling is the recently proposed disorder-dominated strongly localized amorphous "Anderson solid" phase [A. Babber, et al., arXiv:2601.03521], which appears generically at a sample-dependent filling factor.

Editorial analysis

A structured set of objections, weighed in public.

Desk editor's note, referee report, simulated authors' rebuttal, and a circularity audit. Tearing a paper down is the easy half of reading it; the pith above is the substance, this is the friction.

Referee Report

1 major / 0 minor

Summary. The manuscript interprets recent STM observations in bilayer graphene under strong perpendicular magnetic fields as revealing three filling-factor-dependent phases in the lowest Landau level: an incompressible fractional quantum Hall liquid, a compressible hexagonal Wigner crystal with long-range order, and a spatially random localized solid with no order. It argues that the random localized phase at low filling corresponds to the disorder-dominated amorphous 'Anderson solid' proposed in the authors' prior work (arXiv:2601.03521), appearing generically at sample-dependent filling factors.

Significance. If the identification holds, the result would link an experimental random localized phase to a theoretically proposed disorder-induced strongly localized state, offering a framework for understanding sample-dependent behavior in 2D systems at strong fields. The manuscript contains no new derivations, simulations, or data analysis, so its contribution is purely interpretive; quantitative validation would be required to elevate its impact beyond a qualitative suggestion.

major comments (1)
  1. [Abstract] Abstract and main text: the central identification of the STM-observed random localized phase with the Anderson solid rests exclusively on shared qualitative traits (spatial randomness and absence of long-range order) but supplies no quantitative comparison of filling factors, disorder strengths, localization lengths, or two-point correlation functions against the parameters used in arXiv:2601.03521.

Simulated Author's Rebuttal

1 responses · 0 unresolved

We thank the referee for their thoughtful review and constructive comments on our interpretive manuscript. We address the major comment below, maintaining that the identification is appropriately qualitative given the nature of the available experimental data.

read point-by-point responses
  1. Referee: [Abstract] Abstract and main text: the central identification of the STM-observed random localized phase with the Anderson solid rests exclusively on shared qualitative traits (spatial randomness and absence of long-range order) but supplies no quantitative comparison of filling factors, disorder strengths, localization lengths, or two-point correlation functions against the parameters used in arXiv:2601.03521.

    Authors: We acknowledge that the central claim relies on qualitative correspondence between the STM observations (spatially random localized phase at low filling factors with no long-range order) and the disorder-induced Anderson solid predicted in our prior work (arXiv:2601.03521). The Tsui et al. experiment reports the existence of this phase and its sample-dependent filling-factor range but does not furnish quantitative metrics such as localization lengths, two-point correlation functions, or explicit disorder strengths. Our theoretical proposal emphasizes that the Anderson solid emerges generically at sample-dependent fillings due to disorder dominance, which is consistent with the experimental variability across samples. As the present manuscript is purely interpretive and introduces no new calculations or simulations, we do not attempt quantitative matching. We maintain that the qualitative alignment offers a coherent framework for the observed phases without overclaiming precision. revision: no

Circularity Check

1 steps flagged

Central identification of random localized phase as Anderson solid reduces to self-citation of prior proposal without quantitative matching

specific steps
  1. self citation load bearing [Abstract]
    "We argue that the spatially random localized phase at low filling is the recently proposed disorder-dominated strongly localized amorphous 'Anderson solid' phase [A. Babber, et al., arXiv:2601.03521], which appears generically at a sample-dependent filling factor."

    The identification is asserted by direct reference to the prior proposal without independent evidence or calculation in the current work; the mapping is justified only by the self-cited definition of the Anderson solid, reducing the central claim to the content of arXiv:2601.03521.

full rationale

The paper's core claim equates the STM-observed spatially random localized phase to the disorder-dominated Anderson solid solely via reference to the authors' prior arXiv:2601.03521 work. No new derivations, simulations, or parameter matching (filling factor, disorder strength, correlation functions) are supplied; the argument rests on shared qualitative features (absence of order, spatial randomness) already defined in the self-cited proposal. This makes the identification load-bearing on the self-citation chain, with the present manuscript functioning as interpretive commentary rather than independent derivation.

Axiom & Free-Parameter Ledger

0 free parameters · 0 axioms · 0 invented entities

The paper relies on the prior theoretical definition of the Anderson solid and qualitative features of the STM data without introducing new parameters or entities in the abstract.

pith-pipeline@v0.9.0 · 5421 in / 1147 out tokens · 17835 ms · 2026-05-16T14:25:21.566213+00:00 · methodology

discussion (0)

Sign in with ORCID, Apple, or X to comment. Anyone can read and Pith papers without signing in.

Lean theorems connected to this paper

Citations machine-checked in the Pith Canon. Every link opens the source theorem in the public Lean library.

What do these tags mean?
matches
The paper's claim is directly supported by a theorem in the formal canon.
supports
The theorem supports part of the paper's argument, but the paper may add assumptions or extra steps.
extends
The paper goes beyond the formal theorem; the theorem is a base layer rather than the whole result.
uses
The paper appears to rely on the theorem as machinery.
contradicts
The paper's claim conflicts with a theorem or certificate in the canon.
unclear
Pith found a possible connection, but the passage is too broad, indirect, or ambiguous to say the theorem truly supports the claim.

Forward citations

Cited by 1 Pith paper

Reviewed papers in the Pith corpus that reference this work. Sorted by Pith novelty score.

  1. Interplay of disorder and interaction in quantum Hall systems: from fractional quantum Hall liquids to Wigner crystals and amorphous solids

    cond-mat.mes-hall 2026-04 unverdicted novelty 4.0

    Simulations reveal that random charged impurities and short-range disorder drive quantum Hall systems from incompressible fractional liquids through locally ordered solids to amorphous states, with charged impurities ...
