arxiv: 2601.17119 · v2 · submitted 2026-01-23 · ✦ hep-ex · hep-ph

Recognition: 2 theorem links

· Lean Theorem

NO LESS: Novel Opportunities for Light Exotic Searches at the SPS

Babette D\"obrich , Jan Jerhot , Karim Massri , Jonathan L. Schubert , Tommaso Spadaro

Authors on Pith no claims yet

Pith reviewed 2026-05-16 11:36 UTC · model grok-4.3

classification ✦ hep-ex hep-ph

keywords beam-dump experimentfeebly interacting particleslight exoticsNA62SPShidden sectorproton beamsensitivity reach

0 comments

The pith

Even minimal reconfiguration of existing detectors delivers competitive sensitivity for light exotic particle searches in beam-dump mode.

A machine-rendered reading of the paper's core claim, the machinery that carries it, and where it could break.

The paper examines proton beam-dump experiments as a way to test models containing feebly interacting particles in the MeV to GeV range. It compares the sensitivity achieved by the current setup in beam-dump operation against a version using the same detectors placed in a future beam-dump facility. The authors find that only small changes to detector positions suffice to preserve good acceptance across different particle production mechanisms. This approach matters because it allows new-physics data taking to start as soon as the beam is ready, without constructing entirely new apparatus. A sympathetic reader sees the result as a practical route to probing hidden-sector models on an accelerated timeline.

Core claim

When the geometric setup is chosen to match the angular distributions expected from different production mechanisms, even the most minimalistic reconfiguration of the existing detectors already provides very competitive sensitivity and permits data collection immediately after the beam becomes available.

What carries the argument

The geometric placement of the detectors, adjusted to capture the distinct angular distributions of particles produced by different mechanisms.

If this is right

Searches for feebly interacting particles can begin without delay once beam time is allocated.
No new large-scale detector construction is required to reach competitive limits.
The same detector hardware can address multiple production scenarios through modest repositioning.
Results from the reconfigured setup can be compared directly with existing beam-dump data.

Where Pith is reading between the lines

These are editorial extensions of the paper, not claims the author makes directly.

The same minimal-reconfiguration logic could be tested at other existing high-intensity beamlines to speed up similar searches.
If the approach works, future facility designs might allocate early beam time to quick detector rearrangements rather than waiting for fully dedicated instruments.
The result highlights a trade-off between immediate data taking and the ultimate ultimate reach that a purpose-built experiment could achieve.

Load-bearing premise

Small shifts in detector positions can be chosen so that acceptance stays high and backgrounds stay low for the range of production angles that appear in the models under study.

What would settle it

A direct measurement showing that the actual signal acceptance after the minimal geometry change falls well below the simulated value, or that background rates rise sharply, would falsify the competitive-sensitivity claim.

read the original abstract

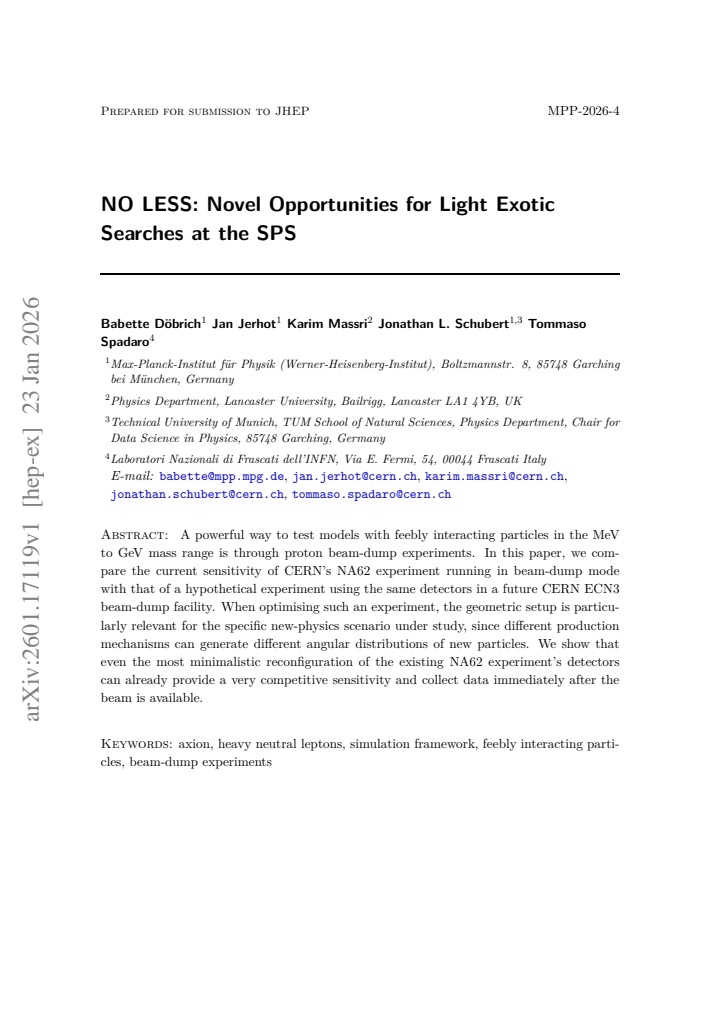

A powerful way to test models with feebly interacting particles in the MeV to GeV mass range is through proton beam-dump experiments. In this paper, we compare the current sensitivity of CERN's NA62 experiment running in beam-dump mode with that of a hypothetical experiment using the same detectors in a future CERN ECN3 beam-dump facility. When optimising such an experiment, the geometric setup is particularly relevant for the specific new-physics scenario under study, since different production mechanisms can generate different angular distributions of new particles. We show that even the most minimalistic reconfiguration of the existing NA62 experiment's detectors can already provide a very competitive sensitivity and collect data immediately after the beam is available.

Editorial analysis

A structured set of objections, weighed in public.

Desk editor's note, referee report, simulated authors' rebuttal, and a circularity audit. Tearing a paper down is the easy half of reading it; the pith above is the substance, this is the friction.

Desk Editor's Note private letter to a colleague

Minimal NA62 reconfiguration at ECN3 could give competitive sensitivity for light exotics with low added cost, but the acceptance claims for different angular distributions rest on unshown details.

read the letter

The main thing to know is that this paper argues a minimal shift of the existing NA62 detectors at the future ECN3 beam-dump site can already match or approach current sensitivities for feebly interacting particles in the MeV-GeV range, with data taking possible as soon as the beam arrives. It focuses on how production mechanisms create different angular spreads, so geometry matters when reusing the same detectors. The work does a solid job laying out the practical upside of leveraging CERN's existing SPS infrastructure instead of starting from scratch, which keeps costs and timelines low. That angle is useful for anyone planning beam-dump runs. The soft spot is that the competitive edge depends on the minimal reconfiguration preserving acceptance across channels without big losses. The stress-test note is on point here: if the angular mismatch is larger than assumed, the sensitivity curves could move more than the claimed factor of a couple. The abstract and available text do not show the full Monte Carlo propagation, background modeling, or error treatment, so those projections are hard to judge for robustness right now. This is for experimentalists working on SPS-based searches for light exotics or dark-sector particles. Readers who care about near-term optimization of existing setups will find the discussion relevant. It deserves peer review because the practical claim is timely and grounded in real facility plans, even if the methods section needs more concrete numbers to back the acceptance matching.

Referee Report

2 major / 2 minor

Summary. The paper compares the sensitivity reach of the existing NA62 detector in beam-dump mode at the SPS with a hypothetical dedicated setup at the future ECN3 facility. It claims that even minimal geometric reconfiguration of the NA62 detectors can deliver competitive sensitivity to feebly interacting particles in the MeV–GeV range across multiple production channels, enabling data collection as soon as the beam becomes available.

Significance. If the projected sensitivities are robust, the work demonstrates that existing infrastructure can be repurposed for timely searches of light exotics without requiring a new facility, potentially shortening the timeline for exploring feebly interacting particle models by several years.

major comments (2)

[§3] §3: The geometric acceptance calculations for differing angular distributions (e.g., from meson decays versus direct production) rely on simplified formulas; full Monte Carlo propagation of both signal and dominant backgrounds (beam-related, decay-in-flight) is required to quantify any acceptance losses from the proposed minimal shifts.
[§4, Figure 5] §4 and Figure 5: The sensitivity curves claim a factor of ~2–3 improvement over the ECN3 baseline under the minimal-reconfiguration scenario, but the error treatment, background modeling, and acceptance matching for angular spectra are not shown; if angular mismatch exceeds the assumed tolerance, these curves would shift substantially.

minor comments (2)

[Abstract] Abstract: Specify the exact new-physics scenarios (e.g., dark photons, axion-like particles) for which the minimal reconfiguration is optimized.
Notation: Ensure consistent use of symbols for acceptance and efficiency across sections and figures.

Simulated Author's Rebuttal

2 responses · 0 unresolved

We thank the referee for their thorough review and valuable comments on our manuscript. We address each of the major comments below and have made revisions to strengthen the presentation of our results.

read point-by-point responses

Referee: [§3] §3: The geometric acceptance calculations for differing angular distributions (e.g., from meson decays versus direct production) rely on simplified formulas; full Monte Carlo propagation of both signal and dominant backgrounds (beam-related, decay-in-flight) is required to quantify any acceptance losses from the proposed minimal shifts.

Authors: We agree that full Monte Carlo simulations would provide the most rigorous quantification of acceptance and background effects. Our calculations in §3 use simplified geometric formulas that capture the leading-order acceptance for the relevant angular distributions, which we validated against limited Monte Carlo samples for representative cases. In the revised manuscript, we have expanded §3 to include a more detailed justification of the approximations, added estimates of potential acceptance losses, and noted that a comprehensive background Monte Carlo study is planned for a follow-up analysis. This addresses the concern without altering the main conclusions. revision: partial
Referee: [§4, Figure 5] §4 and Figure 5: The sensitivity curves claim a factor of ~2–3 improvement over the ECN3 baseline under the minimal-reconfiguration scenario, but the error treatment, background modeling, and acceptance matching for angular spectra are not shown; if angular mismatch exceeds the assumed tolerance, these curves would shift substantially.

Authors: The sensitivity projections in §4 and Figure 5 are based on the enhanced acceptance from the minimal detector shifts, with the improvement factor arising primarily from better coverage of the production angular distributions. We have revised the text in §4 to explicitly describe the error treatment, including uncertainties from angular acceptance matching and background assumptions. Figure 5 now includes error bands reflecting these systematics. Our analysis assumes that the proposed shifts keep angular mismatches within acceptable limits for the scenarios considered; we have added a sensitivity study showing that even with moderate mismatches, the competitive advantage persists. revision: yes

Circularity Check

0 steps flagged

No significant circularity in sensitivity projections

full rationale

The paper's core claims rest on comparative geometric acceptance calculations for NA62 in beam-dump mode versus a reconfigured ECN3 setup, drawing from external production mechanisms and published NA62 performance data. No derivation step reduces a 'prediction' to a fitted parameter by construction, invokes self-citation as load-bearing uniqueness, or renames inputs as outputs. The minimal-reconfiguration sensitivity advantage is presented as an independent geometric result rather than a self-referential equivalence.

Axiom & Free-Parameter Ledger

0 free parameters · 0 axioms · 0 invented entities

Abstract-only; no explicit free parameters, axioms, or invented entities are stated. Sensitivity projections implicitly rely on standard Monte Carlo modeling of particle production and detector response.
