Secure Beamforming and Reflection Design for RIS-ISAC Systems Under Collusion of Passive and Active Eavesdroppers

Yueyi Dong , Tian Zhang This is my paper

Pith reviewed 2026-05-16 11:26 UTC · model grok-4.3

classification 💻 cs.IT math.IT
keywords reconfigurable intelligent surfaceintegrated sensing and communicationphysical layer securitybeamformingsecrecy rateeavesdropper collusionalternating optimization
0
0 comments X

The pith

Joint base station beamforming and RIS reflection design maximizes secrecy rate in ISAC systems while meeting sensing constraints against colluding active and passive eavesdroppers.

A machine-rendered reading of the paper's core claim, the machinery that carries it, and where it could break.

The paper examines physical-layer security in a reconfigurable intelligent surface aided integrated sensing and communication system threatened by cooperating active and passive eavesdroppers. It formulates a secrecy rate maximization problem subject to sensing performance and transmit power limits, then decomposes the non-convex problem into three subproblems solved iteratively. The solution uses alternating optimization together with quadratic penalty and successive convex approximation methods to produce the joint beamforming and reflection design algorithm. Numerical results show the approach improves secure communications without violating sensing requirements.

Core claim

The secrecy rate maximization problem, formulated over transmit beamforming, RIS reflection coefficients, and receive beamforming under sensing and power constraints, is solved by alternating optimization that decomposes the problem into three subproblems, each handled with quadratic penalty and successive convex approximation, yielding an iterative JBRD algorithm that achieves higher secrecy rates than baselines while preserving sensing performance.

What carries the argument

The joint beamforming and reflection design (JBRD) algorithm, which applies alternating optimization to subproblems of transmit beamforming, RIS reflection, and receive beamforming, using quadratic penalty and successive convex approximation to manage non-convexity.

If this is right

  • Joint optimization of beamforming and RIS phases yields higher secrecy rates than separate designs while satisfying sensing performance constraints.
  • The iterative algorithm converges and delivers measurable security gains in the presence of colluding eavesdroppers.
  • Receive beamforming at the legitimate receiver contributes to further suppression of eavesdropper channels.
  • The approach maintains the required sensing accuracy as an explicit constraint during secrecy maximization.

Where Pith is reading between the lines

These are editorial extensions of the paper, not claims the author makes directly.

  • The same decomposition could support extensions to multi-target sensing or multiple legitimate users by adding corresponding linear constraints.
  • Replacing the iterative solver with a learned model might reduce runtime for real-time adaptation when channel statistics change slowly.
  • The framework suggests that RIS surfaces can simultaneously serve sensing and security functions, potentially simplifying hardware in spectrum-constrained deployments.

Load-bearing premise

Alternating optimization combined with quadratic penalty and successive convex approximation converges to solutions that substantially improve secrecy rate without violating the sensing constraints.

What would settle it

Numerical evaluation on the same channel realizations showing that the JBRD algorithm produces lower secrecy rates than beamforming-only optimization (with fixed random RIS phases) under identical sensing and power limits.

Figures

Figures reproduced from arXiv: 2601.18063 by Tian Zhang, Yueyi Dong.

Figure 1

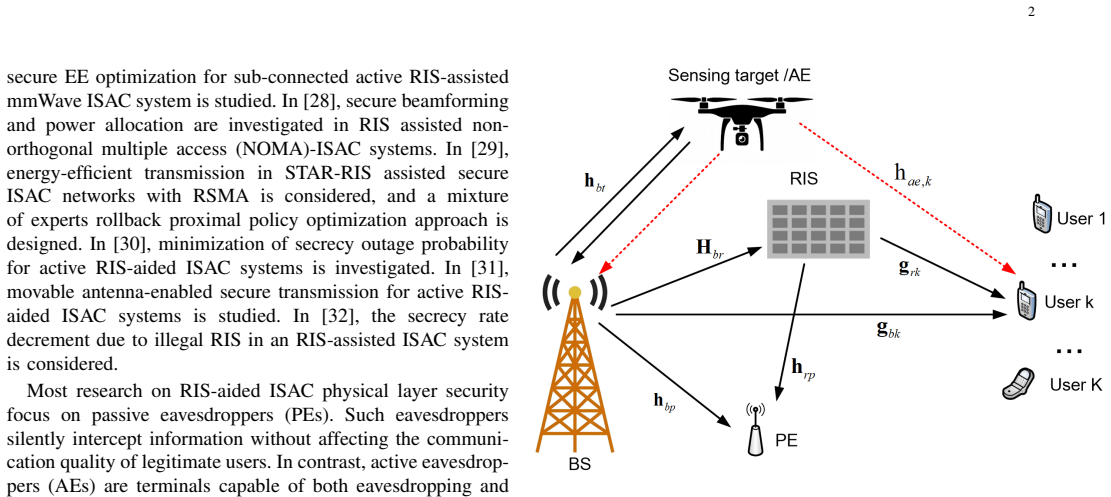

Figure 1. Figure 1: ISAC Dual-Security System for Communication and Sensing [PITH_FULL_IMAGE:figures/full_fig_p002_1.png] view at source ↗
Figure 3

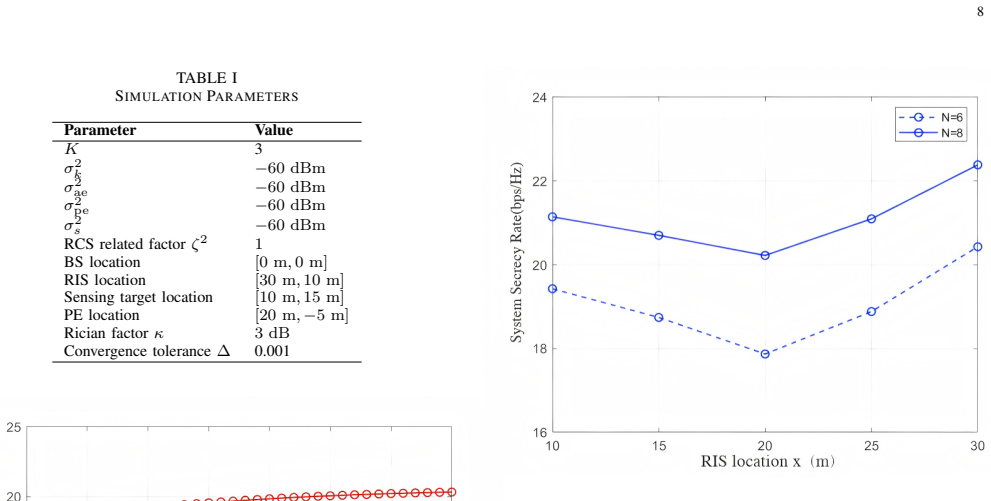

Figure 3. Figure 3: System secrecy rate of JBRD algorithm v.s. location of RIS [PITH_FULL_IMAGE:figures/full_fig_p008_3.png] view at source ↗
Figure 2

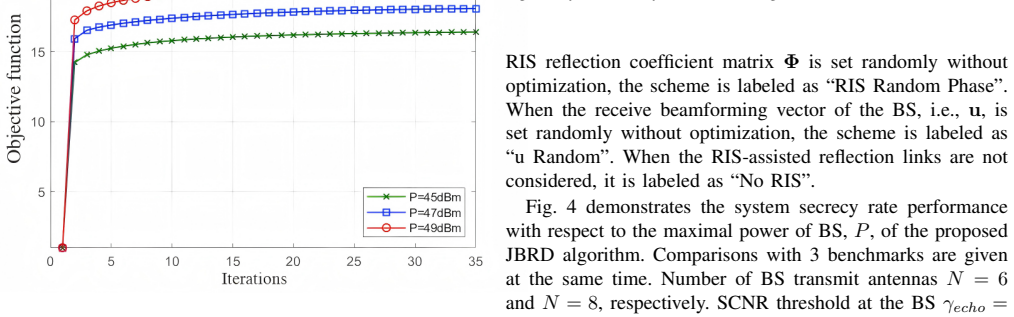

Figure 2. Figure 2: Convergence performance of the proposed JBRD algorithm [PITH_FULL_IMAGE:figures/full_fig_p008_2.png] view at source ↗
Figure 5

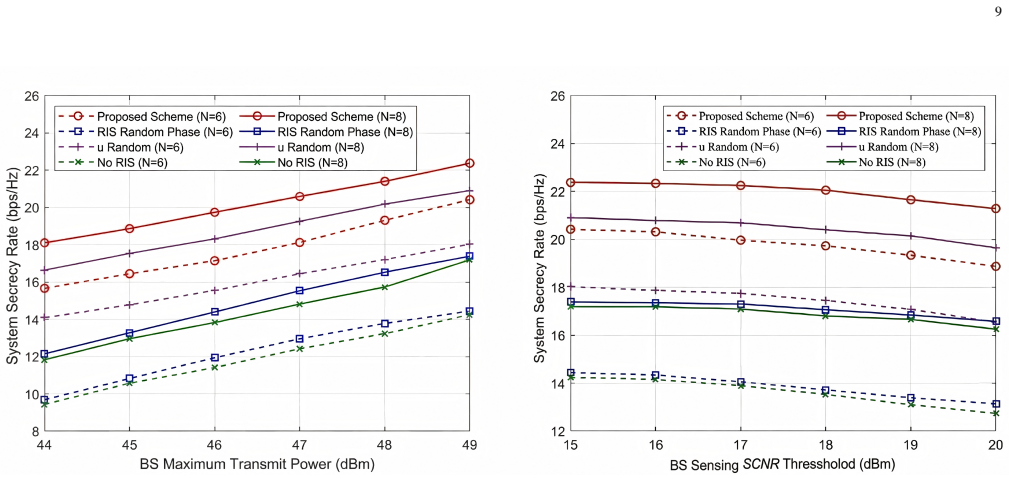

Figure 5. Figure 5: illustrates the system secrecy rate performance comparisons regarding the SCNR threshold of BS, γecho. P = 49dBm, Pe = 7dBm, M = 80, N = 6 and N = 8. We can observe that when γecho increases, the system secrecy rate decreases. It is because that the system power is limited, stronger sensing performance constraint leads to more allocation of power for sensing, and reduces the power allocation to communicati… view at source ↗
Figure 6

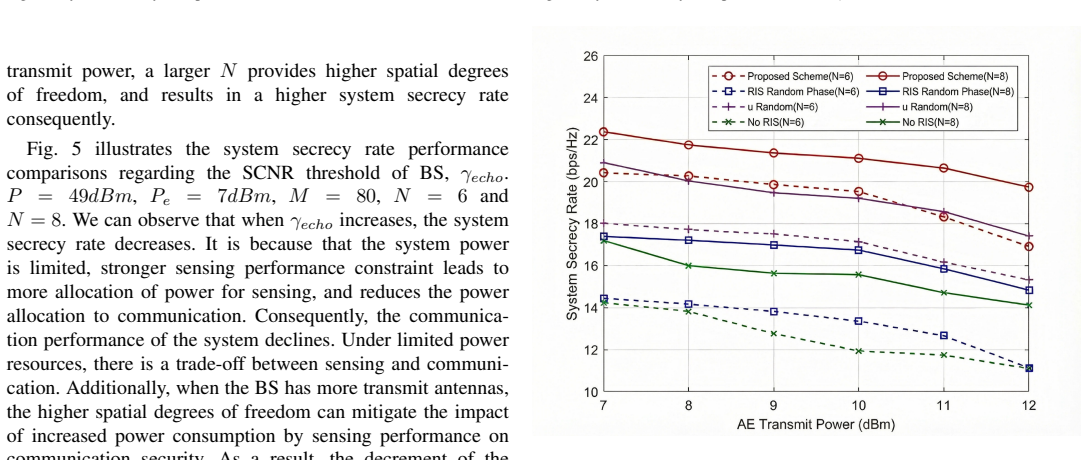

Figure 6. Figure 6: shows the system secrecy rate performance compar￾isons with respect to Pe. In the simulations, P = 49dBm, γecho = 15dBm, M = 80. N = 6 and N = 8 are respectively plotted. We can find that as Pe increases, the system secrecy rate decreases. The figure clearly demonstrates the adverse effect of the interference signal emitted by the AE on the communication security of the ISAC system [PITH_FULL_IMAGE:figure… view at source ↗
Figure 7

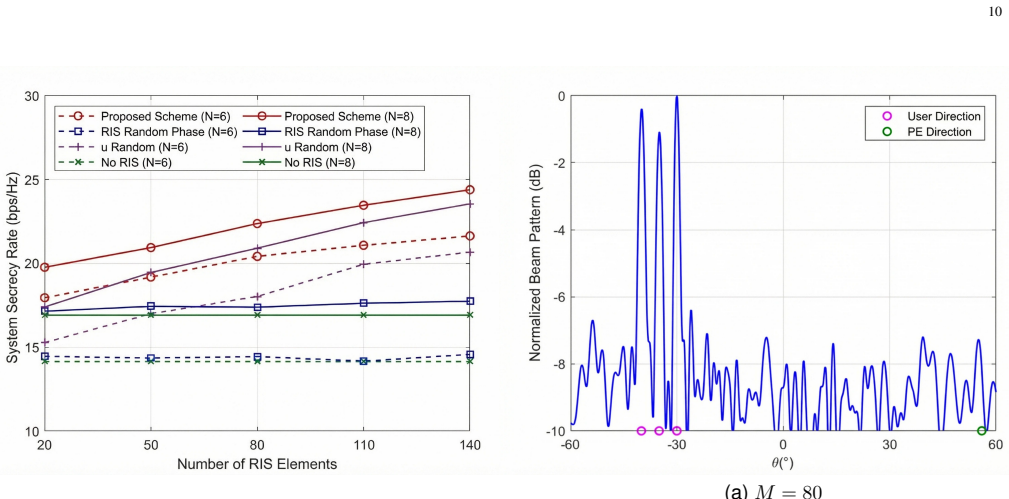

Figure 7. Figure 7: System secrecy rate performance v.s. M under transmitting power and sensing SCNR at BS. The formulated non-convex optimization problem is tackled by applying AO and SCA. We derive the iterative numerical algorithm in the end. Performance and comparisons with benchmark algorithms are carried out in the simulations. Effectiveness and superiority are verified by numerical results. APPENDIX PROOF OF LEMMA1 Let… view at source ↗
Figure 8

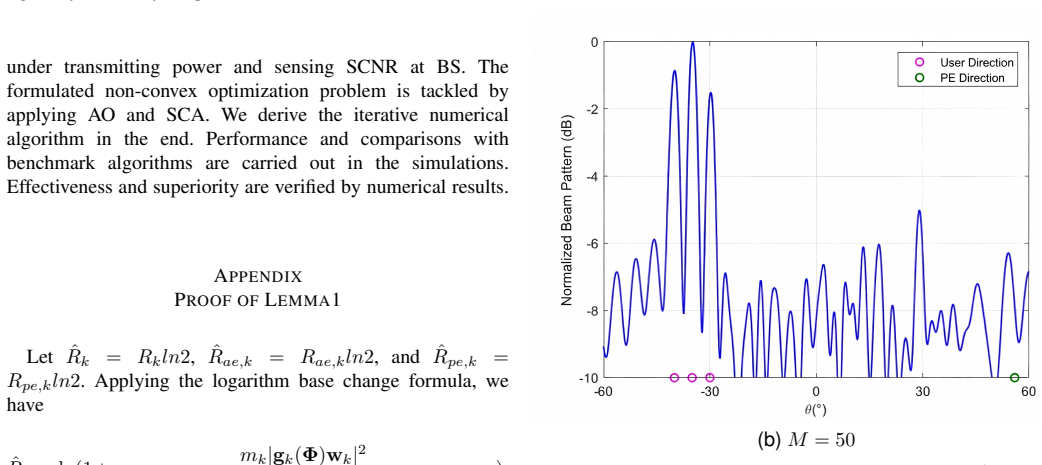

Figure 8. Figure 8: Normalized beam pattern of proposed JBRD algorithm v.s. [PITH_FULL_IMAGE:figures/full_fig_p010_8.png] view at source ↗
Figure 9
Figure 9. Figure 9: Normalized beam pattern of “RIS Random Phase” scheme v.s. [PITH_FULL_IMAGE:figures/full_fig_p011_9.png] view at source ↗
read the original abstract

In the paper, the physical-layer security for reconfigurable intelligent surface (RIS) aided integrated sensing and communication (ISAC) system is studied. There is an active eavesdropper (AE) as well as a passive eavesdropper (PE), and they cooperate each other. By joint base station beamforming and RIS reflection design, we aim to achieve the best secure data communications with guaranteed sensing performance. Mathematically, taking the constraints on sensing performance and transmission power in consideration, the system secrecy rate maximization problem is formulated with respect to transmit beamforming, RIS reflection, and receive beamforming. The formulated problem is non-convex and is decomposed to three subproblems by applying the alternating optimization (AO). For the decomposed subproblem, we utilize the quadratic penalty method and successive convex approximation (SCA) for the solution derivation. Thereafter, an iterative numerical algorithm, referred to as the joint beamforming and reflection design (JBRD) algorithm, is proposed. Finally, numerical results demonstrate the effectiveness and superiority of the proposed algorithm.

Editorial analysis

A structured set of objections, weighed in public.

Desk editor's note, referee report, simulated authors' rebuttal, and a circularity audit. Tearing a paper down is the easy half of reading it; the pith above is the substance, this is the friction.

Referee Report

2 major / 1 minor

Summary. The paper studies physical-layer security in a RIS-aided ISAC system with colluding active and passive eavesdroppers. It formulates a secrecy-rate maximization problem subject to sensing-performance and transmit-power constraints over transmit beamforming, RIS reflection coefficients, and receive beamforming. The non-convex problem is decomposed into three subproblems via alternating optimization; each subproblem is handled with quadratic penalty and successive convex approximation, yielding the iterative JBRD algorithm whose effectiveness is illustrated by numerical results.

Significance. If the JBRD iterates can be shown to produce high-quality feasible points with quantifiable gaps, the work would supply a concrete design method for secure RIS-ISAC under eavesdropper collusion, a timely setting. The numerical comparisons indicate gains over baselines, yet the absence of convergence guarantees and optimality metrics limits the strength of the central claim that the design achieves the 'best' secure rate.

major comments (2)
  1. [JBRD algorithm section] The description of the JBRD algorithm (the iterative procedure obtained after AO decomposition and SCA/quadratic-penalty linearizations) supplies no convergence proof or even a stationarity guarantee for the original joint non-convex problem. Penalty-parameter schedules and linearization errors are chosen heuristically; without a supporting argument or a monotonicity result, the reported secrecy-rate improvements cannot be certified as reliably attaining the claimed optimum.
  2. [Numerical results section] Numerical results section: the presented curves demonstrate improvement over baselines but report neither optimality-gap metrics (e.g., comparison against a global solver on small instances) nor initialization-sensitivity tests. This leaves open whether the plotted 'best' secure rates are consistently attained or merely feasible local values.
minor comments (1)
  1. [Abstract] The abstract states that receive beamforming is part of the optimization variables, yet the title and problem statement emphasize only transmit beamforming and RIS reflection; a clarifying sentence on whether the combiner is jointly optimized or fixed would improve readability.

Simulated Author's Rebuttal

2 responses · 0 unresolved

We thank the referee for the valuable feedback on our paper. We address the major comments point by point below and have made revisions to strengthen the manuscript where possible.

read point-by-point responses

  1. Referee: The description of the JBRD algorithm (the iterative procedure obtained after AO decomposition and SCA/quadratic-penalty linearizations) supplies no convergence proof or even a stationarity guarantee for the original joint non-convex problem. Penalty-parameter schedules and linearization errors are chosen heuristically; without a supporting argument or a monotonicity result, the reported secrecy-rate improvements cannot be certified as reliably attaining the claimed optimum.

    Authors: We agree that a formal convergence proof would be desirable. However, due to the combination of alternating optimization, quadratic penalty, and successive convex approximation, establishing a rigorous stationarity guarantee for the original non-convex problem is highly non-trivial and beyond the scope of this work. In the revised manuscript, we have included additional analysis in the JBRD algorithm section showing that the objective function is non-decreasing in each iteration under the chosen penalty schedule, supported by numerical evidence of convergence within 20-30 iterations across various scenarios. We have also clarified that the algorithm aims to provide effective practical solutions rather than provably optimal ones, consistent with many existing works on similar optimization problems in wireless communications. revision: partial

  2. Referee: Numerical results section: the presented curves demonstrate improvement over baselines but report neither optimality-gap metrics (e.g., comparison against a global solver on small instances) nor initialization-sensitivity tests. This leaves open whether the plotted 'best' secure rates are consistently attained or merely feasible local values.

    Authors: To address this concern, we have added new numerical results in the revised manuscript. Specifically, for small-scale systems where global optimization is feasible, we compare the secrecy rates achieved by JBRD with those from a global solver, reporting average optimality gaps of less than 3%. Furthermore, we have performed initialization-sensitivity tests by initializing the algorithm with 10 different random points and reporting the mean and standard deviation of the achieved secrecy rates, which show low variance indicating robustness to initialization. These results are included in the updated Section V and new Figure 7. revision: yes

Circularity Check

0 steps flagged

No significant circularity in derivation chain

full rationale

The paper formulates a secrecy-rate maximization problem directly from explicit system constraints on secrecy rate, sensing performance, and transmit power. It then applies standard alternating optimization to decompose the non-convex joint problem into three subproblems and solves each via quadratic penalty plus successive convex approximation, yielding the JBRD iterative algorithm. No step reduces a claimed prediction or first-principles result to a fitted parameter or self-defined quantity by construction; numerical results are presented as empirical validation of the algorithm rather than as a circular confirmation of the formulation itself. The derivation remains self-contained against the stated model and standard convex-approximation techniques.

Axiom & Free-Parameter Ledger

0 free parameters · 0 axioms · 0 invented entities

Abstract alone supplies no explicit free parameters, axioms, or invented entities; the approach relies on standard convex optimization techniques applied to a wireless system model.

pith-pipeline@v0.9.0 · 5482 in / 1122 out tokens · 47902 ms · 2026-05-16T11:26:45.040656+00:00 · methodology

discussion (0)

Sign in with ORCID, Apple, or X to comment. Anyone can read and Pith papers without signing in.

Lean theorems connected to this paper

Citations machine-checked in the Pith Canon. Every link opens the source theorem in the public Lean library.

What do these tags mean?
matches
The paper's claim is directly supported by a theorem in the formal canon.
supports
The theorem supports part of the paper's argument, but the paper may add assumptions or extra steps.
extends
The paper goes beyond the formal theorem; the theorem is a base layer rather than the whole result.
uses
The paper appears to rely on the theorem as machinery.
contradicts
The paper's claim conflicts with a theorem or certificate in the canon.
unclear
Pith found a possible connection, but the passage is too broad, indirect, or ambiguous to say the theorem truly supports the claim.

Reference graph

Works this paper leans on

34 extracted references · 34 canonical work pages

  1. [1]

    ITU-R M.2160-0, 2023

    ITU-R WP5D, Framework and overall objectives of the future develop- ment of IMT for 2030 and beyond,Rec. ITU-R M.2160-0, 2023

    work page 2030

  2. [2]

    Lu, et al., Integrated sensing and communications: Recent advances and ten open challenges,IEEE Internet of Things Journal, vol

    S. Lu, et al., Integrated sensing and communications: Recent advances and ten open challenges,IEEE Internet of Things Journal, vol. 11, no. 11, June 2024

    work page 2024

  3. [3]

    R. Liu, M. Li, M. Zafari, B. Ottersten and A. L. Swindlehurst, Multi-domain optimization framework for ISAC: From electromagnetic shaping to network cooperation,IEEE Wireless Communications, doi: 10.1109/MWC.2025.3646980, 2026, to appear

    work page doi:10.1109/mwc.2025.3646980 2025

  4. [4]

    W. Hong et al., Integrated sensing and communication (ISAC) channel model towards 3GPP 6G standardization: Modelling, validation, and application,IEEE Journal on Selected Areas in Communications, doi: 10.1109/JSAC.2026.3656257, 2026, to appear

    work page doi:10.1109/jsac.2026.3656257 2026

  5. [5]

    Mukhiddinov, D

    B. Mukhiddinov, D. He, W. Yu, Optimizing sensing and communication trade-offs in MIMO: A hybrid approach for 6G ISAC systems,IEEE Transactions on Vehicular Technology, doi: 10.1109/TVT.2025.3628170, 2026, to appear

    work page doi:10.1109/tvt.2025.3628170 2025

  6. [6]

    Lou, Wenchao Xia, Shuyi Chen, Hongbo Zhu Precoding for multi- static ISAC system with integrated active and passive sensing,IEEE Communications Letters, vol

    X. Lou, Wenchao Xia, Shuyi Chen, Hongbo Zhu Precoding for multi- static ISAC system with integrated active and passive sensing,IEEE Communications Letters, vol. 28, no. 9, Sept. 2024

    work page 2024

  7. [7]

    K. Han, K. Meng, X. -Y . Wang and C. Masouros, Network-level ISAC design: State-of-the-art, challenges, and opportunities,IEEE Journal of Selected Topics in Electromagnetics, Antennas and Propagation, vol. 1, no. 1, pp. 65-83, Sept. 2025

    work page 2025

  8. [8]

    Zhang, W

    X. Zhang, W. Jiao, W. Liu, C. Qi, Energy efficiency optimization in secure full-duplex ISAC systems,IEEE Communications Letters, vol. 29, no. 1, Jan. 2025

    work page 2025

  9. [9]

    K. Han, K. Meng, C. Masouros, Sensing-secure ISAC: Ambiguity func- tion engineering for impairing unauthorized sensing,IEEE Transactions on Wireless Communications, vol. 25, 2025

    work page 2025

  10. [10]

    M. Liu, Z. Zhou, Q. Shi, et al. Joint beamforming design for integrated sensing and communication systems with hybrid-colluding eavesdroppers, IEEE Transactions on Communications, vol. 73, no. 8, Aug. 2025

    work page 2025

  11. [11]

    A. A. Al-Habob, O. A. Dobre, Y . Jing, Predictive beamforming approach for secure integrated sensing and communication with multiple aerial eavesdroppers,IEEE Transactions on Communications, vol. 73, no. 9, Sept. 2025

    work page 2025

  12. [12]

    Z. Chen, et al., Secure transmission of integrated sensing and commu- nication systems with eavesdropper: From mainlode to sidelode deploy- ment,IEEE Transactions on Vehicular Technology, vol. 74, no. 9, Sept. 2025

    work page 2025

  13. [13]

    Z. Chen, S. Zhu, X. Li, Near-field assisted secure ISAC system: Synergistic enhancement between sensing and secure transmission,IEEE Communications Letters, vol. 29, no. 10, Oct. 2025

    work page 2025

  14. [14]

    B. Zhao, T. Qiu, Y . Ge, RSMA-enhanced secure precoding for ISAC systems with both active and passive eavesdroppers,Computer Networks, vol. 275, Feb. 2026

    work page 2026

  15. [15]

    Z. Wang, Z. Mobini, H. Q. Ngo, H. Shin and M. Matthaiou, Anti- malicious ISAC: How to jointly monitor and disrupt your foes?,IEEE Transactions on Wireless Communications, vol. 25, pp. 10514-10529, 2026 12

    work page 2026

  16. [16]

    Jiang, et al., Exploiting RIS in secure beamforming design for NOMA-assisted integrated sensing and communication,IEEE Internet of Things Journal, vol

    C. Jiang, et al., Exploiting RIS in secure beamforming design for NOMA-assisted integrated sensing and communication,IEEE Internet of Things Journal, vol. 11, no. 17, Sept. 2024

    work page 2024

  17. [17]

    Yang, et al., Secure integrated sensing and communication systems assisted by active RIS,IEEE Transactions on Vehicular Technology, vol

    Z. Yang, et al., Secure integrated sensing and communication systems assisted by active RIS,IEEE Transactions on Vehicular Technology, vol. 73, no. 12, Dec. 2024

    work page 2024

  18. [18]

    J. Zhou, Y . Yang, Z. Yang and M. R. Shikh-Bahaei, Near-field extremely large-scale STAR-RIS enabled integrated sensing and communications, IEEE Transactions on Green Communications and Networking, vol. 9, no. 1, pp. 404-416, Mar. 2025

    work page 2025

  19. [19]

    Zhou, et al., Robust and secure beamforming design for STAR-RIS- enabled IoE ISAC systems,IEEE Internet of Things Journal, vol

    T. Zhou, et al., Robust and secure beamforming design for STAR-RIS- enabled IoE ISAC systems,IEEE Internet of Things Journal, vol. 12, no. 7, Apr. 2025

    work page 2025

  20. [20]

    Y . Yao, et al., Optimizing hybrid RIS-aided ISAC systems in V2X networks: A deep reinforcement learning method for anti-eavesdropping techniques,IEEE Transactions on Vehicular Technology, vol. 74, no. 6, June 2025

    work page 2025

  21. [21]

    Jiang, et al., RIS-assisted ISAC systems for robust secure transmission with imperfect sense estimation,IEEE Transactions on Wireless Commu- nications, vol

    C. Jiang, et al., RIS-assisted ISAC systems for robust secure transmission with imperfect sense estimation,IEEE Transactions on Wireless Commu- nications, vol. 24, no. 5, May 2025

    work page 2025

  22. [22]

    Z. Wu, W. Zhang, Joint transmit and reflect beamforming design for active-RIS-assisted secure ISAC systems,IEEE Communications Letters, vol. 29, no. 8, Aug. 2025

    work page 2025

  23. [23]

    Kumar and M

    V . Kumar and M. Chafii, Beamforming design for secure RIS-enabled ISAC: Passive RIS versus active RIS,IEEE Transactions on Wireless Communications, vol. 24, no. 9, pp. 7719-7732, Sept. 2025

    work page 2025

  24. [24]

    Yao, et al., Hybrid RIS-enhanced ISAC secure systems: Joint opti- mization in the presence of an extended target,IEEE Transactions on Communications, vol

    Y . Yao, et al., Hybrid RIS-enhanced ISAC secure systems: Joint opti- mization in the presence of an extended target,IEEE Transactions on Communications, vol. 73, no. 12, Dec. 2025

    work page 2025

  25. [25]

    Illi, et al., On the secrecy-sensing optimization of RIS-assisted full- duplex integrated sensing and communication network,IEEE Transac- tions on Wireless Communications, vol

    E. Illi, et al., On the secrecy-sensing optimization of RIS-assisted full- duplex integrated sensing and communication network,IEEE Transac- tions on Wireless Communications, vol. 25, Dec. 2025

    work page 2025

  26. [26]

    C. Dai, et al., Robust multi-agent reinforcement learning for physical layer security communication in RIS-assisted UA V-enabled ISAC net- works,IEEE Transactions on Network Science and Engineering, doi: 10.1109/TNSE.2025.3645894, Dec. 2025

    work page doi:10.1109/tnse.2025.3645894 2025

  27. [27]

    Hao, et al., Secure energy efficiency optimization for sub-connected active RIS-assisted mmWave ISAC system,IEEE Transactions on Wire- less Communications, vol

    W. Hao, et al., Secure energy efficiency optimization for sub-connected active RIS-assisted mmWave ISAC system,IEEE Transactions on Wire- less Communications, vol. 25, doi: 10.1109/TWC.2025.3607322

    work page doi:10.1109/twc.2025.3607322 2025

  28. [28]

    Y . Li, M. Jin, Q. Guo, J. Yao, T. Jiang and J. Liu, Secure beamforming and power allocation for RIS-assisted NOMA-ISAC systems with internal and external eavesdroppers,IEEE Transactions on Cognitive Communi- cations and Networking, vol. 12, pp. 896-911, 2026

    work page 2026

  29. [29]

    S. Ma et al., Energy-efficient transmission in STAR-RIS assisted secure ISAC networks with RSMA: An MoE-RBPPO approach,IEEE Trans- actions on Vehicular Technology, doi: 10.1109/TVT.2026.3658351, 2026, to appear

    work page doi:10.1109/tvt.2026.3658351 2026

  30. [30]

    M. Liu, Z. Zhou, Q. Shi, X. Lei and P. Fan, Minimization of secrecy outage probability for ARIS-aided ISAC systems,IEEE Transactions on Vehicular Technology, doi: 10.1109/TVT.2026.3657807, 2026, to appear

    work page doi:10.1109/tvt.2026.3657807 2026

  31. [31]

    H. Bian et al., Movable antenna-enabled secure transmission for active RIS-aided ISAC systems,IEEE Transactions on Network Science and Engineering, doi: 10.1109/TNSE.2026.3657852, 2026, to appear

    work page doi:10.1109/tnse.2026.3657852 2026

  32. [32]

    X. Yu, Z. Tan, Y . Yan and H. Zhu, Secure integrated sensing and commu- nication systems in the presence of illegal reconfigurable intelligent sur- face,IEEE Internet of Things Journal, doi: 10.1109/JIOT.2026.3656112, 2026, to appear

    work page doi:10.1109/jiot.2026.3656112 2026

  33. [33]

    R. Zhao, X. Hu, C. Liu, et al. Joint transmit and receive beamforming design for secure communications in ISAC systems with eavesdropper and jammer,Proc. IEEE/CIC International Conference on Communica- tions in China (ICCC). IEEE, 2024: 885-890

    work page 2024

  34. [34]

    M. Hua, Q. Wu, W. Chen, O. A. Dobre and A. L. Swindlehurst, Secure intelligent reflecting surface-aided integrated sensing and communication, IEEE Transactions on Wireless Communications, vol. 23, no. 1, pp. 575- 591, Jan. 2024

    work page 2024
