NPU Design for Diffusion Language Model Inference

Binglei Lou , Haoran Wu , Kevin Lau , Gregor MacDonald , Jiayi Nie , Yao Lai , Can Xiao , Xuan Guo

show 4 more authors

Jianyi Cheng Rika Antonova Robert Mullins Aaron Zhao

Authors on Pith no claims yet

Pith reviewed 2026-05-16 09:57 UTC · model grok-4.3

classification 💻 cs.AR cs.AIcs.DC

keywords NPU acceleratordiffusion language modelsKV cache quantizationcustom ISAinference hardwareblock-wise KV cachetransformer sampling

0 comments

The pith

A custom NPU with new ISA and Block-Adaptive Online Smoothing is the first accelerator built for diffusion language model inference.

A machine-rendered reading of the paper's core claim, the machinery that carries it, and where it could break.

The paper establishes that diffusion-based LLMs require dedicated hardware because their bidirectional attention, block-wise KV cache updates, and non-GEMM sampling steps do not map efficiently onto existing autoregressive NPUs. It delivers a dLLM-specific instruction set, an execution model covering both transformer passes and diffusion sampling, and a quantization method called BAOS that adapts to per-block distribution shifts during iterative refinement. A full RTL implementation in 7 nm plus a tri-path simulator are provided to show the design works. If correct, this removes a hardware barrier that would otherwise force dLLM workloads onto mismatched accelerators or software-only runtimes.

Core claim

We introduce the first NPU accelerator specifically designed for dLLMs. It delivers a dLLM-oriented ISA and compiler, a hardware-optimized execution model for both the transformer inference and diffusion sampling used in dLLMs, a novel Block-Adaptive Online Smoothing (BAOS) for quantizing KV cache in dLLMs, and a complete RTL implementation synthesized in 7nm. Evaluation relies on a tri-path simulation framework comprising analytical, cycle-accurate, and accuracy simulators together with cross-validations against physical hardware.

What carries the argument

The dLLM-oriented ISA together with the Block-Adaptive Online Smoothing (BAOS) scheme that performs online per-block smoothing to handle step-wise KV cache distribution shifts during blocked diffusion inference.

If this is right

dLLM inference can now target a memory hierarchy and sampling units matched to bidirectional attention and iterative block refresh.
KV cache quantization becomes viable for dLLMs by tracking per-block activation shifts instead of assuming static distributions.
The open-sourced ISA, compiler, and simulation stack allow other groups to extend the accelerator for larger dLLM variants.
Non-GEMM top-k sampling stages receive dedicated hardware support rather than falling back to general-purpose cores.

Where Pith is reading between the lines

These are editorial extensions of the paper, not claims the author makes directly.

Future NPU designs may incorporate configurable attention direction and refresh modes as first-class ISA features once dLLMs gain traction.
The BAOS technique could be tested on other iterative generative models that also exhibit block-local distribution drift.
If dLLMs scale to longer contexts, the blocked KV organization may reduce overall memory bandwidth compared with append-only AR caches.

Load-bearing premise

That diffusion language models will become common enough that their blocked KV refreshing and top-k sampling patterns cannot be supported efficiently by existing autoregressive NPUs without a custom ISA and quantization method.

What would settle it

Measure end-to-end inference latency and energy per token of a dLLM workload on the proposed 7 nm NPU versus the same workload running on a contemporary AR NPU; a large gap in favor of the new design would support the claim.

Figures

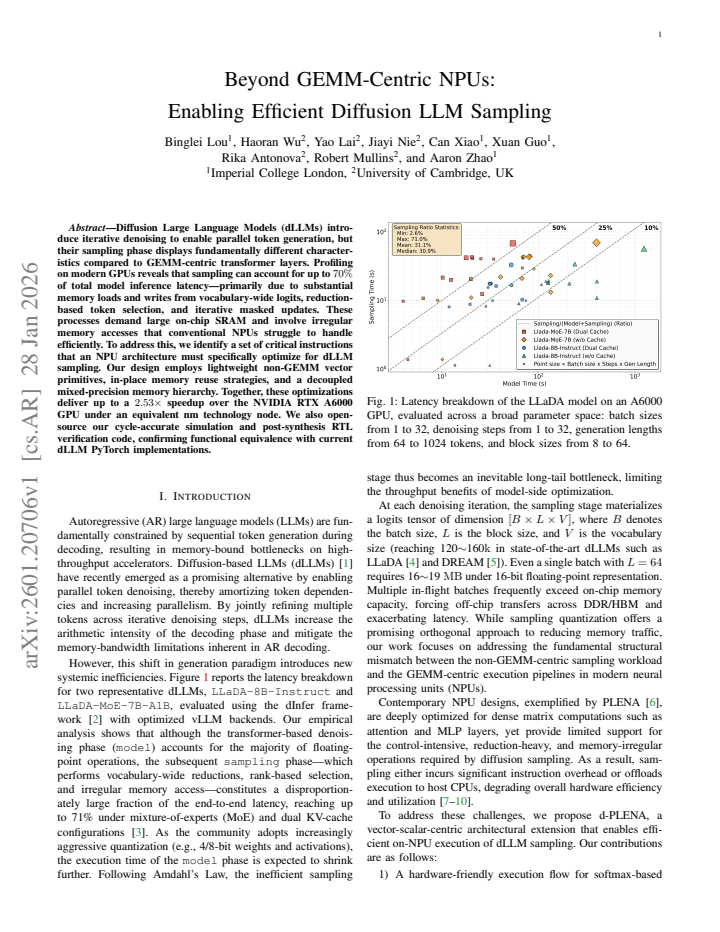

Figures reproduced from arXiv: 2601.20706 by Aaron Zhao, Binglei Lou, Can Xiao, Gregor MacDonald, Haoran Wu, Jianyi Cheng, Jiayi Nie, Kevin Lau, Rika Antonova, Robert Mullins, Xuan Guo, Yao Lai.
