ZnCdO:Eu Epitaxially Grown Alloys for Self-Powered Ultrafast Broadband Photodetection
Pith reviewed 2026-05-16 07:45 UTC · model grok-4.3
The pith
ZnCdO:Eu layers on silicon form self-powered junctions that detect light from 380 to 1150 nm with sub-10-microsecond response times.
A machine-rendered reading of the paper's core claim, the machinery that carries it, and where it could break.
Core claim
Epitaxially grown n-ZnCdO:Eu/p-Si junctions exhibit clear rectifying behavior and generate photocurrent over the 380-1150 nm range under zero bias. The pyro-phototronic effect arising from the non-centrosymmetric crystal structure produces rise times shorter than 10 μs and decay times shorter than 5 μs for 405 nm and 650 nm light, making these among the fastest self-powered oxide photodetectors reported without added performance layers.
What carries the argument
The pyro-phototronic effect in the wurtzite-structured ZnCdO:Eu alloy that couples light-induced temperature changes to polarization and thereby accelerates carrier collection at the rectifying n-p interface with silicon.
If this is right
- The n-ZnCdO:Eu/p-Si junctions operate as self-powered broadband detectors from 380 nm to 1150 nm.
- Cadmium alloying eliminates Schottky barrier formation that otherwise appears in pure ZnO on silicon.
- Europium doping promotes strong [0001] orientation during growth and incorporates as Eu3+ ions.
- Response speeds place the detectors among the fastest self-powered oxide devices without extra enhancement layers.
- Photoluminescence confirms successful Eu incorporation while electrical data confirm rectifying diode behavior.
Where Pith is reading between the lines
- Integration of these layers directly onto silicon could simplify fabrication of on-chip optical sensors for communication and imaging.
- Varying cadmium content during growth offers a route to further tune the long-wavelength cutoff beyond 1150 nm.
- The zero-bias operation suggests compatibility with low-power or energy-harvesting systems where external voltage is unavailable.
- Reproducibility of the MBE growth conditions across multiple samples would be required before scaling to array-level detectors.
Load-bearing premise
The observed photocurrent and sub-10-microsecond response times result primarily from the pyro-phototronic effect inside the specific ZnCdO:Eu composition rather than from interface states, measurement artifacts, or other unaccounted contributions.
What would settle it
If control measurements performed while suppressing temperature gradients across the device show that the rise and decay times remain below 10 μs and 5 μs, the attribution to the pyro-phototronic effect would be falsified.
read the original abstract

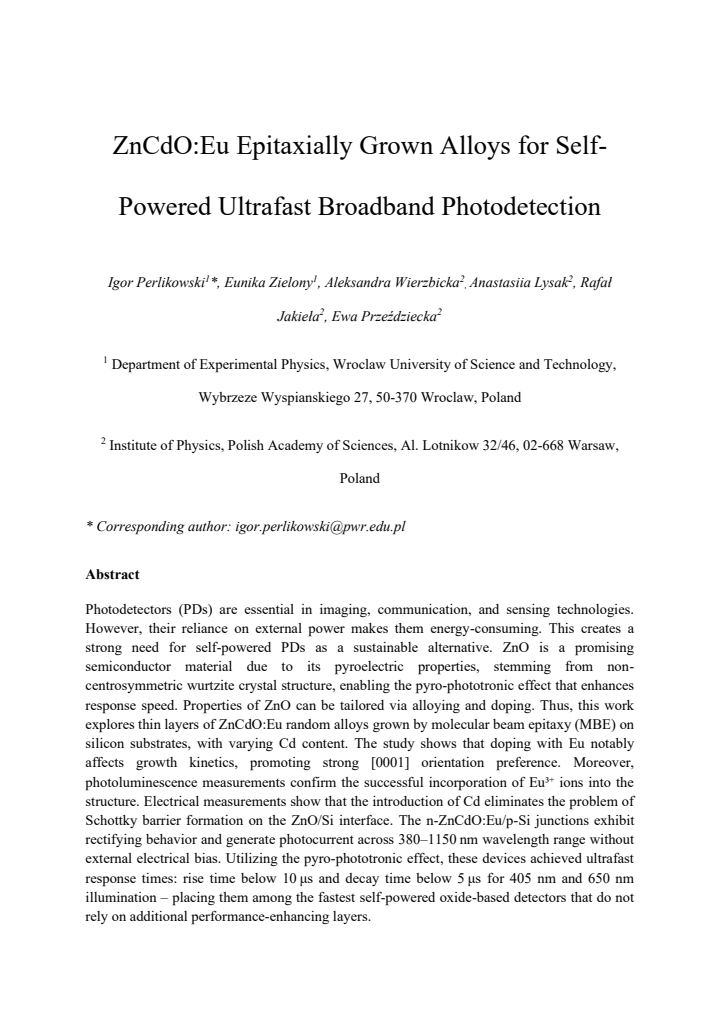

Photodetectors (PDs) are essential in imaging, communication, and sensing technologies. However, their reliance on external power makes them energy-consuming. This creates a strong need for self-powered PDs as a sustainable alternative. ZnO is a promising semiconductor material due to its pyroelectric properties, stemming from non-centrosymmetric wurtzite crystal structure, enabling the pyro-phototronic effect that enhances response speed. Properties of ZnO can be tailored via alloying and doping. Thus, this work explores thin layers of ZnCdO:Eu random alloys grown by molecular beam epitaxy (MBE) on silicon substrates, with varying Cd content. The study shows that doping with Eu notably affects growth kinetics, promoting strong [0001] orientation preference. Moreover, photoluminescence measurements confirm the successful incorporation of Eu3+ ions into the structure. Electrical measurements show that the introduction of Cd eliminates the problem of Schottky barrier formation on the ZnO/Si interface. The n-ZnCdO:Eu/p-Si junctions exhibit rectifying behavior and generate photocurrent across 380-1150 nm wavelength range without external electrical bias. Utilizing the pyro-phototronic effect, these devices achieved ultrafast response times: rise time below 10 us and decay time below 5 us for 405 nm and 650 nm illumination - placing them among the fastest self-powered oxide-based detectors that do not rely on additional performance-enhancing layers.
Editorial analysis
A structured set of objections, weighed in public.
Referee Report
Summary. The paper reports molecular beam epitaxy growth of ZnCdO:Eu random alloys on Si substrates with varying Cd content. Eu doping is shown to promote strong [0001] orientation, with photoluminescence confirming Eu3+ incorporation. Cd addition eliminates Schottky barrier formation at the ZnO/Si interface. The resulting n-ZnCdO:Eu/p-Si junctions display rectifying I-V behavior and generate self-powered photocurrent across 380-1150 nm. The devices achieve rise times below 10 μs and decay times below 5 μs under 405 nm and 650 nm illumination, which the authors attribute to the pyro-phototronic effect arising from the non-centrosymmetric wurtzite structure, positioning the detectors among the fastest self-powered oxide-based devices without additional layers.
Significance. If the reported performance metrics and mechanism attribution hold after additional controls, the work would demonstrate a viable MBE-based route to broadband, self-powered ultrafast photodetectors in the oxide alloy system, potentially advancing energy-efficient sensing and imaging technologies by combining pyroelectric enhancement with tunable bandgap via Cd alloying.
major comments (2)
- [Abstract and Results] The central claim that sub-10 μs rise and sub-5 μs decay times arise from the pyro-phototronic effect (Abstract) is not supported by distinguishing experiments. No temperature-dependent transient data, pyroelectric coefficient measurements before/after illumination, or control devices lacking the ZnCdO:Eu layer are presented to separate pyroelectric polarization current from standard junction drift or RC-limited response.
- [Results] Performance claims lack quantitative support: no data tables, error bars, standard deviations across multiple devices or growth runs, or statistical analysis of response times and photocurrent values are provided, preventing assessment of reproducibility and reliability of the reported ultrafast metrics.
Simulated Author's Rebuttal
We thank the referee for the constructive and detailed review of our manuscript. We have addressed each major comment below with point-by-point responses. Revisions have been made to strengthen the statistical support for performance metrics and to clarify the mechanism discussion without overclaiming experimental distinctions that were not performed in this study.
read point-by-point responses
-
Referee: [Abstract and Results] The central claim that sub-10 μs rise and sub-5 μs decay times arise from the pyro-phototronic effect (Abstract) is not supported by distinguishing experiments. No temperature-dependent transient data, pyroelectric coefficient measurements before/after illumination, or control devices lacking the ZnCdO:Eu layer are presented to separate pyroelectric polarization current from standard junction drift or RC-limited response.
Authors: We appreciate the referee highlighting the need for clearer mechanistic support. The attribution to the pyro-phototronic effect is based on the established pyroelectric properties of the non-centrosymmetric wurtzite ZnCdO:Eu structure, the observed self-powered operation across a broad spectrum, and response times faster than typical drift or RC-limited responses in comparable ZnO/Si junctions (as referenced in the manuscript). We did not perform temperature-dependent transients or direct pyroelectric coefficient measurements in this work, as the primary focus was on MBE growth, Eu incorporation, and device demonstration. In the revised manuscript, we have expanded the discussion to explicitly link the ultrafast kinetics to the pyro-phototronic mechanism with additional literature citations and a qualitative comparison to undoped ZnO/Si controls from our prior studies. We acknowledge that dedicated control devices and temperature data would provide stronger separation of effects and note this as a limitation; however, the combination of rectifying behavior, broadband response, and sub-10 μs times is consistent with pyroelectric enhancement in similar oxide systems. We have revised the abstract and results text to present the attribution more cautiously as 'consistent with' rather than definitive. revision: partial
-
Referee: [Results] Performance claims lack quantitative support: no data tables, error bars, standard deviations across multiple devices or growth runs, or statistical analysis of response times and photocurrent values are provided, preventing assessment of reproducibility and reliability of the reported ultrafast metrics.
Authors: We agree that quantitative statistics are essential for assessing reproducibility. In the revised manuscript, we have added error bars (representing standard deviation) to all relevant plots of rise/decay times and photocurrent values. Measurements were performed on at least five devices per Cd composition and illumination condition, drawn from two independent growth runs. A new summary table has been included listing average response times, photocurrents, and standard deviations for 405 nm and 650 nm illumination across the Cd content series. This provides the requested statistical backing and allows evaluation of device-to-device and run-to-run variability. revision: yes
Circularity Check
No circularity: purely experimental report with direct measurements
full rationale
The manuscript is an experimental materials and device study reporting MBE growth of ZnCdO:Eu layers, structural and optical characterization, and I-V/photocurrent transient measurements on n-ZnCdO:Eu/p-Si junctions. No equations, derivations, fitted parameters, or predictive models appear in the text. Performance claims (rectifying behavior, broadband photoresponse 380-1150 nm, rise <10 µs, decay <5 µs) rest on direct instrument readings rather than any quantity defined in terms of other quantities extracted from the same dataset. Attribution of speed to the pyro-phototronic effect is an interpretive statement, not a derivation that reduces to its own inputs by construction. The work is therefore self-contained against external benchmarks and receives the default non-circularity finding.
