arxiv: 2602.08661 · v2 · submitted 2026-02-09 · 💻 cs.CV

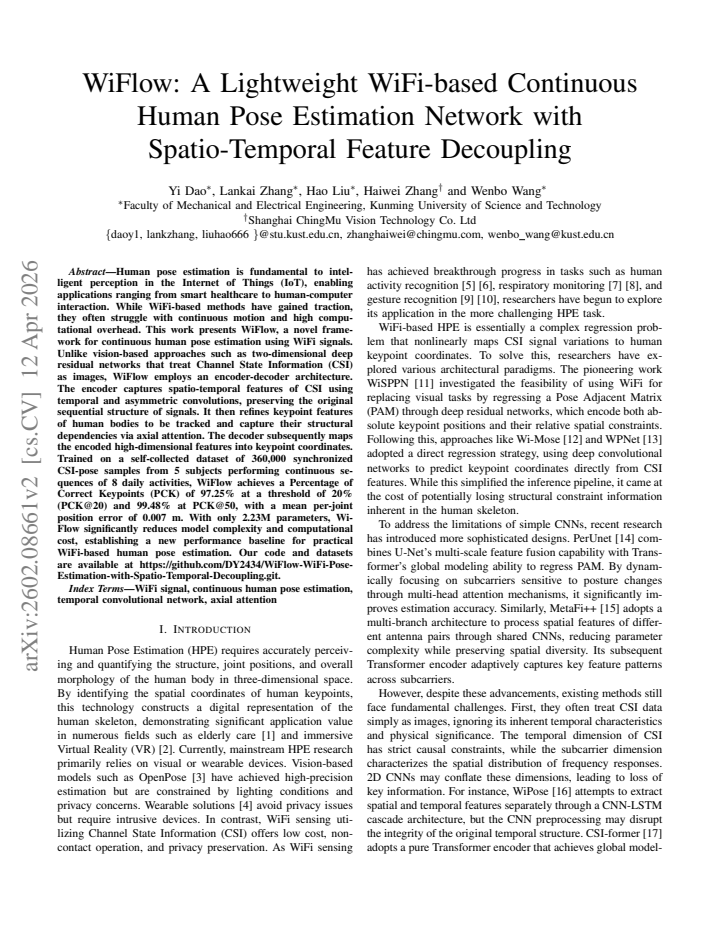

WiFlow: A Lightweight WiFi-based Continuous Human Pose Estimation Network with Spatio-Temporal Feature Decoupling

Yi Dao , Lankai Zhang , Hao Liu , Haiwei Zhang , Wenbo Wang This is my paper

Pith reviewed 2026-05-16 05:35 UTC · model grok-4.3

classification 💻 cs.CV
keywords WiFi sensinghuman pose estimationchannel state informationencoder-decoder networklightweight modelspatio-temporal featuresaxial attentioncontinuous tracking
0
0 comments X

The pith

WiFlow estimates continuous human poses from WiFi signals at over 97 percent accuracy using only 2.23 million parameters.

A machine-rendered reading of the paper's core claim, the machinery that carries it, and where it could break.

The paper presents WiFlow as an encoder-decoder network that turns WiFi channel state information into sequences of human body keypoint positions during ongoing motion. The encoder applies temporal and asymmetric convolutions to keep the signal's sequential order while extracting features, then uses axial attention to link keypoints according to body structure. The decoder converts those features into coordinate outputs. This design targets continuous tracking in settings where cameras are unavailable or undesirable, and the reported results come from training on 360,000 paired CSI-pose samples collected from five people performing eight everyday activities.

Core claim

WiFlow employs an encoder-decoder architecture. The encoder captures spatio-temporal features of CSI using temporal and asymmetric convolutions, preserving the original sequential structure of signals. It then refines keypoint features of human bodies to be tracked and capture their structural dependencies via axial attention. The decoder subsequently maps the encoded high-dimensional features into keypoint coordinates. On a self-collected dataset of 360,000 synchronized CSI-pose samples, the model reaches PCK@20 of 97.25 percent, PCK@50 of 99.48 percent, and mean per-joint error of 0.007 meters while using 2.23 million parameters.

What carries the argument

Encoder-decoder network that decouples spatio-temporal CSI features through temporal and asymmetric convolutions plus axial attention before mapping to keypoint coordinates.

If this is right

  • Pose estimation becomes feasible on resource-limited IoT devices that already have WiFi radios.
  • Applications such as fall detection or gesture interfaces can run without line-of-sight or lighting requirements.
  • Model size stays small enough for on-device inference rather than cloud offload.
  • The same architecture could serve as a starting point for other CSI-based regression tasks beyond single-person pose.

Where Pith is reading between the lines

These are editorial extensions of the paper, not claims the author makes directly.

  • If the axial-attention block successfully encodes body structure, the same block might transfer to multi-person tracking by adding an instance-separation head.
  • Performance numbers measured on short activity sequences leave open whether drift accumulates over minutes-long continuous motion.
  • Replacing the current loss with a temporal smoothness term could reduce jitter without increasing parameter count.

Load-bearing premise

Data from five subjects performing eight scripted activities in controlled indoor sequences is representative of new users, rooms, and longer unscripted motions.

What would settle it

A drop below 80 percent PCK@20 when the trained model is tested on recordings from entirely new subjects or in a different physical environment would show that the performance does not hold outside the original collection conditions.

Figures

Figures reproduced from arXiv: 2602.08661 by Haiwei Zhang, Hao Liu, Lankai Zhang, Wenbo Wang, Yi Dao.

Figure 1
Figure 1. Figure 1: WiFlow network architecture diagram in three stages: the first stage uses dilated causal convolution in the TCN module to extract temporal features and screen subcarriers; the second stage employs asymmetric residual blocks to extract spatial features, compressing the subcarrier dimension to the keypoint number; the third stage introduces axial attention to reinforce key features along the width direction … view at source ↗
Figure 2
Figure 2. Figure 2: Experimental environment layout demonstration. [PITH_FULL_IMAGE:figures/full_fig_p005_2.png] view at source ↗
Figure 3
Figure 3. Figure 3: Visual comparison of WiFi-based human pose estimation for eight daily actions. (Top row) Raw WiFi CSI amplitude heatmaps showing the temporal [PITH_FULL_IMAGE:figures/full_fig_p007_3.png] view at source ↗
read the original abstract

Human pose estimation is fundamental to intelligent perception in the Internet of Things (IoT), enabling applications ranging from smart healthcare to human-computer interaction. While WiFi-based methods have gained traction, they often struggle with continuous motion and high computational overhead. This work presents WiFlow, a novel framework for continuous human pose estimation using WiFi signals. Unlike vision-based approaches such as two-dimensional deep residual networks that treat Channel State Information (CSI) as images, WiFlow employs an encoder-decoder architecture. The encoder captures spatio-temporal features of CSI using temporal and asymmetric convolutions, preserving the original sequential structure of signals. It then refines keypoint features of human bodies to be tracked and capture their structural dependencies via axial attention. The decoder subsequently maps the encoded high-dimensional features into keypoint coordinates. Trained on a self-collected dataset of 360,000 synchronized CSI-pose samples from 5 subjects performing continuous sequences of 8 daily activities, WiFlow achieves a Percentage of Correct Keypoints (PCK) of 97.25% at a threshold of 20% (PCK@20) and 99.48% at PCK@50, with a mean per-joint position error of 0.007 m. With only 2.23M parameters, WiFlow significantly reduces model complexity and computational cost, establishing a new performance baseline for practical WiFi-based human pose estimation. Our code and datasets are available at https://github.com/DY2434/WiFlow-WiFi-Pose-Estimation-with-Spatio-Temporal-Decoupling.git.

Editorial analysis

A structured set of objections, weighed in public.

Desk editor's note, referee report, simulated authors' rebuttal, and a circularity audit. Tearing a paper down is the easy half of reading it; the pith above is the substance, this is the friction.

Referee Report

1 major / 2 minor

Summary. The paper introduces WiFlow, a lightweight encoder-decoder architecture for continuous human pose estimation from WiFi CSI signals. The encoder applies temporal and asymmetric convolutions to extract spatio-temporal features while preserving sequential structure, uses axial attention to capture keypoint structural dependencies, and the decoder regresses keypoint coordinates. Trained on a self-collected dataset of 360,000 synchronized CSI-pose samples from 5 subjects performing 8 daily activities, WiFlow reports PCK@20 of 97.25%, PCK@50 of 99.48%, mean per-joint position error of 0.007 m, and 2.23M parameters, with code and data released.

Significance. If the reported performance holds under subject-independent evaluation, the work would establish a practical, low-complexity baseline for WiFi-based pose estimation in IoT settings. The release of code and the 360k-sample dataset is a clear strength that supports reproducibility and future comparisons.

major comments (1)
  1. [Experimental Evaluation] The manuscript does not specify the train/test split protocol (e.g., whether it is subject-disjoint or uses leave-one-subject-out). With only 5 subjects and CSI signals known to encode subject-specific body geometry and multipath signatures, this detail is load-bearing for the central claim that the 2.23M-parameter model provides a practical baseline for new users and environments (see abstract results paragraph).
minor comments (2)
  1. [Abstract] Add explicit details on the training procedure, hyperparameter selection, data augmentation, and per-activity error breakdown to allow full assessment of the PCK and mean joint error metrics.
  2. [Method] Clarify the precise kernel sizes, strides, and channel dimensions of the asymmetric convolutions and the axial attention implementation for reproducibility.

Simulated Author's Rebuttal

1 responses · 0 unresolved

We thank the referee for the constructive comment on the importance of clearly specifying the train/test split protocol. We address this point directly below and will update the manuscript accordingly.

read point-by-point responses

  1. Referee: [Experimental Evaluation] The manuscript does not specify the train/test split protocol (e.g., whether it is subject-disjoint or uses leave-one-subject-out). With only 5 subjects and CSI signals known to encode subject-specific body geometry and multipath signatures, this detail is load-bearing for the central claim that the 2.23M-parameter model provides a practical baseline for new users and environments (see abstract results paragraph).

    Authors: We agree that the train/test split protocol is critical to substantiate the generalizability claims, particularly given the subject-specific nature of CSI signals. Our experiments followed a leave-one-subject-out (LOSO) cross-validation protocol: the model was trained on synchronized CSI-pose samples from 4 subjects and evaluated on the held-out fifth subject, with the procedure repeated across all 5 subjects and results averaged. This subject-disjoint split was used to simulate performance for new users. We will revise the manuscript to explicitly describe this protocol, including the partitioning of the 360,000 samples and the averaging procedure, in the Experimental Setup and Evaluation sections. revision: yes

Circularity Check

0 steps flagged

No circularity in architecture or performance claims

full rationale

The paper describes a standard encoder-decoder neural network for CSI-to-pose regression using temporal/asymmetric convolutions and axial attention, trained end-to-end on a self-collected dataset. Reported PCK scores and joint error are empirical results on held-out test samples rather than quantities defined by or reduced to fitted parameters, self-referential equations, or load-bearing self-citations. No derivation chain exists that collapses to its inputs by construction; the model and evaluation protocol are self-contained against external benchmarks.

Axiom & Free-Parameter Ledger

1 free parameters · 1 axioms · 0 invented entities

The central claim rests on empirical training of a neural network whose weights are learned from the collected CSI-pose pairs; no new physical entities or unstated mathematical axioms beyond standard supervised learning assumptions.

free parameters (1)
  • network architecture hyperparameters
    Choices such as convolution kernel sizes, attention dimensions, and layer counts are selected and optimized during training to achieve the reported accuracy.
axioms (1)
  • domain assumption WiFi CSI signals contain sufficient spatio-temporal information to reconstruct human joint positions
    Invoked by the design of the encoder that processes CSI directly for keypoint regression.
