arxiv: 2602.10443 · v2 · submitted 2026-02-11 · ❄️ cond-mat.mes-hall

Moire driven edge reconstruction in Fractional quantum anomalous Hall states

Feng Liu , Hoi Chun Po , Xue-Yang Song This is my paper

Pith reviewed 2026-05-16 06:08 UTC · model grok-4.3

classification ❄️ cond-mat.mes-hall
keywords fractional quantum anomalous Hallmoiréedge reconstructionumklapp scatteringKane-Fisher-Polchinski fixed pointhierarchical statesquantum simulators
0
0 comments X

The pith

Moire umklapp processes stabilize the Kane-Fisher-Polchinski fixed point in fractional quantum anomalous Hall edges without disorder.

A machine-rendered reading of the paper's core claim, the machinery that carries it, and where it could break.

The paper examines fractional edge modes in moire fractional quantum anomalous Hall states, with emphasis on lattice momentum conservation and umklapp scattering. For the hierarchical filling nu=2/3, it demonstrates that moire-enabled umklapp processes can stabilize the Kane-Fisher-Polchinski fixed point in certain microscopic edge realizations even when disorder is absent. This occurs because lattice momentum constraints alter the interaction structure at the edge. The work connects these processes to thermal and electrical transport properties in hierarchical states realized in lattice-based quantum simulators.

Core claim

For the hierarchical nu=2/3 state, moire-enabled umklapp processes can stabilize the Kane-Fisher-Polchinski fixed point even in the absence of disorder, for a class of microscopic edge realizations. Lattice momentum constraints qualitatively reshape the interaction structure and low-energy behavior of fractional edge modes.

What carries the argument

Moire-enabled umklapp scattering that enforces lattice momentum conservation and stabilizes the Kane-Fisher-Polchinski fixed point at the edge.

If this is right

  • Lattice momentum constraints qualitatively reshape the low-energy behavior of fractional edge modes.
  • Umklapp processes provide a bridge to understanding thermal and electrical transport in hierarchical fractional quantum anomalous Hall states.
  • The mechanism applies to lattice systems realized in quantum simulators.

Where Pith is reading between the lines

These are editorial extensions of the paper, not claims the author makes directly.

  • Tunable edge potentials in quantum simulators could be used to realize the required microscopic edge conditions and test stabilization.
  • The same moire umklapp mechanism may extend to other fractional fillings where lattice effects are prominent.
  • Disorder-free control of edge transport could become possible in moire platforms by engineering the edge reconstruction.

Load-bearing premise

The existence of a suitable class of microscopic edge realizations in which moire umklapp scattering dominates the low-energy physics without requiring disorder.

What would settle it

Direct observation that the Kane-Fisher-Polchinski fixed point fails to appear in clean moire FQAH edges at nu=2/3 for all microscopic edge realizations.

Figures

Figures reproduced from arXiv: 2602.10443 by Feng Liu, Hoi Chun Po, Xue-Yang Song.

Figure 1

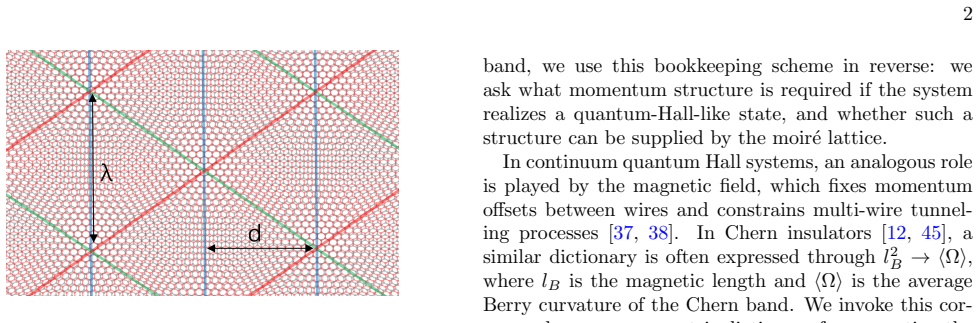

Figure 1. Figure 1: FIG. 1. Schematic illustration of a quantum-wire network [PITH_FULL_IMAGE:figures/full_fig_p002_1.png] view at source ↗
Figure 2

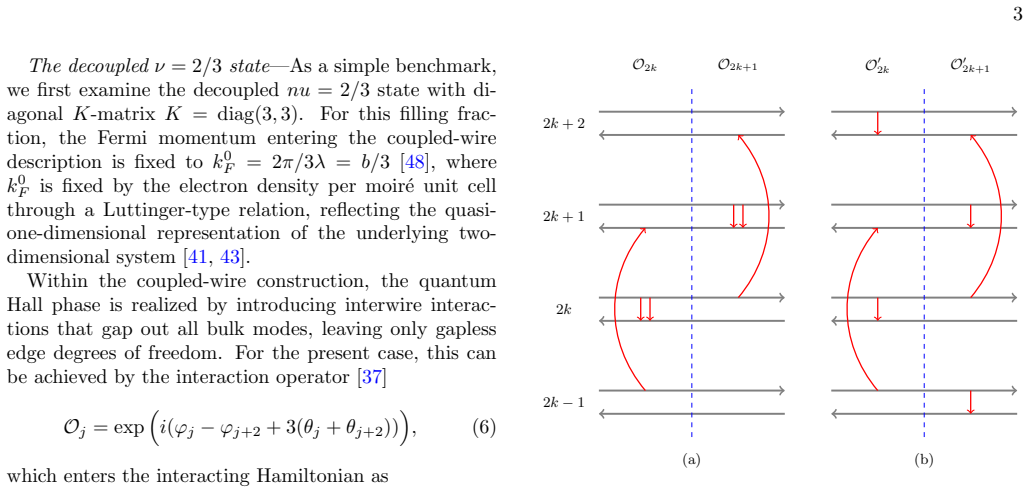

Figure 2. Figure 2: FIG. 2. Schematic illustration of interwire tunneling processes [PITH_FULL_IMAGE:figures/full_fig_p003_2.png] view at source ↗
read the original abstract

We investigate fractional edge modes in moire fractional quantum anomalous Hall states, focusing on the role of lattice momentum conservation and umklapp scattering. For the hierarchical nu=2/3 state, we show that, for a class of microscopic edge realizations, moire-enabled umklapp processes can stabilize the Kane-Fisher-Polchinski fixed point even in the absence of disorder. Our results illustrate how lattice momentum constraints can qualitatively reshape the interaction structure and low-energy behavior of fractional edge modes. The study of Umklapp processes in edge reconstruction serves as a crucial bridge to understanding thermal and electrical transport in the hierarchical fractional quantum anomalous Hall states found in lattice systems of quantum simulators.

Editorial analysis

A structured set of objections, weighed in public.

Desk editor's note, referee report, simulated authors' rebuttal, and a circularity audit. Tearing a paper down is the easy half of reading it; the pith above is the substance, this is the friction.

Referee Report

2 major / 1 minor

Summary. The paper investigates fractional edge modes in moiré fractional quantum anomalous Hall states, with emphasis on lattice momentum conservation and umklapp scattering. For the hierarchical ν=2/3 state, it claims that moiré-enabled umklapp processes stabilize the Kane-Fisher-Polchinski fixed point for a class of microscopic edge realizations even in the absence of disorder. The work illustrates how lattice constraints reshape the interaction structure of fractional edge modes and connects this to thermal and electrical transport in lattice-based quantum simulators.

Significance. If the central claim is substantiated with explicit constructions, the result would be significant for edge physics in moiré FQAH systems. It offers a disorder-independent route to stabilizing the KFP fixed point via lattice-enabled umklapp scattering, which is relevant for understanding transport in hierarchical states realized in quantum simulators. This provides a concrete link between microscopic lattice effects and effective low-energy edge theories.

major comments (2)
  1. [Abstract] Abstract: The central claim is that moiré-enabled umklapp processes stabilize the KFP fixed point 'for a class of microscopic edge realizations' without disorder. However, the manuscript provides no explicit edge Hamiltonian, potential profile, or moiré modulation strength, nor does it demonstrate via RG flow or bosonization that these operators dominate other backscattering channels for any concrete realization.
  2. [Discussion of the ν=2/3 state] Discussion of the ν=2/3 state: The argument assumes lattice momentum conservation permits relevant umklapp operators whose scaling dimension is less than 2 at the KFP fixed point. Without a specific microscopic model or calculation showing dominance over other channels, the stabilization remains conditional on the existence of such edges rather than shown to arise in standard moiré FQAH models.
minor comments (1)
  1. [Introduction] Clarify the precise definition of the 'hierarchical' ν=2/3 state and its relation to the underlying Chern band structure in the introduction.

Simulated Author's Rebuttal

2 responses · 0 unresolved

We thank the referee for their careful reading of our manuscript and for the constructive feedback. We address the major comments point by point below. We agree that explicit constructions would strengthen the presentation and will revise the manuscript accordingly.

read point-by-point responses

  1. Referee: [Abstract] Abstract: The central claim is that moiré-enabled umklapp processes stabilize the KFP fixed point 'for a class of microscopic edge realizations' without disorder. However, the manuscript provides no explicit edge Hamiltonian, potential profile, or moiré modulation strength, nor does it demonstrate via RG flow or bosonization that these operators dominate other backscattering channels for any concrete realization.

    Authors: We acknowledge that the manuscript presents the stabilization argument at the level of a general class of edge realizations permitted by lattice momentum conservation, using bosonization to identify relevant umklapp operators with scaling dimension less than 2 at the KFP fixed point. We agree that an explicit microscopic example would make the claim more concrete. In the revised version we will add a dedicated section containing a specific edge Hamiltonian with a model potential profile and moiré modulation strength, together with the corresponding RG flow analysis showing dominance over competing backscattering channels. revision: yes

  2. Referee: [Discussion of the ν=2/3 state] Discussion of the ν=2/3 state: The argument assumes lattice momentum conservation permits relevant umklapp operators whose scaling dimension is less than 2 at the KFP fixed point. Without a specific microscopic model or calculation showing dominance over other channels, the stabilization remains conditional on the existence of such edges rather than shown to arise in standard moiré FQAH models.

    Authors: The manuscript shows that moiré lattice momentum conservation allows umklapp operators whose scaling dimensions fall below 2 at the KFP fixed point for the hierarchical ν=2/3 state, thereby stabilizing it in the absence of disorder. We accept that the current presentation leaves open whether such edges occur in standard microscopic moiré realizations. We will therefore include an explicit construction based on a representative moiré lattice model, demonstrating that the required umklapp channels are present and dominate the RG flow. revision: yes

Circularity Check

0 steps flagged

No circularity: central claim builds on established KFP fixed point without reduction to inputs or self-citations

full rationale

The paper's derivation for stabilizing the Kane-Fisher-Polchinski fixed point via moiré umklapp in a class of ν=2/3 edge realizations introduces lattice momentum constraints as new structure on top of the pre-existing KFP framework. No quoted equations or steps reduce a prediction to a fitted parameter by construction, invoke a self-citation as the sole load-bearing justification, or smuggle an ansatz through prior work by the same authors. The result remains conditional on the existence of suitable microscopic realizations rather than deriving them tautologically from the inputs, leaving the chain self-contained against external benchmarks.

Axiom & Free-Parameter Ledger

0 free parameters · 1 axioms · 0 invented entities

The central claim rests on standard Luttinger-liquid edge theory plus the existence of a class of microscopic edge realizations compatible with moire umklapp. No free parameters or invented entities are mentioned in the abstract.

axioms (1)
  • standard math Luttinger liquid description of fractional edge modes with umklapp scattering
    Implicit in reference to the Kane-Fisher-Polchinski fixed point.
