arxiv: 2602.12417 · v2 · submitted 2026-02-12 · ❄️ cond-mat.str-el · quant-ph

Information lattice approach to the metal-insulator transition

William Skoglund , Elton Giacomelli , Yiqi Yang , Jens H. Bardarson , Erik van Loon This is my paper

Pith reviewed 2026-05-16 01:51 UTC · model grok-4.3

classification ❄️ cond-mat.str-el quant-ph

keywords informationlatticescaletemperaturecorrelationmetal-insulatorquantumtransition

0 comments

The pith

The information lattice distinguishes metals from insulators via power-law versus exponential decay of information per scale in 1D tight-binding models.

A machine-rendered reading of the paper's core claim, the machinery that carries it, and where it could break.

In quantum systems, phase transitions are often tracked with correlation functions that require choosing specific observables to measure. The information lattice instead tracks how much information is stored at different length scales in a model-independent way. The authors apply this tool to a basic one-dimensional chain where electrons hop between sites. In the metallic regime at low temperature, information per scale falls off slowly as a power law and shows oscillations similar to Friedel oscillations in electron density. In the insulating regime or at high temperature, the same quantity falls off rapidly in an exponential manner. The contrast supplies a signature of the metal-insulator transition that does not depend on picking particular measurements.

Core claim

We find that the information per scale follows a power law in metals at low temperature and that Friedel-like oscillations are visible in the information lattice. At high temperature or in insulators at low temperature, the information per scale decays exponentially.

Load-bearing premise

The information lattice construction accurately captures scale-dependent information content in an observable-independent manner, and the observed power-law versus exponential distinction is sufficient to identify the metal-insulator transition in the studied models.

Figures

Figures reproduced from arXiv: 2602.12417 by Elton Giacomelli, Erik van Loon, Jens H. Bardarson, William Skoglund, Yiqi Yang.

**Figure 2.** Figure 2: FIG. 2. Illustration of three subsets [PITH_FULL_IMAGE:figures/full_fig_p002_2.png] view at source ↗

**Figure 3.** Figure 3: shows the information per scale i ℓ for two positions of the chemical potential, with the corresponding electronic spectrum shown on the right. The information per scale i ℓ decays in all cases with ℓ, but the decay changes both quantitatively and qualitatively. At high temperatures, the metal and insulator are very similar because the actual occupation numbers of the states are similar, and i ℓ decays e… view at source ↗

**Figure 5.** Figure 5: FIG. 5. Dependence of [PITH_FULL_IMAGE:figures/full_fig_p005_5.png] view at source ↗

**Figure 4.** Figure 4: FIG. 4. Inverse decay length [PITH_FULL_IMAGE:figures/full_fig_p005_4.png] view at source ↗

**Figure 6.** Figure 6: FIG. 6 [PITH_FULL_IMAGE:figures/full_fig_p006_6.png] view at source ↗

**Figure 7.** Figure 7: shows how the wavelength λ extracted from these oscillations in i ℓ n depends on µ. The dashed line shows the expectation for ideal Friedel oscillations, λ = kF /π, where the analytical dependence of kF on µ is given in Appendix A for the infinite chain at zero temperature. Note that in the one-dimensional chain considered here, the Fermi surface is entirely described by the scalar kF . We find that λ −1… view at source ↗

**Figure 8.** Figure 8: shows a comparison of i ℓ n for an odd and even length SSH chain, with the chemical potential close to the middle of the bulk gap, µ = 0.05. Whereas i ℓ n is similar in the bulk for both chains, there are clear differences close to the boundary where i ℓ n increases. The zero-energy-mode in the odd chain is spatially localized close to the edge (at large n), and this is reflected in the substantial increa… view at source ↗

**Figure 9.** Figure 9: FIG. 9. Role of finite-size effects, in the SSH Hamiltonian [PITH_FULL_IMAGE:figures/full_fig_p012_9.png] view at source ↗

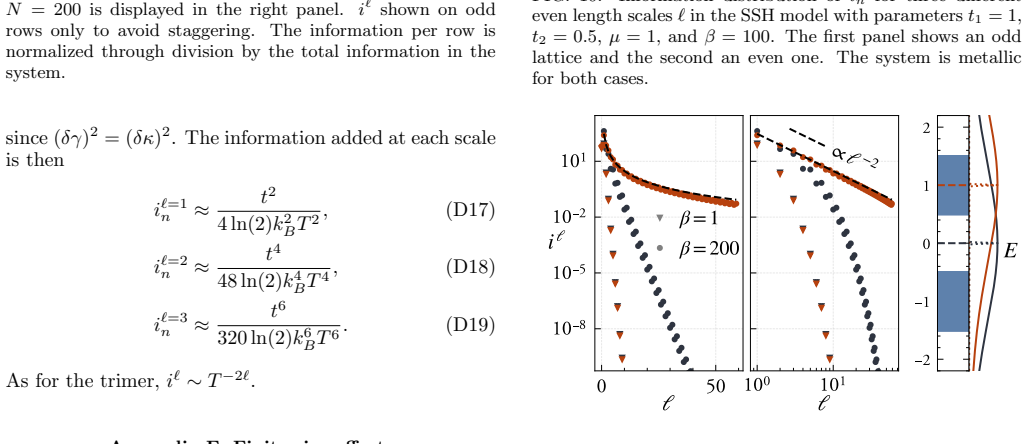

**Figure 11.** Figure 11: FIG. 11. Decay in the metal and insulator, for the SSH model, [PITH_FULL_IMAGE:figures/full_fig_p012_11.png] view at source ↗

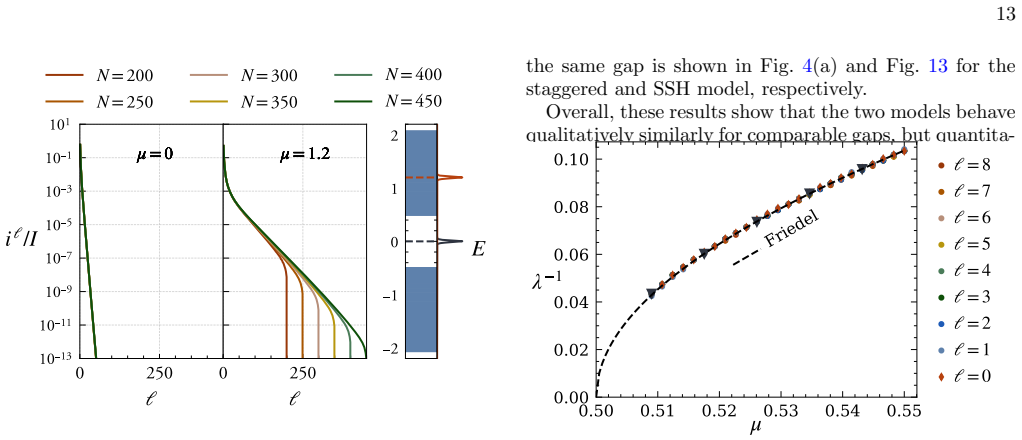

**Figure 12.** Figure 12: FIG. 12. Finite size effects, staggered potential [PITH_FULL_IMAGE:figures/full_fig_p013_12.png] view at source ↗

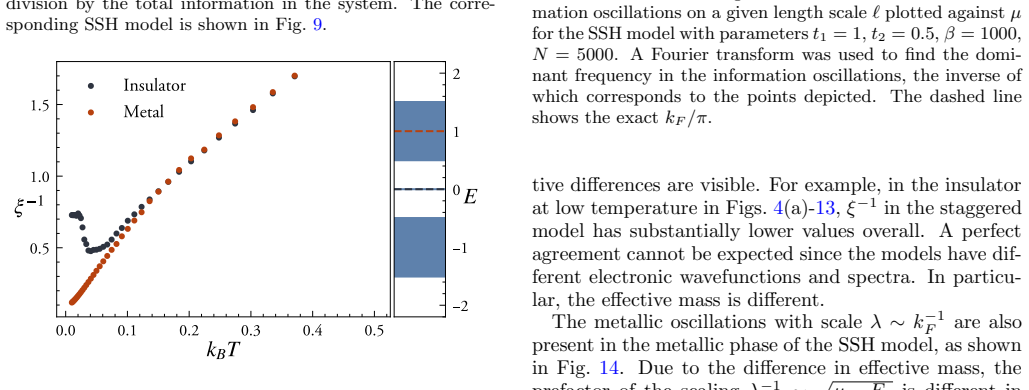

**Figure 13.** Figure 13: FIG. 13. Decay length versus temperature in the SSH model [PITH_FULL_IMAGE:figures/full_fig_p013_13.png] view at source ↗

read the original abstract

Correlation functions and correlation lengths are frequently used to describe phase transitions in quantum systems, but they require an explicit choice of observables. The recently introduced information lattice instead provides an observable-independent way to identify where and at which scale information is contained in quantum lattice models. Here, we use it to study the difference between the metallic and insulating regime of one-dimensional noninteracting tight-binding chains. We find that the information per scale follows a power law in metals at low temperature and that Friedel-like oscillations are visible in the information lattice. At high temperature or in insulators at low temperature, the information per scale decays exponentially. Thus, the information lattice is a useful tool for analyzing the metal-insulator transition.

Editorial analysis

A structured set of objections, weighed in public.

Desk editor's note, referee report, simulated authors' rebuttal, and a circularity audit. Tearing a paper down is the easy half of reading it; the pith above is the substance, this is the friction.

Desk Editor's Note private letter to a colleague

The information lattice largely reproduces the expected Green's function decay in these 1D chains rather than offering a distinctly new observable-independent diagnostic.

read the letter

The paper applies the information lattice to the metal-insulator transition in 1D noninteracting tight-binding chains. It reports that information per scale follows a power law with Friedel oscillations in metals at low temperature, while it decays exponentially in insulators at low T or in metals at high T. This application is new. The authors take a recently introduced tool and use it to map out the transition through scaling behaviors that had not been documented for this method before. The paper does well in keeping the presentation straightforward and in highlighting the observable-independent nature of the approach in principle. The reported distinction between power-law and exponential regimes is clear from the abstract and presumably backed by the calculations in the full text. The main limitation is that these models are noninteracting, so the density matrix encodes the Green's function decay directly. The information lattice essentially reproduces the known 1/r versus exponential behavior of correlations. It does not demonstrate a genuinely new way to identify the transition that avoids observable choice in a meaningful way beyond what is already standard. The numerics appear sound based on the claims, with no signs of circular reasoning. Details on system sizes would help confirm robustness, but the overall pattern holds up. This paper is for condensed matter theorists interested in information-theoretic methods for quantum phases. A reader exploring new tools for phase transitions could get value from seeing the concrete scaling results. It is less critical for those focused on 1D chains specifically. I recommend sending it for peer review. The work is honest and the method deserves further testing in other contexts.

Axiom & Free-Parameter Ledger

0 free parameters · 1 axioms · 0 invented entities

The analysis rests on the validity of the recently introduced information lattice as an observable-independent descriptor; no free parameters, invented entities, or additional axioms are stated in the abstract.

axioms (1)

domain assumption The information lattice provides an observable-independent measure of information content at different scales in quantum lattice models.
This is the core premise invoked by the abstract to justify the method.

pith-pipeline@v0.9.0 · 5423 in / 1164 out tokens · 162472 ms · 2026-05-16T01:51:38.354835+00:00 · methodology

discussion (0)

Reference graph

Works this paper leans on

44 extracted references · 44 canonical work pages · 1 internal anchor

[1]

Several methods exist to experimentally determine the size and shape of the Fermi surface without needing access to the full electronic spectrum

Metal: Friedel oscillations andk F The Fermi surface is a central element in our under- standing of metals, for example in the form of Landau’s theory of the Fermi liquid [34]. Several methods exist to experimentally determine the size and shape of the Fermi surface without needing access to the full electronic spectrum. Some of these are based on oscilla...

work page
[2]

Edge mode in the SSH model For the SSH model, there is a clear difference between even and odd chain lengths [24–26]. The odd chain has an undimerized atom at the end, while the even chain 7 0 20 40 60 80 100 0.00 0.02 0.04 0.06 in N = 99 0 20 40 60 80 100 n 0.00 0.02 0.04 0.06 in N = 100 1 0 1 E 1 0 1 E = 4 = 6 = 8 FIG. 8. Information distribution ofi ℓ ...

work page arXiv 2022
[3]

Hofmann,Solid state physics: an introduction(John Wiley & Sons, 2022)

P. Hofmann,Solid state physics: an introduction(John Wiley & Sons, 2022)

work page 2022
[4]

Lejaeghere, G

K. Lejaeghere, G. Bihlmayer, T. Bj¨ orkman, P. Blaha, S. Bl¨ ugel, V. Blum, D. Caliste, I. E. Castelli, S. J. Clark, A. D. Corso, S. de Gironcoli, T. Deutsch, J. K. Dewhurst, I. D. Marco, C. Draxl, M. Du lak, O. Eriks- son, J. A. Flores-Livas, K. F. Garrity, L. Genovese, P. Giannozzi, M. Giantomassi, S. Goedecker, X. Gonze, O. Gr˚ an¨ as, E. K. U. Gross, ...

work page 2016
[5]

Hohenberg and W

P. Hohenberg and W. Kohn, Inhomogeneous electron gas, Phys. Rev.136, B864 (1964)

work page 1964
[6]

Basov, R

D. Basov, R. Averitt, and D. Hsieh, Towards properties on demand in quantum materials, Nature materials16, 1077 (2017)

work page 2017
[7]

J. P. F. LeBlanc, A. E. Antipov, F. Becca, I. W. Bulik, G. K.-L. Chan, C.-M. Chung, Y. Deng, M. Ferrero, T. M. Henderson, C. A. Jim´ enez-Hoyos, E. Kozik, X.-W. Liu, A. J. Millis, N. V. Prokof’ev, M. Qin, G. E. Scuseria, H. Shi, B. V. Svistunov, L. F. Tocchio, I. S. Tupitsyn, S. R. White, S. Zhang, B.-X. Zheng, Z. Zhu, and E. Gull (Simons Collaboration on...

work page 2015
[8]

Georges, G

A. Georges, G. Kotliar, W. Krauth, and M. J. Rozen- berg, Dynamical mean-field theory of strongly correlated fermion systems and the limit of infinite dimensions, Rev. Mod. Phys.68, 13 (1996)

work page 1996
[9]

Maier, M

T. Maier, M. Jarrell, T. Pruschke, and M. H. Hettler, Quantum cluster theories, Rev. Mod. Phys.77, 1027 (2005)

work page 2005
[10]

Sun and G

Q. Sun and G. K.-L. Chan, Quantum embedding theo- ries, Accounts of chemical research49, 2705 (2016)

work page 2016
[11]

Sun and G

W. Sun and G. Ceder, Efficient creation and convergence of surface slabs, Surface Science617, 53 (2013)

work page 2013
[12]

Xu, C.-M

H. Xu, C.-M. Chung, M. Qin, U. Schollw¨ ock, S. R. White, and S. Zhang, Coexistence of superconductivity with par- tially filled stripes in the Hubbard model, Science384, eadh7691 (2024)

work page 2024
[13]

Klein Kvorning, L

T. Klein Kvorning, L. Herviou, and J. H. Bardarson, Time-evolution of local information: thermalization dy- namics of local observables, SciPost Physics13, 080 (2022), 2105.11206

work page arXiv 2022
[14]

Artiaco, C

C. Artiaco, C. Fleckenstein, D. Aceituno Ch´ avez, T. Klein Kvorning, and J. H. Bardarson, Effi- cient large-scale many-body quantum dynamics via local-information time evolution, PRX Quantum5, 10.1103/prxquantum.5.020352 (2024)

work page doi:10.1103/prxquantum.5.020352 2024
[15]

I. M. Fl´ or, C. Artiaco, T. K. Kvorning, and J. H. Bardar- son, Higher-dimensional information lattice: Quantum state characterization through inclusion-exclusion local information, arXiv (2025), arXiv:2512.20793 [quant-ph]

work page arXiv 2025
[16]

Artiaco, T

C. Artiaco, T. Klein Kvorning, D. Aceituno Ch´ avez, L. Herviou, and J. H. Bardarson, Universal characteri- zation of quantum many-body states through local infor- mation, Phys. Rev. Lett.134, 190401 (2025)

work page 2025
[17]

Artiaco, J

C. Artiaco, J. Barata, and E. Rico, Out-of-equilibrium dynamics in a U(1) lattice gauge theory via local in- formation flows: Scattering and string breaking, arXiv 10.48550/arxiv.2510.16101 (2025), 2510.16101

work page doi:10.48550/arxiv.2510.16101 2025
[18]

Harkins, C

K. Harkins, C. Fleckenstein, N. D’Souza, P. M. Schindler, D. Marchiori, C. Artiaco, Q. Reynard-Feytis, U. Ba- sumallick, W. Beatrez, A. Pillai, M. Hagn, A. Nayak, S. Breuer, X. Lv, M. McAllister, P. Reshetikhin, E. Druga, M. Bukov, and A. Ajoy, Nanoscale engineering and dynamic stabilization of mesoscopic spin textures, Science Advances11, eadn9021 (2025)

work page 2025
[19]

N. P. Bauer, B. Trauzettel, T. Klein Kvorning, J. H. Bar- darson, and C. Artiaco, Local information flow in quan- tum quench dynamics, Phys. Rev. A112, 022221 (2025)

work page 2025
[20]

Bilinskaya, M

Y. Bilinskaya, M. F. Mart´ ınez, S. Ghosh, T. K. Kvorning, C. Artiaco, and J. H. Bardarson, Witnessing short- and long-range nonstabilizerness via the information lattice, arXiv 10.48550/arxiv.2510.26696 (2025), 2510.26696

work page doi:10.48550/arxiv.2510.26696 2025
[21]

A. Nava, C. Artiaco, Y. Gefen, I. Gornyi, M. Tsitsishvili, A. Zazunov, and R. Egger, Information transport and transport-induced entanglement in open fermion chains, arXiv 10.48550/arxiv.2601.14153 (2026), 2601.14153

work page doi:10.48550/arxiv.2601.14153 2026
[22]

B. Zeng, X. Chen, D.-L. Zhou, and X.-G. Wen,Quantum information meets quantum matter(Springer, 2019)

work page 2019
[23]

Laflorencie, Quantum entanglement in condensed matter systems, Physics Reports646, 1 (2016)

N. Laflorencie, Quantum entanglement in condensed matter systems, Physics Reports646, 1 (2016)

work page 2016
[24]

Or´ us, Tensor networks for complex quantum systems, Nature Reviews Physics1, 538 (2019), 1812.04011

R. Or´ us, Tensor networks for complex quantum systems, Nature Reviews Physics1, 538 (2019), 1812.04011

work page arXiv 2019
[25]

Laurell, A

P. Laurell, A. Scheie, E. Dagotto, and D. A. Tennant, Witnessing entanglement and quantum correlations in condensed matter: A review, Advanced Quantum Tech- nologies8, 10.1002/qute.202400196 (2025), 2405.10899

work page doi:10.1002/qute.202400196 2025
[26]

W. P. Su, J. R. Schrieffer, and A. J. Heeger, Solitons in polyacetylene, Phys. Rev. Lett.42, 1698 (1979)

work page 1979
[27]

W. P. Su, J. R. Schrieffer, and A. J. Heeger, Soliton ex- citations in polyacetylene, Phys. Rev. B22, 2099 (1980)

work page 2099
[28]

J. K. Asb´ oth, L. Oroszl´ any, and A. P´ alyi,A short course on topological insulators, Vol. 919 (Springer, 2016)

work page 2016
[29]

Walsh, P

C. Walsh, P. S´ emon, D. Poulin, G. Sordi, and A.-M. S. Tremblay, Local entanglement entropy and mutual infor- mation across the Mott transition in the two-dimensional Hubbard model, Phys. Rev. Lett.122, 067203 (2019)

work page 2019
[30]

Ro´ osz, A

G. Ro´ osz, A. Kauch, F. Bippus, D. Wieser, and K. Held, Two-site reduced density matrix from one- and two- particle Green’s functions, Phys. Rev. B110, 075115 (2024)

work page 2024
[31]

Peschel, Calculation of reduced density matrices from correlation functions, Journal of Physics A: Mathemati- cal and General36, L205–L208 (2003)

I. Peschel, Calculation of reduced density matrices from correlation functions, Journal of Physics A: Mathemati- cal and General36, L205–L208 (2003)

work page 2003
[32]

Cheong and C

S.-A. Cheong and C. L. Henley, Many-body density ma- trices for free fermions, Phys. Rev. B69, 075111 (2004)

work page 2004
[33]

Skoglund, E

W. Skoglund, E. Giacomelli, J. H. Bardarson, and Y. Yang, Code for: Information lattice approach to the 9 metal-insulator transition (Zenodo 19209065) (2026)

work page 2026
[34]

Kohn, Theory of the insulating state, Phys

W. Kohn, Theory of the insulating state, Phys. Rev.133, A171 (1964)

work page 1964
[35]

R. J. Baxter,Exactly solved models in statistical mechan- ics(Elsevier, 2016)

work page 2016
[36]

Giuliani and G

G. Giuliani and G. Vignale,Quantum theory of the elec- tron liquid(Cambridge university press, 2008)

work page 2008
[37]

Crommie, C

M. Crommie, C. P. Lutz, and D. Eigler, Imaging standing waves in a two-dimensional electron gas, Nature363, 524 (1993)

work page 1993
[38]

M. Saha, B. K. Agarwalla, M. Kulkarni, and A. Purkayastha, Universal subdiffusive behavior at band edges from transfer matrix exceptional points, Phys. Rev. Lett.130, 187101 (2023)

work page 2023
[39]

M. Saha, B. K. Agarwalla, M. Kulkarni, and A. Purkayastha, Effect of order of transfer matrix ex- ceptional points on transport at band edges, Phys. Rev. B111, 125412 (2025)

work page 2025
[40]

Bulk-Defect Correspondence in Particle-Hole Symmetric Insulators and Semimetals

F. de Juan, A. R¨ uegg, and D.-H. Lee, Bulk-defect correspondence in particle-hole symmetric insulators and semimetals, Physical Review B89, 161117 (2014), 1310.7594

work page internal anchor Pith review Pith/arXiv arXiv 2014
[41]

J.-W. Rhim, J. Behrends, and J. H. Bardarson, Bulk- boundary correspondence from the intercellular Zak phase, Physical Review B95, 035421 (2017)

work page 2017
[42]

Bellomia, C

G. Bellomia, C. Mejuto-Zaera, M. Capone, and A. Amar- icci, Quasilocal entanglement across the Mott-Hubbard transition, Phys. Rev. B109, 115104 (2024)

work page 2024
[43]

Mazza and C

G. Mazza and C. Budroni, Entanglement detection in quantum materials with competing orders, Phys. Rev. B 111, L100302 (2025). Appendix A: Periodic boundary conditions With periodic boundary conditions, the Hamiltonian of the Rice-Mele tight-binding model is a 2×2 matrix in momentum space, Hk =− −V t 1 +t 2 exp(ik) t1 +t 2 exp(−ik) +V ,(A1) with eigenvalue...

work page 2025
[44]

(C2) are used, which are all equal to 1 2 and there- fore contribute zero to the information (half-filling), so I ℓ=0 n = 0

More precisely, I=I ℓ=2 n = 2 + 2xlog2(x) + 2(1−x) log 2(1−x).(C3) ForI ℓ=0 n , the 1×1 subblocks on the diagonal of Eq. (C2) are used, which are all equal to 1 2 and there- fore contribute zero to the information (half-filling), so I ℓ=0 n = 0. ForI ℓ=1 n , the upper and lower 2×2 block of Eq. (C2) are used, which are identical by symmetry. This block 1 ...

work page
