Geometric Inverse Flight Dynamics on SO(3) and Application to Tethered Fixed-Wing Aircraft

Antonio Franchi , Chiara Gabellieri This is my paper

Pith reviewed 2026-05-15 21:33 UTC · model grok-4.3

classification 💻 cs.RO cs.SYeess.SY
keywords inverse flight dynamicsgeometric controlSO(3)fixed-wing aircrafttethered flightcoordinated flightattitude determinationtrajectory planning
0
0 comments X

The pith

A coordinate-free formulation on SO(3) produces a closed-form map from any coordinated trajectory to the required aircraft attitude, angular velocity, and thrust-angle-of-attack inputs.

A machine-rendered reading of the paper's core claim, the machinery that carries it, and where it could break.

The paper develops an inverse dynamics method that writes force balance in the world frame and rotational dynamics in the body frame while defining lift, drag, and side forces purely geometrically on the rotation group SO(3). By enforcing zero sideslip, the method yields explicit expressions that recover attitude, angular velocity, thrust magnitude, and angle of attack directly from a desired path without iterative numerical solving. The same map is specialized to tethered flight on spherical parallels, delivering analytic bank-angle formulas and identifying a zero-bank curve where tether tension alone balances centrifugal force. These pointwise solutions become exact trim conditions for time-invariant paths and allow component-wise recovery of aerodynamic moment coefficients.

Core claim

The central claim is that translational force balance in the world frame combined with rotational dynamics in the body frame, under a geometric definition of aerodynamic directions and the zero-sideslip constraint, produces an explicit trajectory-to-input map on SO(3) that returns the full attitude, angular velocity, thrust, and angle-of-attack pair while recovering moment coefficients component-wise. When specialized to tethered flight along spherical parallels, the map gives closed-form bank angles and reveals a zero-bank locus that decouples aerodynamic coordination from apparent gravity. Under a simple lift-drag law the minimal-thrust angle of attack also admits a closed expression. The

What carries the argument

The trajectory-to-input map obtained from geometric force-moment balance on SO(3) under the coordinated-flight constraint.

If this is right

  • The map supplies exact bank-angle expressions for any tethered path on a sphere without numerical inversion.
  • Aerodynamic moment coefficients can be recovered component-wise from measured trajectories and inputs.
  • A closed-form minimal-thrust angle of attack exists under the standard lift-drag relation.
  • Time-invariant trajectories yield exact steady-flight trim solutions directly from the same formulas.
  • The method supplies analytic feasibility checks for trajectory design before numerical simulation.

Where Pith is reading between the lines

These are editorial extensions of the paper, not claims the author makes directly.

  • The geometric separation of aerodynamic coordination from apparent gravity could simplify control allocation in other tethered or towed vehicles.
  • Real-time implementations might use the map as a feed-forward term inside model-predictive controllers for wind-disturbed flight.
  • The same construction could be tested on non-spherical tether constraints to see whether closed-form loci persist.
  • Extension to time-varying wind fields would require only an additional force term inside the world-frame balance.

Load-bearing premise

The assumption that coordinated flight can be strictly enforced with zero sideslip while aerodynamic directions remain geometrically well-defined and a simple lift-drag law suffices for the closed-form angle-of-attack solution.

What would settle it

Fly a fixed-wing aircraft along a known curved tethered trajectory, measure the actual sideslip angle and required controls at several points, and check whether the measured values match the zero-sideslip predictions from the map within sensor accuracy.

Figures

Figures reproduced from arXiv: 2602.17166 by Antonio Franchi, Chiara Gabellieri.

Figure 1

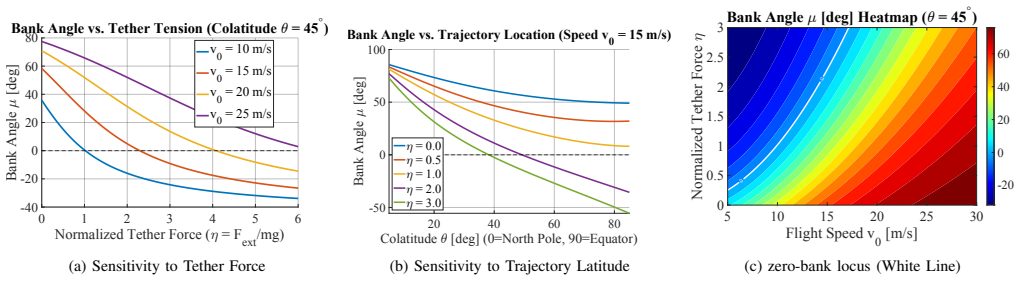

Figure 1. Figure 1: Behavior of the geometric bank angle µ required for coordinated tethered flight. (a) Increasing tether tension pulls the aircraft outward (negative bank), competing with centrifugal force. (b) Lowering the trajectory on the sphere (increasing θ) increases the turn radius, reducing centrifugal force and favoring outward banking. (c) The heatmap highlights the zero-bank locus (white contour), separating the … view at source ↗
Figure 2

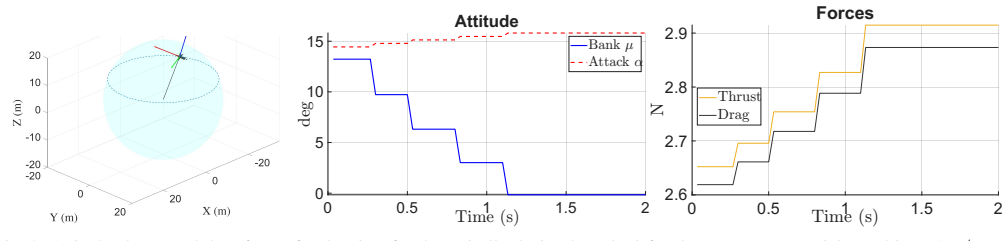

Figure 2. Figure 2: Attitude, thrust, and drag forces for the aircraft schematically depicted on the left. The constant tangential speed is [PITH_FULL_IMAGE:figures/full_fig_p008_2.png] view at source ↗

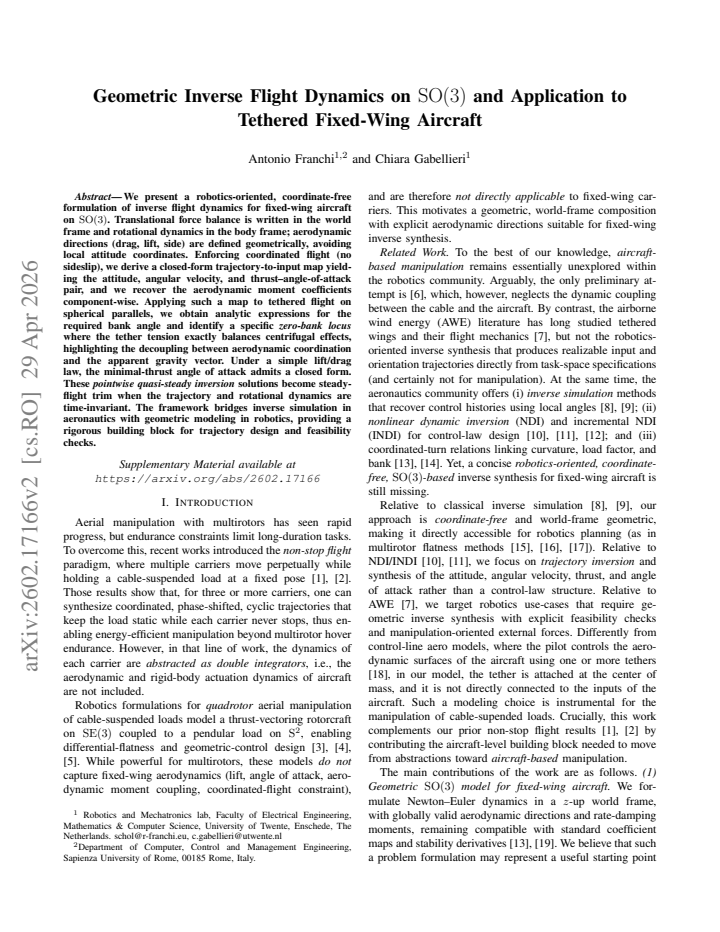

read the original abstract

We present a robotics-oriented, coordinate-free formulation of inverse flight dynamics for fixed-wing aircraft on SO(3). Translational force balance is written in the world frame and rotational dynamics in the body frame; aerodynamic directions (drag, lift, side) are defined geometrically, avoiding local attitude coordinates. Enforcing coordinated flight (no sideslip), we derive a closed-form trajectory-to-input map yielding the attitude, angular velocity, and thrust-angle-of-attack pair, and we recover the aerodynamic moment coefficients component-wise. Applying such a map to tethered flight on spherical parallels, we obtain analytic expressions for the required bank angle and identify a specific zero-bank locus where the tether tension exactly balances centrifugal effects, highlighting the decoupling between aerodynamic coordination and the apparent gravity vector. Under a simple lift/drag law, the minimal-thrust angle of attack admits a closed form. These pointwise quasi-steady inversion solutions become steady-flight trim when the trajectory and rotational dynamics are time-invariant. The framework bridges inverse simulation in aeronautics with geometric modeling in robotics, providing a rigorous building block for trajectory design and feasibility checks.
