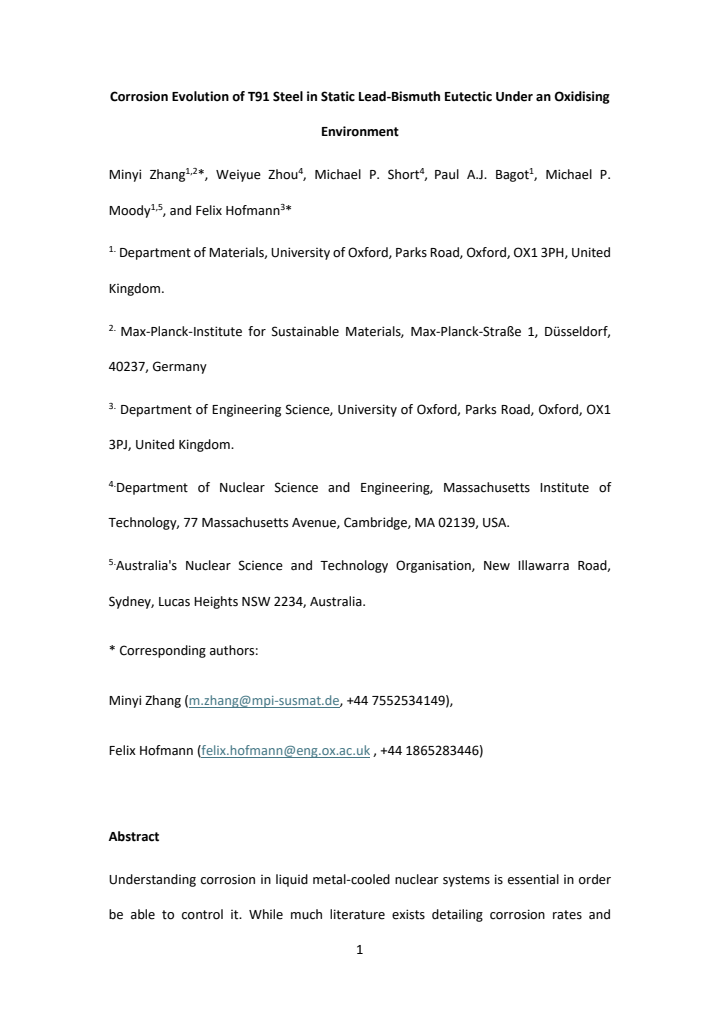

Corrosion Evolution of T91 Steel in Static Lead-Bismuth Eutectic Under an Oxidising Environment

Minyi Zhang , Weiyue Zhou , Michael P. Short , Paul A.J. Bagot , Michael P. Moody , Felix Hofmann
Authors on Pith no claims yet

Pith reviewed 2026-05-15 20:50 UTC · model grok-4.3

classification ❄️ cond-mat.mtrl-sci
keywords T91 steellead-bismuth eutecticcorrosionoxide scaleintergranular attackmartensite decompositionBCC phasenuclear structural materials
0
0 comments X

The pith

T91 steel forms an iron-enriched BCC surface layer in oxidizing lead-bismuth eutectic, with oxide scale stability deciding whether corrosion stays intergranular or spreads.

A machine-rendered reading of the paper's core claim, the machinery that carries it, and where it could break.

The paper examines the corrosion of T91 ferritic-martensitic steel in static lead-bismuth eutectic under high-temperature oxidizing conditions relevant to liquid-metal nuclear systems. Corrosion begins along grain boundaries through LBE ingress and chromium-oxygen diffusion, but local chromium depletion triggers martensite decomposition into ferrite that slows further attack. A stable, coherent oxide scale emerges as the key barrier that prevents intergranular penetration and limits damage to isolated regions. Unexpectedly, an iron-rich body-centered cubic phase layer grows on the surface, contradicting earlier reports that described only oxide layers. These observations matter because they identify concrete surface features that could be promoted to control corrosion rates in LBE-cooled reactors.

Core claim

In T91 steel exposed to static lead-bismuth eutectic under oxidizing conditions, LBE penetrates along grain boundaries, inducing chromium depletion that decomposes martensite to ferrite and thereby slows corrosion; a stable coherent oxide scale then determines whether attack remains localized or broadens, while an iron-enriched body-centered cubic phase unexpectedly forms as the outermost surface layer instead of the oxide-only structures reported previously.

What carries the argument

The stable coherent oxide scale that blocks intergranular LBE ingress, together with the iron-enriched BCC surface phase that forms during exposure.

If this is right

  • Promoting a stable oxide scale on T91 can restrict LBE attack to isolated grain boundaries rather than allowing widespread corrosion.
  • Chromium depletion and resulting ferrite formation provide a built-in slowing mechanism once corrosion starts.
  • The iron-enriched BCC layer replaces the expected oxide surface and may change how the material responds to further environmental exposure.
  • Material selection and surface treatment for LBE systems can target oxide scale coherence to reduce intergranular damage.

Where Pith is reading between the lines

These are editorial extensions of the paper, not claims the author makes directly.

  • Similar oxide-scale control and BCC-layer formation may appear in other 9Cr ferritic-martensitic steels under comparable oxidizing LBE conditions.
  • Adjusting oxygen levels in the LBE could be used to tune oxide scale growth and thereby extend the period before intergranular attack begins.
  • Surface mechanical properties or subsequent coating adhesion may differ from expectations because of the BCC layer rather than a conventional oxide.

Load-bearing premise

The iron-enriched BCC surface phase and the corrosion-slowing martensite decomposition are intrinsic responses to the oxidizing LBE environment rather than artifacts of sample preparation or limited test conditions.

What would settle it

Repeated tests on freshly prepared T91 samples with longer exposure times and independent surface analysis that still fail to detect the iron-enriched BCC phase would show the phase is not produced by the corrosion process itself.

Figures

Figures reproduced from arXiv: 2602.19642 by Felix Hofmann, Michael P. Moody, Michael P. Short, Minyi Zhang, Paul A.J. Bagot, Weiyue Zhou.

Figure 1
Figure 1. Figure 1: Different corrosion patterns for 70 h, 245 h, and 506 h corroded samples in [PITH_FULL_IMAGE:figures/full_fig_p012_1.png] view at source ↗
Figure 3
Figure 3. Figure 3: SEM-EBSD results highlighting the surface formed Fe-enriched layer with dashed rectangular [Sample: 70 h, oxidising environment, 700 ℃ , LBE]. (a) SEM image corresponding to EBSD maps. (b) EBSD-IPFZ map, showing only material indexed as BCC. (c) EBSD grain average misorientation map. After a prolonged exposure of 506 h, corrosion continues to propagate preferentially along martensitic GBs. However, the ext… view at source ↗
Figure 4
Figure 4. Figure 4: SEM-EDX and EBSD of oxidised GBs [Sample: 506 h, oxidising environment, 700 ℃, LBE]. (a) EDX map highlighting Fe. (b) EDX map highlighting Cr. (c) EDX map highlighting Si. (d) EBSD-IPFZ map. (e) EDX line scan result following the line shown in [PITH_FULL_IMAGE:figures/full_fig_p019_4.png] view at source ↗
Figure 5
Figure 5. Figure 5: Combining the results shown in Fig. 5(b) [PITH_FULL_IMAGE:figures/full_fig_p019_5.png] view at source ↗
Figure 5
Figure 5. Figure 5: Low energy SEM-EDX results [Sample: 245 h, oxidising environment, 700 ℃, LBE]. (a) SEM image with a red dashed box highlighting the GB oxidised region. (b) EDX result highlighting the Cr with the yellow dashed box showing the Cr depleted zone. (c) EDX result highlighting O. (d) EDX result highlighting Si. Pb and Bi were not detected in these maps [PITH_FULL_IMAGE:figures/full_fig_p020_5.png] view at source ↗
Figure 7
Figure 7. Figure 7: SEM-EDX line scan results for 245 h corroded sample in oxidising environment. (a) SEM SE image showing the position of the line scan and Mo-enriched precipitates. (b) EDX line scan result showing content of Cr, Fe, Mo, Si, and O. (c) EDX line scan showing Si and Cr content at the surface region. Cracks, potentially caused by the mismatch in thermal expansion between the substrate and the oxide scale, are o… view at source ↗
Figure 13
Figure 13. Figure 13: SEM-EDX and EBSD results for one representative area with no obvious corrosion in SEM view [Sample: 506 h, oxidising environment, 700 ℃, LBE]. (a) SEM view. (b) SEM-EDX result highlighting Cr. (c) SEM-EDX result highlighting Cr and Si. (d) SEM-EBSD IPFZ map. (e) SEM-EBSD grain average misorientation with scale bar. 4. Discussion In this study, T91 samples exposed to LBE under oxidizing conditions for 70 h… view at source ↗
read the original abstract

Understanding corrosion in liquid metal-cooled nuclear systems is essential in order be able to control it. While much literature exists detailing corrosion rates and mechanisms of structural materials in liquid metals, much still remains to be discovered in new regimes of temperature, chemistry, and impurity content. We focus on a less-studied set of conditions, specifically to investigate how liquid lead-bismuth eutectic (LBE) corrodes ferritic/martensitic steels under high-temperature oxidizing conditions. We find that corrosion follows grain boundaries, transitioning from intergranular attack to broader area corrosion as it progresses. Both chromium and oxygen diffusion play vital roles in this process. Mechanistically speaking, the ingress of LBE induces regions of martensite decomposition to ferrite via localized chromium depletion, somewhat slowing corrosion. A stable, coherent oxide scale appears to be the deciding factor that controls whether intergranular LBE attack occurs or not. Most surprisingly, a layer of iron enriched body-centred cubic phase forms on the surface of LBE-corroded T91 at these conditions, contradicting previous studies, which reported only oxide-based surface layers.

Editorial analysis

A structured set of objections, weighed in public.

Desk editor's note, referee report, simulated authors' rebuttal, and a circularity audit. Tearing a paper down is the easy half of reading it; the pith above is the substance, this is the friction.

Referee Report

3 major / 2 minor

Summary. The paper examines the corrosion evolution of T91 ferritic/martensitic steel in static lead-bismuth eutectic (LBE) under high-temperature oxidizing conditions. Corrosion proceeds via intergranular attack that transitions to broader area corrosion, with Cr and O diffusion playing key roles. Localized Cr depletion induces martensite-to-ferrite decomposition that slows further attack. A stable coherent oxide scale is presented as the primary control on whether intergranular LBE penetration occurs. Most notably, an iron-enriched BCC surface layer is reported on LBE-exposed samples, contradicting prior studies that observed only oxide-based surface layers.

Significance. If the microstructural observations hold after addressing the noted concerns, the work supplies useful mechanistic detail on LBE corrosion of T91 under oxidizing regimes relevant to liquid-metal-cooled nuclear systems. The emphasis on oxide-scale protection and the reported BCC phase (if confirmed as environment-specific) could guide alloy design and operating limits. The study is grounded in consistent qualitative microstructural evidence, though its impact is tempered by the absence of quantitative metrics and controls.

major comments (3)
  1. [microstructural characterization and Discussion] The claim of an iron-enriched BCC surface phase that contradicts previous oxide-only reports (Abstract and Discussion) is load-bearing for the novelty argument. No controls are described (e.g., identically prepared and analyzed unexposed T91 at the same temperature and oxygen potential) to exclude polishing-induced transformation, surface relaxation, or technique-specific effects (EBSD indexing or XRD penetration depth). This directly affects whether the observation is intrinsic to the LBE environment.
  2. [Discussion] The central assertion that a stable, coherent oxide scale is the deciding factor controlling intergranular LBE attack (Abstract and Discussion) rests on qualitative interpretation of microstructures without supporting quantitative data such as oxide thickness distributions, coverage statistics, or statistical correlation between oxide presence and attack depth across multiple samples or time points.
  3. [Methods] The manuscript lacks full experimental details on temperature, oxygen potential, test durations, sample preparation, and characterization protocols (including error bars or replicate statistics). This absence makes it difficult to assess reproducibility and to evaluate whether the reported martensite decomposition and slowed corrosion are robust or limited by the specific test conditions.
minor comments (2)
  1. [Figures] Figure captions and labels should explicitly indicate the corrosion stage, magnification, and technique (e.g., SEM, EBSD, XRD) for each panel to improve clarity.
  2. [Abstract] The abstract would benefit from stating the specific temperature and oxygen concentration range to place the conditions in context with prior LBE studies.

Simulated Author's Rebuttal

3 responses · 0 unresolved

We thank the referee for their thorough review and valuable comments. We address each major comment below and will revise the manuscript accordingly to improve clarity and completeness.

read point-by-point responses

  1. Referee: [microstructural characterization and Discussion] The claim of an iron-enriched BCC surface phase that contradicts previous oxide-only reports (Abstract and Discussion) is load-bearing for the novelty argument. No controls are described (e.g., identically prepared and analyzed unexposed T91 at the same temperature and oxygen potential) to exclude polishing-induced transformation, surface relaxation, or technique-specific effects (EBSD indexing or XRD penetration depth). This directly affects whether the observation is intrinsic to the LBE environment.

    Authors: We agree that additional controls would strengthen the claim regarding the iron-enriched BCC phase. In the revised version, we will include microstructural analysis of unexposed T91 samples subjected to the same preparation and characterization procedures to rule out artifacts from polishing or other effects. We will also provide more details on the EBSD indexing and XRD conditions to address concerns about technique-specific effects. revision: yes

  2. Referee: [Discussion] The central assertion that a stable, coherent oxide scale is the deciding factor controlling intergranular LBE attack (Abstract and Discussion) rests on qualitative interpretation of microstructures without supporting quantitative data such as oxide thickness distributions, coverage statistics, or statistical correlation between oxide presence and attack depth across multiple samples or time points.

    Authors: The referee is correct that our interpretation is primarily qualitative. While we observed consistent patterns across samples, we lack comprehensive quantitative statistics. In the revision, we will add available quantitative data on oxide thicknesses and attempt to provide coverage estimates from the existing micrographs. However, due to the nature of the study with limited replicates, full statistical correlation may not be feasible, and we will adjust the language to reflect the qualitative nature of the evidence. revision: partial

  3. Referee: [Methods] The manuscript lacks full experimental details on temperature, oxygen potential, test durations, sample preparation, and characterization protocols (including error bars or replicate statistics). This absence makes it difficult to assess reproducibility and to evaluate whether the reported martensite decomposition and slowed corrosion are robust or limited by the specific test conditions.

    Authors: We will revise the Methods section to include all requested experimental details, including precise values for temperature, oxygen potential, test durations, sample preparation protocols, and characterization methods. Where available, we will include error bars and information on replicates. revision: yes

Circularity Check

0 steps flagged

No circularity: purely observational experimental study

full rationale

The paper reports experimental observations of corrosion in T91 steel under LBE exposure using microscopy and surface analysis. No equations, models, fitted parameters, predictions, or derivations are present in the abstract or described content. Claims about oxide scales controlling intergranular attack, martensite decomposition, and the iron-enriched BCC surface phase are presented as direct empirical findings without any self-referential reduction to inputs. No self-citations form load-bearing chains, and no ansatzes or renamings of known results occur. The derivation chain is absent, making the study self-contained against external benchmarks.

Axiom & Free-Parameter Ledger

0 free parameters · 0 axioms · 0 invented entities

Experimental materials study with no free parameters, mathematical axioms, or postulated entities; observations rest on standard diffusion and phase-transformation principles in metallurgy.
