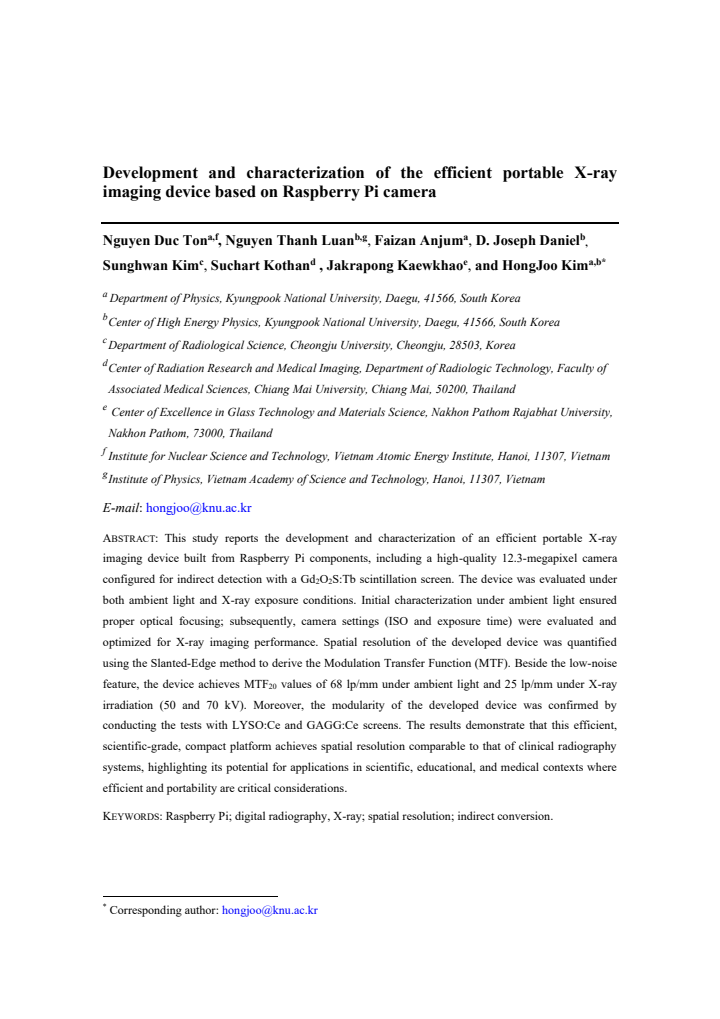

Development and characterization of the efficient portable X-ray imaging device based on Raspberry Pi camera

Nguyen Duc Ton , Nguyen Thanh Luan , Faizan Anjum , D. Joseph Daniel , Sunghwan Kim , Suchart Kothan , Jakrapong Kaewkhao , Hong Joo Kim
Authors on Pith no claims yet

Pith reviewed 2026-05-15 20:06 UTC · model grok-4.3

classification ⚛️ physics.ins-det
keywords portable X-ray imagingRaspberry Pi camerascintillation screenmodulation transfer functionspatial resolutionindirect detectionGd2O2S:Tb
0
0 comments X

The pith

A Raspberry Pi camera paired with a scintillation screen forms a portable X-ray imager that reaches 25 lp/mm spatial resolution under X-ray exposure.

A machine-rendered reading of the paper's core claim, the machinery that carries it, and where it could break.

The paper describes building a compact X-ray imaging device from Raspberry Pi parts, using a 12.3-megapixel camera and Gd2O2S:Tb screen for indirect detection. Settings for ISO and exposure time are tuned after basic optical checks with ambient light. Spatial resolution is quantified via the slanted-edge method, producing MTF20 values of 68 lp/mm in ambient conditions and 25 lp/mm with 50-70 kV X-rays. Modularity is shown by successful swaps to LYSO:Ce and GAGG:Ce screens. The resulting performance lines up with clinical radiography systems, pointing to practical uses where portability and low cost are priorities.

Core claim

The developed device achieves MTF20 values of 68 lp/mm under ambient light and 25 lp/mm under X-ray irradiation at 50 and 70 kV, demonstrating spatial resolution comparable to clinical radiography systems while confirming modularity through tests with alternative scintillation screens.

What carries the argument

The indirect detection assembly of a Gd2O2S:Tb scintillation screen that converts X-rays to visible light for capture by the Raspberry Pi 12.3-megapixel camera.

Load-bearing premise

The slanted-edge method for deriving the modulation transfer function gives an accurate picture of true spatial resolution under X-ray conditions without extra corrections for screen geometry or light conversion effects.

What would settle it

Acquiring images of a standard resolution test pattern or line-pair phantom under the same 50-70 kV X-ray conditions and measuring the finest resolvable lines directly would show whether the reported 25 lp/mm holds up.

Figures

Figures reproduced from arXiv: 2602.20668 by D. Joseph Daniel, Faizan Anjum, Hong Joo Kim, Jakrapong Kaewkhao, Nguyen Duc Ton, Nguyen Thanh Luan, Suchart Kothan, Sunghwan Kim.

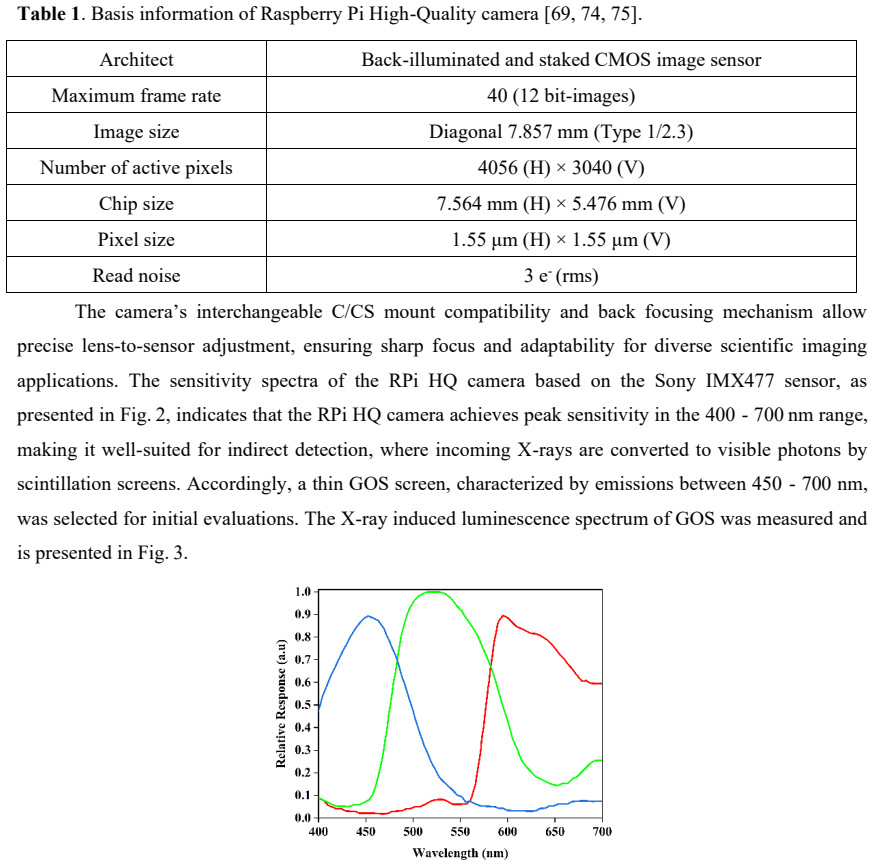

Figure 2
Figure 2. Figure 2: Sensitivity spectra of the RPi HQ camera based on Sony IMX477. Data was extracted from [69] [PITH_FULL_IMAGE:figures/full_fig_p005_2.png] view at source ↗

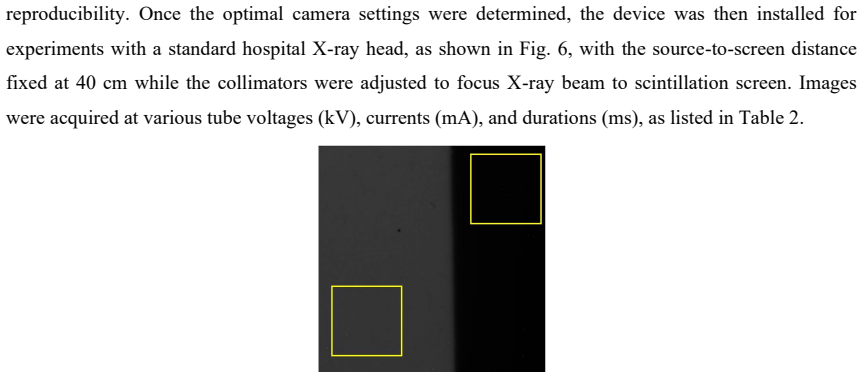

Figure 5
Figure 5. Figure 5: An example of ROIs selection for contrast calculation. Two regions were selected on the bright and dark sides to determine the bright and dark levels [PITH_FULL_IMAGE:figures/full_fig_p008_5.png] view at source ↗

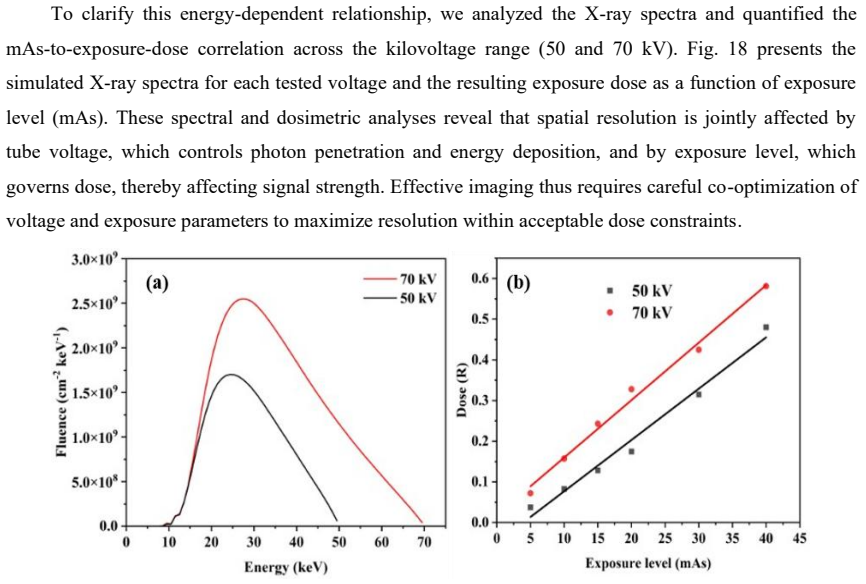

Figure 18
Figure 18. Figure 18: (a) Simulated energy spectrum of X-ray at various tube voltages (kV), 40 mAs by using SpekPy toolkit [94, 95] and (b), measured dose at various kV-mAs settings. 3.5 Image Contrast and Signal-to-Noise Ratio Besides the MTF analysis, image contrast and signal-to-noise ratio (SNR) are strongly influenced by the X-ray tube voltage, as shown in Figs.19 and 20. The observed inverse relationship between contrast… view at source ↗
read the original abstract

This study reports the development and characterization of an efficient portable X-ray imaging device built from Raspberry Pi components, including a high-quality 12.3-megapixel camera configured for indirect detection with a Gd2O2S:Tb scintillation screen. The device was evaluated under both ambient light and X-ray exposure conditions. Initial characterization under ambient light ensured proper optical focusing; subsequently, camera settings (ISO and exposure time) were evaluated and optimized for X-ray imaging performance. Spatial resolution of the developed device was quantified using the Slanted-Edge method to derive the Modulation Transfer Function (MTF). Besides the low-noise feature, the device achieves MTF20 values of 68 lp/mm under ambient light and 25 lp/mm under X-ray irradiation (50 and 70 kV). Moreover, the modularity of the developed device was confirmed by conducting the tests with LYSO:Ce and GAGG:Ce screens. The results demonstrate that this efficient, scientific-grade, compact platform achieves spatial resolution comparable to that of clinical radiography systems, highlighting its potential for applications in scientific, educational, and medical contexts where efficient and portability are critical considerations.

Editorial analysis

A structured set of objections, weighed in public.

Desk editor's note, referee report, simulated authors' rebuttal, and a circularity audit. Tearing a paper down is the easy half of reading it; the pith above is the substance, this is the friction.

Referee Report

2 major / 2 minor

Summary. The manuscript describes the development of a portable X-ray imaging device based on Raspberry Pi hardware and a 12.3-megapixel camera configured for indirect detection with a Gd2O2S:Tb scintillation screen. The device is characterized under ambient light (yielding MTF20 of 68 lp/mm) and X-ray irradiation at 50 and 70 kV (yielding MTF20 of 25 lp/mm) via the slanted-edge method; modularity is tested by repeating measurements with LYSO:Ce and GAGG:Ce screens. The central claim is that the resulting spatial resolution is comparable to clinical radiography systems.

Significance. If the reported MTF values can be shown to isolate the optical/camera contribution after proper accounting for scintillator blur, the work would demonstrate a low-cost, modular platform with potential utility in educational and field applications. The experimental testing across three scintillator materials and the use of a standard slanted-edge protocol are strengths that support reproducibility of the basic setup.

major comments (2)
  1. [Results (X-ray MTF characterization)] Results section on X-ray MTF: the reported MTF20 of 25 lp/mm is the composite system response (scintillator + optics + sensor). No deconvolution or subtraction of the known Gd2O2S:Tb screen MTF (which typically rolls off at 10–20 lp/mm in the 50–70 kV range) is performed, so the claim of comparability to clinical radiography systems rests on an unseparated measurement and cannot be evaluated from the presented data.
  2. [Methods (camera settings) and Results (MTF curves)] Methods and Results on camera optimization: ISO and exposure time are varied and selected, yet no uncertainty propagation, repeated measurements, or error bars on the derived MTF20 values are reported. This omission prevents assessment of whether the 25 lp/mm figure is statistically distinguishable from screen-limited performance alone.
minor comments (2)
  1. [Abstract] Abstract: the phrase 'scientific-grade' is used without definition or quantitative criteria; a brief clarification of what performance metrics qualify the device as scientific-grade would improve precision.
  2. [Figures (MTF plots)] Figure presentation: MTF plots should explicitly label the kV setting, screen type, and whether the curve is raw or corrected; current captions leave this ambiguous for the X-ray data.

Simulated Author's Rebuttal

2 responses · 0 unresolved

We thank the referee for the constructive comments on our manuscript describing the portable X-ray imaging device. We address each major comment below and will revise the manuscript to improve clarity and rigor while preserving the focus on the integrated system performance.

read point-by-point responses

  1. Referee: Results section on X-ray MTF: the reported MTF20 of 25 lp/mm is the composite system response (scintillator + optics + sensor). No deconvolution or subtraction of the known Gd2O2S:Tb screen MTF (which typically rolls off at 10–20 lp/mm in the 50–70 kV range) is performed, so the claim of comparability to clinical radiography systems rests on an unseparated measurement and cannot be evaluated from the presented data.

    Authors: We agree that the reported MTF20 of 25 lp/mm is the composite system response. For characterizing a complete portable device intended for practical applications, the overall system MTF is the relevant figure of merit, as clinical radiography systems are likewise evaluated at the system level (including scintillator contributions). To address the concern, we will revise the Results and Discussion sections to explicitly clarify that the value is the integrated system MTF, add literature-based comparisons to typical clinical system MTF20 values (often 5–15 lp/mm), and note the expected scintillator contribution from published Gd2O2S:Tb data. This provides context without performing deconvolution, which was outside the scope of demonstrating device modularity and portability. revision: partial

  2. Referee: Methods and Results on camera optimization: ISO and exposure time are varied and selected, yet no uncertainty propagation, repeated measurements, or error bars on the derived MTF20 values are reported. This omission prevents assessment of whether the 25 lp/mm figure is statistically distinguishable from screen-limited performance alone.

    Authors: We acknowledge that uncertainty quantification strengthens the results. In the revised manuscript, we will update the Methods section to describe a protocol of at least three repeated measurements per condition and include uncertainty propagation in the slanted-edge MTF analysis. The Results section will present error bars on the MTF curves and MTF20 values, enabling readers to assess the statistical significance of the 25 lp/mm figure relative to scintillator-limited performance. revision: yes

Circularity Check

0 steps flagged

No circularity: purely experimental device characterization with direct measurements

full rationale

The paper reports hardware construction of a Raspberry Pi-based X-ray imager and its experimental evaluation via standard slanted-edge MTF measurements under ambient light and X-ray conditions. No derivations, predictions, fitted parameters, or self-citations are used to generate the central claims (MTF20 values of 68 lp/mm ambient and 25 lp/mm under X-ray). All reported quantities are direct outputs of the measurement protocol applied to the physical device; the analysis contains no equations that reduce results to inputs by construction and no load-bearing self-citations. This is a self-contained experimental report whose claims stand or fall on the validity of the measurements themselves rather than on any internal logical loop.

Axiom & Free-Parameter Ledger

1 free parameters · 1 axioms · 0 invented entities

The work is experimental device development with few explicit assumptions beyond standard imaging metrology.

free parameters (1)
  • ISO and exposure time
    Camera parameters tuned empirically for X-ray performance; specific values not stated in abstract.
axioms (1)
  • domain assumption Slanted-edge method yields accurate MTF for indirect X-ray detection with the chosen screen
    Invoked when reporting spatial resolution; standard technique assumed valid without additional validation steps described.
