Pith. sign in

REVIEW 2 major objections 1 minor 41 references

Phonon frequency comb close to an isolated Einstein mode in InSiTe3

T0 review · 2 major / 1 minor · reviewed 2026-05-15 · grok-4.3

Challenge this review Download PDF Read on arXiv ↗ Review JSON

Pith's one-line read Raman spectroscopy shows a phonon frequency comb forming near an isolated high-energy A1g mode in InSiTe3.

desk verdict InSiTe3 shows a candidate phonon frequency comb near an isolated A1g mode, but the claim needs quantitative modeling to hold up. read the letter →

arxiv 2602.20747 v1 submitted 2026-02-24 cond-mat.mtrl-sci

Tea Belojica , Jovan Blagojević , Sanja Djurdjić Mijin , Andrijana Šolajić , Jelena Pešić , Emil S. Božin , Bojana Višić , Yu Liu
show 5 more authors
Cedomir Petrovic Zoran V. Popović Rudi Hackl Ana Milosavljević Nenad Lazarević
This is my paper · ORCID
classification cond-mat.mtrl-sci
keywords phononfrequencycombRamanspectroscopyanharmonicityInSiTe3vanderWaalsmaterialEinsteinmodecoherentlatticestate
checked against Cost.FunctionalEquationJ_uniquely_calibrated_via_higher_derivative
verification ladder T0 review T1 audit T2 compute T3 formal

The pith

A machine-rendered reading of the paper's core claim, the machinery that carries it, and where it could break.

The reading

The paper sets out to show that InSiTe3 develops a self-organized frequency domain structure resembling a phonon frequency comb close to a localized high-energy A1g phonon mode near 500 cm inverse. Polarization-resolved Raman data reveal strong anharmonicity through anomalous temperature dependence around 200 K together with higher-order excitations appearing inside the phonon density of states gap. A reader would care because the findings identify InSiTe3 as a low-dimensional platform where intrinsic phonon correlations and unusually strong anharmonic effects coexist, suggesting new routes to collective lattice excitations.

What carries the argument

The self-organized frequency domain structure (phonon frequency comb) near the isolated high-energy A1g mode, which arises from strong anharmonic phonon-phonon coupling and produces the observed coherent-like vibrational state.

What would settle it

Quantitative modeling or temperature-dependent measurements showing that the higher-order excitations and anomalies can be reproduced by conventional anharmonic linewidth broadening alone, without any additional frequency comb structure, would falsify the central claim.

Watch

Extended reading notes

Core claim

Polarization-resolved Raman spectroscopy in InSiTe3 reveals pronounced anharmonicity in symmetry-predicted modes and the formation of a self-organized frequency domain structure in the range of a localized high-energy A1g phonon mode near 500 cm inverse. This strong phonon-phonon coupling appears as an anomalous temperature dependence around 200 K that coincides with the appearance of higher-order excitations within the phonon density of states gap.

Load-bearing premise

The observed spectral features and temperature anomalies are taken to signal a long-lived collective frequency comb rather than ordinary broadening or scattering effects.

Editorial extensions

If this is right

  • Strong phonon-phonon coupling generates higher-order excitations inside the phonon density of states gap.
  • Anomalous temperature dependence sets in around 200 K in the Raman response of the A1g mode.
  • InSiTe3 functions as a platform where highly structured phonon spectral correlations and strong anharmonicity coexist in a layered van der Waals material.

Reading between the lines

Editorial extensions of the paper, not claims the author makes directly.

  • Analogous frequency combs may appear in other layered compounds that possess an isolated high-energy phonon mode with comparable anharmonicity.
  • The structure could be exploited to engineer coherent phonon states for controlling thermal transport or vibrational energy transfer.
  • Systematic studies of isostructural variants would test whether the comb requires the specific combination of Einstein-like mode and van der Waals layering seen here.
Share X Bluesky LinkedIn Reddit HN

Signed reviews

No signed human review yet.

Request a human review

A listed scientist reviews the paper for a fee and the review publishes here regardless of verdict. See the reviewers or get listed.

Editorial analysis

A structured set of objections, weighed in public.

Desk editor's note, referee report, simulated authors' rebuttal, and a circularity audit.

Referee Report

2 major / 1 minor

Summary. The manuscript reports polarization-resolved Raman spectroscopy measurements on the layered van der Waals compound InSiTe3, claiming the observation of pronounced anharmonicity in symmetry-allowed modes and the formation of a self-organized frequency domain structure (phonon frequency comb / coherent-like state) near an isolated high-energy A1g Einstein mode at approximately 500 cm^{-1}. This is linked to strong phonon-phonon coupling, manifested as anomalous temperature dependence near 200 K and the appearance of higher-order excitations inside a gap in the phonon density of states.

Significance. If the frequency-comb assignment is robustly supported, the result would be significant as a rare experimental example of emergent vibrational structure arising from intrinsic anharmonicity in a low-dimensional material. It would position InSiTe3 as a platform for studying collective lattice excitations and phonon spectral correlations, potentially stimulating theoretical work on mode-coupling mechanisms in van der Waals systems.

major comments (2)
  1. [Results section] Results section: The central claim that the observed Raman features constitute a 'self-organized frequency domain structure' or phonon frequency comb is not supported by quantitative analysis. No peak-spacing statistics, Lorentzian or comb-model fits, error bars on mode positions, or comparison to a mode-coupling Hamiltonian are presented to demonstrate that the structure cannot be accounted for by conventional multiphonon scattering, anharmonic broadening, or inhomogeneous effects.
  2. [Discussion section] Discussion section: The anomalous temperature dependence around 200 K is described qualitatively without a fitted model for frequency shifts or linewidths, nor are alternative explanations (structural transition, impurity scattering) excluded by cross-checks such as XRD, specific-heat data, or polarization-dependent intensity analysis.
minor comments (1)
  1. [Abstract] Abstract: The phrase 'higher-order excitations within the phonon density of states gap' would be clearer if the gap width and the energies of the additional features were stated numerically.

Simulated Author's Rebuttal

2 responses · 1 unresolved

We thank the referee for their thorough review and constructive comments. We address the major concerns point by point below, providing the strongest honest defense of the manuscript while incorporating revisions where they strengthen the presentation without misrepresenting the data.

read point-by-point responses

  1. Referee: [Results section] Results section: The central claim that the observed Raman features constitute a 'self-organized frequency domain structure' or phonon frequency comb is not supported by quantitative analysis. No peak-spacing statistics, Lorentzian or comb-model fits, error bars on mode positions, or comparison to a mode-coupling Hamiltonian are presented to demonstrate that the structure cannot be accounted for by conventional multiphonon scattering, anharmonic broadening, or inhomogeneous effects.

    Authors: We agree that additional quantitative elements would improve clarity. In the revised manuscript we have added explicit peak-spacing statistics extracted from the polarization-resolved spectra, confirming regular intervals near 10 cm^{-1} within the comb region, together with Lorentzian fits to the individual features that include error bars on the extracted positions. A direct comparison to conventional multiphonon scattering is now included, emphasizing that the isolation of the ~500 cm^{-1} Einstein mode and the absence of corresponding overtones in the phonon DOS gap are inconsistent with simple anharmonic broadening or inhomogeneous broadening. A full microscopic mode-coupling Hamiltonian is not provided, as it lies beyond the experimental scope of the present work; however, the observed spectral correlations are discussed in the context of strong phonon-phonon coupling. revision: partial

  2. Referee: [Discussion section] Discussion section: The anomalous temperature dependence around 200 K is described qualitatively without a fitted model for frequency shifts or linewidths, nor are alternative explanations (structural transition, impurity scattering) excluded by cross-checks such as XRD, specific-heat data, or polarization-dependent intensity analysis.

    Authors: We have revised the discussion to incorporate a simple phenomenological model that fits the observed temperature dependence of both frequency shifts and linewidths, reproducing the anomaly near 200 K. The polarization-resolved intensities remain consistent with the expected A_{1g} symmetry across the entire temperature range, providing evidence against a symmetry-breaking structural transition. We acknowledge, however, that XRD and specific-heat measurements are not available in the present study and therefore cannot fully exclude impurity-related scattering or subtle structural changes; this limitation is now explicitly stated. revision: partial

standing simulated objections not resolved
  • Exclusion of alternative explanations (structural transition, impurity scattering) by XRD, specific-heat data, or additional polarization-dependent intensity analysis beyond what is already shown

Circularity Check

0 steps flagged · score 0.0 of 10

No significant circularity; purely observational experimental study

full rationale

The paper reports polarization-resolved Raman spectroscopy measurements on InSiTe3, identifying anharmonic effects and spectral features interpreted as a phonon frequency comb near an isolated A1g mode. No derivation chain, mathematical model, fitted parameters, or equations are presented that could reduce predictions to inputs by construction. Claims rest on direct experimental spectra and temperature-dependent anomalies rather than any self-referential ansatz, self-citation load-bearing premise, or renaming of known results. The work is self-contained against external benchmarks as an observational report without internal modeling that invites circularity analysis.

Assumptions & free parameters 0 free parameters · 0 assumptions · 0 invented entities

The central claim rests entirely on experimental Raman spectra; no free parameters, mathematical axioms, or new postulated entities are introduced in the abstract.

how reviews work

0 comments
Cite this review

Pith. "Pith review of Phonon frequency comb close to an isolated Einstein mode in InSiTe3." pith.science (2026). https://pith.science/paper/2602.20747

@misc{pith2026260220747,
  author       = {Pith},
  title        = {Pith review of: Phonon frequency comb close to an isolated Einstein mode in InSiTe3},
  year         = {2026},
  howpublished = {\url{https://pith.science/paper/2602.20747}},
  note         = {Machine review of arXiv:2602.20747}
}
abstract

The emergence of phonon frequency combs exemplifies a rare and intriguing phenomenon in quantum solids. Materials with distinctive phonon band structures are especially promising for hosting such states, as their vibrational dispersion landscape across the Brillouin zone can facilitate the formation of long-lived, collective lattice excitations. In the layered Van der Waals compound InSiTe$_3$, polarization-resolved Raman spectroscopy reveals a pronounced anharmonicity in symmetry-predicted modes and the formation of a self-organized frequency domain structure (coherent-like state), in the range of a localized highenergy A$_{1g}$ phonon mode near 500 cm$^{-1}$. This strong phonon-phonon coupling manifests itself as an anomalous temperature dependence around 200 K, coinciding with the appearance of higher-order excitations within the phonon density of states gap. These findings position InSiTe$_3$ as an unconventional platform where intrinsic highly structured phonon spectral correlations and unusually strong anharmonic effects coexist, opening new avenues for exploring emergent vibrational phenomena in low-dimensional materials.

Figures

Figures reproduced from arXiv: 2602.20747 by the authors.

Figure 1

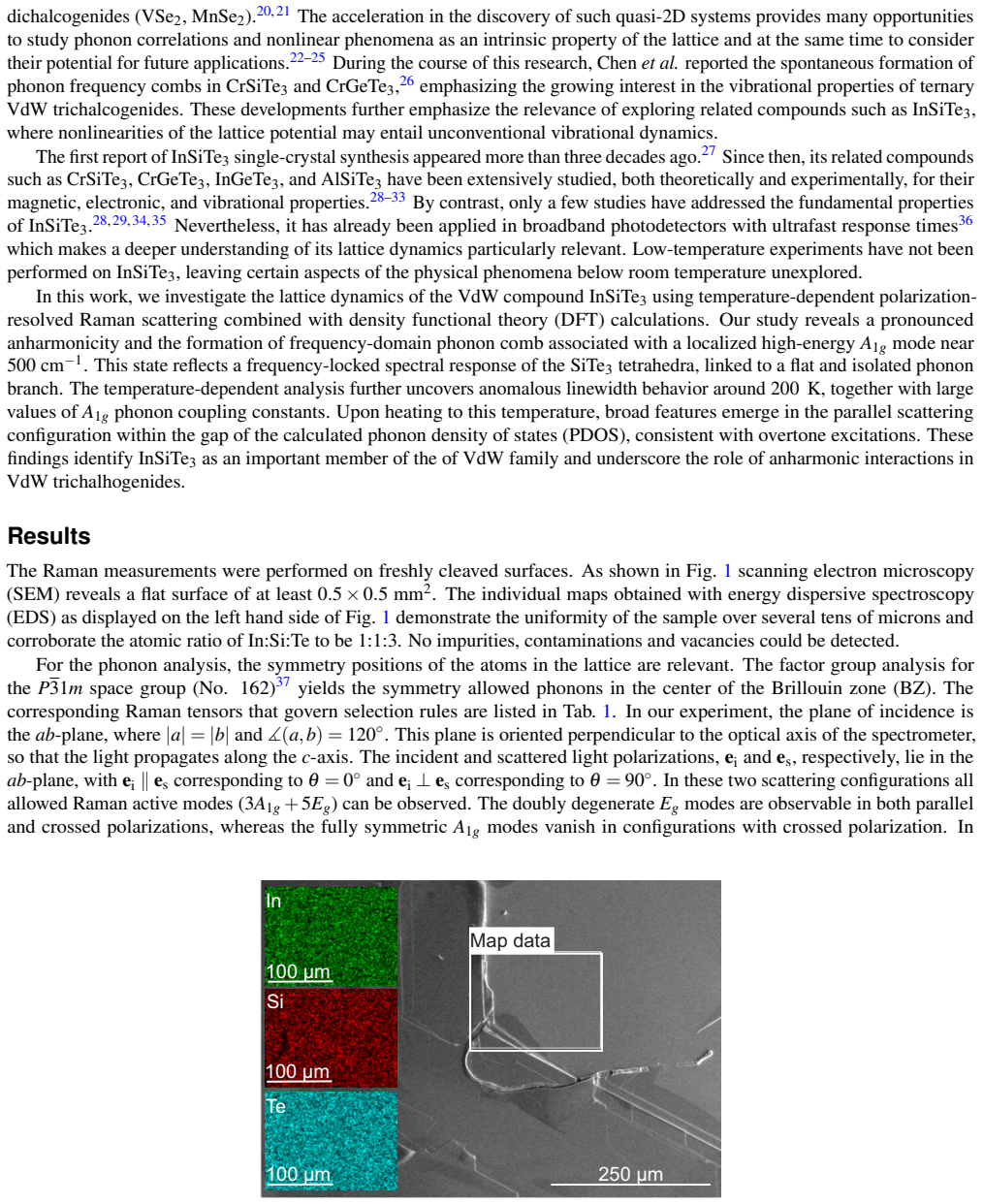

Figure 1. SEM and EDS mapping of a freshly cleaved surface of an InSiTe3 single crystal. The right part of the figure shows a flat surface over an extended area. The white rectangle indicates the area in which the EDS mapping was performed. The green, red, and turquoise areas on the left demonstrate the homogeneous distributions of the elements. 2/12 [PITH_FULL_IMAGE:figures/full_fig_p002_1.png] view at source ↗
Figure 2

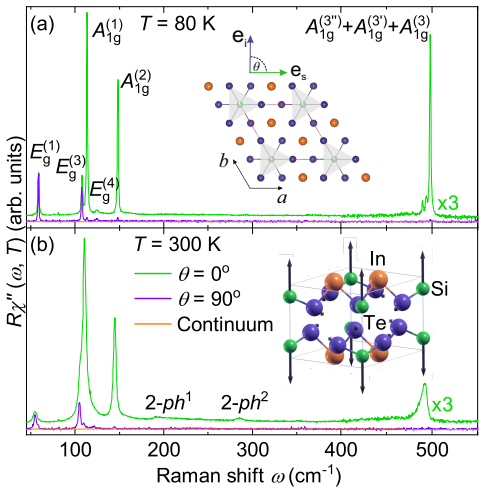

Figure 2. Raman spectra of InSiTe3 in parallel (θ = 0 ◦ ) and cross (θ = 90◦ ) polarization configurations at (a) 80 K and (b) 300 K. The orange lines represent the phenomenological continua (see text). Inset of (a) InSiTe3 crystallographic unit cell with vectors of incident and scattered light polarizations ei and es , respectively. For symmetry reasons the orientation of the polarizations with respect to the crystal axes a … view at source ↗
Figure 3

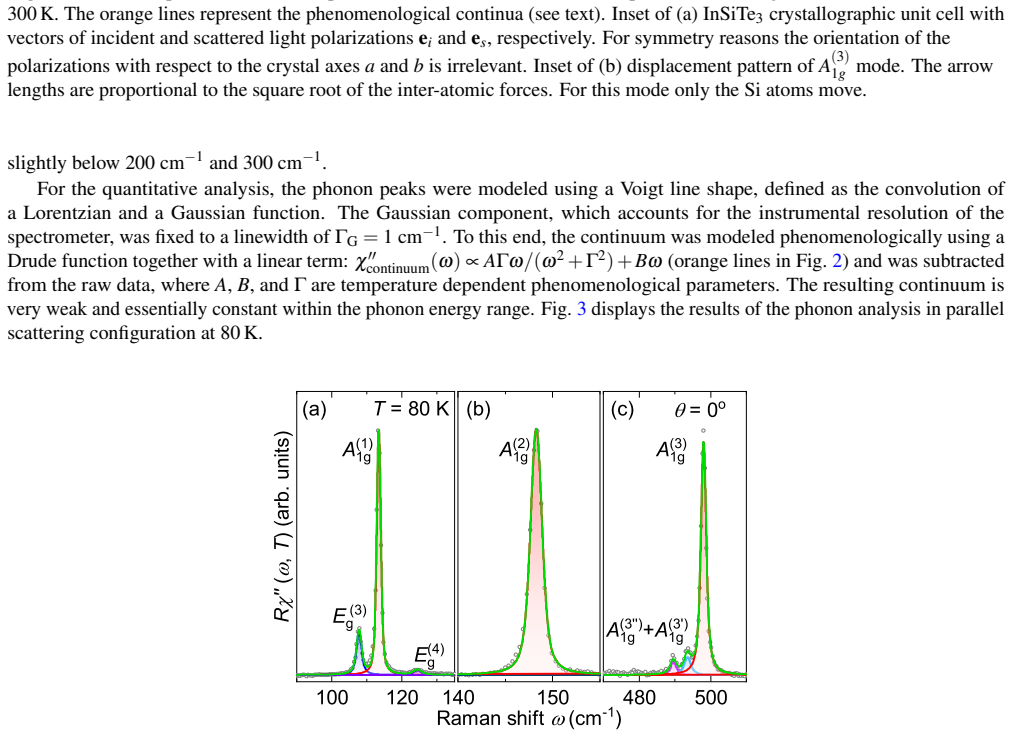

Figure 3. (a)-(c) Phonon excitations modeled with Voigt profiles in parallel (θ = 0 ◦ ) polarization configuration where phonons of both A1g and Eg symmetry are observed. The spectra are recorded at 80 K. 4/12 [PITH_FULL_IMAGE:figures/full_fig_p004_3.png] view at source ↗
Figures from the paper (5 more)
Figure 4

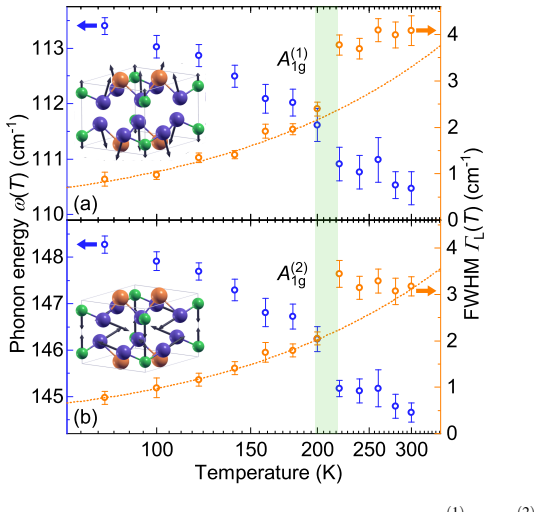

Figure 4. Figure 4: Temperature dependences of the energies and Lorentzian linewidths of the A (1) 1g and A (2) 1g phonons. There are discontinuities of both the energies and linewidths close to 200 K. The dashed lines represent fits to the data below 200 K. The linewidths and energies ar…
Figure 5

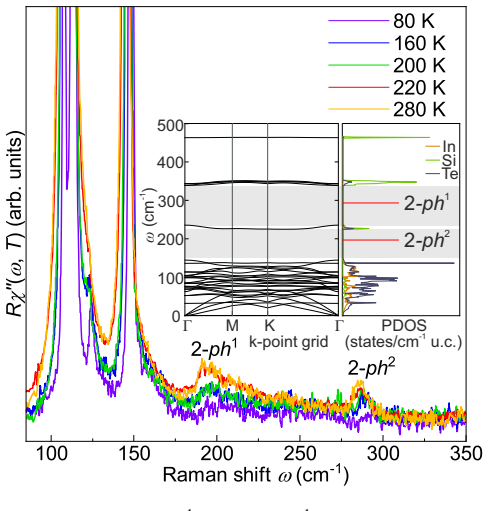

Figure 5. Figure 5: Raman spectra in the range between 80 cm−1 and 350 cm−1 at temperatures as indicated. The overtone excitations increase abruptly between 200 and 220 K in intensity. Inset: Calculated phonon dispersion along the high-symmetry directions as indicated and PDOS. The shaded…
Figure 6

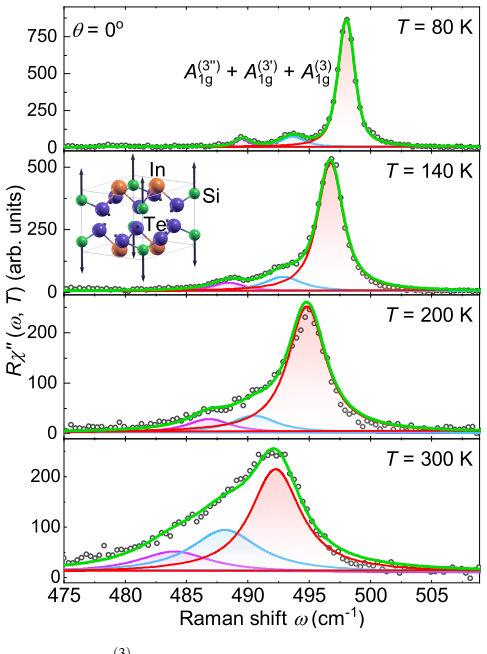

Figure 6. Figure 6: Raman spectra in the range of the A (3) 1g mode at temperatures as indicated. The solid lines represent a Voigt profile fit to the data. All lines become wider with increasing temperature and shift simultaneously to lower energies while maintaining the distance. Inset:…
Figure 7

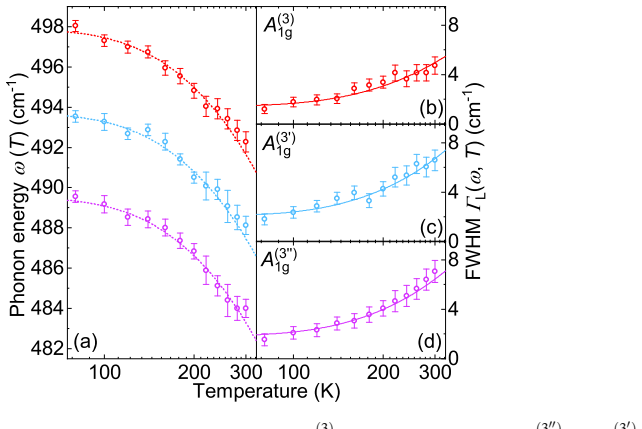

Figure 7. Figure 7: Temperature dependences of energies and linewidths of the A (3) 1g mode and its satellites, A (3 ′′) 1g and A (3 ′ ) 1g derived from three independent Voigt lineshapes. The equidistant colored dotted lines in (a) represent guide to the eye, with the theoretical differe…
Figure 8

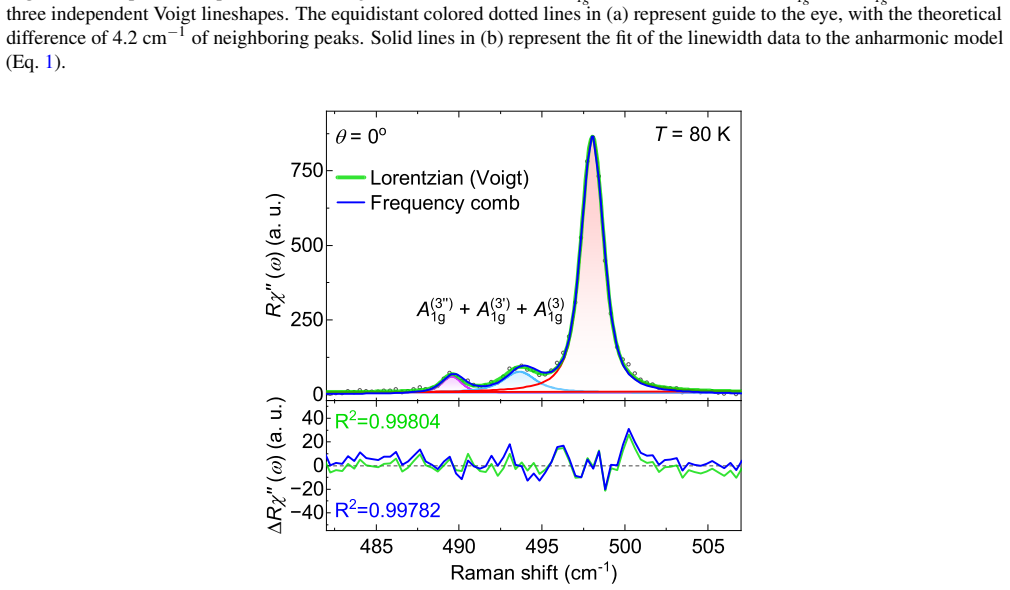

Figure 8. Figure 8: Comparison of coherent-state–based spectral model and individual line model. At 80 K the statistical quality of the frequency comb is only marginally below that of the combination of the three individual lines. (see also [PITH_FULL_IMAGE:figures/full_fig_p008_8.png]

Discussion (0). Continue with ORCID to comment.

Lean theorems connected to this paper

Citations machine-checked in the Pith Canon. Every link opens the source theorem in the public Lean library.

  • IndisputableMonolith/Cost/FunctionalEquation.lean washburn_uniqueness_aczel unclear
    ?
    unclear

    Relation between the paper passage and the cited Recognition theorem.

    The three equidistant lines... we employ a coherent-state formalism... |⟨x⟩ω|² = (2π)² e^{-2|α0|²} ∑ |α0|^{4n+2}/(n!)² [δ(ω'−ω+A+An)+...]

  • IndisputableMonolith/Foundation/AlphaCoordinateFixation.lean J_uniquely_calibrated_via_higher_derivative unclear
    ?
    unclear

    Relation between the paper passage and the cited Recognition theorem.

    linewidths... described by the symmetric anharmonic decay... Γ_L(T) = Γ_L(0) [1 + 2λ_ph-ph / (e^{ℏω0/2kBT}−1)]

What do these tags mean?
matches
The paper's claim is directly supported by a theorem in the formal canon.
supports
The theorem supports part of the paper's argument, but the paper may add assumptions or extra steps.
extends
The paper goes beyond the formal theorem; the theorem is a base layer rather than the whole result.
uses
The paper appears to rely on the theorem as machinery.
contradicts
The paper's claim conflicts with a theorem or certificate in the canon.
unclear
Pith found a possible connection, but the passage is too broad, indirect, or ambiguous to say the theorem truly supports the claim.

Reference graph

Works this paper leans on

41 extracted references · 41 canonical work pages

  1. [2]

    & Fatti, N

    Vialla, F. & Fatti, N. D. Time-Domain Investigations of Coherent Phonons in van der Waals Thin Films.Nanomaterials10, 10.3390/nano10122543 (2020). 3.Misochko, O. V . Coherent phonons and their properties.J. Exp. Theor. Phys.92, 246–259, 10.1134/1.1354682 (2001)

    work page doi:10.3390/nano10122543 2020

  2. [3]

    A., Selivanov, Y

    Melnikov, A. A., Selivanov, Y . G. & Chekalin, S. V . Anharmonic coherent dynamics of the soft phonon mode of a PbTe crystal.Phys. Rev. B108, 224309, 10.1103/PhysRevB.108.224309 (2023)

    work page doi:10.1103/physrevb.108.224309 2023

  3. [4]

    & Misochko, O

    Ishioka, K., Kitajima, M. & Misochko, O. V . Coherent A1g and Eg phonons of antimony.J. Appl. Phys.103, 123505, 10.1063/1.2940130 (2008)

    work page doi:10.1063/1.2940130 2008

  4. [5]

    & Misochko, O

    Ishioka, K., Kitajima, M. & Misochko, O. V . Temperature dependence of coherent A1g and Eg phonons of bismuth.J. Appl. Phys.100, 093501, 10.1063/1.2363746 (2006)

    work page doi:10.1063/1.2363746 2006

  5. [6]

    A., Albrecht, T

    Garrett, G. A., Albrecht, T. F., Whitaker, J. F. & Merlin, R. Coherent THz Phonons Driven by Light Pulses and the Sb Problem: What is the Mechanism?Phys. Rev. Lett.77, 3661–3664, 10.1103/PhysRevLett.77.3661 (1996)

    work page doi:10.1103/physrevlett.77.3661 1996

  6. [7]

    & Hackl, R

    Lazarevi´c, N. & Hackl, R. Fluctuations and pairing in Fe-based superconductors: light scattering experiments.J. Physics: Condens. Matter32, 413001, 10.1088/1361-648X/ab8849 (2020)

    work page doi:10.1088/1361-648x/ab8849 2020

  7. [8]

    The magnetic genome of two-dimensional van der Waals materials

    Wang, Q. H.et al.The Magnetic Genome of Two-Dimensional van der Waals Materials.ACS Nano16, 6960–7079, 10.1021/acsnano.1c09150 (2022). PMID: 35442017

    work page doi:10.1021/acsnano.1c09150 2022

  8. [10]

    Huang, B.et al.Layer-dependent ferromagnetism in a van der Waals crystal down to the monolayer limit.Nature546, 270–273, 10.1038/nature22391 (2017)

    work page doi:10.1038/nature22391 2017

Show all 41 references
  1. [11]

    & Long, M.-Q

    Wang, Y .-P. & Long, M.-Q. Electronic and magnetic properties of van der Waals ferromagnetic semiconductor VI3.Phys. Rev. B101, 024411, 10.1103/PhysRevB.101.024411 (2020)

    2020 doi

  2. [12]

    Chem.59, 16265–16271, 10.1021/acs.inorgchem.0c02060 (2020)

    Djurdji´c Mijin, S.et al.Short-Range Order in VI 3.Inorg. Chem.59, 16265–16271, 10.1021/acs.inorgchem.0c02060 (2020). 10/12

    2020 doi

  3. [13]

    Djurdji´c Mijin, S.et al.Lattice dynamics and phase transition in CrI3 single crystals.Phys. Rev. B98, 104307, 10.1103/PhysRevB.98.104307 (2018)

    2018 doi

  4. [14]

    & Brec, R

    Ouvrard, G., Sandre, E. & Brec, R. Synthesis and crystal structure of a new layered phase: The chromium hexatellurosilicate Cr2Si2Te6.J. Solid State Chem.73, 27–32, 10.1016/0022-4596(88)90049-7 (1988). 16.Zhang, X.et al.Magnetic anisotropy of the single-crystalline ferromagnet...

    1988 doi

  5. [15]

    Milosavljevi´c, A.et al.Evidence of spin-phonon coupling in CrSiTe3.Phys. Rev. B98, 104306, 10.1103/Phys- RevB.98.104306 (2018)

    2018 doi

  6. [16]

    Raman Spectrosc.51, 2153–2160, 10.1002/jrs.5962 (2020)

    Milosavljevi´c, A.et al.Vacancies and spin–phonon coupling in CrSi 0.8Ge0.1Te3.J. Raman Spectrosc.51, 2153–2160, 10.1002/jrs.5962 (2020)

    2020 doi

  7. [17]

    Mater.17, 778–782, 10.1038/s41563-018-0149-7 (2018)

    Fei, Z.et al.Two-dimensional itinerant ferromagnetism in atomically thin Fe 3GeTe2.Nat. Mater.17, 778–782, 10.1038/s41563-018-0149-7 (2018)

    2018 doi

  8. [18]

    Nanotechnol.13, 289–293, 10.1038/s41565-018-0063-9 (2018)

    Bonilla, M.et al.Strong room-temperature ferromagnetism in VSe 2 monolayers on van der Waals substrates.Nat. Nanotechnol.13, 289–293, 10.1038/s41565-018-0063-9 (2018)

    2018 doi

  9. [19]

    J.et al.Room Temperature Intrinsic Ferromagnetism in Epitaxial Manganese Selenide Films in the Monolayer Limit.Nano Lett.18, 3125–3131, 10.1021/acs.nanolett.8b00683 (2018)

    O’Hara, D. J.et al.Room Temperature Intrinsic Ferromagnetism in Epitaxial Manganese Selenide Films in the Monolayer Limit.Nano Lett.18, 3125–3131, 10.1021/acs.nanolett.8b00683 (2018)

    2018 doi

  10. [20]

    F., Fabian, J., Kawakami, R

    Sierra, J. F., Fabian, J., Kawakami, R. K., Roche, S. & Valenzuela, S. O. Van der Waals heterostructures for spintronics and opto-spintronics.Nat. Nanotechnol.10.1038/s41565-021-00936-x (2021)

    2021 doi

  11. [21]

    & Jiang, C

    Yang, S., Zhang, T. & Jiang, C. van der Waals Magnets: Material Family, Detection and Modulation of Magnetism, and Perspective in Spintronics.Adv. Sci.8, 2002488, 10.1002/advs.202002488 (2021)

    2021 doi

  12. [22]

    R.et al.Emerging Applications of Elemental 2D Materials.Adv

    Glavin, N. R.et al.Emerging Applications of Elemental 2D Materials.Adv. Mater.32, 1904302, 10.1002/adma.201904302 (2020)

    2020 doi

  13. [23]

    Khan, K.et al.Recent advances in two-dimensional materials and their nanocomposites in sustainable energy conversion applications.Nanoscale11, 21622–21678, 10.1039/C9NR05919A (2019)

    2019 doi

  14. [24]

    Chen, L.et al.Spontaneously formed phonon frequency combs in van der Waals solid CrGeTe3 and CrSiTe3.Nat. Commun. 16, 5795, 10.1038/s41467-025-61173-7 (2025)

    2025 doi

  15. [25]

    Sandre and V

    E. Sandre and V . Carteaux and A.M. Marie and G. Ouvrard. ChemInform Abstract: A New Lamellar Tellurosilicate, InSiTe3.ChemInform23, 10.1002/chin.199234029 (1992)

    1992 doi

  16. [26]

    A., Deligoz, E

    Korkmaz, M. A., Deligoz, E. & Ozisik, H. Strong Elastic Anisotropy of Low-Dimensional Ternary Compounds: InXTe3 (X = Si, Ge).J. Electron. Mater.50, 2779–2788, 10.1007/s11664-021-08784-0 (2021)

    2021 doi

  17. [27]

    Lefevre, R.et al.Layered tellurides: Stacking faults induce low thermal conductivity in the new In 2Ge2Te6 and thermoelectric properties of related compounds.J. Mater . Chem. A5, 19406–19415, 10.1039/C7TA04810F (2017)

    2017 doi

  18. [28]

    Sandre and V

    E. Sandre and V . Carteaux and A.M. Marie and G. Ouvrard. Structural determination of a new lamellar tellurosilicate, AlSiTe3.J. Alloy. Compd.204, 145–149, 10.1016/0925-8388(94)90083-3 (1994). 31.Casto, L. D.et al.Strong spin-lattice coupling in CrSiTe 3.APL Mater .3, 041515, ...

    1994 doi

  19. [29]

    Bhoi, D.et al.Nearly Room-Temperature Ferromagnetism in a Pressure-Induced Correlated Metallic State of the van der Waals Insulator CrGeTe3.Phys. Rev. Lett.127, 217203, 10.1103/PhysRevLett.127.217203 (2021)

    2021 doi

  20. [30]

    D.et al.Direct observation of the energy gain underpinning ferromagnetic superexchange in the electronic structure of CrGeTe3.Phys

    Watson, M. D.et al.Direct observation of the energy gain underpinning ferromagnetic superexchange in the electronic structure of CrGeTe3.Phys. Rev. B101, 205125, 10.1103/PhysRevB.101.205125 (2020)

    2020 doi

  21. [31]

    & Thongtem, S

    Suriwong, T., Kurosaki, K. & Thongtem, S. Thermoelectric properties of phosphorus-doped indium tellurosilicate: InSiTe3. J. Alloy. Compd.735, 75–80, 10.1016/j.jallcom.2017.11.093 (2018)

    2017 doi

  22. [32]

    & Lebègue, S

    Debbichi, L., Kim, H., Björkman, T., Eriksson, O. & Lebègue, S. First-principles investigation of two-dimensional trichalcogenide and sesquichalcogenide monolayers.Phys. Rev. B93, 245307, 10.1103/PhysRevB.93.245307 (2016)

    2016 doi

  23. [33]

    PMID: 35499232

    Chen, J.et al.A Submicrosecond-Response Ultraviolet–Visible–Near-Infrared Broadband Photodetector Based on 2D Tellurosilicate InSiTe3.ACS Nano16, 7745–7754, 10.1021/acsnano.1c11628 (2022). PMID: 35499232

    2022 doi

  24. [34]

    Jin, Y ., Wang, R. & Xu, H. Recipe for Dirac Phonon States with a Quantized Valley Berry Phase in Two-Dimensional Hexagonal Lattices.Nano Lett.18, 7755–7760, 10.1021/acs.nanolett.8b03492 (2018). 38.Klemens, P. G. Anharmonic decay of optical phonons.Phys. Rev.148, 845–848, 10.1...

    2018 doi

  25. [35]

    & Kumar, P

    Kumar, D., Kumar, V ., Kumar, R., Kumar, M. & Kumar, P. Electron-phonon coupling, thermal expansion coefficient, resonance effect, and phonon dynamics in high-quality CVD-grown monolayer and bilayer MoSe2.Phys. Rev. B105, 085419, 10.1103/PhysRevB.105.085419 (2022)

    2022 doi

  26. [36]

    Tiwari, A.et al.Spin-phonon-charge coupling in the two-dimensional honeycomb lattice compound Ni2Te3O8.Phys. Rev. B108, 075113, 10.1103/PhysRevB.108.075113 (2023)

    2023 doi

  27. [37]

    & Saha, S

    Poojitha, B., Shaji, A., Badola, S. & Saha, S. Spin–phonon coupling in ferrimagnet spinel CoMn 2O4.The J. Chem. Phys. 156, 184701, 10.1063/5.0087770 (2022). 43.Schrödinger, E. Der stetige Übergang von der Mikro-zur Makromechanik.Naturwissenschaften14, 664–666 (1926)

    2022 doi

  28. [38]

    Martin, R. M. & Varma, C. M. Cascade Theory of Inelastic Scattering of Light.Phys. Rev. Lett.26, 1241–1244, 10.1103/PhysRevLett.26.1241 (1971)

    1971 doi

  29. [39]

    & Zhao, J

    Zhai, Y ., Gong, P., Hasaien, J., Zhou, F. & Zhao, J. Coherent phonons in correlated quantum materials.Prog. Surf. Sci.99, 100761, 0.1016/j.progsurf.2024.100761 (2024)

    2024

  30. [40]

    Sun, F.et al.Coherent helix vacancy phonon and its ultrafast dynamics waning in topological Dirac semimetal Cd3As2. Phys. Rev. B95, 235108, 10.1103/PhysRevB.95.235108 (2017)

    2017 doi

  31. [41]

    2510.01881

    Krasucki, G.et al.Spin-phonon coupling and isotope-related pseudo-molecule vibrations in layered Cr 2Ge2Te6 ferromagnet (2025). 2510.01881

    2025

  32. [42]

    Giannozzi, P.et al.Quantum espresso: a modular and open-source software project for quantum simulations of materials. J. Phy. Condens. Mat.21, 395502, 10.1088/0953-8984/21/39/395502 (2009)

    2009 doi

  33. [43]

    P., Burke, K

    Perdew, J. P., Burke, K. & Ernzerhof, M. Generalized Gradient Approximation Made Simple.Phys. Rev. Lett.77, 3865–3868, 10.1103/PhysRevLett.77.3865 (1996). Acknowledgements Authors are grateful to Vladimir Damljanovi´c for insightful discussions. Funding The authors acknowledge...

    1996 doi

Pith tools

Reviewed May 15, 2026 · model on record in the stance chip above.
