From raw data to processed spectra: A step-by-step guide
Pith reviewed 2026-05-15 19:36 UTC · model grok-4.3
The pith
Spectra plotted against frequency or photon energy extract intrinsic quantum properties of materials more directly than wavelength versions.
A machine-rendered reading of the paper's core claim, the machinery that carries it, and where it could break.
Core claim
Spectra represented as a function of frequency or photon energy allow direct extraction of the intrinsic quantum-mechanical properties of the materials under investigation. For absorption, fluorescence, and fluorescence excitation spectra the measured signals must be multiplied by specific wavelength-dependent factors that arise from the conversion between wavelength and frequency intervals and from the way detectors and sources respond. The paper supplies the explicit step-by-step rescaling procedure from raw counts to the properly normalized energy-scale spectra.
What carries the argument
The wavelength-to-frequency rescaling factors for absorption and fluorescence signals that correct both the spectral density and the instrument response.
If this is right
- Absorption spectra become directly comparable to calculated transition probabilities without extra wavelength corrections.
- Fluorescence spectra reflect the true branching ratios and emission rates when plotted versus photon energy.
- Excitation spectra map absorption features more accurately once the wavelength-dependent excitation intensity is normalized.
- Laboratory data analysis follows a uniform procedure that avoids common misinterpretation of peak shapes.
- Instructors obtain a concrete, reproducible workflow for teaching spectroscopic data reduction.
Where Pith is reading between the lines
- The same conversion logic could be applied to other linear spectroscopies such as Raman or circular dichroism to remove analogous distortions.
- Automated software that applies these factors on the fly would reduce errors when students process large data sets.
- In materials screening, consistent energy-scale reporting would make it easier to compare spectra collected on different instruments.
- Extending the guide to include correction for sample reabsorption or inner-filter effects would address common practical complications.
Load-bearing premise
The listed rescaling factors for absorption, fluorescence, and excitation spectra are sufficient and complete for typical experimental setups without additional instrument-specific or sample-dependent corrections.
What would settle it
A side-by-side measurement on the same sample where the extracted peak positions, widths, or oscillator strengths differ after conversion to frequency scale versus remaining in wavelength scale would falsify the claim that the conversion is required for direct property extraction.
read the original abstract

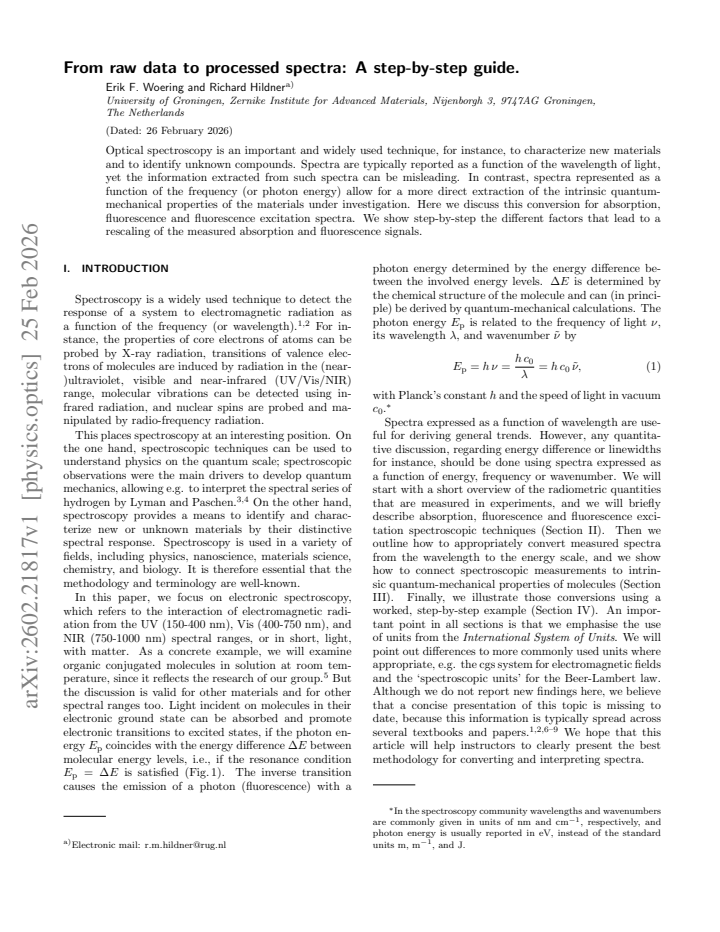

Optical spectroscopy is an important and widely used technique, for instance, to characterize new materials and to identify unknown compounds. Spectra are typically reported as a function of the wavelength of light, yet the information extracted from such spectra can be misleading. In contrast, spectra represented as a function of the frequency (or photon energy) allow for a more direct extraction of the intrinsic quantum-mechanical properties of the materials under investigation. Here we discuss this conversion for absorption, fluorescence and fluorescence excitation spectra. We show step-by-step the different factors that lead to a rescaling of the measured absorption and fluorescence signals. This paper will assist instructors who aim at developing an (under-)graduate lab to introduce into the methodology and terminology of spectroscopic experiments and to provide clear, step-by-step guidelines for data analysis and representation.
Editorial analysis
A structured set of objections, weighed in public.
Referee Report
Summary. The paper claims to provide a step-by-step guide for converting raw optical spectroscopy measurements (absorption, fluorescence, and excitation spectra) from wavelength to frequency or photon-energy representation. It details the proportionality factors required for rescaling the measured signals so that the resulting spectra permit direct extraction of intrinsic quantum-mechanical properties of the material.
Significance. If the listed rescaling steps are both correct and complete, the manuscript would offer a useful pedagogical resource for undergraduate laboratory instruction in optics and spectroscopy. Its explicit, sequential treatment of coordinate transformation and intensity corrections could help standardize data-analysis practices and reduce common interpretive errors in teaching settings.
major comments (1)
- [Fluorescence and excitation spectra conversion steps] The central claim that the listed rescaling factors suffice for direct extraction of intrinsic QM properties is load-bearing yet potentially incomplete. The procedure for fluorescence spectra does not appear to incorporate wavelength-dependent instrument-response corrections (grating efficiency, detector QE) or sample-specific effects (inner-filter absorption, re-emission). Without empirical calibration against a standard source, the transformed intensities remain setup-dependent rather than reflecting only transition matrix elements.
minor comments (2)
- [Introduction and notation] Notation for the frequency variable (ν versus ω) and the precise definition of the proportionality constants should be introduced once and used consistently throughout the derivations.
- [Summary of rescaling factors] A short table summarizing the final rescaling expressions for each spectral type (absorption, fluorescence, excitation) would improve readability and serve as a quick reference for students.
Simulated Author's Rebuttal
We thank the referee for the constructive feedback and positive assessment of the manuscript's pedagogical value. We address the major comment point by point below, clarifying the intended scope of the guide.
read point-by-point responses
-
Referee: The central claim that the listed rescaling factors suffice for direct extraction of intrinsic QM properties is load-bearing yet potentially incomplete. The procedure for fluorescence spectra does not appear to incorporate wavelength-dependent instrument-response corrections (grating efficiency, detector QE) or sample-specific effects (inner-filter absorption, re-emission). Without empirical calibration against a standard source, the transformed intensities remain setup-dependent rather than reflecting only transition matrix elements.
Authors: We appreciate the referee's point and agree that full quantitative extraction of transition matrix elements requires additional corrections beyond the wavelength-to-frequency transformation. Our manuscript focuses specifically on the coordinate transformation itself: the change of spectral variable (wavelength to frequency or photon energy) and the associated Jacobian rescaling factors that ensure the spectral density is correctly represented in the new units. This step is necessary to avoid misinterpretation of peak positions and integrated intensities when comparing to quantum-mechanical predictions. We do not claim that the listed factors alone eliminate all setup dependence; instrument-response functions and sample effects (e.g., inner-filter corrections) are standard separate calibration steps that must be applied to the raw data prior to or after the transformation we describe. To address the concern, we have added explicit language in the introduction and a new paragraph in the conclusions clarifying the scope and noting that the guide addresses only the spectral-variable conversion, not full instrument calibration. revision: partial
Circularity Check
No circularity in explanatory spectral conversion guide
full rationale
The paper is a purely instructional guide that walks through standard, textbook relationships for converting measured spectra from wavelength to frequency/energy coordinates and applying known proportionality factors for absorption, fluorescence, and excitation. No derivations, predictions, fitted parameters, or uniqueness theorems are claimed; the content consists of explicit step-by-step rescaling instructions grounded in established physics without any self-referential reduction or load-bearing self-citation.
Axiom & Free-Parameter Ledger
axioms (1)
- standard math Standard relationships between wavelength, frequency, and photon energy (E = hc/λ).
