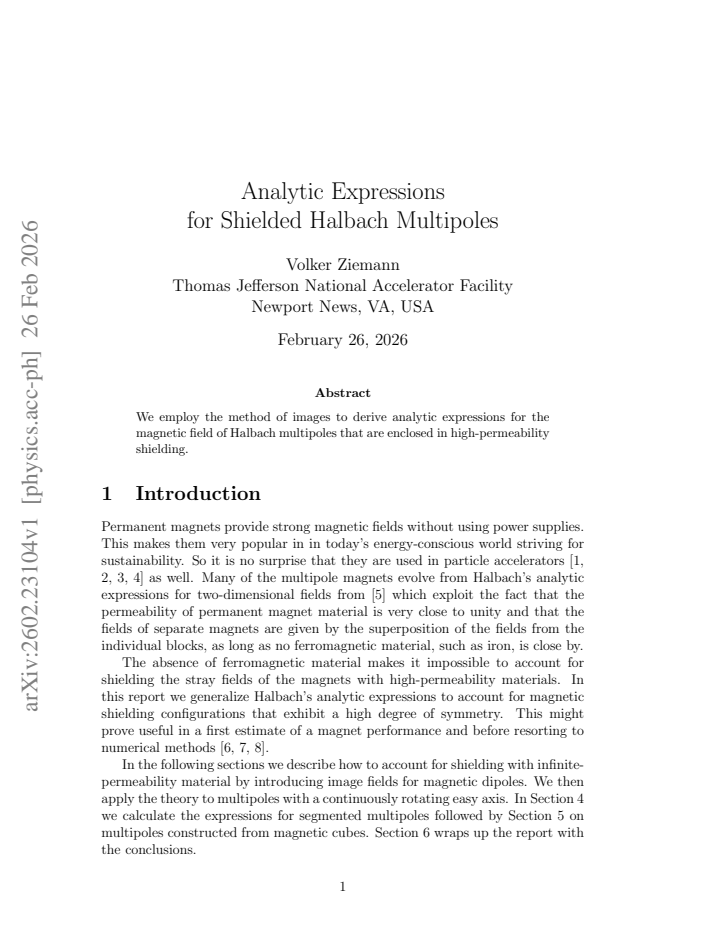

Analytic Expressions for Shielded Halbach Multipoles

Volker Ziemann This is my paper

Pith reviewed 2026-05-15 19:04 UTC · model grok-4.3

classification ⚛️ physics.acc-ph hep-phphysics.app-ph
keywords Halbach multipolesmethod of imagesmagnetic shieldinganalytic expressionsaccelerator magnetsmagnetic field calculationpermanent magnets
0
0 comments X

The pith

Analytic expressions for the magnetic field of shielded Halbach multipoles are derived using the method of images.

A machine-rendered reading of the paper's core claim, the machinery that carries it, and where it could break.

The paper shows how to calculate the exact magnetic field inside a Halbach multipole magnet when it is enclosed by a high-permeability shield. By adapting the method of images, the authors place virtual image magnets outside the shield to account for the boundary condition. This allows closed-form formulas instead of relying on numerical simulations. Such expressions are useful for designing magnets in particle accelerators where precise field control is needed to steer beams accurately. A sympathetic reader would care because analytic solutions speed up design iterations and provide insight into field perturbations caused by the shield.

Core claim

The central claim is that the magnetic field of a Halbach multipole enclosed in a high-permeability shield can be expressed analytically by superposing the field of the real magnets with the field of image magnets placed outside the shield boundary, assuming infinite permeability of the shield material.

What carries the argument

The method of images for high-permeability boundaries, which places image magnets to satisfy the condition that magnetic field lines enter the shield perpendicularly.

Load-bearing premise

The shield material has infinite magnetic permeability so that the boundary condition is perfectly satisfied by image placement with no field penetration or saturation.

What would settle it

A measurement of the magnetic field inside a real shielded Halbach multipole with high but finite permeability, compared to the predicted analytic value, would show discrepancy if the infinite permeability assumption fails.

Figures

Figures reproduced from arXiv: 2602.23104 by Volker Ziemann.

Figure 1
Figure 1. Figure 1: The geometry with the domain Ω containing permanent-magnet mate [PITH_FULL_IMAGE:figures/full_fig_p002_1.png] view at source ↗
Figure 2
Figure 2. Figure 2: Dipole images of a plane a cylindrical surface. [PITH_FULL_IMAGE:figures/full_fig_p003_2.png] view at source ↗
Figure 3
Figure 3. Figure 3: The image dipole at z4 is constructed by first rotating the original dipole Br from z to the imaginary axis at z2, followed by scaling its magnitude with (R/r) 2 , complex conjugating it, and moving it to z3. Finally the dipole is rotated back and arrives at z4. See the text for further explanations. Finding the image thus requires scaling with (R/z∗ ) 2 and taking the complex conjugate of the original dip… view at source ↗
Figure 4
Figure 4. Figure 4: The original dipoles are visualized by the arrows on the inner dotted [PITH_FULL_IMAGE:figures/full_fig_p005_4.png] view at source ↗
Figure 5
Figure 5. Figure 5: Two segments of a segmented multipole that extends radially from [PITH_FULL_IMAGE:figures/full_fig_p007_5.png] view at source ↗
Figure 6
Figure 6. Figure 6: Segmented dipole (left) and a dipole made of permanent-magnet cubes [PITH_FULL_IMAGE:figures/full_fig_p008_6.png] view at source ↗
Figure 7
Figure 7. Figure 7: Geometry with variables used to calculate the fields of a permanent [PITH_FULL_IMAGE:figures/full_fig_p010_7.png] view at source ↗
read the original abstract

We employ the method of images to derive analytic expressions for the magnetic field of Halbach multipoles that are enclosed in high-permeability shielding.

Editorial analysis

A structured set of objections, weighed in public.

Desk editor's note, referee report, simulated authors' rebuttal, and a circularity audit. Tearing a paper down is the easy half of reading it; the pith above is the substance, this is the friction.

Referee Report

0 major / 2 minor

Summary. The manuscript derives closed-form analytic expressions for the interior magnetic field of Halbach multipoles enclosed in a high-permeability cylindrical shield by applying the method of images to the standard Halbach cylinder geometry, yielding parameter-free solutions under the idealization of infinite magnetic permeability.

Significance. If the derivations are correct, the work supplies exact analytic field expressions for shielded Halbach arrays that are directly useful for rapid design, harmonic analysis, and optimization of compact permanent-magnet multipoles in accelerator physics, eliminating the need for numerical field solving in the ideal-shield limit.

minor comments (2)
  1. [Abstract] The abstract and introduction should explicitly list the multipole orders (dipole, quadrupole, etc.) for which explicit expressions are provided, as the method of images may require case-by-case verification of image placement for higher-order terms.
  2. [Introduction] A brief statement on the range of validity (e.g., shield radius relative to Halbach radius and the assumption of no saturation) would help readers assess applicability without altering the central claim.

Simulated Author's Rebuttal

0 responses · 0 unresolved

We thank the referee for the positive review and for recommending acceptance of the manuscript. The referee's summary accurately captures the derivation of closed-form analytic expressions for the interior field of shielded Halbach multipoles using the method of images under the ideal infinite-permeability shield approximation.

Circularity Check

0 steps flagged

No significant circularity

full rationale

The derivation applies the classical method of images (a standard solution technique for Laplace's equation under ideal boundary conditions) to the specific geometry of a Halbach multipole inside an infinite-permeability cylindrical shield. The abstract and reader's summary indicate a direct, parameter-free construction from Maxwell's equations with the single idealization μ→∞; no fitted parameters are renamed as predictions, no self-definitional loops appear, and no load-bearing self-citations reduce the central result to prior author work by construction. The output expressions are therefore independent of the inputs beyond the stated assumptions.

Axiom & Free-Parameter Ledger

0 free parameters · 1 axioms · 0 invented entities

The work rests on standard electromagnetic boundary-value techniques with one domain assumption about the shield.

axioms (1)
  • domain assumption High-permeability shielding permits modeling via the method of images with perfect boundary conditions at the shield surface.
    Invoked to justify image placement; standard for mu to infinity limit.

pith-pipeline@v0.9.0 · 5295 in / 1044 out tokens · 26842 ms · 2026-05-15T19:04:40.776161+00:00 · methodology

discussion (0)

Sign in with ORCID, Apple, or X to comment. Anyone can read and Pith papers without signing in.

Lean theorems connected to this paper

Citations machine-checked in the Pith Canon. Every link opens the source theorem in the public Lean library.

What do these tags mean?
matches
The paper's claim is directly supported by a theorem in the formal canon.
supports
The theorem supports part of the paper's argument, but the paper may add assumptions or extra steps.
extends
The paper goes beyond the formal theorem; the theorem is a base layer rather than the whole result.
uses
The paper appears to rely on the theorem as machinery.
contradicts
The paper's claim conflicts with a theorem or certificate in the canon.
unclear
Pith found a possible connection, but the passage is too broad, indirect, or ambiguous to say the theorem truly supports the claim.

Reference graph

Works this paper leans on

12 extracted references · 12 canonical work pages

  1. [1]

    Volk,Experiences with permanent magnets at the Fermilab recycler ring, Journal of Instrumentation 6 (2011) T08003

    J. Volk,Experiences with permanent magnets at the Fermilab recycler ring, Journal of Instrumentation 6 (2011) T08003

    work page 2011

  2. [2]

    Bartnik, N

    A. Bartnik, N. Banerjee, D. Burke, J. Crittenden, K. Deitrick, J. Dobbins, et al.,CBETA: First Multipass Superconducting Linear Accelerator with Energy Recovery,Phys. Rev. Lett. 125, 044803, July 2020

    work page 2020

  3. [3]

    Watanabe, T

    T. Watanabe, T. Taniuchi, S. Takano, T. Aoki, and K. Fukami,Permanent magnet based dipole magnets for next generation light sources,Phys. Rev. Accel. Beams 20 (2017) 072401

    work page 2017

  4. [4]

    Streun,SLS 2.0, The Upgrade of the Swiss Light Source,Proceedings of IPAC 2022, Bangkok, p

    A. Streun,SLS 2.0, The Upgrade of the Swiss Light Source,Proceedings of IPAC 2022, Bangkok, p. 925

    work page 2022

  5. [5]

    Halbach,Design of Permanent Multipole Magnets with Oriented Rare Earth Cobald Magnets,Nucl

    K. Halbach,Design of Permanent Multipole Magnets with Oriented Rare Earth Cobald Magnets,Nucl. Instrum. Methods 169 (1980) 1

    work page 1980

  6. [6]

    OPERA software,https://www.3ds.com/products-services/simulia/ products/opera/

    work page

  7. [7]

    Ellaume, O

    P. Ellaume, O. Chubar, K. Chavanne,Computing 3D magnetic fields from insertion devices,Proceedings of PAC97, p. 3509. 12

    work page

  8. [8]

    Scheer,UNDUMAG - A new computer code to calculate the magnetic properties of undulators,Proceedings of IPAC2017, p

    M. Scheer,UNDUMAG - A new computer code to calculate the magnetic properties of undulators,Proceedings of IPAC2017, p. 3071

    work page

  9. [9]

    Levinson, R

    N. Levinson, R. Redheffer,Complex variables,Holden Day, San Francisco, 1970

    work page 1970

  10. [10]

    Ziemann, Hands-On Accelerator Physics Using MATLAB, CRC Press, Boca Raton, 2019; especially Sections 4.2 and 4.5

    V. Ziemann, Hands-On Accelerator Physics Using MATLAB, CRC Press, Boca Raton, 2019; especially Sections 4.2 and 4.5

    work page 2019

  11. [11]

    Plonesy,Current dipole images and reference potentials,IEEE Transac- tions on bio-medical electronics 10 (1963) 3

    R. Plonesy,Current dipole images and reference potentials,IEEE Transac- tions on bio-medical electronics 10 (1963) 3

    work page 1963

  12. [12]

    Ziemann,Strap-on magnets: a framework for rapid prototyping of mag- nets and beam lines,Instruments 5(4) (2021) 36

    V. Ziemann,Strap-on magnets: a framework for rapid prototyping of mag- nets and beam lines,Instruments 5(4) (2021) 36. 13

    work page 2021
