Extended Ashkin-Teller transition in two coupled frustrated Haldane chains

Authors on Pith no claims yet

Pith reviewed 2026-05-15 18:51 UTC · model grok-4.3

classification ❄️ cond-mat.str-el
keywords Haldane chainsAshkin-Teller transitionquantum phase transitionszig-zag ladderspin-1 systemsplaquette phasefrustrated spinsWess-Zumino-Witten criticality
0
0 comments X

The pith

Two coupled frustrated spin-1 Haldane chains exhibit an extended Ashkin-Teller quantum phase transition separating plaquette and uniform disordered phases.

A machine-rendered reading of the paper's core claim, the machinery that carries it, and where it could break.

The paper constructs the ground-state phase diagram for two spin-1 Haldane chains that include three-site exchange frustration and antiferromagnetic inter-chain coupling arranged as a zig-zag ladder. A central result is the existence of an extended critical line belonging to the Ashkin-Teller universality class that divides a plaquette phase, which spontaneously breaks translation symmetry, from a uniform disordered phase. This line meets the Haldane phase through a topological Gaussian transition. At weaker inter-chain coupling the disordered phase disappears and a dimerized phase appears instead, bounded by a non-magnetic Ising transition on one side and a weak first-order transition on the other. When the chains are fully decoupled the system reduces to two independent copies of Wess-Zumino-Witten SU(2)_2 criticality with total central charge 3.

Core claim

The paper establishes an extended quantum phase transition in the Ashkin-Teller universality class that separates the plaquette phase from the uniform disordered phase. The plaquette phase connects to the Haldane phase via a topological Gaussian transition. Reducing inter-chain interactions eliminates the intermediate disordered phase, leaving a dimerized phase separated from the plaquette phase by a non-magnetic Ising transition and from the Haldane phase by a topological weak first-order transition. In the decoupled limit the criticality consists of two copies of the Wess-Zumino-Witten SU(2)_2 model with total central charge c=3.

What carries the argument

The extended Ashkin-Teller critical line produced by the interplay of three-site frustration and inter-chain Heisenberg coupling on the zig-zag ladder.

Load-bearing premise

Numerical methods correctly locate the phase boundaries and identify the extended critical line without finite-size artifacts or misassignment of order parameters.

What would settle it

Finite-size scaling analysis that shows the critical region shrinks to an isolated point or yields exponents inconsistent with Ashkin-Teller universality would falsify the extended transition.

Figures

Figures reproduced from arXiv: 2602.23187 by Bowy M. La Rivi\`ere, Natalia Chepiga.

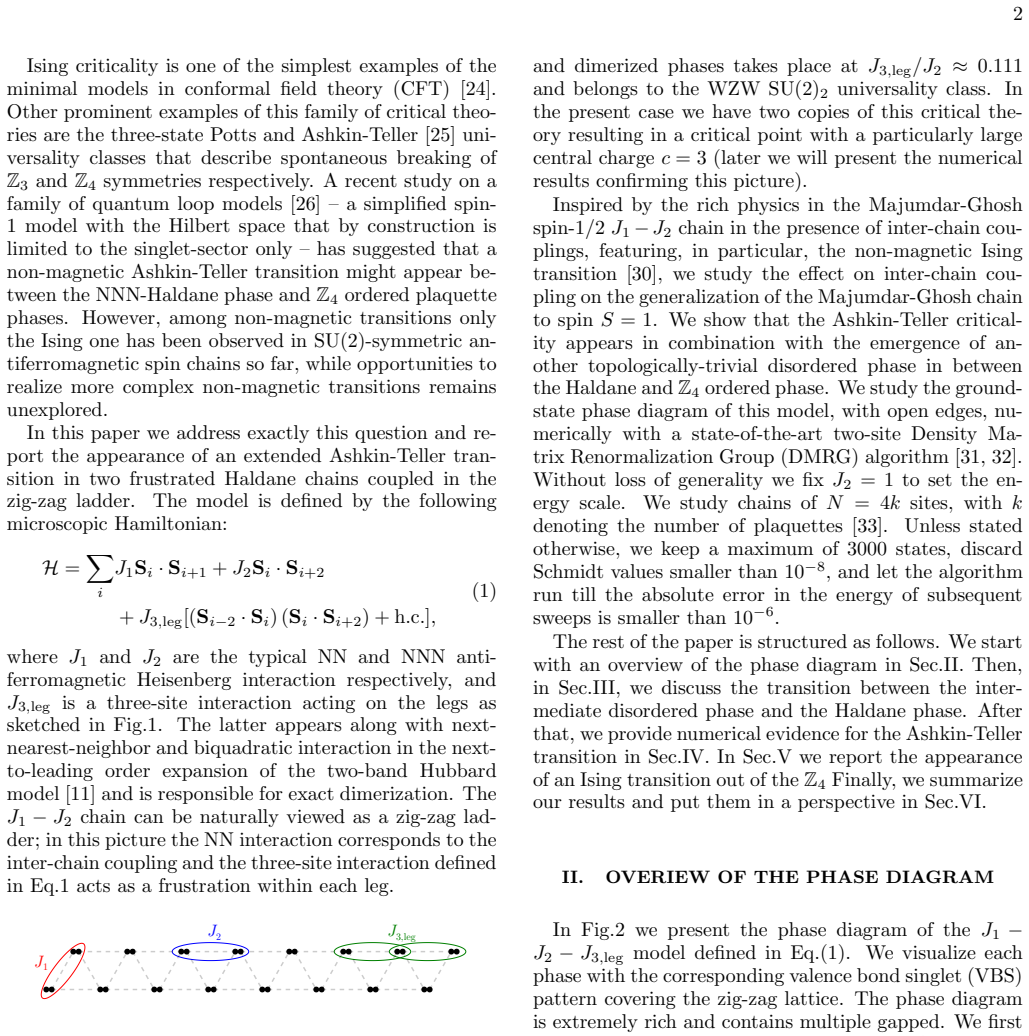

Figure 1
Figure 1. Figure 1: FIG. 1. Sketch of a zig-zag ladder with interaction terms [PITH_FULL_IMAGE:figures/full_fig_p002_1.png] view at source ↗

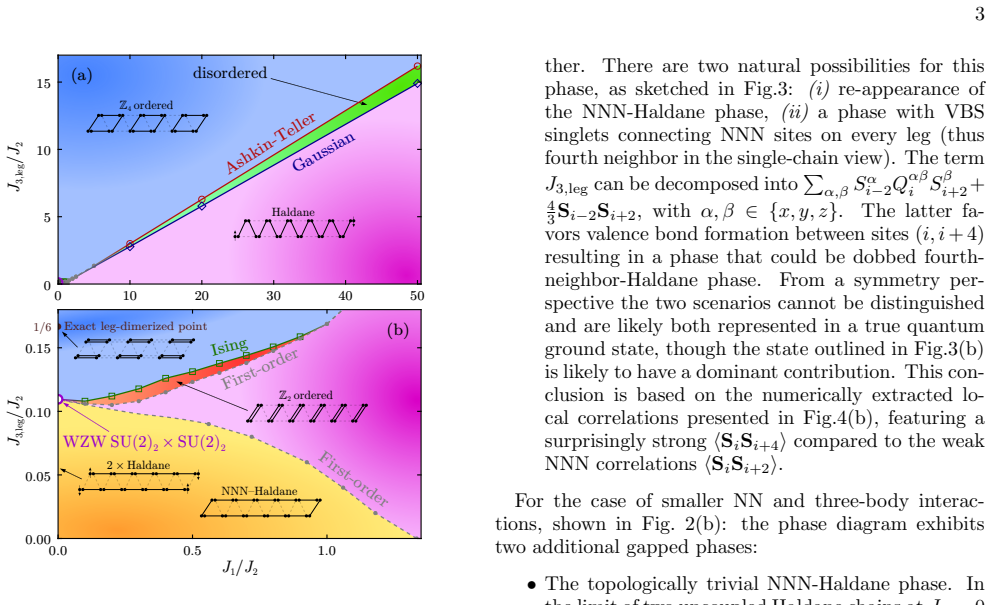

Figure 2
Figure 2. Figure 2: FIG. 2. (a) Phase diagram of the spin-1 [PITH_FULL_IMAGE:figures/full_fig_p003_2.png] view at source ↗

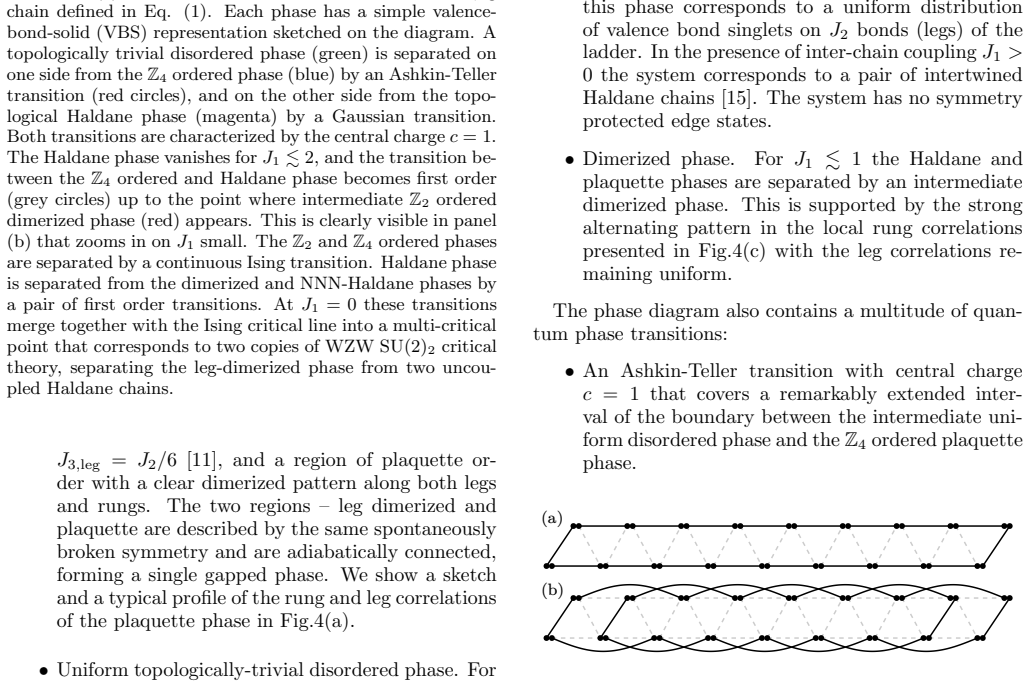

Figure 3
Figure 3. Figure 3: FIG. 3. Illustrative VBS sketches of two possibilities of topo [PITH_FULL_IMAGE:figures/full_fig_p003_3.png] view at source ↗
Figure 4

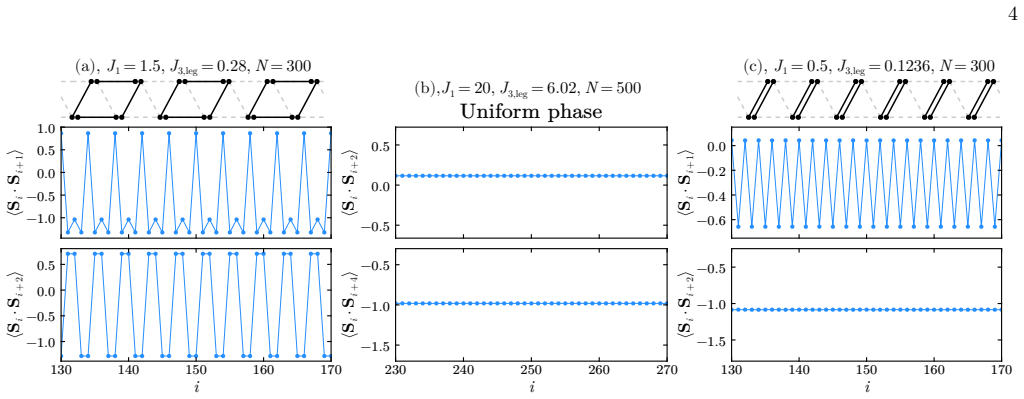

Figure 4. Figure 4: FIG. 4. Typical local correlations for three different phases. We also provide a sketch for the two ordered phases in a VBS [PITH_FULL_IMAGE:figures/full_fig_p004_4.png] view at source ↗

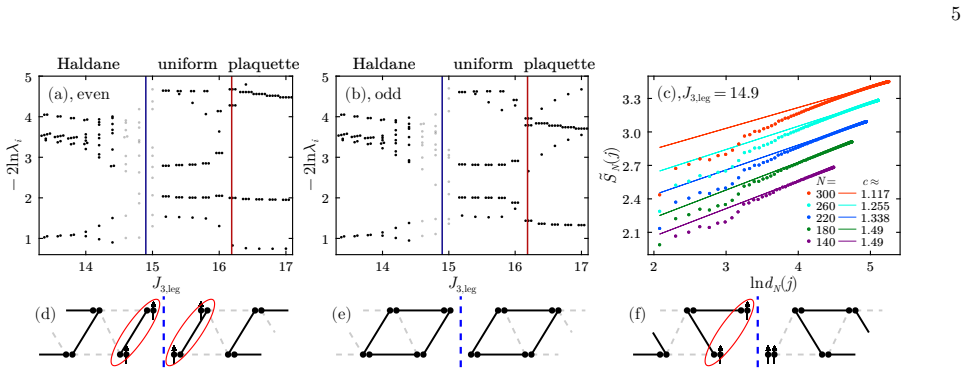

Figure 5
Figure 5. Figure 5: FIG. 5. Evidence for a Gaussian transition between the topological Haldane phase and the topologically trivial uniform phase. [PITH_FULL_IMAGE:figures/full_fig_p005_5.png] view at source ↗
Figure 6

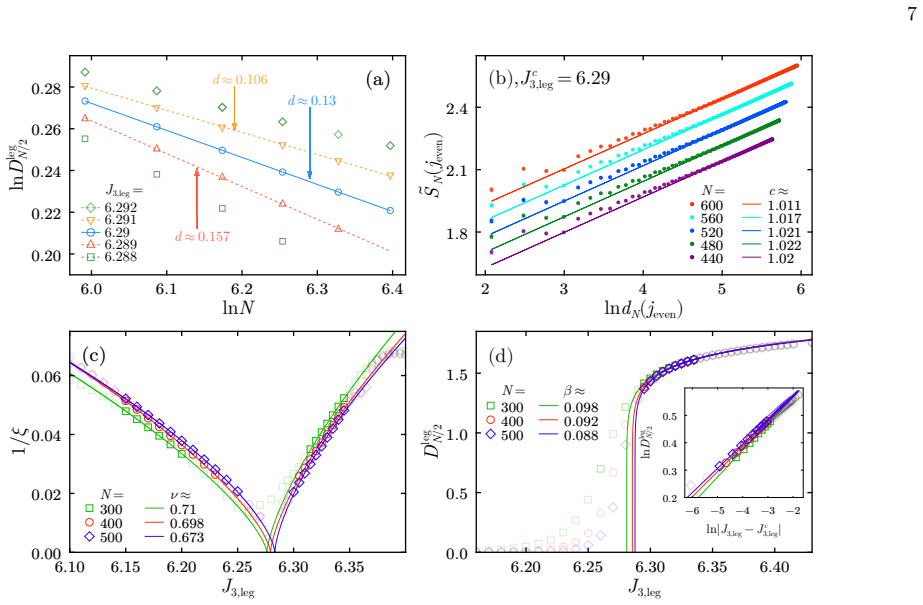

Figure 6. Figure 6: FIG. 6. Numerical evidence for an Ashkin-Teller transition between the uniform phase and the [PITH_FULL_IMAGE:figures/full_fig_p007_6.png] view at source ↗
Figure 7

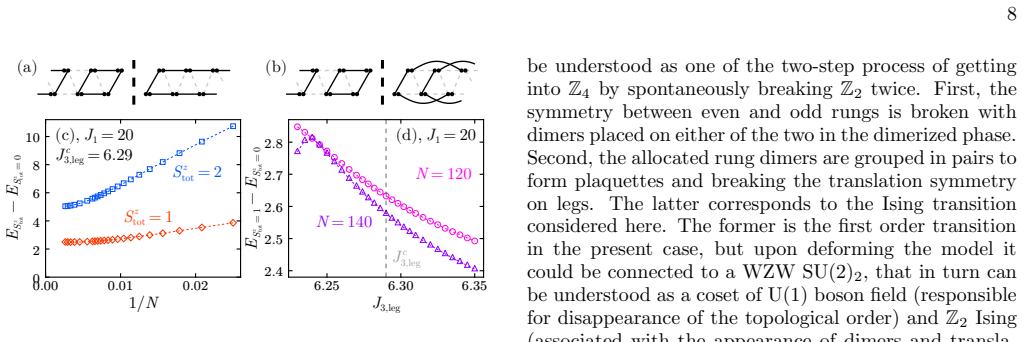

Figure 7. Figure 7: FIG. 7. Proof of the non-magnetic nature of the Ashkin [PITH_FULL_IMAGE:figures/full_fig_p008_7.png] view at source ↗

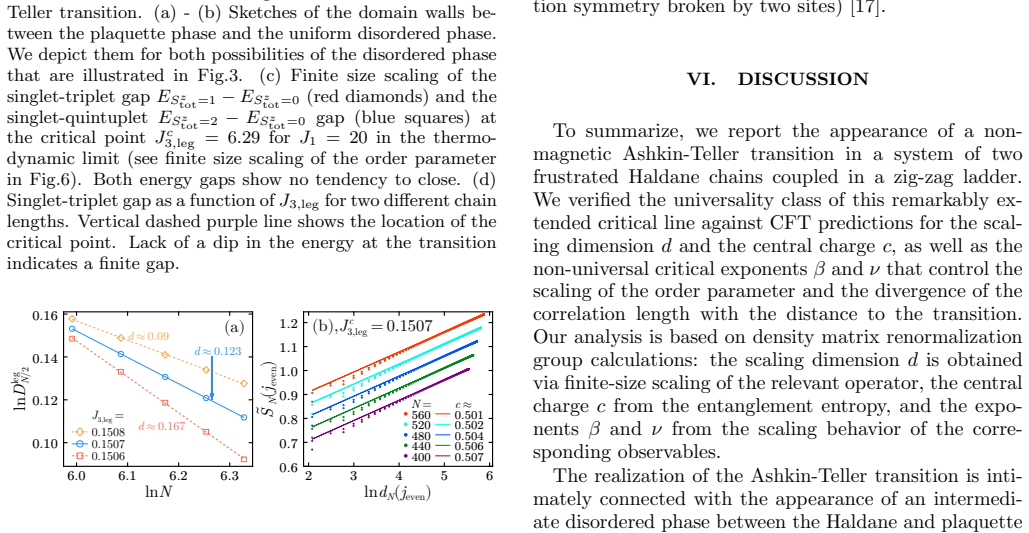

Figure 8
Figure 8. Figure 8: FIG. 8. Numerical data for an Ising transition between [PITH_FULL_IMAGE:figures/full_fig_p008_8.png] view at source ↗
Figure 10

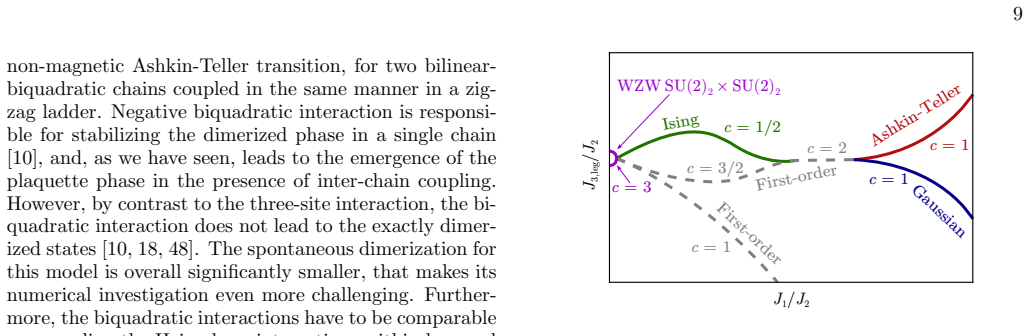

Figure 10. Figure 10: FIG. 10. Schematic of the phase diagram shown in Fig.2 [PITH_FULL_IMAGE:figures/full_fig_p009_10.png] view at source ↗

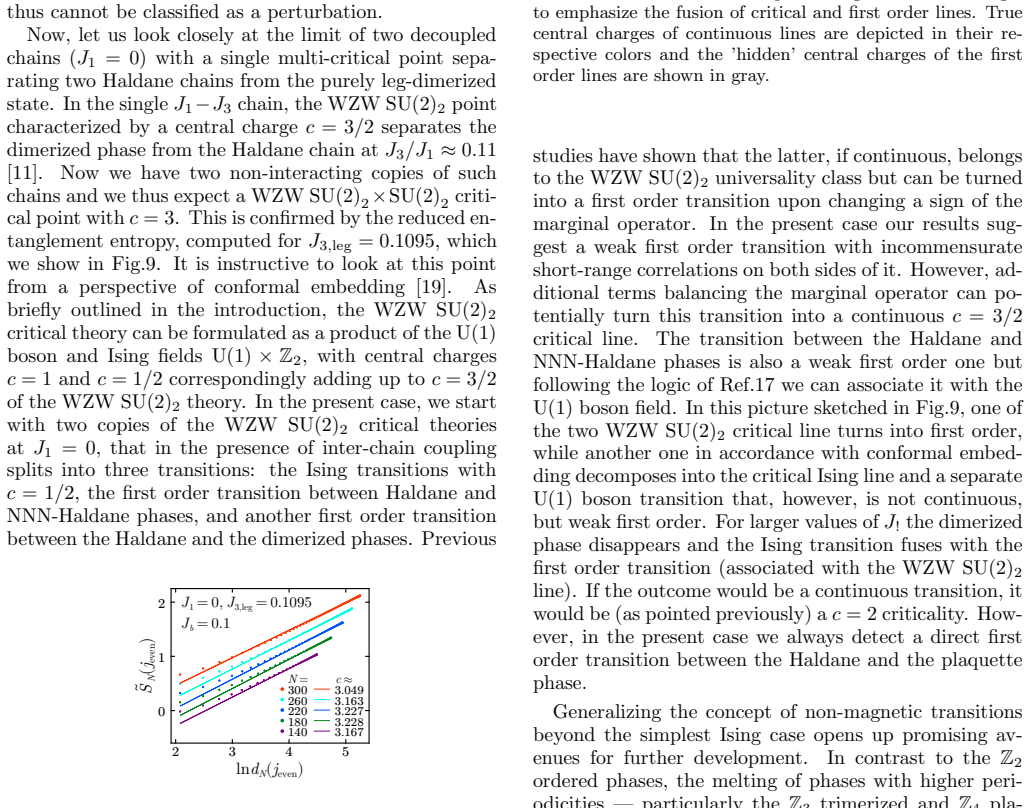

Figure 9
Figure 9. Figure 9: FIG. 9. Proof for a WZW SU(2) [PITH_FULL_IMAGE:figures/full_fig_p009_9.png] view at source ↗
Figure 12

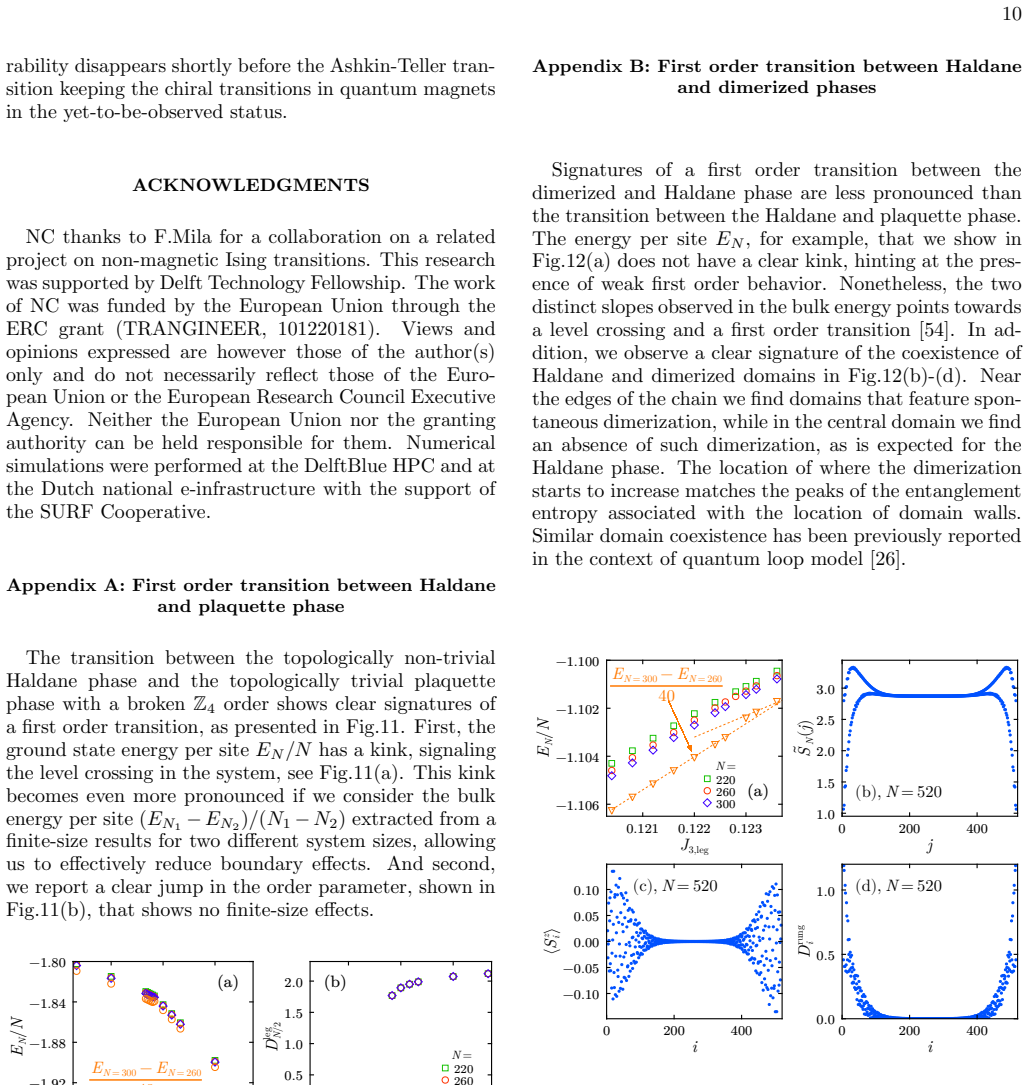

Figure 12. Figure 12: FIG. 12. Data supporting a first order transition between the [PITH_FULL_IMAGE:figures/full_fig_p010_12.png] view at source ↗
Figure 15
Figure 15. Figure 15: FIG. 15. Leg-leg correlation function, defined in Eq.(5), [PITH_FULL_IMAGE:figures/full_fig_p011_15.png] view at source ↗
Figure 14

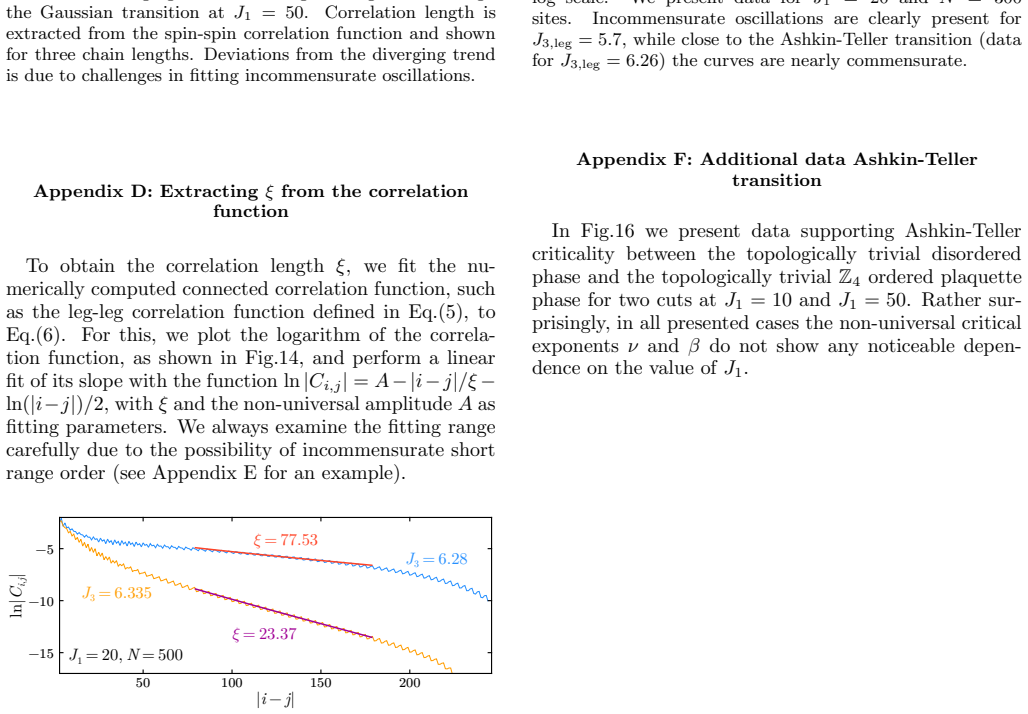

Figure 14. Figure 14: FIG. 14. Example of fitting the correlation function [PITH_FULL_IMAGE:figures/full_fig_p011_14.png] view at source ↗
Figure 16

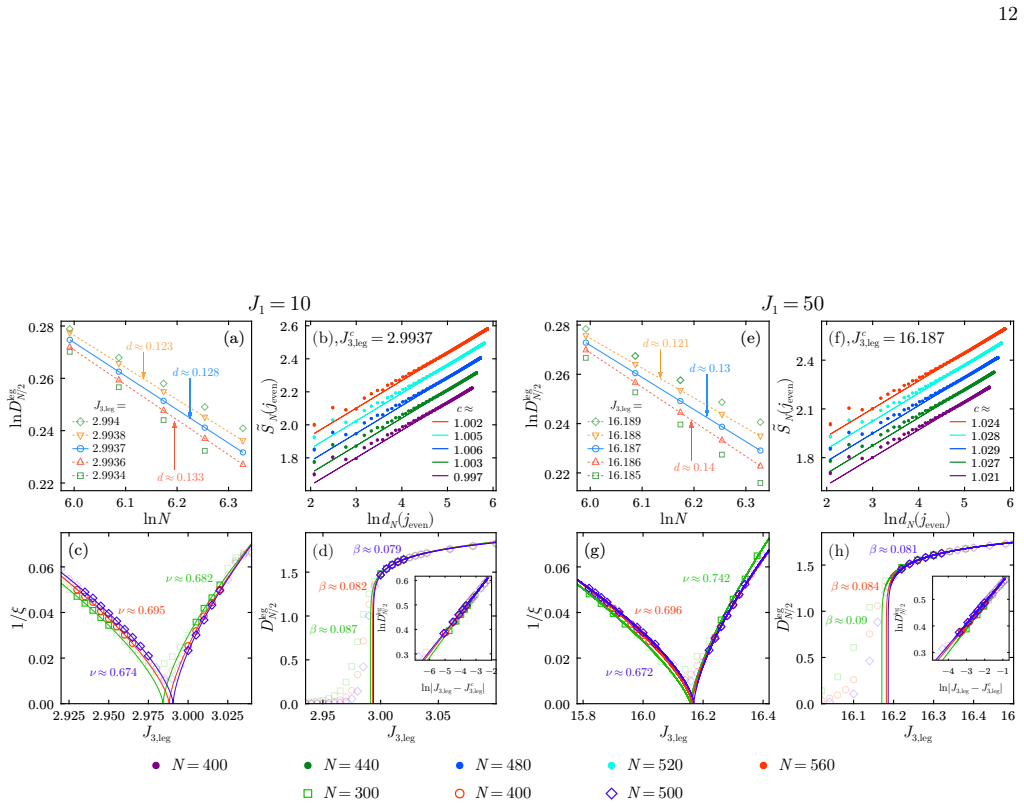

Figure 16. Figure 16: FIG. 16. Additional data for the Ashkin-Teller transition line between the topological trivial disordered and [PITH_FULL_IMAGE:figures/full_fig_p012_16.png] view at source ↗
read the original abstract

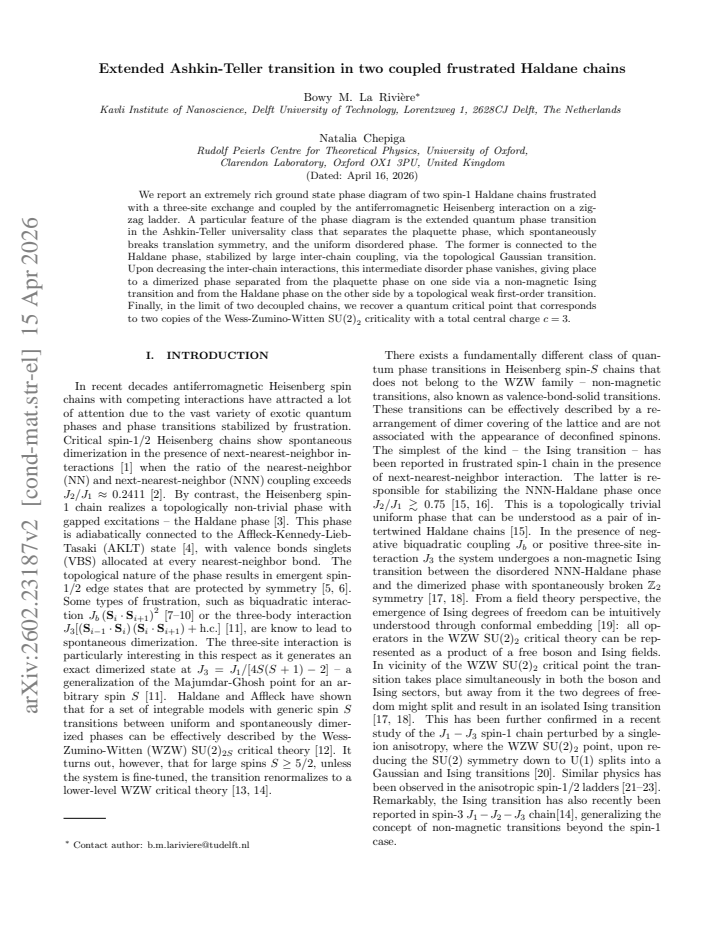

We report an extremely rich ground state phase diagram of two spin-1 Haldane chains frustrated with a three-site exchange and coupled by the antiferromagnetic Heisenberg interaction on a zig-zag ladder. A particular feature of the phase diagram is the extended quantum phase transition in the Ashkin-Teller universality class that separates the plaquette phase, which spontaneously breaks translation symmetry, and the uniform disordered phase. The former is connected to the Haldane phase, stabilized by large inter-chain coupling, via the topological Gaussian transition. Upon decreasing the inter-chain interactions, this intermediate disorder phase vanishes, giving place to a dimerized phase separated from the plaquette phase on one side via a non-magnetic Ising transition and from the Haldane phase on the other side by a topological weak first-order transition. Finally, in the limit of two decoupled chains, we recover a quantum critical point that corresponds to two copies of the Wess-Zumino-Witten $\mathrm{SU(2)}_2$ criticality with a total central charge $c=3$.

Editorial analysis

A structured set of objections, weighed in public.

Desk editor's note, referee report, simulated authors' rebuttal, and a circularity audit. Tearing a paper down is the easy half of reading it; the pith above is the substance, this is the friction.

Referee Report

2 major / 2 minor

Summary. The manuscript maps the ground-state phase diagram of two spin-1 Haldane chains with three-site frustration coupled by antiferromagnetic Heisenberg exchange on a zig-zag ladder. It identifies an extended quantum critical line belonging to the Ashkin-Teller universality class that separates a translation-symmetry-breaking plaquette phase from a uniform disordered phase; this line terminates at a topological Gaussian transition into the Haldane phase at strong inter-chain coupling. Additional transitions include a non-magnetic Ising line, a weak first-order transition, and recovery of two decoupled SU(2)_2 WZW points (c=3) at zero inter-chain coupling.

Significance. If the central claim of an extended, continuously tunable Ashkin-Teller line is substantiated by explicit extraction of varying scaling dimensions, the result would furnish a concrete lattice realization of a marginal operator driving continuously varying exponents in a frustrated spin ladder, with direct relevance to the classification of c=1 critical lines in one-dimensional quantum magnets.

major comments (2)
  1. [§4.2] §4.2 and Fig. 7: the manuscript asserts an extended Ashkin-Teller line on the basis of gap closing and entanglement scaling at several discrete values of the inter-chain coupling, but does not extract or plot the scaling dimensions of the energy and polarization operators across a continuous interval; without this, the distinction from a generic Gaussian c=1 line and the continuous variation required by the Ashkin-Teller class remain unverified.
  2. [§3.1] §3.1 and Table I: finite-size extrapolations of the plaquette order parameter and singlet gap are shown for L up to 64, yet no systematic analysis of the drift of the apparent critical point with system size or of the correlation-length exponent is provided; this leaves open the possibility that the reported extent of the critical line is affected by finite-size artifacts.
minor comments (2)
  1. [Eq. (2)] The definition of the three-site exchange term in Eq. (2) should be accompanied by an explicit statement of the sign convention used for the frustration parameter.
  2. [Fig. 4] Figure 4 caption does not specify the bond dimension or truncation error threshold employed in the DMRG runs.

Simulated Author's Rebuttal

2 responses · 0 unresolved

We thank the referee for the careful reading and constructive comments on our manuscript. We address the major points below and will revise the manuscript to provide stronger evidence for the extended Ashkin-Teller line.

read point-by-point responses
  1. Referee: [§4.2] §4.2 and Fig. 7: the manuscript asserts an extended Ashkin-Teller line on the basis of gap closing and entanglement scaling at several discrete values of the inter-chain coupling, but does not extract or plot the scaling dimensions of the energy and polarization operators across a continuous interval; without this, the distinction from a generic Gaussian c=1 line and the continuous variation required by the Ashkin-Teller class remain unverified.

    Authors: We agree that explicit demonstration of continuously varying scaling dimensions would more convincingly establish the Ashkin-Teller class and rule out a generic Gaussian line. While the original manuscript presented data at representative discrete points, we have carried out additional DMRG calculations to extract the scaling dimensions of the energy and polarization operators over a denser set of inter-chain couplings. The revised manuscript will include a new figure showing these dimensions as a function of the coupling, confirming the continuous tuning expected for the Ashkin-Teller universality class. revision: yes

  2. Referee: [§3.1] §3.1 and Table I: finite-size extrapolations of the plaquette order parameter and singlet gap are shown for L up to 64, yet no systematic analysis of the drift of the apparent critical point with system size or of the correlation-length exponent is provided; this leaves open the possibility that the reported extent of the critical line is affected by finite-size artifacts.

    Authors: We acknowledge that a more systematic finite-size scaling study would help rule out artifacts in the reported extent of the critical line. In the revision we will add an analysis of the drift of the apparent critical points with system size and perform data-collapse fits to extract the correlation-length exponent ν, using the available system sizes up to L=64 and discussing the robustness of the extrapolations. revision: yes

Circularity Check

0 steps flagged

Numerical phase diagram mapping is self-contained with no circular reductions

full rationale

The paper reports DMRG-based identification of phases and transitions in the zig-zag ladder model, including an extended Ashkin-Teller line inferred from gap closing, entanglement scaling, and central charge measurements. No analytical derivation chain exists that reduces a claimed prediction to a fitted parameter or self-citation; the universality assignment follows directly from computed observables rather than any self-referential definition or ansatz smuggled via prior work. The central claim therefore rests on independent numerical evidence and does not collapse by construction to its inputs.

Axiom & Free-Parameter Ledger

0 free parameters · 1 axioms · 0 invented entities

The work assumes standard quantum spin-1 operators, the Heisenberg Hamiltonian form, and that numerical ground-state searches converge to the true thermodynamic phases.

axioms (1)
  • domain assumption The chosen Hamiltonian accurately captures the low-energy physics of the physical system.
    Standard modeling assumption in condensed-matter theory.
