arxiv: 2602.24255 · v2 · submitted 2026-02-27 · 🌌 astro-ph.GA · astro-ph.HE

Recognition: 2 theorem links

· Lean Theorem

Direct VLBI Detection of Interstellar Turbulence Imprint on a Quasar: TXS 2005+403

Alexander Plavin (Harvard) , Alexander Pushkarev (CrAO) , Yuri Kovalev (MPIfR)
Authors on Pith no claims yet

Pith reviewed 2026-05-15 18:38 UTC · model grok-4.3

classification 🌌 astro-ph.GA astro-ph.HE
keywords VLBIinterstellar turbulencerefractive substructurequasar scatteringactive galactic nucleiCygnus regionradio interferometry
0
0 comments X

The pith

Ground-based VLBI detects refractive substructure from interstellar turbulence on quasar TXS 2005+403.

A machine-rendered reading of the paper's core claim, the machinery that carries it, and where it could break.

This paper reports the first unambiguous detection of refractive substructure in an active galactic nucleus using ground-based very long baseline interferometry. The analysis of TXS 2005+403 at 1-5 GHz through the Cygnus region shows excess signal on long baselines that diffractive scattering alone cannot explain. This signal remains consistent across observations from 2010 to 2019, pointing to stable interstellar turbulence properties along this line of sight. The quasar becomes a valuable probe for Galactic plasma, extending beyond pulsar studies to other sky directions and aiding scattering corrections for images like that of Sagittarius A*.

Core claim

The authors detect clear signatures of turbulence-induced substructure on long VLBI baselines in TXS 2005+403 that persist over multiple years and cannot be accounted for by the smooth scatter-broadened profile expected from diffractive effects alone.

What carries the argument

Refractive substructure induced by interstellar turbulence, manifesting as excess visibility on baselines longer than the diffractive scattering scale.

If this is right

  • AGNs can act as cosmic lighthouses to study interstellar turbulence in various Galactic directions.
  • The scattering properties along the line of sight to TXS 2005+403 are stable over at least nine years.
  • This source provides a new laboratory for probing Galactic interstellar plasma with high flux density and compact structure.
  • Such detections inform mitigation strategies for scattering effects in millimeter-wavelength imaging of compact sources.

Where Pith is reading between the lines

These are editorial extensions of the paper, not claims the author makes directly.

  • Similar observations could be conducted on other bright compact AGNs to map turbulence variations across the sky.
  • Multi-frequency analysis might separate intrinsic source effects from scattering more precisely in future studies.
  • This approach complements pulsar scintillation by accessing lines of sight without pulsars.

Load-bearing premise

The excess signal observed on long baselines is caused by refractive substructure from interstellar turbulence and not by unresolved intrinsic structure in the quasar or by measurement errors.

What would settle it

Finding that the long-baseline excess signal varies with frequency or time in a manner consistent only with intrinsic quasar variability rather than scattering would falsify the turbulence interpretation.

Figures

Figures reproduced from arXiv: 2602.24255 by Alexander Plavin (Harvard), Alexander Pushkarev (CrAO), Yuri Kovalev (MPIfR).

Figure 1

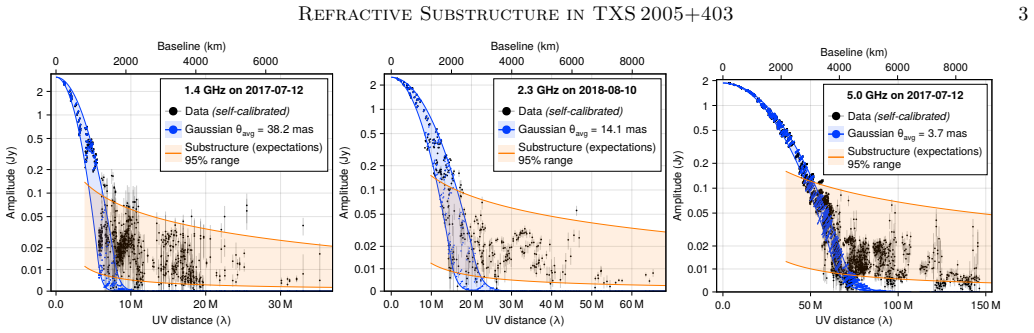

Figure 1. Figure 1: Visibility amplitude versus projected baseline length or uv-distance. Experiments with the best sensitivity and coverage are shown in each frequency band, left to right: 1.4, 2.3, 5 GHz. Data (black dots with 1σ error bars) are self-calibrated to per-IF elliptical Gaussian models (blue dots). The blue shaded band shows the average Gaussian model within each band. The predicted refractive substructure signa… view at source ↗
Figure 2

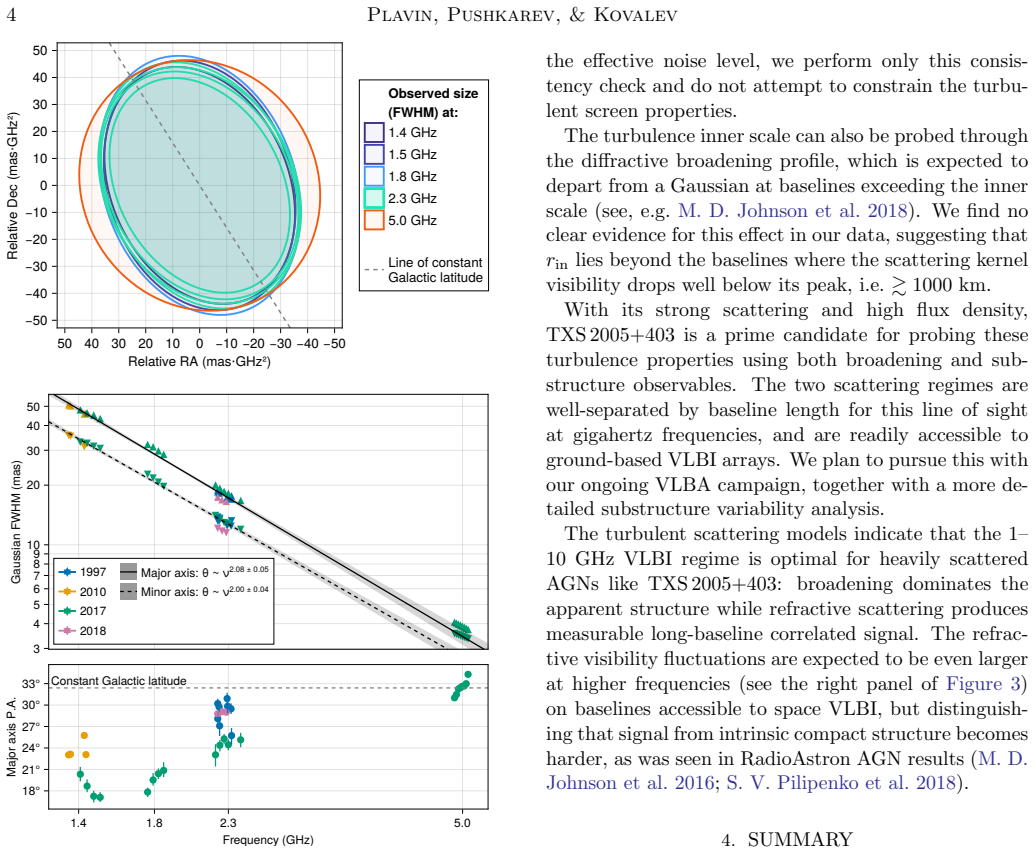

Figure 2. Figure 2: Elliptical Gaussian fits to VLBA observations at 1–5 GHz. Top: Gaussian contours at the half-maximum level (FWHM) in RA–Dec space; each ellipse represents a single observation, with sizes normalized by ν 2 for direct comparison across fre￾quencies. Middle and bottom: Frequency dependence of Gaussian ma￾jor and minor axes (middle) and position angle (bottom); each point represents a single IF with 2σ uncert… view at source ↗
Figure 3

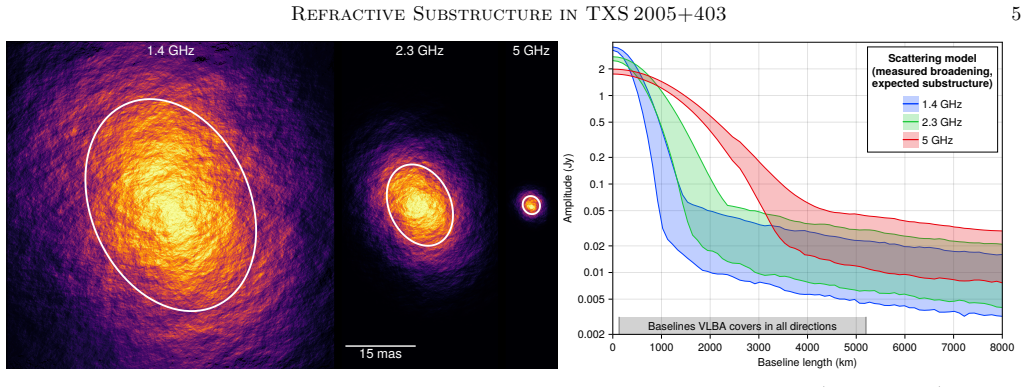

Figure 3. Figure 3: Simulated scattering of TXS 2005+403 using parameters consistent with our observations (subsection 3.3). Left: a single realization of the scattered image at 1.8, 2.3, and 5 GHz, showing both the large-scale Gaussian broadening and fine-scale refractive substructure from turbulent density fluctuations in the scattering screen. White ellipses mark the measured FWHM sizes from elliptical Gaussian fits ( [PI… view at source ↗
Figure 4

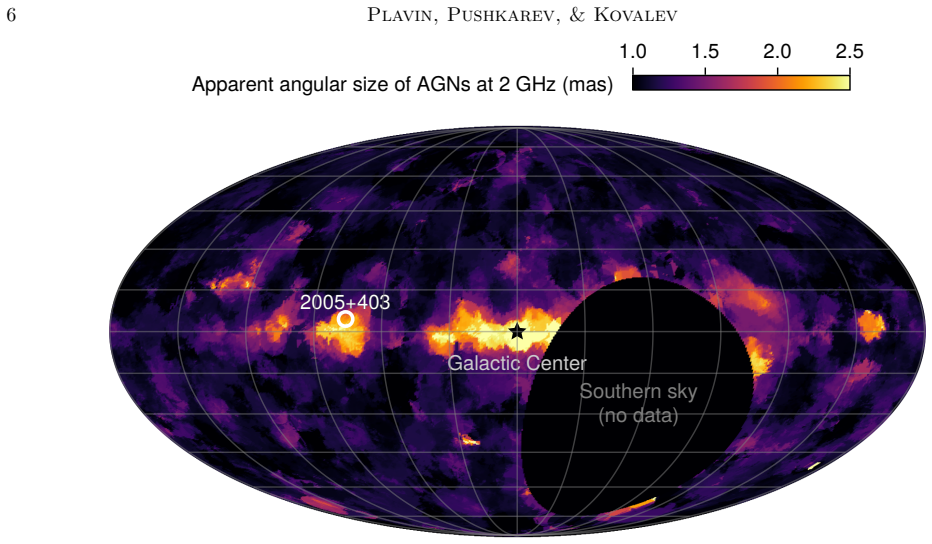

Figure 4. Figure 4: All-sky map of the apparent size of 3698 AGNs measured with VLBI at 2 GHz, as a proxy for interstellar scattering strength, following T. A. Koryukova et al. (2022). The position of TXS 2005+403 is highlighted, located behind the Cygnus region — one of the strongest scattering environments in the Galaxy. (https://github.com/JuliaAPlavin/VLBIData.jl), Ac￾cessibleModels.jl (https://github.com/JuliaAPlavin/ Ac… view at source ↗
Figure 6

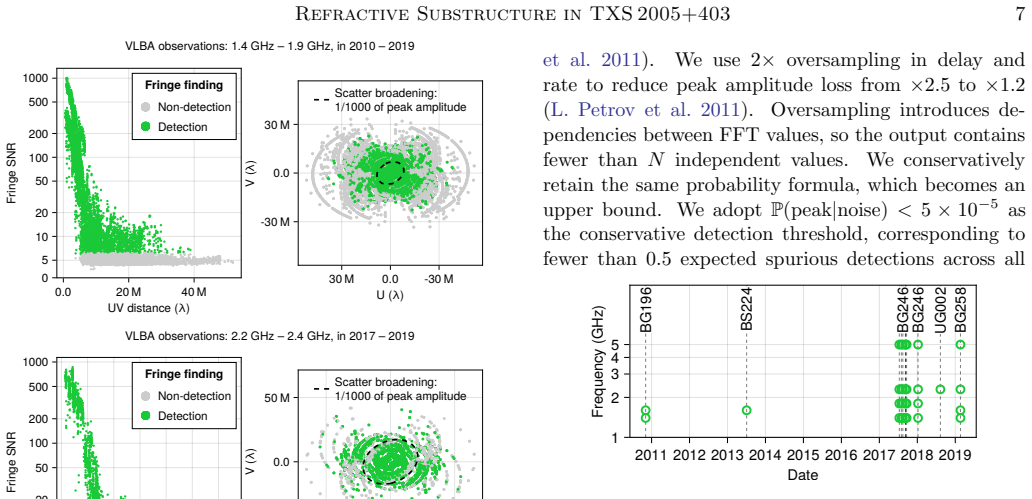

Figure 6. Figure 6: Times and frequencies of all VLBA observations of TXS 2005+403 with detected long-baseline signal, span￾ning about a decade. observations. We first search each IF individually, then concatenate the raw data from IFs adjacent in frequency and repeat the fringe search over their total bandwidth to increase sensitivity. The resulting detections are sum￾marized in [PITH_FULL_IMAGE:figures/full_fig_p007_6.png] view at source ↗
Figure 5

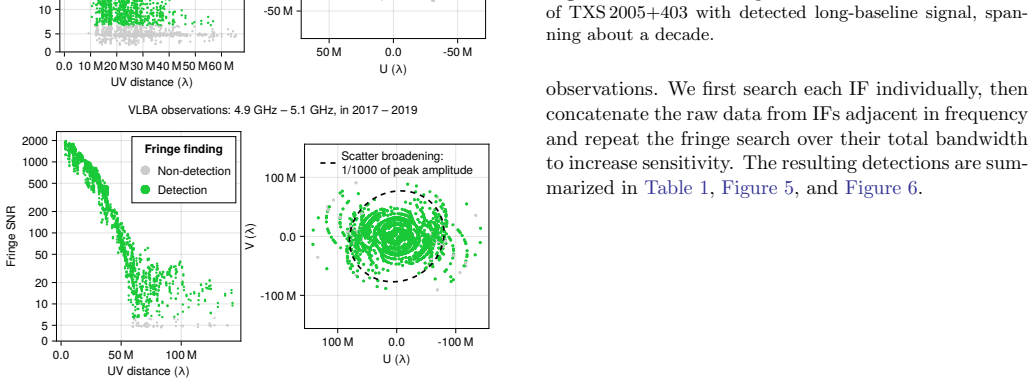

Figure 5. Figure 5: Long-baseline detections in VLBA observations of TXS 2005+403 over 2010–2019. Individual panels show de￾tections at 1, 2, and 5 GHz when adjacent IFs are combined, displaying their SNR and uv-plane locations. Elliptical con￾tours in the uv plane mark where the diffractive-broadening Gaussian reaches 1/1000 of its peak — a conservative bound￾ary beyond which no signal is expected from pure scatter broadenin… view at source ↗
read the original abstract

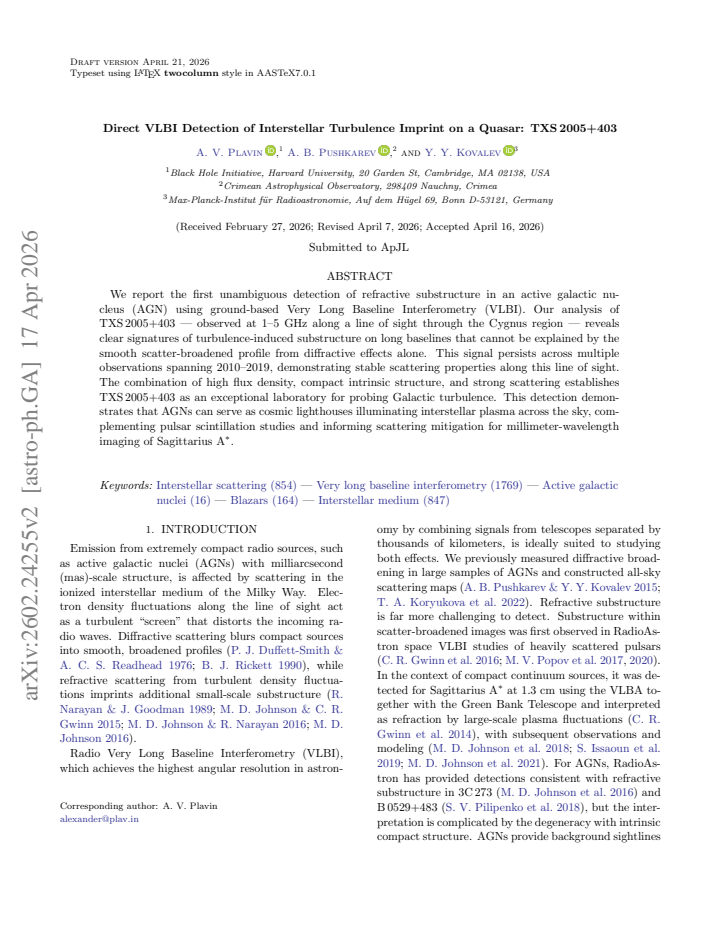

We report the first unambiguous detection of refractive substructure in an active galactic nucleus (AGN) using ground-based Very Long Baseline Interferometry (VLBI). Our analysis of TXS 2005+403 - observed at 1-5 GHz along a line of sight through the Cygnus region - reveals clear signatures of turbulence-induced substructure on long baselines that cannot be explained by the smooth scatter-broadened profile from diffractive effects alone. This signal persists across multiple observations spanning 2010-2019, demonstrating stable scattering properties along this line of sight. The combination of high flux density, compact intrinsic structure, and strong scattering establishes TXS 2005+403 as an exceptional laboratory for probing Galactic turbulence. This detection demonstrates that AGNs can serve as cosmic lighthouses illuminating interstellar plasma across the sky, complementing pulsar scintillation studies and informing scattering mitigation for millimeter-wavelength imaging of Sagittarius A*.

Editorial analysis

A structured set of objections, weighed in public.

Desk editor's note, referee report, simulated authors' rebuttal, and a circularity audit. Tearing a paper down is the easy half of reading it; the pith above is the substance, this is the friction.

Referee Report

1 major / 0 minor

Summary. The manuscript claims the first unambiguous detection of refractive substructure in an AGN using ground-based VLBI. Analysis of TXS 2005+403 at 1-5 GHz along a line of sight through the Cygnus region shows turbulence-induced signatures on long baselines that cannot be explained by the smooth scatter-broadened profile from diffractive effects alone. The signal persists across observations from 2010-2019, establishing stable scattering properties and positioning the source as a laboratory for Galactic turbulence studies, complementing pulsar scintillation work and informing scattering mitigation for mm-wave imaging of Sgr A*.

Significance. If substantiated, the result would be significant for interstellar medium studies, as it demonstrates AGNs can act as cosmic lighthouses for probing turbulence via VLBI, extending beyond pulsar-based methods and providing practical benefits for high-resolution imaging.

major comments (1)
  1. Abstract: The central claim of an unambiguous detection rests on an unshown comparison of observed visibilities against a diffractive-only model. No visibility data, baseline coverage, error bars, or statistical model fits are presented, preventing verification of whether the excess long-baseline signal exceeds diffractive expectations.

Simulated Author's Rebuttal

1 responses · 0 unresolved

We thank the referee for their careful review and constructive feedback on our manuscript. We address the major comment below and will revise the manuscript to improve clarity and verifiability of the results.

read point-by-point responses

  1. Referee: Abstract: The central claim of an unambiguous detection rests on an unshown comparison of observed visibilities against a diffractive-only model. No visibility data, baseline coverage, error bars, or statistical model fits are presented, preventing verification of whether the excess long-baseline signal exceeds diffractive expectations.

    Authors: We agree that the abstract, as a concise summary, does not include the supporting data or model comparisons. The full manuscript presents the VLBI visibility amplitudes on long baselines, baseline coverage, error bars, and direct comparisons to the diffractive scattering model (including residuals and statistical significance of the excess signal). To address the concern directly and allow straightforward verification, we will add an explicit figure and accompanying text in the revised manuscript showing the observed visibilities versus the diffractive-only model prediction, with quantitative fits, error bars, and baseline information highlighted. This revision will make the evidence for refractive substructure unambiguous and readily verifiable. revision: yes

Circularity Check

0 steps flagged

No significant circularity detected from available text

full rationale

Only the abstract is provided, which states the detection of refractive substructure via VLBI observations of TXS 2005+403 but contains no equations, fitted parameters, derivation steps, or self-citations. No load-bearing claim reduces to its own inputs by construction, as there are no modeling details, predictions from fits, or uniqueness theorems invoked. The central claim rests on observational excess signal on long baselines, which cannot be examined for circularity without the full paper's data analysis. Per rules, absence of quotable reductions means score 0 with empty steps.

Axiom & Free-Parameter Ledger

0 free parameters · 0 axioms · 0 invented entities

Abstract-only document supplies no explicit free parameters, axioms, or invented entities; the claim implicitly assumes that long-baseline excess is purely refractive and that the intrinsic source structure is known and compact.

pith-pipeline@v0.9.0 · 5450 in / 1116 out tokens · 18996 ms · 2026-05-15T18:38:42.158745+00:00 · methodology

discussion (0)

Sign in with ORCID, Apple, or X to comment. Anyone can read and Pith papers without signing in.

Lean theorems connected to this paper

Citations machine-checked in the Pith Canon. Every link opens the source theorem in the public Lean library.

  • IndisputableMonolith/Cost/FunctionalEquation.lean washburn_uniqueness_aczel unclear
    ?
    unclear

    Relation between the paper passage and the cited Recognition theorem.

    We compare the M. D. Johnson & C. R. Gwinn (2015) model to the observed long-baseline amplitudes... computing expected visibility amplitude variations from a power-law turbulence scale spectrum with α=5/3 and an inner scale rin=1000 km.

What do these tags mean?
matches
The paper's claim is directly supported by a theorem in the formal canon.
supports
The theorem supports part of the paper's argument, but the paper may add assumptions or extra steps.
extends
The paper goes beyond the formal theorem; the theorem is a base layer rather than the whole result.
uses
The paper appears to rely on the theorem as machinery.
contradicts
The paper's claim conflicts with a theorem or certificate in the canon.
unclear
Pith found a possible connection, but the passage is too broad, indirect, or ambiguous to say the theorem truly supports the claim.
