arxiv: 2603.05965 · v2 · submitted 2026-03-06 · 💻 cs.RO · cs.CV

PROBE: Probabilistic Occupancy BEV Encoding with Analytical Translation Robustness for 3D Place Recognition

Jinseop Lee , Byoungho Lee , Gichul Yoo This is my paper

Pith reviewed 2026-05-15 15:45 UTC · model grok-4.3

classification 💻 cs.RO cs.CV
keywords LiDAR place recognitionBEV descriptorprobabilistic occupancytranslation robustnesshandcrafted descriptorBernoulli random variable3D localizationanalytical marginalization
0
0 comments X

The pith

PROBE encodes LiDAR bird's-eye-view grids as Bernoulli occupancy variables and marginalizes continuous translations analytically to achieve translation-robust place recognition without learning.

A machine-rendered reading of the paper's core claim, the machinery that carries it, and where it could break.

PROBE presents a learning-free descriptor for LiDAR-based 3D place recognition. It models each bird's-eye-view cell's occupancy as a Bernoulli random variable and derives an analytical expression for translation uncertainty using the polar Jacobian, which produces a distance-dependent angular uncertainty of sigma_theta equals sigma_t over r. The method runs in linear time relative to the grid dimensions and uses a single parameter, sigma_t in meters, that represents expected translational uncertainty as a physical quantity independent of specific sensors. Pairwise similarity is computed via a Bernoulli-KL Jaccard index with uncertainty gating plus FFT-based height matching for rotation. On four datasets with different LiDAR types, it records the highest accuracy among handcrafted descriptors for multi-session evaluation while remaining competitive with both handcrafted and supervised methods on single-session tasks.

Core claim

By treating BEV occupancy as Bernoulli random variables and analytically marginalizing over continuous Cartesian translations through the polar Jacobian, PROBE produces a distance-adaptive angular uncertainty sigma_theta equals sigma_t over r that yields a translation-robust descriptor computable in O(R S) time, with the single parameter sigma_t serving as a sensor-independent physical quantity that improves cross-sensor generalization and reduces dataset-specific tuning.

What carries the argument

Probabilistic occupancy BEV encoding that analytically marginalizes translations via the polar Jacobian to obtain sigma_theta equals sigma_t over r

If this is right

  • Highest accuracy among handcrafted descriptors on multi-session place recognition across four LiDAR types
  • Competitive single-session performance relative to both handcrafted and supervised baselines
  • O(R S) runtime from closed-form marginalization instead of discrete sampling
  • Reduced per-dataset tuning because sigma_t is treated as a sensor-independent physical quantity
  • Rotation alignment via FFT height cosine similarity combined with Bernoulli-KL Jaccard and uncertainty gating

Where Pith is reading between the lines

These are editorial extensions of the paper, not claims the author makes directly.

  • The Bernoulli model could be extended to handle partial occlusions or moving objects by adding a time-dependent occupancy prior
  • Analytical translation robustness may lower the data-augmentation burden when training learned descriptors on the same grids
  • Cross-sensor generalization from a meter-based parameter suggests the descriptor could serve as a drop-in module for fusion with camera or radar place recognition pipelines

Load-bearing premise

A single fixed value of sigma_t in meters captures the dominant translational uncertainty across different LiDAR sensors and environments without needing per-dataset adjustment.

What would settle it

On a held-out multi-session dataset collected with a new LiDAR type and larger typical translation errors, PROBE accuracy falls below the best competing handcrafted descriptor when sigma_t is held at the value tuned on prior datasets.

Figures

Figures reproduced from arXiv: 2603.05965 by Byoungho Lee, Gichul Yoo, Jinseop Lee.

Figure 1
Figure 1. Figure 1: PROBE encodes a LiDAR point cloud (top-left) [PITH_FULL_IMAGE:figures/full_fig_p001_1.png] view at source ↗
Figure 2
Figure 2. Figure 2: PROBE pipeline. (I) Descriptor generation: a BEV polar grid G is built with max-height encoding and occupancy mask O. Analytical marginalization via the polar Jacobian produces per-cell Bernoulli occupancy (µ, σ). A rotation-invariant ring-mean key k ∈ R 2R is formed for KD-tree pre-filtering. (II) Pairwise scoring: FFT-based rotation alignment on the max￾height grids yields δ ∗ ; the query is circularly s… view at source ↗
Figure 3
Figure 3. Figure 3: Translation robustness: similarity under increasing [PITH_FULL_IMAGE:figures/full_fig_p003_3.png] view at source ↗
Figure 4
Figure 4. Figure 4: Discriminative capability of the JKL mechanism. (Left) The metric C is misled by a False Positive with a similar height profile, but the KL cost map reveals high divergence, and the fused PROBE metric correctly rejects it. (Right) The True Positive yields a low-error cost map and is correctly retrieved. Since the azimuthal mean over all sectors in a ring is invari￾ant to circular shifts, PROBE concatenates… view at source ↗
Figure 5
Figure 5. Figure 5: Single-session Precision-Recall curves (one represen [PITH_FULL_IMAGE:figures/full_fig_p006_5.png] view at source ↗
Figure 7
Figure 7. Figure 7: Sensitivity of σt across four LiDAR sensor types. The AUC remains stable between 1.5–3.0 m, confirming σt=2.0 m as a robust default. HeLiPR. LiDAR-Iris achieves the highest scores on specific sequences. PROBE, however, demonstrates the most consis￾tent robustness, ranking second across all three pairs despite substantial spatiotemporal structural changes. NCLT. Despite not being trained on NCLT, the learne… view at source ↗
Figure 6
Figure 6. Figure 6: Multi-session Precision-Recall curves (two representa [PITH_FULL_IMAGE:figures/full_fig_p007_6.png] view at source ↗
Figure 8

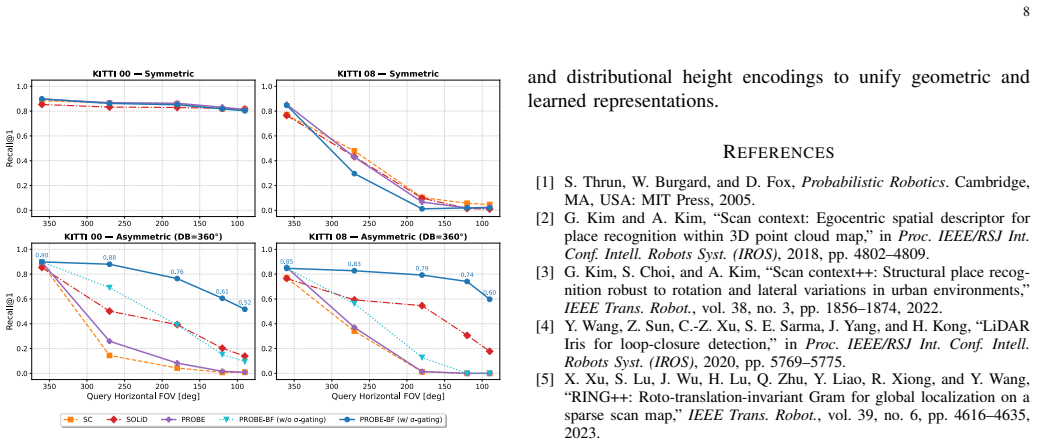

Figure 8. Figure 8: Place recognition performance under restricted FOVs. [PITH_FULL_IMAGE:figures/full_fig_p008_8.png] view at source ↗
read the original abstract

We present PROBE (PRobabilistic Occupancy BEV Encoding), a learning-free LiDAR place recognition descriptor that models each BEV cell's occupancy as a Bernoulli random variable. Rather than relying on discrete point-cloud perturbations, PROBE analytically marginalizes over continuous Cartesian translations via the polar Jacobian, yielding a distance-adaptive angular uncertainty $\sigma_\theta = \sigma_t / r$ in $\mathcal{O}(R{\cdot}S)$ time. The primary parameter $\sigma_t$ represents the expected translational uncertainty in meters, a sensor-independent physical quantity that enhances cross-sensor generalization while reducing the need for extensive per-dataset tuning. Pairwise similarity combines a Bernoulli-KL Jaccard with exponential uncertainty gating and FFT-based height cosine similarity for rotation alignment. Evaluated on four datasets spanning four diverse LiDAR types, PROBE achieves the highest accuracy among handcrafted descriptors in multi-session evaluation and competitive single-session performance relative to both handcrafted and supervised baselines. The source code and supplementary materials are available at https://sites.google.com/view/probe-pr.

Editorial analysis

A structured set of objections, weighed in public.

Desk editor's note, referee report, simulated authors' rebuttal, and a circularity audit. Tearing a paper down is the easy half of reading it; the pith above is the substance, this is the friction.

Referee Report

0 major / 3 minor

Summary. The manuscript introduces PROBE, a learning-free LiDAR place recognition descriptor that models BEV cell occupancy as Bernoulli random variables. It analytically marginalizes continuous Cartesian translations via the polar Jacobian to produce a distance-dependent angular uncertainty σ_θ = σ_t / r in O(R·S) time. Pairwise similarity is formed from a Bernoulli-KL Jaccard term, exponential uncertainty gating, and FFT-based height cosine similarity. Experiments across four datasets with distinct LiDAR sensors report that PROBE attains the highest accuracy among handcrafted descriptors in multi-session evaluation and competitive performance against both handcrafted and supervised baselines in single-session settings.

Significance. If the analytical marginalization and single-parameter generalization claims hold, the work provides a meaningful contribution to handcrafted 3D place recognition by delivering a computationally efficient, physically motivated descriptor that reduces dataset-specific tuning and supports cross-sensor deployment. The explicit release of source code and supplementary materials strengthens reproducibility and enables direct comparison with learning-based alternatives.

minor comments (3)
  1. [§5] The experimental section should explicitly state the single value (or narrow range) chosen for σ_t across all four LiDAR datasets and report whether any per-dataset adjustment was performed; this directly supports the sensor-independence claim.
  2. [§5.2] Table 2 (or equivalent multi-session results table) would benefit from reporting the number of query-database pairs and the exact recall@1 / recall@5 metrics with standard deviation across sessions to allow assessment of statistical robustness.
  3. [§3.3] The complexity analysis states O(R·S) but does not clarify how the FFT-based rotation alignment scales with the number of discrete angles; a brief note on the angular discretization step would improve clarity.

Simulated Author's Rebuttal

0 responses · 0 unresolved

We thank the referee for their positive assessment of PROBE and for recommending minor revision. The summary correctly captures the core technical contributions of analytical marginalization via the polar Jacobian and the single-parameter generalization via σ_t. We provide responses below to the points raised.

Circularity Check

0 steps flagged

Derivation is self-contained; no circular reductions identified

full rationale

The paper defines a handcrafted descriptor by modeling BEV cell occupancy as independent Bernoulli random variables, then analytically marginalizes continuous Cartesian translations using the polar Jacobian to obtain distance-dependent angular uncertainty σ_θ = σ_t / r. This step is a direct mathematical transformation with O(R·S) complexity and does not depend on fitting parameters to the place-recognition accuracy metrics or on self-referential definitions. The composite similarity (Bernoulli-KL Jaccard, uncertainty gating, FFT height cosine) is assembled from these quantities without invoking self-citations, uniqueness theorems, or prior author results that would force the form. σ_t is introduced as a fixed sensor-independent physical constant; no equation or procedure in the text reduces the reported performance to a data-driven fit of σ_t itself. The construction therefore remains independent of the evaluation outcomes it produces.

Axiom & Free-Parameter Ledger

1 free parameters · 2 axioms · 0 invented entities

The central claim rests on probabilistic occupancy modeling and the analytical marginalization step; these are the primary additions beyond standard BEV encoding.

free parameters (1)
  • sigma_t
    Expected translational uncertainty in meters, presented as the primary tunable physical quantity for cross-sensor use.
axioms (2)
  • domain assumption Occupancy of each BEV cell is modeled as a Bernoulli random variable.
    Core modeling assumption enabling probabilistic encoding.
  • standard math Continuous Cartesian translations can be analytically marginalized using the polar Jacobian to yield distance-adaptive angular uncertainty.
    Mathematical technique invoked for O(R·S) computation of uncertainty.

pith-pipeline@v0.9.0 · 5490 in / 1302 out tokens · 52464 ms · 2026-05-15T15:45:54.957894+00:00 · methodology

discussion (0)

Sign in with ORCID, Apple, or X to comment. Anyone can read and Pith papers without signing in.

Lean theorems connected to this paper

Citations machine-checked in the Pith Canon. Every link opens the source theorem in the public Lean library.

What do these tags mean?
matches
The paper's claim is directly supported by a theorem in the formal canon.
supports
The theorem supports part of the paper's argument, but the paper may add assumptions or extra steps.
extends
The paper goes beyond the formal theorem; the theorem is a base layer rather than the whole result.
uses
The paper appears to rely on the theorem as machinery.
contradicts
The paper's claim conflicts with a theorem or certificate in the canon.
unclear
Pith found a possible connection, but the passage is too broad, indirect, or ambiguous to say the theorem truly supports the claim.

Reference graph

Works this paper leans on

21 extracted references · 21 canonical work pages

  1. [1]

    Thrun, W

    S. Thrun, W. Burgard, and D. Fox,Probabilistic Robotics. Cambridge, MA, USA: MIT Press, 2005

    work page 2005

  2. [2]

    Scan context: Egocentric spatial descriptor for place recognition within 3D point cloud map,

    G. Kim and A. Kim, “Scan context: Egocentric spatial descriptor for place recognition within 3D point cloud map,” inProc. IEEE/RSJ Int. Conf. Intell. Robots Syst. (IROS), 2018, pp. 4802–4809

    work page 2018

  3. [3]

    Scan context++: Structural place recog- nition robust to rotation and lateral variations in urban environments,

    G. Kim, S. Choi, and A. Kim, “Scan context++: Structural place recog- nition robust to rotation and lateral variations in urban environments,” IEEE Trans. Robot., vol. 38, no. 3, pp. 1856–1874, 2022

    work page 2022

  4. [4]

    LiDAR Iris for loop-closure detection,

    Y . Wang, Z. Sun, C.-Z. Xu, S. E. Sarma, J. Yang, and H. Kong, “LiDAR Iris for loop-closure detection,” inProc. IEEE/RSJ Int. Conf. Intell. Robots Syst. (IROS), 2020, pp. 5769–5775

    work page 2020

  5. [5]

    RING++: Roto-translation-invariant Gram for global localization on a sparse scan map,

    X. Xu, S. Lu, J. Wu, H. Lu, Q. Zhu, Y . Liao, R. Xiong, and Y . Wang, “RING++: Roto-translation-invariant Gram for global localization on a sparse scan map,”IEEE Trans. Robot., vol. 39, no. 6, pp. 4616–4635, 2023

    work page 2023

  6. [6]

    Narrowing your FOV with SOLiD: Spatially organized and lightweight global descriptor for FOV-constrained LiDAR place recognition,

    H. Kim, J. Choi, T. Sim, G. Kim, and Y . Cho, “Narrowing your FOV with SOLiD: Spatially organized and lightweight global descriptor for FOV-constrained LiDAR place recognition,”IEEE Robot. Autom. Lett., vol. 9, no. 11, pp. 9645–9652, 2024

    work page 2024

  7. [7]

    PointNetVLAD: Deep point cloud based retrieval for large-scale place recognition,

    M. A. Uy and G. H. Lee, “PointNetVLAD: Deep point cloud based retrieval for large-scale place recognition,” inProc. IEEE Conf. Comput. Vis. Pattern Recognit. (CVPR), 2018, pp. 4470–4479

    work page 2018

  8. [8]

    OverlapNet: Loop closing for LiDAR-based SLAM,

    X. Chen, T. L ¨abe, A. Milioto, T. R¨ohling, and C. Stachniss, “OverlapNet: Loop closing for LiDAR-based SLAM,” inProc. Robot.: Sci. Syst. (RSS), 2020

    work page 2020

  9. [9]

    OverlapTransformer: An efficient and yaw-angle-invariant transformer network for LiDAR- based place recognition,

    J. Ma, J. Zhang, J. Xu, R. Ai, W. Gu, and X. Chen, “OverlapTransformer: An efficient and yaw-angle-invariant transformer network for LiDAR- based place recognition,”IEEE Robot. Autom. Lett., vol. 7, no. 3, pp. 6958–6965, 2022

    work page 2022

  10. [10]

    MinkLoc3D: Point cloud based large-scale place recognition,

    J. Komorowski, “MinkLoc3D: Point cloud based large-scale place recognition,” inProc. IEEE Winter Conf. Appl. Comput. Vis. (WACV), 2021, pp. 1789–1798

    work page 2021

  11. [11]

    BTC: A binary and triangle combined descriptor for 3-D place recognition,

    C. Yuan, J. Lin, Z. Liu, H. Wei, X. Hong, and F. Zhang, “BTC: A binary and triangle combined descriptor for 3-D place recognition,”IEEE Trans. Robot., vol. 40, pp. 1580–1599, 2024

    work page 2024

  12. [12]

    STD: Stable triangle descriptor for 3D place recognition,

    C. Yuan, J. Lin, Z. Zuo, X. Hong, and F. Zhang, “STD: Stable triangle descriptor for 3D place recognition,” inProc. IEEE Int. Conf. Robot. Autom. (ICRA), 2023, pp. 1897–1903

    work page 2023

  13. [13]

    M2DP: A novel 3D point cloud descriptor and its application in loop closure detection,

    L. He, X. Wang, and H. Zhang, “M2DP: A novel 3D point cloud descriptor and its application in loop closure detection,” inProc. IEEE/RSJ Int. Conf. Intell. Robots Syst. (IROS), Daejeon, Korea, 2016, pp. 231–237

    work page 2016

  14. [14]

    LoGG3D-Net: Locally guided global descriptor learning for 3D place recognition,

    K. Vidanapathirana, M. Ramezani, P. Moghadam, S. Sridharan, and C. Fookes, “LoGG3D-Net: Locally guided global descriptor learning for 3D place recognition,” inProc. IEEE Int. Conf. Robot. Autom. (ICRA), 2022, pp. 2215–2221

    work page 2022

  15. [15]

    BEV- Place++: Fast, Robust, and Lightweight LiDAR Global Localization for Autonomous Ground Vehicles,

    L. Luo, S.-Y . Cao, X. Li, J. Xu, R. Ai, Z. Yu, and X. Chen, “BEV- Place++: Fast, Robust, and Lightweight LiDAR Global Localization for Autonomous Ground Vehicles,”IEEE Trans. Robot., vol. 41, pp. 4479– 4498, 2025

    work page 2025

  16. [16]

    LiDAR-based place recognition for autonomous driving: A survey,

    Y . Zhang, P. Shi, and J. Li, “LiDAR-based place recognition for autonomous driving: A survey,”ACM Computing Surveys, vol. 57, no. 4, Art. 106, Dec. 2024

    work page 2024

  17. [17]

    C. M. Bishop,Pattern Recognition and Machine Learning. New York: Springer, 2006

    work page 2006

  18. [18]

    Are we ready for autonomous driving? The KITTI vision benchmark suite,

    A. Geiger, P. Lenz, and R. Urtasun, “Are we ready for autonomous driving? The KITTI vision benchmark suite,” inProc. IEEE Conf. Comput. Vis. Pattern Recognit. (CVPR), 2012, pp. 3354–3361

    work page 2012

  19. [19]

    HeLiPR: Heterogeneous LiDAR dataset for inter-LiDAR place recognition under spatiotemporal variations,

    M. Jung, W. Yang, D. Lee, H. Gil, G. Kim, and A. Kim, “HeLiPR: Heterogeneous LiDAR dataset for inter-LiDAR place recognition under spatiotemporal variations,”Int. J. Robot. Res., vol. 43, no. 12, pp. 1867– 1883, 2024

    work page 2024

  20. [20]

    University of Michigan North Campus long-term vision and lidar dataset,

    N. Carlevaris-Bianco, A. K. Ushani, and R. M. Eustice, “University of Michigan North Campus long-term vision and lidar dataset,”Int. J. Robot. Res., vol. 35, no. 9, pp. 1023–1035, 2016

    work page 2016

  21. [21]

    Complex urban dataset with multi-level sensors from highly diverse urban environ- ments,

    J. Jeong, Y . Cho, Y .-S. Shin, H. Roh, and A. Kim, “Complex urban dataset with multi-level sensors from highly diverse urban environ- ments,”Int. J. Robot. Res., vol. 38, no. 6, pp. 642–657, 2019

    work page 2019
