arxiv: 2603.06011 · v2 · submitted 2026-03-06 · ❄️ cond-mat.mtrl-sci

Recognition: 2 theorem links

· Lean Theorem

Spectra-Scope : A toolkit for automated and interpretable characterization of material properties from spectral data

Authors on Pith no claims yet

Pith reviewed 2026-05-15 15:33 UTC · model grok-4.3

classification ❄️ cond-mat.mtrl-sci
keywords spectroscopymachine learningAutoMLinterpretabilitymaterial characterizationspectral datafeature extractionnonlinear transformations
0
0 comments X

The pith

Spectra-Scope automates interpretable machine learning models from spectral data to characterize material properties.

A machine-rendered reading of the paper's core claim, the machinery that carries it, and where it could break.

Spectroscopy yields information on material structure, composition, and dynamics, yet nonlinear correlations between signals and target properties often hinder the creation of reliable supervised models. Spectra-Scope supplies an open-source AutoML framework that performs data preprocessing, nonlinear feature extraction, model training, and automated feature downselection to produce simple, interpretable models. The toolkit runs in Python or through a no-code web application and requires only modest computational resources. It matches the predictive performance of comparable literature models on materials and agricultural spectroscopy datasets. Its emphasis on interpretability lets users explain individual model outputs and link spectral features to underlying physical processes.

Core claim

Spectra-Scope is an AutoML toolkit that applies nonlinear feature transformations followed by automated downselection to train simple, interpretable machine learning models on spectroscopy data. This pipeline reproduces the accuracy of comparable models in the literature while enabling rationalization of model behavior and direct connection of selected features to physical processes in materials and agricultural samples.

What carries the argument

Nonlinear feature extraction combined with automated feature downselection inside an interpretable ML training loop that supports rapid model development with modest resources.

If this is right

  • Users can train multiple interpretable models on a set of feature transformations quickly without specialized hardware.
  • Interpretability tools allow rationalization of why individual models succeed or fail on particular spectra.
  • Physical origins of spectral features become accessible through the downselected model explanations.
  • The same workflow applies equally to materials characterization and agricultural spectroscopy tasks.

Where Pith is reading between the lines

These are editorial extensions of the paper, not claims the author makes directly.

  • Domain scientists without deep machine-learning expertise could apply the toolkit directly to new spectral instruments.
  • The interpretability focus may reduce reliance on black-box models in experimental workflows where physical insight is required.
  • Integration with streaming or in-situ spectroscopy setups could enable near-real-time property tracking.
  • The nonlinear transformation library might be reused as a modular component in other AutoML pipelines for scientific data.

Load-bearing premise

The chosen nonlinear feature transformations and automated downselection will reliably produce models that stay accurate and genuinely interpretable across varied spectral datasets without discarding essential physical information or creating spurious correlations.

What would settle it

A spectral dataset on which Spectra-Scope reaches literature-comparable accuracy yet the downselected features show no correspondence to known physical spectral signatures or produce interpretability explanations that contradict established material physics.

Figures

Figures reproduced from arXiv: 2603.06011 by Amalya C. Johnson, Chris Fajardo, Leena Sansguiri, Steven B. Torrisi, Weike Ye.

Figure 1
Figure 1. Figure 1: Outline of this paper and the Spectra-Scope pipeline. (a) Input data can come from any experimental or simulated 1-D array data source for inference on a scalar response variable. (b) Available featurizations of spectral data include the cumulative distribution function, Gaussian peak fitting, principal component analysis, polynomial peak fitting, and others as outlined in the methods. (c) Transformed spec… view at source ↗
Figure 2

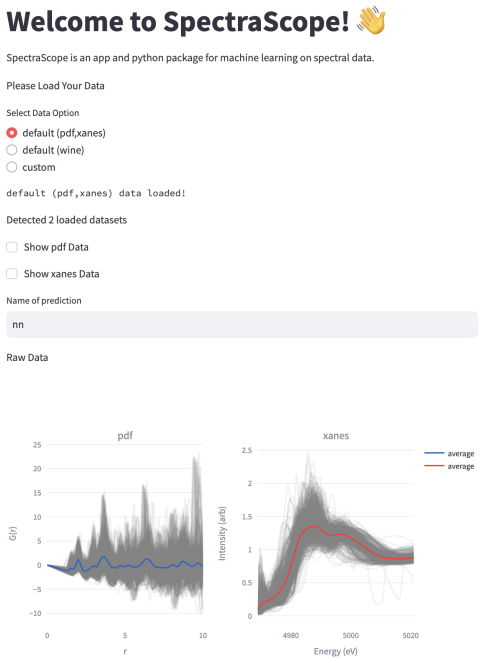

Figure 2. Figure 2: Front page of Spectra-Scope application. Multiple data types can be input and visualized on the home page. The app includes abilities to featurize data, visualize featurizations, train models using random forests or LCEN, and visualize the important or downselected features by the model. Application Spectra-Scope is available as a no-code web-based application at spectrascope.matr.io (See [PITH_FULL_IMAGE… view at source ↗
Figure 3

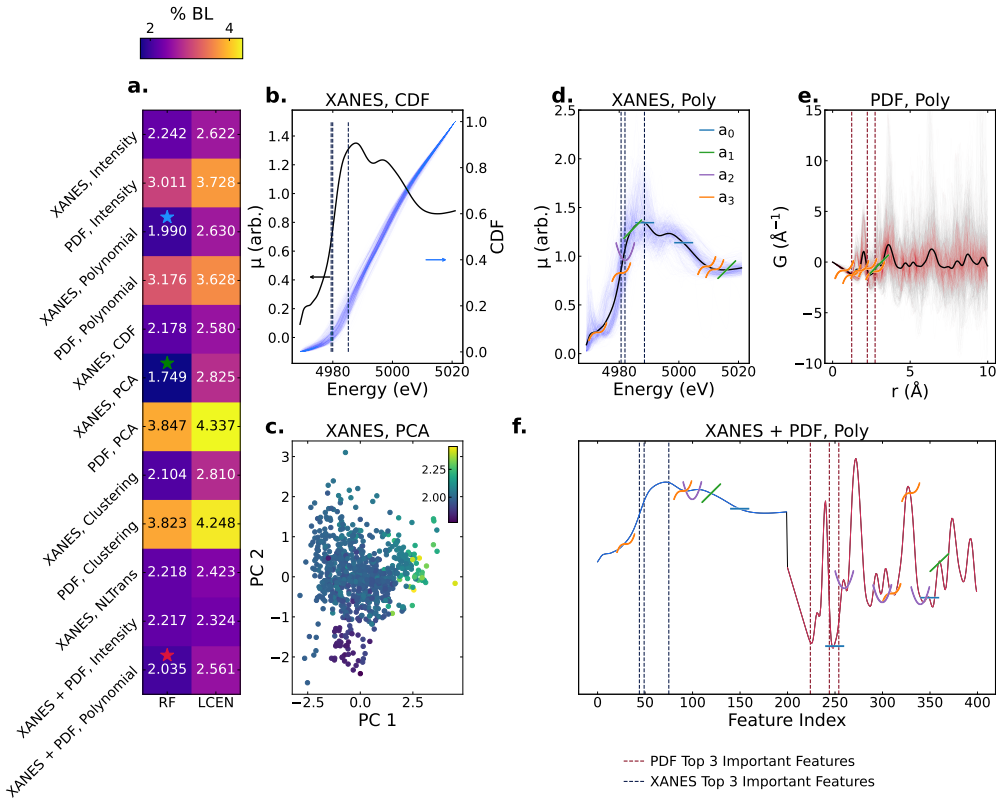

Figure 3. Figure 3: Regressing mean nearest-neighbor distance from simulated XANES spectra and PDFs of Ti-oxide structures. (a) Summary of RMSE for regressing bond length using LCEN and random forests for XANES, PDF, XANES + PDF, and other transformations of the data. CDF: cumulative distribution function. NLTrans: Nonlinear feature expansion as outlined in the main text and the supplementary information. Clustering: Feature … view at source ↗
Figure 4

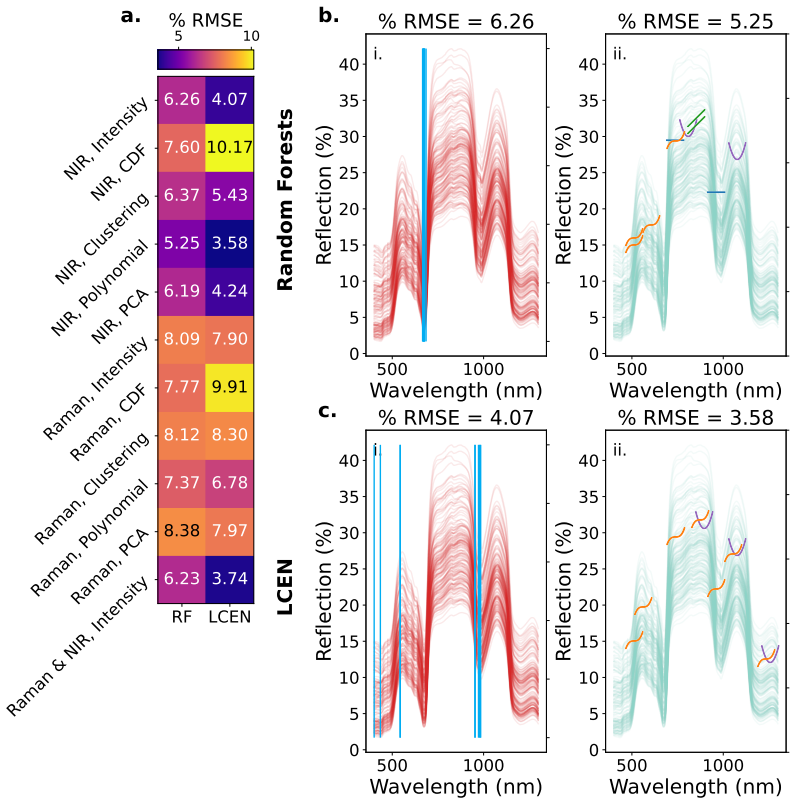

Figure 4. Figure 4: Regressing grape sugar content. (a) % RMSE for random forests and LCEN models built on Vis-NIR and Raman spectra transformed in different ways. (b) Top 10 most important features for predicting TSS with the full spectrum (i) and polynomial features extracted from the spectrum (ii) using random forests. (c) 10 highest absolute magnitude coefficients for regressing TSS with the full spectrum (i) and polynomi… view at source ↗
Figure 5

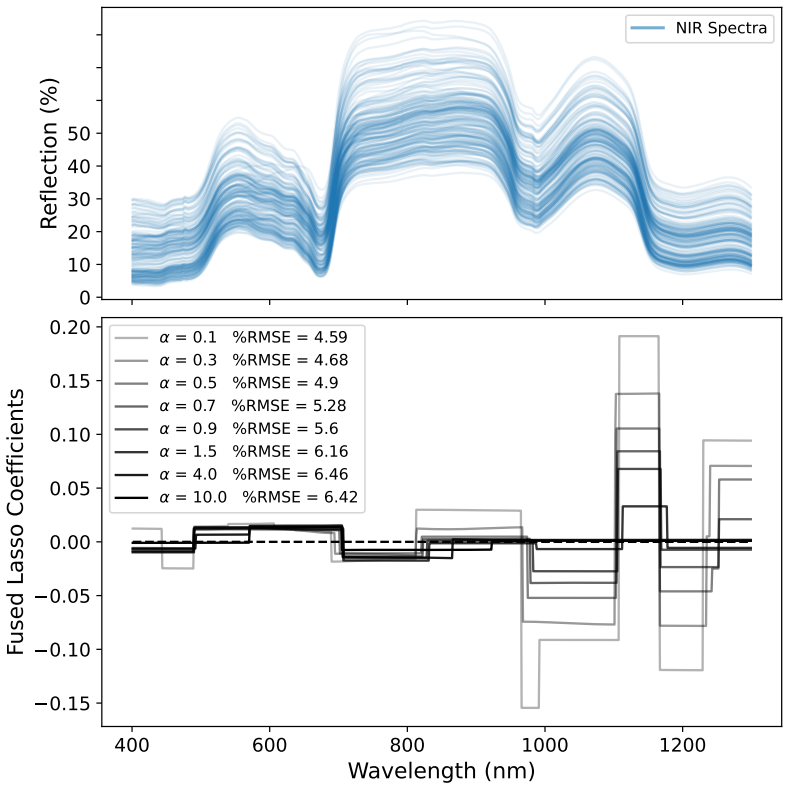

Figure 5. Figure 5: Fused LASSO selected Features. The top panel shows all of the NIR spectra in the dataset. The bottom panel shows the regression coefficients for fused LASSO models with different regularization parameters α. 10/15 [PITH_FULL_IMAGE:figures/full_fig_p010_5.png] view at source ↗
Figure 6
Figure 6. Figure 6: Linear Correlation Assessment. Analysis for (a) XANES + PDF and (b) Grapes dataset for predicting their respective target variable. r : Pearson’s correlation coefficient. Right: Corresponding metric for each model. 11/15 [PITH_FULL_IMAGE:figures/full_fig_p011_6.png] view at source ↗

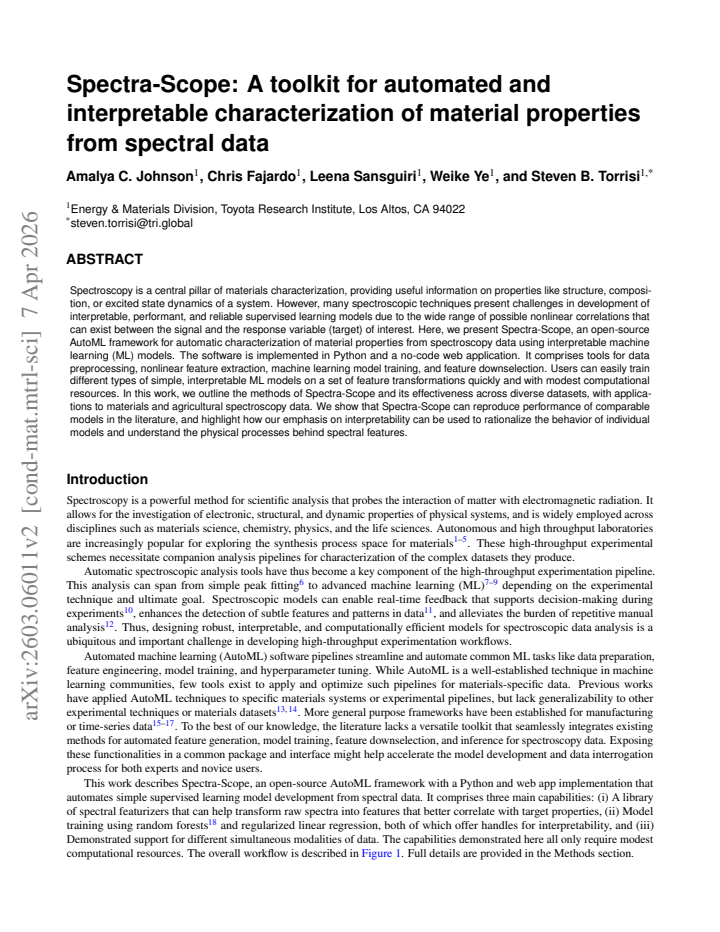

read the original abstract

Spectroscopy is a central pillar of materials characterization, providing useful information on properties like structure, composition, or excited state dynamics of a system. However, many spectroscopic techniques present challenges in development of interpretable, performant, and reliable supervised learning models due to the wide range of possible nonlinear correlations that can exist between the signal and the response variable (target) of interest. Here, we present Spectra-Scope, an open-source AutoML framework for automatic characterization of material properties from spectroscopy data using interpretable machine learning (ML) models. The software is implemented in Python and a no-code web application. It comprises tools for data preprocessing, nonlinear feature extraction, machine learning model training, and feature downselection. Users can easily train different types of simple, interpretable ML models on a set of feature transformations quickly and with modest computational resources. In this work, we outline the methods of Spectra-Scope and its effectiveness across diverse datasets, with applications to materials and agricultural spectroscopy data. We show that Spectra-Scope can reproduce performance of comparable models in the literature, and highlight how our emphasis on interpretability can be used to rationalize the behavior of individual models and understand the physical processes behind spectral features.

Editorial analysis

A structured set of objections, weighed in public.

Desk editor's note, referee report, simulated authors' rebuttal, and a circularity audit. Tearing a paper down is the easy half of reading it; the pith above is the substance, this is the friction.

Referee Report

2 major / 2 minor

Summary. The manuscript presents Spectra-Scope, an open-source Python AutoML toolkit (with accompanying no-code web application) for spectral data preprocessing, nonlinear feature extraction (e.g., polynomials and kernels), training of simple interpretable ML models, and automated feature downselection. It applies the framework to materials and agricultural spectroscopy datasets and claims that the toolkit reproduces the performance of comparable literature models while enabling interpretability to rationalize individual model behavior and link selected features to underlying physical processes.

Significance. If the performance and interpretability claims are substantiated with quantitative evidence, Spectra-Scope would offer a practical, accessible tool that lowers the barrier for materials scientists to generate accurate yet physically grounded models from spectroscopic data. The emphasis on interpretability addresses a recognized gap in black-box spectral ML applications and could facilitate discovery of structure-property relationships.

major comments (2)
  1. [Results] Results section: the central claim that Spectra-Scope 'reproduces performance of comparable models in the literature' is unsupported by any quantitative metrics, specific datasets, validation protocols, ablation studies, or direct numerical comparisons (e.g., no reported RMSE, R², or accuracy values against published baselines).
  2. [Methods] Methods (nonlinear feature extraction and downselection): the automated transformations and statistical downselection are presented without systematic validation against known spectroscopic assignments (peak positions, band structures, or physical models); this leaves open the risk that selected features reflect dataset-specific correlations rather than causal physical processes, directly undermining the interpretability benefit asserted in the abstract.
minor comments (2)
  1. [Abstract] Abstract and introduction: the phrase 'diverse datasets' is used without naming the specific materials or agricultural spectra employed or citing the corresponding literature benchmarks.
  2. [Figures] Figure captions and text: notation for feature transformations (e.g., polynomial order, kernel parameters) is introduced without a concise summary table, making it difficult to reproduce the exact pipeline.

Simulated Author's Rebuttal

2 responses · 0 unresolved

We thank the referee for their thorough review and valuable comments, which have helped us improve the manuscript. We address each major comment below and outline the revisions we plan to make.

read point-by-point responses
  1. Referee: [Results] Results section: the central claim that Spectra-Scope 'reproduces performance of comparable models in the literature' is unsupported by any quantitative metrics, specific datasets, validation protocols, ablation studies, or direct numerical comparisons (e.g., no reported RMSE, R², or accuracy values against published baselines).

    Authors: We acknowledge that the Results section does not provide direct quantitative comparisons to literature models, which is necessary to fully support the claim. The manuscript does present performance metrics on the datasets used, but without explicit benchmarking. In the revised manuscript, we will include quantitative comparisons, specifying the datasets, reporting RMSE, R², and accuracy values, detailing the validation protocols (e.g., cross-validation), and including ablation studies where appropriate. revision: yes

  2. Referee: [Methods] Methods (nonlinear feature extraction and downselection): the automated transformations and statistical downselection are presented without systematic validation against known spectroscopic assignments (peak positions, band structures, or physical models); this leaves open the risk that selected features reflect dataset-specific correlations rather than causal physical processes, directly undermining the interpretability benefit asserted in the abstract.

    Authors: This is a valid concern. The feature extraction and downselection in Spectra-Scope are designed to be automated and data-driven to prioritize predictive performance while maintaining interpretability through simple models. However, we agree that without linking to physical assignments, the interpretability claims are weakened. We will revise the Methods section to describe how users can validate features against known assignments and add examples in the Results where selected features correspond to established spectroscopic features in the materials and agricultural datasets. revision: yes

Circularity Check

0 steps flagged

Software toolkit demonstration with no derivation chain

full rationale

The paper describes an open-source AutoML framework (Spectra-Scope) for preprocessing, nonlinear feature extraction, model training, and downselection on spectral data. It reports empirical performance on materials and agricultural datasets and claims reproducibility of literature results plus interpretability benefits. No equations, predictions, or first-principles derivations are presented that could reduce to fitted inputs by construction. No self-citations are invoked as uniqueness theorems, and no ansatzes or renamings of known results are used to support central claims. The work is implementation and demonstration rather than a closed mathematical argument, so no circular steps exist.

Axiom & Free-Parameter Ledger

0 free parameters · 1 axioms · 0 invented entities

The contribution rests on standard supervised learning assumptions rather than new physical axioms or invented entities.

axioms (1)
  • domain assumption Nonlinear feature transformations of spectral data can be combined with simple interpretable models to capture relevant material-property relationships
    The framework presupposes that such transformations preserve enough physical signal to allow both accurate prediction and human-interpretable feature importance.
