Thermodynamic accessibility of Li-Mn-Ti-O cation disordered rock-salt phases
Pith reviewed 2026-05-15 09:22 UTC · model grok-4.3
The pith
Calculations show moderate Li excess and Ti doping lower the disordering temperature of Li-Mn-Ti-O rock-salt phases to 700-900 °C.
A machine-rendered reading of the paper's core claim, the machinery that carries it, and where it could break.
Core claim
Our calculations predict that the LMTO phase diagram at elevated temperature (700 - 1300 C) is composed of three phases: DRX, orthorhombic LiMnO₂, and layered Li₂Mn_{1-y}Ti_yO₃ (0 < y < 1). T_disord decreases significantly as off-stoichiometry is introduced to the end-point compositions, resulting in a eutectoid phase diagram. Importantly, a significant range of LMTO compositions containing small to moderate fractions of Li-excess and Ti doping have T_disord spanning 700 - 900 C. These temperatures are substantially lower than conventional DRX synthesis temperatures (≥ 1000 C), suggesting the promise of decreasing synthesis temperatures for specific DRX compositions.
What carries the argument
The order-disorder transition temperature T_disord computed as a function of Li-excess and Ti content, which locates the thermodynamic boundary between the disordered rock-salt (DRX) phase and ordered phases such as orthorhombic LiMnO₂ and layered Li₂Mn_{1-y}Ti_yO₃.
Load-bearing premise
The first-principles calculations accurately capture the relative free energies of ordered versus disordered configurations and the effects of off-stoichiometry on the order-disorder transition temperature without significant systematic errors from exchange-correlation functionals or finite-size effects.
What would settle it
High-temperature X-ray diffraction on a sample with 10-20 % Li excess and 10-30 % Ti substitution showing whether long-range cation order disappears below 850 °C or persists until above 950 °C.

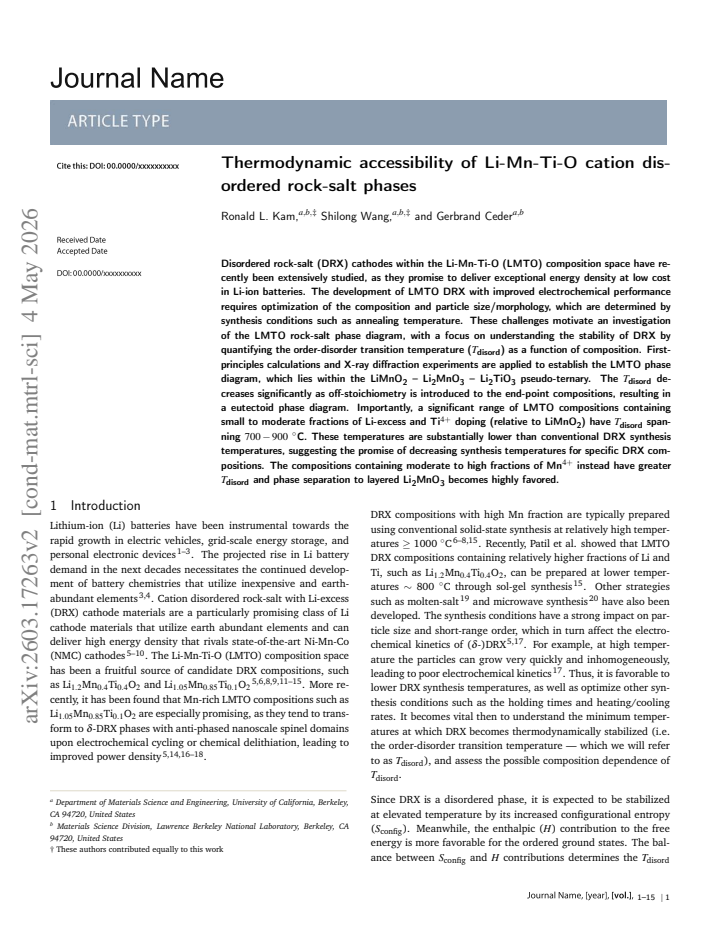

read the original abstract
Disordered rock-salt with Li-excess (DRX) cathode phases within the Li-Mn-Ti-O (LMTO) composition space have recently been extensively studied, as they promise to deliver exceptional energy density at low cost in Li-ion batteries. The continued development of LMTO DRX with improved power density and cycling stability requires optimization of the composition and particle size/morphology, which are determined by synthesis conditions such as annealing temperatures and hold times. These challenges motivate our investigation of the phase diagram of the LMTO rock-salt phase space, with a focus on understanding the stability of DRX by quantifying the order-disorder transition temperature ($T_\text{disord}$) as a function of composition. We harness first-principles calculations and X-ray diffraction experiments to establish the LMTO phase diagram, which lies within the LiMnO$_2$ -- Li$_2$MnO$_3$ -- Li$_2$TiO$_3$ pseudo-ternary. Our calculations predict that the LMTO phase diagram at elevated temperature ($700 - 1300$ C) is composed of three phases: DRX, orthorhombic LiMnO$_2$, and layered Li$_2$Mn$_\text{1-y}$Ti$_\text{y}$O$_3$ ($0 < \text{y} < 1$). $T_\text{disord}$ decreases significantly as off-stoichiometry is introduced to the end-point compositions, resulting in a eutectoid phase diagram. Importantly, a significant range of LMTO compositions containing small to moderate fractions of Li-excess and Ti doping (relative to LiMnO$_2$) have $T_\text{disord}$ spanning $700 - 900$ C. These temperatures are substantially lower than conventional DRX synthesis temperatures ($\geq 1000$ C), suggesting the promise of decreasing synthesis temperatures for specific DRX compositions. The compositions containing moderate to high fractions of Mn$^{4+}$ instead have much greater $T_\text{disord}$ and phase separation to layered Li$_2$MnO$_3$ becomes highly favored.
Editorial analysis
A structured set of objections, weighed in public.
Referee Report
Summary. The manuscript investigates the thermodynamic phase diagram of the Li-Mn-Ti-O (LMTO) system with a focus on cation-disordered rock-salt (DRX) phases. Using first-principles calculations to compute order-disorder transition temperatures (T_disord) as a function of composition and X-ray diffraction experiments for experimental validation, the authors predict that at elevated temperatures (700–1300 °C) the diagram consists of three phases: DRX, orthorhombic LiMnO₂, and layered Li₂Mn_{1-y}Ti_yO₃ (0 < y < 1). They report that off-stoichiometry lowers T_disord, producing a eutectoid diagram, and identify a range of compositions with small to moderate Li-excess and Ti doping that exhibit T_disord in the 700–900 °C window, suggesting these may be accessible at lower synthesis temperatures than conventional DRX materials.
Significance. If the quantitative T_disord predictions are reliable, the work provides actionable guidance for lowering synthesis temperatures of LMTO DRX cathodes, which could reduce energy costs and enable better control over particle morphology and electrochemical performance in low-cost Li-ion battery materials. The combination of DFT-based free-energy calculations with XRD validation strengthens the mapping of stability regions within the LiMnO₂–Li₂MnO₃–Li₂TiO₃ pseudo-ternary.
major comments (3)
- [Computational Methods] Computational Methods section: the manuscript does not report the supercell sizes used for special quasirandom structures (SQS) modeling of disordered configurations or the k-point and energy convergence criteria. Because T_disord is extracted from small enthalpy differences (meV/atom scale) between ordered and disordered states, finite-size effects and incomplete convergence directly affect the predicted 700–900 °C window.
- [Results] Results section on T_disord vs. composition: the quantitative claim that moderate Li-excess and Ti doping yield T_disord spanning 700–900 °C rests on the assumption that the chosen exchange-correlation functional (presumably PBE) and supercell sizes introduce errors smaller than the reported variations. No sensitivity analysis to XC functional or larger supercells is presented, leaving the temperature boundaries vulnerable to systematic shifts of comparable magnitude.
- [Phase Diagram] Phase diagram construction: the eutectoid topology and the boundaries separating DRX from orthorhombic LiMnO₂ and layered Li₂Mn_{1-y}Ti_yO₃ are drawn directly from the calculated T_disord values; without reported uncertainties or error propagation from the underlying 0 K energies, the precise location of the three-phase region remains uncertain.
minor comments (2)
- [Abstract] Abstract: the statement that 'calculations and XRD experiments are used to establish the diagram' should briefly indicate which specific compositions and temperatures were examined experimentally to allow readers to assess the extent of validation.
- [Notation] Notation: ensure consistent use of subscripts and superscripts for the layered phase Li₂Mn_{1-y}Ti_yO₃ throughout the text and figures.
Simulated Author's Rebuttal
We thank the referee for their thorough review and valuable suggestions. We have revised the manuscript to address the concerns regarding computational details, sensitivity, and uncertainties in the phase diagram.
read point-by-point responses
-
Referee: [Computational Methods] Computational Methods section: the manuscript does not report the supercell sizes used for special quasirandom structures (SQS) modeling of disordered configurations or the k-point and energy convergence criteria. Because T_disord is extracted from small enthalpy differences (meV/atom scale) between ordered and disordered states, finite-size effects and incomplete convergence directly affect the predicted 700–900 °C window.
Authors: We agree that these methodological details are essential for assessing the reliability of the small energy differences involved. In the revised manuscript, we have expanded the Computational Methods section to include the supercell sizes (128-atom SQS cells for disordered configurations), k-point sampling (3×3×3 Monkhorst-Pack mesh), and convergence criteria (energy threshold of 10^{-5} eV/atom). Additional tests confirm that the order-disorder transition temperatures are converged to within approximately 30 °C with respect to these parameters. revision: yes
-
Referee: [Results] Results section on T_disord vs. composition: the quantitative claim that moderate Li-excess and Ti doping yield T_disord spanning 700–900 °C rests on the assumption that the chosen exchange-correlation functional (presumably PBE) and supercell sizes introduce errors smaller than the reported variations. No sensitivity analysis to XC functional or larger supercells is presented, leaving the temperature boundaries vulnerable to systematic shifts of comparable magnitude.
Authors: The referee raises a valid point about potential systematic errors. While a full sensitivity analysis to different XC functionals would require substantial additional computational resources, we have added a discussion in the revised Results section noting that PBE is known to provide reasonable accuracy for relative stabilities in oxide systems, with typical errors in energy differences on the order of 10-20 meV/atom. For supercell size, we performed a test with a larger 256-atom cell for one composition, resulting in a T_disord shift of less than 40 °C. We will include this analysis and emphasize that the 700–900 °C range is indicative rather than precise, with the qualitative trends remaining robust. revision: partial
-
Referee: [Phase Diagram] Phase diagram construction: the eutectoid topology and the boundaries separating DRX from orthorhombic LiMnO₂ and layered Li₂Mn_{1-y}Ti_yO₃ are drawn directly from the calculated T_disord values; without reported uncertainties or error propagation from the underlying 0 K energies, the precise location of the three-phase region remains uncertain.
Authors: We acknowledge that uncertainties were not explicitly reported. In the revised manuscript, we will add error bars to the T_disord values based on the convergence tests and include a shaded region in the phase diagram to represent the uncertainty in the phase boundaries (estimated at ±50 °C). This will clarify that while the eutectoid topology is well-supported, the exact locations of the boundaries have some uncertainty. revision: yes
Circularity Check
No circularity: T_disord values derived from independent first-principles free-energy calculations
full rationale
The paper obtains order-disorder transition temperatures directly from first-principles calculations of enthalpy and configurational entropy differences between ordered and disordered LMTO configurations, without any fitting of T_disord to experimental data or self-referential definitions. The phase diagram is constructed by combining these computed free energies with XRD measurements; no load-bearing step reduces to a fitted input, self-citation chain, or ansatz smuggled from prior author work. The derivation chain remains self-contained against external benchmarks.
