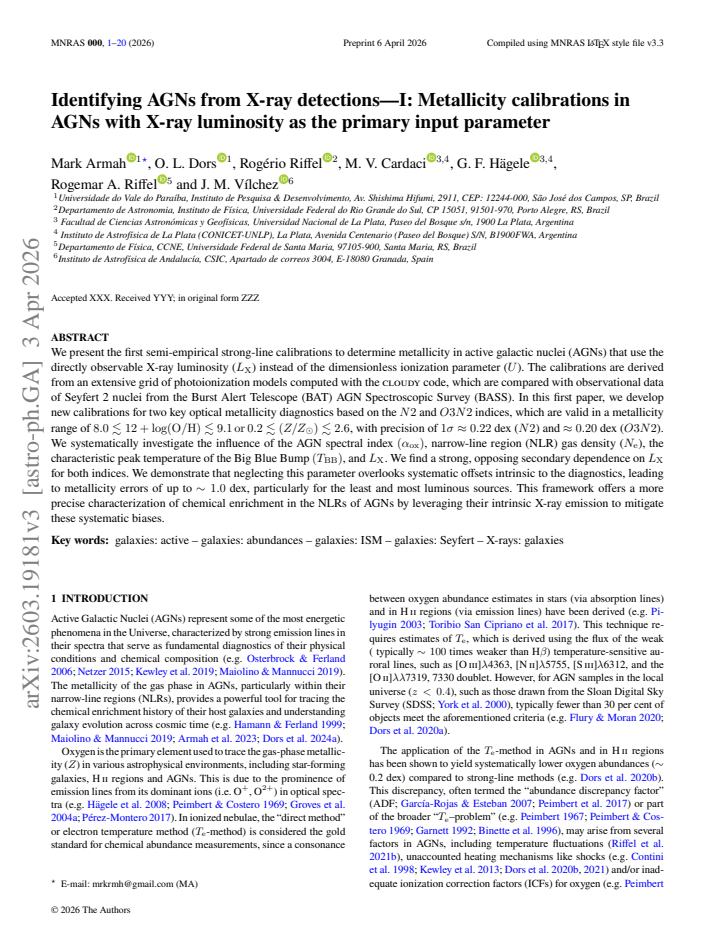

Identifying AGNs from X-ray detections-I: Metallicity calibrations in AGNs with X-ray luminosity as the primary input parameter

Mark Armah , O. L. Dors , Rog\'erio Riffel , M. V. Cardaci , G.F.H\"agele , Rogemar A.Riffel , J.M.V\'ilchez

Authors on Pith no claims yet

Pith reviewed 2026-05-15 08:01 UTC · model grok-4.3

classification 🌌 astro-ph.GA

keywords AGNsmetallicityX-ray luminositystrong-line diagnosticsN2 indexO3N2 indexphotoionization modelsnarrow-line regions

0 comments

The pith

New metallicity calibrations for AGNs use observable X-ray luminosity as the primary input to replace the ionization parameter and cut systematic errors.

A machine-rendered reading of the paper's core claim, the machinery that carries it, and where it could break.

The paper establishes the first semi-empirical strong-line calibrations for determining metallicity in active galactic nuclei that take X-ray luminosity directly as input instead of the ionization parameter. These relations are built from Cloudy photoionization model grids matched to BASS survey observations of Seyfert nuclei and cover the N2 and O3N2 indices over metallicities from 0.2 to 2.6 solar with roughly 0.2 dex precision. The work demonstrates a strong secondary dependence on X-ray luminosity that produces opposing offsets in the two indices; ignoring this term creates metallicity errors reaching 1 dex at the extremes of luminosity. A sympathetic reader would care because the method turns a routinely observed X-ray quantity into a practical tool for tracking chemical enrichment in AGN narrow-line regions without needing hard-to-measure parameters.

Core claim

We present the first semi-empirical strong-line calibrations to determine metallicity in AGNs that use the directly observable X-ray luminosity (Lx) instead of the dimensionless ionization parameter (U). The calibrations are derived from an extensive grid of photoionization models computed with the Cloudy code, which are compared with observational data of Seyfert nuclei from the BASS survey. In this first paper we develop new calibrations for two key optical metallicity diagnostics based on the N2 and O3N2 indices, valid for 8.0 ≲ 12 + log(O/H) ≲ 9.1 or 0.2 ≲ (Z/Z⊙) ≲ 2.6, with 1σ precision ≈0.22 dex (N2) and ≈0.20 dex (O3N2). We find a strong opposing secondary dependence on Lx for both, a

What carries the argument

Semi-empirical strong-line relations for N2 and O3N2 derived from Cloudy photoionization model grids calibrated against BASS AGN data, with X-ray luminosity as the primary input parameter.

If this is right

Metallicity estimates from N2 and O3N2 become reliable across the full observed range of AGN X-ray luminosities without large systematic offsets.
Chemical enrichment histories in AGN narrow-line regions can be mapped using quantities already measured in X-ray surveys.
Previous strong-line metallicities that omitted Lx must be revised upward or downward by up to 1 dex for the least and most luminous objects.
The new relations remain valid from 0.2 to 2.6 times solar metallicity at the stated 0.2 dex precision.

Where Pith is reading between the lines

These are editorial extensions of the paper, not claims the author makes directly.

The same Lx-primary approach could be extended to additional line ratios such as R23 or S2 to create a broader suite of diagnostics.
Large X-ray catalogs from missions such as eROSITA could now yield statistical metallicity distributions for AGN populations without requiring optical spectroscopy for every target.
Feedback models that couple AGN luminosity to host-galaxy enrichment can be tested directly against the luminosity-dependent metallicity trends reported here.

Load-bearing premise

The Cloudy photoionization models accurately capture the physical conditions in real AGN narrow-line regions across the explored ranges of spectral index, gas density, and Big Blue Bump temperature, and the BASS sample carries no selection biases that distort the derived Lx dependence.

What would settle it

Independent metallicity measurements using the direct electron-temperature method in the same AGNs, binned by X-ray luminosity, that deviate systematically from the new Lx-based predictions by more than 0.3 dex.

read the original abstract

We present the first semi-empirical strong-line calibrations to determine metallicity in Active Galactic Nuclei (AGNs) that use the directly observable X-ray luminosity (Lx) instead of the dimensionless ionization parameter ($U$). The calibrations are derived from an extensive grid of photoionization models computed with the {\sc Cloudy} code, which are compared with observational data of Seyfert nuclei from the Burst Alert Telescope (BAT) AGN Spectroscopic Survey (BASS). In this first paper, we develop new calibrations for two key optical metallicity diagnostics based on the $N2$ and $O3N2$ indices, which are valid in a metallicity range of $8.0 \lesssim 12 + \log({\rm O/H}) \lesssim 9.1\, {\rm or}\, 0.2 \lesssim (Z/Z_{\odot}) \lesssim 2.6$, with precision of $1\sigma \approx 0.22$ dex ($N2$) and $\approx 0.20$ dex ($O3N2$). We systematically investigate the influence of the AGN spectral index $(\alpha_{ox})$, narrow-line region (NLR) gas density $(N_{\rm e})$, the characteristic peak temperature of the Big Blue Bump $(T_{\rm BB})$, and Lx. We find a strong, opposing secondary dependence on Lx for both indices. We demonstrate that neglecting this parameter overlooks systematic offsets intrinsic to the diagnostics, leading to metallicity errors of up to $\sim 1.0$ dex, particularly for the least and most luminous sources. This framework offers a more precise characterization of chemical enrichment in the NLRs of AGNs by leveraging their intrinsic X-ray emission to mitigate these systematic biases.

Editorial analysis

A structured set of objections, weighed in public.

Desk editor's note, referee report, simulated authors' rebuttal, and a circularity audit. Tearing a paper down is the easy half of reading it; the pith above is the substance, this is the friction.

Desk Editor's Note private letter to a colleague

This paper gives the first N2 and O3N2 calibrations for AGNs that use observed X-ray luminosity as the main input instead of U.

read the letter

The central advance here is the first set of N2 and O3N2 calibrations for AGNs that put observed X-ray luminosity front and center instead of the ionization parameter. They used Cloudy grids varying Lx, alpha_ox, density, and big blue bump temperature, then matched them to BASS observations to get relations with roughly 0.2 dex scatter over a metallicity range from 0.2 to 2.6 solar. What stands out is the clear demonstration that Lx has a strong opposing dependence in both indices, and that ignoring it can bias metallicities by up to a dex for the brightest or faintest sources. That's a concrete improvement for work on chemical enrichment in narrow-line regions. The parameter study is straightforward and shows the influence of each variable without overcomplicating things. The soft spots are around the model assumptions. The calibrations inherit whatever limitations the Cloudy setup has regarding geometry and multi-phase gas, and the BASS comparison tests consistency with line ratios rather than providing an independent metallicity check. This means the Lx trend could partly come from how the models link luminosity to ionization, so the reduction in systematic error is plausible but not fully proven. The semi-empirical approach introduces some dependence on the chosen grid, but they do flag the opposing Lx effect explicitly. This is for people in the AGN subfield who need better metallicity diagnostics when X-ray data is available. It would be useful for anyone updating chemical evolution models or analyzing large surveys with both optical and X-ray coverage. I would send it to peer review. The contribution is incremental but targeted and evidence-based enough to merit referee input on the modeling details and sample selection.

Referee Report

2 major / 2 minor

Summary. The paper claims to present the first semi-empirical strong-line calibrations for AGN metallicities that use directly observable X-ray luminosity (Lx) in place of the ionization parameter U. These are derived by running Cloudy photoionization model grids over Lx (plus α_ox, N_e, T_BB) and fitting N2 and O3N2 indices versus metallicity, then comparing to BASS Seyfert data. The calibrations cover 8.0 ≲ 12 + log(O/H) ≲ 9.1 (0.2 ≲ Z/Z_⊙ ≲ 2.6) with claimed 1σ precisions of ≈0.22 dex (N2) and ≈0.20 dex (O3N2), and report a strong opposing secondary Lx dependence whose neglect can produce metallicity errors up to ~1 dex.

Significance. If the central result holds, the work supplies a practical advance for chemical-enrichment studies of AGN narrow-line regions by replacing the unobservable U with an X-ray observable, thereby reducing systematic offsets across luminosity ranges. The semi-empirical approach (Cloudy grids anchored to BASS observations) and explicit quantification of the Lx secondary dependence constitute clear strengths that could improve precision in future AGN metallicity work.

major comments (2)

[Model grid construction and Lx substitution] The substitution of Lx for U is load-bearing for the entire calibration framework. The grid must translate the assumed ionizing luminosity into the correct U at the NLR radius for every source; any unmodeled variation in covering factor, radial density profile, or multi-phase structure would imprint artificial Lx trends. The manuscript does not appear to test these geometry assumptions explicitly against the BASS sample.
[BASS sample validation and error budget] The BASS comparison validates only that the models reproduce observed line ratios; it supplies no independent absolute metallicity anchor. Consequently the reported ~1 dex error from ignoring Lx, and the opposing Lx dependence itself, cannot be falsified by the data and remain tied to the chosen Cloudy assumptions (single-zone geometry, fixed NLR distance, etc.).

minor comments (2)

[Abstract and calibration results] The quoted precisions (0.22 dex and 0.20 dex) should be accompanied by an explicit statement of whether they represent rms scatter, median absolute deviation, or another statistic, and whether they include the full grid parameter uncertainties.
[Notation and symbols] Notation for α_ox, N_e, and T_BB is introduced but should be cross-checked for consistency in all equations and figure captions.

Simulated Author's Rebuttal

2 responses · 1 unresolved

We thank the referee for the constructive review. We address each major comment below, indicating where revisions will be made.

read point-by-point responses

Referee: [Model grid construction and Lx substitution] The substitution of Lx for U is load-bearing for the entire calibration framework. The grid must translate the assumed ionizing luminosity into the correct U at the NLR radius for every source; any unmodeled variation in covering factor, radial density profile, or multi-phase structure would imprint artificial Lx trends. The manuscript does not appear to test these geometry assumptions explicitly against the BASS sample.

Authors: We agree that the Lx-to-U mapping depends on the adopted NLR geometry. Our Cloudy grids employ standard single-zone assumptions with a fixed NLR radius and covering factor drawn from the literature to match typical Seyfert conditions. While explicit variation tests against the BASS sample were not included, the models were tuned to reproduce the observed line-ratio distributions. In revision we will add a dedicated subsection presenting additional model runs that vary NLR radius and covering factor over plausible ranges, confirming that the reported opposing Lx dependence remains robust within the quoted precision. revision: partial
Referee: [BASS sample validation and error budget] The BASS comparison validates only that the models reproduce observed line ratios; it supplies no independent absolute metallicity anchor. Consequently the reported ~1 dex error from ignoring Lx, and the opposing Lx dependence itself, cannot be falsified by the data and remain tied to the chosen Cloudy assumptions (single-zone geometry, fixed NLR distance, etc.).

Authors: We acknowledge this limitation. The BASS data provide an empirical anchor only for the line ratios, not for absolute metallicities, so the absolute scale of the ~1 dex Lx-induced errors and the strength of the secondary dependence are indeed model-dependent. The opposing Lx trend itself is a direct output of the photoionization grids and is consistent with the spread of BASS sources across luminosity. We will revise the text to state this caveat explicitly, reframe the quoted precisions as the scatter between models and observations, and emphasize the semi-empirical nature of the calibrations. revision: yes

standing simulated objections not resolved

The absence of an independent absolute metallicity anchor for the BASS sample, which is inherent to current observational data and prevents fully falsifying the model-derived error estimates.

Circularity Check

0 steps flagged

Model-grid derivation independent of validation data; no circularity

full rationale

The paper derives the N2 and O3N2 calibrations directly from an extensive Cloudy photoionization model grid in which Lx, alpha_ox, Ne and T_BB are varied as explicit input parameters; the resulting line-ratio versus metallicity surfaces are then fitted to produce the calibration formulae. These formulae are subsequently compared against the BASS observational sample for consistency checks only. Because the Lx dependence is generated by the model physics and grid construction rather than by any fit to the BASS line ratios or metallicities, and because no self-citation, self-definition or ansatz-smuggling step is required to close the derivation, the chain remains self-contained. The semi-empirical label refers only to the later validation step, which does not feed back into the calibration coefficients themselves.

Axiom & Free-Parameter Ledger

1 free parameters · 1 axioms · 0 invented entities

The central claim rests on the assumption that Cloudy photoionization models with standard AGN SEDs reproduce real NLR conditions; no new physical entities are introduced, but several model parameters (alpha_ox, Ne, T_BB) are varied and Lx is treated as an observable input.

free parameters (1)

calibration coefficients for N2 and O3N2
Fitted to match model grid to BASS observations; exact values not given in abstract.

axioms (1)

domain assumption Cloudy photoionization models with standard AGN spectral energy distributions accurately represent NLR gas
Invoked to generate the calibration grid.
