arxiv: 2603.22768 · v1 · submitted 2026-03-24 · 💻 cs.CV

From Pixels to Semantics: A Multi-Stage AI Framework for Structural Damage Detection in Satellite Imagery

Bijay Shakya , Catherine Hoier , Khandaker Mamun Ahmed This is my paper

Pith reviewed 2026-05-15 01:14 UTC · model grok-4.3

classification 💻 cs.CV
keywords structural damage detectionsatellite imagerysuper-resolutionvision-language modelsdisaster assessmentbuilding localizationreference-free evaluationxBD dataset
0
0 comments X

The pith

A hybrid AI pipeline that upsamples satellite images, detects buildings, and uses vision-language models to classify structural damage levels.

A machine-rendered reading of the paper's core claim, the machinery that carries it, and where it could break.

The paper sets out to show that low-resolution satellite imagery can be turned into usable semantic damage assessments by chaining super-resolution enhancement, object detection, and vision-language model reasoning. A sympathetic reader would care because faster, more interpretable damage maps after disasters could guide emergency crews toward the most affected structures without waiting for high-resolution ground surveys. The work demonstrates the approach on real post-disaster events from the xBD dataset and introduces reference-free scoring methods to evaluate the outputs when no caption ground truth exists.

Core claim

The central claim is that first applying a Video Restoration Transformer to increase image resolution from 1024x1024 to 4096x4096, then using a YOLOv11 detector to locate buildings in pre-disaster frames, and finally feeding the cropped regions to vision-language models for four-level semantic damage classification produces more interpretable results than prior pipelines; the authors support this by showing improved semantic alignment via CLIPScore and reduced bias through a multi-model jury voting procedure on Moore Tornado and Hurricane Matthew subsets of the xBD dataset.

What carries the argument

The three-stage pipeline that performs super-resolution upscaling, YOLOv11-based building localization, and vision-language model semantic scoring with CLIPScore reference-free evaluation plus jury voting.

If this is right

  • Damage assessments become available from standard-resolution satellite passes without requiring new high-resolution captures.
  • First responders receive explicit severity rankings and recovery recommendations derived from the semantic analysis.
  • The jury-voting step reduces the impact of any single vision-language model's biases in safety-critical outputs.
  • Reference-free metrics such as CLIPScore allow evaluation on new disaster events where labeled captions do not exist.

Where Pith is reading between the lines

These are editorial extensions of the paper, not claims the author makes directly.

  • The same staged approach could be tested on additional disaster types such as earthquakes or floods to check whether the resolution boost and semantic step generalize.
  • Connecting the pipeline to streaming satellite feeds might allow near-real-time damage mapping rather than post-event batch processing.
  • The jury mechanism could be extended to include human-in-the-loop overrides for the highest-severity cases.

Load-bearing premise

That vision-language model outputs scored by CLIPScore and jury voting reliably reflect actual structural damage severity when no ground-truth damage labels are available for validation.

What would settle it

A side-by-side comparison of the framework's four-level damage predictions against independent expert visual annotations or on-site inspection records for the same buildings in the Moore Tornado or Hurricane Matthew image sets.

Figures

Figures reproduced from arXiv: 2603.22768 by Bijay Shakya, Catherine Hoier, Khandaker Mamun Ahmed.

Figure 1
Figure 1. Figure 1: xBD dataset samples: pre-disaster images (top) and post [PITH_FULL_IMAGE:figures/full_fig_p001_1.png] view at source ↗
Figure 2
Figure 2. Figure 2: Workflow of the proposed multi-stage structural dam [PITH_FULL_IMAGE:figures/full_fig_p004_2.png] view at source ↗
Figure 3
Figure 3. Figure 3: Overview of the Multi-VLM framework for disas [PITH_FULL_IMAGE:figures/full_fig_p004_3.png] view at source ↗
Figure 4
Figure 4. Figure 4: Working mechanism of the VLM-As-A-Jury metric. [PITH_FULL_IMAGE:figures/full_fig_p005_4.png] view at source ↗
Figure 5
Figure 5. Figure 5: Aggregated word clouds of VLM-generated damage de [PITH_FULL_IMAGE:figures/full_fig_p008_5.png] view at source ↗

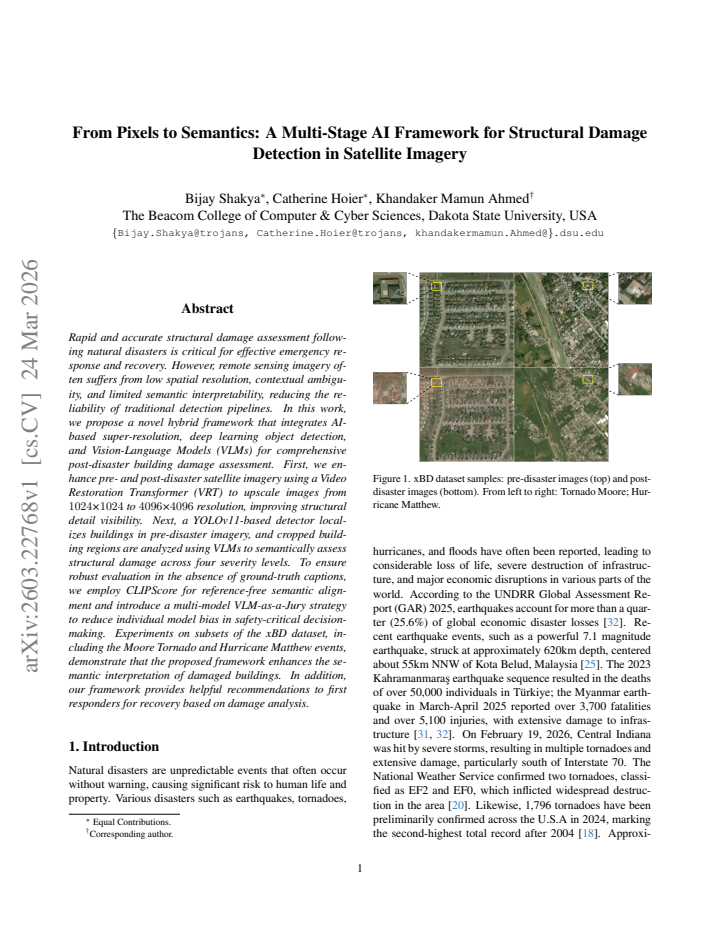

read the original abstract

Rapid and accurate structural damage assessment following natural disasters is critical for effective emergency response and recovery. However, remote sensing imagery often suffers from low spatial resolution, contextual ambiguity, and limited semantic interpretability, reducing the reliability of traditional detection pipelines. In this work, we propose a novel hybrid framework that integrates AI-based super-resolution, deep learning object detection, and Vision-Language Models (VLMs) for comprehensive post-disaster building damage assessment. First, we enhance pre- and post-disaster satellite imagery using a Video Restoration Transformer (VRT) to upscale images from 1024x1024 to 4096x4096 resolution, improving structural detail visibility. Next, a YOLOv11-based detector localizes buildings in pre-disaster imagery, and cropped building regions are analyzed using VLMs to semantically assess structural damage across four severity levels. To ensure robust evaluation in the absence of ground-truth captions, we employ CLIPScore for reference-free semantic alignment and introduce a multi-model VLM-as-a-Jury strategy to reduce individual model bias in safety-critical decision making. Experiments on subsets of the xBD dataset, including the Moore Tornado and Hurricane Matthew events, demonstrate that the proposed framework enhances the semantic interpretation of damaged buildings. In addition, our framework provides helpful recommendations to first responders for recovery based on damage analysis.

Editorial analysis

A structured set of objections, weighed in public.

Desk editor's note, referee report, simulated authors' rebuttal, and a circularity audit. Tearing a paper down is the easy half of reading it; the pith above is the substance, this is the friction.

Referee Report

1 major / 1 minor

Summary. The manuscript proposes a multi-stage framework for post-disaster structural damage assessment from satellite imagery. It combines VRT-based super-resolution (1024x1024 to 4096x4096), YOLOv11 object detection on pre-disaster images to localize buildings, and VLM-based semantic analysis of cropped regions to classify damage into four severity levels. In the absence of ground-truth captions, evaluation relies on reference-free CLIPScore for semantic alignment and a multi-VLM 'jury' voting strategy to mitigate bias. Experiments on xBD subsets (Moore Tornado, Hurricane Matthew) claim that the pipeline enhances semantic interpretation of damaged buildings and can provide recommendations to first responders.

Significance. If the reference-free metrics were shown to align with actual damage severity, the work would offer a practical advance in automated disaster response by improving interpretability of low-resolution imagery through combined super-resolution, detection, and language-based reasoning. The jury strategy is a reasonable approach for safety-critical applications. However, the current lack of validation against available ground-truth labels substantially reduces the demonstrated significance.

major comments (1)
  1. [Experiments] Experiments section: xBD provides explicit per-building ground-truth damage labels (no/minor/major/destroyed), yet the evaluation reports no quantitative alignment (accuracy, Cohen's kappa, or confusion matrix) between VLM outputs / jury votes and these labels. The claim that the framework 'enhances semantic interpretation' therefore rests on the untested assumption that CLIPScore and VLM consensus track factual damage severity; this is load-bearing for the central contribution.
minor comments (1)
  1. [Abstract] Abstract and §4: The statement that the framework 'provides helpful recommendations to first responders' is asserted without any description of how recommendations are generated from the damage scores or any example outputs.

Simulated Author's Rebuttal

1 responses · 0 unresolved

We thank the referee for the constructive feedback on our manuscript. We address the major comment point-by-point below and will incorporate revisions to strengthen the validation.

read point-by-point responses

  1. Referee: [Experiments] Experiments section: xBD provides explicit per-building ground-truth damage labels (no/minor/major/destroyed), yet the evaluation reports no quantitative alignment (accuracy, Cohen's kappa, or confusion matrix) between VLM outputs / jury votes and these labels. The claim that the framework 'enhances semantic interpretation' therefore rests on the untested assumption that CLIPScore and VLM consensus track factual damage severity; this is load-bearing for the central contribution.

    Authors: We agree that direct quantitative comparison to the xBD ground-truth damage labels would provide stronger validation of the framework's semantic outputs. Our original evaluation emphasized reference-free metrics (CLIPScore and jury consensus) due to the absence of ground-truth captions for the VLM-generated descriptions, but we acknowledge that alignment with the available per-building labels (no/minor/major/destroyed) is feasible and important. In the revised manuscript, we will add accuracy, Cohen's kappa, and confusion matrix results comparing the multi-VLM jury classifications to the xBD ground-truth labels on the Moore Tornado and Hurricane Matthew subsets. This will empirically test whether the semantic interpretations track factual damage severity. revision: yes

Circularity Check

0 steps flagged

No circularity: pipeline assembles independent components and reference-free metrics without self-referential reduction

full rationale

The paper describes a sequential pipeline (VRT super-resolution on 1024x1024 imagery to 4096x4096, YOLOv11 detection on pre-disaster images, VLM semantic labeling into four damage levels) evaluated via CLIPScore and multi-VLM jury voting. No equations, fitted parameters, or derivations are presented that reduce a claimed output to the input by construction. The justification for reference-free metrics is the explicit absence of ground-truth captions, not a loop back to the framework's own outputs. No self-citations appear in the provided text as load-bearing premises. The central claim of enhanced semantic interpretation therefore rests on external model capabilities and consensus scoring rather than any enumerated circular pattern.

Axiom & Free-Parameter Ledger

0 free parameters · 2 axioms · 0 invented entities

The approach depends on standard assumptions in AI about model generalization to damage assessment tasks and the utility of reference-free metrics.

axioms (2)
  • domain assumption Vision-Language Models can reliably assess structural damage severity from image crops
    Invoked in the semantic assessment stage without ground truth.
  • domain assumption CLIPScore provides a valid proxy for semantic alignment in damage classification
    Used for reference-free evaluation.
