MuViS: Multimodal Virtual Sensing Benchmark

Jens U. Brandt , Noah C. Puetz , Jobel Jose George , Niharika Vinay Kumar , Elena Raponi , Marc Hilbert , Thomas B\"ack , Thomas Bartz-Beielstein

Authors on Pith no claims yet

Pith reviewed 2026-05-15 11:37 UTC · model grok-4.3

classification 📡 eess.SP cs.AI

keywords virtual sensingbenchmarking suitemultimodal datadata-driven methodsgradient-boosted treesneural networksgeneralizable modelsstandardized evaluation

0 comments

The pith

No virtual sensing method shows a universal advantage across processes and modalities.

A machine-rendered reading of the paper's core claim, the machinery that carries it, and where it could break.

The paper presents MuViS, a new benchmarking suite that gathers multiple datasets for virtual sensing into one standardized interface with shared preprocessing and evaluation rules. It tests established techniques including gradient-boosted decision trees and various deep neural network designs on these unified tasks. Results indicate that no single approach consistently outperforms the others regardless of the underlying process or available sensor types. This finding matters because virtual sensing is used to infer difficult measurements in physical systems for perception and control, yet research has stayed fragmented without a reliable default method. A reader would care because the lack of transfer means practitioners must still choose and tune methods case by case rather than relying on one general solution.

Core claim

MuViS consolidates diverse datasets into a unified interface for standardized preprocessing and evaluation. Benchmarking established approaches spanning gradient-boosted decision trees and deep neural network architectures shows that none of these provides a universal advantage, underscoring the need for generalizable virtual sensing architectures. The suite is released as open-source to support reproducible comparisons and future extensions.

What carries the argument

MuViS, the domain-agnostic benchmarking suite that consolidates datasets and supplies a single preprocessing and evaluation interface.

If this is right

Virtual sensing research should shift focus toward architectures designed to generalize across modalities and process types.
New datasets and model classes can be added to the open-source MuViS platform for direct, standardized comparison.
Practitioners gain a common reference to test whether a candidate method transfers before deployment in a new setting.
Continued use of the benchmark will highlight which design choices improve cross-configuration robustness.

Where Pith is reading between the lines

These are editorial extensions of the paper, not claims the author makes directly.

The same consolidation approach could be applied to other fragmented sensing problems such as multi-sensor fusion or predictive maintenance to reduce duplicated experiments.
If generalizable models emerge from this benchmark, they might lower the cost of deploying virtual sensing in new industrial processes by reducing per-application tuning.
Adding metrics for computational latency or robustness to sensor noise in future MuViS versions would make the comparisons more relevant to real-time control applications.

Load-bearing premise

The selected datasets and unified preprocessing steps produce comparisons that fairly represent real-world performance differences and transfer behavior across sensing setups.

What would settle it

A new method that outperforms all benchmarked approaches on every or nearly every dataset in the MuViS suite would falsify the claim that no universal advantage exists.

Figures

Figures reproduced from arXiv: 2603.24602 by Elena Raponi, Jens U. Brandt, Jobel Jose George, Marc Hilbert, Niharika Vinay Kumar, Noah C. Puetz, Thomas B\"ack, Thomas Bartz-Beielstein.

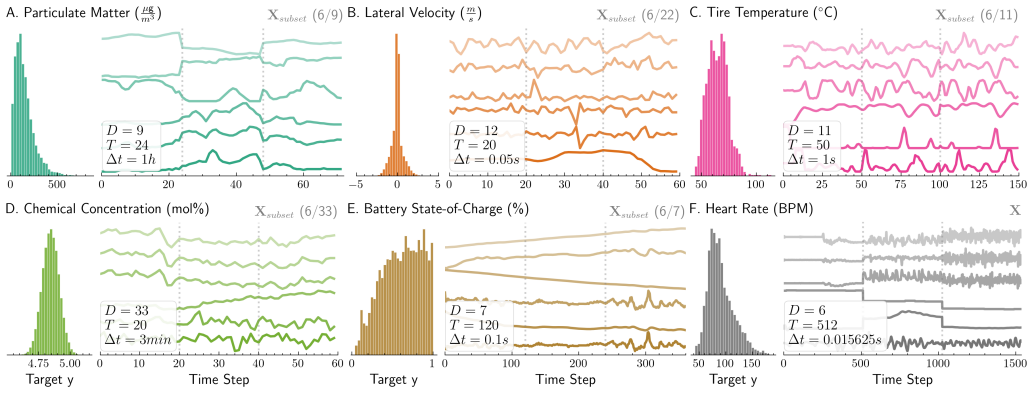

**Figure 2.** Figure 2: Overview of the six benchmark datasets. Each sub-panel displays a distinct virtual sensing task, showcasing the diversity [PITH_FULL_IMAGE:figures/full_fig_p003_2.png] view at source ↗

**Figure 3.** Figure 3: Critical distance diagram. The non-significant Friedman [PITH_FULL_IMAGE:figures/full_fig_p004_3.png] view at source ↗

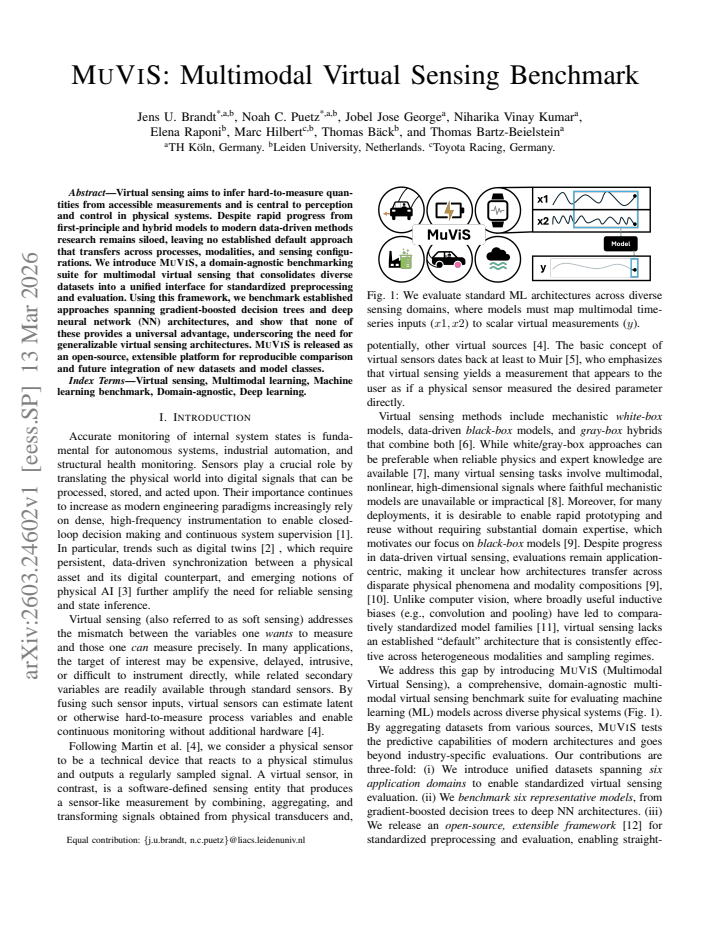

read the original abstract

Virtual sensing aims to infer hard-to-measure quantities from accessible measurements and is central to perception and control in physical systems. Despite rapid progress from first-principle and hybrid models to modern data-driven methods research remains siloed, leaving no established default approach that transfers across processes, modalities, and sensing configurations. We introduce MuViS, a domain-agnostic benchmarking suite for multimodal virtual sensing that consolidates diverse datasets into a unified interface for standardized preprocessing and evaluation. Using this framework, we benchmark established approaches spanning gradient-boosted decision trees and deep neural network (NN) architectures, and show that none of these provides a universal advantage, underscoring the need for generalizable virtual sensing architectures. MuViS is released as an open-source, extensible platform for reproducible comparison and future integration of new datasets and model classes.

Editorial analysis

A structured set of objections, weighed in public.

Desk editor's note, referee report, simulated authors' rebuttal, and a circularity audit. Tearing a paper down is the easy half of reading it; the pith above is the substance, this is the friction.

Desk Editor's Note private letter to a colleague

MuViS gives the field a shared benchmark for virtual sensing and shows no single method wins across the board, but the abstract leaves the numbers and fairness checks thin.

read the letter

The new contribution is the MuViS suite itself. It pulls together datasets from different processes and modalities under one preprocessing and evaluation interface, then runs gradient-boosted trees against several neural net variants. The headline result is that none of them shows a universal advantage, which lines up with what people see when they move between industrial sensing problems. Releasing the code and framework openly is the practical part that matters most here; it gives others a place to add their own models or data without starting from scratch each time. That alone organizes a corner of the literature that has stayed fragmented. The evaluation protocol looks straightforward on the surface and the circularity burden is zero since this is pure empirical benchmarking with no fitted equations driving the outcome. The soft spot is the missing detail on the actual numbers. The abstract states the no-winner finding but does not show error bars, dataset sizes, split criteria, or how hyperparameter budgets were handled across model classes. If the full paper has those tables and ablations, the claim holds; if the comparisons rest on uneven tuning or non-standard preprocessing, the fairness assumption weakens. The weakest link is whether the unified interface truly produces representative transfer across real sensing configurations, but nothing in the description flags an obvious mismatch or hidden bias. This is the sort of paper that matters for anyone building perception or control systems who needs a common testbed rather than another isolated case study. A reader who works on data-driven methods for physical processes would get immediate use from the framework even if they later swap in different models. It deserves peer review because the benchmark infrastructure is concrete and the central observation is falsifiable with the released code. Referees can check the evaluation details and suggest expansions without the paper needing to be rewritten from scratch.

Referee Report

2 major / 2 minor

Summary. The manuscript introduces MuViS, a domain-agnostic benchmarking suite for multimodal virtual sensing. It consolidates diverse datasets under a unified preprocessing and evaluation interface, benchmarks gradient-boosted decision trees and deep neural network architectures, and reports that none of the methods holds a universal advantage across processes, modalities, and sensing configurations. The suite is released as open-source and extensible for future dataset and model integration.

Significance. If the empirical results hold under fair comparisons, the work is significant for providing a standardized, reproducible platform that addresses the current siloed state of virtual sensing research. The finding of no universal winner among established methods supplies a concrete motivation for developing more generalizable architectures, while the open-source release directly supports community-wide reproducible comparisons.

major comments (2)

[Abstract] Abstract: the claim that 'none of these provides a universal advantage' is stated without any quantitative performance metrics, error bars, dataset sizes, or statistical tests, leaving the central empirical conclusion unsupported by visible evidence in the summary of results.
[§4] §4 (Benchmarking Results): the assertion of fair cross-process and cross-modality comparisons rests on the unified preprocessing interface, yet no details are provided on hyperparameter search budgets, train/validation/test split protocols, or handling of missing modalities, which are load-bearing for the 'no universal advantage' conclusion.

minor comments (2)

[§2] §2 (Related Work): the discussion of prior virtual sensing methods could include explicit citations to recent multimodal fusion surveys to better situate the contribution.
[Figure 2] Figure 2 (Dataset overview): axis labels and legend entries are too small for readability in the current rendering.

Simulated Author's Rebuttal

2 responses · 0 unresolved

We thank the referee for the constructive feedback and the recommendation for minor revision. We appreciate the recognition of MuViS as a significant contribution toward standardized, reproducible benchmarking in virtual sensing. We address each major comment below and will incorporate the suggested clarifications in the revised manuscript.

read point-by-point responses

Referee: [Abstract] Abstract: the claim that 'none of these provides a universal advantage' is stated without any quantitative performance metrics, error bars, dataset sizes, or statistical tests, leaving the central empirical conclusion unsupported by visible evidence in the summary of results.

Authors: We agree that the abstract, as a high-level summary, does not include specific quantitative details. The full manuscript (Section 4 and supplementary material) reports performance metrics, standard deviations across runs, dataset sizes, and statistical comparisons (e.g., win counts and paired tests) demonstrating that neither GBTs nor DNNs dominate universally. To address this, we will revise the abstract to incorporate a concise quantitative statement, such as the number of datasets and modalities where each class of method performs best, along with a brief mention of the evaluation scale. revision: yes
Referee: [§4] §4 (Benchmarking Results): the assertion of fair cross-process and cross-modality comparisons rests on the unified preprocessing interface, yet no details are provided on hyperparameter search budgets, train/validation/test split protocols, or handling of missing modalities, which are load-bearing for the 'no universal advantage' conclusion.

Authors: We concur that explicit details on these aspects are essential for verifying fairness and reproducibility. While Section 3 outlines the unified preprocessing interface and Section 4 summarizes the benchmarking setup, we will expand Section 4 (and add a dedicated subsection if needed) to specify: (i) hyperparameter search budgets and methods (e.g., random search with fixed evaluation limits per model class), (ii) train/validation/test split protocols (including time-series-aware splits for sequential data and stratified splits where appropriate), and (iii) handling of missing modalities (e.g., zero-imputation, modality dropout during training, or exclusion of incomplete samples). These additions will directly support the 'no universal advantage' claim. revision: yes

Circularity Check

0 steps flagged

No significant circularity in empirical benchmark

full rationale

The paper introduces MuViS as a benchmarking suite that consolidates datasets under a unified preprocessing interface and reports comparative performance of gradient-boosted trees and DNN architectures. No mathematical derivations, equations, fitted parameters, or self-referential definitions appear in the abstract or described content. The central claim (no universal advantage among benchmarked methods) rests on direct empirical observations across datasets rather than any reduction to inputs by construction, self-citation chains, or ansatz smuggling. This is a standard empirical release with independent content against external benchmarks.

Axiom & Free-Parameter Ledger

0 free parameters · 1 axioms · 0 invented entities

The central claim rests on the domain assumption that diverse datasets can be meaningfully unified without introducing bias or losing process-specific validity.

axioms (1)

domain assumption Diverse virtual sensing datasets from different processes and modalities can be consolidated into a single standardized interface without loss of validity for cross-domain comparison.
Invoked when the paper states that MuViS consolidates datasets into a unified interface for standardized preprocessing and evaluation.

pith-pipeline@v0.9.0 · 5461 in / 1125 out tokens · 26296 ms · 2026-05-15T11:37:31.178545+00:00 · methodology

discussion (0)

Lean theorems connected to this paper

Citations machine-checked in the Pith Canon. Every link opens the source theorem in the public Lean library.

IndisputableMonolith/Foundation/RealityFromDistinction.lean reality_from_one_distinction unclear

?

unclear
Relation between the paper passage and the cited Recognition theorem.

We introduce MuViS, a domain-agnostic benchmarking suite... benchmark established approaches spanning gradient-boosted decision trees and deep neural network architectures, and show that none of these provides a universal advantage

What do these tags mean?

matches: The paper's claim is directly supported by a theorem in the formal canon.
supports: The theorem supports part of the paper's argument, but the paper may add assumptions or extra steps.
extends: The paper goes beyond the formal theorem; the theorem is a base layer rather than the whole result.
uses: The paper appears to rely on the theorem as machinery.
contradicts: The paper's claim conflicts with a theorem or certificate in the canon.
unclear: Pith found a possible connection, but the passage is too broad, indirect, or ambiguous to say the theorem truly supports the claim.

Reference graph

Works this paper leans on

32 extracted references · 32 canonical work pages · 4 internal anchors

[1]

Fraden,Handbook of Modern Sensors: Physics, Designs, and Appli- cations

J. Fraden,Handbook of Modern Sensors: Physics, Designs, and Appli- cations. Cham: Springer International Publishing, 2016

work page 2016
[2]

The Digital Twin Paradigm for Future NASA and U.S. Air Force Vehicles,

E. H. Glaessgen and D. S. Stargel, “The Digital Twin Paradigm for Future NASA and U.S. Air Force Vehicles,” United States, Apr. 2012, nTRS Author Affiliations: NASA Langley Research Center, Air Force Office of Scientific Research NTRS Report/Patent Number: NF1676L- 13293 NTRS Document ID: 20120008178 NTRS Research Center: Langley Research Center (LaRC)

work page 2012
[3]

Intelligence Without Representation,

R. A. Brooks, “Intelligence Without Representation,”Artificial Intelli- gence, vol. 47, no. 1–3, pp. 139–159, 1991

work page 1991
[4]

Virtual Sensors,

D. Martin, N. K ¨uhl, and G. Satzger, “Virtual Sensors,”Business & Information Systems Engineering, vol. 63, no. 3, pp. 315–323, Jun. 2021

work page 2021
[5]

A virtual sensor approach to robot kinematic identification: theory and experimental implementation,

P. Muir, “A virtual sensor approach to robot kinematic identification: theory and experimental implementation,” in1990 IEEE International Conference on Systems Engineering, Aug. 1990, pp. 440–445

work page 1990
[6]

A Dynamic Grey-Box Model and its Application in the Sintering Process of Ternary Cathode Material,

J. Chen, W. Gui, N. Chen, J. Dai, C. Yang, and X. Li, “A Dynamic Grey-Box Model and its Application in the Sintering Process of Ternary Cathode Material,”IFAC-PapersOnLine, vol. 53, no. 2, pp. 11 866– 11 871, Jan. 2020

work page 2020
[7]

Cognitive fault diagnosis in Tennessee Eastman Process using learning in the model space,

H. Chen, P. Ti ˇno, and X. Yao, “Cognitive fault diagnosis in Tennessee Eastman Process using learning in the model space,”Computers & Chemical Engineering, vol. 67, pp. 33–42, Aug. 2014

work page 2014
[8]

Deep PPG: Large-Scale Heart Rate Estimation with Convolutional Neural Networks,

A. Reiss, I. Indlekofer, P. Schmidt, K. V . Laerhoven, A. Reiss, I. In- dlekofer, P. Schmidt, and K. V . Laerhoven, “Deep PPG: Large-Scale Heart Rate Estimation with Convolutional Neural Networks,”Sensors, vol. 19, no. 14, Jul. 2019, company: Multidisciplinary Digital Publish- ing Institute Distributor: Multidisciplinary Digital Publishing Institute Insti...

work page 2019
[9]

A Review on Soft Sensors for Monitoring, Control, and Optimization of Industrial Processes,

Y . Jiang, S. Yin, J. Dong, and O. Kaynak, “A Review on Soft Sensors for Monitoring, Control, and Optimization of Industrial Processes,”IEEE Sensors Journal, vol. 21, no. 11, pp. 12 868–12 881, Jun. 2021

work page 2021
[10]

Soft sensors: where are we and what are the current and future challenges?

P. Kadlec and B. Gabrys, “Soft sensors: where are we and what are the current and future challenges?”IFAC Proceedings Volumes, vol. 42, no. 19, pp. 572–577, Jan. 2009

work page 2009
[11]

Inductive Bias of Deep Convolutional Networks through Pooling Geometry

N. Cohen and A. Shashua, “Inductive Bias of Deep Convolutional Networks through Pooling Geometry,” Apr. 2017, arXiv:1605.06743 [cs]

work page internal anchor Pith review Pith/arXiv arXiv 2017
[12]

noah-puetz/MuViS

“noah-puetz/MuViS.” [Online]. Available: https://github.com/ noah-puetz/MuViS

work page
[13]

MAESTRO : Adaptive Sparse Attention and Robust Learning for Multimodal Dynamic Time Series,

P. Mohapatra, Y . Sui, A. Pandey, S. Xia, and Q. Zhu, “MAESTRO : Adaptive Sparse Attention and Robust Learning for Multimodal Dynamic Time Series,” Sep. 2025, arXiv:2509.25278 [cs]

work page arXiv 2025
[14]

Monash University, UEA, UCR Time Series Extrinsic Regression Archive,

C. W. Tan, C. Bergmeir, F. Petitjean, and G. I. Webb, “Monash University, UEA, UCR Time Series Extrinsic Regression Archive,” Oct. 2020, arXiv:2006.10996 [cs]

work page arXiv 2020
[15]

Hierarchical State Space Models for Continuous Sequence-to-Sequence Modeling,

R. Bhirangi, C. Wang, V . Pattabiraman, C. Majidi, A. Gupta, T. Helle- brekers, and L. Pinto, “Hierarchical State Space Models for Continuous Sequence-to-Sequence Modeling,” Jul. 2024, arXiv:2402.10211 [cs]

work page arXiv 2024
[16]

Cautionary tales on air-quality improvement in Beijing,

S. Zhang, B. Guo, A. Dong, J. He, Z. Xu, and S. X. Chen, “Cautionary tales on air-quality improvement in Beijing,”Proceedings of the Royal Society A: Mathematical, Physical and Engineering Sciences, vol. 473, no. 2205, p. 20170457, Sep. 2017

work page 2017
[17]

Insights into vehicle trajectories at the handling limits: analysing open data from race car drivers,

J. C. Kegelman, L. K. Harbott, and J. C. Gerdes, “Insights into vehicle trajectories at the handling limits: analysing open data from race car drivers,”Vehicle System Dynamics, vol. 55, no. 2, pp. 191–207, Feb. 2017, eprint: https://doi.org/10.1080/00423114.2016.1249893

work page doi:10.1080/00423114.2016.1249893 2017
[18]

From Faults to Features: Pretraining to Learn Robust Representations against Sensor Failures,

J. U. Brandt, N. C. P ¨utz, M. Greiff, T. J. Lew, J. Subosits, M. Hilbert, and T. Bartz-Beielstein, “From Faults to Features: Pretraining to Learn Robust Representations against Sensor Failures,” Oct. 2025

work page 2025
[19]

Vehicle Dynamics Dataset for Highly Dynamic Automated Driving,

D. Mori, R. K. Aggarwal, N. Broadbent, T. Kobayashi, and J. C. Gerdes, “Vehicle Dynamics Dataset for Highly Dynamic Automated Driving,” https://purl.stanford.edu/hh613qz0317/version/1, 2025

work page 2025
[20]

Creating a Virtual Tyre Temperature Sensor

A. Tevell and O. Zetterberg, “Creating a Virtual Tyre Temperature Sensor.”

work page
[21]

A plant-wide industrial process control problem,

J. J. Downs and E. F. V ogel, “A plant-wide industrial process control problem,”Computers & Chemical Engineering, vol. 17, no. 3, pp. 245– 255, Mar. 1993

work page 1993
[22]

Additional Tennessee Eastman Process Simulation Data for Anomaly Detection Evaluation,

C. A. Rieth, B. D. Amsel, R. Tran, and M. B. Cook, “Additional Tennessee Eastman Process Simulation Data for Anomaly Detection Evaluation,” Jul. 2017

work page 2017
[23]

Soft Sensor Modeling Method Considering Higher-Order Moments of Prediction Residuals,

F. Ma, C. Ji, J. Wang, W. Sun, A. Palazoglu, F. Ma, C. Ji, J. Wang, W. Sun, and A. Palazoglu, “Soft Sensor Modeling Method Considering Higher-Order Moments of Prediction Residuals,”Processes, vol. 12, no. 4, Mar. 2024, company: Multidisciplinary Digital Publishing Institute Distributor: Multidisciplinary Digital Publishing Institute Institution: Multidisc...

work page 2024
[24]

Panasonic 18650PF Li-ion Battery Data,

P. Kollmeyer, “Panasonic 18650PF Li-ion Battery Data,” vol. 1, Jun. 2018

work page 2018
[25]

Estimating State-of- Charge in Lithium-Ion Batteries Through Deep Learning Techniques: A Comparative Evaluation,

P. Mondal, D. Bhavsar, K. Mittal, and M. Mittal, “Estimating State-of- Charge in Lithium-Ion Batteries Through Deep Learning Techniques: A Comparative Evaluation,”IEEE Access, vol. PP, pp. 1–1, Jan. 2024

work page 2024
[26]

PPG-DaLiA,

I. I. Attila Reiss, “PPG-DaLiA,” 2019

work page 2019
[27]

XGBoost: A Scalable Tree Boosting System

T. Chen and C. Guestrin, “XGBoost: A Scalable Tree Boosting System,” inProceedings of the 22nd ACM SIGKDD International Conference on Knowledge Discovery and Data Mining, Aug. 2016, pp. 785–794, arXiv:1603.02754 [cs]

work page internal anchor Pith review Pith/arXiv arXiv 2016
[28]

CatBoost: unbiased boosting with categorical features

L. Prokhorenkova, G. Gusev, A. V orobev, A. V . Dorogush, and A. Gulin, “CatBoost: unbiased boosting with categorical features,” Jan. 2019, arXiv:1706.09516 [cs]

work page internal anchor Pith review Pith/arXiv arXiv 2019
[29]

Long Short-Term Memory,

S. Hochreiter and J. Schmidhuber, “Long Short-Term Memory,”Neural Computation, vol. 9, no. 8, pp. 1735–1780, Nov. 1997

work page 1997
[30]

BERT: Pre-training of Deep Bidirectional Transformers for Language Understanding

J. Devlin, M.-W. Chang, K. Lee, and K. Toutanova, “BERT: Pre-training of Deep Bidirectional Transformers for Language Understanding,” May 2019, arXiv:1810.04805 [cs]

work page internal anchor Pith review Pith/arXiv arXiv 2019
[31]

Algorithms for Hyper- Parameter Optimization,

J. Bergstra, R. Bardenet, Y . Bengio, and B. K´egl, “Algorithms for Hyper- Parameter Optimization,” inAdvances in Neural Information Processing Systems, vol. 24. Curran Associates, Inc., 2011

work page 2011
[32]

Autorank: A Python package for automated ranking of classifiers,

S. Herbold, “Autorank: A Python package for automated ranking of classifiers,”Journal of Open Source Software, vol. 5, no. 48, p. 2173, Apr. 2020

work page 2020
