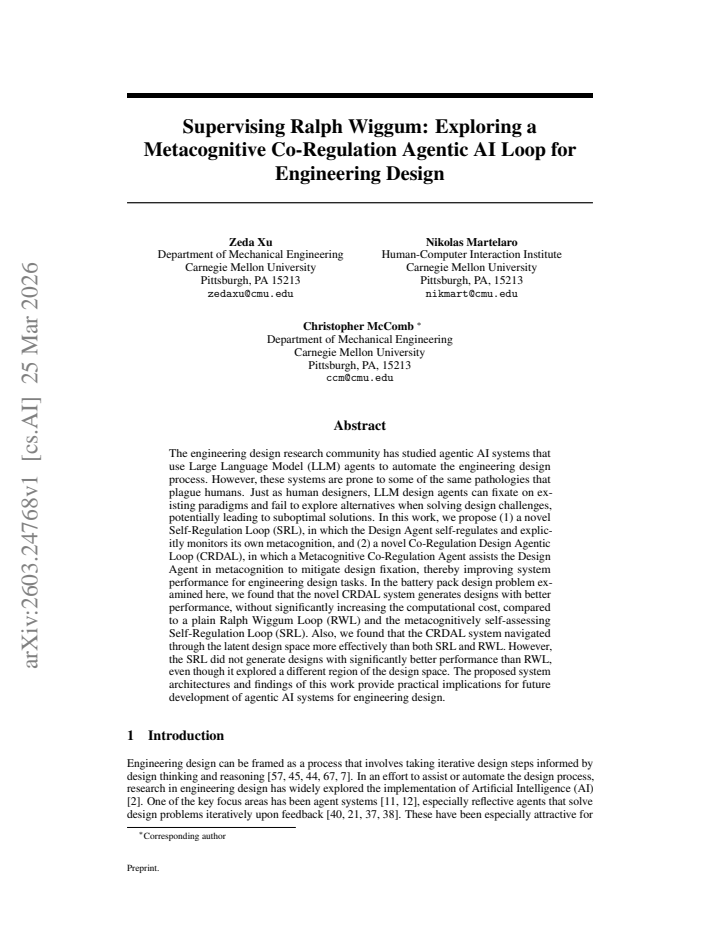

Supervising Ralph Wiggum: Exploring a Metacognitive Co-Regulation Agentic AI Loop for Engineering Design

Zeda Xu , Nikolas Martelaro , Christopher McComb

Authors on Pith no claims yet

Pith reviewed 2026-05-15 00:14 UTC · model grok-4.3

classification 💻 cs.AI

keywords agentic AILLM design agentsmetacognitive regulationengineering designdesign fixationself-regulation loopco-regulationbattery pack design

0 comments

The pith

Metacognitive regulation loops let LLM design agents create better-performing battery packs at similar computational cost.

A machine-rendered reading of the paper's core claim, the machinery that carries it, and where it could break.

Large language model agents used for engineering design often fixate on familiar solutions and miss better ones, much as human designers can. This paper proposes two additions to a basic agent loop: a Self-Regulation Loop where the design agent explicitly monitors its own thinking, and a Co-Regulation Design Agentic Loop where a separate metacognitive agent assists with that monitoring. When tested on a battery pack design task, both new loops produced designs with higher performance than the unregulated baseline, the co-regulation version performed best, and neither raised computational cost much. The co-regulated system also moved through the space of possible designs more effectively. The work demonstrates that targeted self-correction layers can help automated design agents avoid common fixation problems.

Core claim

In the battery pack design problem examined here, the novel SRL and CRDAL systems generate designs with better performance, without significantly increasing the computational cost, compared to a plain Ralph Wiggum Loop. Further, the novel CRDAL generates designs with significantly better performance than SRL. Also, the CRDAL system navigated through the latent design space more effectively than both SRL and RWL.

What carries the argument

The Metacognitive Co-Regulation Agent, a separate LLM agent that assists the main Design Agent by monitoring and correcting its cognitive processes to reduce fixation on existing design paradigms.

If this is right

The co-regulated architecture outperforms self-regulation alone on both final design quality and exploration of the design space.
Regulation layers can be added without materially raising compute demands for this class of design task.
Agentic systems equipped with explicit metacognition generate higher-performing solutions than unregulated loops on the tested engineering problem.
These architectures supply a concrete method for mitigating design fixation in LLM-based engineering design agents.

Where Pith is reading between the lines

These are editorial extensions of the paper, not claims the author makes directly.

If the regulation mechanisms prove general, they could be applied to LLM agents in other fixation-prone domains such as scientific hypothesis generation or creative problem solving.
Making the co-regulation agent adapt its interventions based on real-time signals from the design agent might further improve results.
Testing the same loops on a wider range of engineering tasks would reveal whether the benefits are specific to battery design or hold more broadly.

Load-bearing premise

The performance gains seen in the battery pack task arise specifically from the metacognitive regulation features rather than from other unmeasured differences in the system or the task.

What would settle it

A controlled run of the same battery pack task with the metacognitive monitoring and assistance components removed while keeping every other element identical, showing no drop in design performance, would falsify the claim.

Figures

Figures reproduced from arXiv: 2603.24768 by Christopher McComb, Nikolas Martelaro, Zeda Xu.

**Figure 2.** Figure 2: Example of a simple 6(W) × 4(D) × 2(H) battery pack composed of 18650 Lithium-ion battery cells using hexagonal close-packing. 4 2.1.1 Design Objective, Constraints, and Assumptions The agentic design systems are instructed to generate a battery pack design using only 18650 cells to satisfy all constraints, while maximizing capacity: Design a 400V battery pack with a minimum capacity of 25Ah, capable of co… view at source ↗

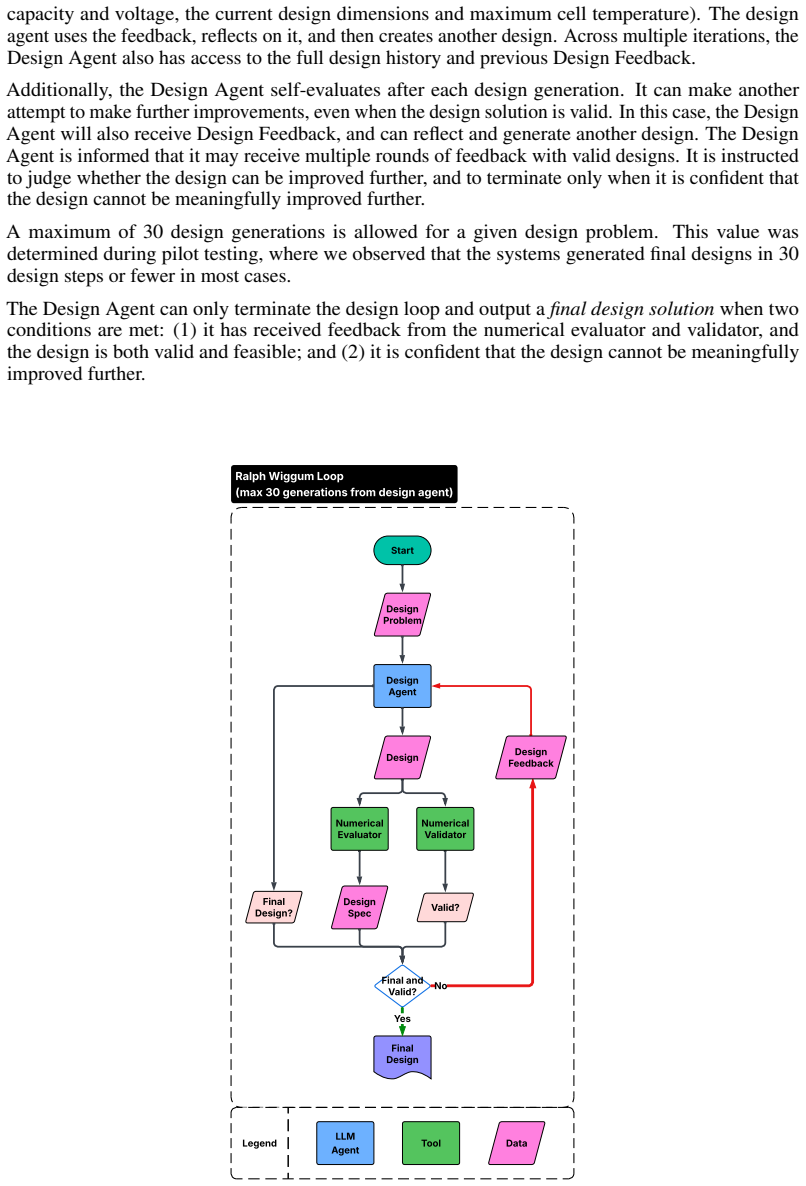

**Figure 3.** Figure 3: System flowchart of the Ralph Wiggum Loop (RWL). [PITH_FULL_IMAGE:figures/full_fig_p006_3.png] view at source ↗

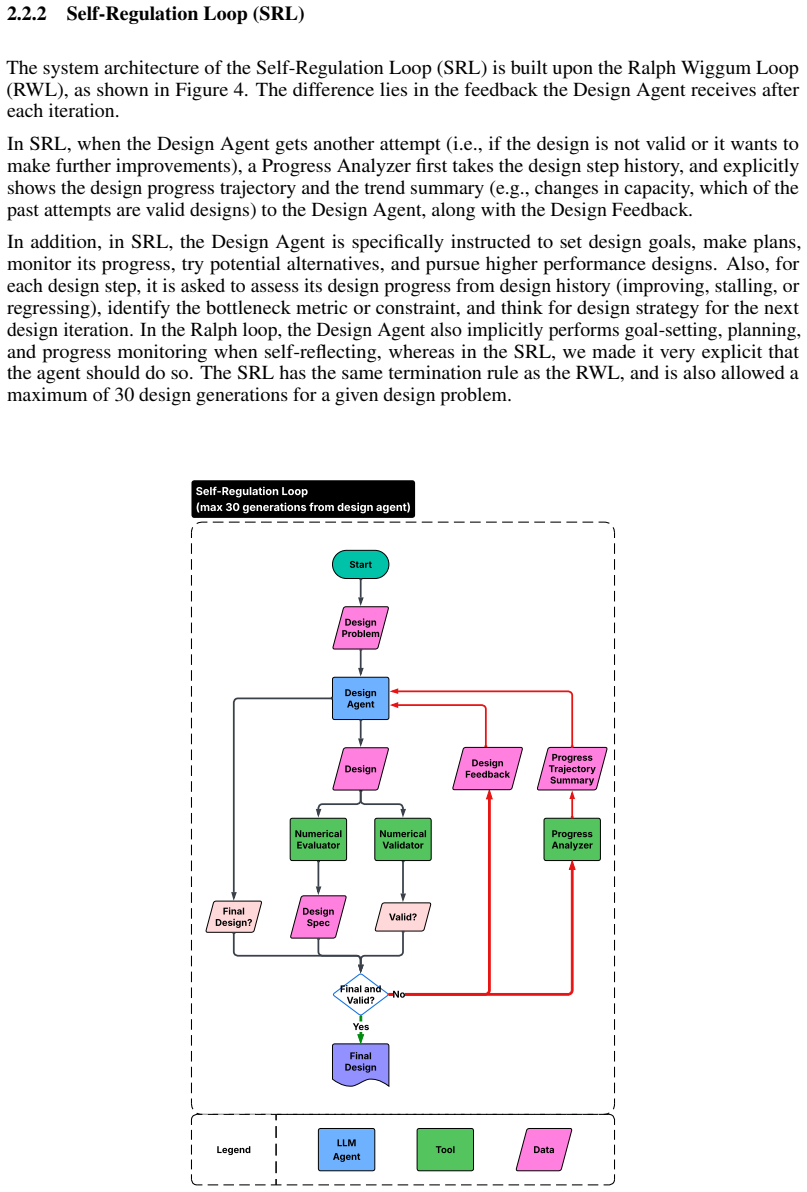

**Figure 4.** Figure 4: System flowchart of the Self-Regulation Loop (SRL). [PITH_FULL_IMAGE:figures/full_fig_p007_4.png] view at source ↗

**Figure 5.** Figure 5: System flowchart of the Co-Regulation Design Agentic Loop (CRDAL). [PITH_FULL_IMAGE:figures/full_fig_p008_5.png] view at source ↗

**Figure 6.** Figure 6: The dots in the figure show the capacities of the final battery pack designs for each run. [PITH_FULL_IMAGE:figures/full_fig_p009_6.png] view at source ↗

**Figure 6.** Figure 6: Design capacity of the battery pack created by each agentic design system. p-value [PITH_FULL_IMAGE:figures/full_fig_p010_6.png] view at source ↗

**Figure 7.** Figure 7: Number of design steps taken before final design by each agentic design system. p [PITH_FULL_IMAGE:figures/full_fig_p011_7.png] view at source ↗

**Figure 8.** Figure 8: Design step trajectory and final design in the latent design space, explored by each agentic [PITH_FULL_IMAGE:figures/full_fig_p012_8.png] view at source ↗

**Figure 9.** Figure 9: Cell series and parallel connections explored by each agentic design system. [PITH_FULL_IMAGE:figures/full_fig_p013_9.png] view at source ↗

read the original abstract

The engineering design research community has studied agentic AI systems that use Large Language Model (LLM) agents to automate the engineering design process. However, these systems are prone to some of the same pathologies that plague humans. Just as human designers, LLM design agents can fixate on existing paradigms and fail to explore alternatives when solving design challenges, potentially leading to suboptimal solutions. In this work, we propose (1) a novel Self-Regulation Loop (SRL), in which the Design Agent self-regulates and explicitly monitors its own metacognition, and (2) a novel Co-Regulation Design Agentic Loop (CRDAL), in which a Metacognitive Co-Regulation Agent assists the Design Agent in metacognition to mitigate design fixation, thereby improving system performance for engineering design tasks. In the battery pack design problem examined here, we found that the novel SRL and CRDAL systems generate designs with better performance, without significantly increasing the computational cost, compared to a plain Ralph Wiggum Loop (RWL) Further, the novel CRDAL generates designs with significantly better performance than SRL. Also, we found that the CRDAL system navigated through the latent design space more effectively than both SRL and RWL. The proposed system architectures and findings of this work provide practical implications for future development of agentic AI systems for engineering design.

Editorial analysis

A structured set of objections, weighed in public.

Desk editor's note, referee report, simulated authors' rebuttal, and a circularity audit. Tearing a paper down is the easy half of reading it; the pith above is the substance, this is the friction.

Desk Editor's Note private letter to a colleague

The paper shows concrete gains from adding self- and co-regulation loops to an LLM design agent on one battery-pack task, but the results do not isolate the metacognitive mechanism from extra agents or prompts.

read the letter

The key point is that this work adds self-regulation and co-regulation loops to an existing agentic design system and gets better designs on a battery pack problem, with the co-regulation version coming out ahead. The paper introduces SRL, where the design agent monitors its own thinking to avoid fixation, and CRDAL, where a separate metacognitive agent helps out. They test these against a plain loop on one engineering design challenge and report stronger performance and better navigation of the design space, all without much added computation. This is a practical step. The architectures are described in enough detail to replicate, and the focus on mitigating a known issue in LLM agents—getting stuck on initial ideas—is on target for engineering applications. The finding that co-regulation beats self-regulation alone is interesting and worth noting. The soft spot is the experimental setup. Everything rests on one task, and there's no test that isolates the metacognitive monitoring from other changes like added agents or prompt variations. Without that, it's difficult to say the gains come from the proposed regulation rather than just more complex prompting or interaction. The abstract also skips statistical details, so the significance claims are hard to evaluate fully. This paper is aimed at researchers building agentic AI for design tasks. Someone looking for concrete ways to improve reliability in automated engineering workflows could get ideas from it. It deserves a serious referee because the core idea is testable and the results are promising, even if the current evidence needs strengthening with more controls and tasks.

Referee Report

3 major / 2 minor

Summary. The paper proposes two new agentic AI loop architectures—Self-Regulation Loop (SRL) and Co-Regulation Design Agentic Loop (CRDAL)—that add explicit metacognitive monitoring to an LLM-based design agent (the Ralph Wiggum Loop baseline) in order to reduce design fixation. On a single battery-pack design task the authors report that both SRL and CRDAL produce higher-performing designs than the plain RWL baseline at comparable computational cost, that CRDAL outperforms SRL, and that CRDAL explores the latent design space more effectively.

Significance. If the performance gains can be shown to arise specifically from the metacognitive regulation mechanisms rather than from ancillary increases in system complexity, the work would supply a concrete, implementable pattern for improving exploration in LLM-driven engineering design agents—an issue that is widely recognized but rarely isolated in current agentic-design literature.

major comments (3)

[Abstract, §4] Abstract and §4 (Results): the central claim that SRL and CRDAL generate designs with 'significantly better performance' is not accompanied by any reported statistical tests, effect sizes, or confidence intervals; without these the quantitative superiority over RWL cannot be evaluated.
[§3, §4] §3 (Methods) and §4: CRDAL introduces a second agent whose interactions are not controlled for total token budget, iteration count, or prompt diversity relative to the single-agent RWL baseline; the performance delta cannot be confidently attributed to the metacognitive co-regulation component rather than to the added agent and prompt volume.
[§4] §4: no ablation is described that disables the explicit self-monitoring or co-regulation prompts while preserving the rest of the architecture; therefore the contribution of the proposed metacognitive loops versus other unmeasured factors remains unisolated.

minor comments (2)

[Abstract] The abstract states that CRDAL 'navigated through the latent design space more effectively' but provides no quantitative metric or visualization supporting this claim.
[§2, §3] Notation for the three loops (RWL, SRL, CRDAL) is introduced without a consolidated table or diagram that would allow readers to compare their control flows at a glance.

Simulated Author's Rebuttal

3 responses · 0 unresolved

We thank the referee for their constructive comments, which highlight important gaps in our quantitative reporting and experimental controls. We address each major point below and commit to revisions that will strengthen the manuscript's claims.

read point-by-point responses

Referee: [Abstract, §4] Abstract and §4 (Results): the central claim that SRL and CRDAL generate designs with 'significantly better performance' is not accompanied by any reported statistical tests, effect sizes, or confidence intervals; without these the quantitative superiority over RWL cannot be evaluated.

Authors: We agree that statistical support is required to substantiate the performance claims. In the revised manuscript we will add appropriate non-parametric tests (e.g., Mann-Whitney U with Bonferroni correction) for the key metrics, report effect sizes (Cohen’s d or rank-biserial), and include 95% confidence intervals. These additions will be placed in §4 and referenced in the abstract. revision: yes
Referee: [§3, §4] §3 (Methods) and §4: CRDAL introduces a second agent whose interactions are not controlled for total token budget, iteration count, or prompt diversity relative to the single-agent RWL baseline; the performance delta cannot be confidently attributed to the metacognitive co-regulation component rather than to the added agent and prompt volume.

Authors: We acknowledge the need for tighter controls. Although the abstract states that computational cost remained comparable, we did not tabulate per-condition token counts or iteration budgets. The revision will include a new table in §4 reporting total tokens, API calls, and iteration counts for RWL, SRL, and CRDAL, plus a brief discussion of prompt-length matching. If the data show residual imbalance, we will note it as a limitation and consider matched-budget follow-up runs. revision: yes
Referee: [§4] §4: no ablation is described that disables the explicit self-monitoring or co-regulation prompts while preserving the rest of the architecture; therefore the contribution of the proposed metacognitive loops versus other unmeasured factors remains unisolated.

Authors: This is a fair criticism. Our current comparisons pit complete SRL/CRDAL systems against the RWL baseline but do not isolate the metacognitive prompts. We will add an ablation condition in the revised §4 in which the self-monitoring and co-regulation instructions are removed while retaining the same agent scaffolding and iteration structure. Results from these runs will be reported alongside the main findings. revision: yes

Circularity Check

0 steps flagged

No circularity: empirical comparisons rest on measured outcomes

full rationale

The paper advances SRL and CRDAL architectures and evaluates them via direct experiments on a battery-pack design task, reporting performance, cost, and latent-space navigation metrics against the RWL baseline. No derivation chain, equations, or predictions are presented that reduce by construction to fitted parameters, self-definitions, or prior self-citations. The central claims are falsifiable experimental deltas; the architecture descriptions and results do not collapse into tautology. This is the expected non-finding for an empirical systems paper whose evidence consists of controlled task runs rather than analytic reduction.

Axiom & Free-Parameter Ledger

0 free parameters · 0 axioms · 3 invented entities

The central claim rests on the assumption that LLM agents exhibit human-like design fixation that can be mitigated by explicit metacognitive monitoring, with no free parameters, standard axioms, or invented entities beyond the named loops themselves.

invented entities (3)

Self-Regulation Loop (SRL) no independent evidence
purpose: Enables the Design Agent to explicitly monitor its own metacognition
Introduced as a novel component in the proposed architecture
Co-Regulation Design Agentic Loop (CRDAL) no independent evidence
purpose: Uses a separate Metacognitive Co-Regulation Agent to assist the Design Agent
Introduced as a novel component in the proposed architecture
Ralph Wiggum Loop (RWL) no independent evidence
purpose: Serves as the plain baseline agentic loop without regulation
Named baseline for comparison
