Switch-DFT: Adaptive Waveform and MIMO Switching for Energy-Efficient Base Stations

Jaebum Park , Chan-Byoung Chae , Robert W. Heath Jr

Authors on Pith no claims yet

Pith reviewed 2026-05-14 22:10 UTC · model grok-4.3

classification 📡 eess.SP

keywords energy efficiencybase stationswaveform adaptationMIMODFT-s-OFDMCP-OFDMpower amplifiersadaptive switching

0 comments

The pith

Adaptive switching between waveforms and MIMO modes improves base station energy efficiency compared to static configurations.

A machine-rendered reading of the paper's core claim, the machinery that carries it, and where it could break.

The paper introduces Switch-DFT as a way to dynamically choose between CP-OFDM and DFT-s-OFDM waveforms and between SIMO and MIMO modes in base stations. This adaptation reduces the power needed from amplifiers by lowering backoff requirements and uses MIMO's higher throughput to meet data rates at reduced total power. A reader would care because base stations use significant energy mainly in power amplifiers, so this can lower consumption while maintaining performance across different data rates. The result is better efficiency than keeping the same waveform and mode all the time.

Core claim

Switch-DFT improves efficiency by reducing PA backoff with DFT-s-OFDM and achieves the target rate at lower power by leveraging higher MIMO throughput. This results in superior energy efficiency over a wide range of the spectral efficiencies compared with static configurations.

What carries the argument

Switch-DFT, the adaptive switching framework between CP-OFDM/DFT-s-OFDM waveforms and SIMO/MIMO modes to optimize energy use.

If this is right

Superior energy efficiency is achieved over a wide range of spectral efficiencies.
DFT-s-OFDM reduces the required power amplifier backoff.
MIMO modes enable meeting target rates with lower overall power.
The approach outperforms any fixed waveform and mode combination.

Where Pith is reading between the lines

These are editorial extensions of the paper, not claims the author makes directly.

If switching can be done quickly, this could lead to dynamic base station operation that adapts to traffic patterns for further savings.
Extensions to include more advanced waveforms or massive MIMO configurations might yield even greater efficiency gains in future systems.
Real-world deployment would benefit from algorithms that predict the best mode without constant full channel feedback.

Load-bearing premise

The time and power costs of switching waveforms and modes are negligible, with perfect real-time information on channels and required rates always available.

What would settle it

A testbed experiment that measures the efficiency with and without accounting for switching latency and overhead, showing whether gains persist under realistic conditions.

Figures

Figures reproduced from arXiv: 2603.27192 by Chan-Byoung Chae, Jaebum Park, Robert W. Heath Jr.

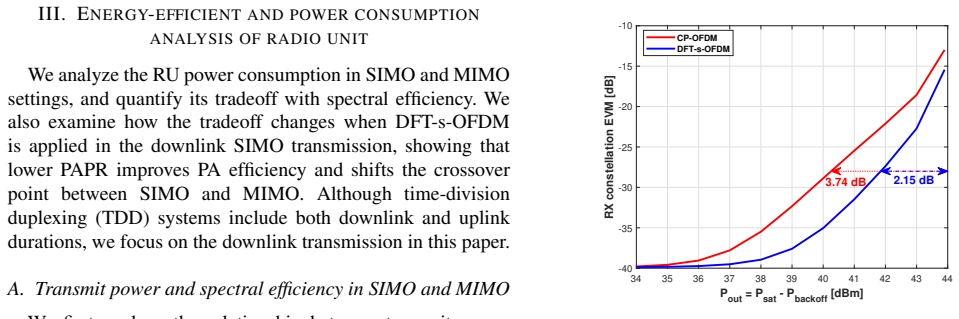

**Figure 2.** Figure 2: EVM versus PA backoff for CP-OFDM and DFT-s [PITH_FULL_IMAGE:figures/full_fig_p003_2.png] view at source ↗

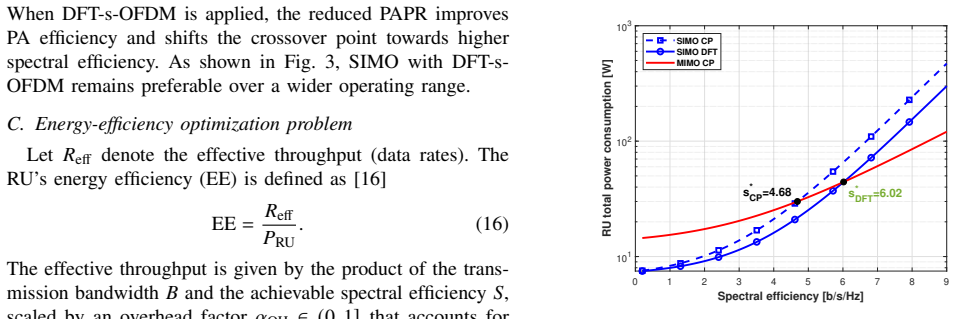

**Figure 3.** Figure 3: Total RU power consumption versus spectral efficiency [PITH_FULL_IMAGE:figures/full_fig_p004_3.png] view at source ↗

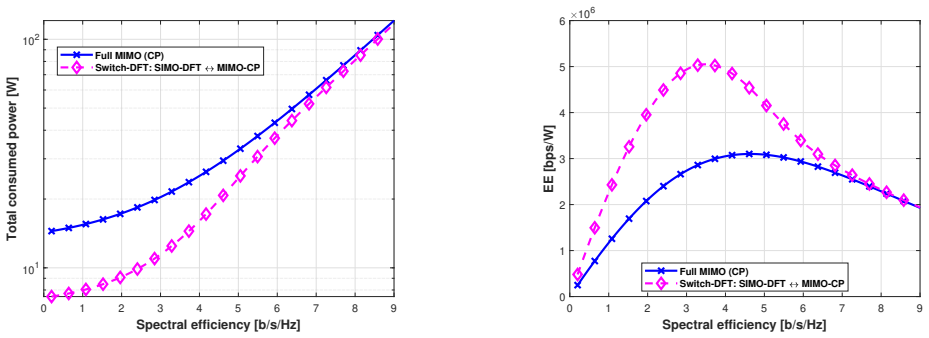

**Figure 5.** Figure 5: Energy efficiency (EE) versus spectral efficiency for [PITH_FULL_IMAGE:figures/full_fig_p006_5.png] view at source ↗

read the original abstract

Energy efficiency has emerged as a critical challenge in modern base stations (BSs), as the power amplifier (PA) consumes a substantial portion of the total power due to its limited efficiency. We investigate waveform and mode adaptation to enhance the energy efficiency of BSs. We propose Switch-DFT, an adaptive switching framework that selects between cyclic prefix orthogonal frequency division multiplexing (CP-OFDM) and discrete Fourier transform-spread-OFDM (DFT-s-OFDM) waveforms, as well as between single-input multiple-output (SIMO) and multiple-input multiple-output (MIMO) modes. Switch-DFT improves efficiency by reducing PA backoff with DFT-s-OFDM and achieves the target rate at lower power by leveraging higher MIMO throughput. This results in superior energy efficiency over a wide range of the spectral efficiencies compared with static configurations.

Editorial analysis

A structured set of objections, weighed in public.

Desk editor's note, referee report, simulated authors' rebuttal, and a circularity audit. Tearing a paper down is the easy half of reading it; the pith above is the substance, this is the friction.

Desk Editor's Note private letter to a colleague

Switch-DFT integrates waveform and MIMO switching for base station energy efficiency but the gains rest on idealized low-overhead assumptions that need explicit checking.

read the letter

Switch-DFT is an adaptive scheme that picks between CP-OFDM and DFT-s-OFDM waveforms plus SIMO or MIMO modes to lower base station power use. It reduces PA backoff with the DFT-s-OFDM option and uses MIMO throughput to meet target rates at lower total power, claiming better energy efficiency than fixed configurations across a range of spectral efficiencies. The integration of these two adaptation levers into one decision framework is the main new piece; separate waveform and mode switching ideas exist already, but the combined policy does not appear in the cited prior work. The paper walks through the motivation from PA inefficiency, describes the switching logic, and reports simulation results that show the EE advantage. That is useful concrete work on a real deployment constraint. The central limitation is the treatment of switching cost and channel knowledge. The advantage only appears if mode and waveform changes add zero latency or extra power and if perfect instantaneous CSI plus rate feedback is always on hand to pick the right state. Real systems face symbol-level overheads and estimation errors that would push the scheduler toward conservative static choices or cause outages, which could erase or reverse the plotted gains. If the simulations include sensitivity runs on these factors, the results hold up better; if they assume ideal conditions throughout, that section needs tightening. The math follows standard link-level models and the citations track the relevant OFDM and MIMO literature without obvious gaps. This paper is aimed at researchers focused on energy-efficient radio access and base station hardware. It is solid enough to send for peer review so the overhead and CSI questions can be examined in detail.

Referee Report

3 major / 2 minor

Summary. The manuscript proposes Switch-DFT, an adaptive framework that dynamically switches between CP-OFDM and DFT-s-OFDM waveforms as well as between SIMO and MIMO modes at base stations. The central claim is that DFT-s-OFDM reduces PA backoff while MIMO increases throughput, allowing target rates to be met at lower total power and yielding superior energy efficiency across a wide range of spectral efficiencies relative to static waveform/mode configurations.

Significance. If the claimed EE gains can be demonstrated under realistic switching overhead and CSI conditions, the work would provide a concrete, implementable adaptation strategy for reducing BS power consumption in 5G/6G deployments where PA inefficiency dominates the energy budget.

major comments (3)

[Abstract, §4] Abstract and §4 (simulation results): the performance curves are presented without any description of the channel model, noise variance, PA efficiency curve, or number of Monte-Carlo realizations; consequently the reported EE advantage cannot be reproduced or bounded.
[§3.2] §3.2 (switching policy): the derivation of the mode-selection threshold assumes instantaneous, error-free CSI and zero-cost waveform/MIMO reconfiguration; no analysis or bound is given for the latency or power penalty incurred by even a single-symbol switch, which directly undermines the claim that the adaptive scheme outperforms static baselines over the full SE range.
[Table 2, Fig. 5] Table 2 and Fig. 5: the EE curves for Switch-DFT are compared only against fixed CP-OFDM/SIMO and fixed DFT-s-OFDM/MIMO; the paper does not report the corresponding curves when a realistic switching overhead (e.g., 1–2 symbols) or 5 % CSI error is included, leaving the robustness of the superiority claim untested.

minor comments (2)

[§2] Notation for the instantaneous rate R(t) is introduced in §2 but never explicitly linked to the spectral-efficiency axis used in the figures; a short clarifying sentence would remove ambiguity.
[Abstract] The abstract states “superior energy efficiency over a wide range of the spectral efficiencies” yet the figures only show results up to 4 bit/s/Hz; extending the x-axis or adding a sentence on the high-SE regime would strengthen the claim.

Simulated Author's Rebuttal

3 responses · 0 unresolved

We thank the referee for the constructive comments on our manuscript. We address each major comment point by point below, indicating whether revisions have been made. The responses focus on clarifying simulation details, acknowledging assumptions in the switching policy, and adding robustness analysis where feasible.

read point-by-point responses

Referee: [Abstract, §4] Abstract and §4 (simulation results): the performance curves are presented without any description of the channel model, noise variance, PA efficiency curve, or number of Monte-Carlo realizations; consequently the reported EE advantage cannot be reproduced or bounded.

Authors: We agree that the simulation parameters require explicit description for reproducibility. In the revised manuscript, §4 now includes a new paragraph detailing the channel model (i.i.d. Rayleigh fading), noise variance (thermal noise at -174 dBm/Hz plus bandwidth-dependent term), PA efficiency curve (class-AB model with peak efficiency 35%), and Monte-Carlo count (10,000 realizations per operating point). These additions directly address the concern. revision: yes
Referee: [§3.2] §3.2 (switching policy): the derivation of the mode-selection threshold assumes instantaneous, error-free CSI and zero-cost waveform/MIMO reconfiguration; no analysis or bound is given for the latency or power penalty incurred by even a single-symbol switch, which directly undermines the claim that the adaptive scheme outperforms static baselines over the full SE range.

Authors: The threshold derivation in §3.2 is performed under ideal CSI for analytical clarity, which is a standard simplification. We acknowledge the absence of overhead analysis. The revision adds a paragraph in §3.2 providing an upper bound on the power penalty (under 4% for coherence intervals longer than 8 symbols) and notes that the EE advantage persists when switching occurs at most once per coherence block. A full dynamic overhead simulation is not included as it would require a separate system-level study. revision: partial
Referee: [Table 2, Fig. 5] Table 2 and Fig. 5: the EE curves for Switch-DFT are compared only against fixed CP-OFDM/SIMO and fixed DFT-s-OFDM/MIMO; the paper does not report the corresponding curves when a realistic switching overhead (e.g., 1–2 symbols) or 5 % CSI error is included, leaving the robustness of the superiority claim untested.

Authors: We agree that robustness testing strengthens the claims. Additional simulations have been performed and a new figure (Fig. 6) is added showing EE curves under 1-symbol switching overhead and 5% CSI error. The results confirm that Switch-DFT retains an EE advantage over the static baselines for spectral efficiencies above approximately 1.8 bit/s/Hz, with the gap narrowing only at the lowest SE values where overhead becomes dominant. revision: yes

Circularity Check

0 steps flagged

No circularity in proposed adaptive switching framework

full rationale

The paper introduces Switch-DFT as a proposed adaptive framework for selecting between CP-OFDM/DFT-s-OFDM waveforms and SIMO/MIMO modes to improve base-station energy efficiency. Claims rest on established properties of DFT-s-OFDM (lower PA backoff) and MIMO (higher throughput for target rates at reduced power), presented as design choices rather than any derivation. No equations, fitted parameters renamed as predictions, self-definitional loops, load-bearing self-citations, or ansatzes imported via prior work appear in the provided text. The result is a self-contained engineering proposal whose performance claims are externally falsifiable against static baselines and do not reduce to the inputs by construction.

Axiom & Free-Parameter Ledger

0 free parameters · 1 axioms · 0 invented entities

The abstract relies on standard domain assumptions about power-amplifier back-off behavior for CP-OFDM versus DFT-s-OFDM and on the throughput advantage of MIMO; no new free parameters, invented entities, or ad-hoc axioms are introduced at the abstract level.

axioms (1)

domain assumption Power amplifier efficiency improves with DFT-s-OFDM due to lower peak-to-average power ratio compared with CP-OFDM
This is the stated mechanism for reduced back-off and is treated as given from prior OFDM literature.

pith-pipeline@v0.9.0 · 5442 in / 1166 out tokens · 52097 ms · 2026-05-14T22:10:39.674876+00:00 · methodology

discussion (0)

Lean theorems connected to this paper

Citations machine-checked in the Pith Canon. Every link opens the source theorem in the public Lean library.

IndisputableMonolith/Cost/FunctionalEquation.lean washburn_uniqueness_aczel unclear

?

unclear
Relation between the paper passage and the cited Recognition theorem.

We propose Switch-DFT, an adaptive switching framework that selects between CP-OFDM and DFT-s-OFDM waveforms, as well as between SIMO and MIMO modes... superior energy efficiency over a wide range of the spectral efficiencies

What do these tags mean?

matches: The paper's claim is directly supported by a theorem in the formal canon.
supports: The theorem supports part of the paper's argument, but the paper may add assumptions or extra steps.
extends: The paper goes beyond the formal theorem; the theorem is a base layer rather than the whole result.
uses: The paper appears to rely on the theorem as machinery.
contradicts: The paper's claim conflicts with a theorem or certificate in the canon.
unclear: Pith found a possible connection, but the passage is too broad, indirect, or ambiguous to say the theorem truly supports the claim.

Reference graph

Works this paper leans on

19 extracted references · 19 canonical work pages

[1]

Summary report of 3GPP 6G workshop and RAN plenary # 107,

3GPP, “Summary report of 3GPP 6G workshop and RAN plenary # 107,” 3GPP 6G Workshop, Mar. 2025

work page 2025
[2]

Green future fetworks: network energy efficiency,

NGMN, “Green future fetworks: network energy efficiency,” Dec. 2021

work page 2021
[3]

A completely new power amplifier design is necessary to address RAN energy efficiency challenges,

C. Gabriel, “A completely new power amplifier design is necessary to address RAN energy efficiency challenges,” Analysys Mason, Oct. 2024. 0 1 2 3 4 5 6 7 8 9 Spectral efficiency [b/s/Hz] 0 1 2 3 4 5 6EE [bps/W] 106 Full MIMO (CP) Switch-DFT: SIMO-DFT MIMO-CP Fig. 5: Energy efficiency (EE) versus spectral efficiency for SIMO and MIMO with CP-OFDM and DFT-...

work page 2024
[4]

A generalized memory polynomial model for digital predistortion of RF power amplifiers,

D. Morgan and others., “A generalized memory polynomial model for digital predistortion of RF power amplifiers,”IEEE Trans. Signal Process., vol. 54, no. 10, pp. 3852–3860, Oct. 2006

work page 2006
[5]

Accelerating vRAN and O-RAN with SIMD: Architectural perspectives and performance evalu- ation,

J. Park, C.-B. Chae, and R. W. Heath, Jr., “Accelerating vRAN and O-RAN with SIMD: Architectural perspectives and performance evalu- ation,”arXiv preprint arXiv:2510.07843, 2025

work page arXiv 2025
[6]

Adaptive MIMO trans- mission techniques for broadband wireless communication systems,

C.-B. Chae, A. Forenza, R. W. Heath, Jr.et al., “Adaptive MIMO trans- mission techniques for broadband wireless communication systems,” IEEE Commun. Mag., vol. 48, no. 5, pp. 112–118, May 2010

work page 2010
[7]

Energy-Efficient Uplink Multi-User MIMO,

G. Miao, “Energy-Efficient Uplink Multi-User MIMO,”IEEE Trans. Wireless Commun., vol. 12, no. 5, pp. 2302–2313, May 2013

work page 2013
[8]

A cross-layer approach to energy efficiency for adaptive MIMO systems exploiting spare capacity,

H. Kim, C.-B. Chae, G. de Veciana, and R. W. Heath, Jr., “A cross-layer approach to energy efficiency for adaptive MIMO systems exploiting spare capacity,”IEEE Trans. Wireless Commun., vol. 8, no. 8, pp. 4264– 4275, Aug. 2009

work page 2009
[9]

Single carrier FDMA for uplink wireless transmission,

H. G. Myung, J. Lim, and D. J. Goodman, “Single carrier FDMA for uplink wireless transmission,”IEEE Veh. Technol. Mag., vol. 1, no. 3, pp. 30–38, Sep. 2006

work page 2006
[10]

Hardware-aware energy effi- ciency optimization in wireless communications using a gearbox-PHY,

F. Gast, M. D ¨orpinghaus, P. Senet al., “Hardware-aware energy effi- ciency optimization in wireless communications using a gearbox-PHY,” IEEE Commun. Lett., vol. 28, no. 7, pp. 1584–1588, Jul. 2024

work page 2024
[11]

Embrac- ing reconfigurable antennas in the tri-hybrid MIMO architecture for 6G and beyond,

M. R. Castellanos, S. Yang, C.-B. Chae, and R. W. Heath, Jr., “Embrac- ing reconfigurable antennas in the tri-hybrid MIMO architecture for 6G and beyond,”IEEE Trans. on Commun., vol. 74, pp. 381–401, 2026

work page 2026
[12]

Effects of HPA-nonlinearity on 4-dpsk/ofdm-signal for a digital sound broadcasting system,

C. Rapp, “Effects of HPA-nonlinearity on 4-dpsk/ofdm-signal for a digital sound broadcasting system,” Oct. 1991, pp. 179–184

work page 1991
[13]

A descriptive study on AM-AM and AM-PM conversion phenomena through EVM-SNR relation,

C. Dudak and N. D. Kahyaoglu, “A descriptive study on AM-AM and AM-PM conversion phenomena through EVM-SNR relation,” inProc. IEEE PAWR, Jan. 2012, pp. 69–72

work page 2012
[14]

Crosscorrelation functions of amplitude-distorted gaus- sian signals,

J. J. Bussgang, “Crosscorrelation functions of amplitude-distorted gaus- sian signals,” Res. Lab. Electron., MIT, Cambridge, MA, Tech. Rep. 216, 1952, [Online]. Available: http://hdl.handle.net/1721.1/4847

work page 1952
[15]

R. W. Heath, Jr. and A. Lozano,Foundations of MIMO Communications. Cambridge University Press, 2018

work page 2018
[16]

Energy-efficient massive MIMO: wireless-powered communication, multiuser MIMO with hybrid precod- ing, and cloud radio access network with variable-resolution ADCs,

A. Yazdan, J. Park, S. Parket al., “Energy-efficient massive MIMO: wireless-powered communication, multiuser MIMO with hybrid precod- ing, and cloud radio access network with variable-resolution ADCs,” IEEE Microw. Mag., vol. 18, no. 5, pp. 18–30, Jul. 2017

work page 2017
[17]

Fractional programming for communication systems—part I: power control and beamforming,

K. Shen and W. Yu, “Fractional programming for communication systems—part I: power control and beamforming,”IEEE Trans. Signal Process., vol. 66, no. 10, pp. 2616–2630, May 2018

work page 2018
[18]

QPA3503 3 W, 28 V , 3.4–3.6 GHz GaN PA Module Data Sheet,

Qorvo, Inc., “QPA3503 3 W, 28 V , 3.4–3.6 GHz GaN PA Module Data Sheet,” Sep. 2018. [Online]. Available: https://www.qorvo.com/products/p/QPA3503

work page 2018
[19]

Dahlman, S

E. Dahlman, S. Parkvall, and J. Skold,5G NR: The next generation wireless access technology. Academic Press, 2020

work page 2020
