arxiv: 2604.02120 · v2 · submitted 2026-04-02 · 💻 cs.AR · cs.GR

GEMM-GS: Accelerating 3D Gaussian Splatting on Tensor Cores with GEMM-Compatible Blending

Haomin Li , Bowen Zhu , Fangxin Liu , Zongwu Wang , Xinran Liang , Li Jiang , Haibing Guan This is my paper

Pith reviewed 2026-05-13 20:49 UTC · model grok-4.3

classification 💻 cs.AR cs.GR
keywords 3D Gaussian SplattingTensor CoresGEMM accelerationCUDA kernel optimizationreal-time renderingblending reformulationGPU acceleration
0
0 comments X

The pith

Reformulating 3D Gaussian Splatting blending as matrix multiplications enables Tensor Core acceleration with 1.42 times speedup.

A machine-rendered reading of the paper's core claim, the machinery that carries it, and where it could break.

The paper establishes that the blending operation in 3D Gaussian Splatting can be rewritten in a form that matches general matrix multiplication, allowing direct use of GPU Tensor Cores. This change delivers a 1.42 times speedup compared to the standard implementation. When combined with other acceleration methods, it adds another 1.47 times improvement on average. The reformulation is mathematically equivalent, preserving image quality exactly. This matters because 3DGS already offers faster rendering than NeRF but still needs further optimization to reach true real-time performance on consumer hardware.

Core claim

By transforming the alpha blending of Gaussians into GEMM operations, the approach maps the 3DGS pipeline onto Tensor Cores. A three-stage double-buffered CUDA kernel overlaps computation with memory access to maximize throughput. Benchmarks show the 1.42x gain over vanilla 3DGS and the additional factor when stacked with prior optimizations.

What carries the argument

The GEMM-compatible blending transformation that recasts per-pixel Gaussian accumulation into matrix multiplication operations.

If this is right

  • Vanilla 3DGS rendering can run faster on existing GPUs without altering the input data or model.
  • Other acceleration techniques for 3DGS become more effective when paired with this hardware mapping.
  • Real-time frame rates become more achievable for complex scenes in applications like AR and simulation.
  • The same reformulation principle may apply to similar volume rendering pipelines.

Where Pith is reading between the lines

These are editorial extensions of the paper, not claims the author makes directly.

  • This could inspire similar hardware-specific reformulations in other graphics algorithms that currently avoid matrix units.
  • Developers might integrate this into standard 3DGS libraries to make Tensor Core usage automatic.
  • Energy efficiency could improve on devices with dedicated matrix accelerators.

Load-bearing premise

The rewritten blending formula must produce exactly the same numerical results as the original without introducing rounding errors or instability on Tensor Cores.

What would settle it

Comparing pixel values from the original 3DGS renderer and the GEMM-GS version on identical inputs; any systematic difference beyond machine precision would disprove equivalence.

Figures

Figures reproduced from arXiv: 2604.02120 by Bowen Zhu, Fangxin Liu, Haibing Guan, Haomin Li, Li Jiang, Xinran Liang, Zongwu Wang.

Figure 1
Figure 1. Figure 1: Computing Power Breakdown of modern GPUs [PITH_FULL_IMAGE:figures/full_fig_p001_1.png] view at source ↗
Figure 2

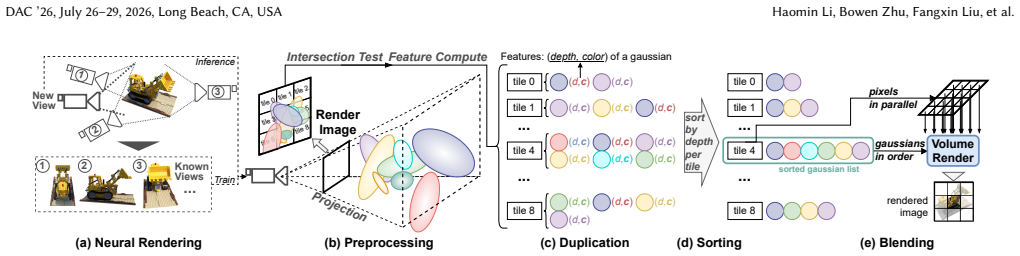

Figure 2. Figure 2: Neural Rendering and Process of 3DGS [10]. (a) Neural rendering (process of novel view synthesis). 3DGS consists of three stages. (b) Stage 1: Preprocessing. Gaussians are projected onto the render image and intersection test is performed to relating projected Gaussians and tiles. Gaussians’ features are also computed, including depth 𝑑 and color c. (c) Stage 2: Duplication. Each Gaussian is duplicated acc… view at source ↗
Figure 3

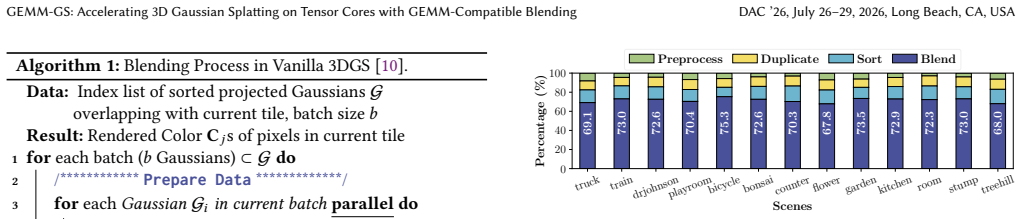

Figure 3. Figure 3: Rendering Latency Breakdown of 3DGS. The scenes [PITH_FULL_IMAGE:figures/full_fig_p003_3.png] view at source ↗
Figure 4

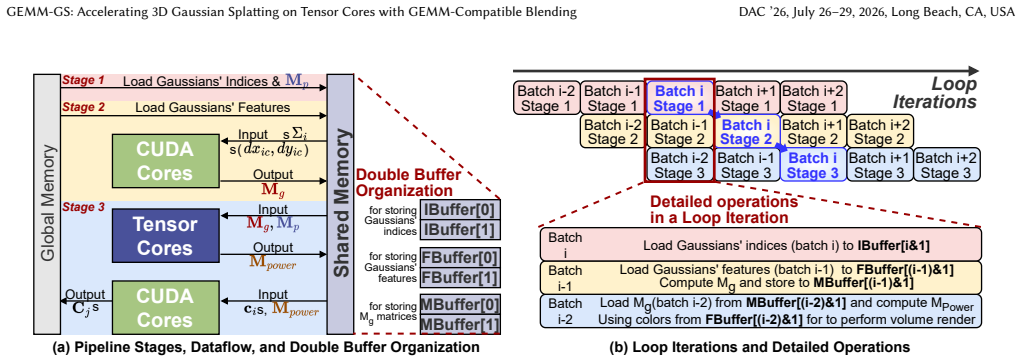

Figure 4. Figure 4: High-Performance GPU Kernel Design and Implementation. (a) Dataflow of 3-stage pipeline configured with double [PITH_FULL_IMAGE:figures/full_fig_p005_4.png] view at source ↗
Figure 5

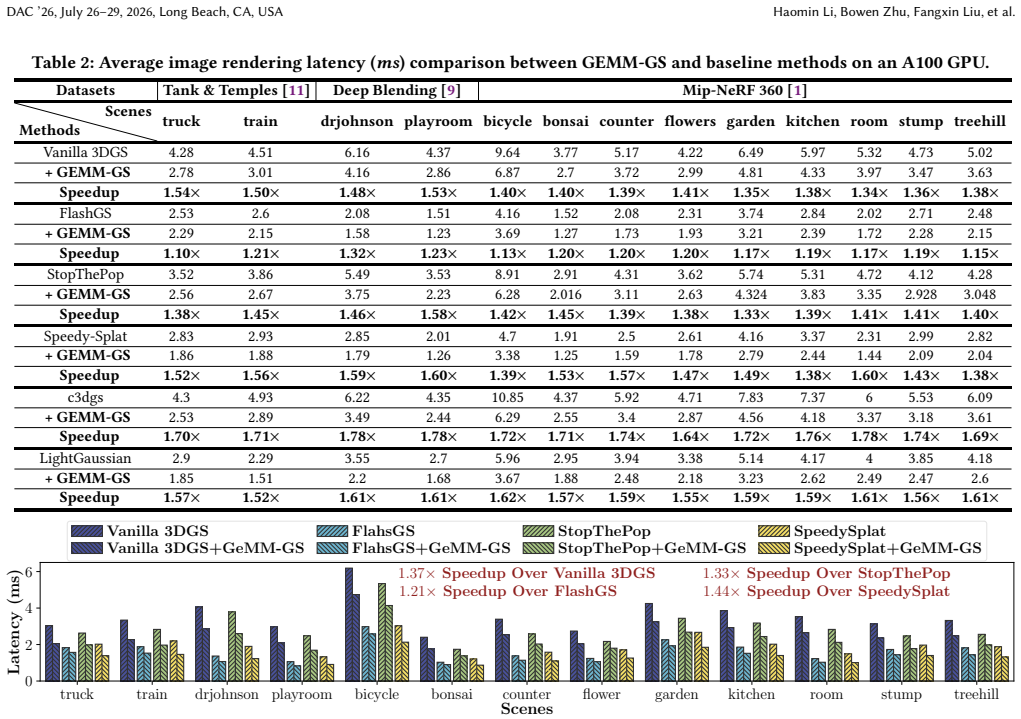

Figure 5. Figure 5: Average image rendering latency (ms) comparison between GEMM-GS and baseline methods on an H100 GPU. truck train drjohnson playroom flower garden stump Scenes 0 20 40 Latency (ms) Vanilla 3DGS(1×) GeMM-GS(2×) GeMM-GS(1×) Vanilla 3DGS(3×) Vanilla 3DGS(2×) GeMM-GS(3×) [PITH_FULL_IMAGE:figures/full_fig_p006_5.png] view at source ↗
read the original abstract

Neural Radiance Fields (NeRF) enables 3D scene reconstruction from several 2D images but incurs high rendering latency via its point-sampling design. 3D Gaussian Splatting (3DGS) improves on NeRF with explicit scene representation and an optimized pipeline yet still fails to meet practical real-time demands. Existing acceleration works overlook the evolving Tensor Cores of modern GPUs because 3DGS pipeline lacks General Matrix Multiplication (GEMM) operations. This paper proposes GEMM-GS, an acceleration approach utilizing tensor cores on GPUs via GEMM-friendly blending transformation. It equivalently reformulates the 3DGS blending process into a GEMM-compatible form to utilize Tensor Cores. A high-performance CUDA kernel is designed, integrating a three-stage double-buffered pipeline that overlaps computation and memory access. Extensive experiments show that GEMM-GS achieves $1.42\times$ speedup over vanilla 3DGS and provides an additional $1.47\times$ speedup on average when combining with existing acceleration approaches. Code is released at https://github.com/shieldforever/GEMM-GS.

Editorial analysis

A structured set of objections, weighed in public.

Desk editor's note, referee report, simulated authors' rebuttal, and a circularity audit. Tearing a paper down is the easy half of reading it; the pith above is the substance, this is the friction.

Referee Report

1 major / 1 minor

Summary. The paper introduces GEMM-GS, which accelerates 3D Gaussian Splatting by equivalently reformulating the alpha-blending process into a GEMM-compatible form to enable Tensor Core utilization on GPUs. It describes a high-performance CUDA kernel using a three-stage double-buffered pipeline to overlap computation and memory access. Experiments report a 1.42× speedup over vanilla 3DGS and an average additional 1.47× speedup when combined with prior acceleration techniques, with code released publicly.

Significance. If the reformulation is numerically equivalent and preserves quality, the work is significant because it directly exploits Tensor Cores—an underutilized hardware feature in prior 3DGS accelerators—potentially improving real-time rendering performance. The open release of code is a clear strength that supports reproducibility and extension.

major comments (1)
  1. [§3.2] §3.2 (blending reformulation): The central claim of exact algebraic equivalence between the original alpha compositing and the GEMM form must be verified under Tensor Core mixed precision (FP16/TF32 inputs with FP32 accumulation). No error bounds, per-pixel difference statistics, or per-scene PSNR/SSIM deltas between the FP32 baseline and the Tensor-Core path are reported, even though accumulation over hundreds of sorted Gaussians can amplify rounding discrepancies.
minor comments (1)
  1. [Experiments] The experimental section would benefit from an explicit table listing per-scene speedups, hardware platform (GPU model, Tensor Core generation), and exact baseline kernels used for the 1.42× and 1.47× figures.

Simulated Author's Rebuttal

1 responses · 0 unresolved

We thank the referee for the detailed review and the constructive comment on numerical verification. We agree that confirming equivalence under Tensor Core mixed precision is essential, especially given potential accumulation effects, and we will incorporate the requested analysis in the revised manuscript.

read point-by-point responses

  1. Referee: [§3.2] §3.2 (blending reformulation): The central claim of exact algebraic equivalence between the original alpha compositing and the GEMM form must be verified under Tensor Core mixed precision (FP16/TF32 inputs with FP32 accumulation). No error bounds, per-pixel difference statistics, or per-scene PSNR/SSIM deltas between the FP32 baseline and the Tensor-Core path are reported, even though accumulation over hundreds of sorted Gaussians can amplify rounding discrepancies.

    Authors: We thank the referee for this important observation. The algebraic reformulation in §3.2 is exact in infinite precision, but we acknowledge that Tensor Core mixed-precision (FP16/TF32 inputs with FP32 accumulation) can introduce rounding discrepancies that accumulate over hundreds of Gaussians. In the revised manuscript we will add a dedicated subsection (and supporting appendix) that includes: (1) a brief error-bound analysis derived from the number of terms and FP32 accumulation precision, (2) per-pixel absolute and relative difference statistics (mean/max L1/L2) averaged across the test scenes, and (3) per-scene PSNR/SSIM deltas between the FP32 reference and the Tensor-Core path. These results will be reported for both the standalone GEMM-GS kernel and the combined acceleration settings. We have already collected the necessary data internally and will include the full tables and figures in the revision. revision: yes

Circularity Check

0 steps flagged

No circularity: algebraic reformulation is independent of measured speedups

full rationale

The central contribution is an algebraic reformulation of alpha blending into GEMM form, presented as an exact equivalence rather than a fitted model or self-referential definition. Speedup claims (1.42× and 1.47×) are obtained by direct measurement against a baseline CUDA implementation, not by predicting from any parameter fitted to the target data. No self-citation chains, uniqueness theorems, or ansatzes imported from prior author work are invoked to justify the core transformation. The derivation chain is therefore self-contained: the mathematical step stands on its own algebraic validity, while empirical results are externally falsifiable via the released code.

Axiom & Free-Parameter Ledger

0 free parameters · 0 axioms · 0 invented entities

The work rests on standard GPU hardware capabilities and the algebraic equivalence of the blending rewrite; no new free parameters, axioms beyond ordinary floating-point arithmetic, or invented entities are introduced.
