Construction and characterisation of the DarkSide-20k veto silicon photo-multiplier tiles

DarkSide-20k collaboration

Authors on Pith no claims yet

Pith reviewed 2026-05-13 19:47 UTC · model grok-4.3

classification ⚛️ physics.ins-det hep-ex

keywords silicon photo-multipliersSiPMveto tilescryogenic detectorsdark matter searchliquid argonproduction yieldradioactive contamination

0 comments

The pith

Silicon photo-multiplier veto tiles for DarkSide-20k reach over 87 percent production yield with stable cryogenic performance

A machine-rendered reading of the paper's core claim, the machinery that carries it, and where it could break.

The paper reports the full production and testing of veto tiles made from arrays of silicon photo-multipliers for use in the inner veto of the DarkSide-20k dark matter detector. These tiles are built to detect single photoelectrons and help reject neutron and muon backgrounds in liquid argon. Tests at both room temperature and cryogenic temperatures showed reliable signal detection, high signal-to-noise performance, and low radioactive contamination. The manufacturing process delivered more than 87 percent acceptable tiles, enough to equip the full veto system plus spares.

Core claim

The authors describe the completed construction of veto tiles, each an array of 24 silicon photo-multipliers mounted on a printed circuit board for power distribution and signal amplification. Characterization at room and cryogenic temperatures confirmed stable operation, high signal-to-noise ratios, and low radioactive contamination levels. The production yield exceeded 87 percent, surpassing the 80 percent requirement and supplying 1920 tiles for 120 veto photo-detector units along with 6 percent spares.

What carries the argument

The vTile, an array of 24 silicon photo-multipliers integrated on a printed circuit board providing power distribution and signal amplification, which supports single photoelectron detection under cryogenic conditions with low background contribution.

If this is right

The inner veto volume can be fully instrumented with the required 120 veto photo-detector units.
The veto system can discriminate against radiogenic neutrons and cosmic muons to reduce backgrounds in the dark matter search.
The tiles maintain stable operation and high signal quality in the cryogenic liquid argon environment.
Low radioactive contamination levels preserve the low-background conditions needed for sensitive dark matter detection.
Spare tiles provide margin for replacements without delaying detector assembly.

Where Pith is reading between the lines

These are editorial extensions of the paper, not claims the author makes directly.

The SiPM integration on printed circuit boards could reduce overall detector radioactivity compared with traditional photomultiplier tubes in future noble-liquid experiments.
The testing protocols and yield results may guide similar veto designs for larger-scale dark matter detectors.
Performance in the actual underground environment over multi-year runs would provide the definitive check on background rejection.
The approach could be extended to outer veto layers or other particle physics setups using cryogenic noble liquids.

Load-bearing premise

Short-term room-temperature and cryogenic tests are assumed to predict long-term performance and background levels after the tiles are installed underground in the full detector for years of operation.

What would settle it

Detection of unexpectedly high radioactive background rates or signal degradation from the veto tiles during extended data-taking runs in the assembled DarkSide-20k detector would indicate that the tests do not fully capture real operating conditions.

Figures

Figures reproduced from arXiv: 2604.02551 by DarkSide-20k collaboration.

**Figure 1.** Figure 1: (1a) Drawings of the DarkSide-20k experiment, showing the cryostat (red and yellow structures), the Outer Veto volume and the Inner Detector inside the stainless steel vessel. (1b) The Inner Detector, including the upper TPC optical plane, the calibration pipes (in red) and the Inner Veto PhotoDetector Units (in yellow) attached to the PMMA walls (in blue) and at the rear of the optical plane (in green)… view at source ↗

**Figure 2.** Figure 2: Schematic of the vTile electronics: it consists of 24 SiPMs arranged in a “2s-3p” configuration, with 3 parallel [PITH_FULL_IMAGE:figures/full_fig_p003_2.png] view at source ↗

**Figure 3.** Figure 3: (3a) 24 SiPMs mounted on a vTile. (3b) Populated PCB for the vTile front-end electronics. The packaged ASIC amplifier is located at the bottom. The copper pillars used for the vPDU integration are present at the four corners. (3c) The holding fixture used throughout the vTile readout electronics population process [PITH_FULL_IMAGE:figures/full_fig_p004_3.png] view at source ↗

**Figure 4.** Figure 4: Fully assembled vPDU housed within the handler [PITH_FULL_IMAGE:figures/full_fig_p004_4.png] view at source ↗

**Figure 5.** Figure 5: Production and QA/QC of vTiles and vPDUs are distributed across institutes and universities in the UK and Poland. [PITH_FULL_IMAGE:figures/full_fig_p005_5.png] view at source ↗

**Figure 6.** Figure 6: Surface features from SiPM visual inspection. The top row shows classes of defects that lead to SiPM rejection, as they [PITH_FULL_IMAGE:figures/full_fig_p006_6.png] view at source ↗

**Figure 7.** Figure 7: Flatness plot for a pre-production DarkSide-20k vTile (QR code 22061703000024001), showing a worst-case SiPM [PITH_FULL_IMAGE:figures/full_fig_p007_7.png] view at source ↗

**Figure 8.** Figure 8: (8a) Temperature profile used in the forced convection oven. (8b) Peak amplitude distribution of the response to a square test pulse for vTiles populated with readout electronics, fitted with a Gaussian. During the picking process, a database record is created that documents the relationship between SiPM position in the tray and the original wafer column/row location, to provide traceability information f… view at source ↗

**Figure 9.** Figure 9: Wire bond pull strength test. Post-die attach testing vTiles progress to capacitance/resistance (CR) testing after the 24 SiPMs have been attached and wire-bonded. The test system makes use of a Keysight E4980A Precision LCR meter to measure the capacitance and resistance of each of the 4 quadrants of a vTile (constituted by 6 SiPMs). vTiles are mounted to a custom test PCB with a 3D printed socket insid… view at source ↗

**Figure 10.** Figure 10: vTile shipping fixture (underside) containing four [PITH_FULL_IMAGE:figures/full_fig_p010_10.png] view at source ↗

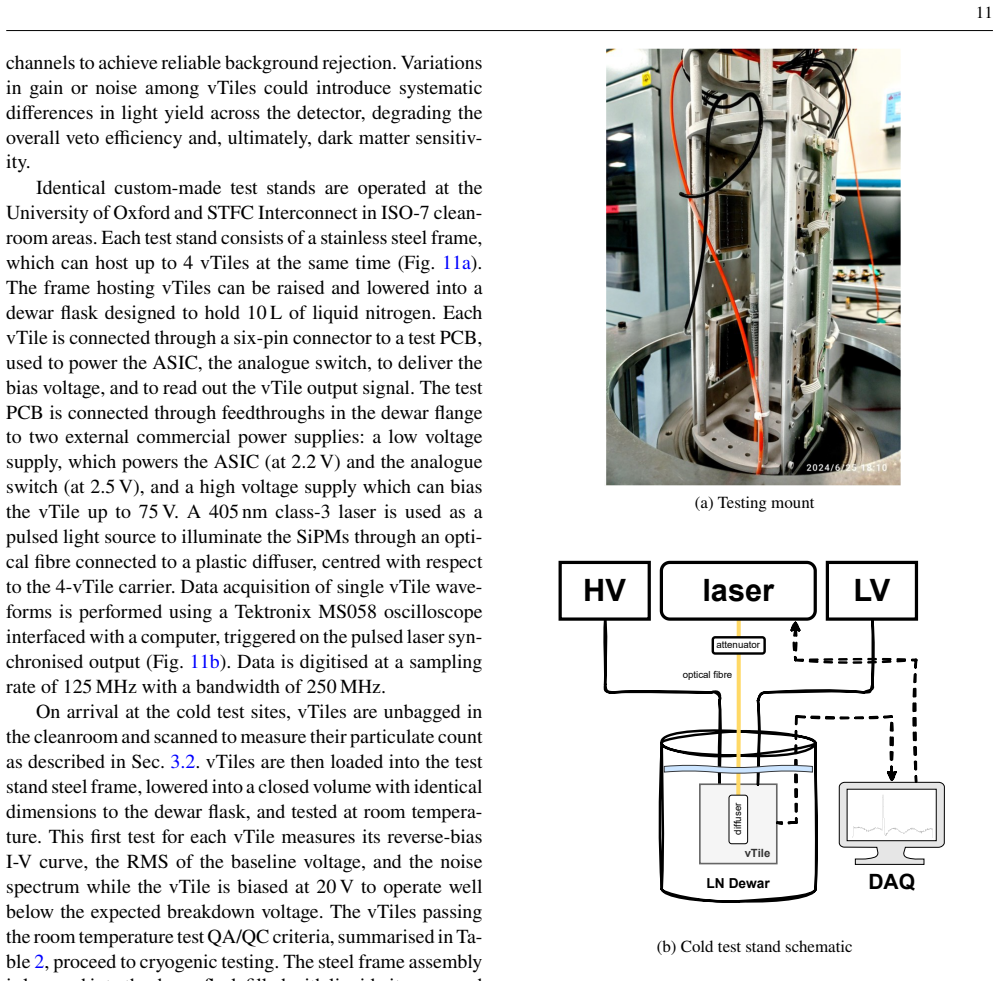

**Figure 11.** Figure 11: vTile test stand. (11a) Picture of 4 vTiles mounted on the testing carrier in the test stand, showing the optical fibre and the light diffuser facing the SiPMs. Up to 4 vTiles can be tested at the same time. (11b) Schematic of the test stand electronics and readout: high voltage power supply (HV) for the SiPM sensor bias, low voltage power supply (LV) to enable the ASIC amplifier, the laser light source a… view at source ↗

**Figure 12.** Figure 12: Example of reverse-bias I-V curves for multiple vTiles at warm ( [PITH_FULL_IMAGE:figures/full_fig_p012_12.png] view at source ↗

**Figure 13.** Figure 13: Time distribution of pulses, showing the trigger [PITH_FULL_IMAGE:figures/full_fig_p013_13.png] view at source ↗

**Figure 14.** Figure 14: (14a) Amplitude spectrum for a vTile biased at 69 V together with a Gaussian fit to the 1 and 2-PE peaks (in green and blue respectively) used to compute the SNR. The leftmost small peak corresponds to the residual pedestal. (14b) SNR plotted against the vTile bias voltage for 2208 production vTiles showing a clear linear correlation with the bias voltage. Boxes represent data between the first and third … view at source ↗

**Figure 15.** Figure 15: (15a) SNR, and (15b) PCR distributions for production vTiles tested in cold, with a bias of 69 V. The dashed-blue lines correspond to the acceptance criteria ( [PITH_FULL_IMAGE:figures/full_fig_p014_15.png] view at source ↗

**Figure 16.** Figure 16: vPDU assembly: example of a vMB being populated [PITH_FULL_IMAGE:figures/full_fig_p015_16.png] view at source ↗

**Figure 17.** Figure 17: Distribution of the dust counts performed on the SiPM surface of vTiles in a cold test site (pre and post testing [PITH_FULL_IMAGE:figures/full_fig_p017_17.png] view at source ↗

**Figure 18.** Figure 18: Pareto chart illustrating the most common failure [PITH_FULL_IMAGE:figures/full_fig_p017_18.png] view at source ↗

read the original abstract

Silicon photo-multipliers (SiPMs) are state-of-the-art sensors capable of detecting a single photoelectron under cryogenic conditions, with potentially lower radioactivity than widely used photomultiplier tubes. The DarkSide-20k experiment, designed to perform direct dark matter searches using liquid argon as the target material, employs SiPM technology to detect interactions in the active detector volumes, including the central dual-phase Time Projection Chamber and the Inner and Outer Veto volumes. The vetoes are designed to discriminate against radiogenic neutron and cosmic muon backgrounds associated with the dark matter search. This paper describes the completed production and test protocols for the "Veto Tiles" (called vTiles, arrays of 24 SiPMs integrated on a printed circuit board providing the power distribution and signal amplification); 16 vTiles are grouped into "Veto Photo-Detector Units" to instrument the Inner Veto volume. Each vTile underwent detailed testing at room and cryogenic temperatures, confirming stable operation, high signal-to-noise ratio, and low radioactive contamination, demonstrating the robustness of the proposed design for cryogenic conditions. The final production yield exceeded 87%, surpassing the 80% requirement and corresponding to 1920 Veto Tiles to populate 120 Veto Photo-Detector Units, plus an additional 6% as spares.
