arxiv: 2604.02756 · v1 · submitted 2026-04-03 · 💻 cs.LG

STDDN: A Physics-Guided Deep Learning Framework for Crowd Simulation

Zijin Liu , Xu Geng , Wenshuai Xu , Xiang Zhao , Yan Xia , You Song This is my paper

Pith reviewed 2026-05-13 19:54 UTC · model grok-4.3

classification 💻 cs.LG
keywords crowd simulationphysics-guided learningNeural ODEcontinuity equationdensity evolutiontrajectory predictionspatio-temporal modeling
0
0 comments X

The pith

STDDN uses the continuity equation from fluid dynamics to guide microscopic crowd trajectory predictions and reduce long-term error accumulation.

A machine-rendered reading of the paper's core claim, the machinery that carries it, and where it could break.

Existing crowd simulation methods model individuals independently, which causes errors to build up over time and ignores larger physical patterns. The paper introduces STDDN to couple individual movements with a macroscopic density field governed by the continuity equation. A Neural ODE models how density evolves, regularized by a graph module that links density and velocity. This produces more stable long-term simulations on real datasets while lowering inference latency compared to prior deep learning approaches.

Core claim

By embedding the continuity equation as a physical constraint inside a Neural ODE, STDDN regularizes microscopic trajectory predictions through a density-velocity coupled graph and differentiable density mapping, thereby preventing error accumulation in long-term simulations.

What carries the argument

Spatio-Temporal Decoupled Differential Equation Network (STDDN) that employs a Neural ODE to enforce the continuity equation on evolving crowd density while coupling it to individual trajectories via graph learning and cross-grid detection.

If this is right

  • Long-term crowd simulations maintain physical consistency without rapid error growth.
  • Inference speed improves enough for practical large-scale real-time use.
  • Density changes from individuals crossing grid boundaries are modeled more accurately.
  • The approach separates macroscopic physics from microscopic prediction while keeping both differentiable.

Where Pith is reading between the lines

These are editorial extensions of the paper, not claims the author makes directly.

  • The same continuity-equation regularization could be tested on traffic or pedestrian flow models in different geometries.
  • If the Neural ODE density evolution proves robust, it might reduce the need for very large training sets in other physics-informed simulation tasks.
  • Cross-grid detection modules may generalize to any grid-based discretization where agents move between cells.

Load-bearing premise

The continuity equation from fluid dynamics serves as a reliable macroscopic constraint on how microscopic crowd movements change local density without creating inconsistencies that break long-term stability.

What would settle it

Run the model on one of the four real-world datasets for extended time horizons and check whether trajectory error or density mismatch grows at the same rate as strong baseline methods without the physics constraint.

Figures

Figures reproduced from arXiv: 2604.02756 by Wenshuai Xu, Xiang Zhao, Xu Geng, Yan Xia, You Song, Zijin Liu.

Figure 1

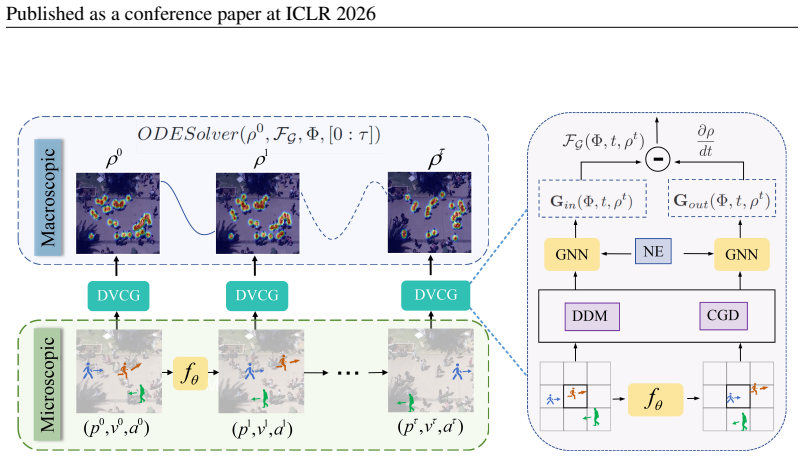

Figure 1. Figure 1: Overview of the STDDN framework, consisting of a microscopic trajectory prediction [PITH_FULL_IMAGE:figures/full_fig_p005_1.png] view at source ↗
Figure 2

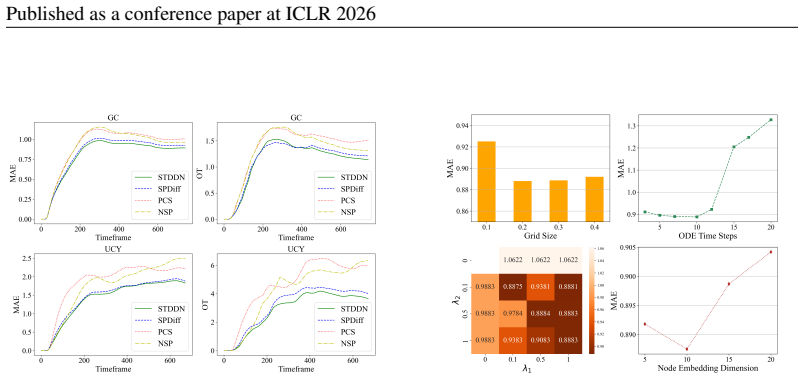

Figure 2. Figure 2: Accumulate error of the simulation, using MAE and OT as metrics [PITH_FULL_IMAGE:figures/full_fig_p010_2.png] view at source ↗
Figure 4

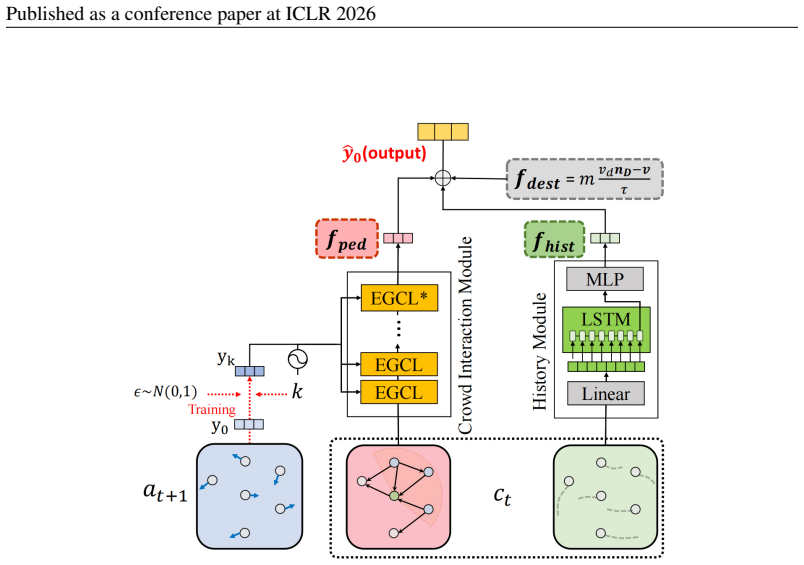

Figure 4. Figure 4: The detailed of next trajectory prediction model. [PITH_FULL_IMAGE:figures/full_fig_p014_4.png] view at source ↗
Figure 5

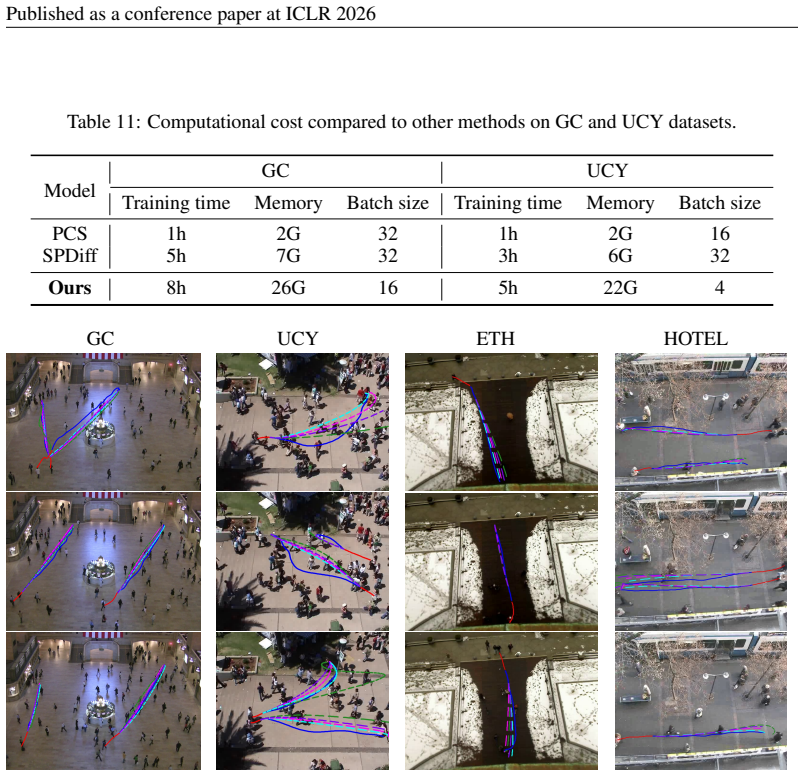

Figure 5. Figure 5: Visualization of predicted trajectories on the GC, UCY, ETH, and HOTEL datasets. Each [PITH_FULL_IMAGE:figures/full_fig_p020_5.png] view at source ↗
Figure 6

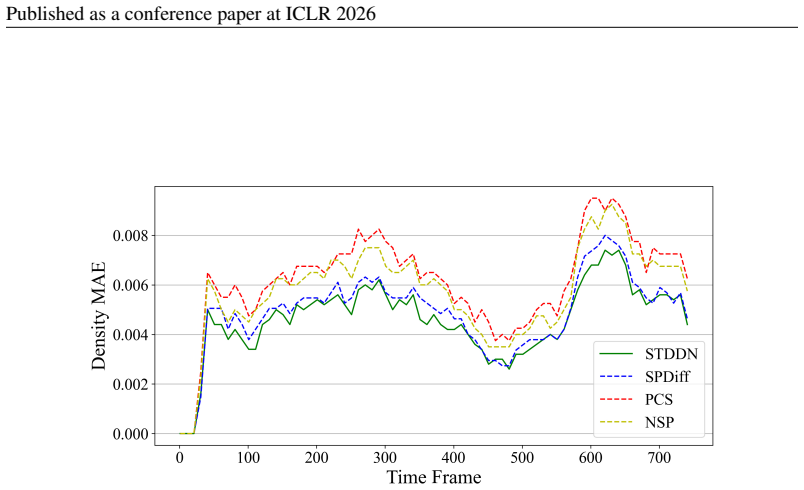

Figure 6. Figure 6: Accumulated density prediction error comparison on the GC dataset. [PITH_FULL_IMAGE:figures/full_fig_p021_6.png] view at source ↗
Figure 7

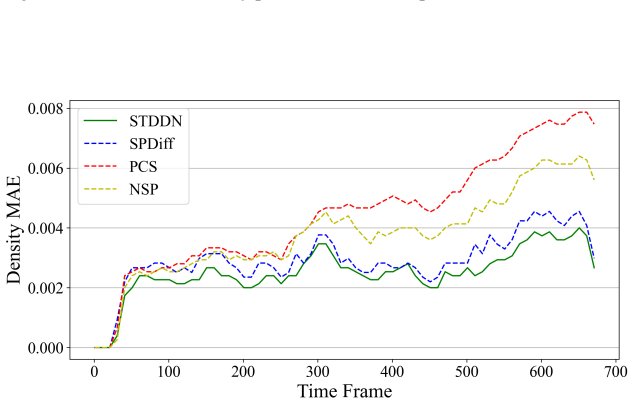

Figure 7. Figure 7: Accumulated density prediction error comparison on the UCY dataset. [PITH_FULL_IMAGE:figures/full_fig_p021_7.png] view at source ↗
Figure 8
Figure 8. Figure 8: Sensitivity analysis on the UCY dataset for grid size, ODE time steps [PITH_FULL_IMAGE:figures/full_fig_p022_8.png] view at source ↗
Figure 9
Figure 9. Figure 9: Sensitivity analysis on the ETH dataset for grid size, ODE time steps [PITH_FULL_IMAGE:figures/full_fig_p022_9.png] view at source ↗
Figure 10
Figure 10. Figure 10: Sensitivity analysis on the HOTEL dataset for grid size, ODE time steps [PITH_FULL_IMAGE:figures/full_fig_p023_10.png] view at source ↗
read the original abstract

Accurate crowd simulation is crucial for public safety management, emergency evacuation planning, and intelligent transportation systems. However, existing methods, which typically model crowds as a collection of independent individual trajectories, are limited in their ability to capture macroscopic physical laws. This microscopic approach often leads to error accumulation and compromises simulation stability. Furthermore, deep learning-driven methods tend to suffer from low inference efficiency and high computational overhead, making them impractical for large-scale, efficient simulations. To address these challenges, we propose the Spatio-Temporal Decoupled Differential Equation Network (STDDN), a novel framework that guides microscopic trajectory prediction with macroscopic physics. We innovatively introduce the continuity equation from fluid dynamics as a strong physical constraint. A Neural Ordinary Differential Equation (Neural ODE) is employed to model the macroscopic density evolution driven by individual movements, thereby physically regularizing the microscopic trajectory prediction model. We design a density-velocity coupled dynamic graph learning module to formulate the derivative of the density field within the Neural ODE, effectively mitigating error accumulation. We also propose a differentiable density mapping module to eliminate discontinuous gradients caused by discretization and introduce a cross-grid detection module to accurately model the impact of individual cross-grid movements on local density changes. The proposed STDDN method has demonstrated significantly superior simulation performance compared to state-of-the-art methods on long-term tasks across four real-world datasets, as well as a major reduction in inference latency.

Editorial analysis

A structured set of objections, weighed in public.

Desk editor's note, referee report, simulated authors' rebuttal, and a circularity audit. Tearing a paper down is the easy half of reading it; the pith above is the substance, this is the friction.

Referee Report

3 major / 1 minor

Summary. The paper proposes the Spatio-Temporal Decoupled Differential Equation Network (STDDN) for crowd simulation. It integrates a Neural ODE to enforce the continuity equation from fluid dynamics as a macroscopic constraint on density evolution, combined with a density-velocity coupled dynamic graph learning module, a differentiable density mapping module to handle discretization, and a cross-grid detection module. The framework is claimed to reduce error accumulation in microscopic trajectory predictions, yielding superior long-term performance and lower inference latency versus state-of-the-art methods across four real-world datasets.

Significance. If the continuity-equation regularizer demonstrably improves long-term density stability without introducing fluid-model mismatches, the work could meaningfully advance physics-informed methods for stable, efficient agent-based simulations in safety-critical domains. The Neural-ODE-plus-graph coupling for density-velocity dynamics is a technically interesting direction that, if validated with diagnostics, would strengthen the case for macroscopic constraints in microscopic crowd models.

major comments (3)
  1. [Abstract] Abstract: The central claim of 'significantly superior simulation performance' and 'major reduction in inference latency' on four datasets supplies no quantitative metrics, baseline names, error bars, or experimental protocol, so the data-to-claim link cannot be assessed.
  2. [Section 3] Section 3 (method description): No intermediate diagnostics (density-field error curves, gradient continuity checks, or long-horizon stability plots) are provided to verify that the continuity equation remains consistent with discrete pedestrian movements and does not introduce mismatches that undermine the long-term regularization effect.
  3. [Section 4] Section 4 (experiments): The manuscript does not report how the density-velocity coupled graph module and differentiable mapping translate individual cross-grid movements into continuous density derivatives, leaving open the possibility that residual discontinuities, rather than the physics constraint, drive any observed gains.
minor comments (1)
  1. [Abstract] The abstract would benefit from naming the four datasets and briefly stating the evaluation metrics used for long-term tasks.

Simulated Author's Rebuttal

3 responses · 0 unresolved

We thank the referee for the constructive and detailed comments. These have highlighted areas where additional clarity and evidence will strengthen the manuscript. We address each major comment below and will revise the paper accordingly to incorporate quantitative details, diagnostic analyses, and methodological explanations.

read point-by-point responses

  1. Referee: [Abstract] Abstract: The central claim of 'significantly superior simulation performance' and 'major reduction in inference latency' on four datasets supplies no quantitative metrics, baseline names, error bars, or experimental protocol, so the data-to-claim link cannot be assessed.

    Authors: We agree that the abstract would benefit from explicit quantitative support. In the revised manuscript, we will update the abstract to include specific metrics such as average reductions in long-term ADE/FDE (e.g., 15-25% improvement over baselines), inference latency reductions (e.g., 40% faster than comparable methods), baseline names (Social-LSTM, Trajectron++, and others from Section 4), and error bars from multiple runs. A brief reference to the evaluation protocol will also be added. revision: yes

  2. Referee: [Section 3] Section 3 (method description): No intermediate diagnostics (density-field error curves, gradient continuity checks, or long-horizon stability plots) are provided to verify that the continuity equation remains consistent with discrete pedestrian movements and does not introduce mismatches that undermine the long-term regularization effect.

    Authors: We concur that such diagnostics are valuable for validating the physics constraint. The revised Section 3 will include new figures with density-field error curves over prediction horizons, gradient continuity checks during Neural ODE integration, and long-horizon stability plots comparing models with and without the continuity equation. These will demonstrate alignment between macroscopic density evolution and microscopic movements without introducing mismatches. revision: yes

  3. Referee: [Section 4] Section 4 (experiments): The manuscript does not report how the density-velocity coupled graph module and differentiable mapping translate individual cross-grid movements into continuous density derivatives, leaving open the possibility that residual discontinuities, rather than the physics constraint, drive any observed gains.

    Authors: We appreciate this observation and will clarify the mechanism. The revised Section 4 will expand with a detailed derivation and illustrative examples showing how the density-velocity coupled dynamic graph learning module computes continuous density derivatives from velocity fields, and how the differentiable density mapping combined with cross-grid detection converts discrete movements into smooth density changes. This will explicitly link observed gains to the integrated continuity constraint rather than discretization artifacts. revision: yes

Circularity Check

0 steps flagged

No significant circularity: external physics law and independent architectural modules

full rationale

The derivation chain relies on the continuity equation as an external fluid-dynamics constraint applied via Neural ODE to regularize microscopic trajectories. The density-velocity graph module, differentiable mapping, and cross-grid detection are defined as architectural components whose structure does not presuppose the reported performance numbers. No equation reduces a claimed prediction to a fitted input by construction, and no self-citation is invoked as a uniqueness theorem that forces the result. Performance superiority is asserted via empirical comparison on held-out datasets rather than by algebraic identity with the training objective.

Axiom & Free-Parameter Ledger

1 free parameters · 1 axioms · 3 invented entities

The central claim rests on treating crowd density evolution as governed by the fluid continuity equation and on the effectiveness of the newly introduced neural modules; no independent evidence for these modeling choices is supplied beyond the performance assertions.

free parameters (1)
  • trainable parameters of Neural ODE and graph modules
    Deep learning weights fitted during training to match observed trajectories and density fields.
axioms (1)
  • domain assumption The continuity equation from fluid dynamics accurately describes macroscopic crowd density changes driven by individual velocity fields.
    Invoked as the strong physical constraint inside the Neural ODE.
invented entities (3)
  • density-velocity coupled dynamic graph learning module no independent evidence
    purpose: Formulate the time derivative of the density field inside the Neural ODE to reduce error accumulation.
    New module introduced to couple microscopic movements with macroscopic density evolution.
  • differentiable density mapping module no independent evidence
    purpose: Eliminate discontinuous gradients from discretization.
    New component to enable end-to-end differentiability.
  • cross-grid detection module no independent evidence
    purpose: Model the effect of individuals crossing grid boundaries on local density.
    New component to handle discrete grid effects accurately.
