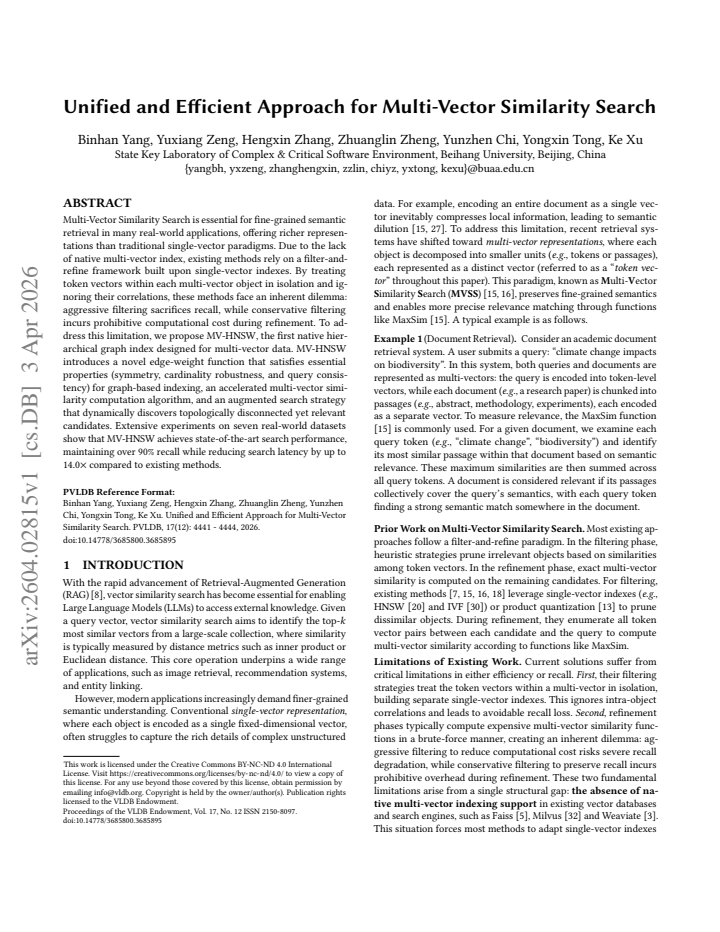

Unified and Efficient Approach for Multi-Vector Similarity Search

Binhan Yang , Yuxiang Zeng , Hengxin Zhang , Zhuanglin Zheng , Yunzhen Chi , Yongxin Tong , Ke Xu

Authors on Pith no claims yet

Pith reviewed 2026-05-13 18:50 UTC · model grok-4.3

classification 💻 cs.DB

keywords multi-vector similarity searchhierarchical graph indexedge-weight functionMV-HNSWfilter-and-refinehigh recallsearch latencysemantic retrieval

0 comments

The pith

MV-HNSW is the first native hierarchical graph index for multi-vector similarity search that maintains high recall at much lower latency than filter-and-refine baselines.

A machine-rendered reading of the paper's core claim, the machinery that carries it, and where it could break.

Multi-vector similarity search supports finer semantic retrieval than single-vector methods but current approaches rely on single-vector indexes and a filter-then-refine loop that forces a hard choice between missing good results or paying high refinement cost. The paper builds MV-HNSW directly on multi-vector objects by introducing an edge-weight function that respects symmetry, cardinality robustness, and query consistency, together with faster similarity calculations and a search procedure that reaches topologically disconnected yet relevant candidates. On seven real-world datasets this index keeps recall above 90 percent while cutting search latency by as much as 14 times. A reader would care because many retrieval and recommendation systems need exactly this combination of accuracy and speed without the previous trade-off.

Core claim

MV-HNSW is the first native hierarchical graph index built for multi-vector data. It rests on a novel edge-weight function that satisfies symmetry, cardinality robustness, and query consistency, an accelerated multi-vector similarity algorithm, and an augmented search strategy that locates relevant candidates even when they are disconnected in the graph topology. Experiments across seven real-world datasets demonstrate that the resulting index sustains over 90 percent recall while reducing search latency by up to 14.0 times relative to existing filter-and-refine methods.

What carries the argument

The novel edge-weight function for the hierarchical graph, which satisfies symmetry, cardinality robustness, and query consistency to support direct indexing of multi-vector objects.

If this is right

Filter-and-refine pipelines built on single-vector indexes can be replaced by a single native structure without the recall-cost dilemma.
Search latency drops substantially while recall stays above 90 percent across real multi-vector workloads.
The augmented search reaches relevant items that standard graph traversal would miss because they are topologically disconnected.
Accelerated similarity computation reduces the cost of each distance check inside the index.
The same index design applies uniformly to the seven tested application domains without per-dataset tuning.

Where Pith is reading between the lines

These are editorial extensions of the paper, not claims the author makes directly.

The edge-weight properties may transfer to other graph indexes such as NSG or HNSW variants when the data objects carry multiple vectors.
Database systems that already support vector search could adopt the same weighting scheme to handle multi-vector tables without a separate filter layer.
Controlled experiments that vary object cardinality while holding vector distributions fixed would isolate how much of the speedup comes from the cardinality-robust term.
Integration with disk-based or quantized storage would test whether the latency gains survive when vectors no longer fit in memory.

Load-bearing premise

The new edge-weight function satisfies symmetry, cardinality robustness, and query consistency, and the augmented search reliably locates all relevant candidates on varied multi-vector data.

What would settle it

On any of the seven real-world datasets, if MV-HNSW recall falls below 90 percent or its latency reduction is smaller than the best prior filter-and-refine method at the same recall target, the performance claim would be refuted.

Figures

Figures reproduced from arXiv: 2604.02815 by Binhan Yang, Hengxin Zhang, Ke Xu, Yongxin Tong, Yunzhen Chi, Yuxiang Zeng, Zhuanglin Zheng.

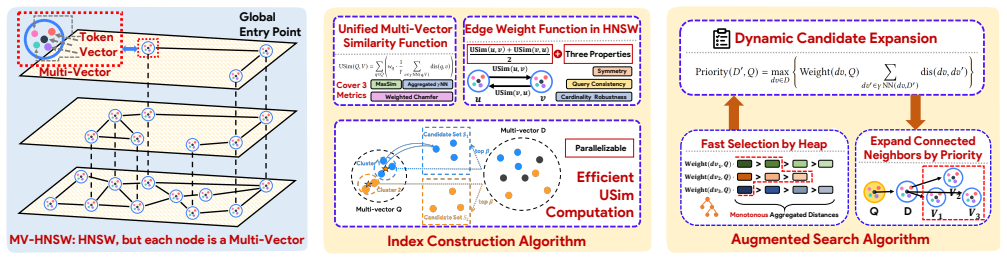

**Figure 1.** Figure 1: Overview of our solution MV-HNSW Lemma 2. The edge weight function 𝑓 is symmetric. Proof. Based on the definition of 𝑓 in Eq. (5), we have 𝑓 (𝑢, 𝑣) = 1 2 USim(𝑣, 𝑢) |𝑣| + USim(𝑢, 𝑣) |𝑢| = 𝑓 (𝑣, 𝑢) (6) □ Lemma 3. The edge weight function 𝑓 is cardinality-robust. Proof. For any multi-vectors 𝑢 and 𝑣, the term USim(𝑢,𝑣) |𝑢| represents the average similarity from token vectors of 𝑢 to 𝑣, which lies in [−1… view at source ↗

**Figure 2.** Figure 2: Search performance on all seven real-world datasets (with default query parameter [PITH_FULL_IMAGE:figures/full_fig_p009_2.png] view at source ↗

**Figure 3.** Figure 3: Scalability test with varying dataset cardinality [PITH_FULL_IMAGE:figures/full_fig_p009_3.png] view at source ↗

**Figure 4.** Figure 4: Scalability test with varying the number [PITH_FULL_IMAGE:figures/full_fig_p010_4.png] view at source ↗

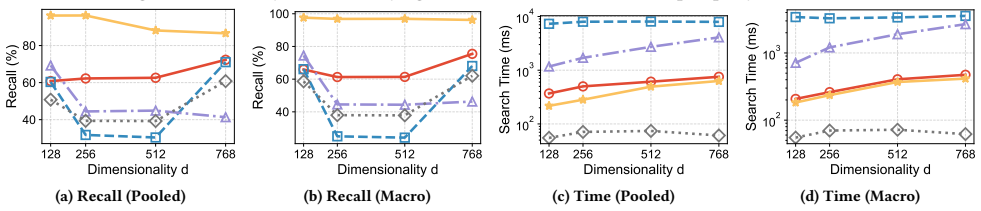

**Figure 5.** Figure 5: Scalability test with varying the dimensionality [PITH_FULL_IMAGE:figures/full_fig_p010_5.png] view at source ↗

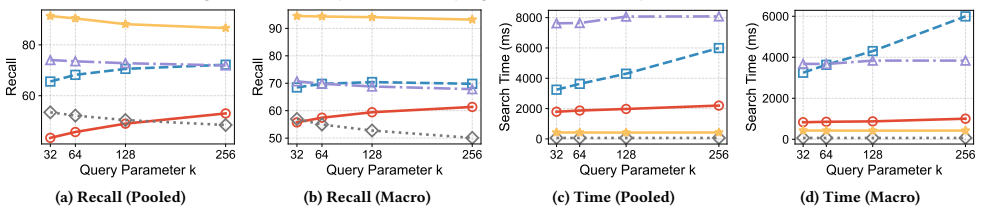

**Figure 6.** Figure 6: Impact of the number 𝑘 of nearest neighbors 5.3.2 Varying the Number of Token Vectors Per Query Multi-Vector. In practice, the number 𝑐 of token vectors per query multi-vector directly impacts search latency. Accordingly, we evaluate search performance by varying 𝑐 ∈ {16, 32, 64, 128} on the datasets [PITH_FULL_IMAGE:figures/full_fig_p010_6.png] view at source ↗

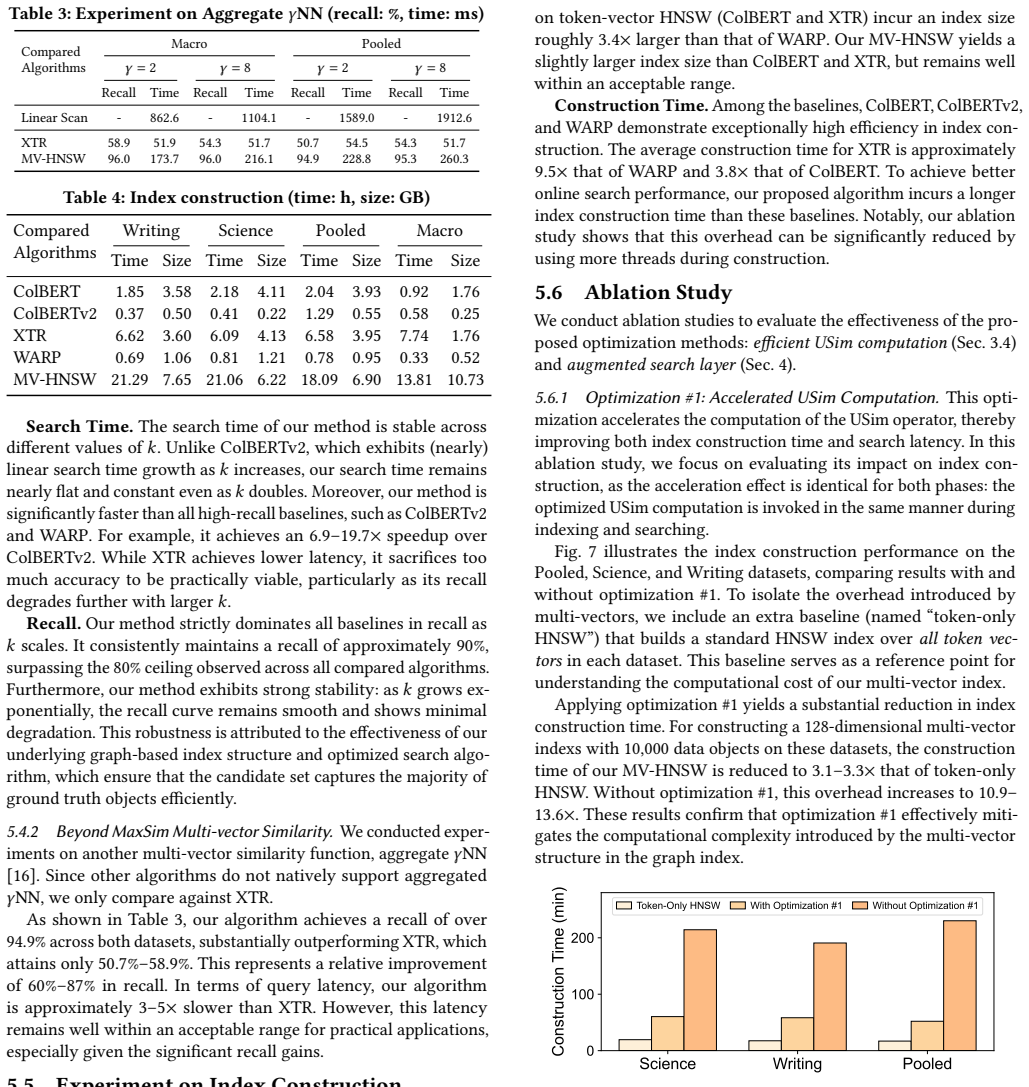

**Figure 7.** Figure 7: illustrates the index construction performance on the Pooled, Science, and Writing datasets, comparing results with and without optimization #1. To isolate the overhead introduced by multi-vectors, we include an extra baseline (named “token-only HNSW”) that builds a standard HNSW index over all token vectors in each dataset. This baseline serves as a reference point for understanding the computational cos… view at source ↗

**Figure 8.** Figure 8: presents the recall results with and without optimization #2 across all datasets. The results demonstrate that our augmented search algorithm consistently improves recall compared to the standard search method. This is because our algorithm explores candidates that are topologically distant or disconnected from the traversed nodes, whereas the baseline, strictly following connected edges, inevitably become… view at source ↗

read the original abstract

Multi-Vector Similarity Search is essential for fine-grained semantic retrieval in many real-world applications, offering richer representations than traditional single-vector paradigms. Due to the lack of native multi-vector index, existing methods rely on a filter-and-refine framework built upon single-vector indexes. By treating token vectors within each multi-vector object in isolation and ignoring their correlations, these methods face an inherent dilemma: aggressive filtering sacrifices recall, while conservative filtering incurs prohibitive computational cost during refinement. To address this limitation, we propose MV-HNSW, the first native hierarchical graph index designed for multi-vector data. MV-HNSW introduces a novel edge-weight function that satisfies essential properties (symmetry, cardinality robustness, and query consistency) for graph-based indexing, an accelerated multi-vector similarity computation algorithm, and an augmented search strategy that dynamically discovers topologically disconnected yet relevant candidates. Extensive experiments on seven real-world datasets show that MV-HNSW achieves state-of-the-art search performance, maintaining over 90% recall while reducing search latency by up to 14.0$\times$ compared to existing methods.

Editorial analysis

A structured set of objections, weighed in public.

Desk editor's note, referee report, simulated authors' rebuttal, and a circularity audit. Tearing a paper down is the easy half of reading it; the pith above is the substance, this is the friction.

Desk Editor's Note private letter to a colleague

MV-HNSW is a concrete first native graph index for multi-vector data with a new edge-weight function and augmented search, delivering reported 14x latency cuts at high recall, though the abstract leaves the key properties unverified.

read the letter

The paper's main contribution is MV-HNSW, presented as the first hierarchical graph index built directly for multi-vector objects rather than layering filter-and-refine on top of single-vector HNSW. It adds a custom edge-weight function claimed to meet symmetry, cardinality robustness, and query consistency, an accelerated similarity computation step, and an augmented search that pulls in topologically disconnected but relevant candidates. On seven real-world datasets the results show over 90 percent recall with up to 14 times lower search latency than existing baselines. That kind of practical speedup addresses a clear bottleneck in large-scale semantic retrieval systems. The construction itself looks like a reasonable extension of HNSW ideas to the multi-vector setting, and the reported numbers are strong enough on the surface to warrant checking the implementation details. The soft spots sit in the missing supporting material. The abstract asserts the three properties for the edge-weight function but supplies no derivation or proof sketch showing query consistency holds when token counts vary widely. There are also no ablations isolating how much the augmented search adds versus standard traversal, and no error bars or methodology specifics on how the seven datasets were chosen or how cardinality variation was controlled. If those properties slip on even one dataset, the latency claims cannot be cleanly attributed to the new index. This work is aimed at database and information-retrieval researchers who need to index objects with multiple embeddings at scale. A reader building production retrieval systems would find the concrete construction and the latency numbers useful even if they have to re-derive the edge function themselves. I would send it to peer review. The idea is specific enough and the empirical results are sharp enough to justify referee time, provided the authors add the derivations and controls in revision.

Referee Report

2 major / 2 minor

Summary. The manuscript introduces MV-HNSW as the first native hierarchical graph index for multi-vector similarity search. It proposes a novel edge-weight function claimed to satisfy symmetry, cardinality robustness, and query consistency, along with an accelerated similarity computation algorithm and an augmented search strategy to handle topologically disconnected candidates. Experiments on seven real-world datasets are reported to achieve state-of-the-art performance with over 90% recall and up to 14× reduction in search latency compared to filter-and-refine baselines.

Significance. If the empirical results and the properties of the edge-weight function are verified, this work could significantly advance multi-vector indexing by overcoming the recall-cost trade-off in existing methods. The introduction of a native index rather than relying on single-vector approximations is a promising direction, and the reported speedups on multiple datasets indicate potential practical impact in semantic retrieval applications. The new construction and empirical results on seven datasets are strengths.

major comments (2)

[Edge-weight function definition and properties] The central performance claim (over 90% recall at up to 14× latency reduction) rests on the novel edge-weight function satisfying query consistency under arbitrary token cardinalities and the augmented search reliably surfacing disconnected candidates. No derivation or formal argument is provided showing query consistency survives varying token counts per object.
[Experimental evaluation] The experimental section reports positive results on seven datasets but provides no ablation isolating the augmented search strategy's contribution versus standard HNSW traversal, no error bars, and no statistical significance tests. This leaves the attribution of the claimed speedups and recall unverified.

minor comments (2)

[Abstract] The abstract would benefit from naming the seven datasets to allow readers to assess the diversity of the evaluation.
[Preliminaries] Notation for multi-vector objects and token vectors could be introduced more explicitly in the preliminaries to aid clarity.

Simulated Author's Rebuttal

2 responses · 0 unresolved

We thank the referee for the constructive comments. We address each major comment below and will revise the manuscript to strengthen the theoretical justification and experimental analysis.

read point-by-point responses

Referee: [Edge-weight function definition and properties] The central performance claim (over 90% recall at up to 14× latency reduction) rests on the novel edge-weight function satisfying query consistency under arbitrary token cardinalities and the augmented search reliably surfacing disconnected candidates. No derivation or formal argument is provided showing query consistency survives varying token counts per object.

Authors: We agree that the manuscript would benefit from an explicit formal derivation. In the revision we will add a mathematical proof establishing that the edge-weight function preserves query consistency for objects with arbitrary token cardinalities. We will also expand the explanation of the augmented search procedure to detail how it identifies and incorporates topologically disconnected yet relevant candidates. revision: yes
Referee: [Experimental evaluation] The experimental section reports positive results on seven datasets but provides no ablation isolating the augmented search strategy's contribution versus standard HNSW traversal, no error bars, and no statistical significance tests. This leaves the attribution of the claimed speedups and recall unverified.

Authors: We concur that additional controls are needed. The revised version will include ablation studies that isolate the contribution of the augmented search strategy relative to standard HNSW traversal. We will report error bars from multiple independent runs and include statistical significance tests (paired t-tests) to substantiate the latency and recall improvements. revision: yes

Circularity Check

0 steps flagged

MV-HNSW derivation is self-contained with no circular reductions

full rationale

The paper presents MV-HNSW as a novel native hierarchical graph index introducing a new edge-weight function claimed to satisfy symmetry, cardinality robustness, and query consistency, plus an accelerated similarity computation and augmented search strategy. These are positioned as original constructions, with performance claims (over 90% recall at up to 14x latency reduction) supported by empirical results on seven real-world datasets rather than by any reduction to fitted parameters, self-citations, or definitional equivalence. No load-bearing steps in the provided derivation chain reduce by construction to inputs; the central claims rest on the proposed method's design and experimental validation, which are independent of the target results.

Axiom & Free-Parameter Ledger

0 free parameters · 1 axioms · 1 invented entities

The central claim rests on the effectiveness of the newly introduced edge-weight function and search strategy, which are defined in this work without independent prior validation mentioned in the abstract.

axioms (1)

domain assumption The edge-weight function must satisfy symmetry, cardinality robustness, and query consistency to enable effective graph-based indexing for multi-vector data.
These properties are stated as essential requirements for the index to function correctly.

invented entities (1)

MV-HNSW index no independent evidence
purpose: Native hierarchical graph structure for multi-vector similarity search
Newly proposed data structure and associated algorithms introduced in the paper.
