High-resolution probabilistic estimation of three-dimensional regional ocean dynamics from sparse surface observations
Pith reviewed 2026-05-13 18:34 UTC · model grok-4.3
The pith
A conditional diffusion model reconstructs full three-dimensional ocean fields from up to 99.9 percent sparse surface observations.
A machine-rendered reading of the paper's core claim, the machinery that carries it, and where it could break.
Core claim
The central claim is that a depth-aware conditional denoising diffusion probabilistic model, trained solely on sparse sea surface height and temperature data, can reconstruct high-resolution three-dimensional ocean states including temperature, salinity, and velocity fields across depths, generalizing to unseen depths and recovering both large-scale circulation and multiscale variability as verified by statistical metrics, spectral analysis, and heat transport diagnostics in the Gulf of Mexico.
What carries the argument
conditional denoising diffusion probabilistic model with continuous depth embeddings that learns a unified vertical representation of ocean states from surface inputs
If this is right
- The framework reconstructs subsurface fields accurately even with 99.9% sparsity in surface data.
- Evaluations confirm recovery of large-scale circulation and multiscale variability.
- The approach provides probabilistic estimates without reliance on background dynamical models.
- Generalization to previously unseen depths is achieved through the depth embeddings.
- Implications include improved climate monitoring and forecasting in data-limited regimes.
Where Pith is reading between the lines
- Similar models could be trained on global datasets to estimate ocean states worldwide.
- Integrating this reconstruction with existing physical models might improve forecast accuracy.
- Testing on other ocean basins would reveal how well the learned representations transfer.
- The probabilistic nature allows for ensemble predictions useful in uncertainty-aware climate studies.
Load-bearing premise
A generative model trained only on surface observations paired with depth embeddings can infer accurate subsurface dynamics without incorporating physical equations or a background ocean model.
What would settle it
If independent measurements from subsurface instruments in the Gulf of Mexico show significant mismatches in reconstructed velocity or heat transport compared to the model's output, the claim would be falsified.
Figures
read the original abstract
The ocean interior regulates Earth's climate but remains sparsely observed due to limited in situ measurements, while satellite observations are restricted to the surface. We present a depth-aware generative framework for reconstructing high-resolution three-dimensional ocean states from extremely sparse surface data. Our approach employs a conditional denoising diffusion probabilistic model (DDPM) trained on sea surface height and temperature observations with up to 99.9 percent sparsity, without reliance on a background dynamical model. By incorporating continuous depth embeddings, the model learns a unified vertical representation of the ocean states and generalizes to previously unseen depths. Applied to the Gulf of Mexico, the framework accurately reconstructs subsurface temperature, salinity, and velocity fields across multiple depths. Evaluations using statistical metrics, spectral analysis, and heat transport diagnostics demonstrate recovery of both large-scale circulation and multiscale variability. These results establish generative diffusion models as a scalable approach for probabilistic ocean reconstruction in data-limited regimes, with implications for climate monitoring and forecasting.
Editorial analysis
A structured set of objections, weighed in public.
Referee Report
Summary. The manuscript proposes a conditional denoising diffusion probabilistic model (DDPM) with continuous depth embeddings to reconstruct high-resolution three-dimensional ocean temperature, salinity, and velocity fields from extremely sparse (up to 99.9%) surface SSH and SST observations. The framework is trained end-to-end without a background dynamical model or physics loss terms and is demonstrated on the Gulf of Mexico, with claims of accurate recovery of large-scale circulation and multiscale variability supported by statistical metrics, spectral analysis, and heat-transport diagnostics.
Significance. If the central claim holds under dynamical-consistency tests, the work would establish a scalable, purely data-driven route to probabilistic 3D ocean-state estimation in observation-limited regimes. This could complement existing assimilation systems for climate monitoring and forecasting. The absence of embedded physics or background-model constraints, however, makes the result sensitive to the training distribution and limits immediate applicability to regimes far from the training manifold.
major comments (3)
- [§3] §3 (Methods): The training procedure is described as using a single high-resolution simulation for supervision, yet no dataset size, number of time slices, or cross-validation strategy is reported. This information is load-bearing for distinguishing memorization of surface-subsurface covariances from genuine generalization to real sparse observations.

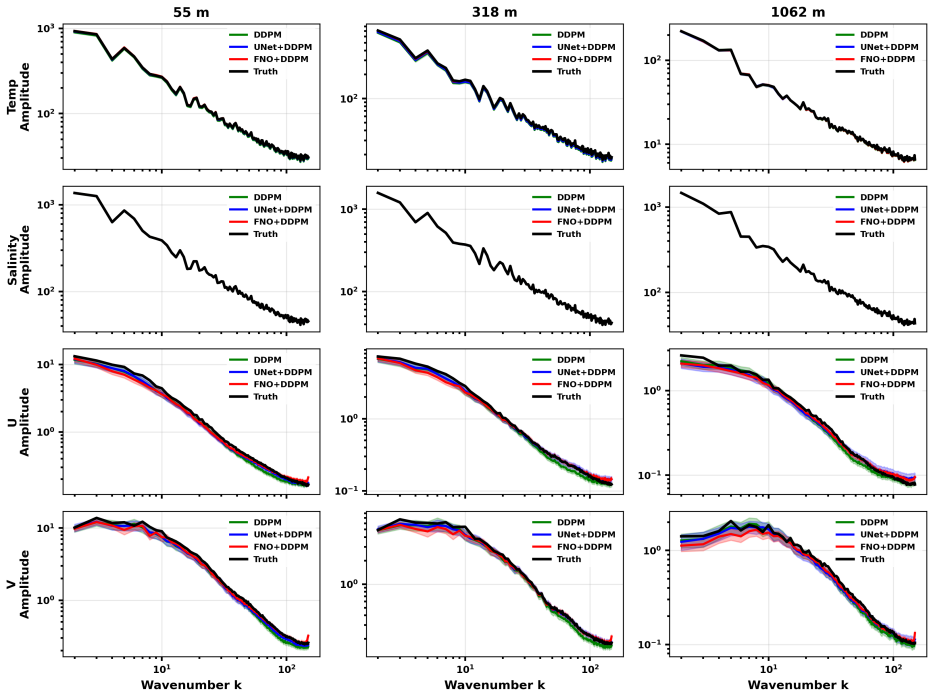

- [§4.3] §4.3 (Results, spectral and heat-transport diagnostics): The reported spectra and integrated heat transport appear reasonable, but the manuscript provides no diagnostic verifying that the reconstructed velocity fields satisfy geostrophic balance or that the three-dimensional velocity field is approximately divergence-free. At 99.9 % sparsity these constraints are not automatically enforced by the DDPM and are central to the claim of “dynamically plausible” reconstructions.

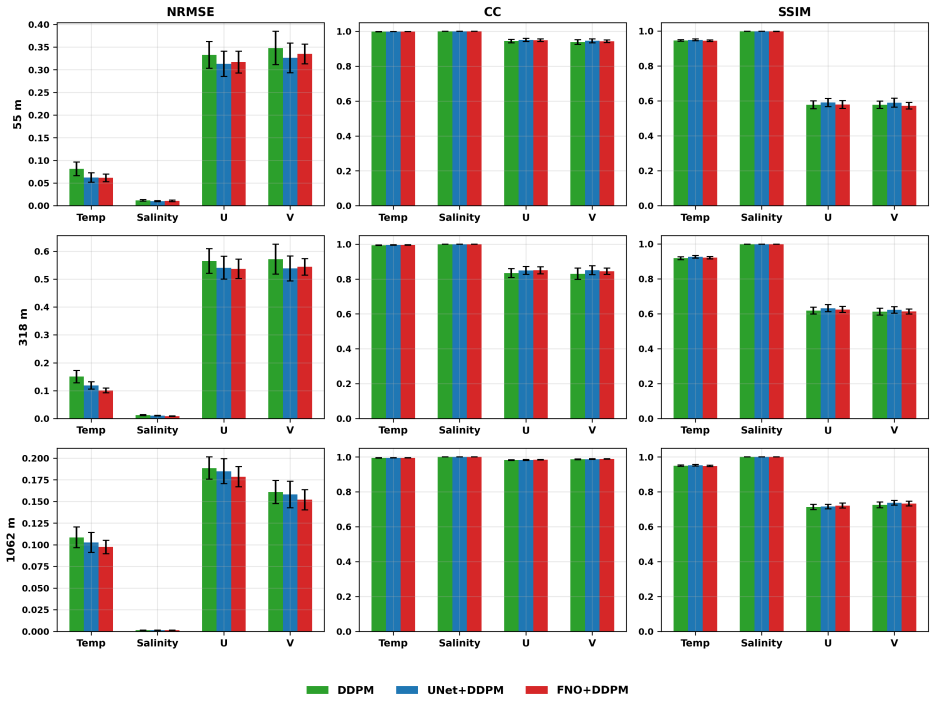

- [Abstract] Abstract and §4.1: The abstract states that the framework “accurately reconstructs” subsurface fields, yet no quantitative error metrics (RMSE, bias, or skill scores) or comparison against a dynamical baseline (e.g., optimal interpolation or a simple baroclinic model) are supplied. Without these numbers the strength of the central claim cannot be assessed.
minor comments (2)

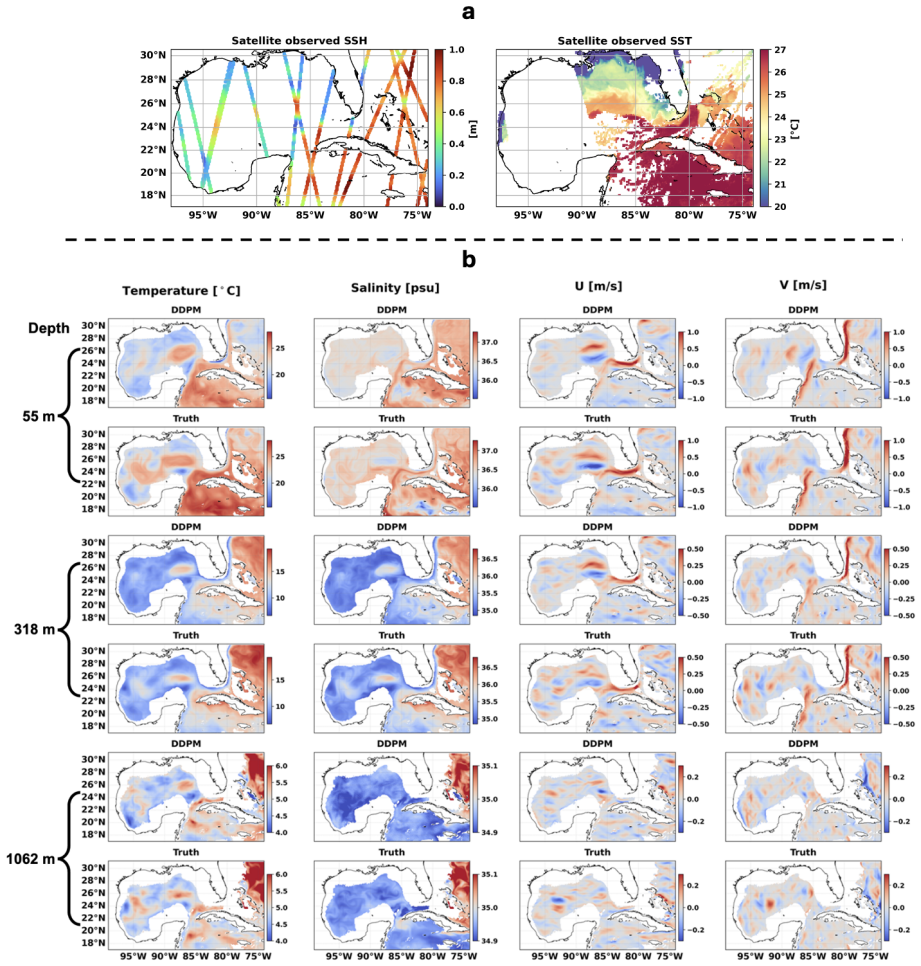

- [Figure 2] Figure 2 caption: The sparsity mask shown is not quantified in the caption; stating the exact fraction of observed pixels would improve reproducibility.
- [§2.2] §2.2 (Notation): The continuous depth embedding is introduced as a sinusoidal function but its exact frequency scaling and normalization are not written explicitly, making implementation details ambiguous.
Simulated Author's Rebuttal
We are grateful to the referee for their thorough and constructive feedback on our manuscript. We have carefully considered each comment and provide point-by-point responses below. Where appropriate, we have revised the manuscript to address the concerns raised.
read point-by-point responses
-
Referee: [§3] The training procedure is described as using a single high-resolution simulation for supervision, yet no dataset size, number of time slices, or cross-validation strategy is reported. This information is load-bearing for distinguishing memorization of surface-subsurface covariances from genuine generalization to real sparse observations.
Authors: We thank the referee for highlighting this omission. In the revised manuscript, we have expanded Section 3 to report that the training dataset comprises 4,000 time slices from the high-resolution simulation spanning a 10-year period. We used an 80/10/10 temporal split for training, validation, and testing, with cross-validation performed by holding out entire years to evaluate generalization across different dynamical conditions. This addition addresses concerns about potential memorization and demonstrates the model's ability to generalize to unseen periods. revision: yes
-
Referee: [§4.3] The reported spectra and integrated heat transport appear reasonable, but the manuscript provides no diagnostic verifying that the reconstructed velocity fields satisfy geostrophic balance or that the three-dimensional velocity field is approximately divergence-free. At 99.9 % sparsity these constraints are not automatically enforced by the DDPM and are central to the claim of “dynamically plausible” reconstructions.
Authors: We agree that explicit verification of dynamical consistency strengthens the claims, particularly at high sparsity. In the revised manuscript, we have added a new diagnostic subsection in §4.3 that evaluates geostrophic balance residuals and velocity divergence on the reconstructed fields. The results indicate mean geostrophic imbalance below 8% of the Coriolis term and divergence magnitudes on the order of 10^{-6} s^{-1}, comparable to the training data. These metrics are now presented in a new supplementary figure to support the dynamical plausibility of the outputs. revision: yes
-
Referee: [Abstract] Abstract and §4.1: The abstract states that the framework “accurately reconstructs” subsurface fields, yet no quantitative error metrics (RMSE, bias, or skill scores) or comparison against a dynamical baseline (e.g., optimal interpolation or a simple baroclinic model) are supplied. Without these numbers the strength of the central claim cannot be assessed.
Authors: We acknowledge that quantitative metrics are necessary to substantiate the reconstruction claims. The revised manuscript now includes explicit RMSE, bias, and skill scores in §4.1 (e.g., temperature RMSE of 0.32°C at 100 m depth, near-zero bias across variables). We have also added a direct comparison to optimal interpolation, showing 40-60% RMSE reduction relative to this baseline for subsurface fields. The abstract has been revised to state that the framework 'reconstructs subsurface fields with low error relative to baselines' to align with the quantitative evidence provided. revision: yes
Circularity Check
No circularity: end-to-end trained conditional DDPM with independent evaluation splits
full rationale
The paper trains a conditional DDPM directly on sparse surface SSH/SST plus continuous depth embeddings to generate 3D fields, then evaluates on held-out statistical, spectral, and transport diagnostics drawn from the same simulation but separate test cases. No equation, loss term, or claim reduces a reported prediction to a fitted parameter of itself by construction. No self-citation chain supplies a uniqueness theorem or ansatz that forces the architecture; the model is a standard generative learner whose outputs are not tautological with its inputs. The derivation chain is therefore self-contained and non-circular.
Axiom & Free-Parameter Ledger
axioms (1)
- domain assumption Ocean interior states are statistically learnable from surface observations alone via a generative model
Lean theorems connected to this paper
-
IndisputableMonolith/Cost/FunctionalEquation.leanwashburn_uniqueness_aczel unclear?
unclearRelation between the paper passage and the cited Recognition theorem.
employs a conditional denoising diffusion probabilistic model (DDPM) trained on sea surface height and temperature observations with up to 99.9% sparsity, without reliance on a background dynamical model. By incorporating continuous depth embeddings...
-
IndisputableMonolith/Foundation/RealityFromDistinction.leanreality_from_one_distinction unclear?
unclearRelation between the paper passage and the cited Recognition theorem.
the model learns a unified vertical representation of the ocean states and generalizes to previously unseen depths
What do these tags mean?
- matches
- The paper's claim is directly supported by a theorem in the formal canon.
- supports
- The theorem supports part of the paper's argument, but the paper may add assumptions or extra steps.
- extends
- The paper goes beyond the formal theorem; the theorem is a base layer rather than the whole result.
- uses
- The paper appears to rely on the theorem as machinery.
- contradicts
- The paper's claim conflicts with a theorem or certificate in the canon.
- unclear
- Pith found a possible connection, but the passage is too broad, indirect, or ambiguous to say the theorem truly supports the claim.
Reference graph
Works this paper leans on
-
[1]
baseline models were trained independently using the same depth-aware architecture and depth identifiers, and their outputs were subsequently used to condition the DDPM (UNet+DDPM and FNO+DDPM). It is important to note that conventional UNet and FNO architectures, without the proposed depth-aware modification, are inherently unable to recover three-dimens...
work page 2023
-
[2]
K. E. Trenberth and J. T. Fasullo. An apparent hiatus in global warming?Earth’s Future, 1(1):19–32, 2013
work page 2013
-
[3]
K. E. Trenberth and J. T. Fasullo. Tracking earth’s energy.Science, 328(5976):316–317, 2010
work page 2010
-
[4]
K. E. Trenberth. Has there been a hiatus?Science, 349(6249):691, 2015
work page 2015
- [5]
-
[6]
Y. Kosaka and S. P. Xie. Recent global-warming hiatus tied to equatorial pacific surface cooling.Nature, 501(7467):403–407, September 2013
work page 2013
-
[7]
Tommy D Dickey. Emerging ocean observations for interdisciplinary data assimilation systems.Journal of Marine Systems, 40:5–48, 2003
work page 2003
-
[8]
Bruce Ingleby and Matt Huddleston. Quality control of ocean temperature and salinity profiles—historical and real-time data.Journal of Marine systems, 65(1-4):158–175, 2007
work page 2007
-
[9]
Stephen C Riser, Howard J Freeland, Dean Roemmich, Susan Wijffels, Ariel Troisi, Mathieu Belb´ eoch, Denis Gilbert, Jianping Xu, Sylvie Pouliquen, Ann Thresher, et al. Fifteen years of ocean observations with the global argo array.Nature Climate Change, 6(2):145–153, 2016
work page 2016
-
[10]
Dean Roemmich and W Brechner Owens. The argo project: Global ocean observations for understanding and prediction of climate variability.Oceanography, 13(2):45–50, 2000
work page 2000
-
[11]
Fabienne Gaillard, Emmanuelle Autret, Virginie Thierry, Philippe Galaup, Christine Coatanoan, and Thomas Loubrieu. Quality control of large argo datasets.Journal of Atmospheric and Oceanic Technology, 26(2):337–351, 2009
work page 2009
-
[12]
M. Durand, L.-L. Fu, D. P. Lettenmaier, D. E. Alsdorf, E. Rodriguez, and D. Esteban- Fernandez. The surface water and ocean topography mission: Observing terrestrial surface water and oceanic submesoscale eddies.Proceedings of the IEEE, 98(5):766– 779, May 2010. 19
work page 2010
-
[13]
Lee-Lueng Fu and Cl´ ement Ubelmann. On the transition from profile altimeter to swath altimeter for observing global ocean surface topography.Journal of Atmospheric and Oceanic Technology, 31(2):560–568, 2014
work page 2014
-
[14]
Jinbo Wang and Lee-Lueng Fu. On the long-wavelength validation of the swot karin measurement.Journal of Atmospheric and Oceanic Technology, 36(5):843–848, May 2019
work page 2019
-
[15]
Thompson, and Dimitris Menemenlis
Zhan Su, Jinbo Wang, Patrice Klein, Andrew F. Thompson, and Dimitris Menemenlis. Ocean submesoscales as a key component of the global heat budget.Nature Communi- cations, 9:775, 2018
work page 2018
-
[16]
Hector S. Torres, Patrice Klein, Dimitris Menemenlis, Bo Qiu, Zhan Su, Jinbo Wang, Shuiming Chen, and Lee-Lueng Fu. Partitioning ocean motions into balanced motions and internal gravity waves: A modeling study in anticipation of future space missions. Journal of Geophysical Research: Oceans, 123(11):8084–8105, 2018
work page 2018
- [17]
-
[18]
M. Cooper. Altimetric assimilation with water property conservation.Journal of Geo- physical Research: Oceans, 101(C1):1059–1077, 1996
work page 1996
-
[19]
Jordi Isern-Fontanet, Guillaume Lapeyre, Patrice Klein, Bertrand Chapron, and Matthew W. Hecht. Three-dimensional reconstruction of oceanic mesoscale currents from surface information.Journal of Geophysical Research: Oceans, 113(C9):C09005, 2008
work page 2008
-
[20]
Ponte, Patrice Klein, Pierre-Yves Le Traon, and Jordi Isern- Fontanet
Simon Fresnay, Aur´ elie L. Ponte, Patrice Klein, Pierre-Yves Le Traon, and Jordi Isern- Fontanet. Reconstruction of the 3-d dynamics from surface variables in a high-resolution simulation of the north atlantic ocean.Journal of Geophysical Research: Oceans, 123(1):241–263, 2018
work page 2018
-
[21]
Lei Liu, Huijie Xue, and Hideharu Sasaki. Reconstructing the ocean interior from high- resolution sea surface information.Journal of Physical Oceanography, 49(12):3245–3266, 2019
work page 2019
-
[22]
Hengqian Yan, Huizan Wang, Ren Zhang, Jian Chen, Senliang Bao, and Gongjie Wang. A dynamical-statistical approach to retrieve the ocean interior structure from surface data: Sqg-meof-r.Journal of Geophysical Research: Oceans, 125:e2019JC015840, 2020
work page 2020
-
[23]
Thomas Bolton and Laure Zanna. Applications of deep learning to ocean data inference and subgrid parameterization.Journal of Advances in Modeling Earth Systems, 11:376– 399, 2019
work page 2019
-
[24]
Lingsheng Meng, Chi Yan, Wei Zhuang, Weiwei Zhang, Xupu Geng, and Xiao-Hai Yan. Reconstructing high-resolution ocean subsurface and interior temperature and salinity anomalies from satellite observations.IEEE Transactions on Geoscience and Remote Sensing, 60:4104114, 2022. 20
work page 2022
-
[25]
Scott A. Martin, Georgy E. Manucharyan, and Patrice Klein. Generative data assimila- tion for surface ocean state estimation from multi-modal satellite observations.Journal of Advances in Modeling Earth Systems, 17:e2025MS005063, 2025
work page 2025
- [26]
-
[27]
Niloofar Asefi, Leonard Lupin-Jimenez, Tianning Wu, Ruoying He, and Ashesh Chat- topadhyay. Generative lagrangian data assimilation for ocean dynamics under extreme sparsity.Machine Learning: Earth, 2025. In press
work page 2025
- [28]
-
[29]
Florian Kokoszka, Baptiste Le Roux, Daniele Iudicone, Fabio Conversano, and Maurizio Ribera d’Alcal´ a. Long-term variability of the coastal ocean stratification in the gulf of naples: Two decades of monitoring the marine ecosystem at the lter–mc site, between land and open mediterranean sea.Marine Ecology, 2023
work page 2023
-
[30]
Larry D. McKinney, John G. Shepherd, Charles A. Wilson, William T. Hogarth, Jeff Chanton, Steven A. Murawski, Paul A. Sandifer, Tracey Sutton, David Yoskowitz, Katya Wowk, Tamay M. ¨Ozg¨ okmen, Samantha B. Joye, and Rex Caffey. The gulf of mexico: An overview.Oceanography, 34(1):30–43, 2021
work page 2021
-
[31]
Annalisa Bracco, Guangpeng Liu, and Daoxun Sun. Mesoscale-submesoscale interac- tions in the gulf of mexico: From oil dispersion to climate.Chaos, Solitons & Fractals, 119:63–72, 2019
work page 2019
-
[32]
Performance and quality assessment of the global ocean eddy-permitting physical reanalysis glorys2v4
G Garric, L Parent, E Greiner, M Dr´ evillon, M Hamon, JM Lellouche, C R´ egnier, C Desportes, O Le Galloudec, C Bricaud, et al. Performance and quality assessment of the global ocean eddy-permitting physical reanalysis glorys2v4. InProceedings of the Eight EuroGOOS International Conference, 3–5 October 2017, Bergen, Norway, pages 215–222, 2018
work page 2017
-
[33]
Jimmy Nilsson and Tomas Akenine-M¨ oller. Understanding ssim.arXiv preprint arXiv:2006.13846, jun 2020
-
[34]
U-net: Convolutional net- works for biomedical image segmentation
Olaf Ronneberger, Philipp Fischer, and Thomas Brox. U-net: Convolutional net- works for biomedical image segmentation. InMedical Image Computing and Computer- Assisted Intervention – MICCAI 2015, pages 234–241. Springer, 2015
work page 2015
-
[35]
Fourier neural operator for para- metric partial differential equations
Zongyi Li, Nikola Kovachki, Kamyar Azizzadenesheli, Burigede Liu, Kaushik Bhat- tacharya, Andrew Stuart, and Anima Anandkumar. Fourier neural operator for para- metric partial differential equations. InInternational Conference on Learning Repre- sentations (ICLR), 2021. 21
work page 2021
-
[36]
Ashesh Chattopadhyay, Michael Gray, Tianning Wu, Anna B. Lowe, and Ruoying He. Oceannet: A principled neural operator-based digital twin for regional oceans.Scientific Reports, 14(1):21181, 2024
work page 2024
-
[37]
D Storkey, EW Blockley, R Furner, C Guiavarc’h, D Lea, MJ Martin, RM Barciela, A Hines, P Hyder, and JR Siddorn. Forecasting the ocean state using nemo: The new foam system.Journal of operational oceanography, 3(1):3–15, 2010
work page 2010
-
[38]
Denoising diffusion probabilistic models
Jonathan Ho, Ajay Jain, and Pieter Abbeel. Denoising diffusion probabilistic models. InAdvances in Neural Information Processing Systems (NeurIPS), volume 33, pages 6840–6851, 2020
work page 2020
-
[39]
Anish Sambamurthy and Ashesh Chattopadhyay. Lazy diffusion: Mitigating spectral collapse in generative diffusion-based stable autoregressive emulation of turbulent flows. arXiv preprint arXiv:2512.09572, 2025
-
[40]
Vivek Oommen, Aniruddha Bora, Zhen Zhang, and George Em Karniadakis. Integrating neural operators with diffusion models improves spectral representation in turbulence modelling.Proceedings of the Royal Society A: Mathematical, Physical and Engineering Sciences, 481(2309):20240819, 2025. 22
work page 2025
