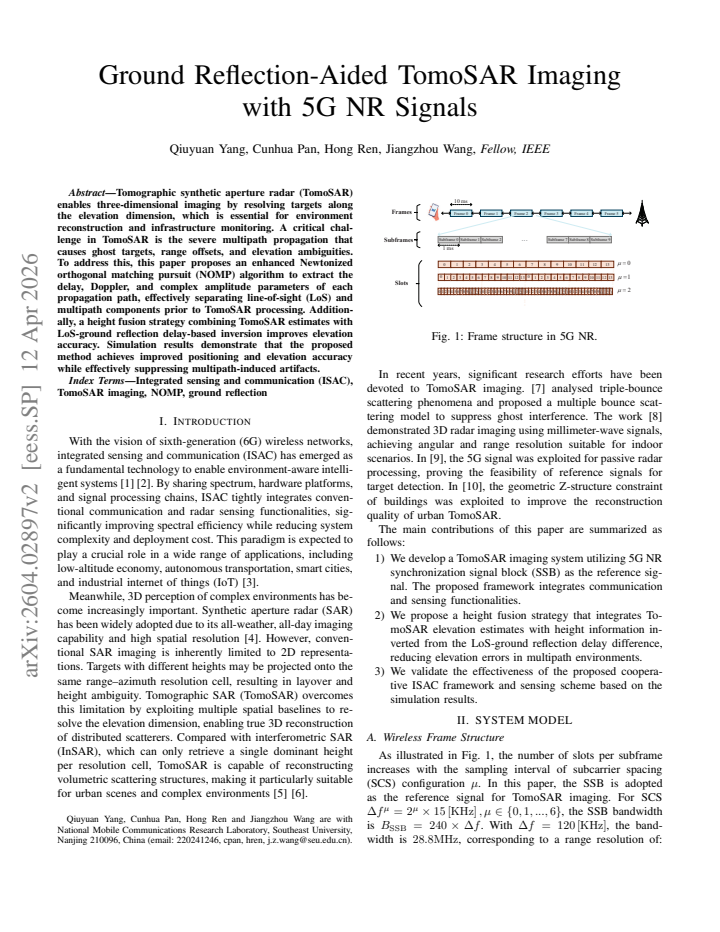

Ground Reflection-Aided TomoSAR Imaging with 5G NR Signals

Qiuyuan Yang , Cunhua Pan , Hong Ren , Jiangzhou Wang

Authors on Pith no claims yet

Pith reviewed 2026-05-13 18:22 UTC · model grok-4.3

classification 📡 eess.SP

keywords TomoSAR imaging5G NR signalsmultipath suppressionground reflectionNOMP algorithmelevation estimation3D reconstruction

0 comments

The pith

Ground reflections combined with enhanced path extraction let 5G TomoSAR suppress multipath ghosts and improve elevation accuracy.

A machine-rendered reading of the paper's core claim, the machinery that carries it, and where it could break.

The paper establishes that 5G NR signals can support reliable tomographic SAR imaging by first isolating the direct line-of-sight path from ground-reflected and other multipath components. It does this through an enhanced Newtonized orthogonal matching pursuit algorithm that extracts delay, Doppler, and amplitude parameters for each path. A subsequent height fusion step then merges the TomoSAR-derived elevation with an independent height value obtained from the ground-reflection delay to refine the vertical coordinate. A sympathetic reader would care because multipath in typical 5G environments creates false targets and vertical offsets that defeat standard TomoSAR, limiting its use for infrastructure monitoring or urban mapping. Simulations in the work show that the combined processing reduces positioning errors and removes the artifacts that otherwise appear along the elevation dimension.

Core claim

The central claim is that separating line-of-sight and multipath paths with an enhanced NOMP algorithm, followed by fusing TomoSAR elevation estimates with a delay-based height inversion from the ground reflection, produces accurate three-dimensional images while suppressing multipath-induced ghosts, range offsets, and elevation ambiguities.

What carries the argument

The enhanced Newtonized orthogonal matching pursuit algorithm, which extracts delay, Doppler, and complex amplitude parameters to isolate line-of-sight from multipath components, together with a height fusion strategy that combines TomoSAR results and LoS-ground reflection delay inversion.

If this is right

Positioning and elevation accuracy increase because the fusion step supplies an independent vertical constraint that standard TomoSAR lacks.
Multipath artifacts are suppressed once the algorithm isolates the direct path before imaging.
The method enables 3D environment reconstruction using existing 5G base stations without dedicated radar hardware.
Elevation ambiguities that arise from range offsets in reflected paths are reduced by the delay-based inversion.

Where Pith is reading between the lines

These are editorial extensions of the paper, not claims the author makes directly.

Similar fusion of delay-derived heights could be tested with other frequency bands or with moving 5G users to check robustness beyond the simulated static case.
The approach may connect to passive sensing networks where multiple base stations provide additional reflection paths for further ambiguity resolution.
If the parameter extraction remains stable at lower signal-to-noise ratios, the technique could support continuous monitoring of infrastructure without dedicated transmit waveforms.

Load-bearing premise

The enhanced NOMP step will correctly identify and separate the line-of-sight path parameters from multipath ones under the propagation conditions expected with 5G signals.

What would settle it

Real-world measurements in an urban scene where the fused elevation estimates still show large deviations from known building heights or where ghost targets remain visible after processing.

Figures

Figures reproduced from arXiv: 2604.02897 by Cunhua Pan, Hong Ren, Jiangzhou Wang, Qiuyuan Yang.

**Figure 1.** Figure 1: Frame structure in 5G NR. In recent years, significant research efforts have been devoted to TomoSAR imaging. [7] analysed triple-bounce scattering phenomena and proposed a multiple bounce scattering model to suppress ghost interference. The work [8] demonstrated 3D radar imaging using millimeter-wave signals, achieving angular and range resolution suitable for indoor scenarios. In [9], the 5G signal was … view at source ↗

**Figure 2.** Figure 2: Monostatic OFDM TomoSAR geometry. ∆f and B = N∆f. Then, the baseband time-domain OFDM signal within a symbol duration can be represented as s(t) = 1 √ N N X−1 k=0 Sk exp{j2πk∆f(t−TCP)}, t ∈ [0, T0+TCP], (6) where Sk satisfying PN−1 k=0 |Sk| 2 = N denotes the modulation symbol on the kth subcarrier, which ensures that the average symbol power is one. The instantaneous position of the UAV during the ith base… view at source ↗

**Figure 3.** Figure 3: Imaging results. (a) SAR image with ground phase. (b) [PITH_FULL_IMAGE:figures/full_fig_p005_3.png] view at source ↗

**Figure 4.** Figure 4: RMSE Performance Comparison. 3D reconstruction result in [PITH_FULL_IMAGE:figures/full_fig_p005_4.png] view at source ↗

read the original abstract

Tomographic synthetic aperture radar (TomoSAR) enables three-dimensional imaging by resolving targets along the elevation dimension, which is essential for environment reconstruction and infrastructure monitoring. A critical challenge in TomoSAR is the severe multipath propagation that causes ghost targets, range offsets, and elevation ambiguities. To address this, this paper proposes an enhanced Newtonized orthogonal matching pursuit (NOMP) algorithm to extract the delay, Doppler, and complex amplitude parameters of each propagation path, effectively separating line-of-sight (LoS) and multipath components prior to TomoSAR processing. Additionally, a height fusion strategy combining TomoSAR estimates with LoS-ground reflection delay-based inversion improves elevation accuracy. Simulation results demonstrate that the proposed method achieves improved positioning and elevation accuracy while effectively suppressing multipath-induced artifacts.

Editorial analysis

A structured set of objections, weighed in public.

Desk editor's note, referee report, simulated authors' rebuttal, and a circularity audit. Tearing a paper down is the easy half of reading it; the pith above is the substance, this is the friction.

Desk Editor's Note private letter to a colleague

Simulation gains from enhanced NOMP plus ground-reflection fusion look plausible on paper but rest on unverified assumptions about path separation in realistic 5G channels.

read the letter

The main point is that the authors take the existing NOMP algorithm, modify it to pull delay, Doppler, and amplitude from 5G NR signals, then fuse the line-of-sight ground-reflection delay with standard TomoSAR height estimates to cut multipath ghosts and improve elevation accuracy. This is a direct, incremental step on top of prior TomoSAR work rather than a new framework. The simulations they run show cleaner images and tighter positioning numbers, which aligns with the goal of using dense 5G infrastructure for urban monitoring without extra hardware. That practical framing is the part worth noting. The soft spot is that every result is simulation-only, with no reported details on waveform parameters, channel models, baseline comparisons, or error statistics. The central claim that the enhanced NOMP reliably separates closely spaced paths and that the fusion step stays accurate under phase noise or imperfect reflections is never stress-tested against measured data or analytical bounds. If those assumptions slip, the reported gains could shrink or disappear. This is the kind of paper that belongs in a reading group focused on comms-radar fusion or urban remote sensing. Readers already working with NOMP or 5G sensing would pick up the fusion trick and the specific 5G waveform considerations. It is not ready for citation yet because the evidence is too thin, but the algorithmic description is clear enough that a serious editor should send it out for review. Referees would likely ask for real-data validation or at least more transparent simulation settings, which is exactly the feedback the work needs.

Referee Report

2 major / 1 minor

Summary. The paper proposes an enhanced Newtonized Orthogonal Matching Pursuit (NOMP) algorithm to extract delay, Doppler, and complex amplitude parameters from 5G NR signals, separating line-of-sight (LoS) and multipath components before TomoSAR processing. It additionally introduces a height fusion strategy that combines TomoSAR elevation estimates with LoS-ground reflection delay inversion. Simulation results are claimed to show gains in positioning accuracy, elevation estimation, and suppression of multipath artifacts.

Significance. If the simulation-based claims hold under realistic 5G propagation conditions, the work could contribute to practical TomoSAR using existing 5G infrastructure by exploiting ground reflections for multipath mitigation. The algorithmic combination of parameter extraction and fusion is a reasonable direction for urban SAR applications, but the absence of real-data validation or analytical recovery guarantees limits the assessed significance.

major comments (2)

[Simulation results] Simulation results section: the central claim of improved positioning/elevation accuracy and artifact suppression rests on simulations whose setup, baselines, Monte Carlo repetitions, error statistics, or 5G NR waveform parameters (e.g., subcarrier spacing, bandwidth) are not described, preventing assessment of whether the gains are robust or model-specific.
[Proposed method] Enhanced NOMP description: no analysis or bounds are provided on parameter recovery when multipath delays are closely spaced or under realistic impairments such as phase noise and synchronization offset; this assumption is load-bearing for the LoS/multipath separation step that precedes both TomoSAR and height fusion.

minor comments (1)

[Height fusion strategy] Notation for the height fusion weights or inversion formula could be clarified with an explicit equation to avoid ambiguity in how TomoSAR and delay-based estimates are combined.

Simulated Author's Rebuttal

2 responses · 0 unresolved

We thank the referee for the constructive comments. We address the major comments point by point below and will revise the manuscript to improve the description of the simulation setup and to clarify the assumptions underlying the enhanced NOMP algorithm.

read point-by-point responses

Referee: [Simulation results] Simulation results section: the central claim of improved positioning/elevation accuracy and artifact suppression rests on simulations whose setup, baselines, Monte Carlo repetitions, error statistics, or 5G NR waveform parameters (e.g., subcarrier spacing, bandwidth) are not described, preventing assessment of whether the gains are robust or model-specific.

Authors: We agree that the simulation parameters were insufficiently detailed. In the revised manuscript we will expand the Simulation Results section with a dedicated table and text specifying the 5G NR waveform parameters (subcarrier spacing, bandwidth, number of subcarriers), the number of Monte Carlo trials (200), the exact baselines compared, the ground-truth elevation ranges, and the full error statistics (RMSE, bias, and standard deviation for delay, Doppler, and elevation estimates). These additions will allow direct assessment of robustness. revision: yes
Referee: [Proposed method] Enhanced NOMP description: no analysis or bounds are provided on parameter recovery when multipath delays are closely spaced or under realistic impairments such as phase noise and synchronization offset; this assumption is load-bearing for the LoS/multipath separation step that precedes both TomoSAR and height fusion.

Authors: We acknowledge that the manuscript provides no explicit recovery bounds or analysis for closely spaced multipath or impairments such as phase noise and synchronization offset. In the revision we will add a short discussion subsection (and an appendix) that (i) cites existing NOMP recovery guarantees from the literature, (ii) reports additional Monte Carlo results under moderate phase-noise and timing-offset levels consistent with 5G NR specifications, and (iii) explicitly states the operating regime in which the LoS/multipath separation is expected to remain reliable. A full theoretical derivation of bounds for the enhanced NOMP variant lies outside the scope of the present work. revision: partial

Circularity Check

0 steps flagged

No significant circularity; algorithmic proposal with simulation results is self-contained

full rationale

The paper proposes an enhanced NOMP algorithm to extract delay/Doppler/amplitude parameters for separating LoS and multipath paths, followed by a height fusion strategy that combines TomoSAR estimates with ground-reflection delay inversion. No equations, derivations, or self-citations are shown that reduce the claimed accuracy improvements or multipath suppression to fitted parameters, self-definitions, or prior author results by construction. The performance claims rest on simulation outputs rather than any analytical chain that loops back to its inputs, satisfying the criteria for an independent algorithmic contribution.

Axiom & Free-Parameter Ledger

0 free parameters · 0 axioms · 0 invented entities

The abstract does not introduce or rely on identifiable free parameters, new axioms, or invented entities beyond standard assumptions in signal processing and radar imaging.

pith-pipeline@v0.9.0 · 5435 in / 1062 out tokens · 20183 ms · 2026-05-13T18:22:56.294884+00:00 · methodology

discussion (0)

Lean theorems connected to this paper

Citations machine-checked in the Pith Canon. Every link opens the source theorem in the public Lean library.

IndisputableMonolith/Cost/FunctionalEquation.lean washburn_uniqueness_aczel unclear

?

unclear
Relation between the paper passage and the cited Recognition theorem.

enhanced Newtonized orthogonal matching pursuit (NOMP) algorithm to extract the delay, Doppler, and complex amplitude parameters
IndisputableMonolith/Foundation/AlexanderDuality.lean alexander_duality_circle_linking unclear

?

unclear
Relation between the paper passage and the cited Recognition theorem.

height fusion strategy combining TomoSAR estimates with LoS-ground reflection delay-based inversion

What do these tags mean?

matches: The paper's claim is directly supported by a theorem in the formal canon.
supports: The theorem supports part of the paper's argument, but the paper may add assumptions or extra steps.
extends: The paper goes beyond the formal theorem; the theorem is a base layer rather than the whole result.
uses: The paper appears to rely on the theorem as machinery.
contradicts: The paper's claim conflicts with a theorem or certificate in the canon.
unclear: Pith found a possible connection, but the passage is too broad, indirect, or ambiguous to say the theorem truly supports the claim.

Reference graph

Works this paper leans on

13 extracted references · 13 canonical work pages

[1]

Joint radar and communication design: Applications, state-of-t he-art, and the road ahead,

F. Liu, C. Masouros, A. P . Petropulu, H. Grifﬁths, and L. H anzo, “Joint radar and communication design: Applications, state-of-t he-art, and the road ahead,” IEEE Transactions on Communications , vol. 68, no. 6, pp. 3834–3862, 2020

work page 2020
[2]

Symbiotic sensing and communications towards 6G: Vision, applications, and technology trends,

Z. Wang, K. Han, J. Jiang, Z. Wei, G. Zhu, Z. Feng, J. Lu, and C. Meng, “Symbiotic sensing and communications towards 6G: Vision, applications, and technology trends,” in 2021 IEEE 94th V ehicular Technology Conference (VTC2021-Fall). IEEE, 2021, pp. 1–5

work page 2021
[3]

Enabling intelligent connectivity: A survey of secure isac in 6g netw orks,

X. Zhu, J. Liu, L. Lu, T. Zhang, T. Qiu, C. Wang, and Y . Liu, “ Enabling intelligent connectivity: A survey of secure isac in 6g netw orks,” IEEE Communications Surveys & Tutorials , 2024

work page 2024
[4]

A new unmanned aerial vehicle synthetic aperture radar for en vironmental monitoring,

V . Koo, Y . K. Chan, G. V etharatnam, M. Y . Chua, C. H. Lim, C. S. Lim, C. Thum, T. S. Lim, Z. bin Ahmad, K. A. Mahmood et al. , “A new unmanned aerial vehicle synthetic aperture radar for en vironmental monitoring,” Progress In Electromagnetics Research, vol. 122, pp. 245– 268, 2012

work page 2012
[5]

Target Localization in Cooperative ISAC Systems: A Scheme Based on 5G NR OFDM Signals,

Z. Zhang, H. Ren, C. Pan, S. Hong, D. Wang, J. Wang, and X. Y o u, “Target Localization in Cooperative ISAC Systems: A Scheme Based on 5G NR OFDM Signals,” IEEE Transactions on Communications , 2024

work page 2024
[6]

Coop- erative ISAC-Empowered Low-Altitude Economy,

J. Tang, Y . Y u, C. Pan, H. Ren, D. Wang, J. Wang, and X. Y ou, “ Coop- erative ISAC-Empowered Low-Altitude Economy,” IEEE Transactions on Wireless Communications , 2025

work page 2025
[7]

Building 3D recon struction of TomoSAR using multiple bounce scattering model,

F. Zhang, Y . Y ang, L. Chen, and L. Y ang, “Building 3D recon struction of TomoSAR using multiple bounce scattering model,” Electronics Letters, vol. 58, no. 12, pp. 486–488, 2022

work page 2022
[8]

3-D imaging using millimeter-wave 5G signal reﬂections,

J. Guan, A. Paidimarri, A. V aldes-Garcia, and B. Sadhu, “ 3-D imaging using millimeter-wave 5G signal reﬂections,” IEEE Transactions on Microwave Theory and Techniques, vol. 69, no. 6, pp. 2936–2948, 2021

work page 2021
[9]

SSB-Based Signal Processing for Passive Radar Using a 5G Network,

K. Abratkiewicz, A. Ksi˛ e ˙zyk, M. Płotka, P . Samczy ´nski, J. Wszołek, and T. P . Zieli ´nski, “SSB-Based Signal Processing for Passive Radar Using a 5G Network,” IEEE Journal of Selected Topics in Applied Earth Observations and Remote Sensing , vol. 16, pp. 3469–3484, 2023

work page 2023
[10]

Urba n SAR tomography with Z-structure constraint of buildings,

R. Guo, Y . Gao, Z. Ren, Z. Zhang, J. Xie, and B. Y ang, “Urba n SAR tomography with Z-structure constraint of buildings,” IEEE Journal of Selected Topics in Applied Earth Observations and Remote Se nsing, vol. 17, pp. 9945–9960, 2024

work page 2024
[11]

Chunk-based resource allocation in OFDMA systems-part I: chunk allocation,

H. Zhu and J. Wang, “Chunk-based resource allocation in OFDMA systems-part I: chunk allocation,” IEEE Transactions on Communica- tions, vol. 57, no. 9, pp. 2734–2744, 2009

work page 2009
[12]

Newtonized Orthogonal Matching Pursuit for High-Resolut ion Target Detection in Sparse OFDM ISAC Systems,

S. N. H. Shah, S. Semper, A. U. Khan, C. Schneider, and J. R obert, “Newtonized Orthogonal Matching Pursuit for High-Resolut ion Target Detection in Sparse OFDM ISAC Systems,” IEEE Transactions on V ehicular Technology, vol. 74, no. 10, pp. 16 137–16 151, 2025

work page 2025
[13]

Newtonize d Or- thogonal Matching Pursuit: Frequency Estimation Over the C ontinuum,

B. Mamandipoor, D. Ramasamy, and U. Madhow, “Newtonize d Or- thogonal Matching Pursuit: Frequency Estimation Over the C ontinuum,” IEEE Transactions on Signal Processing, vol. 64, no. 19, pp. 5066–5081, 2016

work page 2016
