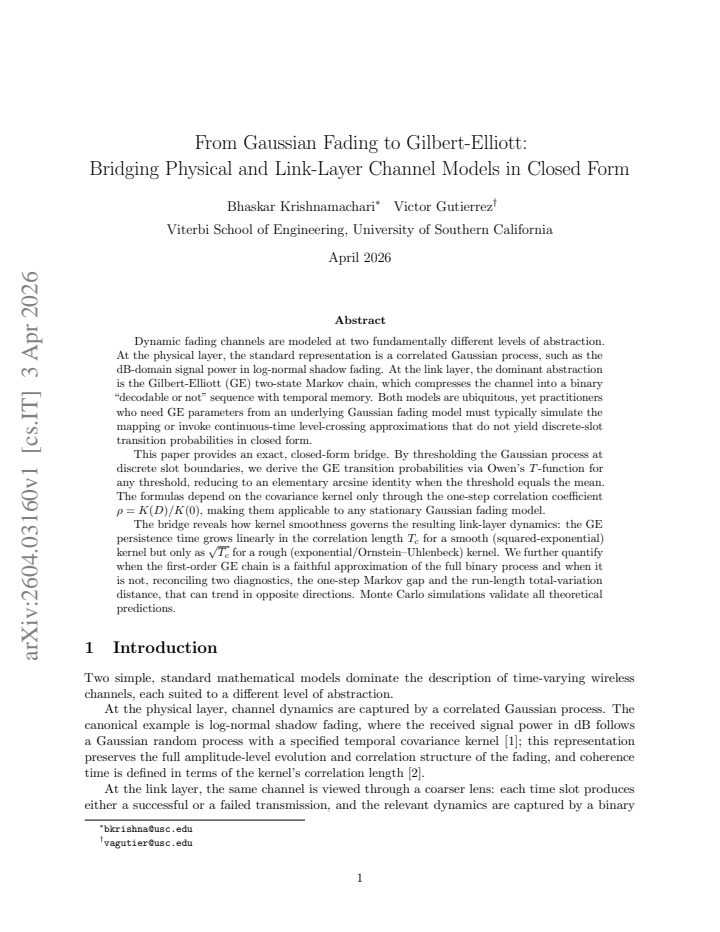

From Gaussian Fading to Gilbert-Elliott: Bridging Physical and Link-Layer Channel Models in Closed Form

Bhaskar Krishnamachari , Victor Gutierrez This is my paper

Pith reviewed 2026-05-13 18:36 UTC · model grok-4.3

classification 💻 cs.IT eess.SPmath.IT
keywords Gaussian fadingGilbert-Elliott channelclosed-form mappingOwen's T-functionMarkov approximationcorrelation coefficientlink-layer modelingthresholding
0
0 comments X

The pith

Thresholding a correlated Gaussian fading process at discrete slots produces exact Gilbert-Elliott transition probabilities in closed form via Owen's T-function.

A machine-rendered reading of the paper's core claim, the machinery that carries it, and where it could break.

This paper establishes an exact mapping from a continuous correlated Gaussian fading process to the parameters of a discrete two-state Gilbert-Elliott Markov chain. The transition probabilities are obtained by hard-thresholding the Gaussian values at each time slot and evaluating the resulting joint probabilities with Owen's T-function; the formulas depend on the underlying covariance only through the single scalar one-step correlation coefficient. When the threshold sits at the mean, the expressions simplify to an elementary arcsine relation. The same formulas also show how kernel smoothness controls link-layer persistence: linear growth with correlation length for squared-exponential kernels versus square-root growth for exponential kernels. The work further reconciles two diagnostics for the accuracy of the first-order Markov approximation.

Core claim

By thresholding the Gaussian process at discrete slot boundaries, the GE transition probabilities are derived via Owen's T-function for any threshold, reducing to an elementary arcsine identity when the threshold equals the mean. The formulas depend on the covariance kernel only through the one-step correlation coefficient rho = K(D)/K(0), making them applicable to any stationary Gaussian fading model.

What carries the argument

Hard thresholding of the continuous Gaussian fading process to a binary decodable/not sequence at fixed slot times, with transition probabilities expressed through Owen's T-function evaluated at the one-step correlation rho.

If this is right

  • The GE persistence time scales linearly with correlation length for smooth kernels and as the square root for rough kernels.
  • The mapping applies directly to any stationary Gaussian model once its one-step correlation is known.
  • The first-order Markov approximation can be checked by comparing one-step Markov gap against run-length total-variation distance.
  • Closed-form GE parameters can be substituted into link-layer analyses without requiring Monte Carlo sampling of the physical channel.

Where Pith is reading between the lines

These are editorial extensions of the paper, not claims the author makes directly.

  • Designers could pre-compute GE tables for common kernels and feed them into cross-layer schedulers or error-control codes.
  • The same thresholding-plus-Owen-T approach may extend to other continuous-to-binary channel abstractions such as those arising in optical or molecular communication.
  • Measuring empirical one-step correlation from field data would immediately yield usable GE parameters without needing the full covariance function.

Load-bearing premise

The binary sequence produced by hard thresholding the Gaussian process at each discrete slot is adequately described by a first-order Markov chain.

What would settle it

A Monte Carlo simulation of thresholded samples from a Gaussian process with known one-step correlation rho that produces state-transition frequencies measurably different from the Owen's T-function expressions.

Figures

Figures reproduced from arXiv: 2604.03160 by Bhaskar Krishnamachari, Victor Gutierrez.

Figure 1
Figure 1. Figure 1: Two diagnostics for the matched first-order GE chain ( [PITH_FULL_IMAGE:figures/full_fig_p012_1.png] view at source ↗
Figure 2

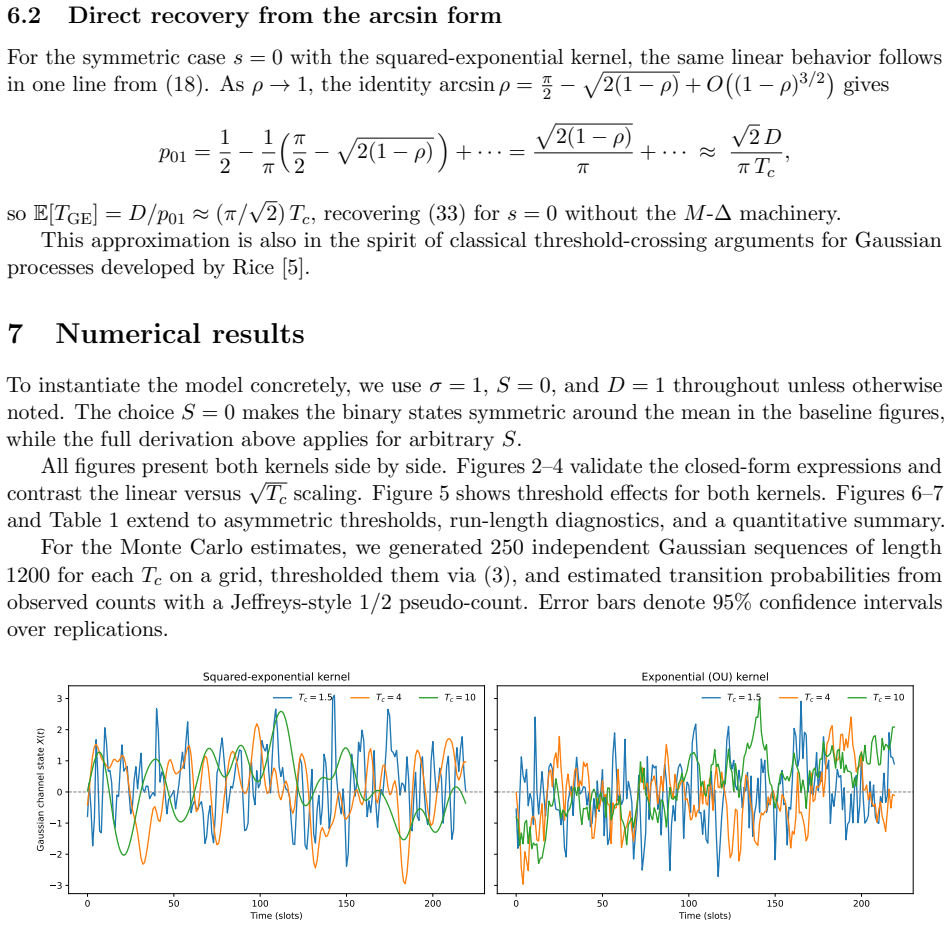

Figure 2. Figure 2: Sample paths of the stationary Gaussian fading process for three values of [PITH_FULL_IMAGE:figures/full_fig_p014_2.png] view at source ↗
Figure 3

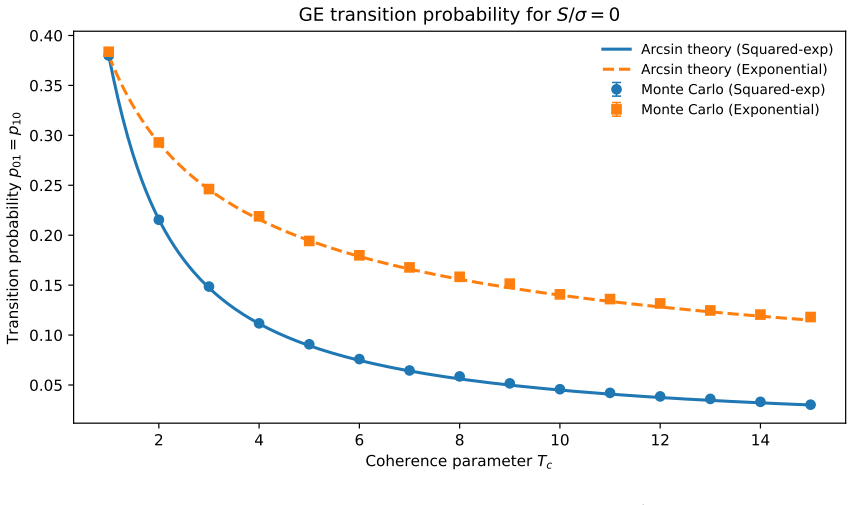

Figure 3. Figure 3: Matched GE transition probability p01 = p10 versus Tc for S/σ = 0, both kernels. Solid and dashed curves are the arcsin formula (18) with ρ from (7); markers are Monte Carlo estimates with 95% CIs. Note that the two kernels map the same Tc to different values of ρ, so this figure compares GE parameters at matched Tc, not matched ρ. 2 4 6 8 10 12 14 Coherence parameter Tc 5 10 15 20 25 30 35 [TGE] Squared-e… view at source ↗
Figure 4

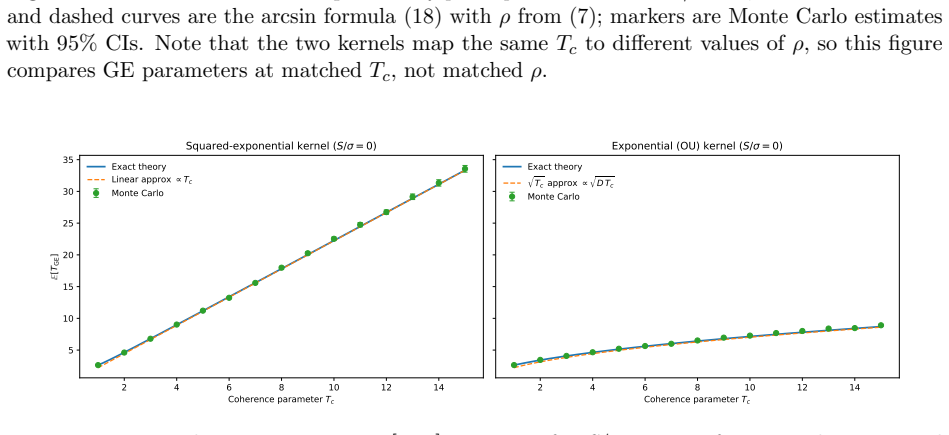

Figure 4. Figure 4: Expected persistence time E[TGE] versus Tc for S/σ = 0. Left: squared-exponential kernel with exact theory (16) (solid), linear asymptote (33) (dashed), and Monte Carlo (circles). Right: exponential kernel with exact theory (solid), √ Tc asymptote (34) (dashed), and Monte Carlo (circles). The contrasting growth rates (linear vs. √ Tc) are clearly visible. 15 [PITH_FULL_IMAGE:figures/full_fig_p015_4.png] view at source ↗
Figure 5

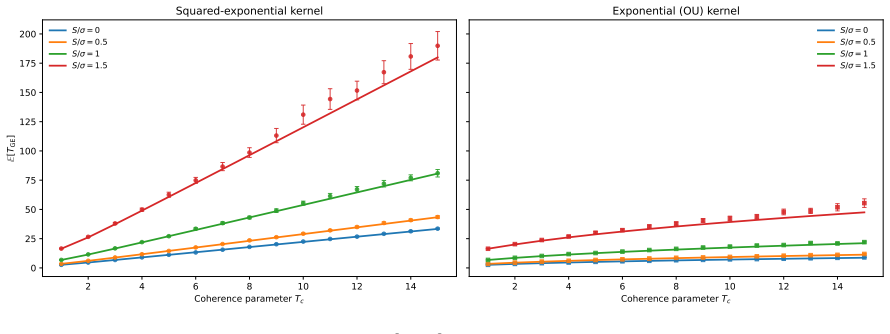

Figure 5. Figure 5: Effect of the threshold level on E[TGE], both kernels. Left: squared-exponential. Right: exponential. Solid lines are the closed-form theory (16); markers show Monte Carlo means with 95% CIs. Only nonnegative thresholds are shown (the mapping is symmetric under S/σ 7→ −S/σ). The square-root scaling of the exponential kernel is evident in the sublinear curvature of the right panel [PITH_FULL_IMAGE:figures/… view at source ↗
Figure 6
Figure 6. Figure 6: Matched GE transition probabilities (left column) and mean dwell times (right column) [PITH_FULL_IMAGE:figures/full_fig_p017_6.png] view at source ↗
Figure 7

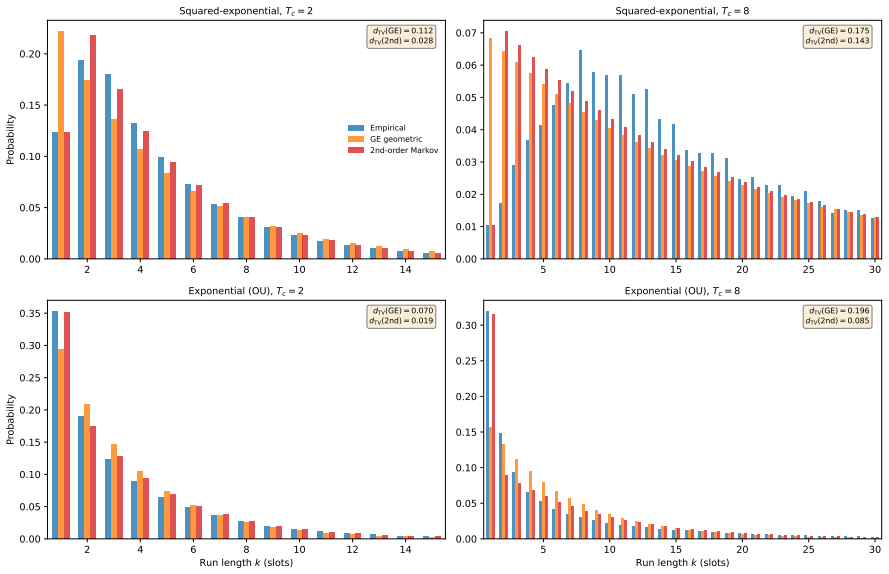

Figure 7. Figure 7: Run-length distributions for state-1 runs ( [PITH_FULL_IMAGE:figures/full_fig_p018_7.png] view at source ↗
read the original abstract

Dynamic fading channels are modeled at two fundamentally different levels of abstraction. At the physical layer, the standard representation is a correlated Gaussian process, such as the dB-domain signal power in log-normal shadow fading. At the link layer, the dominant abstraction is the Gilbert-Elliott (GE) two-state Markov chain, which compresses the channel into a binary ``decodable or not'' sequence with temporal memory. Both models are ubiquitous, yet practitioners who need GE parameters from an underlying Gaussian fading model must typically simulate the mapping or invoke continuous-time level-crossing approximations that do not yield discrete-slot transition probabilities in closed form. This paper provides an exact, closed-form bridge. By thresholding the Gaussian process at discrete slot boundaries, we derive the GE transition probabilities via Owen's $T$-function for any threshold, reducing to an elementary arcsine identity when the threshold equals the mean. The formulas depend on the covariance kernel only through the one-step correlation coefficient $\rho = K(D)/K(0)$, making them applicable to any stationary Gaussian fading model. The bridge reveals how kernel smoothness governs the resulting link-layer dynamics: the GE persistence time grows linearly in the correlation length $T_c$ for a smooth (squared-exponential) kernel but only as $\sqrt{T_c}$ for a rough (exponential/Ornstein--Uhlenbeck) kernel. We further quantify when the first-order GE chain is a faithful approximation of the full binary process and when it is not, reconciling two diagnostics, the one-step Markov gap and the run-length total-variation distance, that can trend in opposite directions. Monte Carlo simulations validate all theoretical predictions.

Editorial analysis

A structured set of objections, weighed in public.

Desk editor's note, referee report, simulated authors' rebuttal, and a circularity audit. Tearing a paper down is the easy half of reading it; the pith above is the substance, this is the friction.

Referee Report

0 major / 0 minor

Summary. The manuscript derives exact closed-form expressions for the transition probabilities of the Gilbert-Elliott two-state Markov chain from an underlying stationary Gaussian process that models physical-layer fading. By hard-thresholding the Gaussian samples at discrete slot boundaries, the probabilities are obtained from the bivariate normal CDF via Owen's T-function for arbitrary thresholds; the expressions depend on the covariance kernel only through the one-step correlation coefficient ρ = K(D)/K(0) and reduce to the elementary arcsine law when the threshold equals the mean. The work further shows that GE persistence time scales linearly with correlation length Tc for a squared-exponential kernel but only as √Tc for an exponential kernel, and it quantifies the fidelity of the first-order Markov approximation by reconciling the one-step Markov gap with run-length total-variation distance, all corroborated by Monte Carlo simulations.

Significance. If the derivations hold, the paper supplies a parameter-light, exact bridge between ubiquitous physical-layer Gaussian fading models and link-layer GE chains that applies to any stationary kernel through ρ alone. This removes the need for simulation or continuous-time level-crossing approximations when discrete-slot transition probabilities are required. The explicit dependence on kernel smoothness yields concrete design insight (linear versus square-root scaling of persistence), while the dual-diagnostic error analysis for the Markov assumption is a useful practical contribution. Strengths include the closed-form expressions, direct reduction to the known arcsine identity, and Monte Carlo validation that matches theory across kernels.

Simulated Author's Rebuttal

0 responses · 0 unresolved

We thank the referee for the positive review and the recommendation to accept the manuscript. The summary correctly identifies the core contributions: the exact closed-form GE transition probabilities via Owen's T-function, their dependence solely on the one-step correlation ρ, the kernel-dependent scaling of persistence time, and the dual-diagnostic assessment of the first-order Markov approximation.

Circularity Check

0 steps flagged

No significant circularity identified

full rationale

The central derivation obtains GE transition probabilities directly from the bivariate Gaussian CDF (equivalently Owen's T-function) applied to thresholded samples separated by lag D. The only input is the externally supplied one-step correlation rho = K(D)/K(0) for any stationary kernel; no parameters are fitted to the target quantities, no self-referential definitions appear, and no load-bearing self-citations are invoked. The first-order Markov approximation error is quantified separately via explicit diagnostics (one-step gap and run-length TV distance) with Monte Carlo validation, keeping the closed-form bridge independent of its own outputs.

Axiom & Free-Parameter Ledger

2 free parameters · 2 axioms · 0 invented entities

The derivation rests on the standard assumption that the physical-layer fading is a stationary zero-mean Gaussian process whose one-step correlation is known, together with the modeling choice that the link-layer state is produced by hard thresholding at each discrete slot. No new entities are introduced and no parameters are fitted to data.

free parameters (2)
  • threshold
    User-selected level that defines the boundary between good and bad states in the binary process; it is a modeling choice rather than a fitted constant.
  • rho
    One-step correlation coefficient extracted from the covariance kernel evaluated at the slot duration; it is supplied by the physical-layer model rather than fitted inside the derivation.
axioms (2)
  • domain assumption The underlying fading is a stationary Gaussian random process.
    Standard physical-layer model for log-normal shadowing and similar effects; invoked when the bivariate normal distribution is used to obtain the joint probability of consecutive states.
  • domain assumption The link-layer binary sequence is produced by hard thresholding the Gaussian process at each discrete time slot.
    This step converts the continuous process into the decodable/not sequence whose transition probabilities are then derived.

pith-pipeline@v0.9.0 · 5613 in / 1648 out tokens · 58139 ms · 2026-05-13T18:36:58.413467+00:00 · methodology

discussion (0)

Sign in with ORCID, Apple, or X to comment. Anyone can read and Pith papers without signing in.

Reference graph

Works this paper leans on

38 extracted references · 38 canonical work pages

  1. [1]

    Correlation model for shadow fading in mobile radio systems,

    M. Gudmundson, “Correlation model for shadow fading in mobile radio systems,”Electronics Letters, vol. 27, pp. 2145–2146, Nov. 1991

    work page 1991

  2. [2]

    Goldsmith,Wireless Communications

    A. Goldsmith,Wireless Communications. Cambridge, U.K.: Cambridge University Press, 2005

    work page 2005

  3. [3]

    Capacity of a burst-noise channel,

    E. N. Gilbert, “Capacity of a burst-noise channel,”The Bell System Technical Journal, vol. 39, pp. 1253–1265, Sept. 1960

    work page 1960

  4. [4]

    Estimates of error rates for codes on burst-noise channels,

    E. O. Elliott, “Estimates of error rates for codes on burst-noise channels,”The Bell System Technical Journal, vol. 42, pp. 1977–1997, Sept. 1963

    work page 1977

  5. [5]

    Mathematical analysis of random noise,

    S. O. Rice, “Mathematical analysis of random noise,”The Bell System Technical Journal, vol. 23, pp. 282–332, July 1944

    work page 1944

  6. [6]

    Tables for computing bivariate normal probabilities,

    D. B. Owen, “Tables for computing bivariate normal probabilities,”The Annals of Mathematical Statistics, vol. 27, pp. 1075–1090, Dec. 1956. 20

    work page 1956

  7. [7]

    On the calculation of the double-integral expressing normal correlation,

    W. F. Sheppard, “On the calculation of the double-integral expressing normal correlation,”

    work page

  8. [8]

    Transactions of the Cambridge Philosophical Society, vol. 19, pp. 23–66 (often cited as the origin of early bivariate normal correlation integral results)

    work page

  9. [9]

    Models for channels with memory and their applications to error control,

    L. N. Kanal and A. Sastry, “Models for channels with memory and their applications to error control,”Proceedings of the IEEE, vol. 66, pp. 724–744, July 1978

    work page 1978

  10. [10]

    Finite-state markov modeling of fading channels: A survey of principles and applications,

    P. Sadeghi, R. A. Kennedy, P. B. Rapajic, and R. Shams, “Finite-state markov modeling of fading channels: A survey of principles and applications,”IEEE Signal Processing Magazine, vol. 25, pp. 57–80, Sept. 2008

    work page 2008

  11. [11]

    A statistical theory of mobile-radio reception,

    R. H. Clarke, “A statistical theory of mobile-radio reception,”The Bell System Technical Journal, vol. 47, pp. 957–1000, July 1968

    work page 1968

  12. [12]

    W. C. Jakes, ed.,Microwave Mobile Communications. New York, NY, USA: John Wiley & Sons,

    work page

  13. [13]

    Often cited as the Clarke/Jakes fading reference; includes classical Doppler spectrum and correlation models

    work page

  14. [14]

    Finite-state markov channel—a useful model for radio commu- nication channels,

    H. S. Wang and N. Moayeri, “Finite-state markov channel—a useful model for radio commu- nication channels,”IEEE Transactions on Vehicular Technology, vol. 44, pp. 163–171, Feb. 1995

    work page 1995

  15. [15]

    Finite-state markov model for rayleigh fading channels,

    Q. Zhang and S. A. Kassam, “Finite-state markov model for rayleigh fading channels,”IEEE Transactions on Communications, vol. 47, pp. 1688–1692, Nov. 1999

    work page 1999

  16. [16]

    Arq error control for fading mobile radio channels,

    M. Zorzi, R. R. Rao, and L. B. Milstein, “Arq error control for fading mobile radio channels,” IEEE Transactions on Vehicular Technology, vol. 46, pp. 445–455, May 1997

    work page 1997

  17. [17]

    Delay analysis of selective repeat arq for a markovian source over a wireless channel,

    J. G. Kim and M. Krunz, “Delay analysis of selective repeat arq for a markovian source over a wireless channel,” inProceedings of the 2nd ACM International Workshop on Wireless Mobile Multimedia (WoWMoM ’99), (Seattle, WA, USA), pp. 59–66, 1999

    work page 1999

  18. [18]

    Queuing with adaptive modulation and coding over wire- less links: Cross-layer analysis and design,

    Q. Liu, S. Zhou, and G. B. Giannakis, “Queuing with adaptive modulation and coding over wire- less links: Cross-layer analysis and design,”IEEE Transactions on Wireless Communications, vol. 4, pp. 1142–1152, May 2005

    work page 2005

  19. [19]

    Cross-layer modeling of wireless channels for data-link and ip layer performance evaluation,

    D. Moltchanov, Y. Koucheryavy, and J. Harju, “Cross-layer modeling of wireless channels for data-link and ip layer performance evaluation,”Computer Communications, vol. 29, pp. 827–841, Apr. 2006

    work page 2006

  20. [20]

    Kalman filtering with intermittent observations,

    B. Sinopoli, L. Schenato, M. Franceschetti, K. Poolla, M. I. Jordan, and S. S. Sastry, “Kalman filtering with intermittent observations,”IEEE Transactions on Automatic Control, vol. 49, pp. 1453–1464, Sept. 2004

    work page 2004

  21. [21]

    Stability of kalman filtering with markovian packet losses,

    M. Huang and S. Dey, “Stability of kalman filtering with markovian packet losses,”Automatica, vol. 43, pp. 598–607, Apr. 2007

    work page 2007

  22. [22]

    Kalman filtering over gilbert–elliott channels: Stability conditions and the critical curve,

    J. Wu, G. Shi, B. D. O. Anderson, and K. H. Johansson, “Kalman filtering over gilbert–elliott channels: Stability conditions and the critical curve,”IEEE Transactions on Automatic Control,

    work page

  23. [23]

    Published version of earlier arXiv:1411.1217

    work page arXiv

  24. [24]

    Remote estimation over a packet-drop channel with markovian state,

    J. Chakravorty and A. Mahajan, “Remote estimation over a packet-drop channel with markovian state,”IEEE Transactions on Automatic Control, vol. 65, pp. 2016–2031, May 2020. 21

    work page 2016

  25. [25]

    The spectrum of clipped noise,

    J. H. Van Vleck and D. Middleton, “The spectrum of clipped noise,”Proceedings of the IEEE, vol. 54, pp. 2–19, Jan. 1966

    work page 1966

  26. [26]

    Crosscorrelation functions of amplitude-distorted gaussian signals,

    J. J. Bussgang, “Crosscorrelation functions of amplitude-distorted gaussian signals,” Tech. Rep. Technical Report 216, MIT Research Laboratory of Electronics, 1952

    work page 1952

  27. [27]

    A useful theorem for nonlinear devices having gaussian inputs,

    R. Price, “A useful theorem for nonlinear devices having gaussian inputs,”IRE Transactions on Information Theory, vol. 4, pp. 69–72, June 1958

    work page 1958

  28. [28]

    The correlation function of smoothly limited gaussian noise,

    R. F. Baum, “The correlation function of smoothly limited gaussian noise,”IRE Transactions on Information Theory, vol. 3, pp. 193–197, Sept. 1957

    work page 1957

  29. [29]

    On verifying the first-order markovian assumption for a rayleigh fading channel model,

    H. S. Wang and P.-C. Chang, “On verifying the first-order markovian assumption for a rayleigh fading channel model,”IEEE Transactions on Vehicular Technology, vol. 45, pp. 353–357, May 1996

    work page 1996

  30. [30]

    On first-order markov modeling for the rayleigh fading channel,

    C. C. Tan and N. C. Beaulieu, “On first-order markov modeling for the rayleigh fading channel,” IEEE Transactions on Communications, vol. 48, pp. 2032–2040, Dec. 2000

    work page 2032

  31. [31]

    On the accuracy of a first-order markov model for data transmission on fading channels,

    M. Zorzi, R. R. Rao, and L. B. Milstein, “On the accuracy of a first-order markov model for data transmission on fading channels,” inProceedings of ICUPC ’95 – 4th IEEE International Conference on Universal Personal Communications, (Tokyo, Japan), pp. 211–215, Nov. 1995

    work page 1995

  32. [32]

    Analysis of the markov character of a general rayleigh fading channel,

    R. Dalke and G. Hufford, “Analysis of the markov character of a general rayleigh fading channel,” Tech. Rep. TM-05-423, National Telecommunications and Information Administration (NTIA), U.S. Department of Commerce, 2005. Technical Memorandum

    work page 2005

  33. [33]

    Finite-state markov modeling of flat fading channels,

    C. Pimentel, T. H. Falk, and L. Lisboa, “Finite-state markov modeling of flat fading channels,” inInternational Telecommunications Symposium (ITS 2002), (Natal, Brazil), 2002

    work page 2002

  34. [34]

    Finite-state markov modeling of correlated rician- fading channels,

    C. Pimentel, T. H. Falk, and L. Lisboa, “Finite-state markov modeling of correlated rician- fading channels,”IEEE Transactions on Vehicular Technology, vol. 53, pp. 1491–1501, Sept. 2004

    work page 2004

  35. [35]

    The gilbert-elliott model for packet loss in real time services on the internet,

    G. Haßlinger and O. Hohlfeld, “The gilbert-elliott model for packet loss in real time services on the internet,” inProceedings of the 14th GI/ITG Conference on Measurement, Modeling and Evaluation of Computer and Communication Systems (MMB 2008), (Dortmund, Germany), pp. 269–286, Apr. 2008

    work page 2008

  36. [36]

    Reliability and error burst length analysis of wireless multi-connectivity,

    J. J. Nielsen, I. Leyva-Mayorga, and P. Popovski, “Reliability and error burst length analysis of wireless multi-connectivity,”arXiv preprint, 2019. Uses GE fitting on LTE and Wi-Fi measurement traces

    work page 2019

  37. [37]

    Analyzing the transitional region in low power wireless links,

    M. Zuniga and B. Krishnamachari, “Analyzing the transitional region in low power wireless links,” inProceedings of the First Annual IEEE Communications Society Conference on Sensor and Ad Hoc Communications and Networks (SECON 2004), (Santa Clara, CA, USA), pp. 517–526, 2004

    work page 2004

  38. [38]

    The β-factor: Measuring wireless link burstiness,

    K. Srinivasan, M. A. Kazandjieva, S. Agarwal, and P. Levis, “The β-factor: Measuring wireless link burstiness,” inProceedings of the 6th ACM Conference on Embedded Network Sensor Systems (SenSys ’08), (Raleigh, NC, USA), pp. 29–42, 2008. 22

    work page 2008
