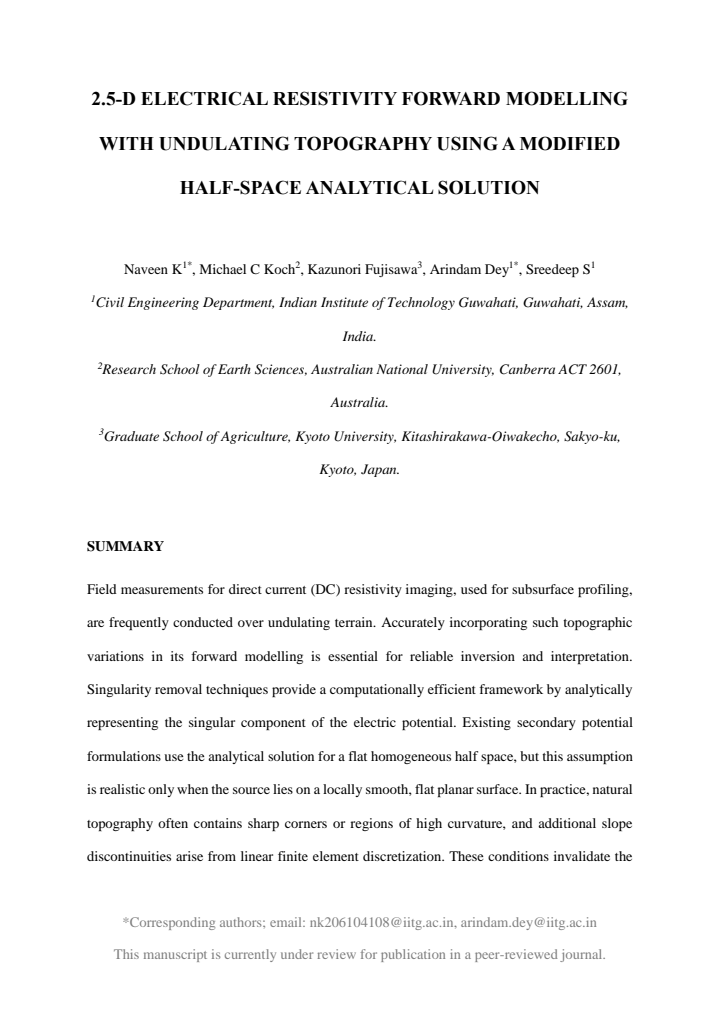

2.5-D Electrical Resistivity Forward Modelling with Undulating Topography using a Modified Half-Space Analytical Solution

Naveen K. , Michael C. Koch , Kazunori Fujisawa , Arindam Dey , Sreedeep S

Authors on Pith no claims yet

Pith reviewed 2026-05-15 00:59 UTC · model grok-4.3

classification ⚛️ physics.geo-ph cs.NAmath.NA

keywords 2.5-D resistivity modelingundulating topographysingularity removalV-shaped wedgeprimary potentialfinite element methodDC resistivity imagingforward modelling

0 comments

The pith

A V-shaped wedge analytical solution for the primary potential cuts errors in 2.5-D resistivity modeling over undulating topography below 0.1 percent even on coarse meshes.

A machine-rendered reading of the paper's core claim, the machinery that carries it, and where it could break.

The paper develops an improved singularity removal method for direct-current resistivity forward modeling on irregular ground. Standard approaches use a flat half-space formula for the primary field, but this creates large mismatches when the surface has slopes, corners, or curvature that the finite-element mesh actually follows. The authors replace it with a new analytical primary potential derived for a V-shaped wedge, which matches the true solid angle at the source and stays consistent with the discretized boundary. This matters for field surveys because undulating terrain is common, and accurate forward models without heavy mesh refinement improve the reliability of subsurface inversions. Tests on flat, V-trench, and sinusoidal hill-valley cases confirm the low error levels hold across these geometries.

Core claim

The paper establishes that deriving a new analytical primary potential for a V-shaped wedge allows singularity removal in 2.5-D DC resistivity modeling that remains valid for sharply varying surfaces, accurately captures the singular behavior without geometric smoothing, stays consistent with both the discretized surface geometry and physical boundary conditions, and produces errors below 0.1 percent even with coarse linear finite-element meshes on flat, V-shaped trench, and sinusoidal hill-valley models.

What carries the argument

V-shaped wedge analytical primary potential that supplies the correct solid-angle singularity at the source point for non-flat topography.

If this is right

The formulation remains valid for sharply varying surfaces and accurately captures singular behavior without requiring geometric smoothing.
It achieves consistent errors below 0.1 percent on coarse linear finite-element meshes for multiple tested topographies.
The method stays consistent with the discretized surface geometry and the physical boundary conditions at the source.
It removes the need for excessive mesh refinement to control errors from flat-surface assumptions.
