Fast Cross-Operator Optimization of Attention Dataflow

Bo Yuan, Hailiang Hu, Haodong Chang, Jiang Hu, Rongjian Liang, Yu Gong, Zhenrui Wang, Zhexiang Tang

Authors on Pith no claims yet

Pith reviewed 2026-05-13 17:43 UTC · model grok-4.3

classification 💻 cs.AR
keywords attentiondataflow optimizationcross-operatoranalytical performance modelmatrix encodingenergy efficiencylatency reductionaccelerators
0
0 comments X

The pith

MMEE uses matrix encoding of dataflow solutions to optimize attention computations across operators, delivering up to 50% lower energy use and 69% lower latency at 64-343 times the speed of prior methods.

A machine-rendered reading of the paper's core claim, the machinery that carries it, and where it could break.

The paper proposes MMEE, a method for optimizing dataflow in attention kernels used in transformers. It builds an analytical model that encodes many possible tiling, ordering, and buffer choices as matrix multiplications. This allows rapid evaluation and pruning of a huge space of solutions to find the best one for given hardware. A reader would care because attention dominates LLM workloads, so better dataflow directly improves efficiency on accelerators. The approach outperforms existing techniques in both quality and speed across tested cases.

Core claim

Cross-operator dataflow optimization for attention can be performed by constructing an analytical performance model that encodes candidate solutions via matrix multiplication, enabling exhaustive enumeration with effective pruning to identify optimal configurations for energy or latency objectives on accelerators.

What carries the argument

The analytical performance model that represents dataflow decisions through matrix encodings, supporting fast evaluation of many candidates for cross-operator optimization.

If this is right

  • For energy-driven optimization, energy consumption drops 48%-50% and latency drops 31%-69% versus state-of-the-art methods.
  • For latency-driven optimization, both energy and latency drop 40%-50% and 40%-69% respectively.
  • The optimization process runs 64× to 343× faster than previous works.
  • The gains hold across multiple accelerator configurations and attention test cases.

Where Pith is reading between the lines

These are editorial extensions of the paper, not claims the author makes directly.

  • The enumeration speed could support runtime dataflow selection if the model can be recomputed quickly during inference.
  • Similar matrix encodings might apply to optimizing dataflow for other heavy kernels such as convolutions.
  • Reliable analytical models of this type could reduce the need for cycle-accurate simulations when exploring new accelerator designs.

Load-bearing premise

The analytical performance model accurately captures real hardware behavior across the tested accelerator configurations without requiring post-hoc calibration or detailed cycle-accurate simulation.

What would settle it

Deploying the MMEE-optimized dataflows on actual hardware accelerators and verifying whether measured energy consumption and latency match the model's predictions within a small error margin.

Figures

Figures reproduced from arXiv: 2604.03446 by Bo Yuan, Hailiang Hu, Haodong Chang, Jiang Hu, Rongjian Liang, Yu Gong, Zhenrui Wang, Zhexiang Tang.

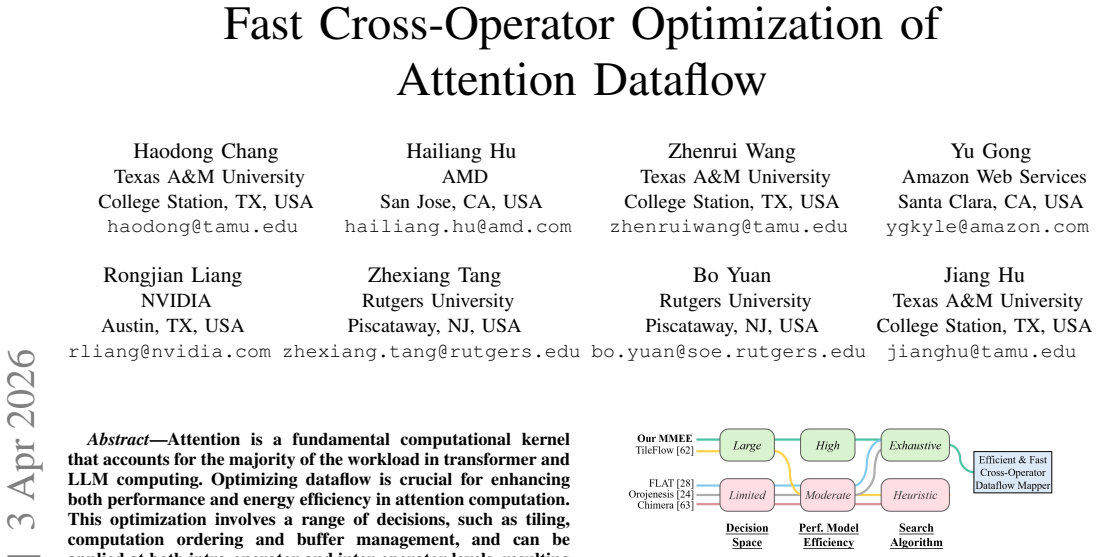

Figure 1
Figure 1. Figure 1: Comparison of various cross-operator dataflow mappers. [PITH_FULL_IMAGE:figures/full_fig_p001_1.png] view at source ↗
Figure 2
Figure 2. Figure 2: Attention computation and accelerator architecture. [PITH_FULL_IMAGE:figures/full_fig_p002_2.png] view at source ↗

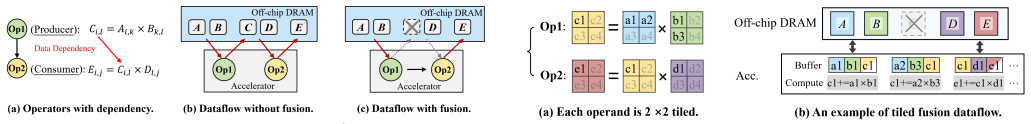

Figure 3
Figure 3. Figure 3: Fusion dataflow keeps intermediate results ( [PITH_FULL_IMAGE:figures/full_fig_p003_3.png] view at source ↗

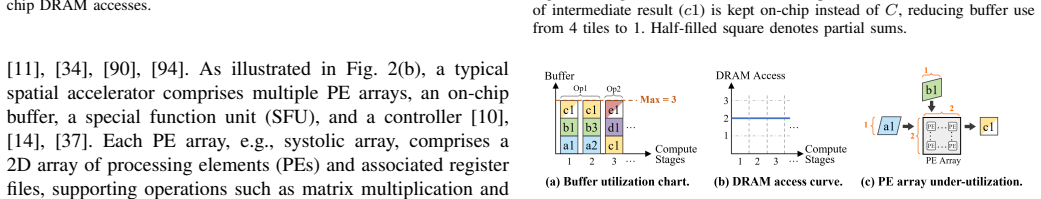

Figure 5
Figure 5. Figure 5: The impact of tiling. Each compute stage represents the multiplication [PITH_FULL_IMAGE:figures/full_fig_p003_5.png] view at source ↗
Figure 6
Figure 6. Figure 6: The computation ordering on the left is valid, while the right case is [PITH_FULL_IMAGE:figures/full_fig_p004_6.png] view at source ↗
Figure 8
Figure 8. Figure 8: Buffer management and its impact. (a) The dataflow follows Fig. 7(a). [PITH_FULL_IMAGE:figures/full_fig_p004_8.png] view at source ↗
Figure 9
Figure 9. Figure 9: Pseudo nested loop example and components. Loop boundaries come [PITH_FULL_IMAGE:figures/full_fig_p004_9.png] view at source ↗
Figure 10
Figure 10. Figure 10: (a) Specific numeric values are assigned to loop boundaries to illustrate the [PITH_FULL_IMAGE:figures/full_fig_p006_10.png] view at source ↗
Figure 11
Figure 11. Figure 11: Example of buffer-size requirement and DRAM-access estimation. [PITH_FULL_IMAGE:figures/full_fig_p006_11.png] view at source ↗
Figure 12
Figure 12. Figure 12: Overview of the MMEE dataflow optimization framework. The [PITH_FULL_IMAGE:figures/full_fig_p007_12.png] view at source ↗
Figure 15
Figure 15. Figure 15: Fusing FFN networks of GPT-3-6.7B [PITH_FULL_IMAGE:figures/full_fig_p009_15.png] view at source ↗
Figure 16
Figure 16. Figure 16: Fusing attention computation of GPT-3-6.7B. [PITH_FULL_IMAGE:figures/full_fig_p009_16.png] view at source ↗
Figure 17
Figure 17. Figure 17: Dataflow optimization results on energy and latency for Accel. 1. The overall energy is the sum of four components, and the overall latency is [PITH_FULL_IMAGE:figures/full_fig_p010_17.png] view at source ↗
Figure 18
Figure 18. Figure 18: Dataflow optimization results on energy and latency for Accel. 2. [PITH_FULL_IMAGE:figures/full_fig_p011_18.png] view at source ↗
Figure 19
Figure 19. Figure 19: Compute utilization of TileFlow and MMEE. [PITH_FULL_IMAGE:figures/full_fig_p011_19.png] view at source ↗
Figure 20
Figure 20. Figure 20: Energy-latency trade-off of the attention fusion on Accel. 2. [PITH_FULL_IMAGE:figures/full_fig_p011_20.png] view at source ↗
Figure 23
Figure 23. Figure 23: Energy and latency trends with increasing sequence length for fused [PITH_FULL_IMAGE:figures/full_fig_p012_23.png] view at source ↗
Figure 24
Figure 24. Figure 24: Analysis of decision elements. “TF”, “TF+T”, and “TF+T+BM” [PITH_FULL_IMAGE:figures/full_fig_p012_24.png] view at source ↗
Figure 25
Figure 25. Figure 25: Comparison of Chimera, TileFlow, Orojenesis, MMEE* (MMEE [PITH_FULL_IMAGE:figures/full_fig_p013_25.png] view at source ↗
Figure 26
Figure 26. Figure 26: A case study of MMEE* (MMEE without recomputation) and MMEE [PITH_FULL_IMAGE:figures/full_fig_p013_26.png] view at source ↗
Figure 27
Figure 27. Figure 27: EDP-driven optimization of reconfigurable PE arrays. Fixed: 32×32 [PITH_FULL_IMAGE:figures/full_fig_p014_27.png] view at source ↗
read the original abstract

Attention is a fundamental computational kernel that accounts for the majority of the workload in transformer and LLM computing. Optimizing dataflow is crucial for enhancing both performance and energy efficiency in attention computation. This optimization involves a range of decisions, such as tiling, computation ordering and buffer management, and can be applied at both intra-operator and inter-operator levels, resulting in a highly complex decision space. We propose a new approach to cross-operator dataflow optimization. Its centerpiece is an analytical performance model that spans a large decision space and enables matrix-based encoding of multiple candidate solutions. Built on this foundation, a vast number of solutions can be evaluated rapidly, and with the aid of an effective pruning technique, the optimal solution can be identified through exhaustive enumeration. We refer to our method as MMEE (Matrix Multiplication Encoded Enumeration). The ability to efficiently enumerate a large design space allows MMEE to deliver higher-quality solutions at a substantially faster speed compared to prior approaches. The MMEE approach is evaluated across various test cases for different accelerator configurations. For energy-driven optimization, MMEE reduces energy consumption by 48%-50% and latency by 31%-69%, compared to state-of-the-art methods. For latency-driven optimization, MMEE achieves simultaneous reductions of 40%-50% in energy consumption and 40%-69% in latency, respectively. Additionally, MMEE is $64\times$ to $343\times$ faster than previous works.

Editorial analysis

A structured set of objections, weighed in public.

Desk editor's note, referee report, simulated authors' rebuttal, and a circularity audit. Tearing a paper down is the easy half of reading it; the pith above is the substance, this is the friction.

Referee Report

2 major / 1 minor

Summary. The manuscript introduces MMEE (Matrix Multiplication Encoded Enumeration), a method for cross-operator dataflow optimization of attention kernels. It encodes tiling, ordering, and buffer decisions via an analytical performance model as matrix operations, enabling rapid exhaustive enumeration with pruning to identify optimal solutions for energy- or latency-driven objectives on accelerators. The paper reports 48-50% energy and 31-69% latency reductions versus prior methods for energy-driven cases, 40-50% energy and 40-69% latency reductions for latency-driven cases, and 64x-343x faster optimization times.

Significance. If the analytical model proves accurate, the work offers a practical advance for efficient transformer/LLM accelerators by systematically exploring cross-operator dataflows that prior heuristics miss. The matrix-based encoding for fast enumeration is a clear technical contribution that could scale to larger design spaces.

major comments (2)
  1. [Evaluation section] Evaluation section: The headline claims (48%-50% energy reduction, 31%-69% latency reduction, 64x-343x speedup) are produced entirely by the analytical model used both to guide search and to report final metrics. No calibration against RTL simulation, gate-level power analysis, or hardware measurements is described, so it is impossible to assess whether unmodeled effects (interconnect contention, bank conflicts) erode the reported gains.
  2. [Analytical performance model section] Analytical performance model section: The model encodes dataflow decisions as matrix operations, yet the manuscript provides no equations or parameter derivation showing how latency and energy costs are computed from hardware characteristics. Without this, it is unclear whether the model systematically under-counts costs that grow with cross-operator fusion.
minor comments (1)
  1. [Abstract] The abstract and evaluation refer to 'various test cases' and 'different accelerator configurations' without listing the specific attention variants, tiling factors, or accelerator parameters used.

Simulated Author's Rebuttal

2 responses · 0 unresolved

We thank the referee for the constructive comments. We address each major point below and outline the changes we will make to strengthen the manuscript.

read point-by-point responses

  1. Referee: [Evaluation section] The headline claims (48%-50% energy reduction, 31%-69% latency reduction, 64x-343x speedup) are produced entirely by the analytical model used both to guide search and to report final metrics. No calibration against RTL simulation, gate-level power analysis, or hardware measurements is described, so it is impossible to assess whether unmodeled effects (interconnect contention, bank conflicts) erode the reported gains.

    Authors: We acknowledge that all reported metrics are generated by the analytical model. In the revised manuscript we will add a new subsection in Evaluation that explicitly discusses model assumptions, lists unmodeled effects such as interconnect contention and bank conflicts, and reports a cycle-accurate simulator validation on a representative subset of the evaluated configurations. Full RTL or gate-level power analysis remains outside the scope of this work, which focuses on rapid cross-operator enumeration; we will note this limitation clearly. revision: partial

  2. Referee: [Analytical performance model section] The model encodes dataflow decisions as matrix operations, yet the manuscript provides no equations or parameter derivation showing how latency and energy costs are computed from hardware characteristics. Without this, it is unclear whether the model systematically under-counts costs that grow with cross-operator fusion.

    Authors: We agree that the equations and parameter derivations were insufficiently detailed. In the revised Analytical Performance Model section we will insert the complete latency and energy equations, show how each term is derived from hardware parameters (memory bandwidth, compute throughput, buffer sizes, etc.), and explicitly derive the additional costs incurred by cross-operator fusion. This will make the model transparent and allow readers to assess potential under-counting. revision: yes

Circularity Check

0 steps flagged

No circularity: analytical model provides independent scoring for enumeration

full rationale

The derivation relies on an analytical performance model that encodes tiling, ordering, and buffer decisions as matrix operations to enable rapid evaluation of candidate dataflows. This model is applied uniformly to score solutions during exhaustive enumeration with pruning, and the reported energy/latency reductions are direct outputs of selecting the minimum-cost solution under the model. No step reduces a claimed prediction to a fitted parameter or self-citation by construction; the model is presented as a forward evaluator rather than a tautology. The approach is self-contained against the model's own equations, with comparisons to prior methods performed via the same framework. This yields a normal non-circular finding.

Axiom & Free-Parameter Ledger

0 free parameters · 0 axioms · 0 invented entities

The central claim rests on an analytical performance model whose internal parameters and accuracy assumptions are not detailed in the abstract; no explicit free parameters, axioms, or invented entities are named.
