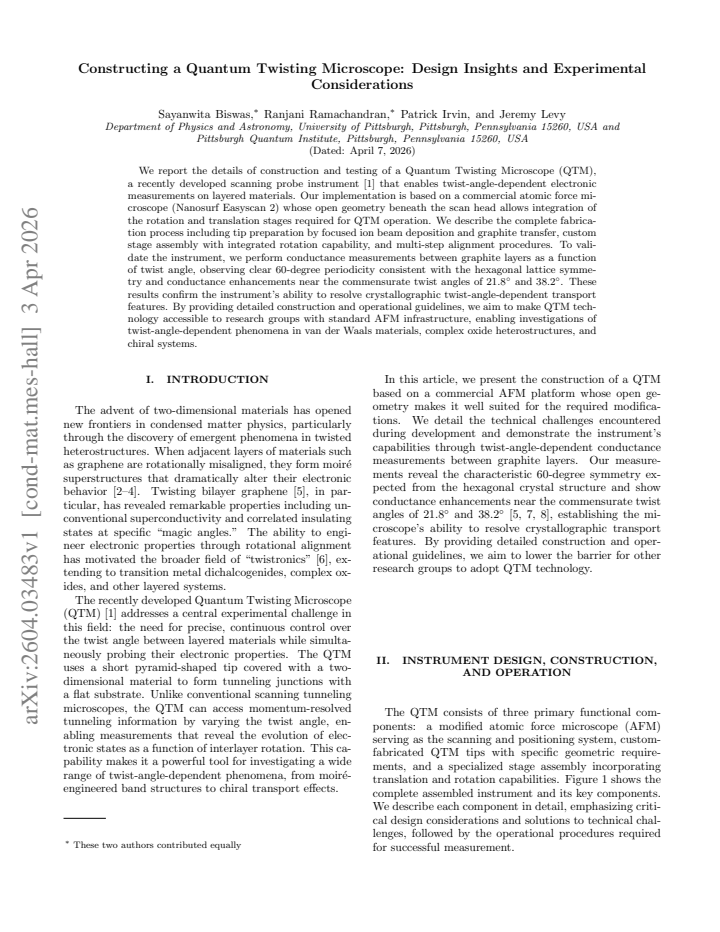

Constructing a Quantum Twisting Microscope: Design Insights and Experimental Considerations

Sayanwita Biswas , Ranjani Ramachandran , Patrick Irvin , Jeremy Levy This is my paper

Pith reviewed 2026-05-13 17:50 UTC · model grok-4.3

classification ❄️ cond-mat.mes-hall physics.ins-det
keywords twistangledependentmicroscopeconductanceconstructiongraphiteinstrument
0
0 comments X

The pith

A practical Quantum Twisting Microscope is constructed from a commercial AFM, validated by graphite conductance showing 60° periodicity and peaks at commensurate angles of 21.8° and 38.2°.

A machine-rendered reading of the paper's core claim, the machinery that carries it, and where it could break.

The work describes how to turn a regular atomic force microscope into a Quantum Twisting Microscope. Researchers add rotation and translation stages under the scan head, prepare sharp tips using focused ion beams, and transfer graphite flakes to create clean interfaces between layers. They then measure electrical conductance while changing the twist angle between two graphite sheets. The data shows the expected repeating pattern every 60 degrees due to the hexagonal atomic arrangement, plus stronger conductance at specific angles where the layers line up better. These checks confirm the instrument can detect how twisting changes electron flow in materials. The goal is to share step-by-step instructions so other groups can build similar tools for studying van der Waals stacks, oxide layers, and chiral structures.

Core claim

These results confirm the instrument's ability to resolve crystallographic twist angle dependent transport features.

Load-bearing premise

The custom rotation stages, alignment procedures, and tip preparation produce no mechanical or electrical artifacts that could create false periodicity or conductance peaks mimicking the expected lattice effects.

Figures

Figures reproduced from arXiv: 2604.03483 by Jeremy Levy, Patrick Irvin, Ranjani Ramachandran, Sayanwita Biswas.

Figure 1
Figure 1. Figure 1: FIG. 1. Camera images of QTM setup: (a) Full instrument image showing the complete assembly. (b) Detailed view of different [PITH_FULL_IMAGE:figures/full_fig_p002_1.png] view at source ↗
Figure 2
Figure 2. Figure 2: FIG. 2. SEM images showing the QTM tip fabrication process: (a) Tipless cantilever after gold deposition showing the metallic [PITH_FULL_IMAGE:figures/full_fig_p003_2.png] view at source ↗
Figure 3
Figure 3. Figure 3: FIG. 3. Critical tip height considerations for QTM operation: [PITH_FULL_IMAGE:figures/full_fig_p003_3.png] view at source ↗
Figure 4
Figure 4. Figure 4: FIG. 4. Stage alignment procedure for centering the area of [PITH_FULL_IMAGE:figures/full_fig_p004_4.png] view at source ↗
Figure 5
Figure 5. Figure 5: FIG. 5. Verification of rotation stage alignment: (a) AFM topography scans acquired at different rotation angles showing [PITH_FULL_IMAGE:figures/full_fig_p005_5.png] view at source ↗
Figure 6
Figure 6. Figure 6: FIG. 6. Conductance as a function of relative twist angle [PITH_FULL_IMAGE:figures/full_fig_p005_6.png] view at source ↗
read the original abstract

We report the details of construction and testing of a Quantum Twisting Microscope, a recently developed scanning probe instrument that enables twist angle dependent electronic measurements on layered materials. Our implementation is based on a commercial atomic force microscope whose open geometry beneath the scan head allows integration of the rotation and translation stages required for QTM operation. We describe the complete fabrication process including tip preparation by focused ion beam deposition and graphite transfer, custom stage assembly with integrated rotation capability, and multistep alignment procedures. To validate the instrument, we perform conductance measurements between graphite layers as a function of twist angle, observing clear 60 degree periodicity consistent with the hexagonal lattice symmetry and conductance enhancements near the commensurate twist angles of 21.8 and 38.2 degrees. These results confirm the instruments ability to resolve crystallographic twist angle dependent transport features. By providing detailed construction and operational guidelines, we aim to make QTM technology accessible to research groups with standard AFM infrastructure, enabling investigations of twist angle dependent phenomena in van der Waals materials, complex oxide heterostructures and chiral systems.

Editorial analysis

A structured set of objections, weighed in public.

Desk editor's note, referee report, simulated authors' rebuttal, and a circularity audit. Tearing a paper down is the easy half of reading it; the pith above is the substance, this is the friction.

Circularity Check

0 steps flagged

No significant circularity; validation against independent lattice symmetry

full rationale

The paper describes construction of a QTM from a commercial AFM, with details on FIB tip preparation, graphite transfer, custom rotation stages, and alignment. Validation reports conductance vs. twist angle showing 60° periodicity and peaks at 21.8°/38.2°, stated as consistent with known hexagonal graphite symmetry. No equations, fitted parameters, or self-citations are used to derive or predict these features; observations are benchmarked directly against external crystallographic facts. The central claims remain independent of the instrument's own outputs.

Axiom & Free-Parameter Ledger

0 free parameters · 1 axioms · 0 invented entities

The central claim rests on standard domain knowledge of graphite symmetry and the assumption that observed features arise from twist angle rather than instrument effects; no free parameters or invented entities are introduced.

axioms (1)
  • domain assumption Hexagonal lattice symmetry of graphite produces 60° periodicity in interlayer conductance.
    Invoked to interpret the measured conductance periodicity as confirmation of instrument function.
