Airborne Minnaert-Like Resonance of an Air-Filled Elasto-Bubble

Fanambinana Delmotte , Valentin Leroy , Jishen Zhang This is my paper

Pith reviewed 2026-05-13 17:52 UTC · model grok-4.3

classification ❄️ cond-mat.soft physics.app-ph
keywords elasto-bubblesMinnaert resonanceacoustic metamaterialssubwavelength resonatorselastomer shellsairborne acousticsmonopolar resonanceviscoelastic scattering
0
0 comments X

The pith

Air-filled soft elastomer shells sustain strong monopolar resonances in air despite being deeply subwavelength, acting as an airborne analogue of the Minnaert resonator.

A machine-rendered reading of the paper's core claim, the machinery that carries it, and where it could break.

The paper demonstrates that air-filled hollow capsules made from soft elastomer can produce bubble-like acoustic resonances while surrounded only by air. In water, Minnaert resonances arise because the liquid supplies inertia around a gas core; here the thin shell's own elasticity supplies the restoring force and inertia instead. Impedance-tube experiments confirm that these elasto-bubbles exhibit clear transmission dips and absorption peaks at frequencies far below the wavelength scale set by their size. A scattering model that includes only the measured elastic moduli and viscoelastic losses of the shell reproduces the resonance frequency, depth of the transmission dip, and absorption level with no adjustable parameters. Because radius and wall thickness are chosen independently during fabrication, the approach supplies a practical route to building resonant elements for airborne sound control.

Core claim

Air-filled soft elastomer shells, termed elasto-bubbles, realize an airborne analogue of the Minnaert resonator. Using impedance-tube measurements together with the theory of layered-bubble scattering, these soft hollow capsules sustain strong monopolar resonances despite being deeply subwavelength. Their resonance frequency, transmission dip, and absorption are quantitatively captured, without adjustable parameters, by a model accounting for shell elasticity and viscoelasticity.

What carries the argument

The layered-bubble scattering model that treats the elastomer shell as an elastic-viscoelastic layer surrounding an air core and computes the monopolar scattering response from the shell's radius, thickness, density, and complex modulus.

If this is right

  • Resonance frequency is set by shell radius, thickness, and material modulus, allowing independent tuning during fabrication.
  • The same structures produce both a transmission dip and measurable absorption at the resonance frequency.
  • Because the model requires no fitting, predicted behavior can be scaled directly to other radii or thicknesses.
  • Elasto-bubbles supply a simple building block for airborne acoustic metamaterials, resonant absorbers, and frequency-selective filters.

Where Pith is reading between the lines

These are editorial extensions of the paper, not claims the author makes directly.

  • The same shell-based mechanism could be applied to other soft polymers or geometries to reach lower frequencies while remaining compact.
  • Because the resonance is monopolar, arrays of elasto-bubbles should produce isotropic effective compressibility, a useful property for negative-index or cloaking designs in air.
  • The absence of adjustable parameters in the fit implies that material characterization alone is sufficient for design, reducing the need for empirical iteration in device prototyping.

Load-bearing premise

The viscoelastic properties of the elastomer together with the layered-bubble scattering theory fully describe all losses and dynamics, with no additional dissipation or fabrication imperfections present.

What would settle it

A measured resonance frequency or transmission dip for a fabricated elasto-bubble that differs from the model's zero-parameter prediction by more than the stated experimental uncertainty.

Figures

Figures reproduced from arXiv: 2604.03516 by Fanambinana Delmotte, Jishen Zhang, Valentin Leroy.

Figure 1

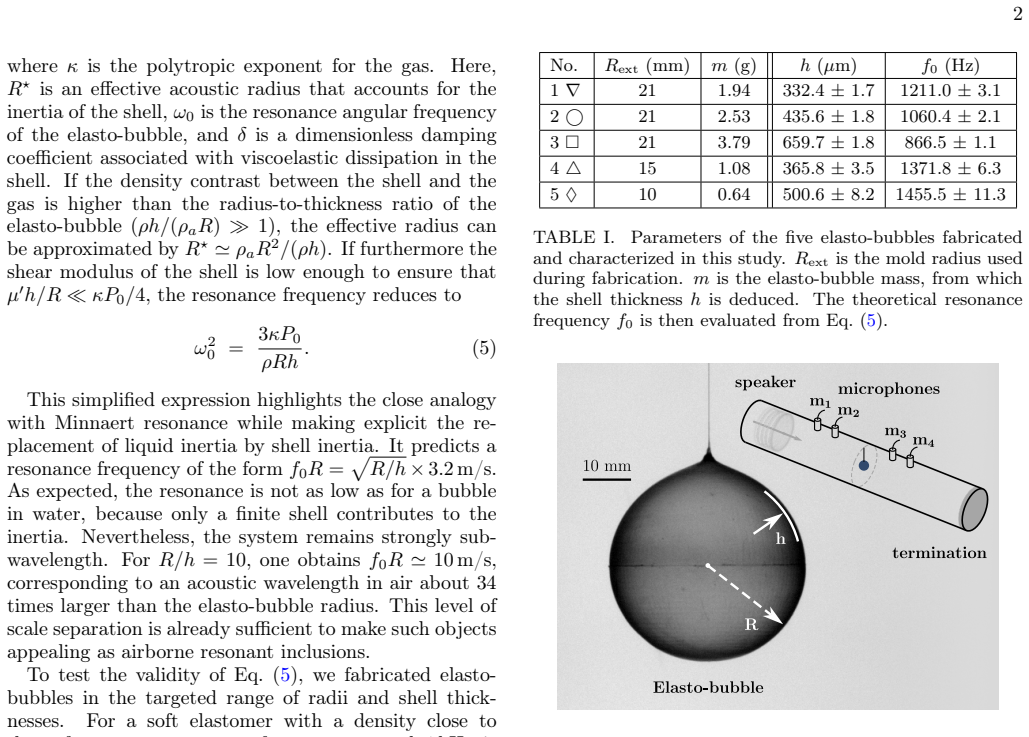

Figure 1. Figure 1: FIG. 1. Representative elasto-bubble [PITH_FULL_IMAGE:figures/full_fig_p002_1.png] view at source ↗
Figure 2

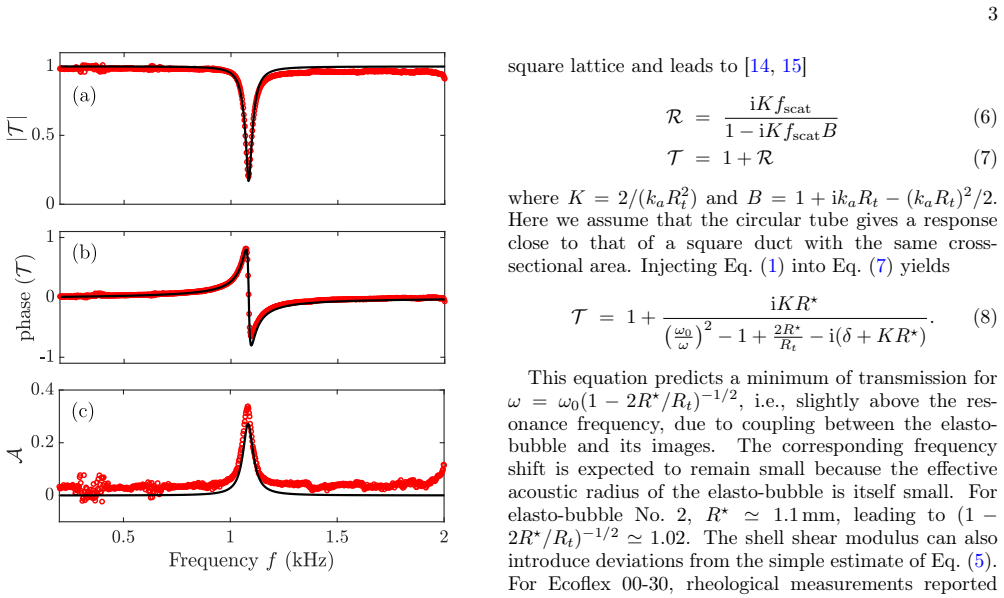

Figure 2. Figure 2: FIG. 2. Example of wave transmission amplitude (a), phase [PITH_FULL_IMAGE:figures/full_fig_p003_2.png] view at source ↗
Figure 3

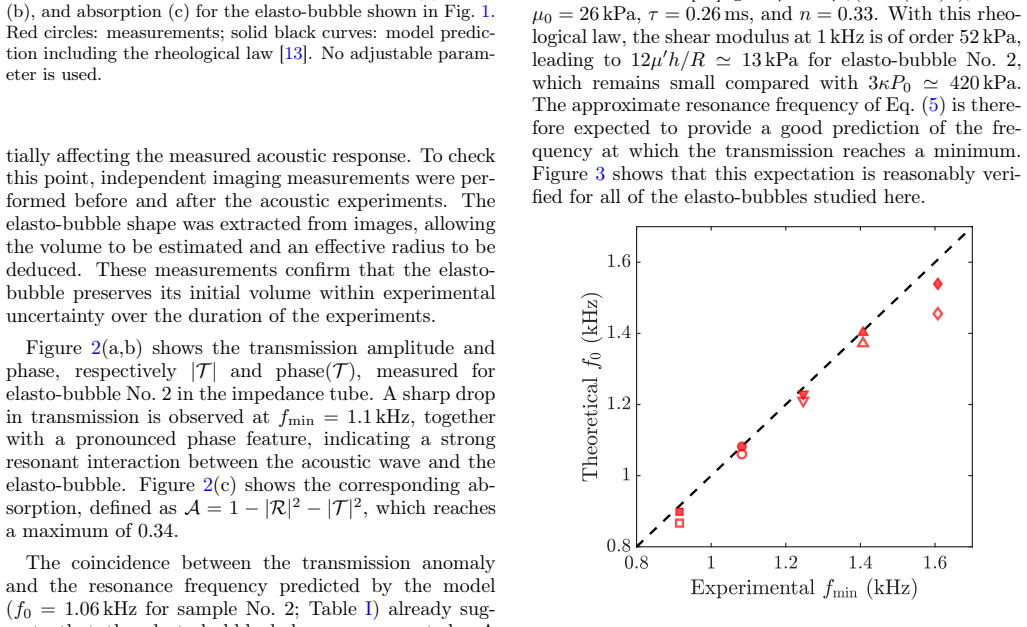

Figure 3. Figure 3: FIG. 3. Theoretical versus experimental frequency [PITH_FULL_IMAGE:figures/full_fig_p003_3.png] view at source ↗
Figure 4

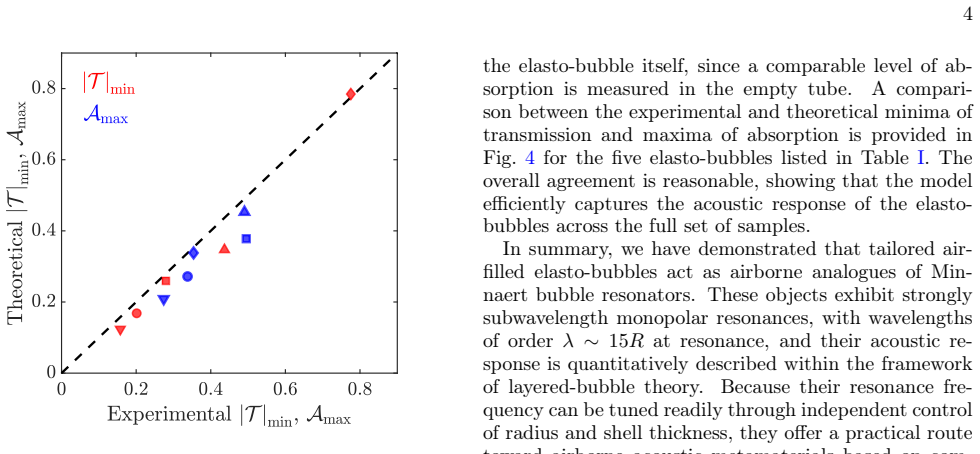

Figure 4. Figure 4: FIG. 4. Red symbols: predicted minimum transmission as a [PITH_FULL_IMAGE:figures/full_fig_p004_4.png] view at source ↗

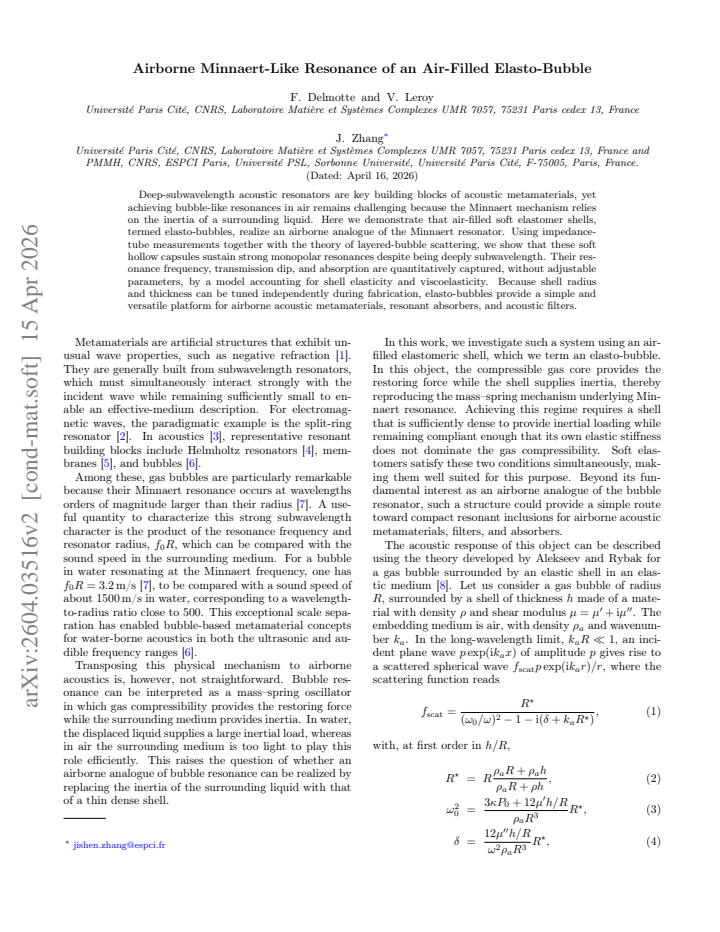

read the original abstract

Deep-subwavelength acoustic resonators are key building blocks of acoustic metamaterials, yet achieving bubble-like resonances in air remains challenging because the Minnaert mechanism relies on the inertia of a surrounding liquid. Here we demonstrate that air-filled soft elastomer shells, termed elasto-bubbles, realize an airborne analogue of the Minnaert resonator. Using impedance-tube measurements together with the theory of layered-bubble scattering, we show that these soft hollow capsules sustain strong monopolar resonances despite being deeply subwavelength. Their resonance frequency, transmission dip, and absorption are quantitatively captured, without adjustable parameters, by a model accounting for shell elasticity and viscoelasticity. Because shell radius and thickness can be tuned independently during fabrication, elasto-bubbles provide a simple and versatile platform for airborne acoustic metamaterials, resonant absorbers, and acoustic filters.

Editorial analysis

A structured set of objections, weighed in public.

Desk editor's note, referee report, simulated authors' rebuttal, and a circularity audit. Tearing a paper down is the easy half of reading it; the pith above is the substance, this is the friction.

Referee Report

3 major / 2 minor

Summary. The manuscript claims that air-filled soft elastomer shells (elasto-bubbles) realize an airborne analogue of the Minnaert resonator. Impedance-tube measurements show strong monopolar resonances that remain deeply subwavelength; these resonances, together with the associated transmission dip and absorption, are stated to be quantitatively reproduced without adjustable parameters by a layered-bubble scattering model that incorporates shell elasticity and viscoelasticity. Independent tuning of radius and thickness during fabrication is presented as enabling applications in airborne acoustic metamaterials, resonant absorbers, and filters.

Significance. If the parameter-free agreement holds, the work supplies a simple, tunable platform for realizing bubble-like acoustic resonances in air, a long-standing gap in acoustic metamaterial design. The use of established scattering theory together with independent measurements is a positive feature that could support predictive engineering of soft-matter acoustic devices.

major comments (3)
  1. [§3 (Model)] §3 (Model): The explicit equations of the layered-bubble scattering theory, including the boundary conditions that incorporate shell elasticity and viscoelasticity, are not stated. Without these, it is impossible to verify that the reported resonance frequencies are obtained without any post-hoc parameter adjustment.
  2. [Experimental Methods] Experimental Methods: Raw impedance-tube spectra, error bars on the measured resonance frequencies and absorption values, and the precise numerical values of the elastomer Young's modulus and loss tangent employed in the model are absent. These omissions directly undermine the central claim of quantitative, parameter-free agreement.
  3. [§4 (Results)] §4 (Results): No table or statistical metric (e.g., relative error or R²) is provided for the comparison between measured and predicted resonance frequencies across the fabricated samples; visual overlay alone is insufficient to substantiate the 'quantitative' assertion.
minor comments (2)
  1. [Figure 2] Figure 2 caption: the normalization convention for the transmission coefficient and the exact frequency range displayed should be stated explicitly.
  2. [§3] The viscoelastic model parameters are introduced without a dedicated reference or measurement protocol; a short methods paragraph or supplementary note would improve clarity.

Simulated Author's Rebuttal

3 responses · 0 unresolved

We thank the referee for the careful reading and constructive comments on our manuscript. We address each major comment point by point below and will revise the manuscript to incorporate the requested clarifications and additions.

read point-by-point responses

  1. Referee: [§3 (Model)] §3 (Model): The explicit equations of the layered-bubble scattering theory, including the boundary conditions that incorporate shell elasticity and viscoelasticity, are not stated. Without these, it is impossible to verify that the reported resonance frequencies are obtained without any post-hoc parameter adjustment.

    Authors: We agree that the explicit equations should be stated for full transparency. In the revised manuscript we will expand §3 with a dedicated subsection presenting the complete layered-bubble scattering model, including the radial displacement and stress continuity conditions at the air–shell and shell–air interfaces, the viscoelastic constitutive relation (complex Young’s modulus), and the resulting system of equations solved for the scattering coefficients. The model follows standard acoustic scattering theory for concentric spherical layers; all material parameters are taken from independent characterization and are not adjusted to fit the acoustic data. revision: yes

  2. Referee: [Experimental Methods] Experimental Methods: Raw impedance-tube spectra, error bars on the measured resonance frequencies and absorption values, and the precise numerical values of the elastomer Young's modulus and loss tangent employed in the model are absent. These omissions directly undermine the central claim of quantitative, parameter-free agreement.

    Authors: We acknowledge these omissions. The revised manuscript will include the raw impedance-tube transmission and absorption spectra in the supplementary information, add error bars (derived from repeated measurements) to all reported resonance frequencies and absorption values, and state the precise numerical values of the Young’s modulus (1.15 MPa) and loss tangent (0.04) used in the calculations. These values were obtained from separate tensile and DMA measurements on the same elastomer batch and were held fixed; no fitting to the acoustic spectra was performed. revision: yes

  3. Referee: [§4 (Results)] §4 (Results): No table or statistical metric (e.g., relative error or R²) is provided for the comparison between measured and predicted resonance frequencies across the fabricated samples; visual overlay alone is insufficient to substantiate the 'quantitative' assertion.

    Authors: We agree that a quantitative metric strengthens the claim. We will add a table in §4 that lists, for each fabricated sample, the measured resonance frequency (with uncertainty), the model prediction, the relative error, and an overall R² value for the frequency agreement across the set. This table will be accompanied by a brief discussion of the typical relative error (expected to be <5 %). revision: yes

Circularity Check

0 steps flagged

Minor self-citation to scattering theory; central result independent of fitted inputs

full rationale

The derivation compares impedance-tube measurements of resonance frequency, transmission dip, and absorption against predictions from the established theory of layered-bubble scattering, which incorporates shell elasticity and viscoelasticity. No resonance quantities are defined in terms of parameters fitted to the same dataset, and the no-adjustable-parameters claim rests on this external comparison rather than internal redefinition. A self-citation to the scattering theory exists but is not load-bearing for the main result, as the measurements provide independent validation. The paper is therefore self-contained against external benchmarks with only minor self-citation.

Axiom & Free-Parameter Ledger

0 free parameters · 1 axioms · 0 invented entities

The paper states that results are captured without adjustable parameters, so no free parameters are introduced. The model relies on the domain assumption that layered-bubble scattering theory extends directly to thin elastomer shells in air.

axioms (1)
  • domain assumption Layered-bubble scattering theory applies to air-filled elastomer shells with given elasticity and viscoelasticity
    Invoked to predict resonance frequency, transmission dip, and absorption from shell geometry and material properties.
