arxiv: 2604.04132 · v1 · submitted 2026-04-05 · 📡 eess.SP

Recognition: 2 theorem links

· Lean Theorem

Joint Shape-Position Optimization Enhanced 2D DOA Estimation in Movable Antenna Systems

Chengzhi Ye , Ruoyu Zhang , Lei Yao , Wen Wu
Authors on Pith no claims yet

Pith reviewed 2026-05-13 17:06 UTC · model grok-4.3

classification 📡 eess.SP
keywords movable antenna2D DOA estimationCramér-Rao boundshape optimizationposition optimizationarray geometrywireless sensing
0
0 comments X

The pith

Optimizing movable antenna positions within an equilateral triangular region minimizes the Cramér-Rao bound for two-dimensional direction-of-arrival estimation.

A machine-rendered reading of the paper's core claim, the machinery that carries it, and where it could break.

This paper develops a joint optimization approach for the shape of the movable region and the positions of antennas in movable antenna systems to improve 2D DOA estimation. By proving that an equilateral triangle minimizes the overlap area under spacing constraints, the method uses symmetry to simplify the non-convex optimization of the Cramér-Rao Bound. Optimal positions are selected as those farthest from the region's center. This leads to substantially better estimation performance in adaptive wireless sensing setups. Readers interested in wireless technology would care because it shows how physical reconfiguration of antennas can outperform fixed arrays in accuracy.

Core claim

The authors establish that configuring the movable region as an equilateral triangle and placing the antennas at locations farthest from the centroid allows effective minimization of the CRB for 2D DOA estimation, thereby enhancing performance through structural symmetry and reduced optimization complexity.

What carries the argument

The equilateral triangular movable region (MR), which minimizes overlap area and enables symmetry-based simplification of geometric constraints in the CRB minimization problem.

If this is right

  • Improved accuracy in estimating the direction of incoming signals in two dimensions.
  • Lower computational complexity for solving the antenna placement optimization.
  • Enhanced utilization of the available space for antenna movement.
  • Potential for better performance in real-world wireless communication and sensing applications.

Where Pith is reading between the lines

These are editorial extensions of the paper, not claims the author makes directly.

  • Similar geometric optimizations could apply to three-dimensional DOA estimation or other array-based sensing tasks.
  • The approach might integrate with machine learning for dynamic region shape adjustment based on channel conditions.
  • Testing in hardware prototypes could validate the gains beyond simulations.

Load-bearing premise

An equilateral triangle yields the minimum overlap area for the movable region under minimum antenna spacing constraints.

What would settle it

Experimental results showing that a non-triangular shape achieves a lower CRB than the proposed equilateral triangle configuration would falsify the central simplification.

Figures

Figures reproduced from arXiv: 2604.04132 by Chengzhi Ye, Lei Yao, Ruoyu Zhang, Wen Wu.

Figure 1
Figure 1. Figure 1: (a) Schematic illustration for the proof of Theorem [PITH_FULL_IMAGE:figures/full_fig_p002_1.png] view at source ↗

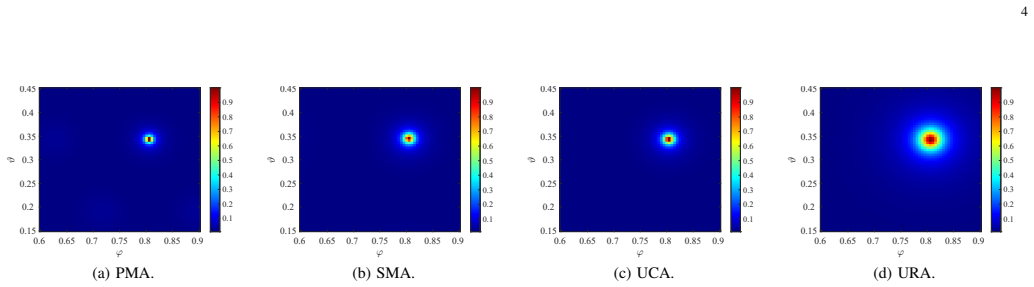

Figure 2
Figure 2. Figure 2: Power spectrum function versus 𝜗 and 𝜑 for different arrays. -10 -5 0 5 10 15 20 SNR(dB) 10-3 10-2 10-1 R M S E(#) PMA SMA UCA URA CRB-PMA CRB-SMA CRB-UCA CRB-URA [PITH_FULL_IMAGE:figures/full_fig_p004_2.png] view at source ↗

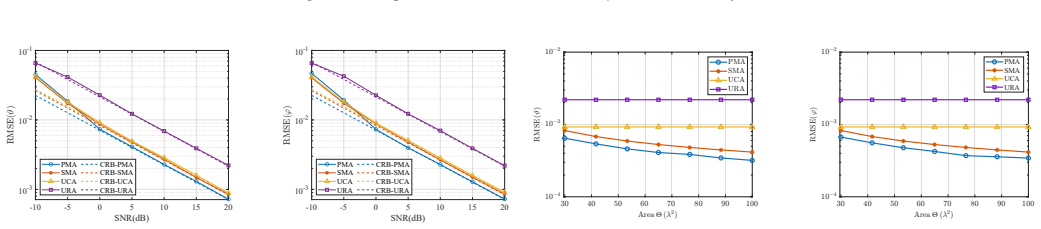

Figure 7
Figure 7. Figure 7: RMSE(𝜗) versus Θ. 30 40 50 60 70 80 90 100 Area Θ (6 2) 10!4 10!3 10!2 RMSE( ') PMA SMA UCA URA [PITH_FULL_IMAGE:figures/full_fig_p004_7.png] view at source ↗
Figure 5
Figure 5. Figure 5: PSR versus 𝛿𝜃 . /? (deg) 0 2 4 6 8 10 P S R 0 0.2 0.4 0.6 0.8 1 PMA SMA UCA URA [PITH_FULL_IMAGE:figures/full_fig_p004_5.png] view at source ↗
read the original abstract

Movable Antenna (MA) technology is emerging as a promising advancement with the potential to significantly enhance the performance of future wireless communication and sensing systems. In this paper, we address two-dimensional (2D) direction of arrival (DOA) estimation via joint shape-position optimization. Specifically, we formulate an optimization problem aimed at minimizing the Cram\'er-Rao Bound (CRB) based on a 2D DOA estimation model for MA systems. To tackle the highly non-convex nature of this CRB minimization, we investigate the spatial utilization of the movable region (MR) under minimum antenna spacing constraints. By demonstrating that an equilateral triangle yields the minimum overlap area, we strategically design an equilateral triangular MR. This specific geometric configuration enables the exploitation of structural symmetry to simplify the geometric constraints, which effectively reduces the complexity of solving the optimization problem. Subsequently, we derive the optimal MA positions by selecting the candidate locations farthest from the centroid of MR. The results demonstrate that the proposed joint shape-position optimization substantially enhances 2D DOA estimation performance.

Editorial analysis

A structured set of objections, weighed in public.

Desk editor's note, referee report, simulated authors' rebuttal, and a circularity audit. Tearing a paper down is the easy half of reading it; the pith above is the substance, this is the friction.

Referee Report

2 major / 1 minor

Summary. The paper claims to solve the non-convex CRB minimization for 2D DOA estimation in movable antenna systems by designing an equilateral triangular movable region (MR) that minimizes overlap area under spacing constraints, using symmetry to simplify the problem, and selecting optimal positions as those farthest from the centroid, resulting in substantially enhanced estimation performance.

Significance. Should the geometric assumption hold and the optimization deliver the claimed gains, this work would offer a novel, low-complexity approach to improving DOA estimation via MA shape and position control, with potential applications in radar and wireless sensing. The emphasis on structural symmetry for tractability is a positive aspect.

major comments (2)
  1. [Abstract / Geometric Design Section] Abstract / Geometric Design Section: The key claim that 'an equilateral triangle yields the minimum overlap area' under minimum antenna spacing constraints is load-bearing for the simplification and performance improvement. This needs explicit proof or comparative analysis showing it outperforms other shapes (e.g., square MR) in terms of the resulting CRB, as a different shape might yield lower CRB despite larger overlap.
  2. [Optimization Procedure] Optimization Procedure: The step of selecting candidate locations farthest from the centroid to derive optimal MA positions assumes this yields the global minimizer of the 2D CRB. This requires validation that the rule is not merely locally optimal once the full array manifold and 2D angle parameterization are considered.
minor comments (1)
  1. Ensure all figures clearly label the MR shapes and position selections for reproducibility.

Simulated Author's Rebuttal

2 responses · 0 unresolved

We thank the referee for the constructive comments. We address each major comment below and indicate planned revisions to strengthen the manuscript.

read point-by-point responses

  1. Referee: [Abstract / Geometric Design Section] Abstract / Geometric Design Section: The key claim that 'an equilateral triangle yields the minimum overlap area' under minimum antenna spacing constraints is load-bearing for the simplification and performance improvement. This needs explicit proof or comparative analysis showing it outperforms other shapes (e.g., square MR) in terms of the resulting CRB, as a different shape might yield lower CRB despite larger overlap.

    Authors: We thank the referee for this observation. The manuscript demonstrates the minimum overlap area property for the equilateral triangle via geometric packing arguments under the minimum spacing constraints, which then enables symmetry-based simplification. To address the request for explicit validation, we will add a new subsection with comparative CRB analysis (including square and circular MRs) and a concise proof outline based on overlap area minimization, confirming the triangular shape yields the lowest CRB. revision: yes

  2. Referee: [Optimization Procedure] Optimization Procedure: The step of selecting candidate locations farthest from the centroid to derive optimal MA positions assumes this yields the global minimizer of the 2D CRB. This requires validation that the rule is not merely locally optimal once the full array manifold and 2D angle parameterization are considered.

    Authors: We agree that additional validation strengthens the claim. The farthest-from-centroid rule follows directly from the equilateral triangular symmetry, which maximizes spatial spread in the 2D array manifold. In the revision we will include Monte Carlo comparisons against random and grid-based selections across multiple 2D angle grids, plus a small-scale exhaustive search benchmark, to show consistent achievement of the global CRB minimum. revision: yes

Circularity Check

0 steps flagged

No significant circularity; derivation relies on independent geometric demonstration and standard CRB

full rationale

The paper formulates a non-convex CRB minimization for 2D DOA in MA systems, then claims to demonstrate that an equilateral triangle minimizes overlap area under minimum-spacing constraints. This geometric choice enables symmetry-based simplification of constraints, after which optimal positions are selected as farthest-from-centroid candidates. These steps use the standard CRB expression and a claimed independent geometric property rather than defining the target performance via fitted parameters, self-referential equations, or load-bearing self-citations. No quoted reduction shows the final performance gain as equivalent to the inputs by construction; the approach remains self-contained against external benchmarks.

Axiom & Free-Parameter Ledger

0 free parameters · 1 axioms · 0 invented entities

Central claim rests on standard 2D DOA signal model, CRB derivation, and the geometric claim about equilateral triangle overlap; no free parameters or invented entities are explicitly introduced in the abstract.

axioms (1)
  • domain assumption Minimum antenna spacing constraints must be satisfied within the movable region
    Invoked to justify the triangular shape choice and position selection

pith-pipeline@v0.9.0 · 5490 in / 1077 out tokens · 27902 ms · 2026-05-13T17:06:19.956191+00:00 · methodology

discussion (0)

Sign in with ORCID, Apple, or X to comment. Anyone can read and Pith papers without signing in.

Lean theorems connected to this paper

Citations machine-checked in the Pith Canon. Every link opens the source theorem in the public Lean library.

What do these tags mean?
matches
The paper's claim is directly supported by a theorem in the formal canon.
supports
The theorem supports part of the paper's argument, but the paper may add assumptions or extra steps.
extends
The paper goes beyond the formal theorem; the theorem is a base layer rather than the whole result.
uses
The paper appears to rely on the theorem as machinery.
contradicts
The paper's claim conflicts with a theorem or certificate in the canon.
unclear
Pith found a possible connection, but the passage is too broad, indirect, or ambiguous to say the theorem truly supports the claim.

Reference graph

Works this paper leans on

12 extracted references · 12 canonical work pages

  1. [1]

    Integrated sensing and communication waveform design: A survey,

    W. Zhou, R. Zhang, G. Chen, and W. Wu, “Integrated sensing and communication waveform design: A survey,”IEEE open j. Commun. Soc., vol. 3, pp. 1930–1949, 2022

    work page 1930

  2. [2]

    Movable antenna- aided near-field integrated sensing and communication,

    J. Ding, Z. Zhou, X. Shao, B. Jiao, and R. Zhang, “Movable antenna- aided near-field integrated sensing and communication,”IEEE Trans. Wireless Commun., pp. 1–1, 2025

    work page 2025

  3. [3]

    Direction-of-arrival estimation for large antenna arrays with hybrid analog and digital architectures,

    R. Zhang, B. Shim, and W. Wu, “Direction-of-arrival estimation for large antenna arrays with hybrid analog and digital architectures,”IEEE Trans. Signal Process., vol. 70, pp. 72–88, 2022

    work page 2022

  4. [4]

    Fast 2D-DOA estimation for polarized massive MIMO systems with irregularly spaced sensors,

    F. Wen, X. Li, S. Dang, D. Benevides da Costa, A. Nallanathan, and C. Yuen, “Fast 2D-DOA estimation for polarized massive MIMO systems with irregularly spaced sensors,”IEEE Trans. Commun., vol. 73, no. 11, pp. 11 964–11 977, 2025

    work page 2025

  5. [5]

    Robust DOA estimation for movable antenna arrays with partial gain and phase errors,

    C. Ye, R. Zhang, C. Hu, L. Yao, W. Wu, and C. Yuen, “Robust DOA estimation for movable antenna arrays with partial gain and phase errors,”IEEE Wireless Commun. Lett., pp. 1–1, 2025

    work page 2025

  6. [6]

    Movable antenna-enabled mimo integrated sensing and communication: A unified mutual information framework,

    G. Chen, R. Zhang, X. Guan, Q. Wu, B. Ning, Y . Zhang, W. Wu, and R. Zhang, “Movable antenna-enabled mimo integrated sensing and communication: A unified mutual information framework,”IEEE Trans. Wireless Commun., vol. 25, pp. 14 440–14 454, 2026

    work page 2026

  7. [7]

    Joint movable-antenna position and sensor angle optimization for wireless sensor networks,

    Z. Shang, G. Hu, Q. Wu, and K. Xu, “Joint movable-antenna position and sensor angle optimization for wireless sensor networks,”IEEE Trans. Veh. Technol., pp. 1–6, 2026

    work page 2026

  8. [8]

    Movable antenna enhanced wireless sensing via antenna position optimization,

    W. Ma, L. Zhu, and R. Zhang, “Movable antenna enhanced wireless sensing via antenna position optimization,”IEEE Trans. Wireless Com- mun., vol. 23, no. 11, pp. 16 575–16 589, 2024

    work page 2024

  9. [9]

    Channel estimation for movable-antenna MIMO systems via tensor decomposition,

    R. Zhang, L. Cheng, W. Zhang, X. Guan, Y . Cai, W. Wu, and R. Zhang, “Channel estimation for movable-antenna MIMO systems via tensor decomposition,”IEEE Wireless Commun. Lett., vol. 13, no. 11, pp. 3089–3093, 2024

    work page 2024

  10. [10]

    Exploiting six-dimensional mov- able antenna for wireless sensing,

    X. Shao, R. Zhang, and R. Schober, “Exploiting six-dimensional mov- able antenna for wireless sensing,”IEEE Wireless Commun. Lett., vol. 14, no. 2, pp. 265–269, 2025

    work page 2025

  11. [11]

    Movable-antenna enhanced multiuser communication via antenna position optimization,

    L. Zhu, W. Ma, B. Ning, and R. Zhang, “Movable-antenna enhanced multiuser communication via antenna position optimization,”IEEE Trans. Wireless Commun., vol. 23, no. 7, pp. 7214–7229, 2024

    work page 2024

  12. [12]

    S. M. Kay,Fundamentals of statistical signal processing. Prentice Hall PTR, 1993

    work page 1993
