MPC and System Identification with Differentiable Physics: Fluid System and Particle Beam Control

Alan Williams , Alp Sunol
Authors on Pith no claims yet

Pith reviewed 2026-05-10 20:21 UTC · model grok-4.3

classification 🧮 math.OC
keywords model predictive controldifferentiable physicssystem identificationreceding horizonautomatic differentiationfluid flow controlparticle acceleratoronline parameter estimation
0
0 comments X

The pith

Differentiable physics simulators enable joint optimization of control inputs and model parameters in receding-horizon MPC.

A machine-rendered reading of the paper's core claim, the machinery that carries it, and where it could break.

The paper proposes using a differentiable physics simulator to perform both model predictive control and system identification at the same time. Gradients are computed by differentiating through the simulation to optimize control actions over a future horizon, while measurements update the physical parameters in the model. This matters because many complex systems lack simple mathematical equations but can be simulated, allowing controllers to adapt their models online for improved accuracy without separate estimation steps. A shared model supports real-time joint optimization for applications like fluid flows and particle beams.

Core claim

We consider the problem of simultaneous control and parameter estimation when the model is available only as a differentiable physics simulator. We propose a receding-horizon control framework in which a model predictive control (MPC) objective is optimized using gradients obtained by differentiating through the simulator, while physical parameters are updated online using measurement data. Unlike classical MPC, which relies on explicit algebraic models, our approach treats the dynamics as a computational object and performs simulation-based optimization using automatic differentiation. A shared differentiable model enables joint, real-time optimization of control inputs and physical params.

What carries the argument

The differentiable physics simulator, which supplies gradients for both receding-horizon control optimization and online parameter updates from measurements.

If this is right

  • Control inputs and physical parameters can be refined together in a single real-time loop.
  • Systems whose dynamics are known only through simulation rather than closed-form equations become controllable with online adaptation.
  • Parameter estimates improve the predictive model continuously during operation.
  • The same framework applies to both fluid-flow regulation and particle-beam steering as shown in the examples.

Where Pith is reading between the lines

These are editorial extensions of the paper, not claims the author makes directly.

  • The approach could transfer to other simulator-based domains such as robotics or chemical processes where explicit models are unavailable.
  • High-fidelity simulators might reduce the need for separate offline identification tests by learning parameters during control.
  • If simulation cost grows with horizon length, approximations or reduced-order models would be needed to keep the method tractable.

Load-bearing premise

The simulator must supply gradients that stay reliable and fast enough to use inside repeated real-time optimization loops.

What would settle it

In a physical test on the fluid or particle-beam system, the closed-loop tracking error with this method fails to improve over a fixed-parameter MPC baseline, or the estimated parameters do not move toward known correct values.

Figures

Figures reproduced from arXiv: 2604.04327 by Alan Williams, Alp Sunol.

Figure 1
Figure 1. Figure 1: Control and estimation with a shared differentiable model, with rollout constraints enforced in each of the three optimizations. [PITH_FULL_IMAGE:figures/full_fig_p003_1.png] view at source ↗
Figure 2

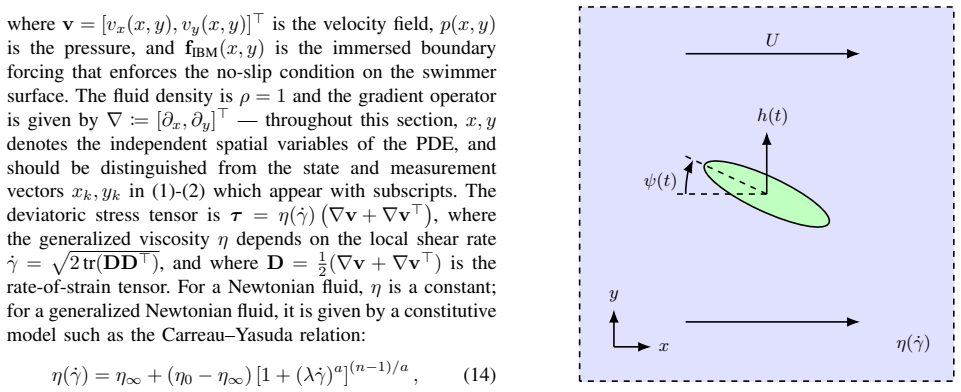

Figure 2. Figure 2: The elliptical foil in a background flow [PITH_FULL_IMAGE:figures/full_fig_p004_2.png] view at source ↗
Figure 3

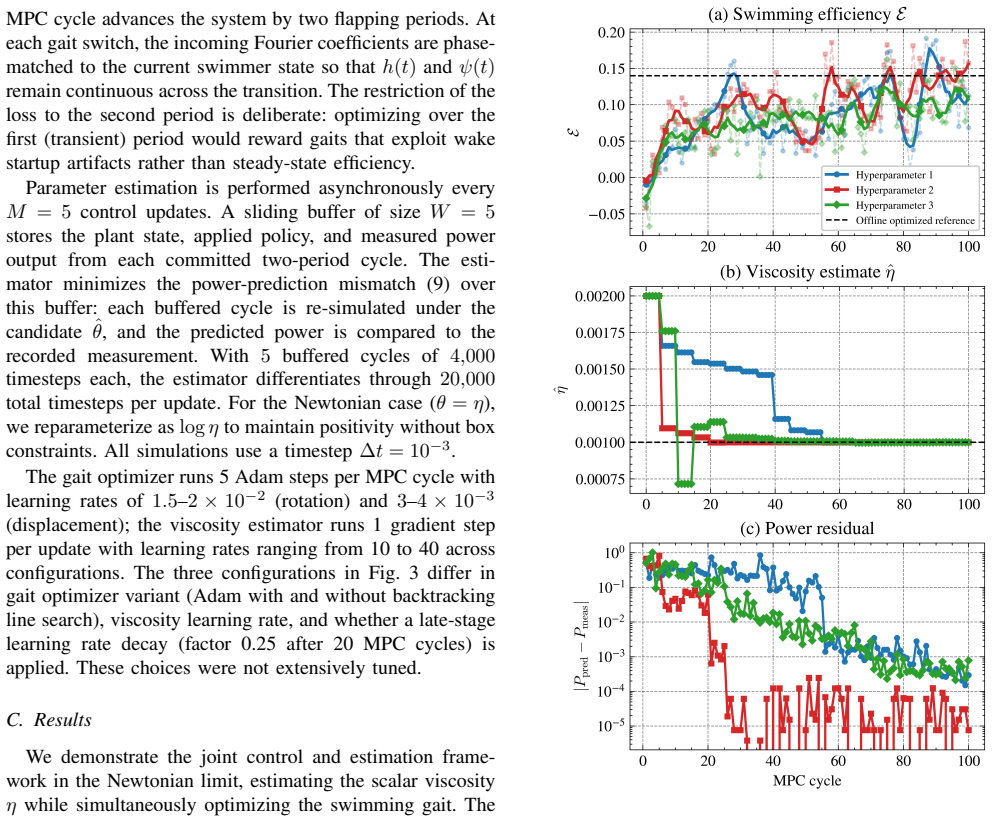

Figure 3. Figure 3: Joint MPC gait optimization and viscosity estimation at [PITH_FULL_IMAGE:figures/full_fig_p005_3.png] view at source ↗
Figure 4

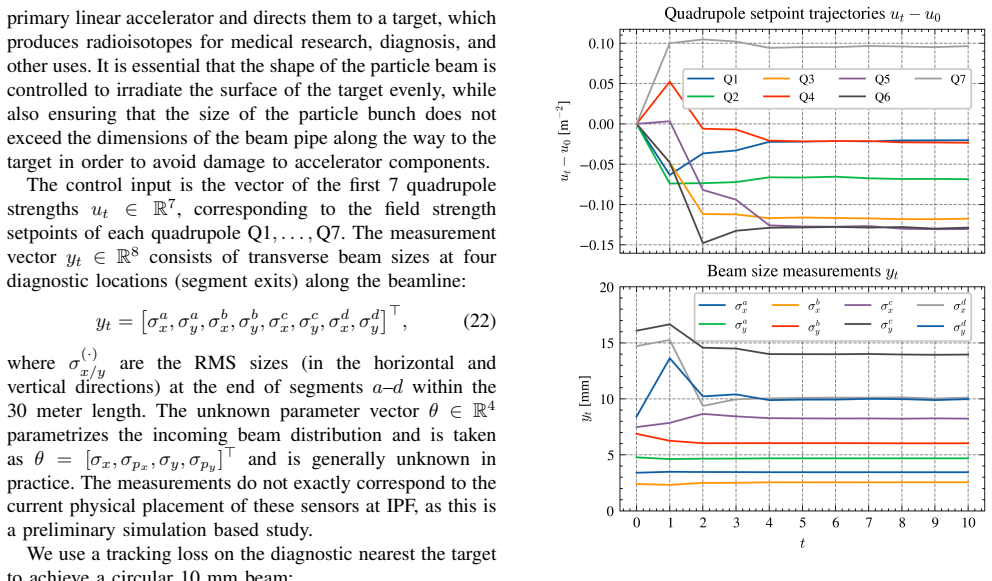

Figure 4. Figure 4: Quadrupole setpoint values (top) and beam size measurements [PITH_FULL_IMAGE:figures/full_fig_p007_4.png] view at source ↗
Figure 5

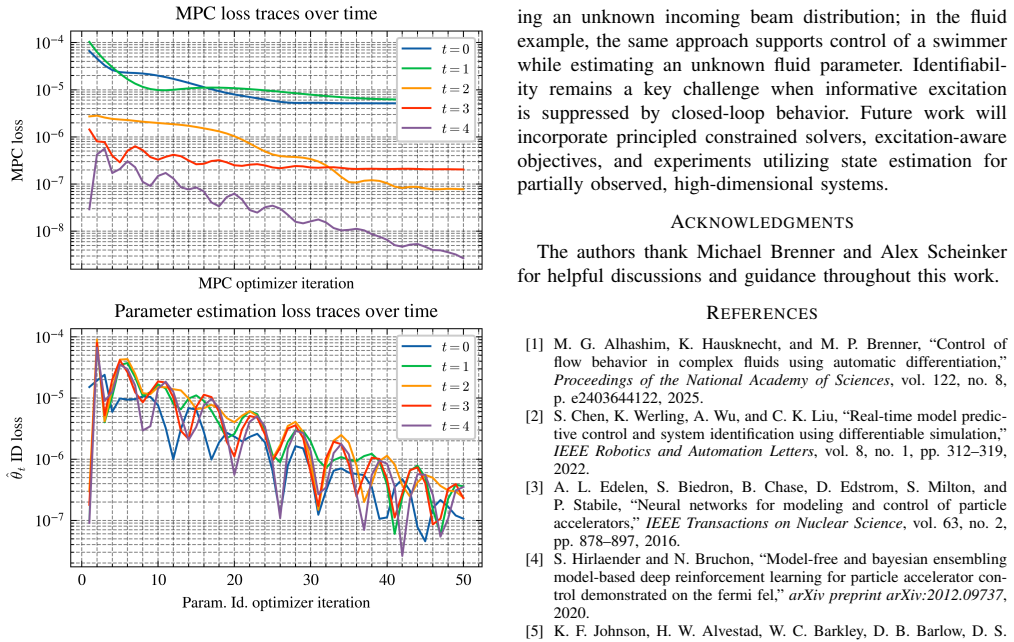

Figure 5. Figure 5: Loss curves of (23) for the MPC optimization problem (20) (top) [PITH_FULL_IMAGE:figures/full_fig_p008_5.png] view at source ↗
read the original abstract

We consider the problem of simultaneous control and parameter estimation when the model is available only as a differentiable physics simulator. We propose a receding-horizon control framework in which a model predictive control (MPC) objective is optimized using gradients obtained by differentiating through the simulator, while physical parameters are updated online using measurement data. Unlike classical MPC, which relies on explicit algebraic models, our approach treats the dynamics as a computational object and performs simulation-based optimization using automatic differentiation. A shared differentiable model enables joint, real-time optimization of control inputs and physical parameters. We present two preliminary examples to demonstrate the proposed framework on two challenging applications: a fluid flow problem and a particle accelerator.

Editorial analysis

A structured set of objections, weighed in public.

Desk editor's note, referee report, simulated authors' rebuttal, and a circularity audit. Tearing a paper down is the easy half of reading it; the pith above is the substance, this is the friction.

Referee Report

3 major / 2 minor

Summary. The manuscript proposes a receding-horizon MPC framework in which control inputs are optimized by differentiating an objective through a black-box differentiable physics simulator, while physical parameters are updated online from measurement data. The shared simulator enables joint real-time optimization of controls and parameters. Two preliminary examples (fluid flow and particle beam control) are presented to illustrate feasibility.

Significance. If the approach can be made computationally tractable with reliable gradients, it offers a route to control and identification in systems where explicit algebraic models are unavailable. The idea of treating the simulator as a computational object for automatic-differentiation-based MPC is potentially useful for complex physics applications, but the current preliminary examples supply no quantitative metrics, baselines, or runtime data to establish practical impact.

major comments (3)
  1. [Abstract] Abstract: the central claim of 'joint, real-time optimization of control inputs and physical parameters' is stated without any formulation of the MPC objective, the differentiation step, or the parameter-update law, so the reader cannot assess whether the method is well-posed or novel.
  2. [Examples] Preliminary examples: no performance metrics, ablation studies, comparison against classical MPC or separate identification methods, or analysis of gradient reliability are supplied for either the fluid-flow or particle-beam case, leaving the feasibility demonstration unsupported.
  3. [Proposed framework] Framework description: the manuscript provides no convergence analysis for the online parameter estimator, no stability or recursive-feasibility guarantees for the receding-horizon controller under parameter updates, and no discussion of computational cost, all of which are load-bearing for the real-time claim.
minor comments (2)
  1. The title mentions 'Fluid System and Particle Beam Control' but the abstract uses 'particle accelerator'; consistent terminology would improve clarity.
  2. [Introduction] The assumption that simulator gradients remain reliable and tractable for receding-horizon use is stated but not quantified; a brief complexity or conditioning discussion would help.

Simulated Author's Rebuttal

3 responses · 2 unresolved

We thank the referee for the constructive and detailed feedback on our manuscript. We address each major comment point by point below, indicating planned revisions where appropriate.

read point-by-point responses

  1. Referee: [Abstract] Abstract: the central claim of 'joint, real-time optimization of control inputs and physical parameters' is stated without any formulation of the MPC objective, the differentiation step, or the parameter-update law, so the reader cannot assess whether the method is well-posed or novel.

    Authors: We agree that the abstract would benefit from greater specificity. In the revised version we will include a concise statement of the MPC objective, the automatic-differentiation step through the simulator, and the measurement-driven parameter-update law. This addition will allow readers to evaluate the well-posedness and novelty of the approach without altering the high-level nature of the abstract. revision: yes

  2. Referee: [Examples] Preliminary examples: no performance metrics, ablation studies, comparison against classical MPC or separate identification methods, or analysis of gradient reliability are supplied for either the fluid-flow or particle-beam case, leaving the feasibility demonstration unsupported.

    Authors: The examples are presented as preliminary feasibility demonstrations on two challenging applications. We acknowledge the lack of quantitative metrics and comparisons in the current text. In the revision we will augment both examples with control-error and parameter-estimation metrics, a comparison against non-adaptive MPC, and observations on gradient reliability obtained during the reported simulations. Full ablation studies remain computationally intensive and will be addressed only partially. revision: partial

  3. Referee: [Proposed framework] Framework description: the manuscript provides no convergence analysis for the online parameter estimator, no stability or recursive-feasibility guarantees for the receding-horizon controller under parameter updates, and no discussion of computational cost, all of which are load-bearing for the real-time claim.

    Authors: The manuscript emphasizes the formulation of the joint optimization framework and its demonstration on complex physics simulators rather than theoretical guarantees. We will add a discussion of observed computational costs drawn from the two examples. However, a full convergence analysis of the estimator and stability or recursive-feasibility proofs for the controller lie outside the scope of the present work. revision: partial

standing simulated objections not resolved
  • Convergence analysis for the online parameter estimator
  • Stability or recursive-feasibility guarantees for the receding-horizon controller under parameter updates

Circularity Check

0 steps flagged

No significant circularity; proposal relies on external data and assumed simulator

full rationale

The manuscript proposes a receding-horizon MPC framework that optimizes control inputs via automatic differentiation through a given differentiable physics simulator while updating physical parameters from external measurement data. No derivation chain, equation, or claim reduces by construction to a fitted quantity defined by the method itself, nor does any load-bearing step rest on a self-citation whose content is unverified or circular. The two examples are presented only as preliminary illustrations of feasibility; the differentiability and tractability assumptions are stated explicitly as prerequisites rather than proven or derived internally. The approach is therefore self-contained against external benchmarks and measurement inputs.

Axiom & Free-Parameter Ledger

0 free parameters · 2 axioms · 0 invented entities

The central claim rests on the existence of a differentiable physics simulator and the feasibility of real-time gradient computation and parameter updates from measurements.

axioms (2)
  • domain assumption The physics simulator is differentiable with respect to states, controls, and parameters.
    Automatic differentiation through the simulator is required to obtain gradients for the MPC objective and parameter updates.
  • domain assumption Online parameter updates from measurements can be performed stably within the receding-horizon loop without destabilizing the control.
    The framework assumes joint real-time optimization remains tractable and convergent.

pith-pipeline@v0.9.0 · 5402 in / 1300 out tokens · 40659 ms · 2026-05-10T20:21:41.411706+00:00 · methodology

discussion (0)

Sign in with ORCID, Apple, or X to comment. Anyone can read and Pith papers without signing in.

Reference graph

Works this paper leans on

15 extracted references · 5 canonical work pages · 1 internal anchor

  1. [1]

    Control of flow behavior in complex fluids using automatic differentiation,

    M. G. Alhashim, K. Hausknecht, and M. P. Brenner, “Control of flow behavior in complex fluids using automatic differentiation,” Proceedings of the National Academy of Sciences, vol. 122, no. 8, p. e2403644122, 2025

    2025

  2. [2]

    Real-time model predic- tive control and system identification using differentiable simulation,

    S. Chen, K. Werling, A. Wu, and C. K. Liu, “Real-time model predic- tive control and system identification using differentiable simulation,” IEEE Robotics and Automation Letters, vol. 8, no. 1, pp. 312–319, 2022

    2022

  3. [3]

    Neural networks for modeling and control of particle accelerators,

    A. L. Edelen, S. Biedron, B. Chase, D. Edstrom, S. Milton, and P. Stabile, “Neural networks for modeling and control of particle accelerators,”IEEE Transactions on Nuclear Science, vol. 63, no. 2, pp. 878–897, 2016

    2016

  4. [4]

    Model-free and bayesian ensembling model-based deep reinforcement learning for particle accelerator con- trol demonstrated on the fermi fel,

    S. Hirlaender and N. Bruchon, “Model-free and bayesian ensembling model-based deep reinforcement learning for particle accelerator con- trol demonstrated on the fermi fel,”arXiv preprint arXiv:2012.09737, 2020

    work page arXiv 2012

  5. [5]

    Commissioning and initial operation of the isotope production facility at the los alamos neutron science center (lansce)

    K. F. Johnson, H. W. Alvestad, W. C. Barkley, D. B. Barlow, D. S. Barr, L. S. Bennett, L. J. Bitteker, E. A. Bjorklund, W. Boedeker, M. J. Bordenet al., “Commissioning and initial operation of the isotope production facility at the los alamos neutron science center (lansce).” Los Alamos National Laboratory, 01 2004. [Online]. Available: https://www.osti.g...

    2004

  6. [6]

    Bridging the gap between machine learning and particle accelerator physics with high-speed, differentiable simulations,

    J. Kaiser, C. Xu, A. Eichler, and A. Santamaria Garcia, “Bridging the gap between machine learning and particle accelerator physics with high-speed, differentiable simulations,”Phys. Rev. Accel. Beams, vol. 27, p. 054601, May 2024. [Online]. Available: https://link.aps.org/doi/10.1103/PhysRevAccelBeams.27.054601

    work page doi:10.1103/physrevaccelbeams.27.054601 2024

  7. [7]

    Adam: A Method for Stochastic Optimization

    D. P. Kingma and J. Ba, “Adam: A method for stochastic optimiza- tion,”arXiv preprint arXiv:1412.6980, 2014

    work page internal anchor Pith review Pith/arXiv arXiv 2014

  8. [8]

    arXiv preprint arXiv:2512.21109 , year=

    C. Liang and D. Rakita, “Robust and efficient mujoco-based model predictive control via web of affine spaces derivatives,”arXiv preprint arXiv:2512.21109, 2025

    work page arXiv 2025

  9. [9]

    A review of differentiable simulators,

    R. Newbury, J. Collins, K. He, J. Pan, I. Posner, D. Howard, and A. Cosgun, “A review of differentiable simulators,”IEEE Access, 2024

    2024

  10. [10]

    Model-independent particle accelerator tuning,

    A. Scheinker, X. Pang, and L. Rybarcyk, “Model-independent particle accelerator tuning,”Physical Review Special Topics—Accelerators and Beams, vol. 16, no. 10, p. 102803, 2013

    2013

  11. [11]

    Accelerating linear beam dynamics simulations for machine learning applications,

    O. Stein, J. Kaiser, and A. Eichler, “Accelerating linear beam dynamics simulations for machine learning applications,” inProceedings of the 13th International Particle Accelerator Conference, 2022

    2022

  12. [12]

    Learning constitutive models and rheology from partial flow measurements,

    A. M. Sunol, J. V . Roggeveen, M. G. Alhashim, H. S. Bae, and M. P. Brenner, “Learning constitutive models and rheology from partial flow measurements,”arXiv preprint arXiv:2510.24673, 2025

    work page arXiv 2025

  13. [13]

    Adjoint-based model predictive control of wind farms: Beyond the quasi steady-state power maximization,

    M. Vali, V . Petrovi´c, S. Boersma, J.-W. van Wingerden, and M. K ¨uhn, “Adjoint-based model predictive control of wind farms: Beyond the quasi steady-state power maximization,”IF AC-PapersOnLine, vol. 50, no. 1, pp. 4510–4515, 2017

    2017

  14. [14]

    Adjoint optimisation for wind farm flow control with a free-vortex wake model,

    M. J. van den Broek, D. De Tavernier, B. Sanderse, and J.-W. van Wingerden, “Adjoint optimisation for wind farm flow control with a free-vortex wake model,”Renewable Energy, vol. 201, pp. 752–765, 2022

    2022

  15. [15]

    Experimental safe extremum seeking for accelerators,

    A. Williams, A. Scheinker, E.-C. Huang, C. Taylor, and M. Krstic, “Experimental safe extremum seeking for accelerators,”IEEE Trans- actions on Control Systems Technology, vol. 32, no. 5, pp. 1881–1890, 2024

    2024
